Description

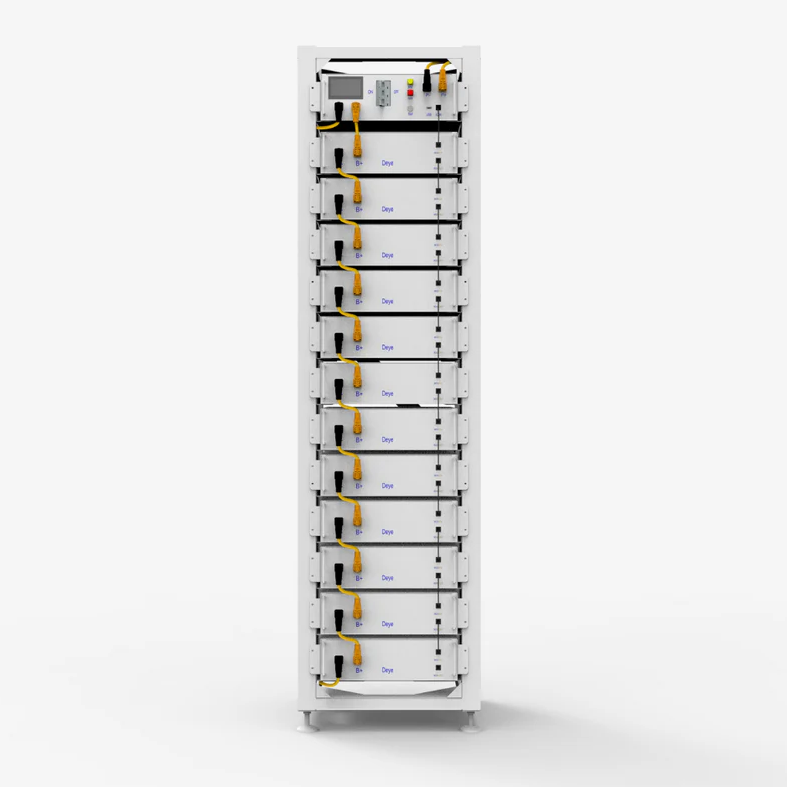

The 13-Layer Rack provides an organised enclosure for modular high-voltage LiFePO4 battery systems used in commercial, industrial and large residential storage installations. Its standard 19-inch rack format supports orderly battery-module integration, system protection and efficient installation.
Key Features
- Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system
- Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation
- Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations
- Fast installation: Standard 19-inch rack design allows easy integration into data center or industrial environments
- Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations
- Environmentally friendly: Completely free of toxic substances and built from recyclable materials
Specifications
- Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
- Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation.
- Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.
- Fast installation: Standard 19-inch rack design allows easy integration into data center or industrial environments.
- Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations.
- Environmentally friendly: Completely free of toxic substances and built from recyclable materials.

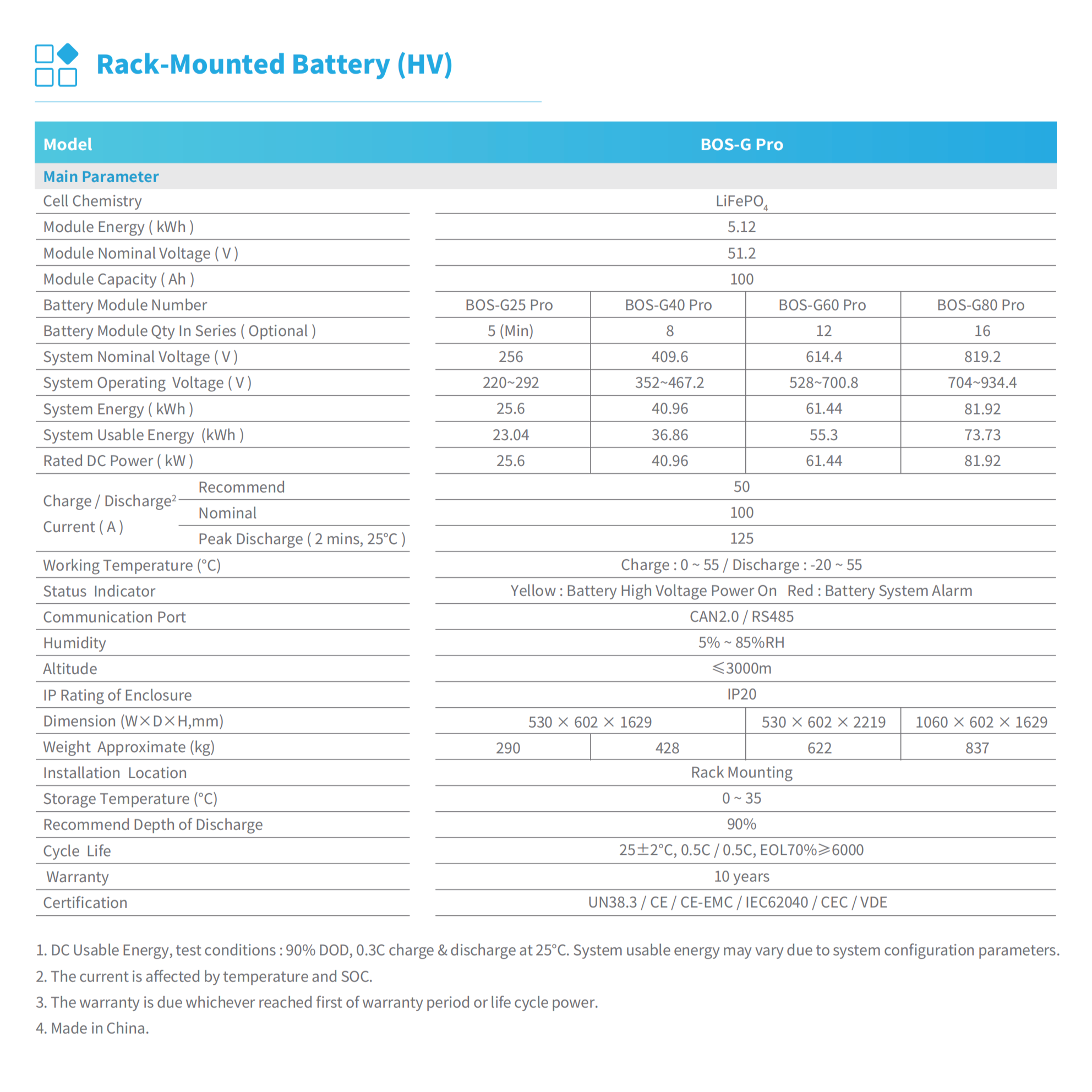

- System capacity: Max 61.44 kWh (12 × 5.12kWh modules)
- Nominal system voltage: 614.4 V(12 × 51.2V modules)
- Usable energy: ~55.3 kWh (at 90% DoD)
- Dimensions (W × H × D): 530 × 602 × 2219 mm
- Weight: approx. 622 kg (including batteries)
- Ingress protection: IP20
- Communication: CAN2.0 / RS485
- Recommended depth of discharge (DoD): 90%
- Certifications: UN38.3, CE, CE-EMC, IEC62040, VDE, etc.

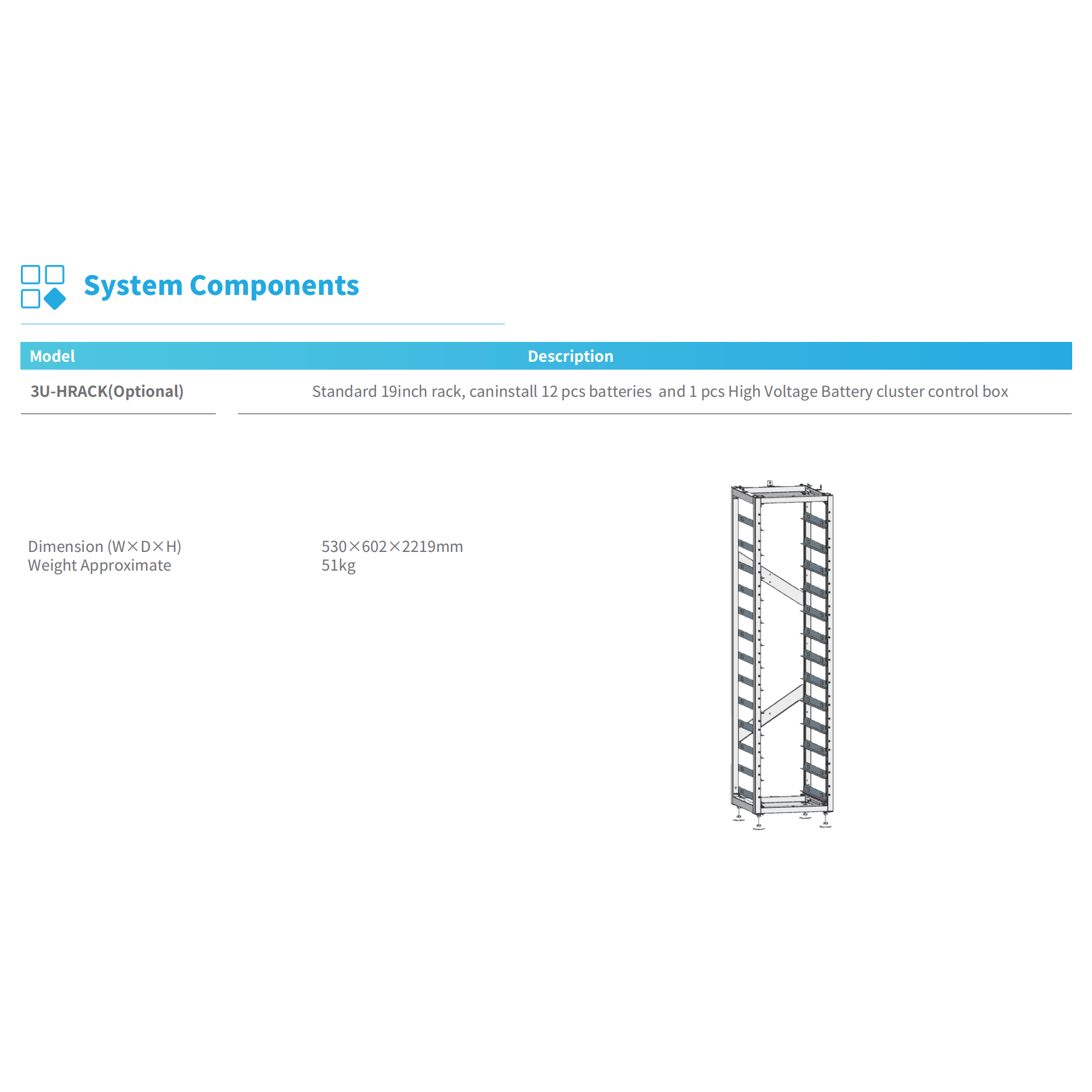

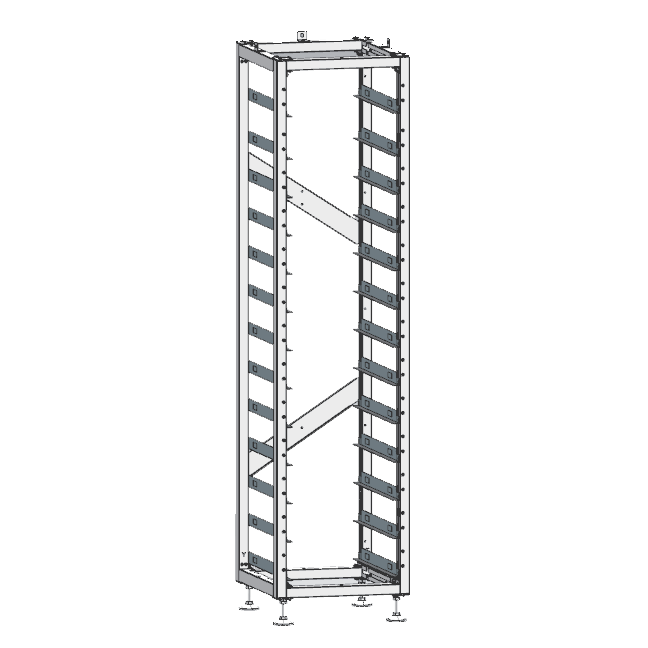

- 3U-HRACK:
- Dimension (W×D×H): 530×602×2219mm
- Weight Approximate: 51kg
