Description
Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.

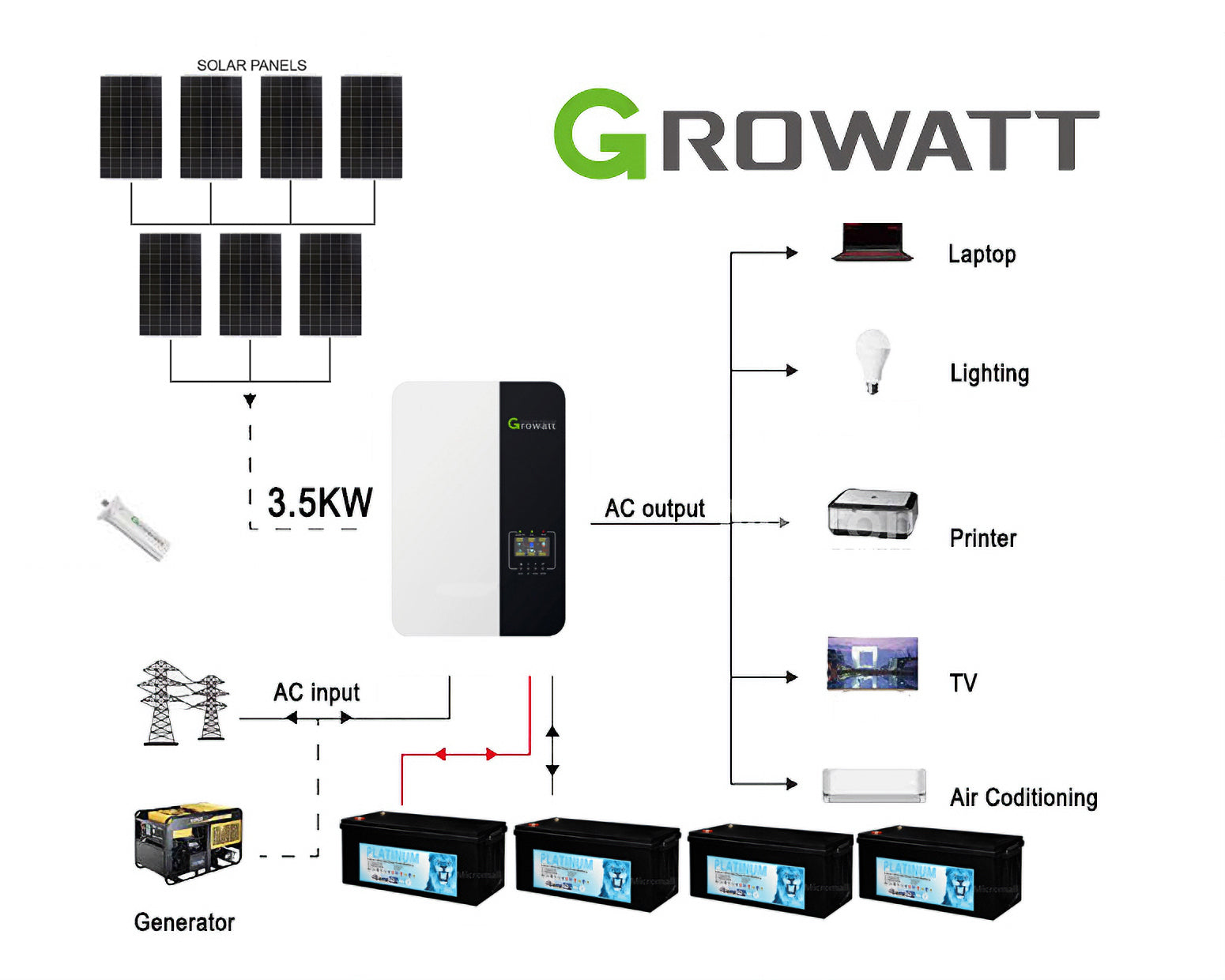

Package includes:

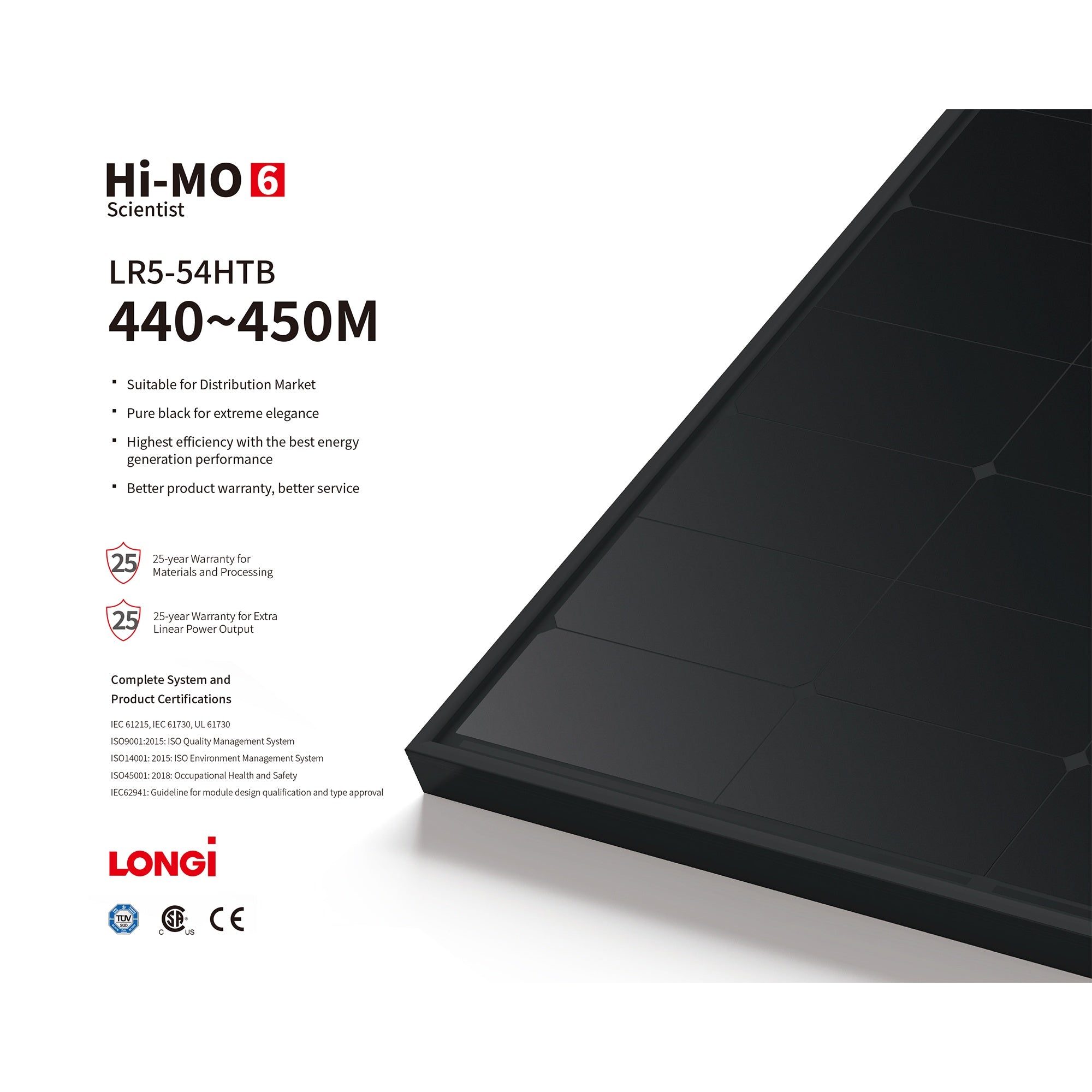

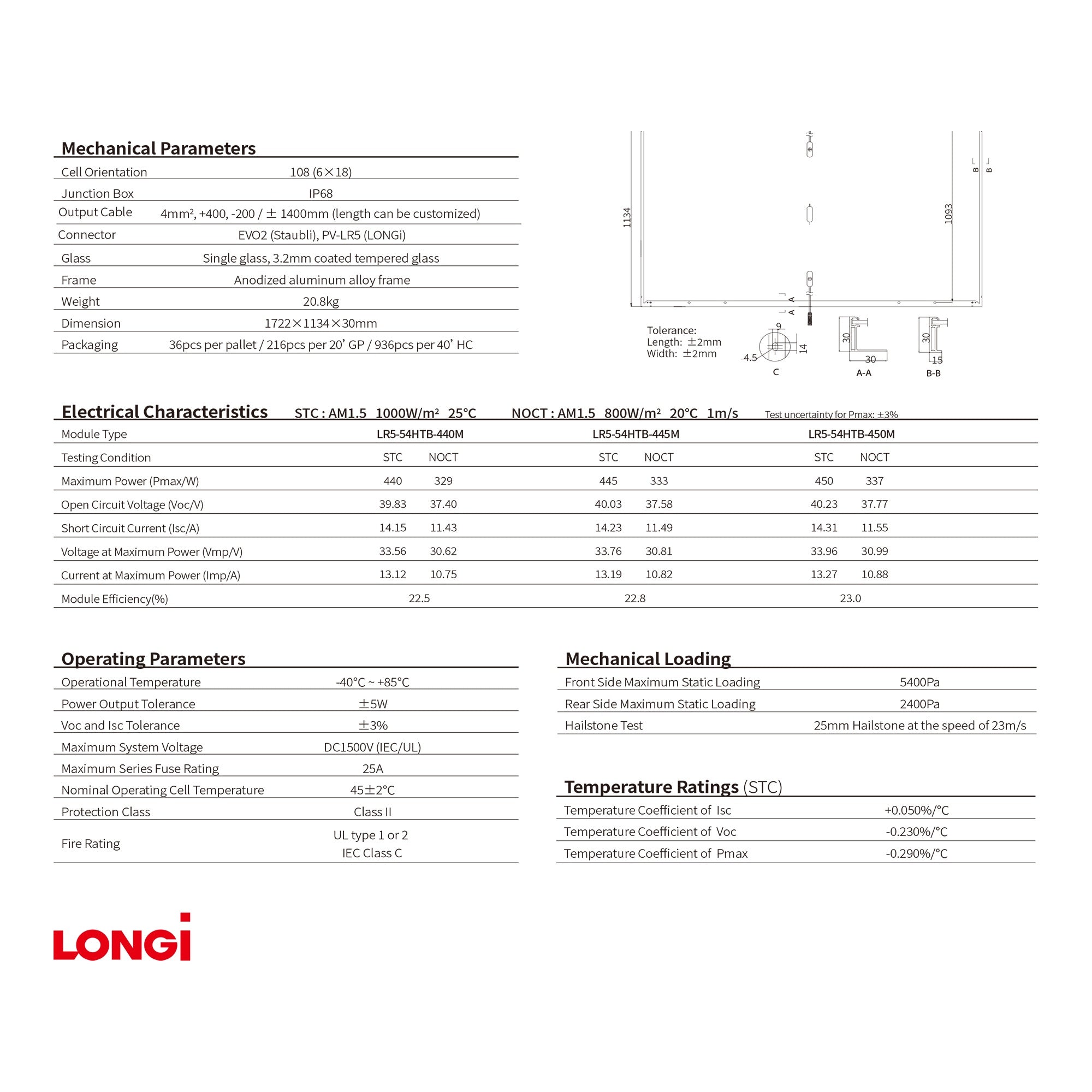

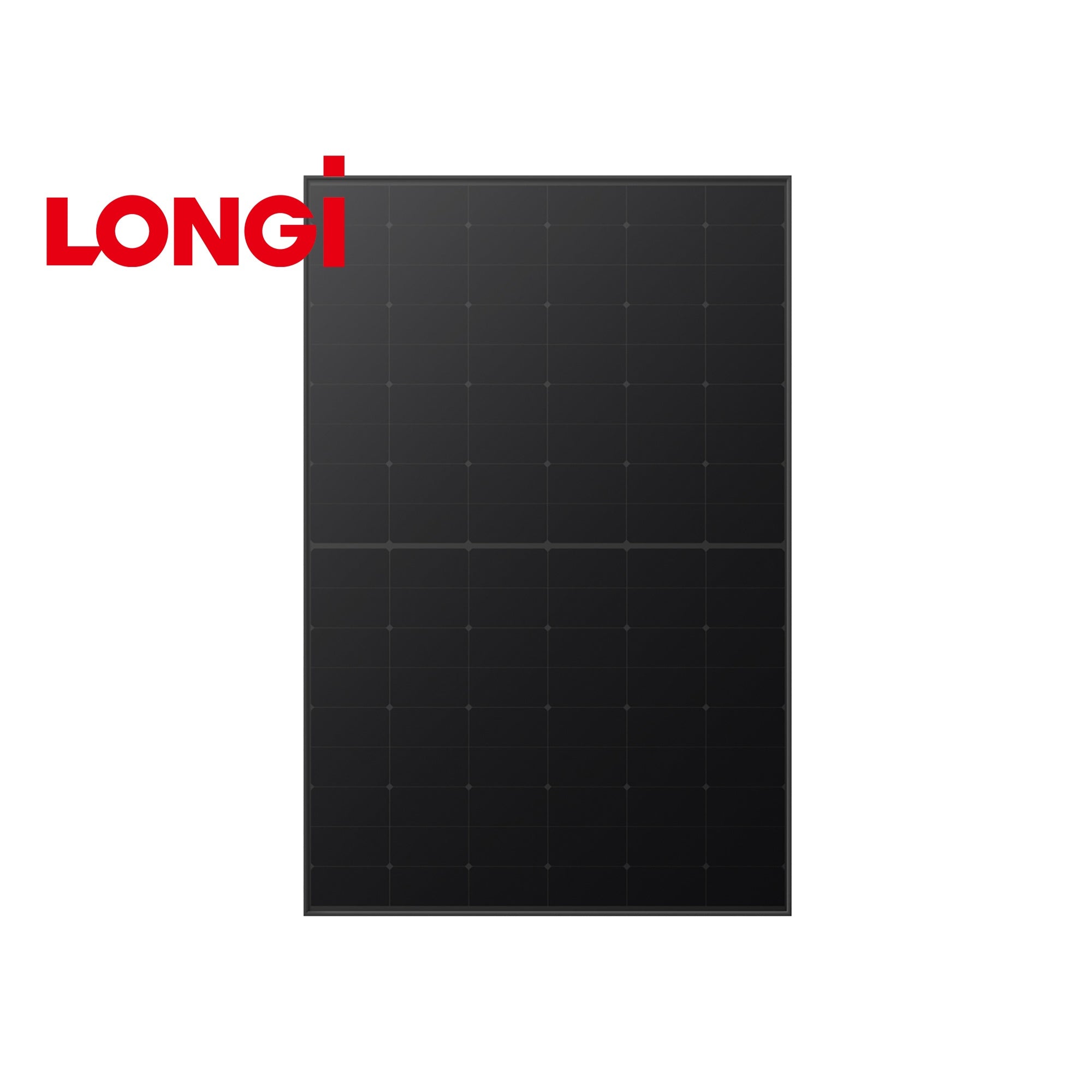

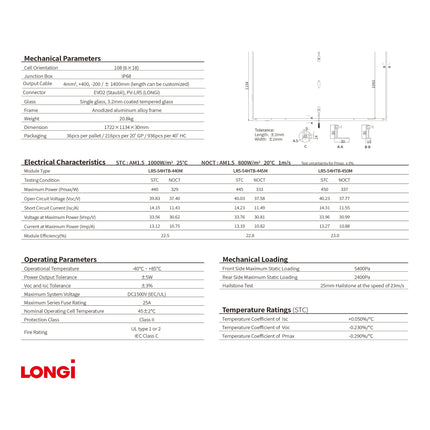

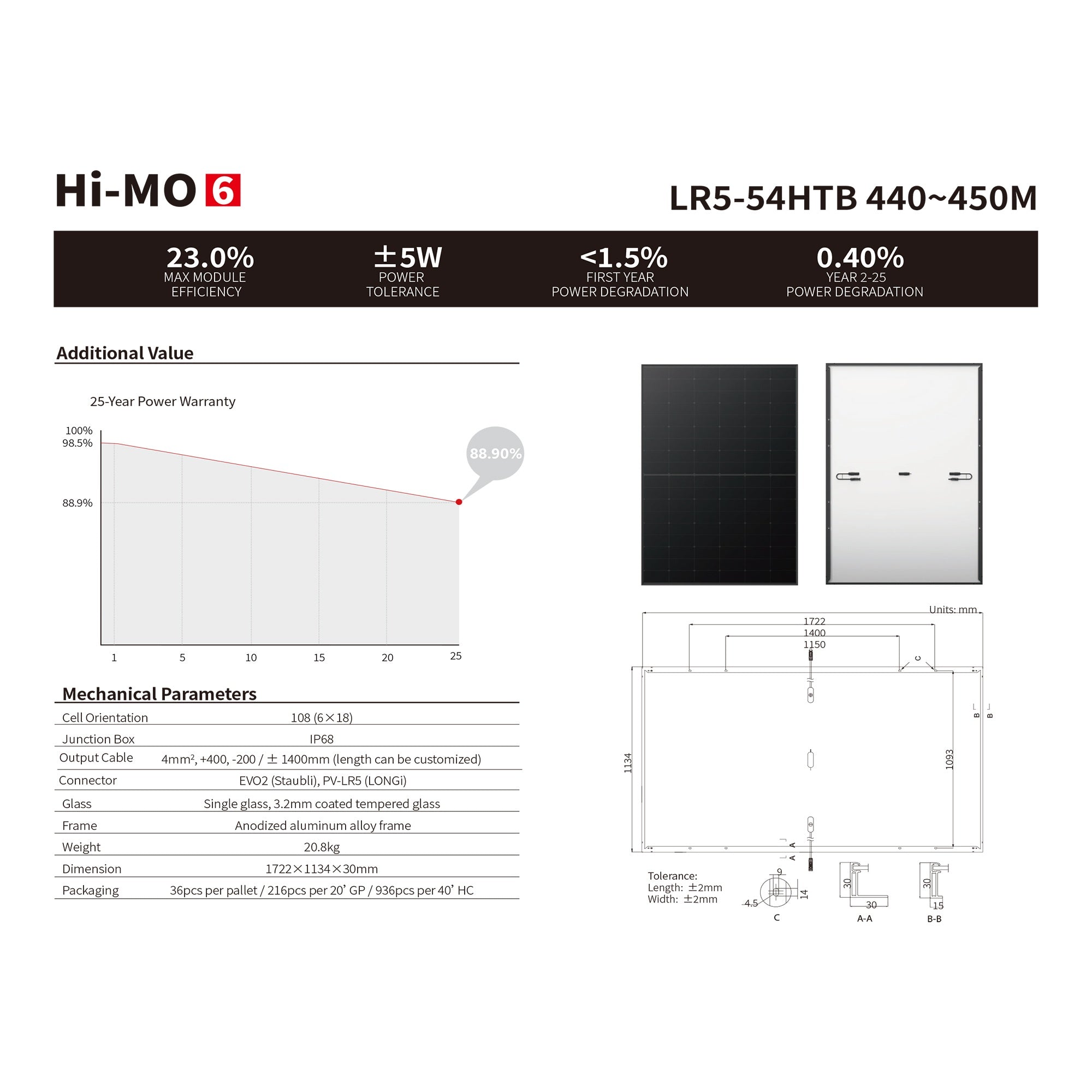

7 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Deye 3.6kW Single Phase 2 MPPT Hybrid Inverter SUN-3.6K-SG04LP1-AU (10 years warranty)

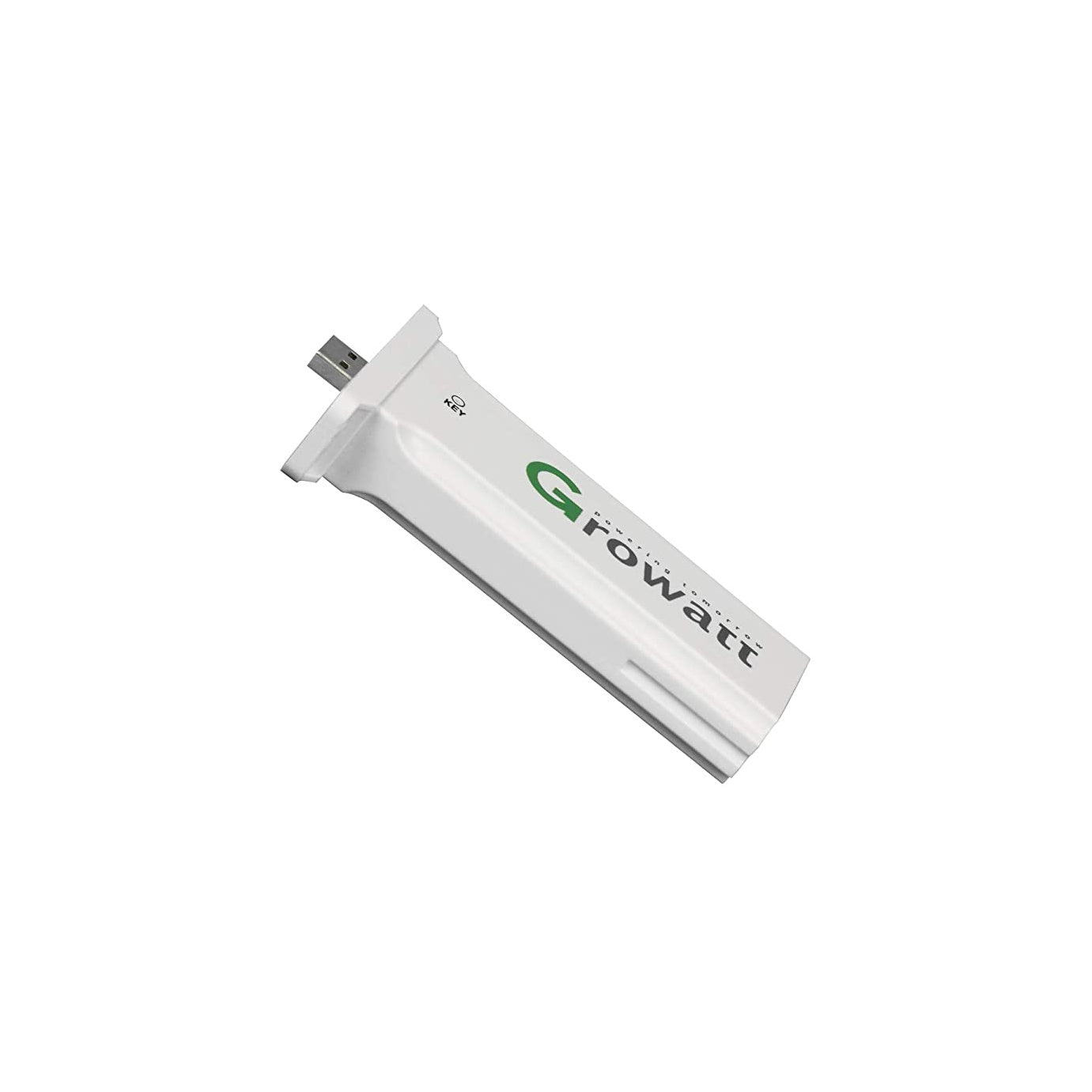

1 x Growatt Wifi accessory

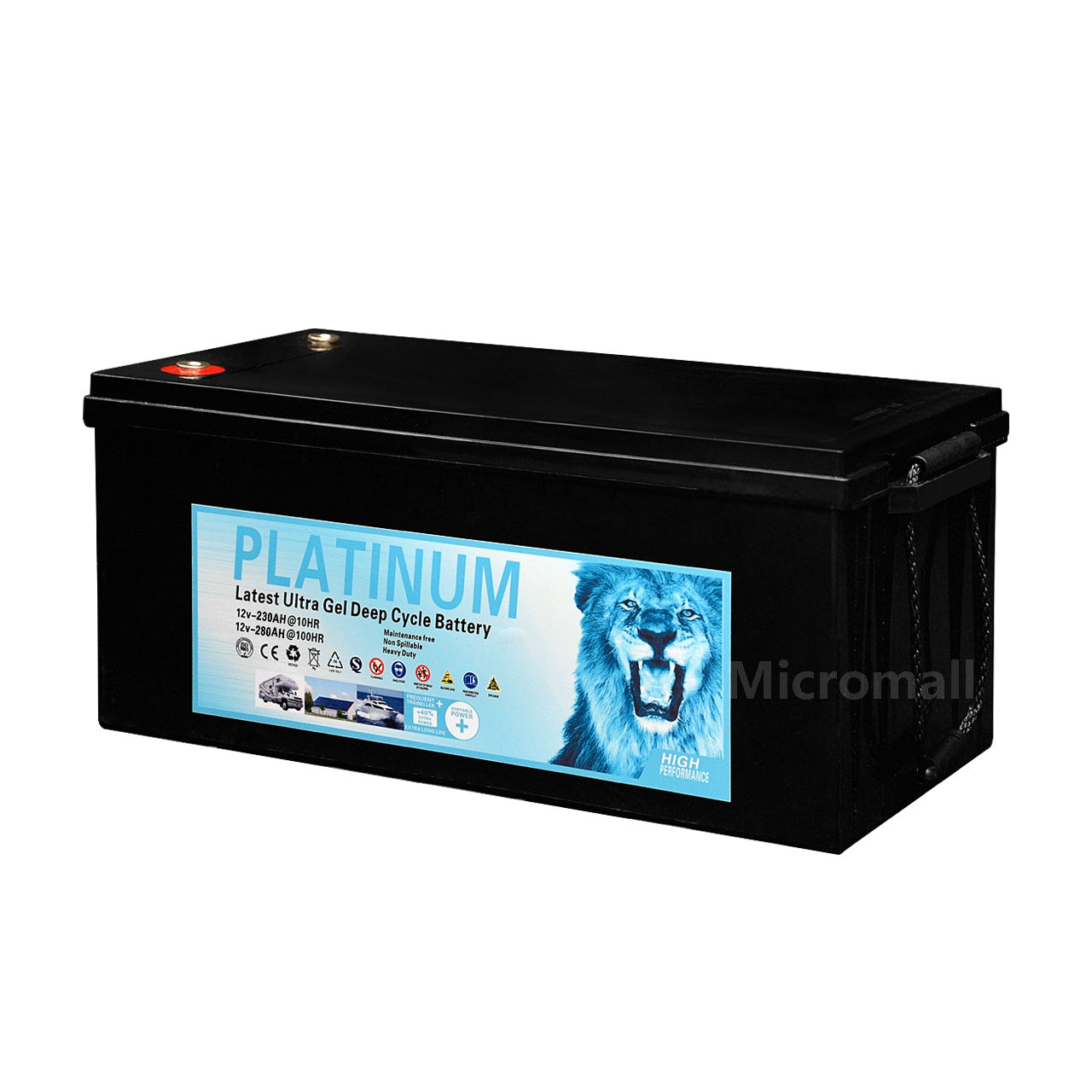

4 x 12V 280Ah Gel Deep Cycle Batteries
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x Battery Equalizer

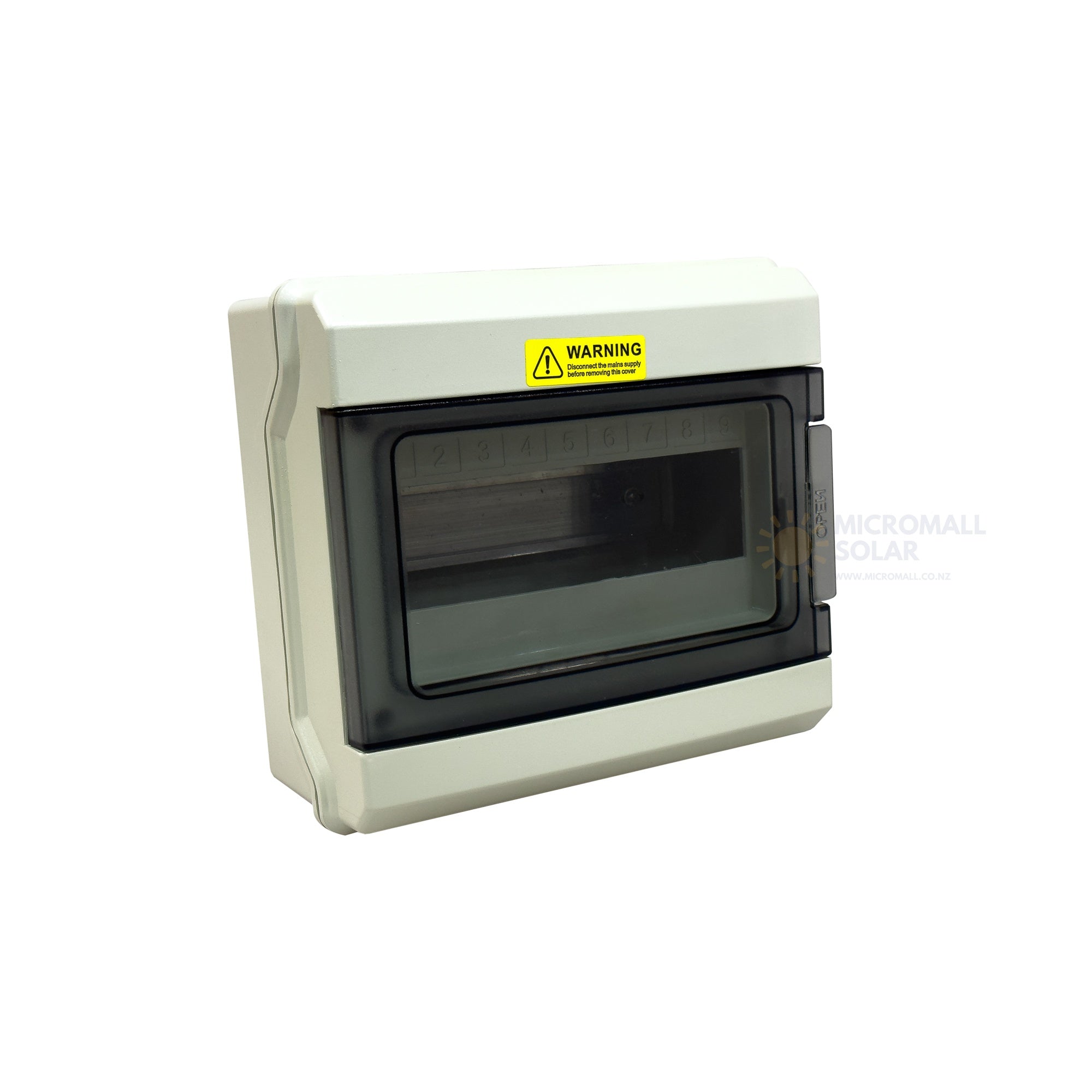

1 x PV Fuse System
7 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $210. If you wish to upgrade, please contact us.**

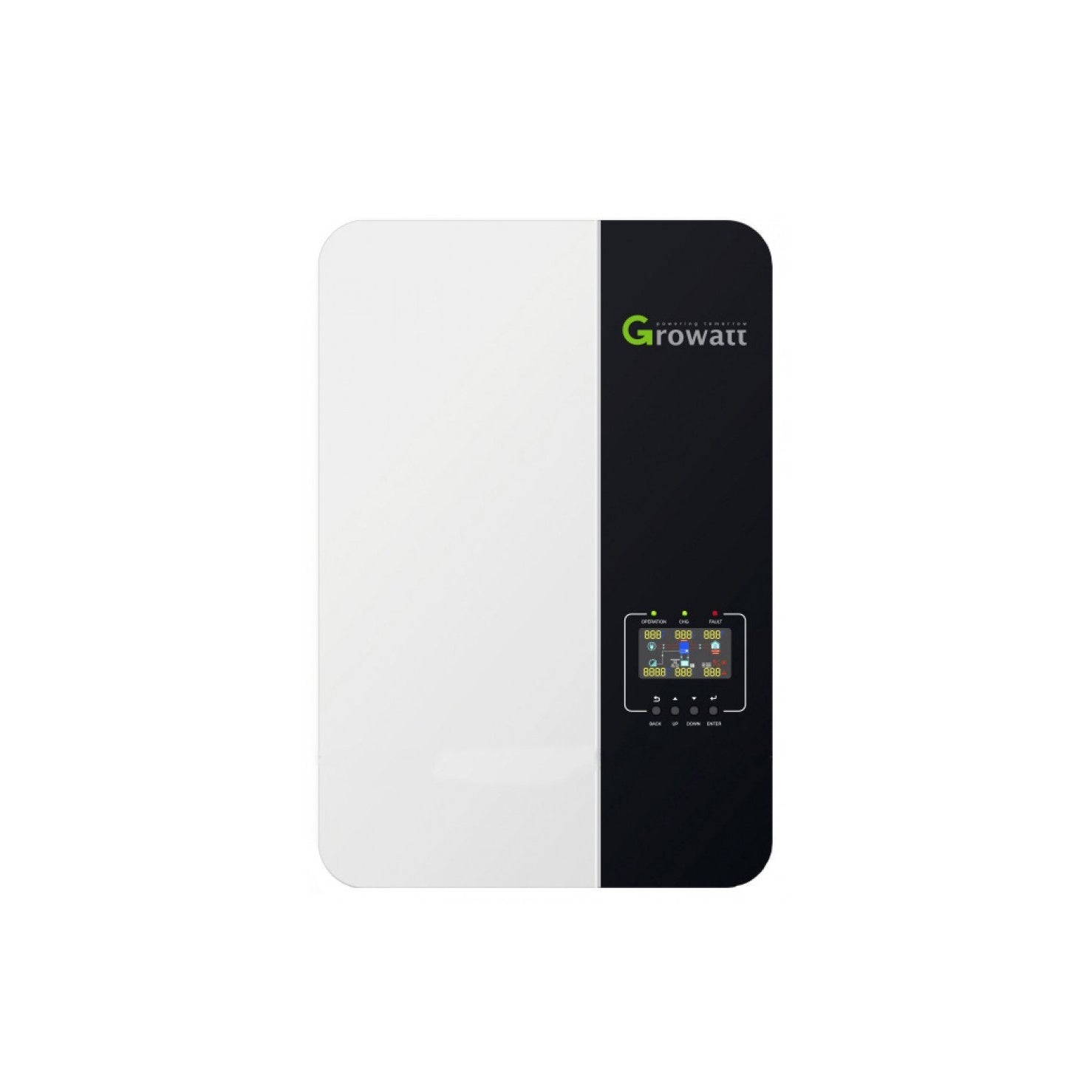

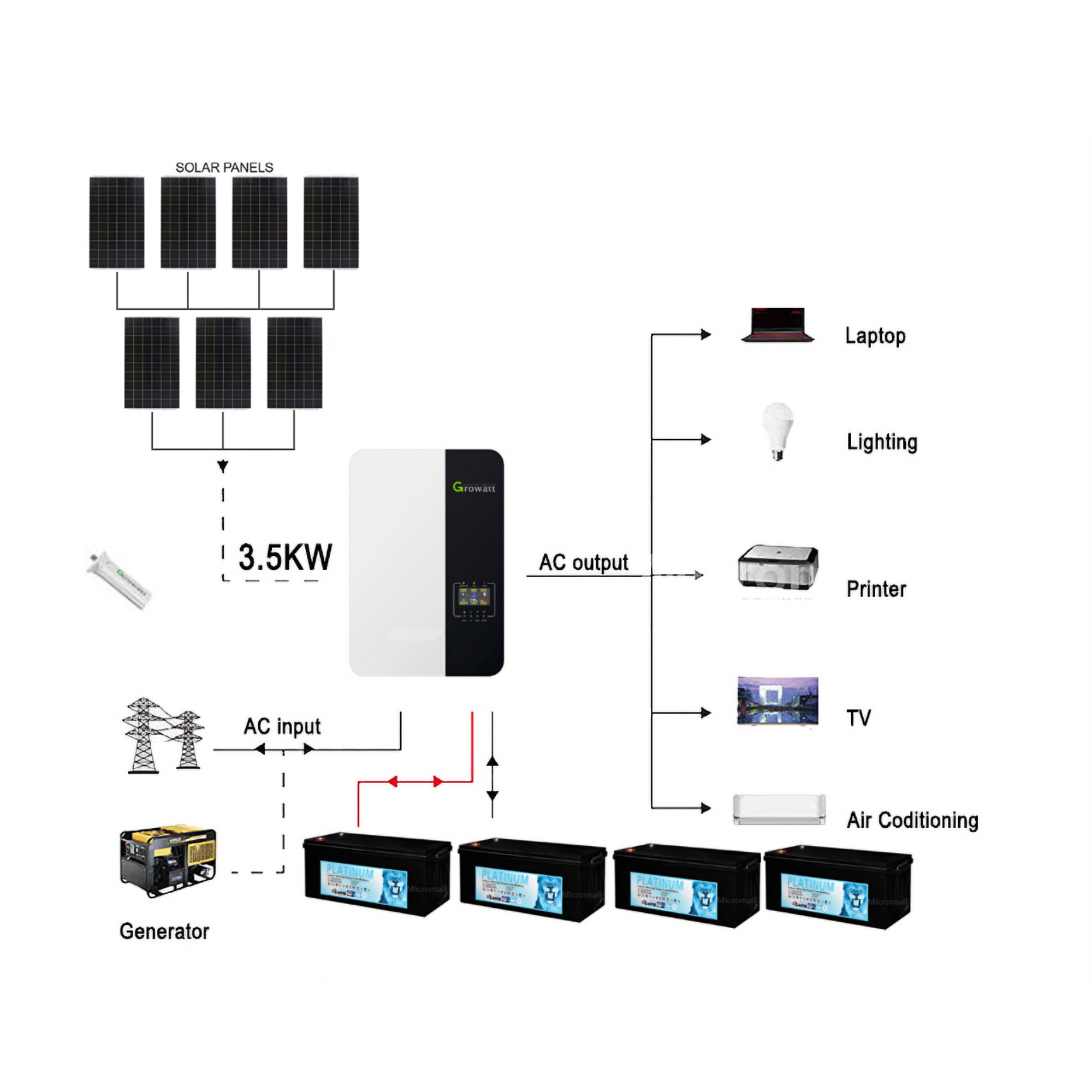

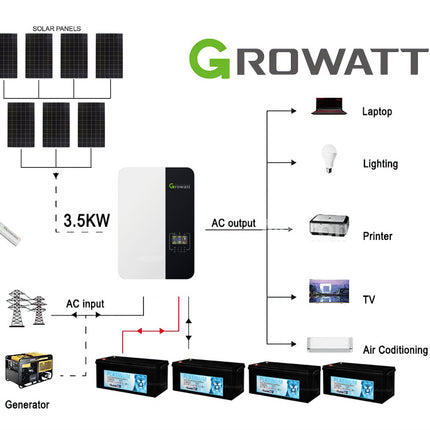

All-in-one device integrating a MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module. This inverter is ideal for off-grid backup power and self-consumption applications, capable of operating with or without batteries. For a complete and operational system, additional devices such as PV modules, a generator, or utility grid are required. Consult with a system integrator for various system architectures tailored to your needs. The optional plug-and-play WiFi/GPRS module allows users to monitor their PV system's status anytime, anywhere, via a mobile phone.
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 90
Max. Discharging Current (A): 90
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. DC Input Power (W): 5400
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**Authorized Longi distributor in New Zealand**
