Description

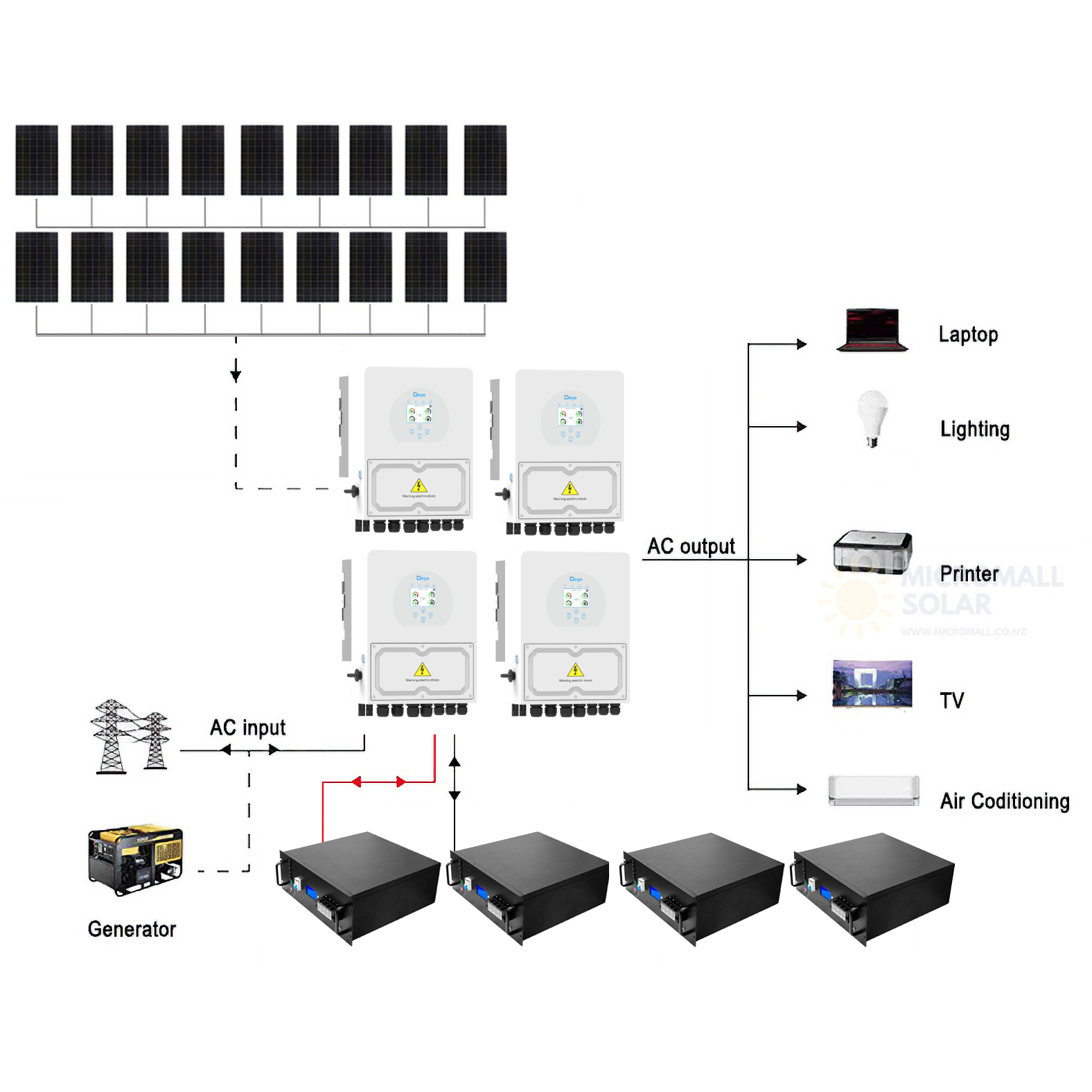

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.(Powered by Micromall battery)
Package includes

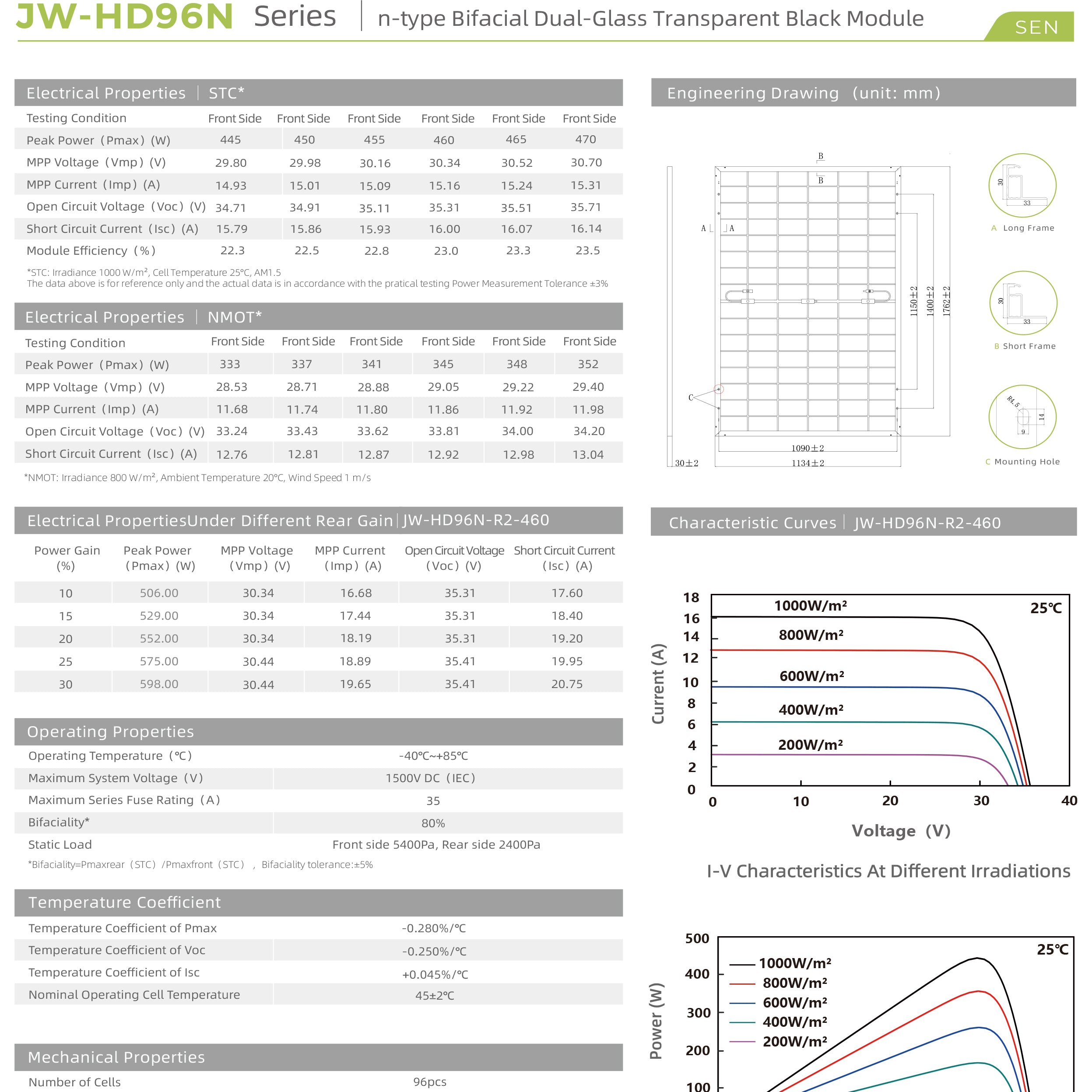

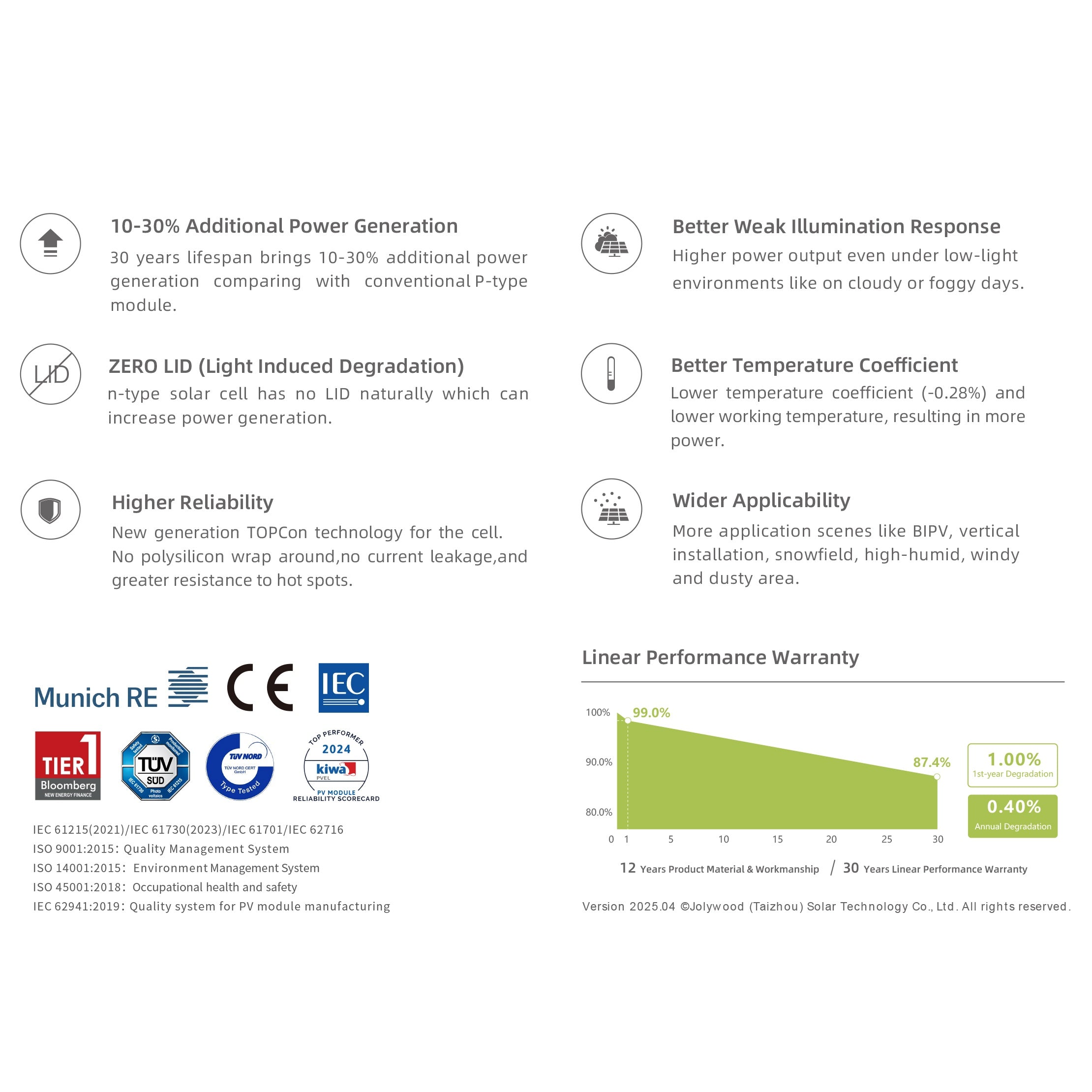

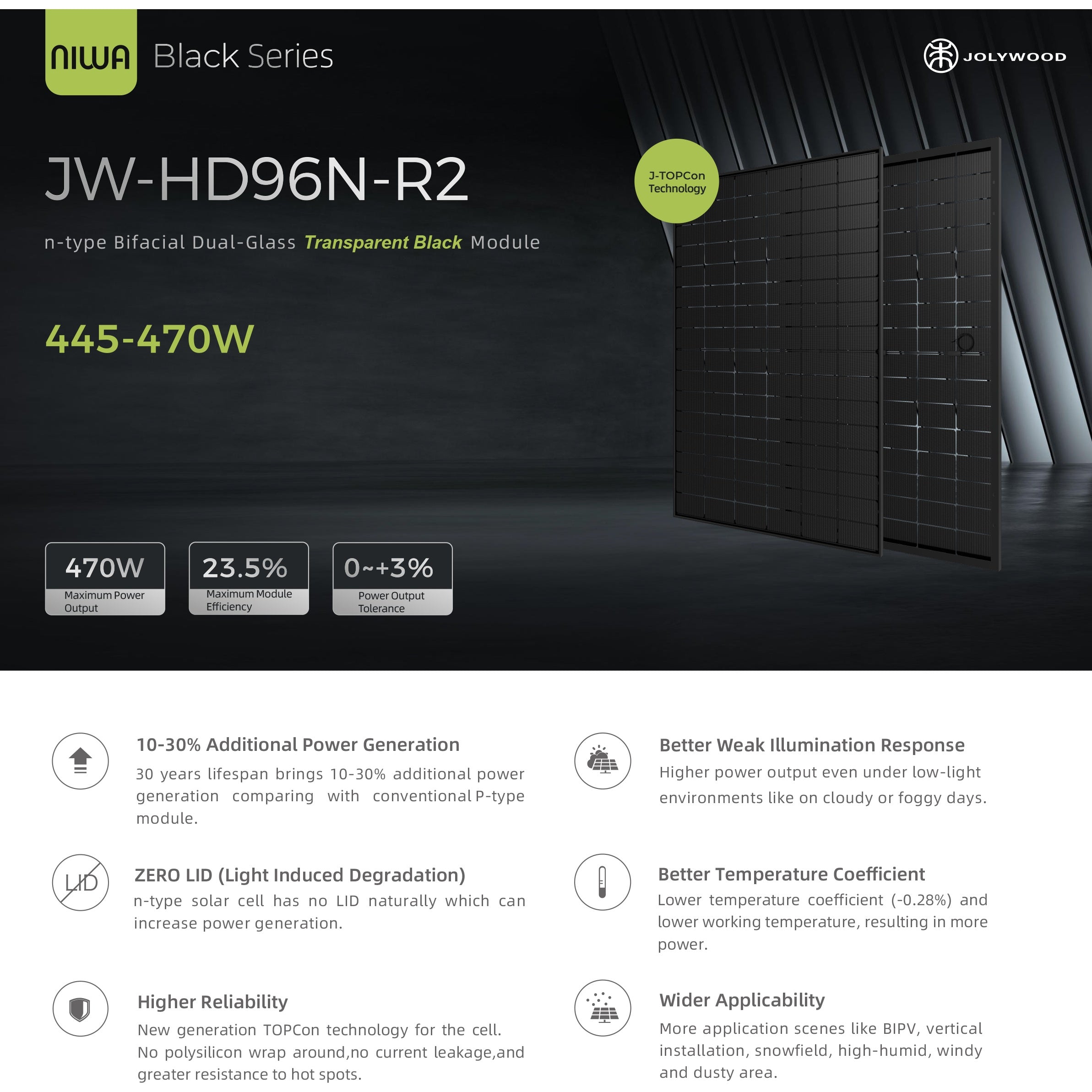

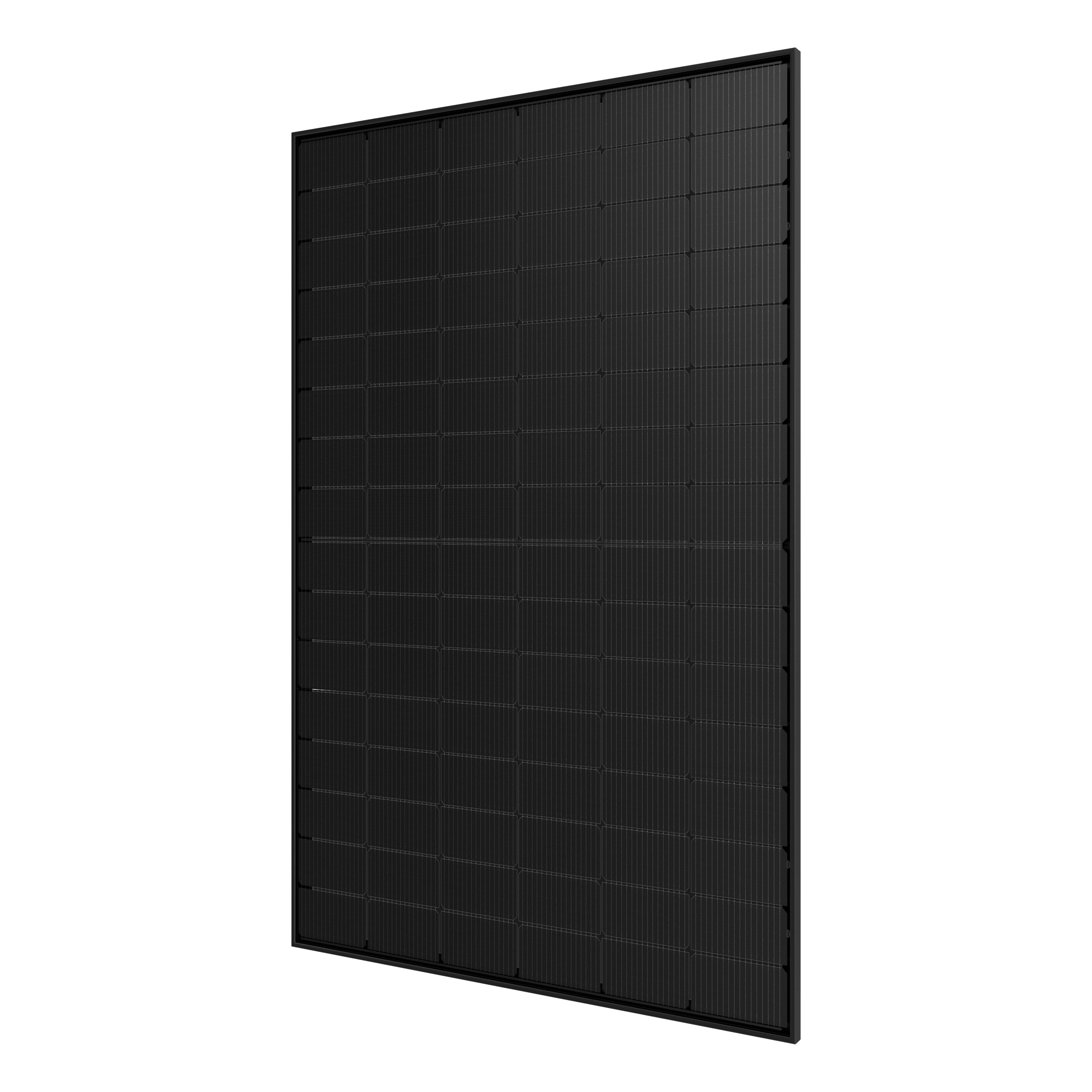

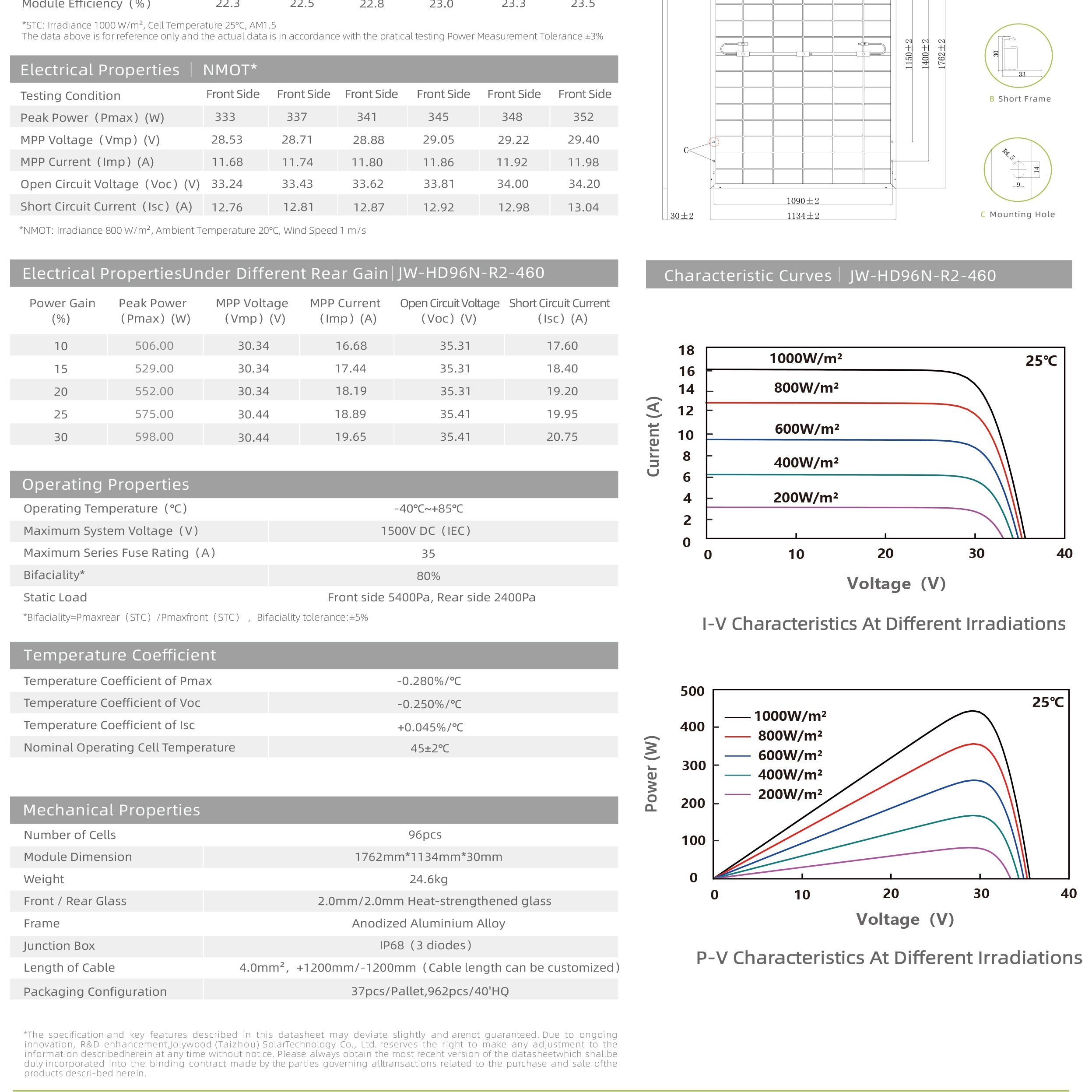

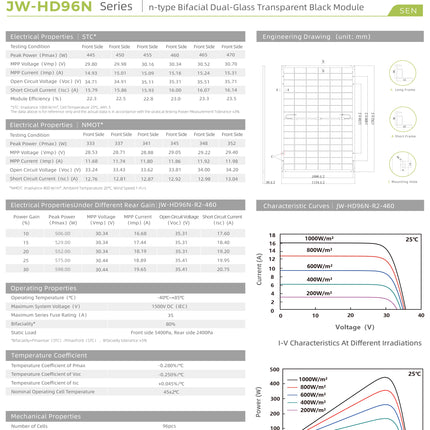

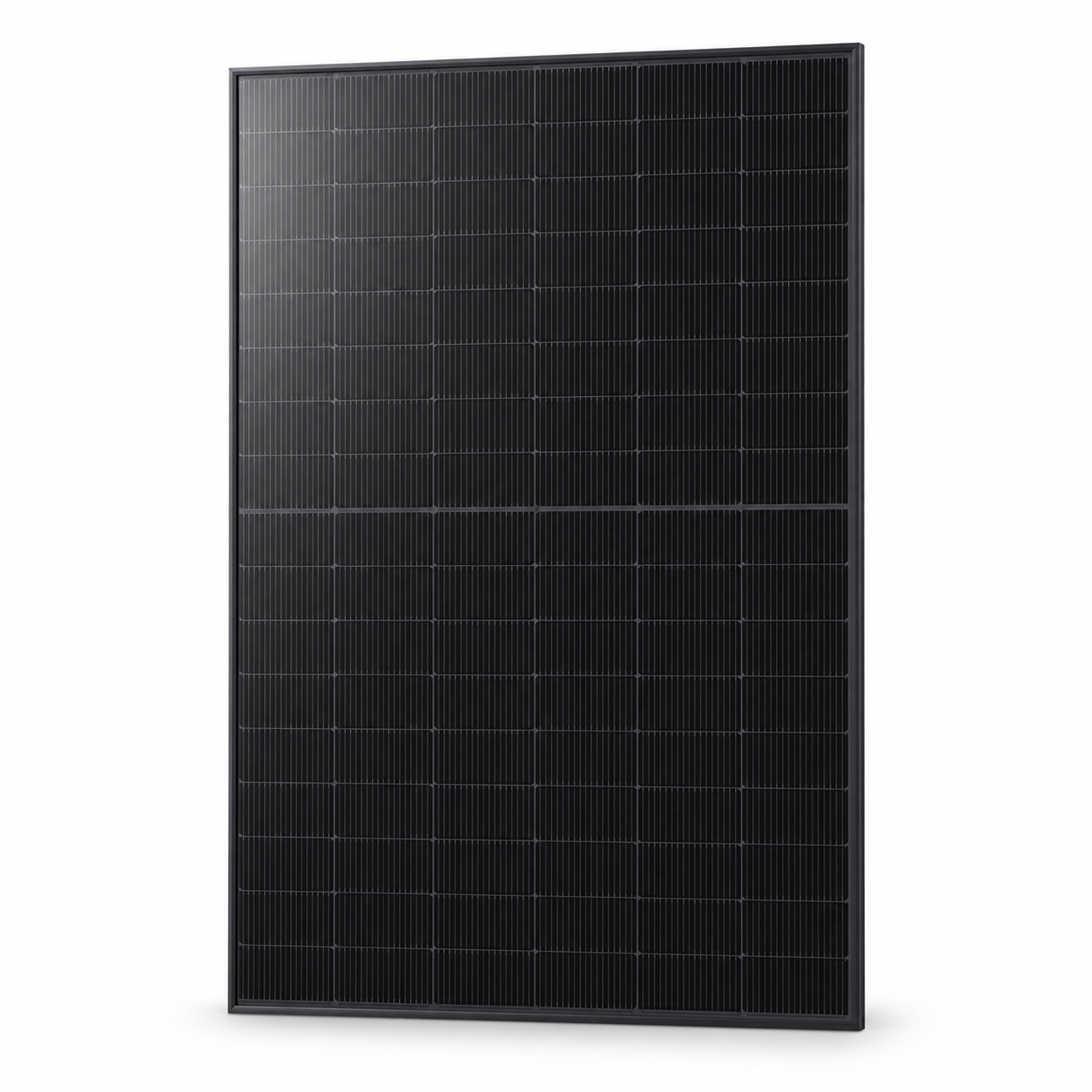

18 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

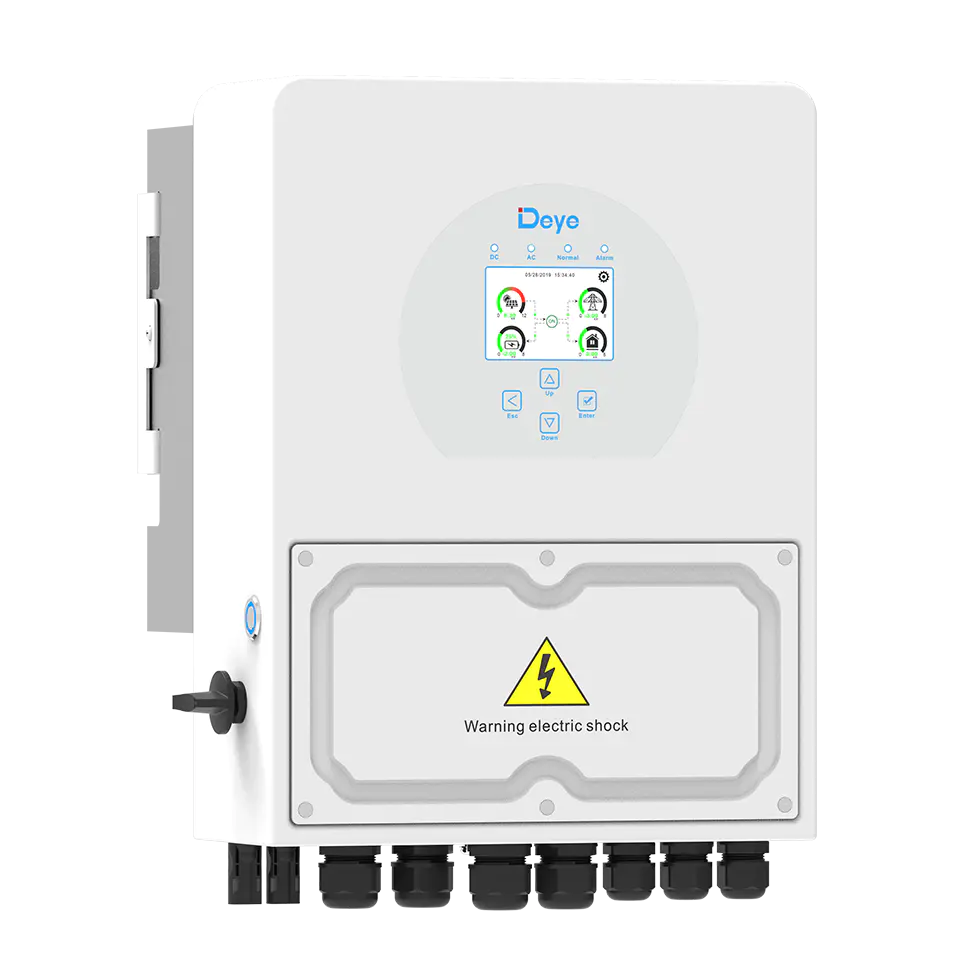

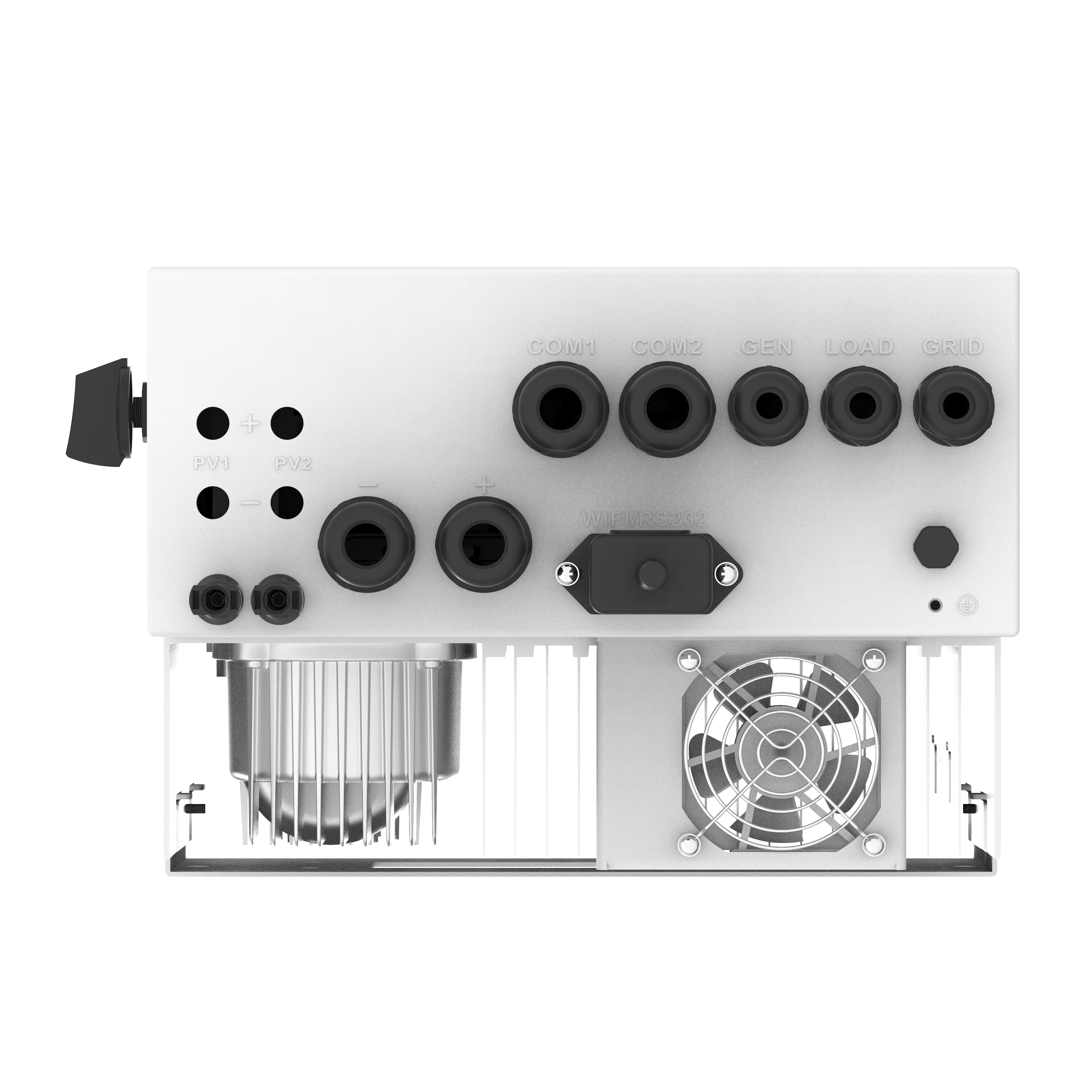

4 x 5000W Deye Single Phase Hybrid Inverter SUN-5K-SG04LP1-AU (10 years warranty)

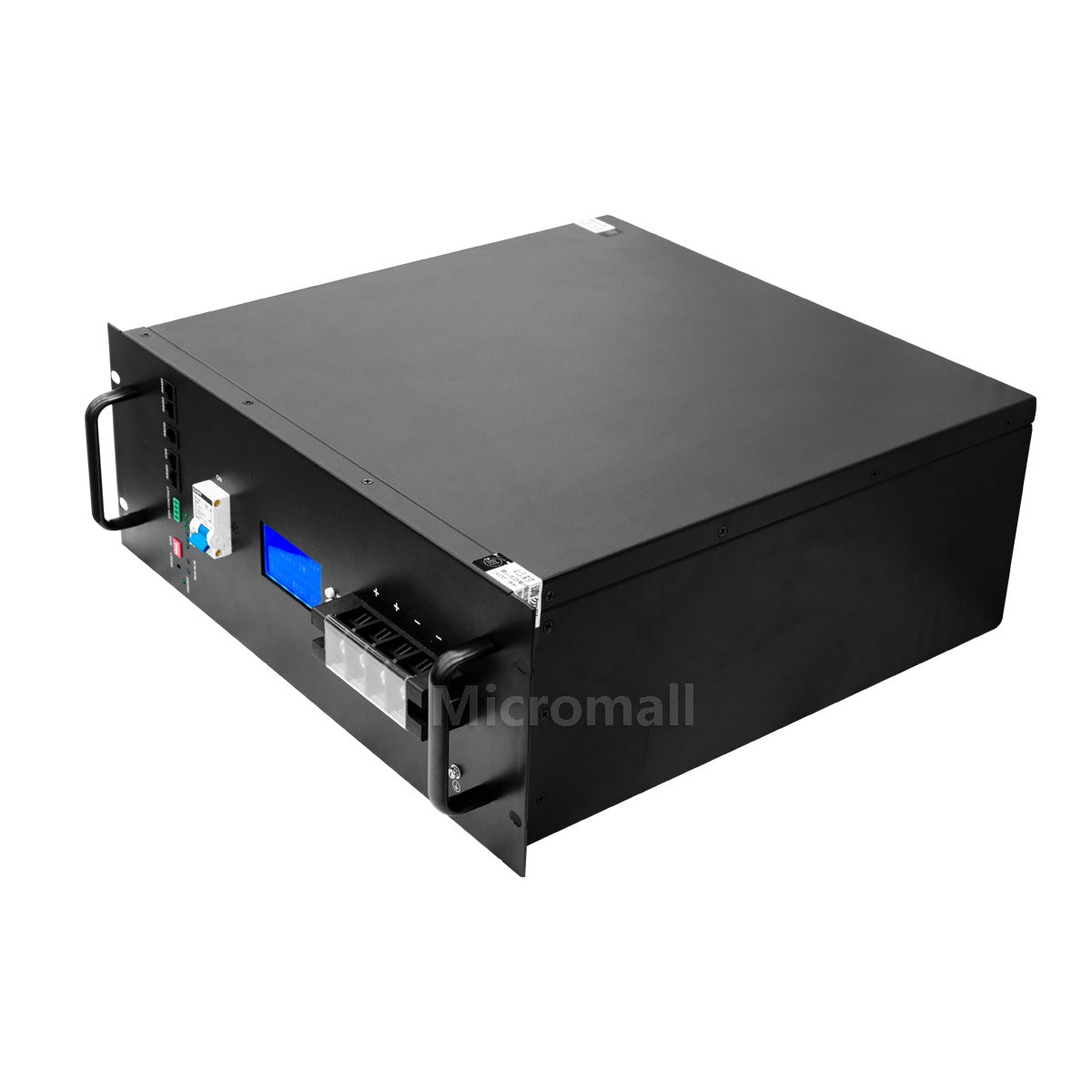

4 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
4 x 20m Twin 6mm PV Extension Cable with MC4 Connectors
1 x PV Safety System with Fuse Box
18 x Adjustable Solar Panel Mounting Bracket Tilt Mount
Features
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system

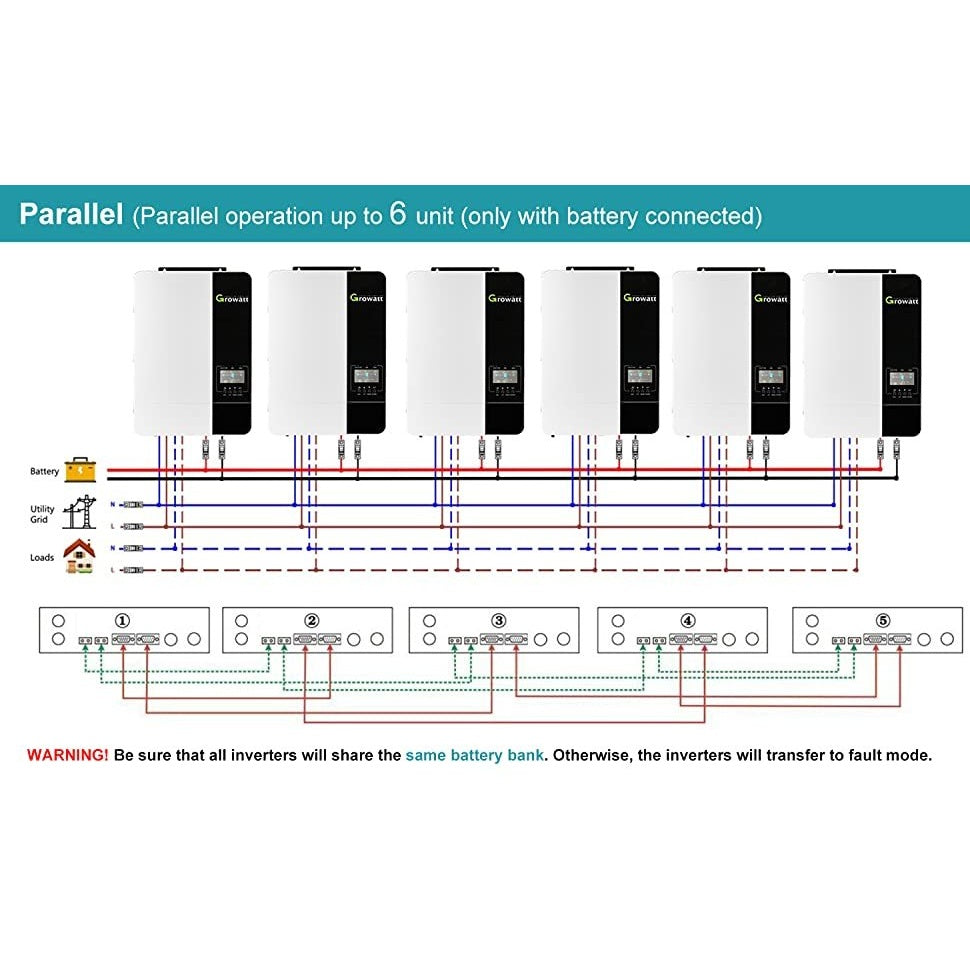

Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

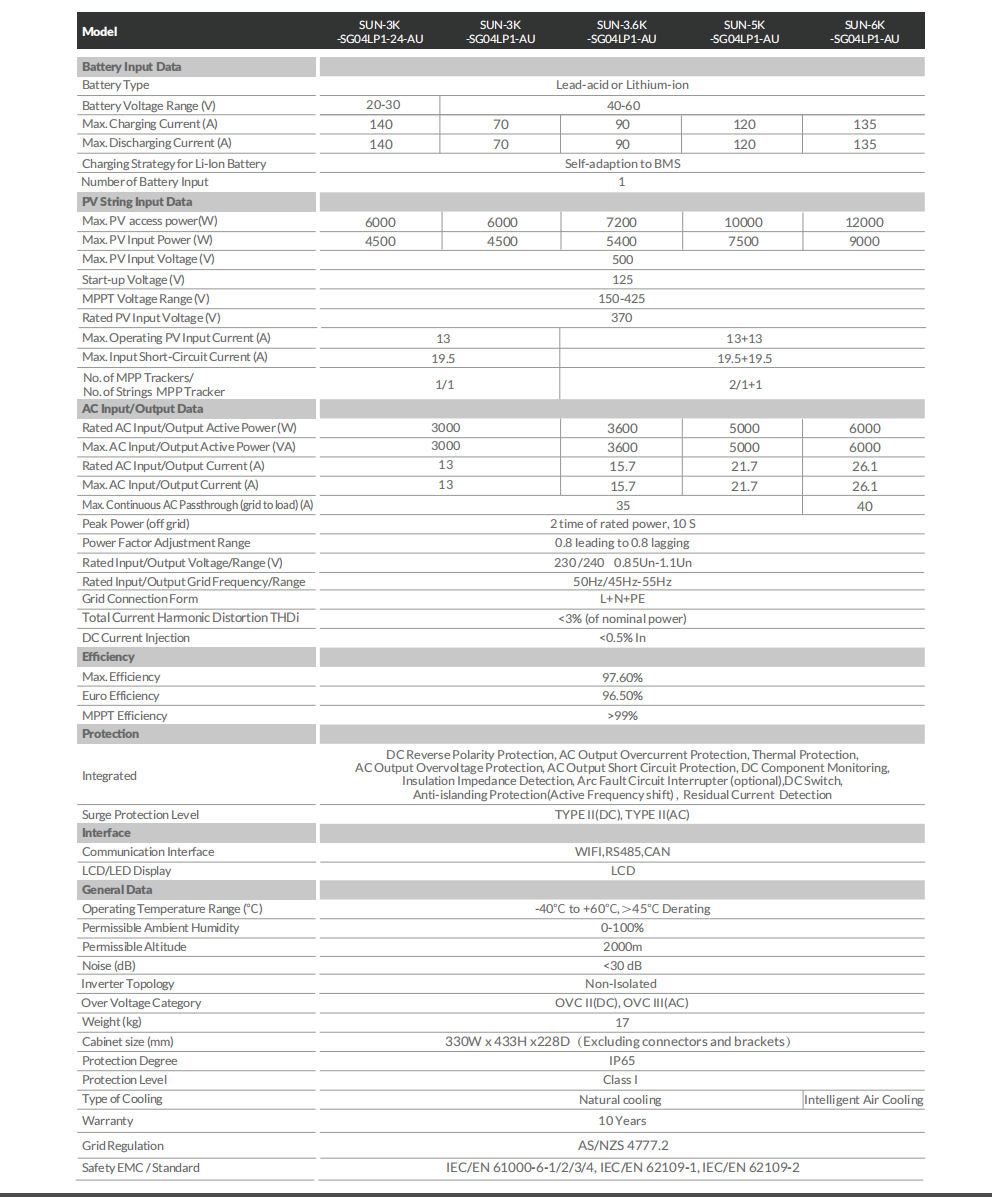

Specifications
- Rated AC Input/Output Active Power (W): 5000
- Max. AC Input/Output Active Power (VA): 5000
- Rated AC Input/Output Current (A): 21.7
- Max. AC Input/Output Current (A): 21.7
Operating Temperature Range (℃): -40℃ to +60℃,＞45℃ Derating
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude: 2000m
- Noise (dB): <30 dB
- Weight: 17kg
- Dimension: 330W x 433H x228D（Excluding connectors and brackets）
- Protection Degree: IP65
- Type of Cooling: Natural cooling
- Warranty: 10 years
This product meets the safety standards of IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
