Description
3-4 Years Pay Back

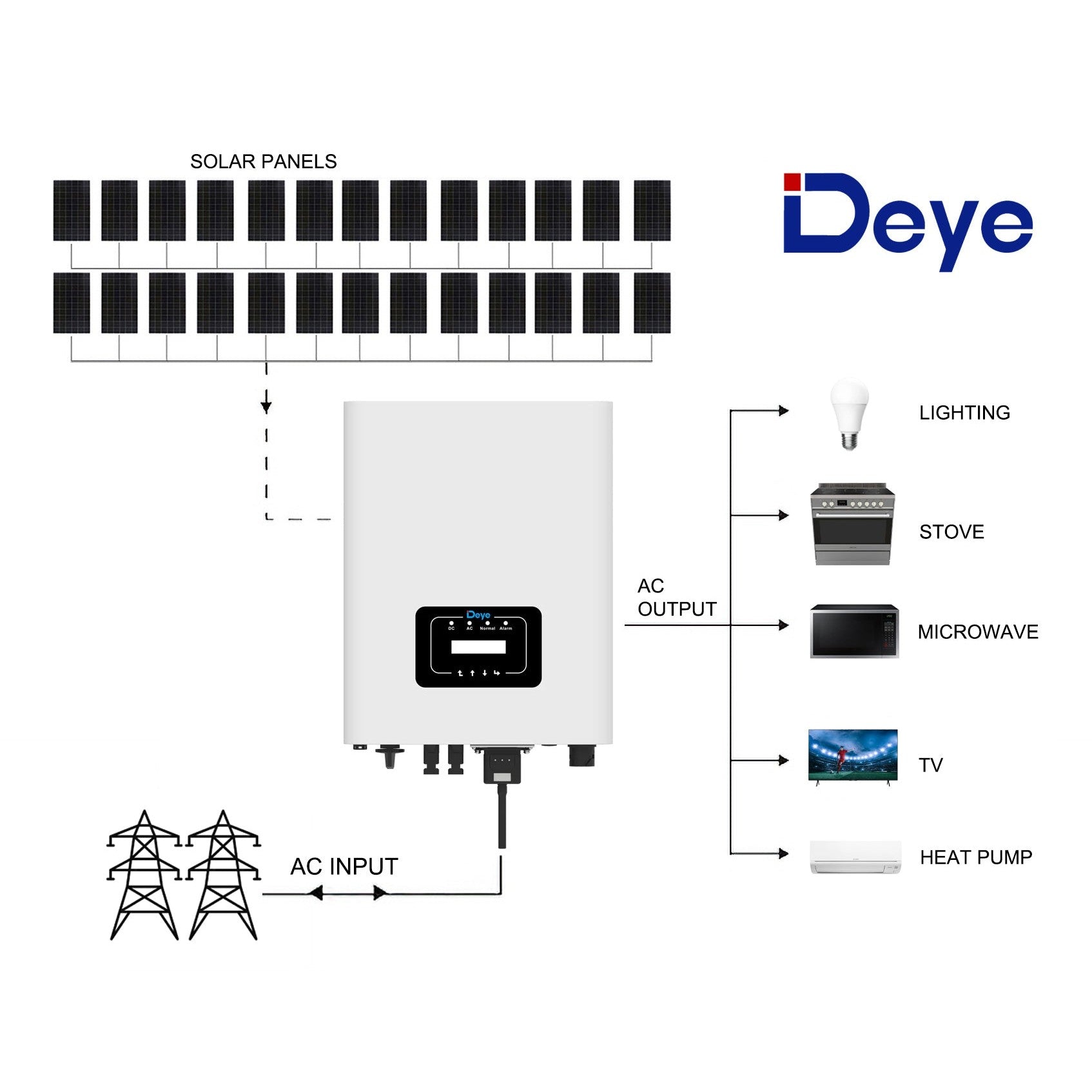

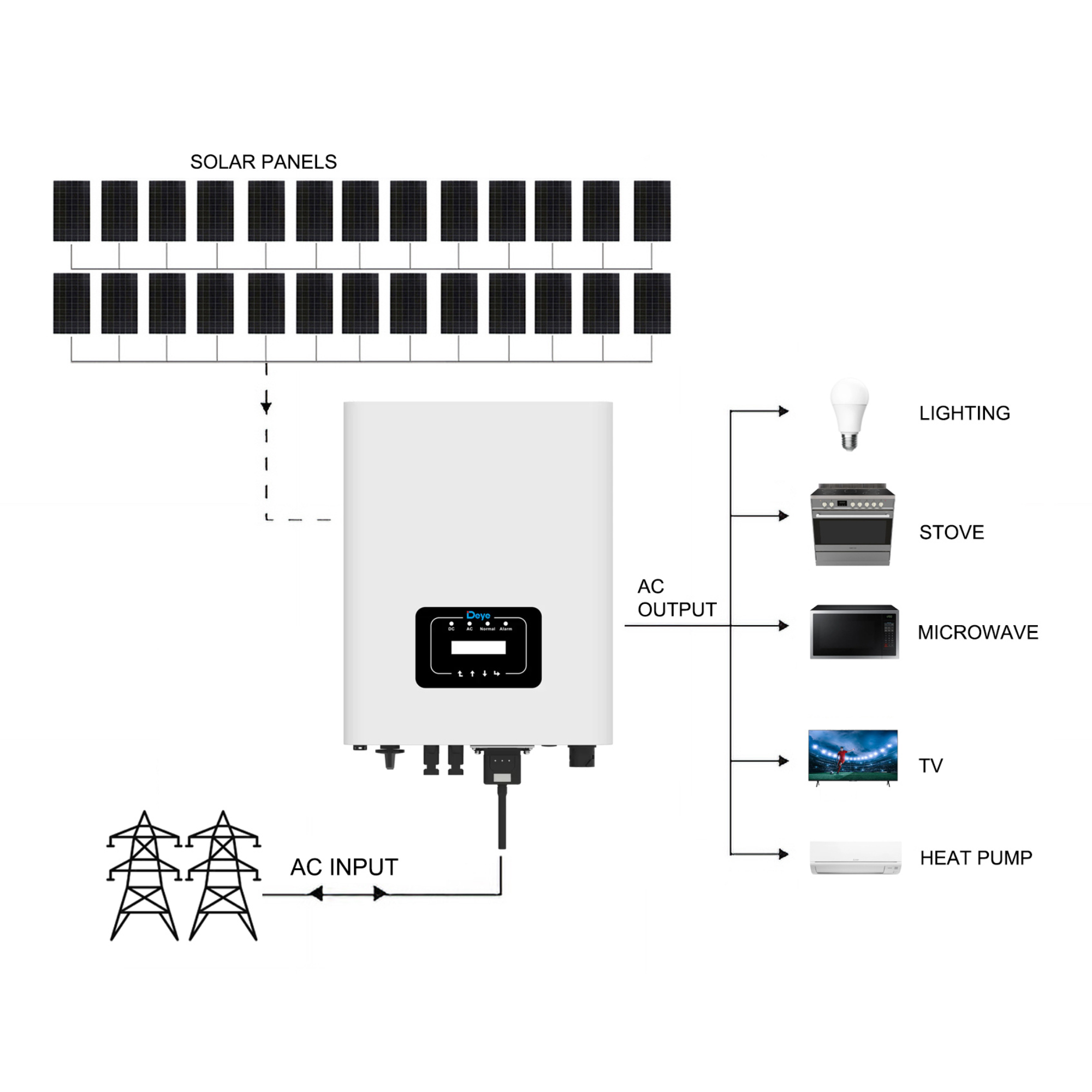

This on-grid solar power system is specifically designed to reduce your home's electricity costs throughout the year. Featuring 11.4KW of Longi solar panels, this kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.
Package Includes:

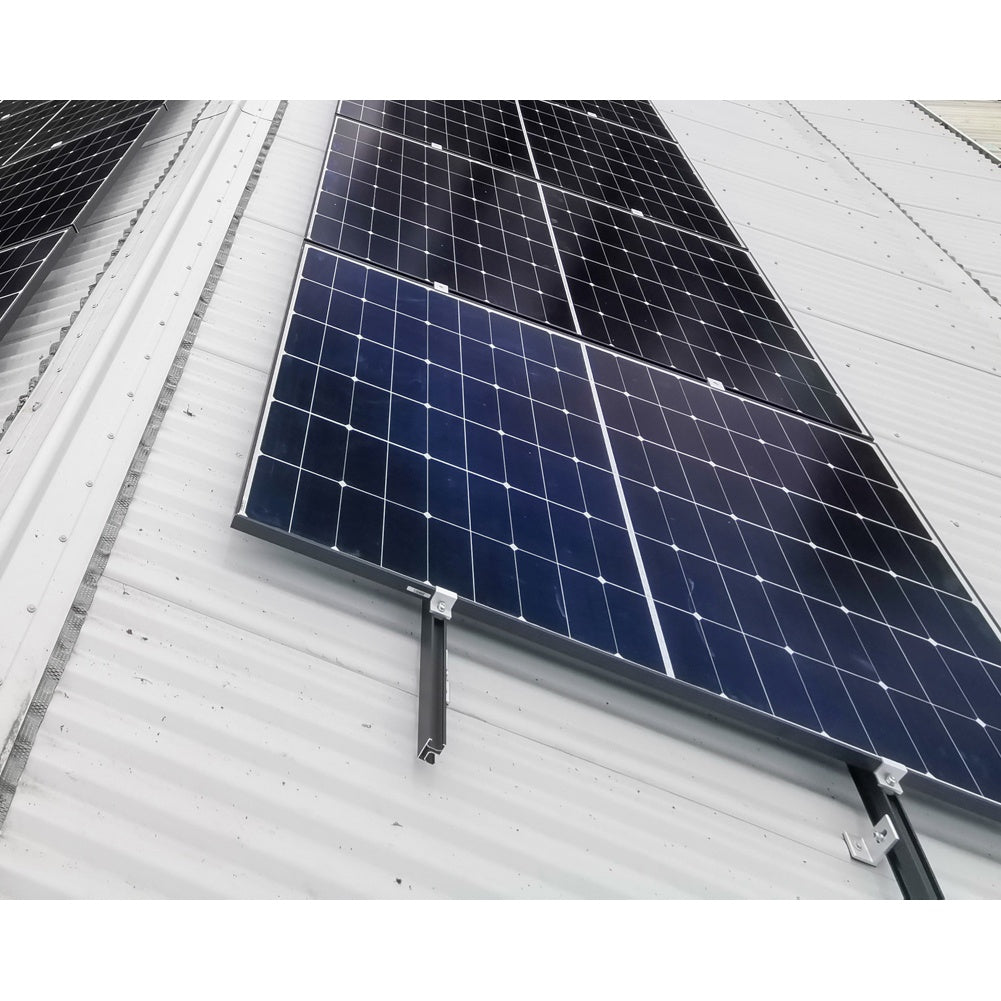

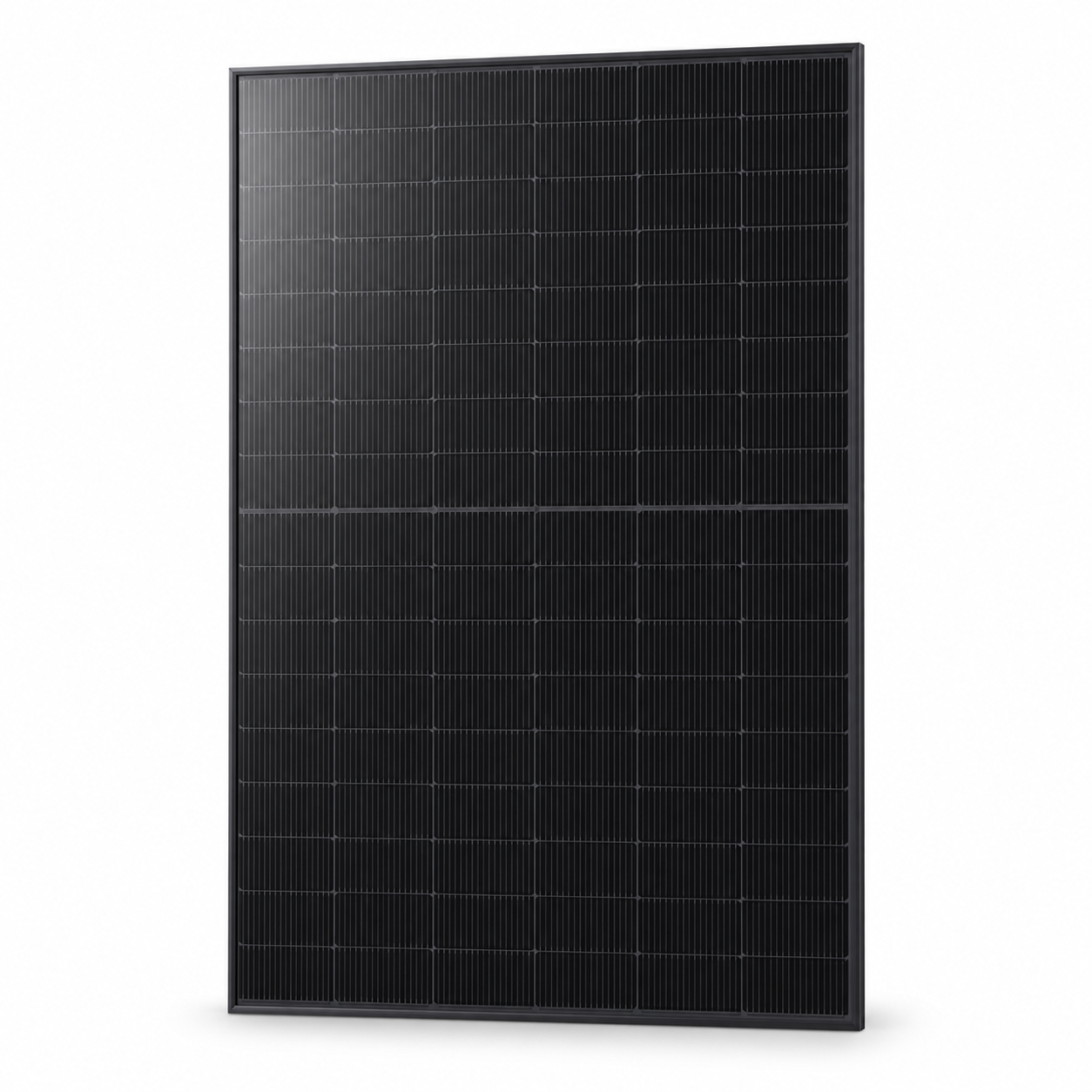

26 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Deye SUN-10K-G05-AU 10KW Grid Tied Three Phase String Inverter 2 MPPT (5 Years Manufacturer Warranty + 5 Years Local Warranty)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Safety System with Fuse Box
26 x Mounting Rail Systems

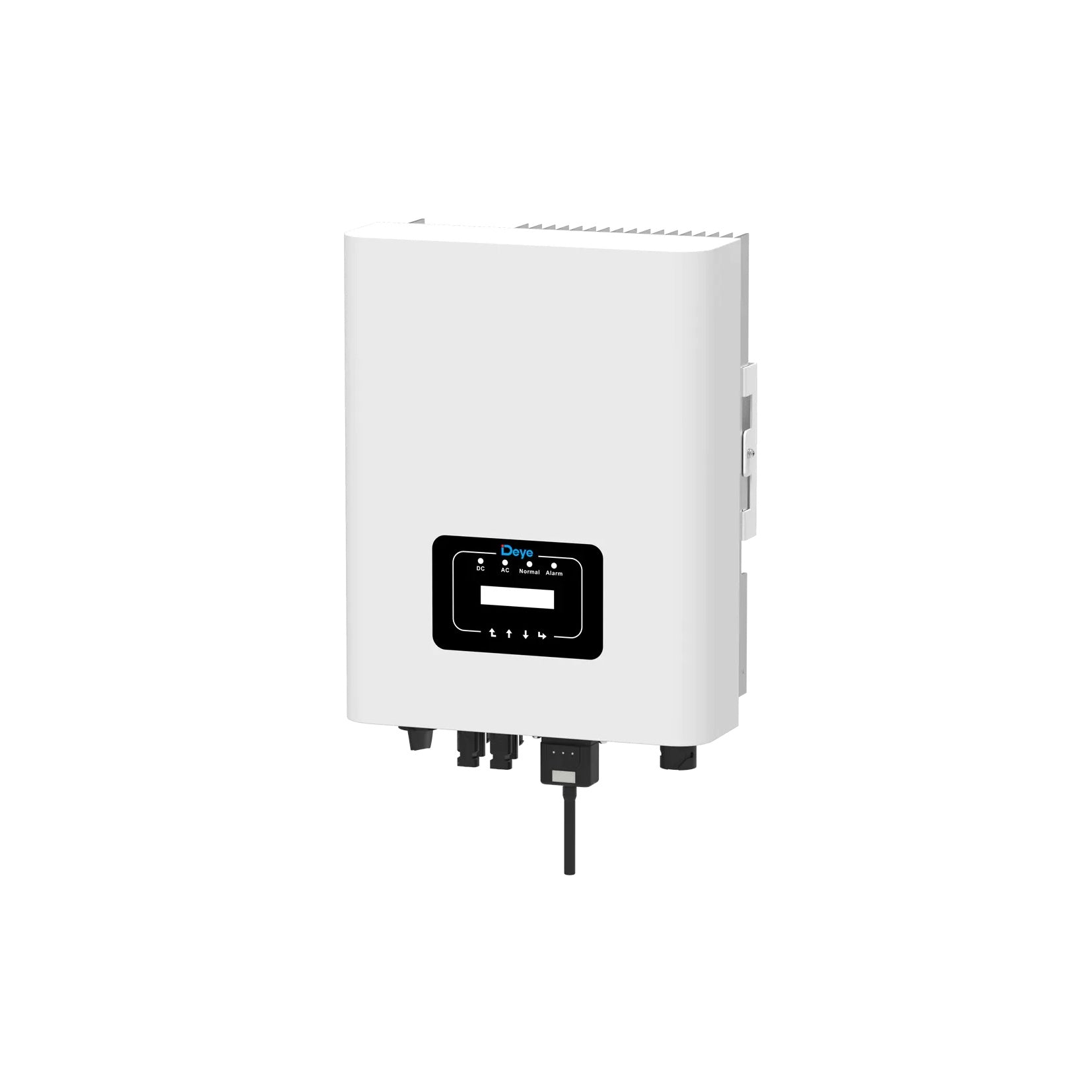

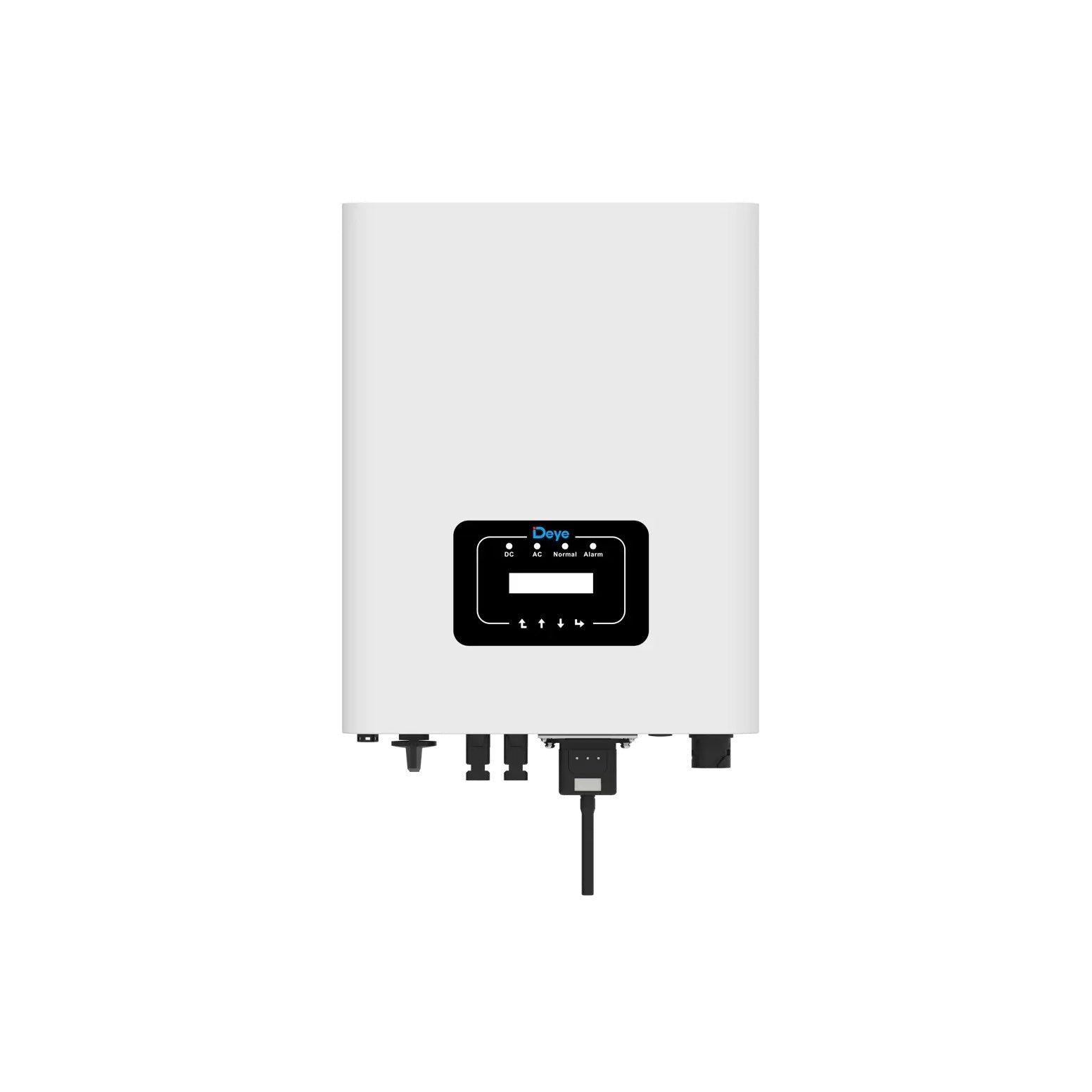

Introducing the Deye SUN-10K-G05: A 10KW Grid Tied Three Phase String Inverter with 2 MPPT for higher yields, safety, and reliability. Smart and user-friendly, it's tailored for three-phase PV systems with a power range from 4kW to 12kW. Its compact design ensures easy installation and operation while supporting a wide AC output voltage for extended working hours.
Specifications:
Max PV Input Power: 15kW
Max PV Input Voltage: 550V
Start-up DC Input Voltage: 80V
MPPT Operating Range: 70V to 500V
Max PV Input Current: 13A + 13A
Max Short Circuit Current: 19.5A + 19.5A
Rated Output Power: 10kW
Max Active Power: 10kW
Operating Phase: Three-phase
Rated AC Grid Output Current: 14.5A
Max AC Output Current: 14.5A
Efficiency: Max. 98.3%
The system generates a daily output of 57KWH with a 5-hour charging time, based on average sunlight hours during New Zealand's winter and summer seasons.
**Vector Approved Inverter**
**DEYE LONGI New Zealand Distributor – Micromall Solar**
