Description
Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.

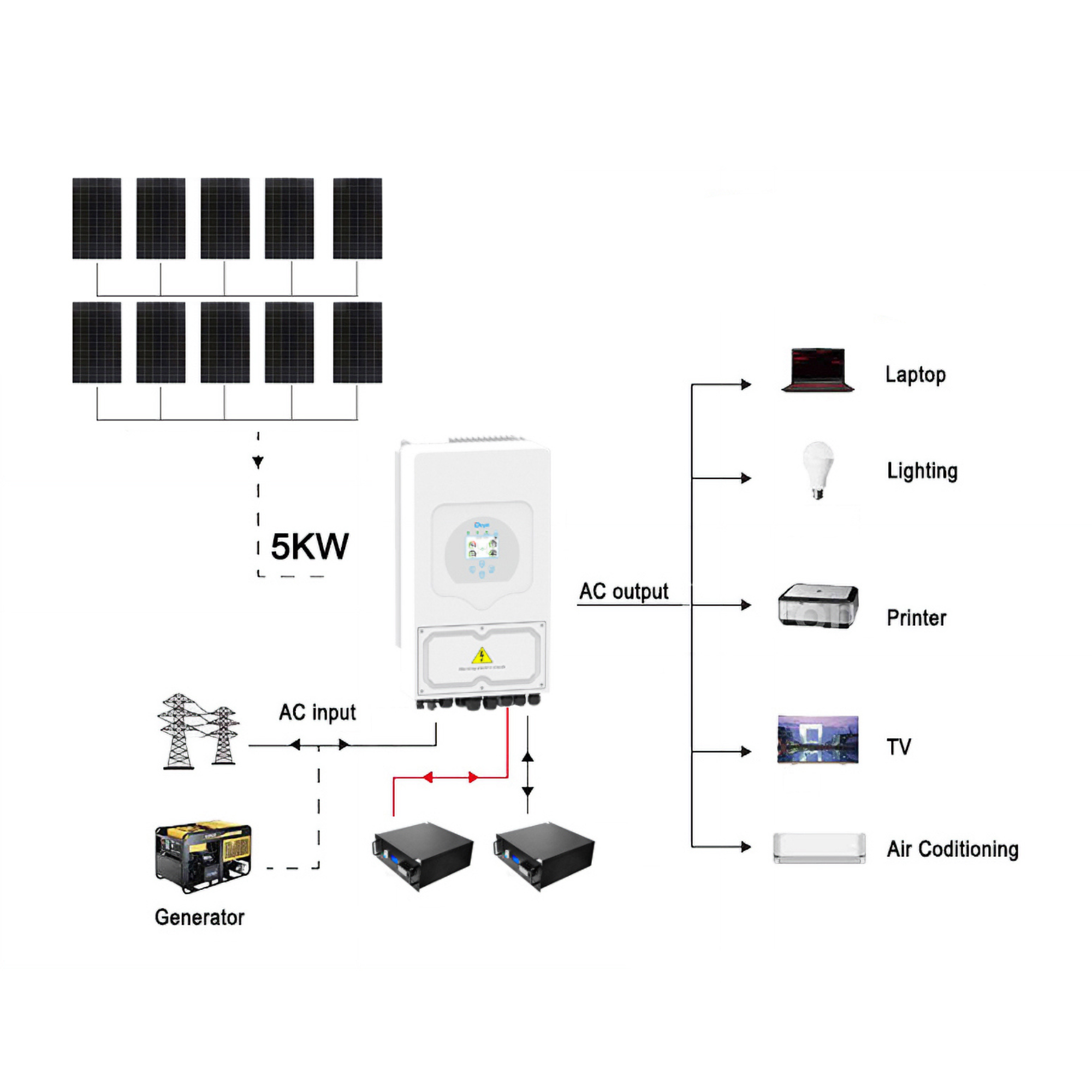

Package Includes:
10 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

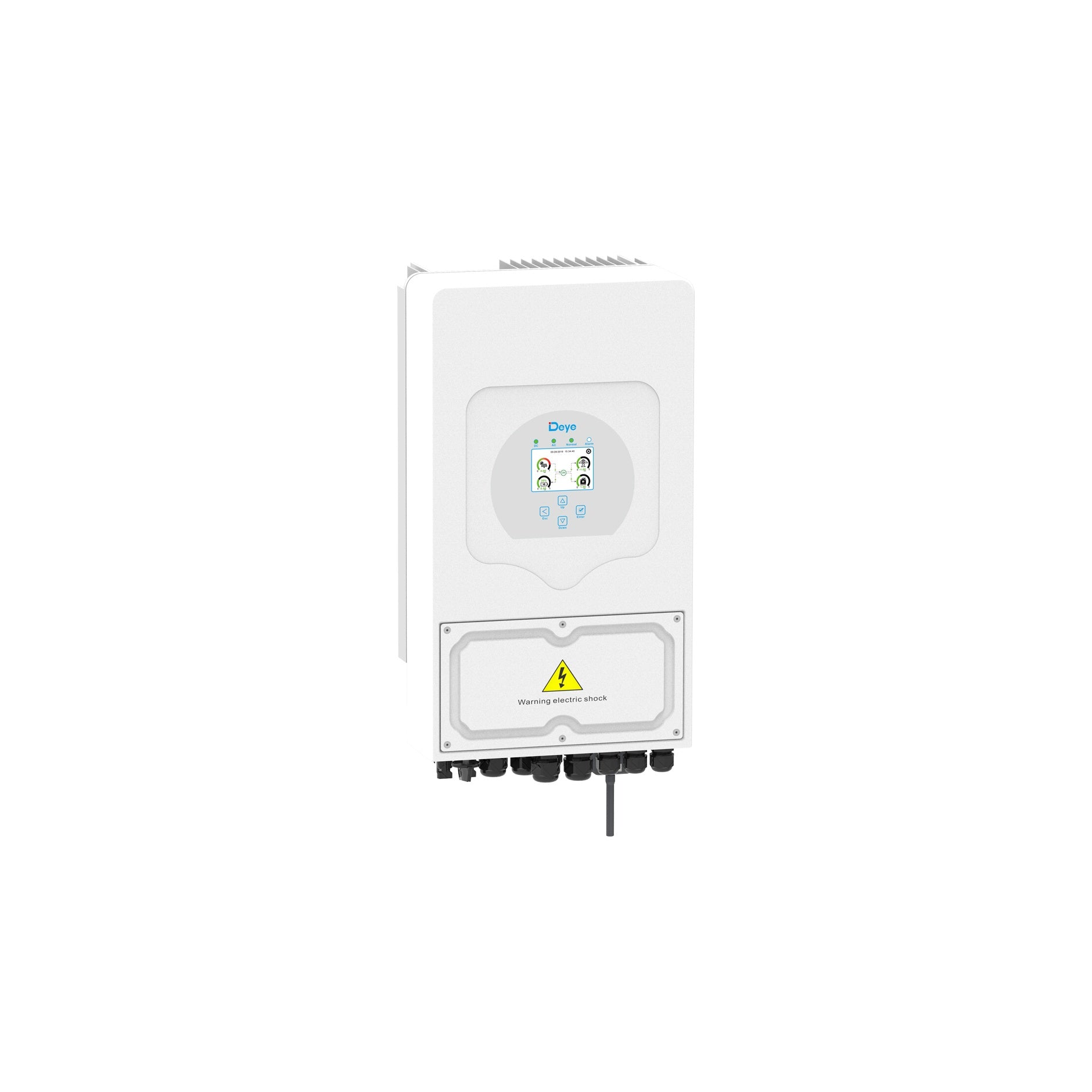

1 x DEYE 5000W Hybrid Inverter SUN-5K-SG04LP1-AU (10 Years Warranty)

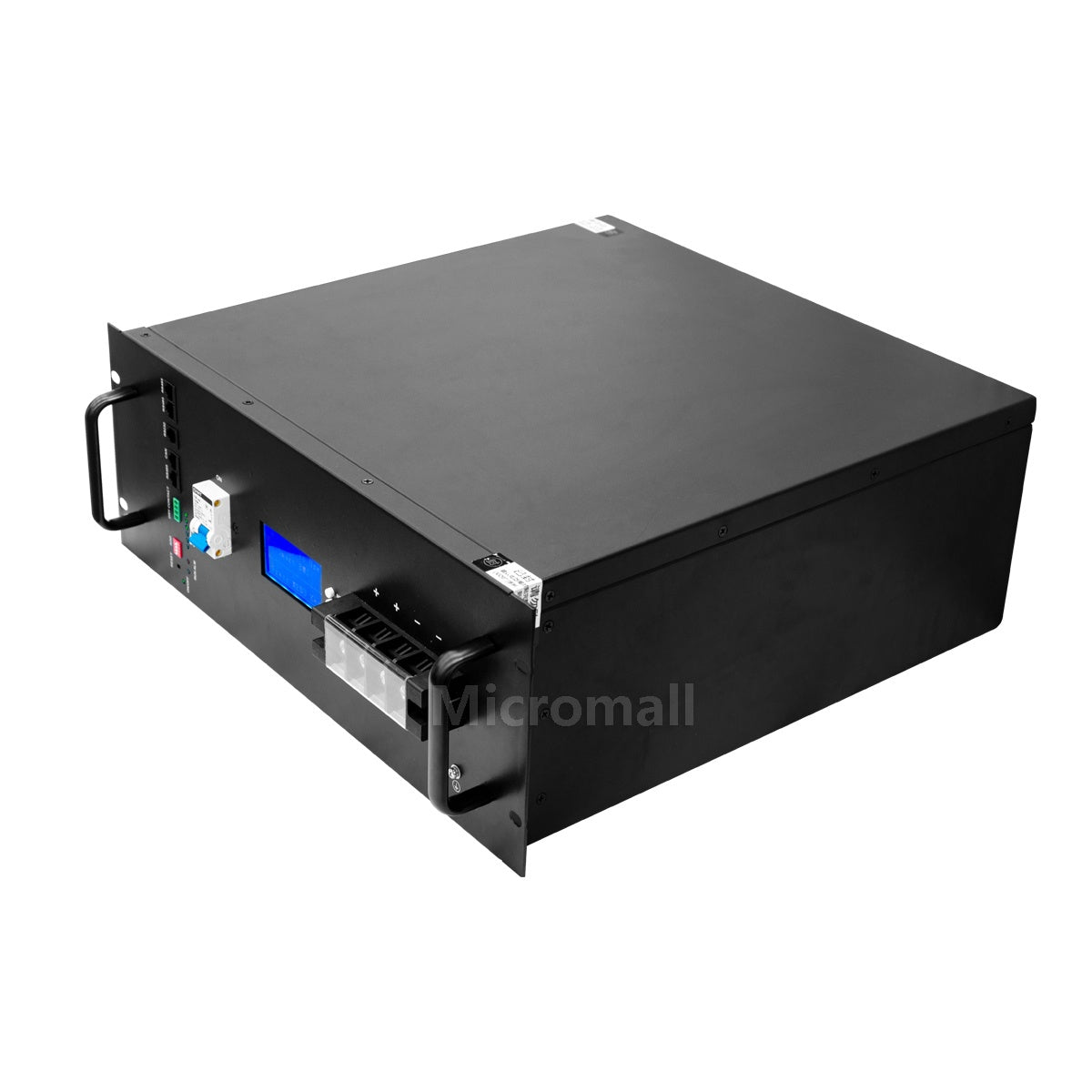

2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 Connector
1 x PV Safety System with Fuse Box
10 x Commercial Mount Kits Adjustable Angle Version
This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

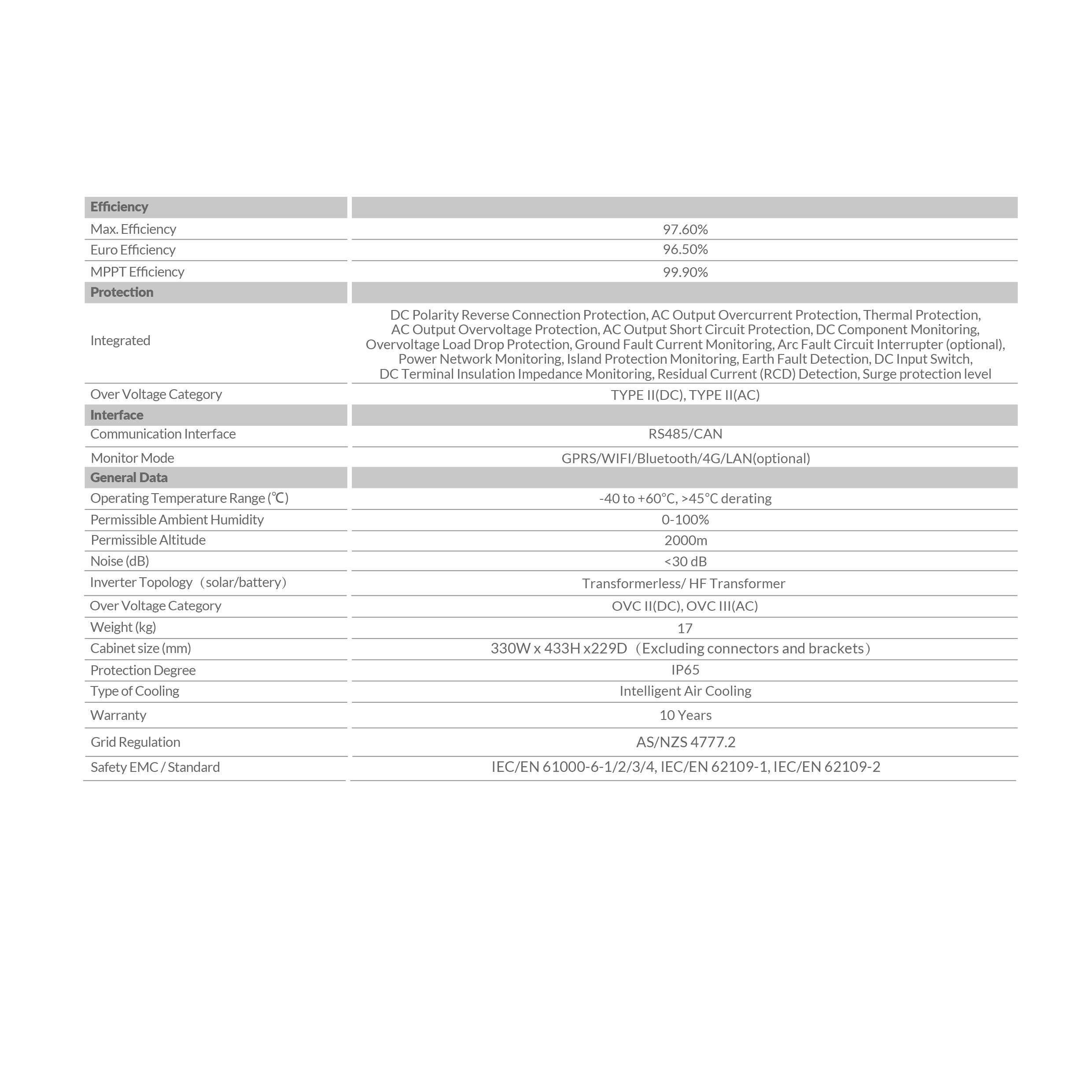

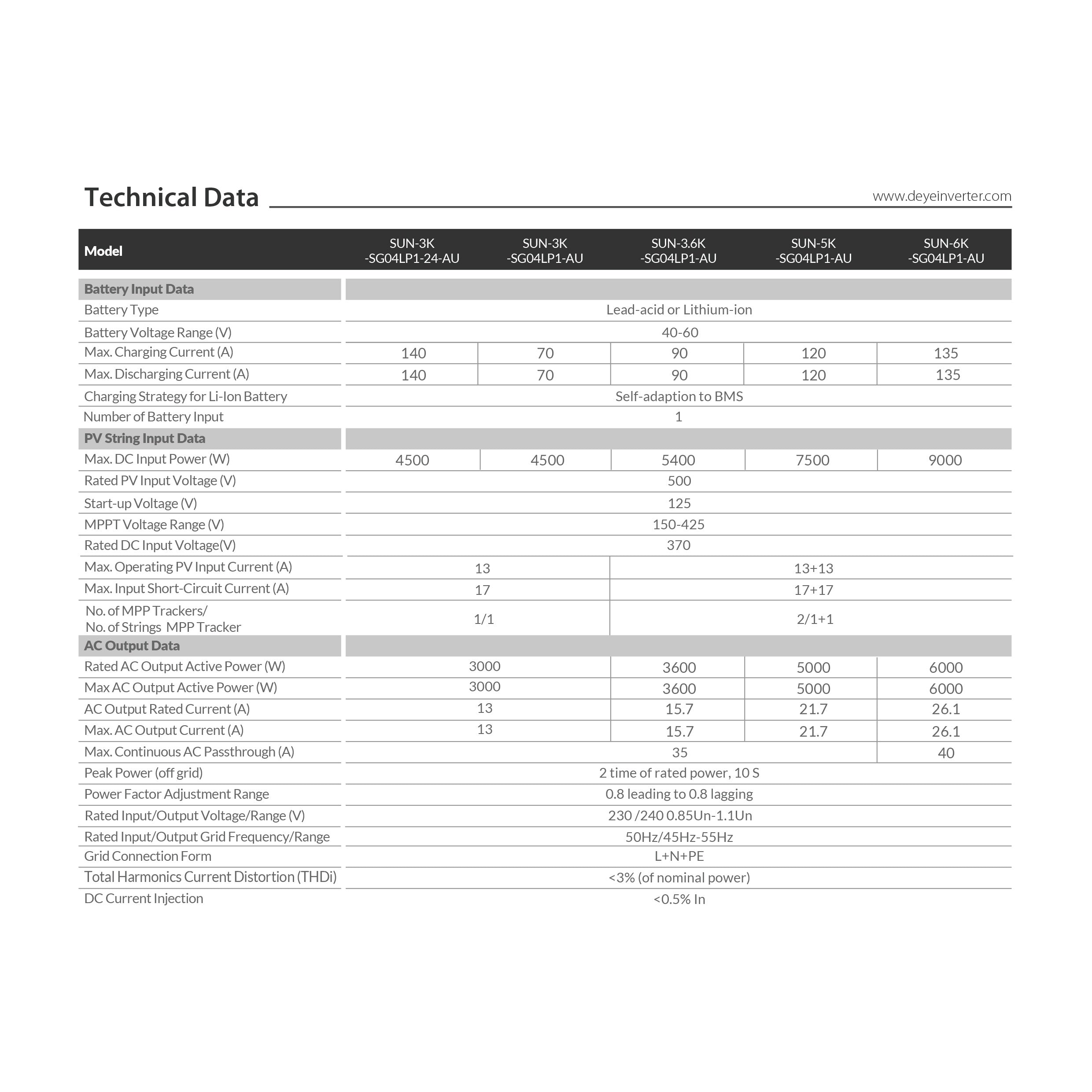

Technical Specifications:
Model: SUN-5K-SG04LP1-AU
Battery Type： Lead-acid or Lithium-ion
Battery Voltage Range (V)： 40-60
Max. Charging Current (A)： 120
Max. Discharging Current (A)： 120
Charging Strategy for Li-Ion Battery： Self-adaption to BMS
Number of Battery Input： 1
Max. DC Input Power (W)：7500
Rated PV Input Voltage (V)：500
Start-up Voltage (V)： 125
MPPT Voltage Range (V)： 150-425
Rated DC Input Voltage(V)：370
Max. Operating PV Input Current (A)：13+13
Max. Input Short-Circuit Current (A)： 17+17
Rated AC Output Active Power (W)：5000
Max AC Output Active Power (W)： 5000
AC Output Rated Current (A)： 21.7
Max. AC Output Current (A)： 21.7
Max. Efficiency：97.60%
Euro Efficiency：96.50%
MPPT Efficiency： 99.90%
Weight (kg)： 17
Cabinet size (mm)：330W x 433H x229D(Excluding connectors and brackets)
Protection Degree：IP65
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**Authorized Longi distributor in New Zealand**
