Description
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Battery Warranty: 10 Years Warranty**
**Inverter Warranty: 10 Years Warranty**
Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 6 years warranty + 4 years repair warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.

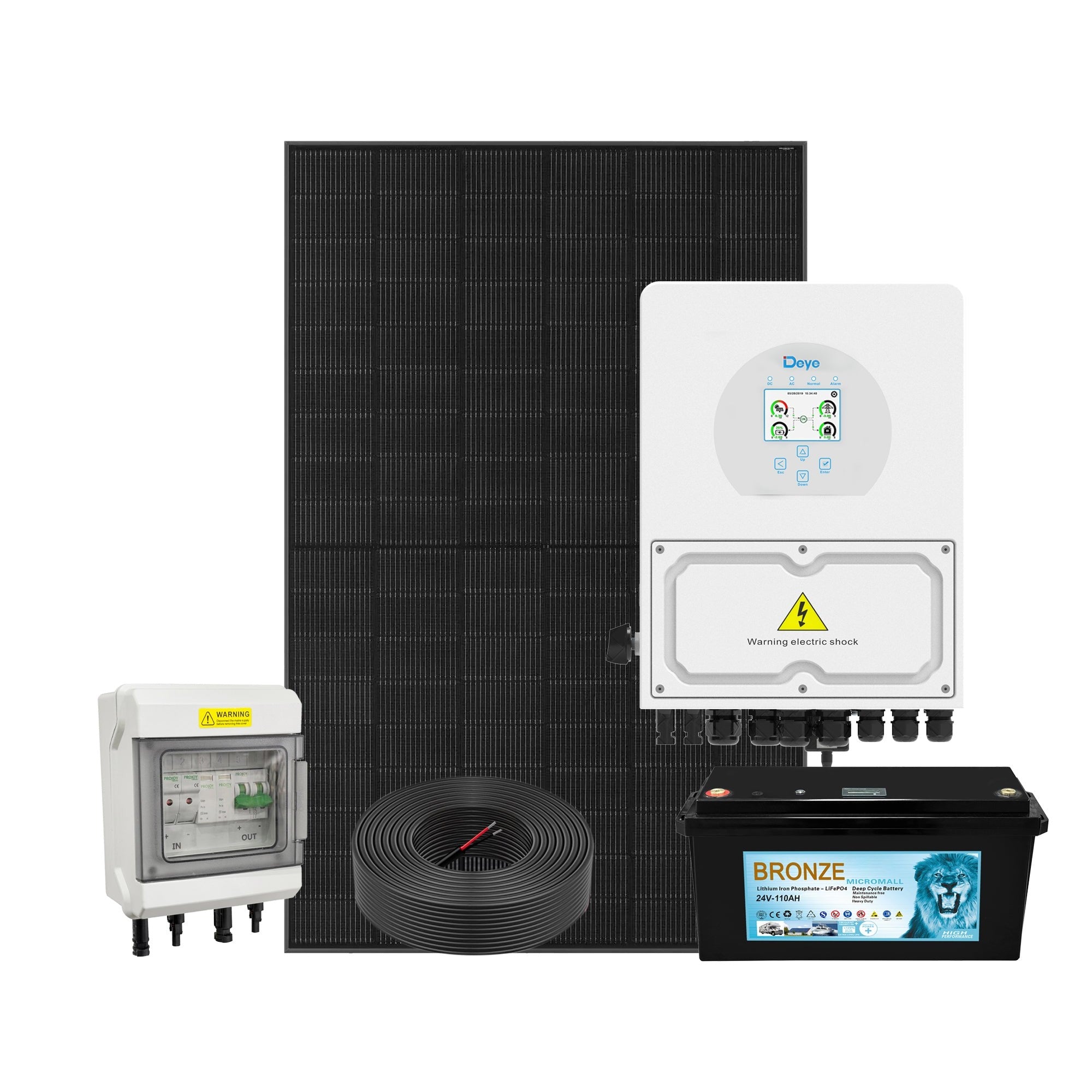

Package includes:

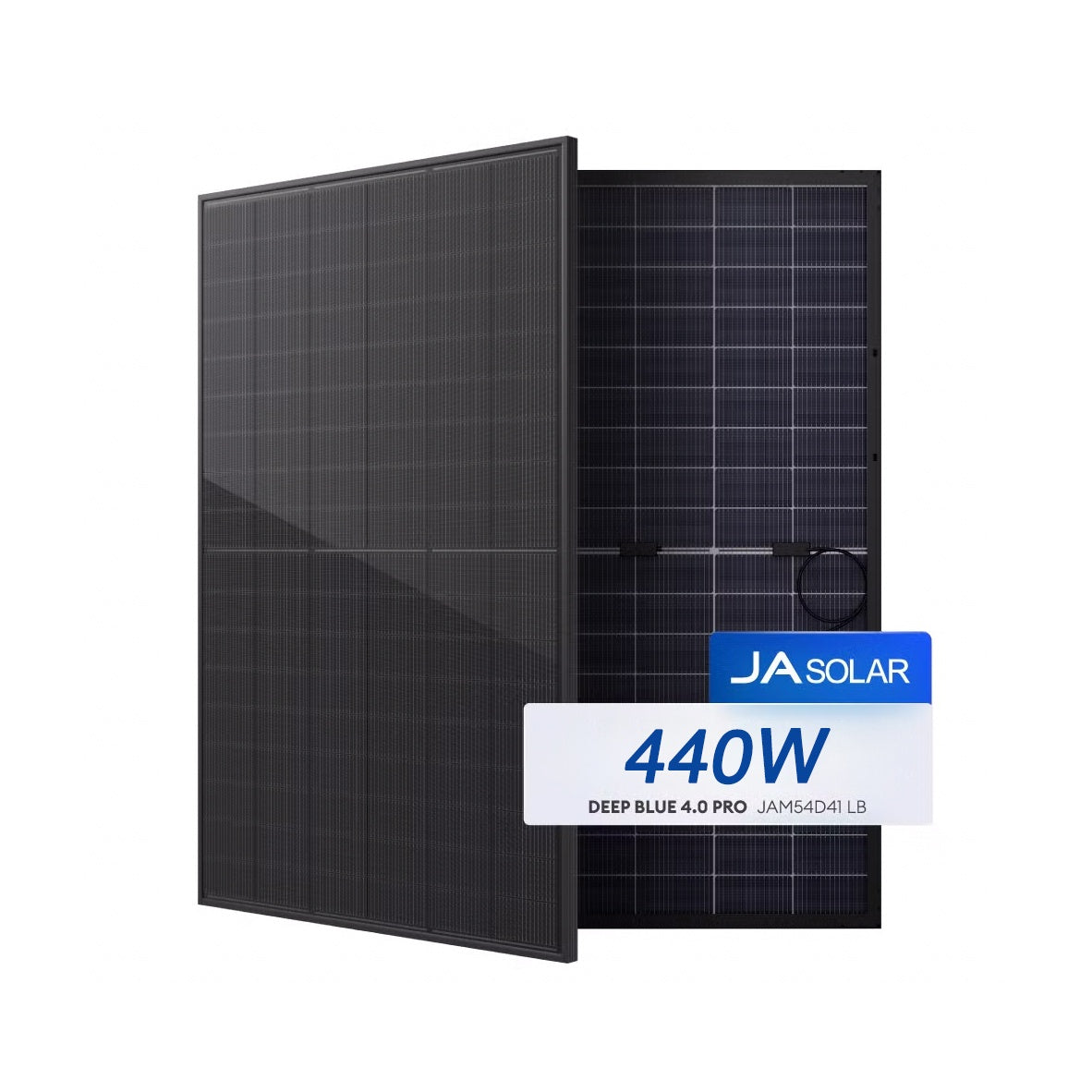

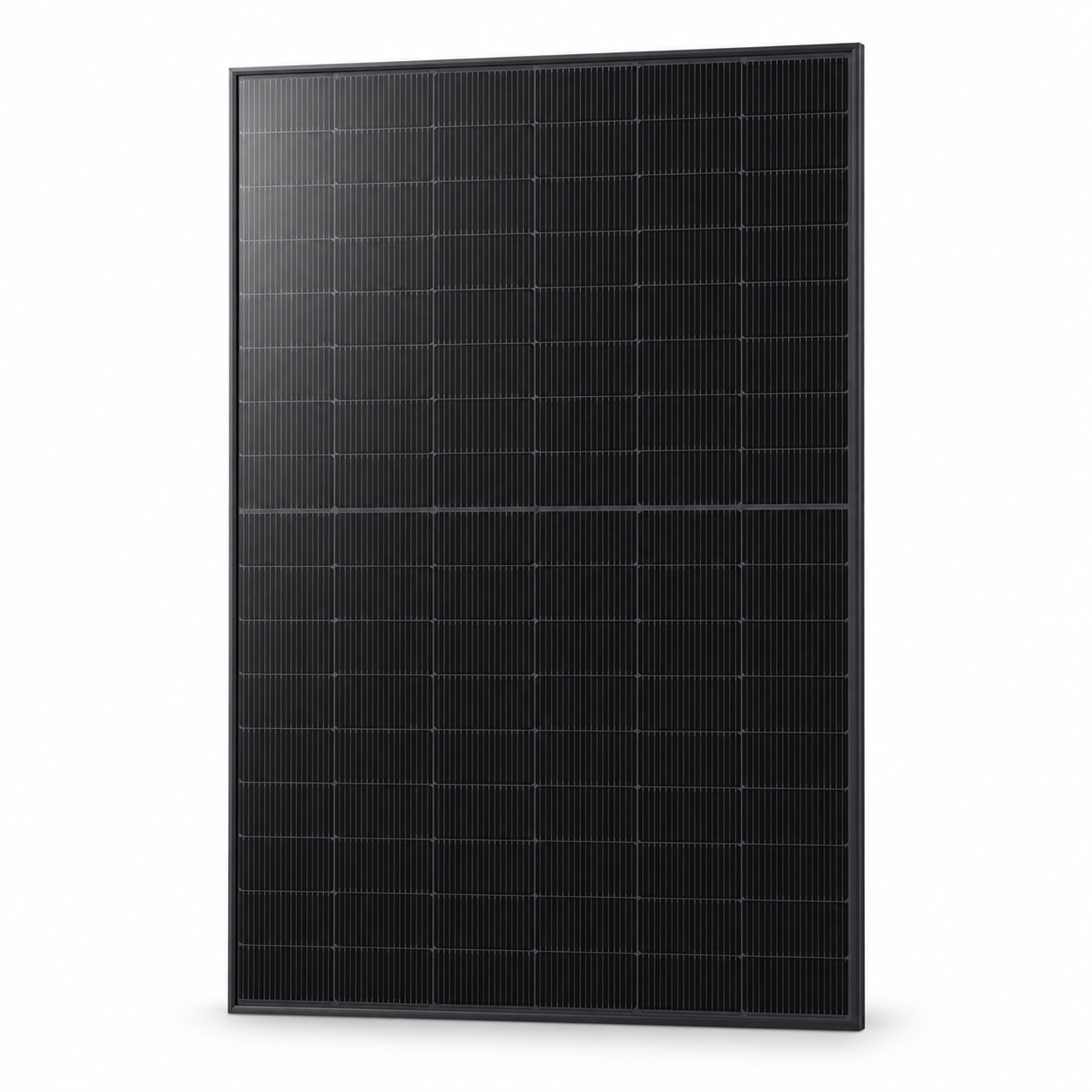

5 x JA Solar 440W Bifacial Topcon N-Type Mono Half-Cell Solar Panel (dimensions: 1762x1134x30mm)

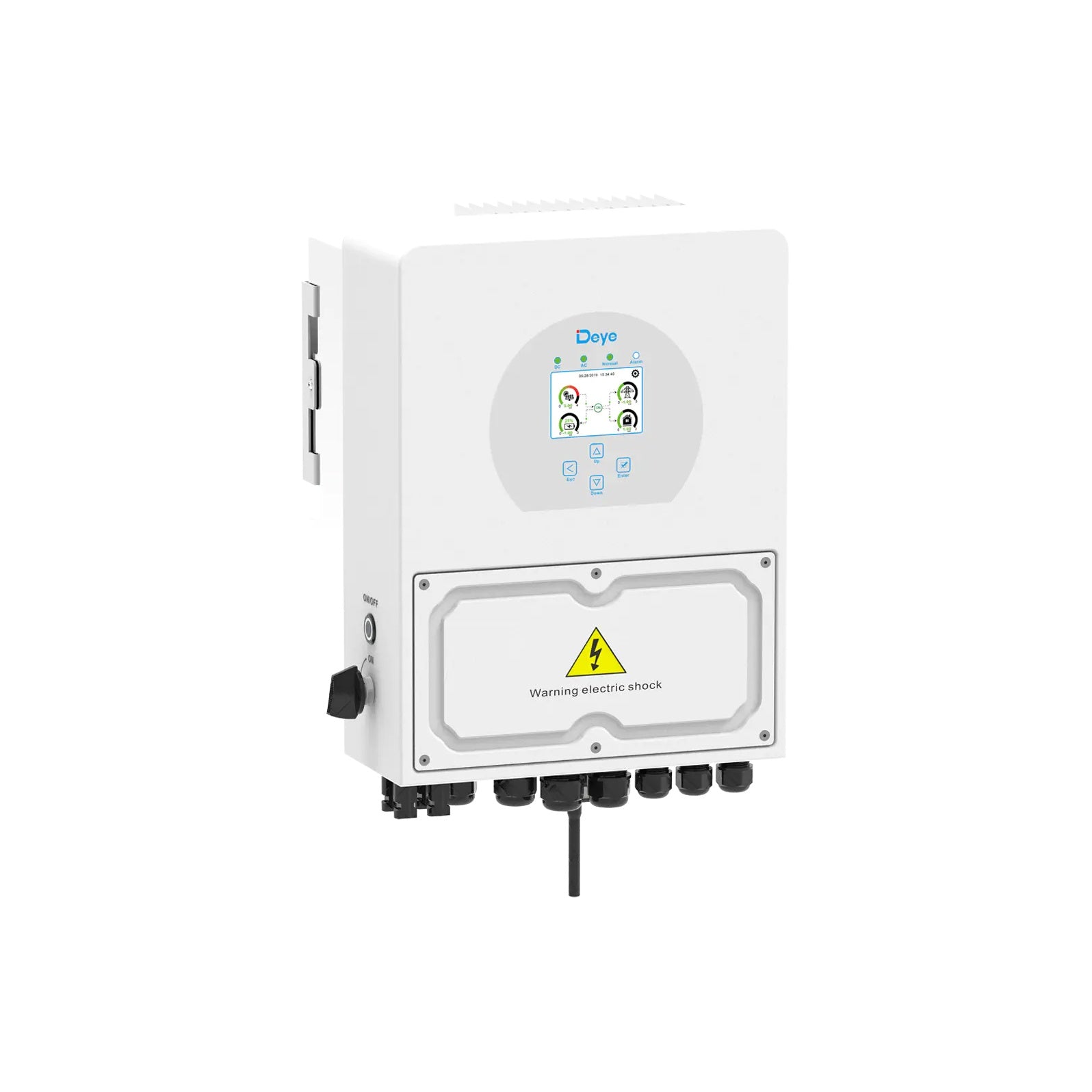

1 x Deye 24V 3kW Single Phase MPPT Hybrid Inverter SUN-3K-SG04LP1-24-AU

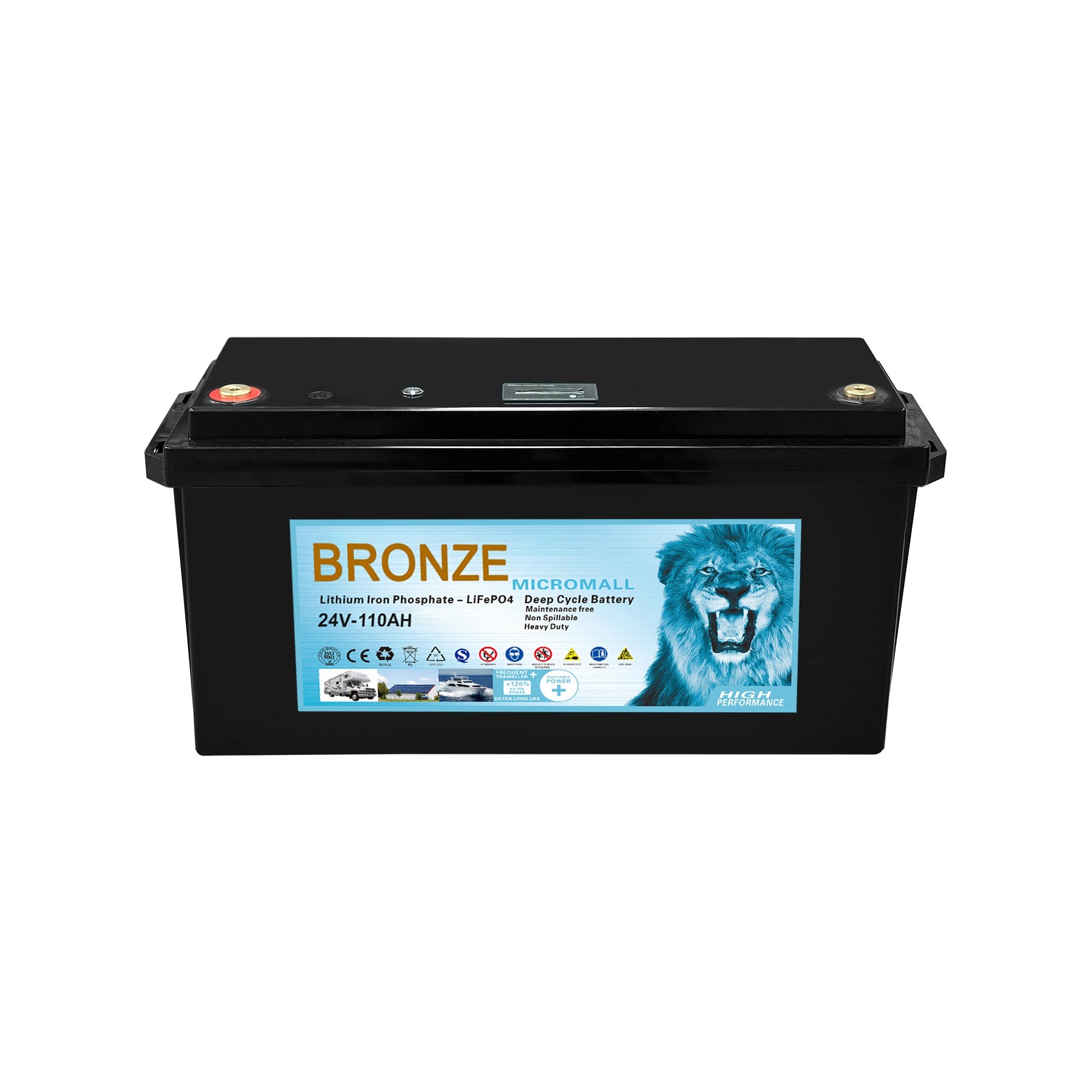

1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors

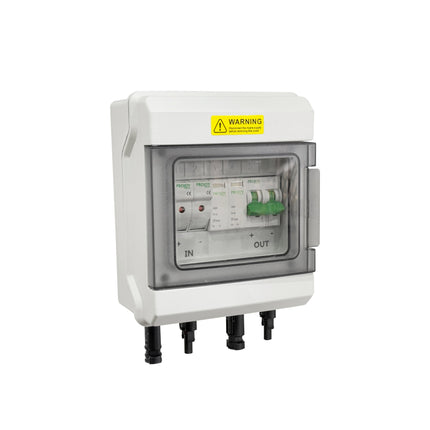

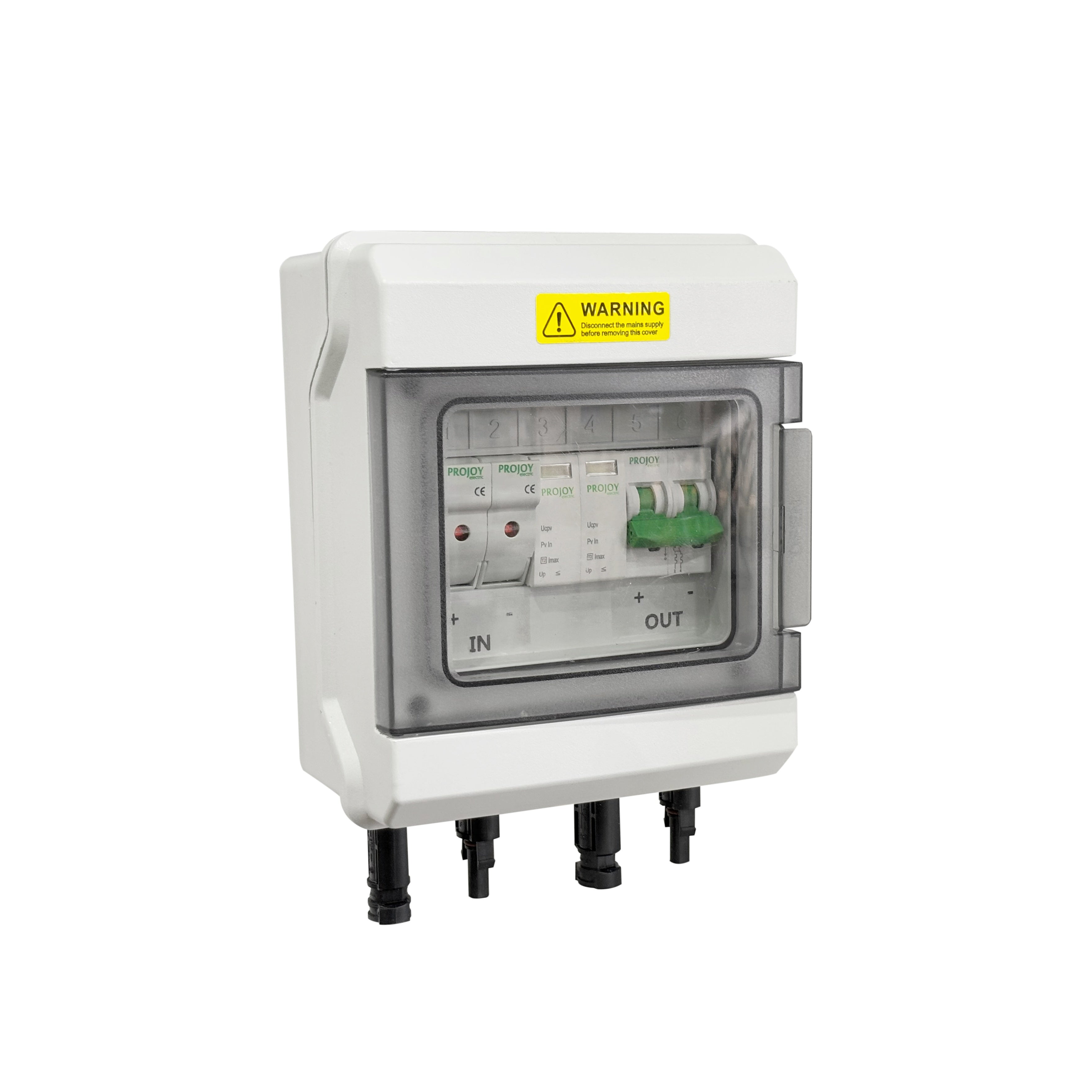

1 x PV Safety System
5 x Mounting Rail Systems
2 x DC Power Cables with Pre-Installed Lug Terminals

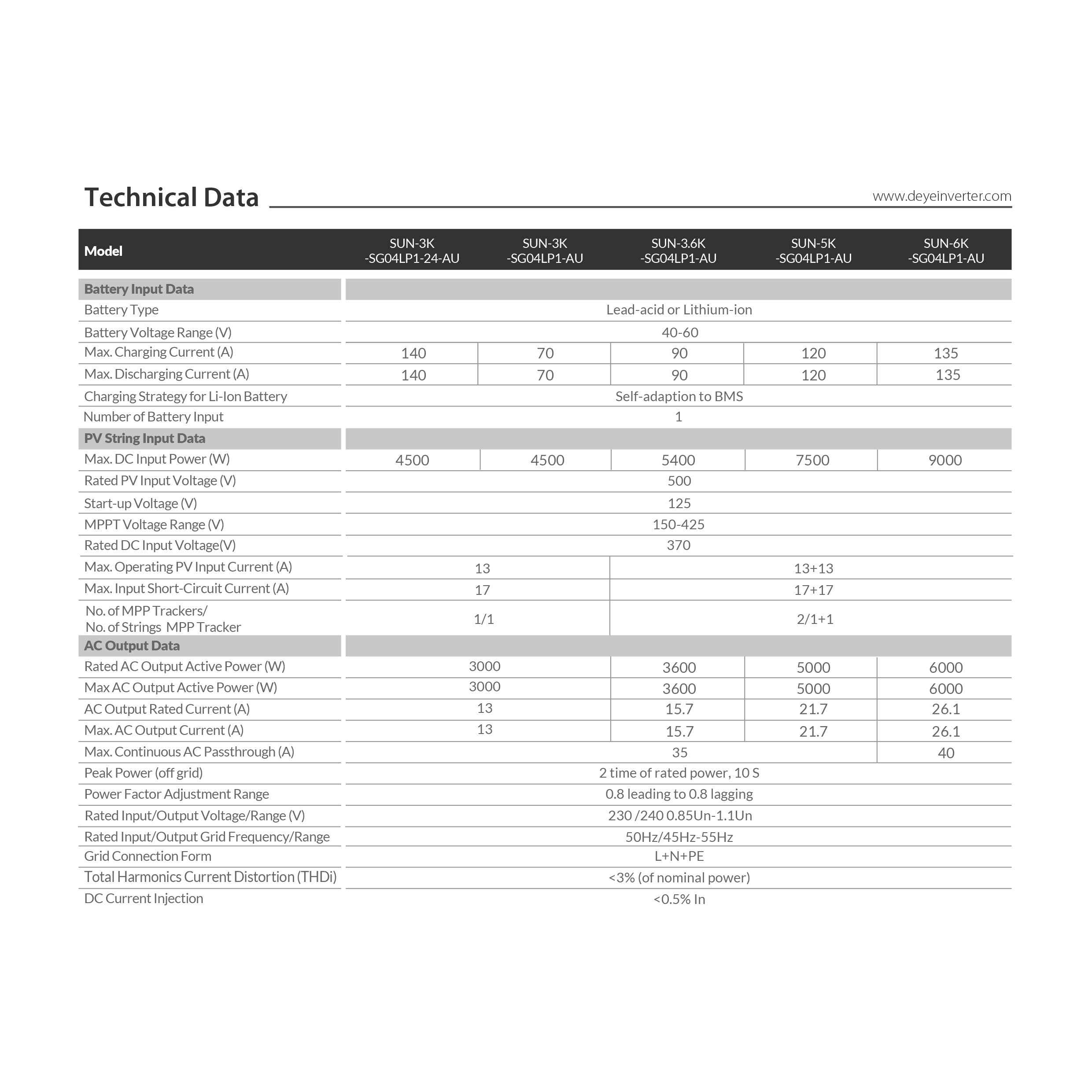

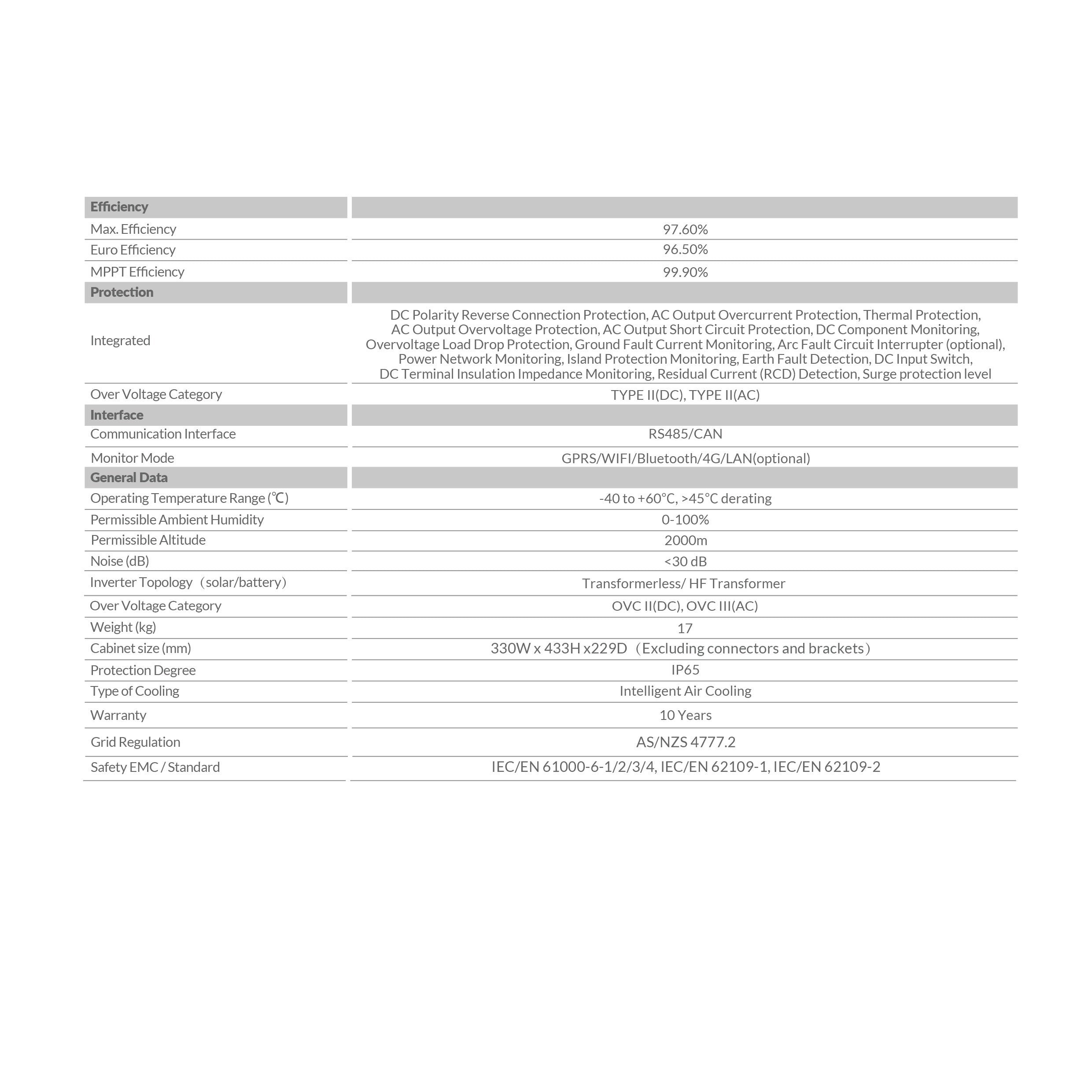

SUN-3K-SG04LP1-24-AU |24V | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Model: SUN-3K-SG04LP1-AU
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 140
Max. Discharging Current (A): 140
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
