Description

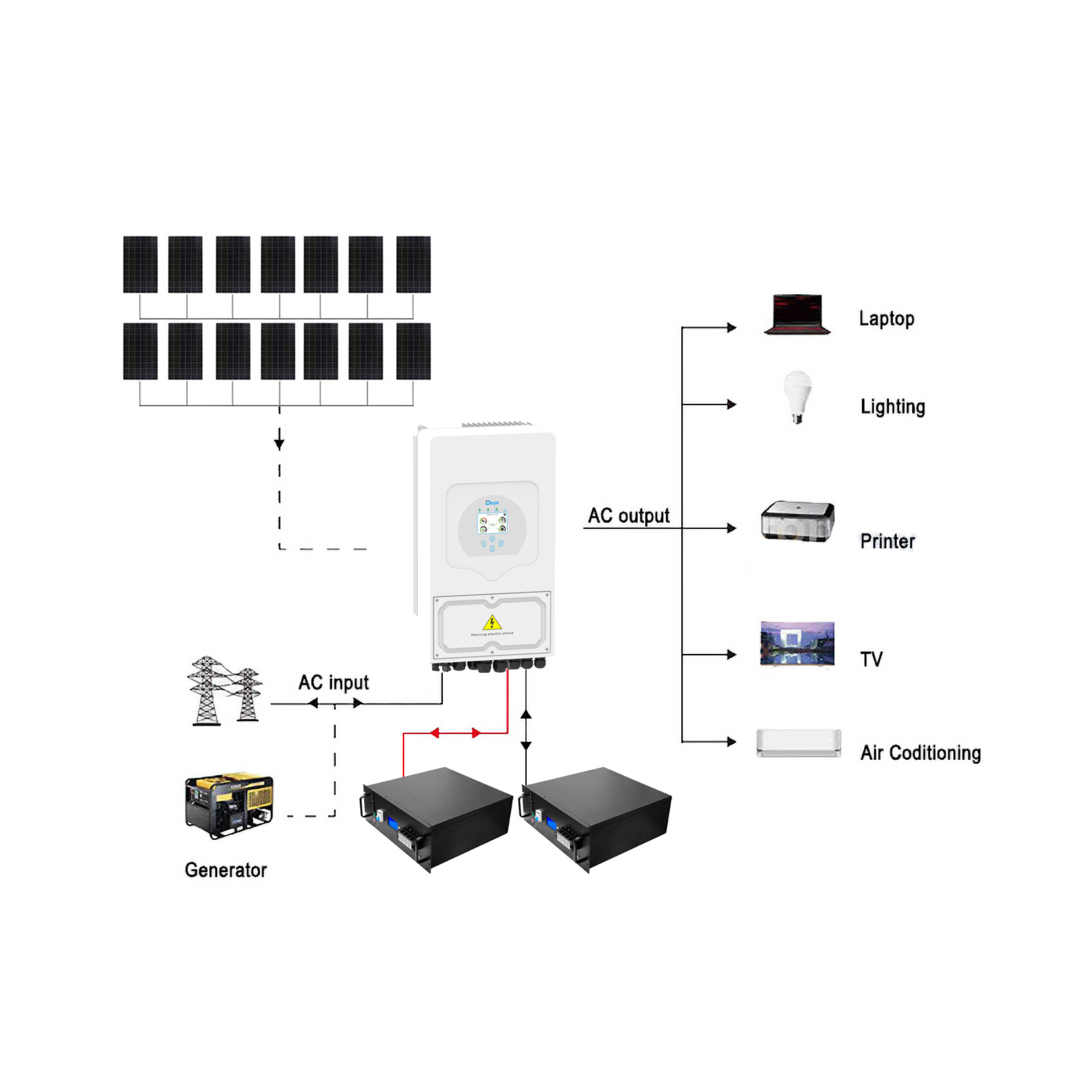

Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.
Package Includes:

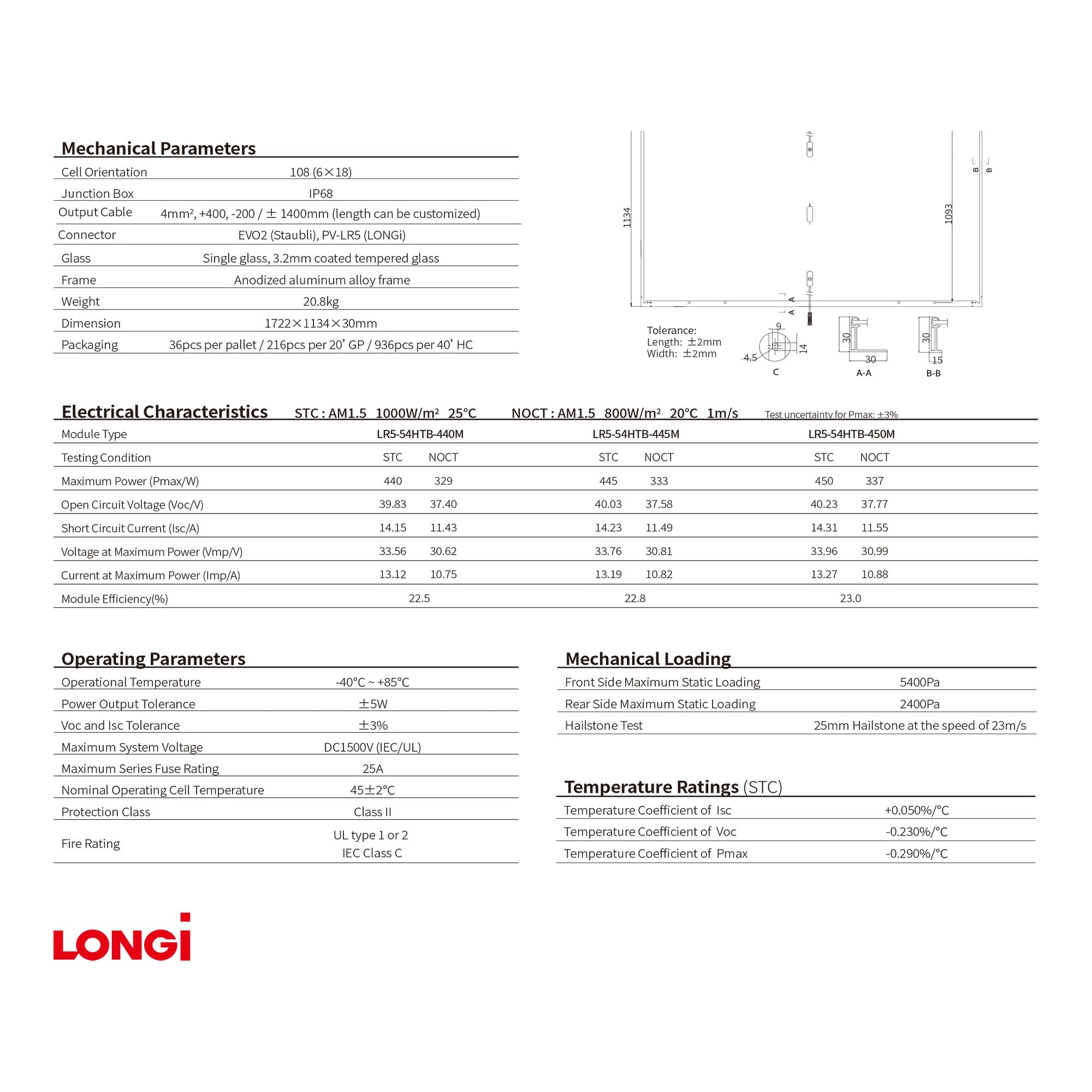

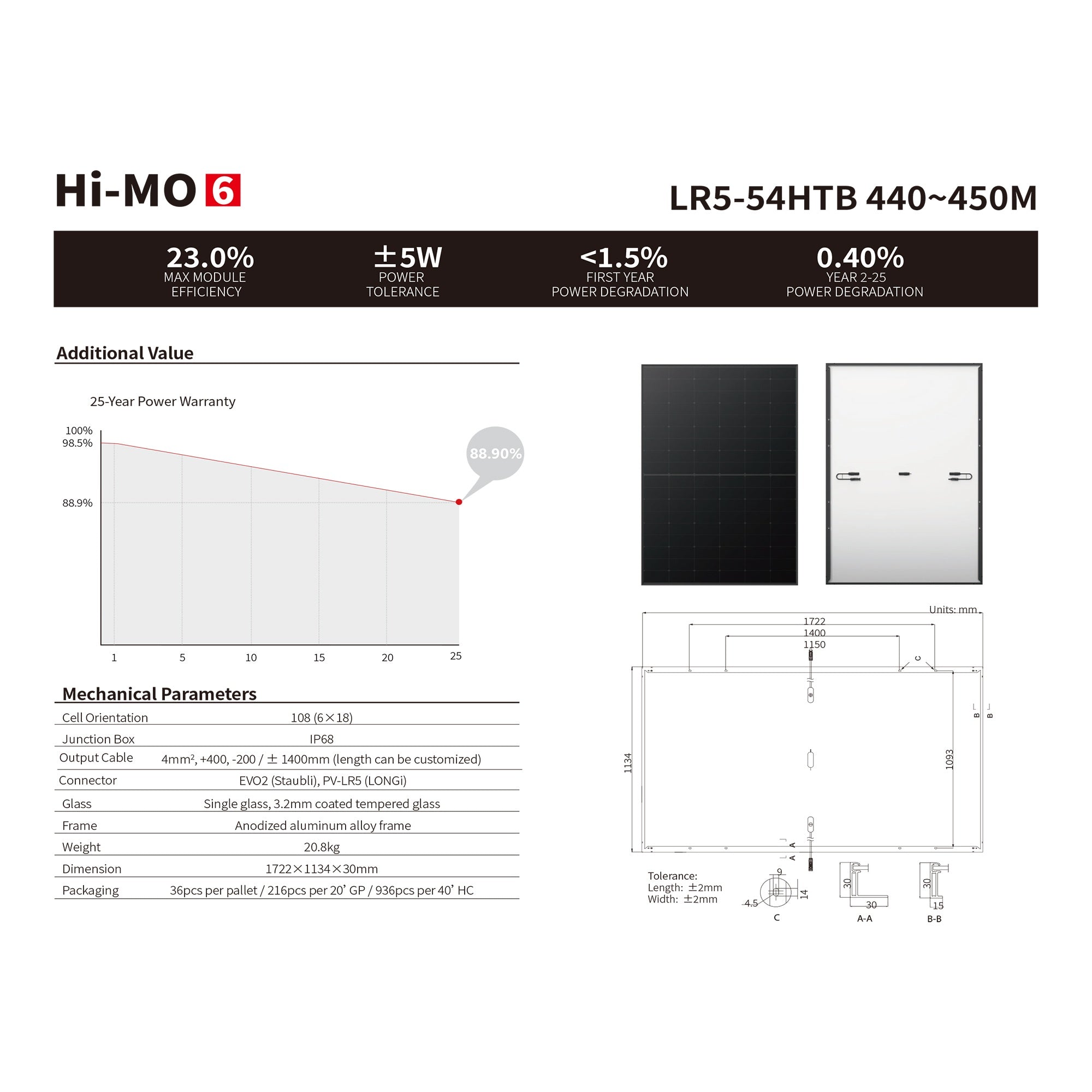

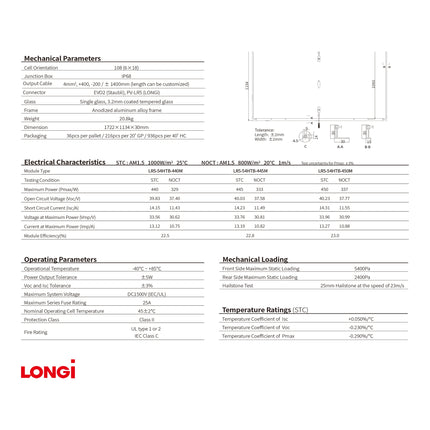

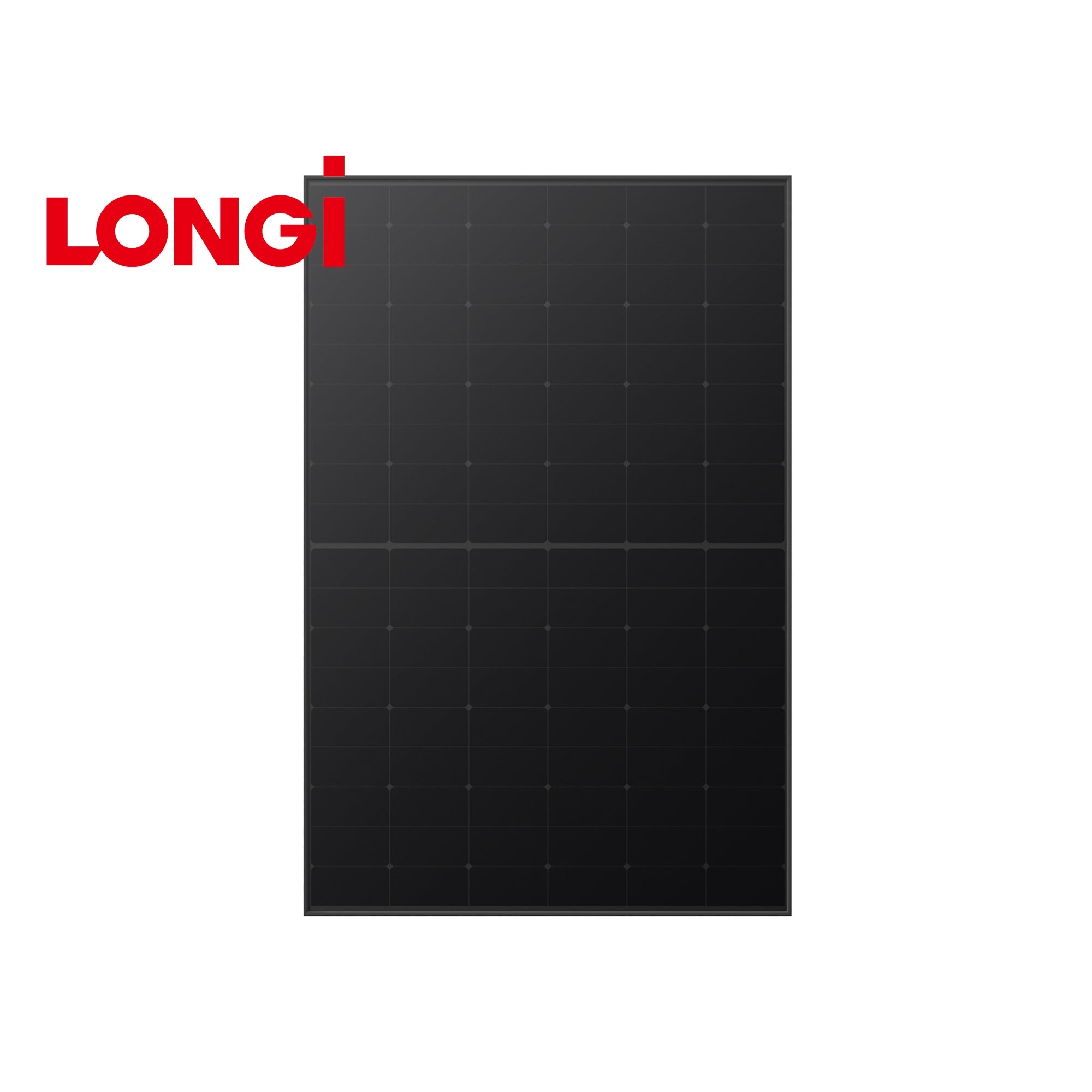

14 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

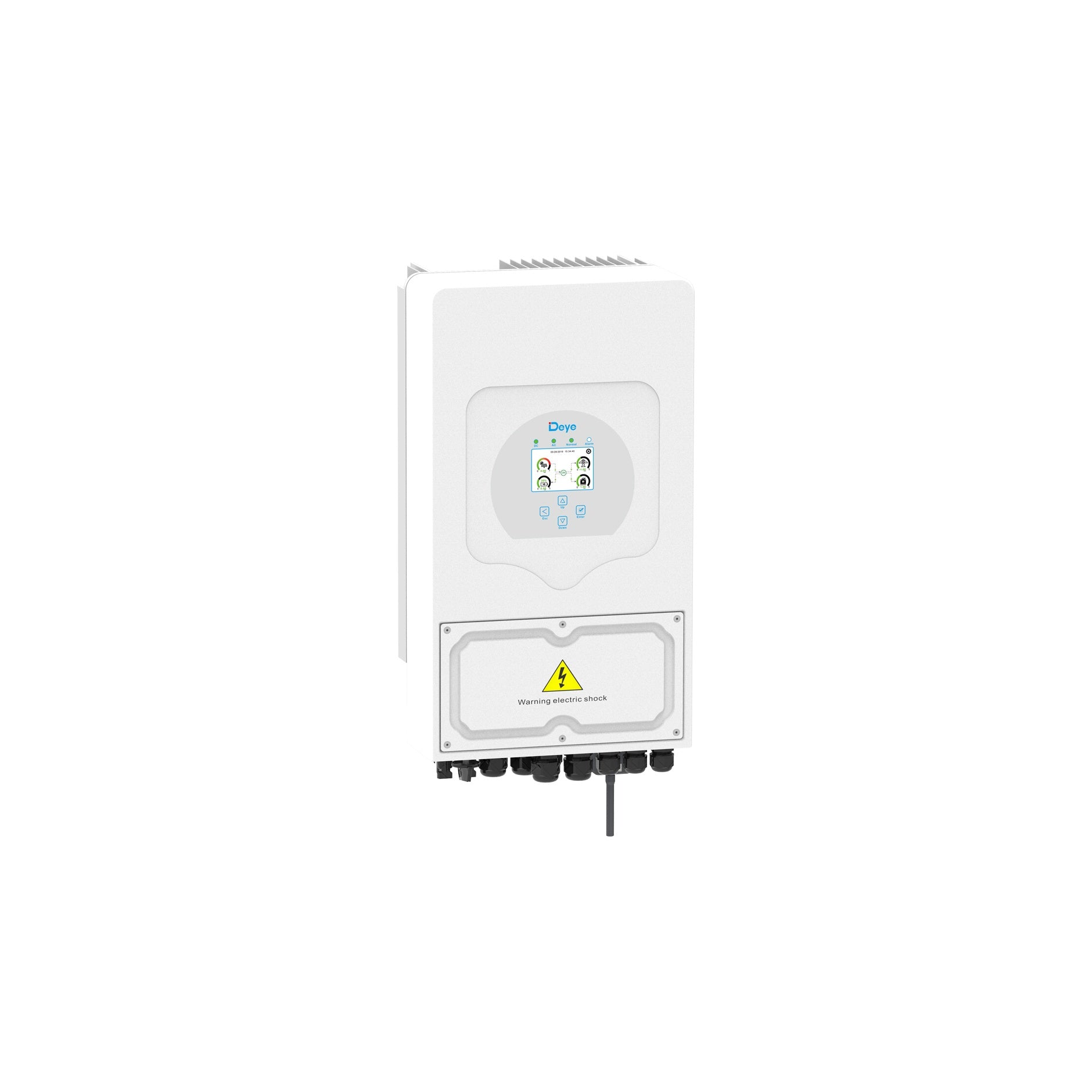

1 x DEYE 5000W Hybrid Inverter SUN-5K-SG04LP1-AU (10 Years Warranty)

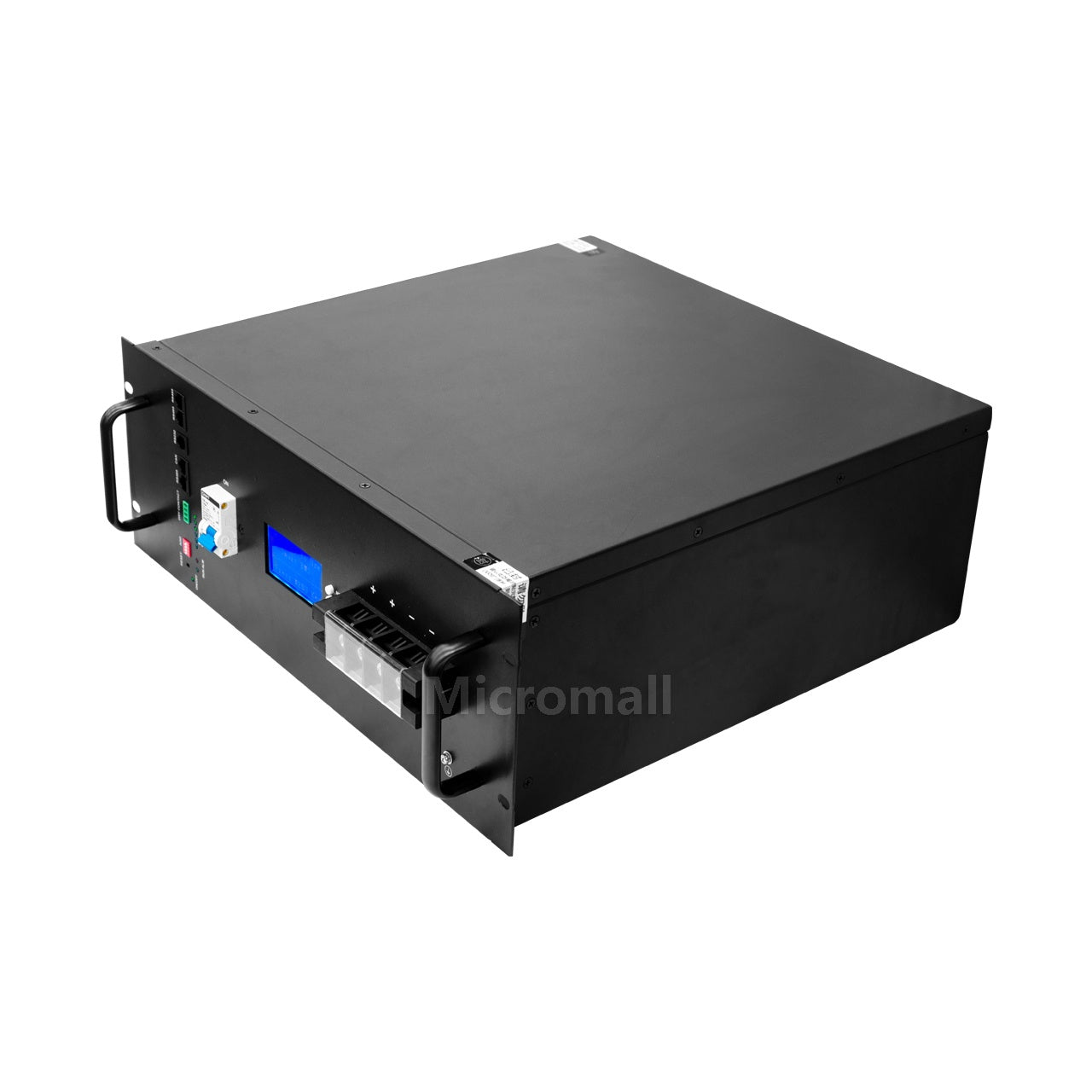

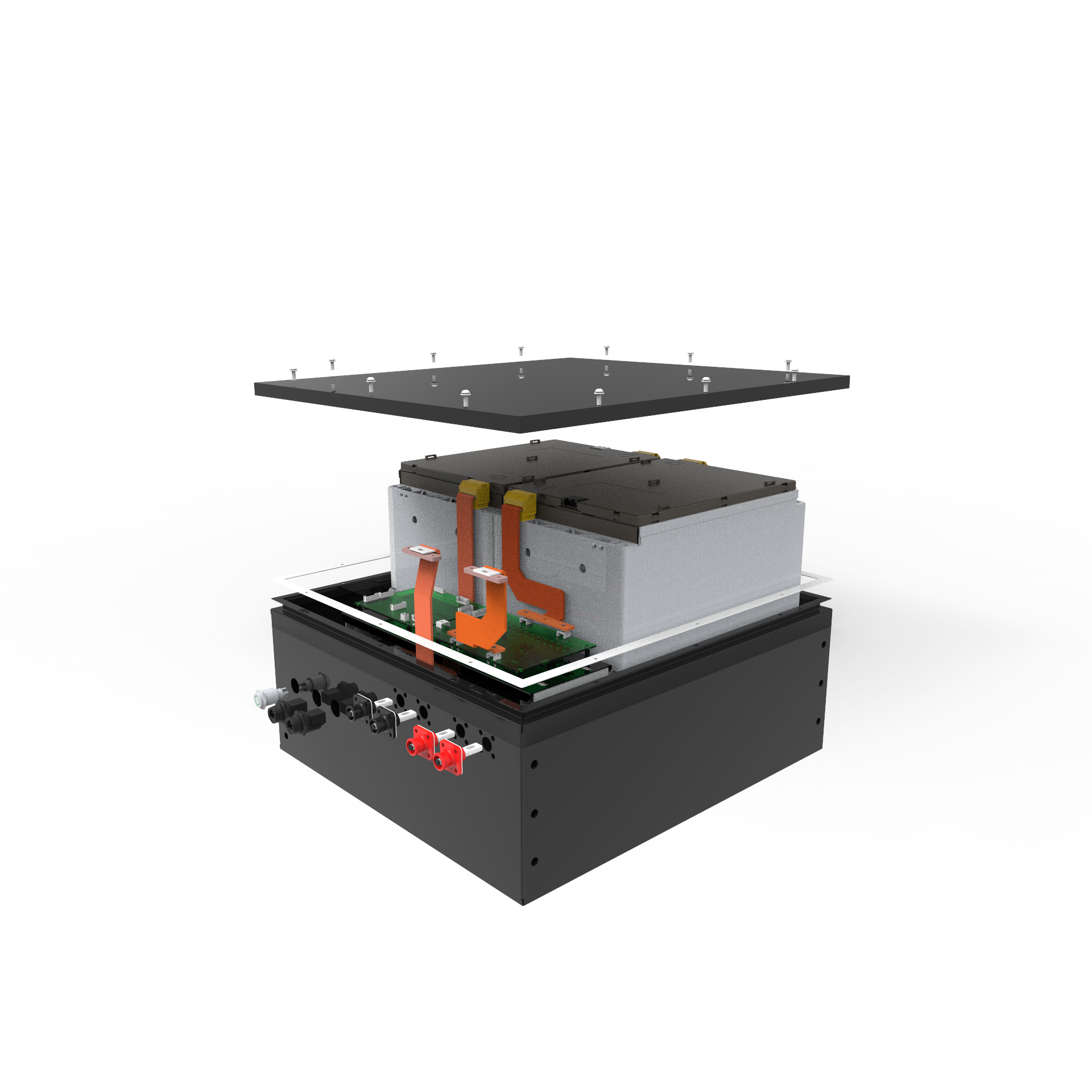

2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors

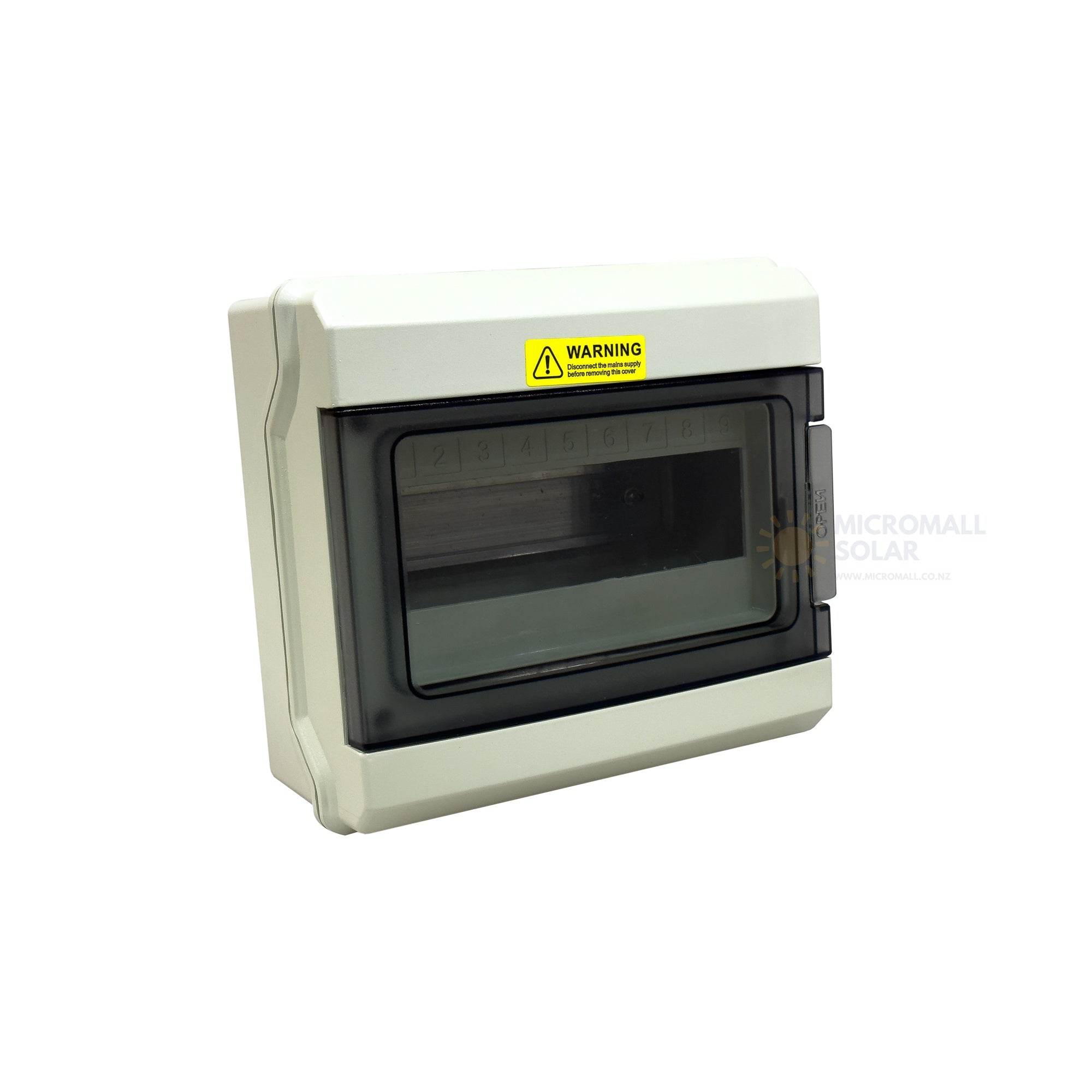

2 x PV Safety System with Fuse Box
14 x Rails System
2 x MC4 Port

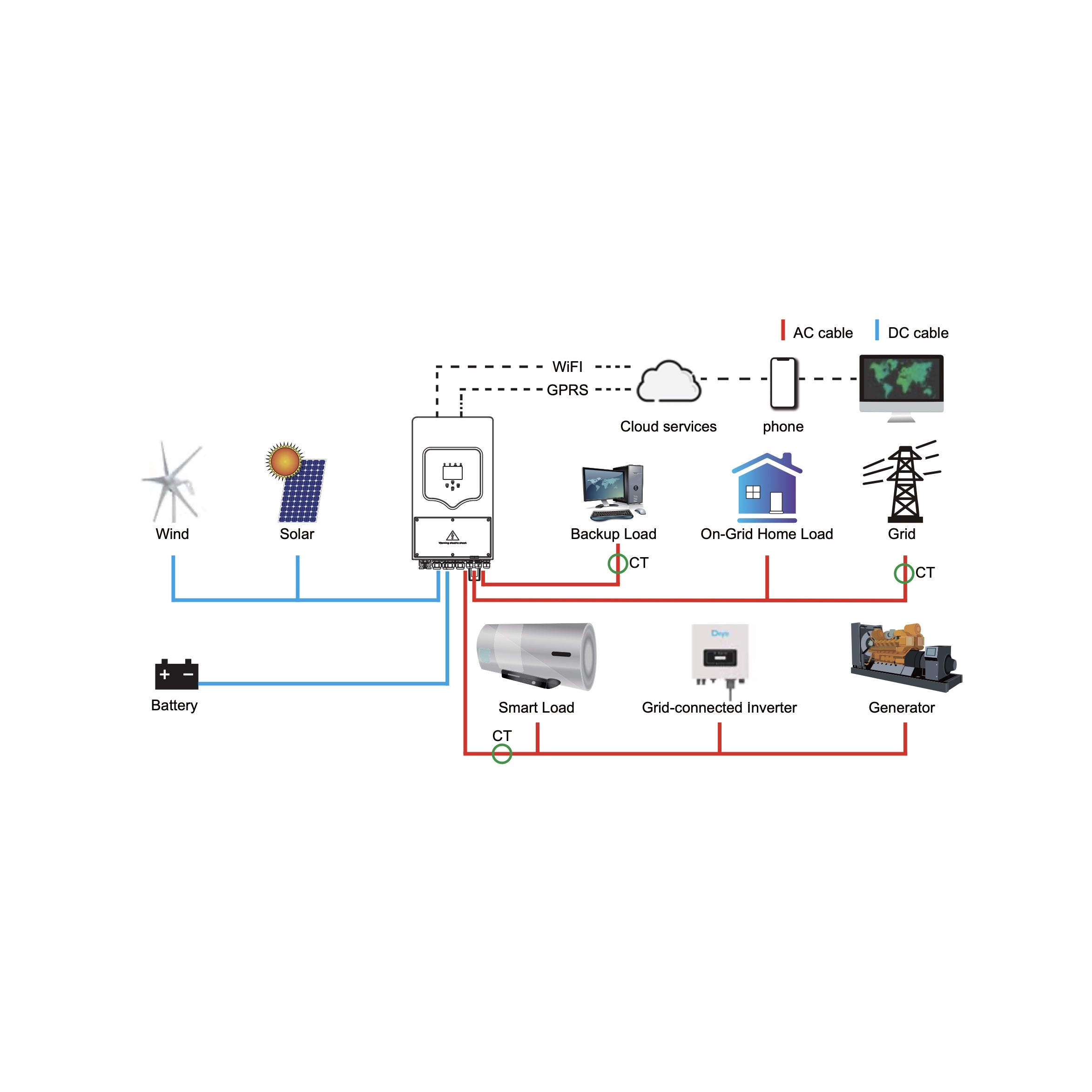

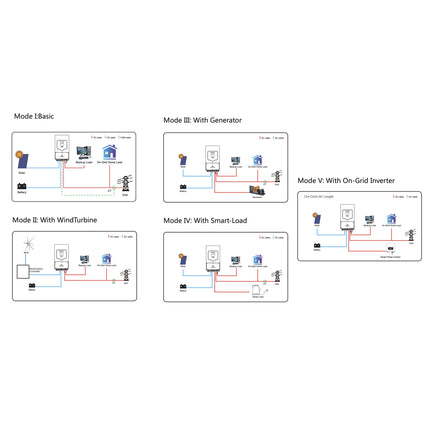

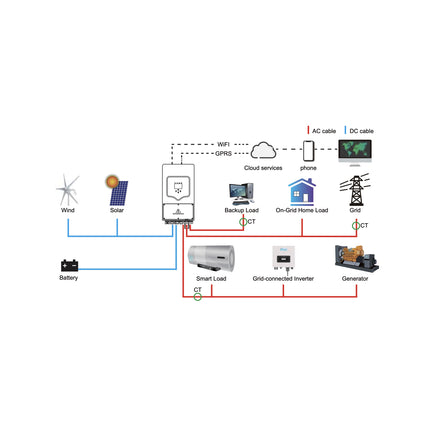

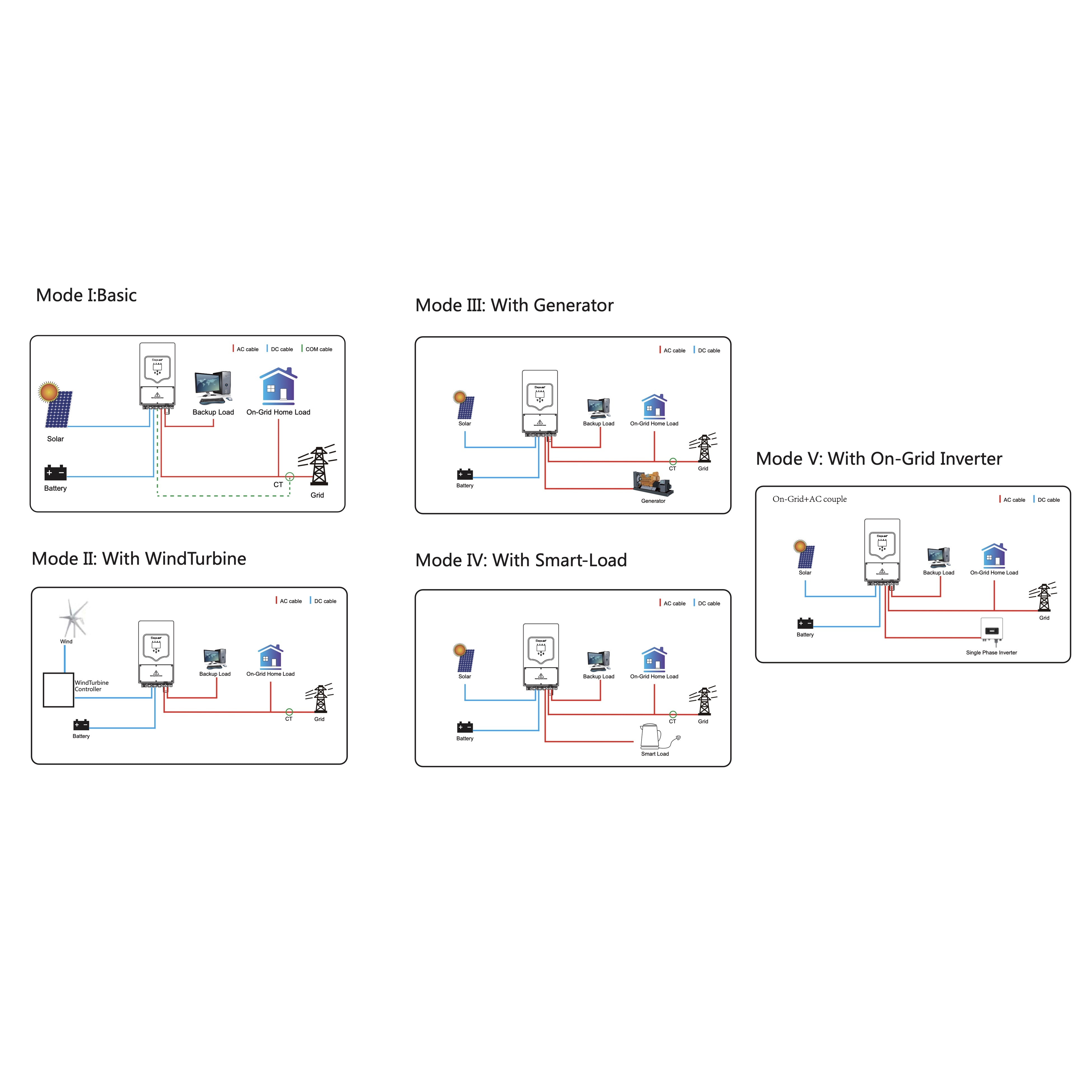

SUN-5K-SG04LP1 is a multifunctional inverter, combining functions of inverter, solar charger and battery
charger to offer uninterruptible power support with portable size. Its comprehensive LCD
display offers user configurable and easy accessible button operation such as battery charging,
AC/solar charging, and acceptable input voltage based on different applications.

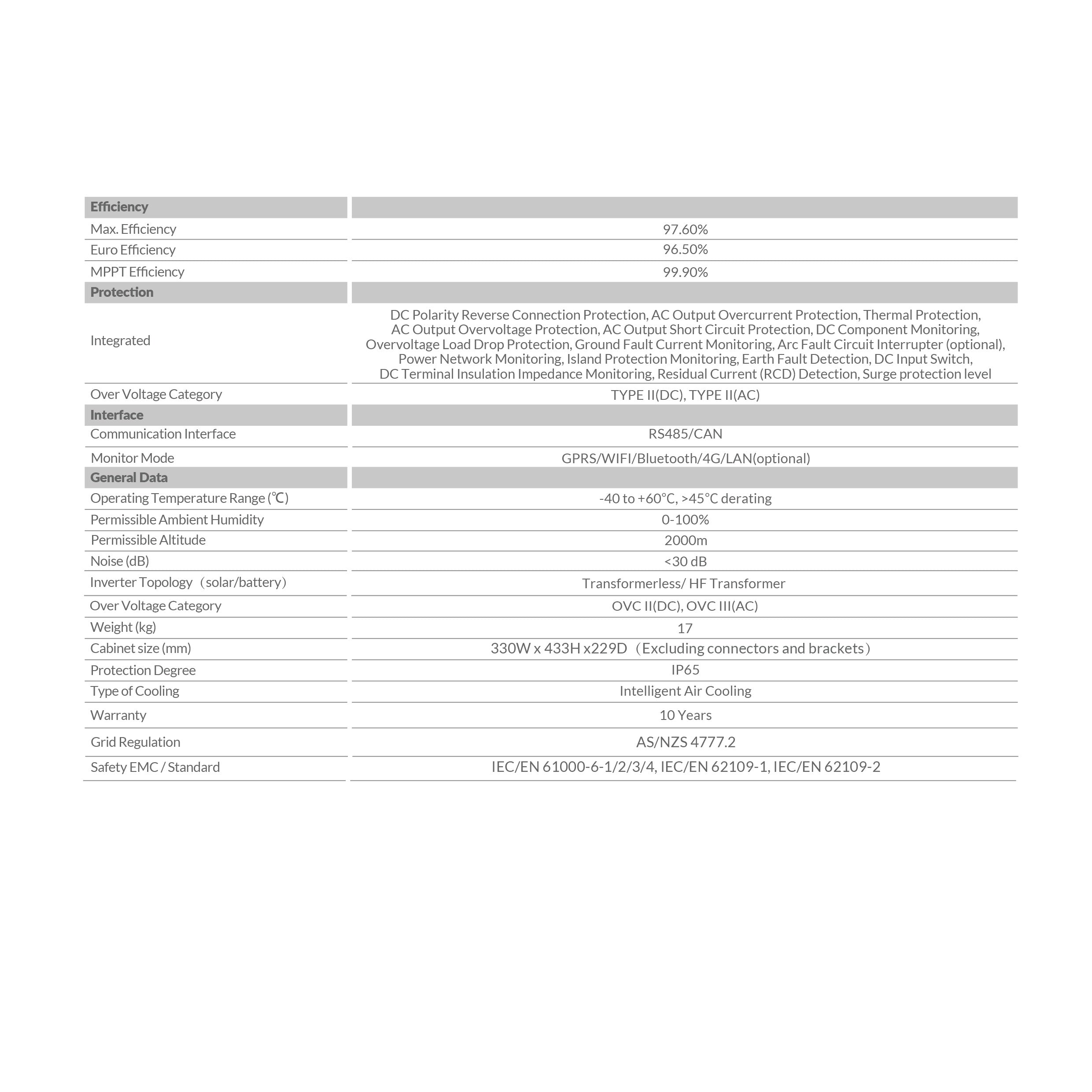

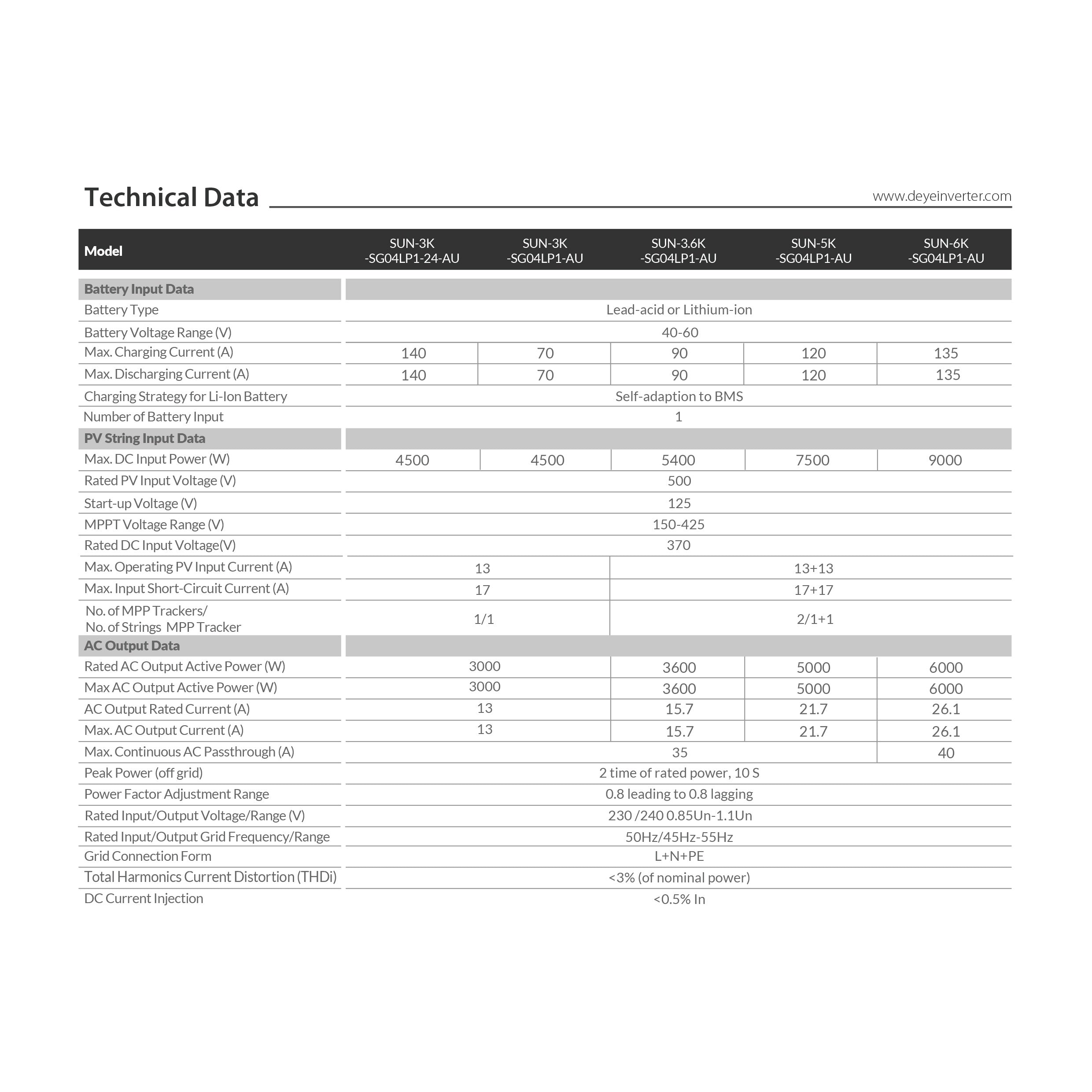

Technical Specifications
Battery Type： Lead-acid or Lithium-ion
Battery Voltage Range (V)： 40-60
Max. Charging Current (A)： 120
Max. Discharging Current (A)： 120
Charging Strategy for Li-Ion Battery： Self-adaption to BMS
Number of Battery Input： 1
Max. DC Input Power (W)：7500
Rated PV Input Voltage (V)：500
Start-up Voltage (V)： 125
MPPT Voltage Range (V)： 150-425
Rated DC Input Voltage(V)：370
Max. Operating PV Input Current (A)：13+13
Max. Input Short-Circuit Current (A)： 17+17
No. of MPP Trackers/ No. of Strings MPP Tracker： 2/1+1
Rated AC Output Active Power (W)：5000
Max AC Output Active Power (W)： 5000
AC Output Rated Current (A)： 21.7
Max. AC Output Current (A)： 21.7
Weight (kg)： 17
Cabinet size (mm)：330W x 433H x229D(Excluding connectors and brackets)
Protection Degree：IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**Authorized Longi distributor in New Zealand**
