Description
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**
Experience the advanced Smart Hybrid System, combining high-efficiency 440W N-Type Mono Bifacial Topcon Half-Cell Solar Panels with a premium Deye Hybrid Inverter for exceptional performance and reliability.

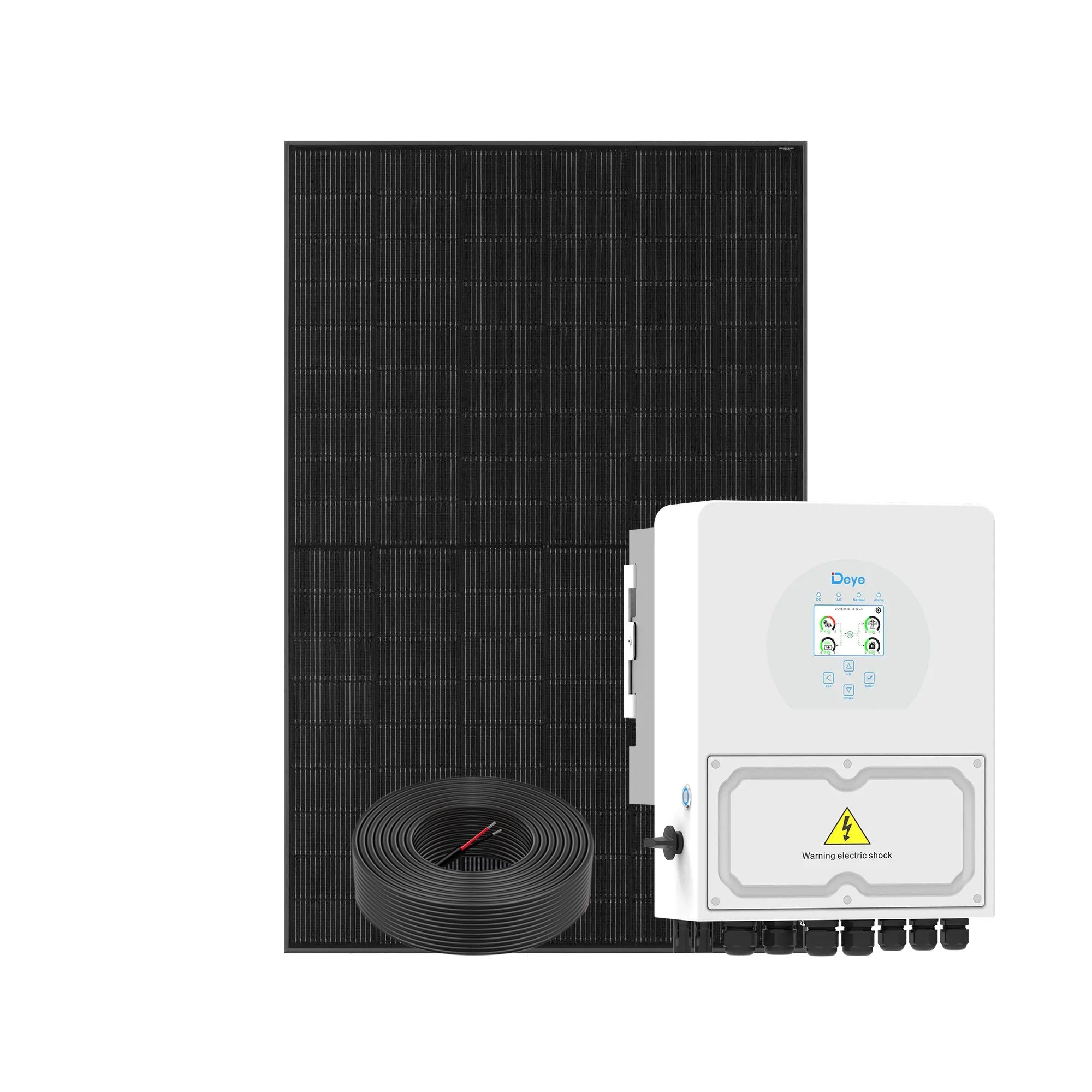

Package Includes:

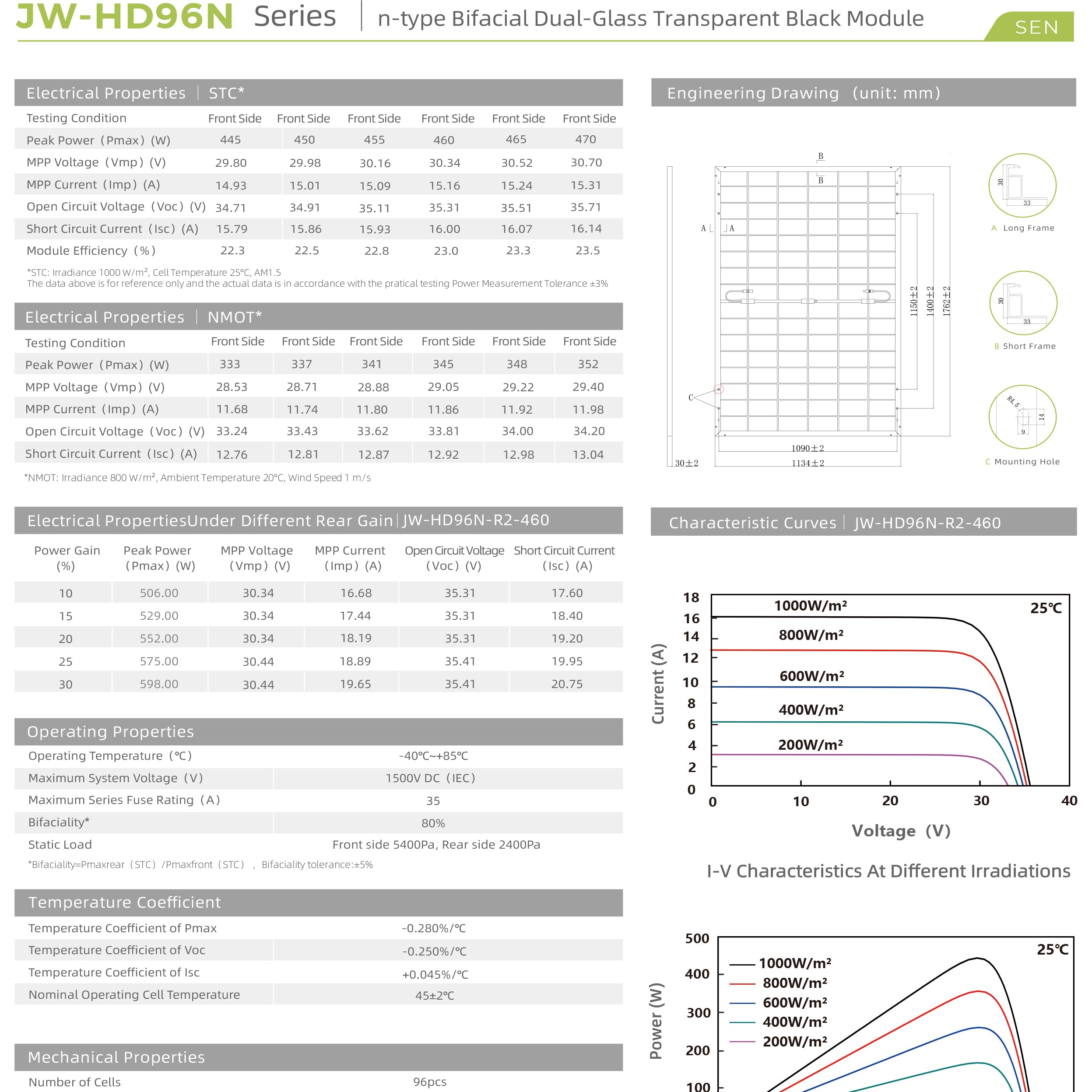

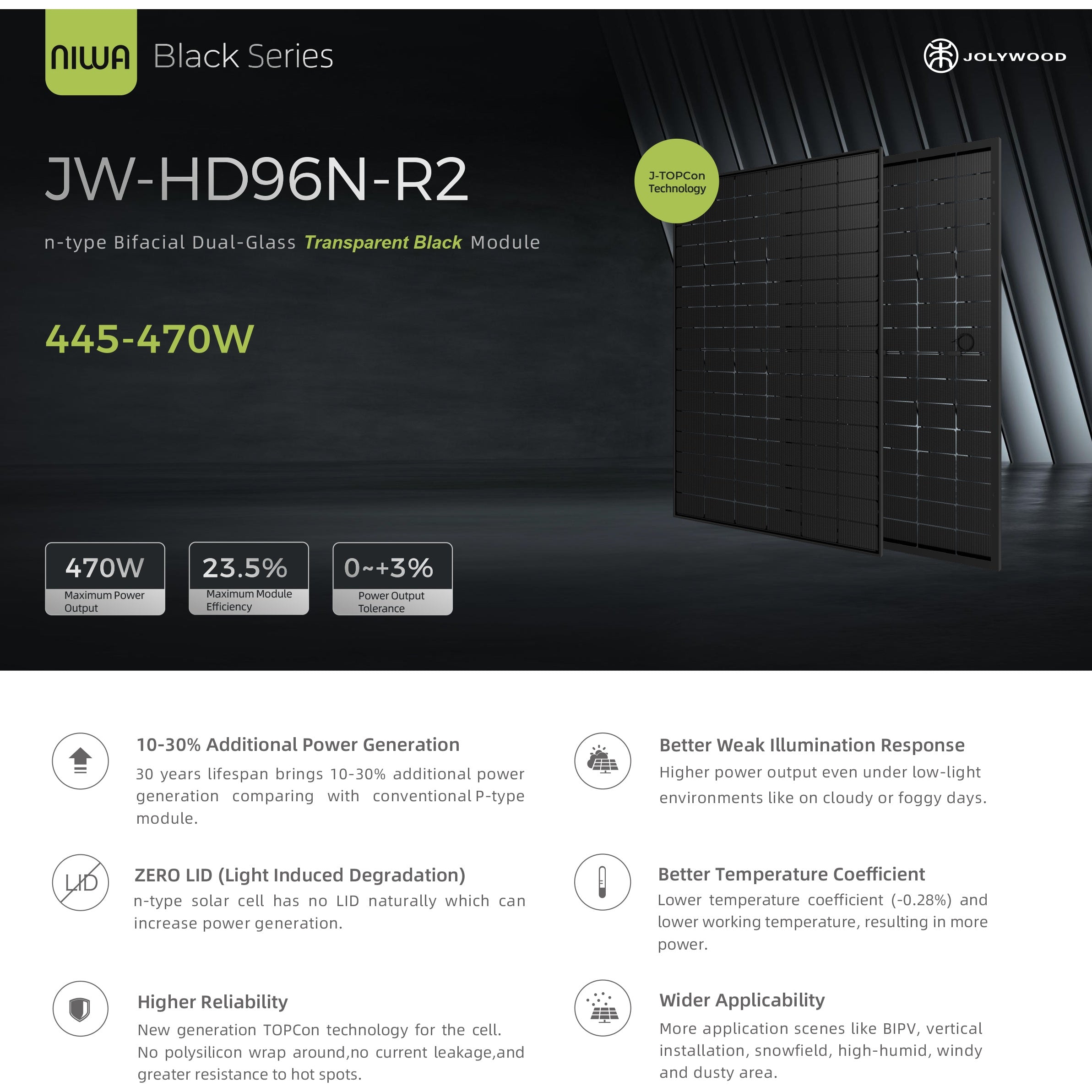

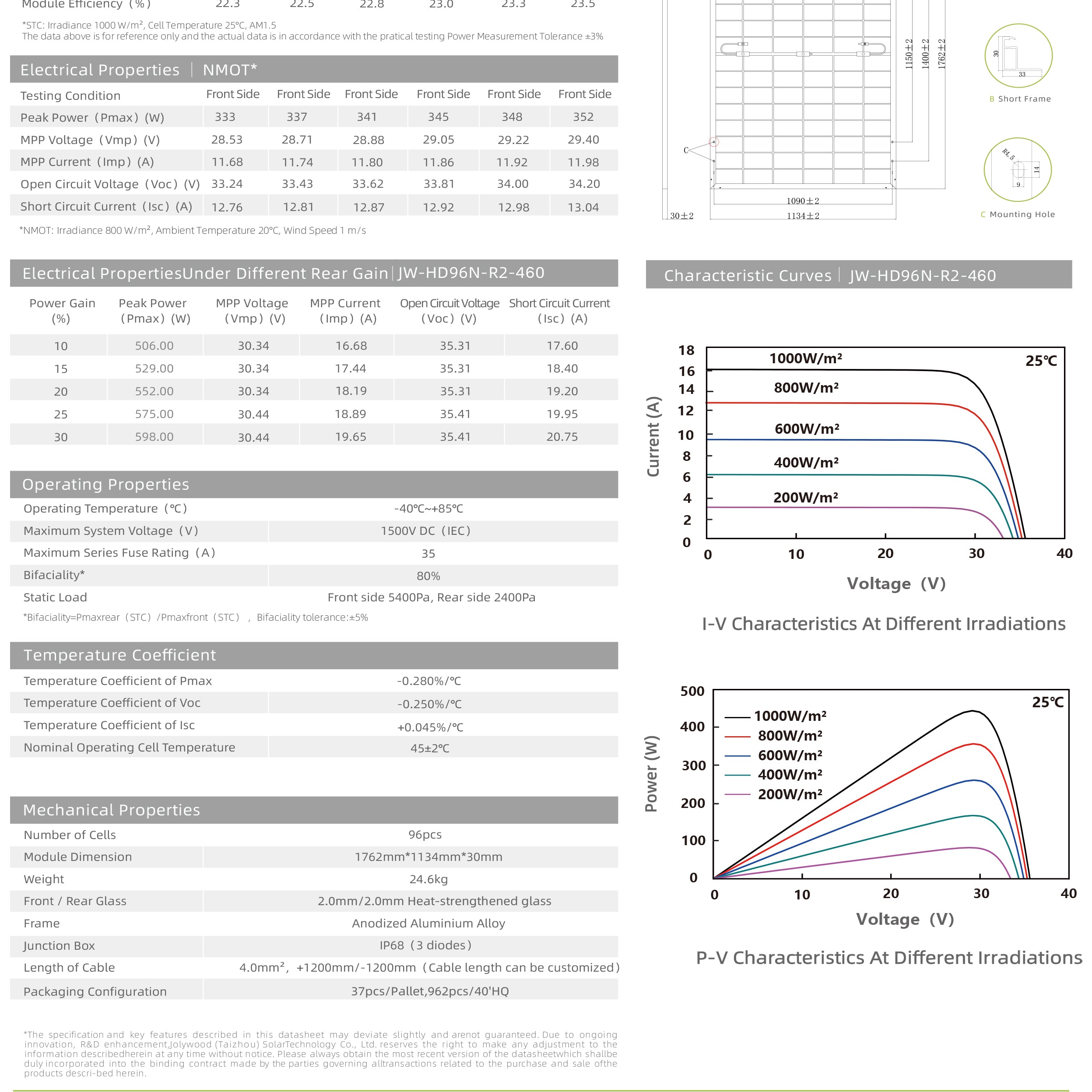

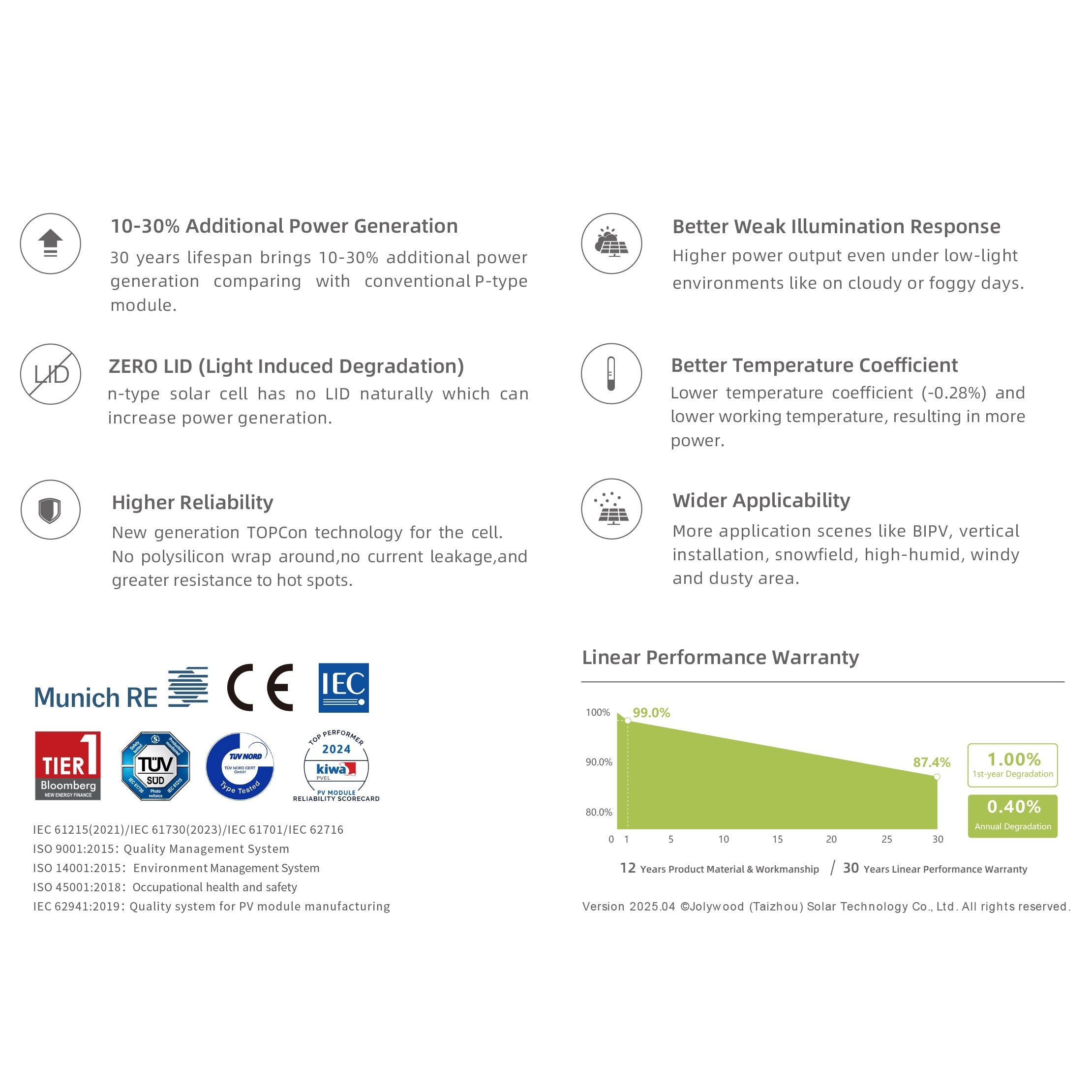

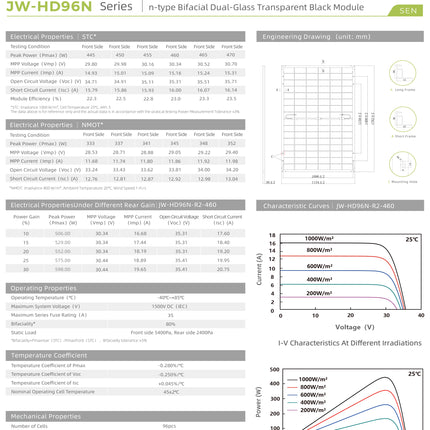

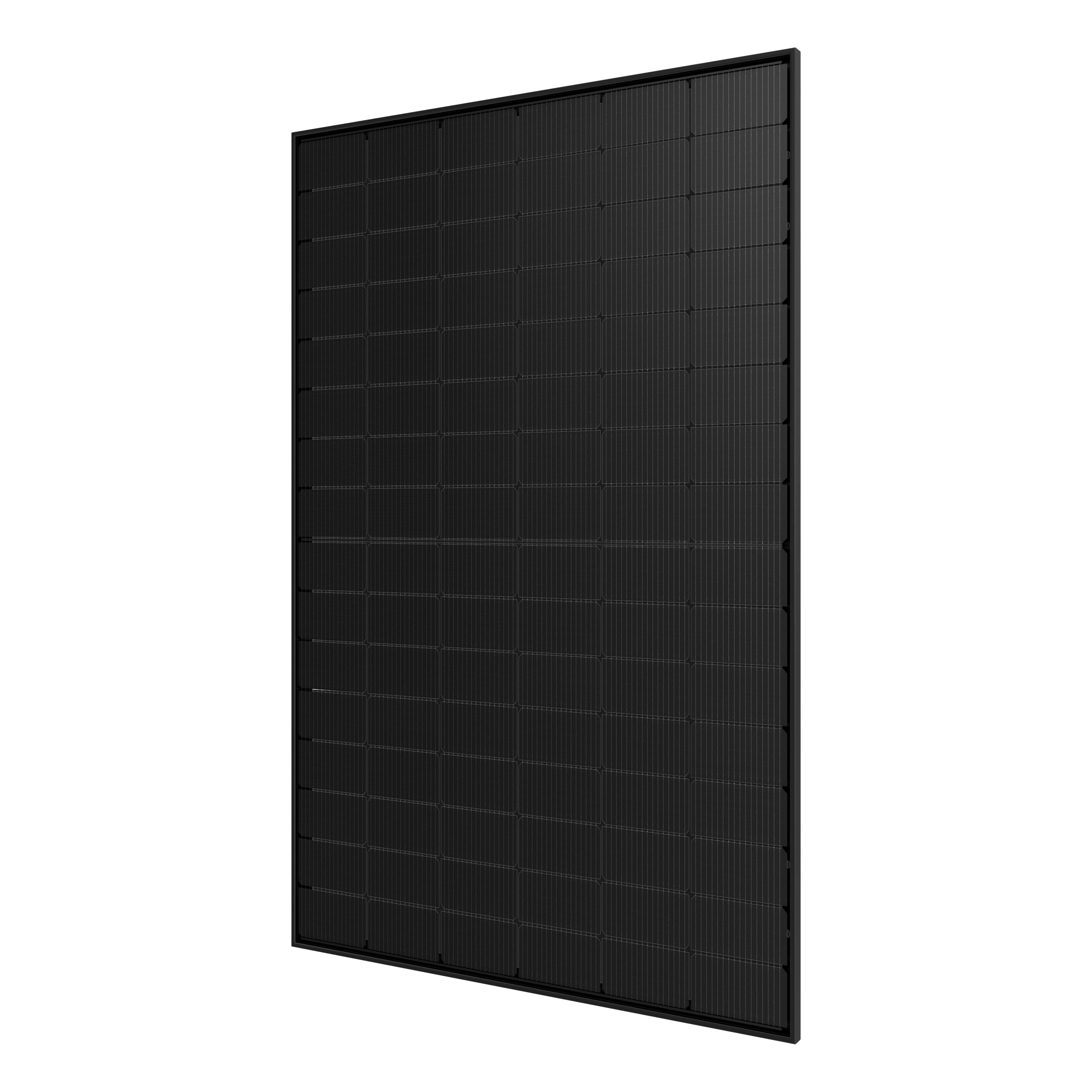

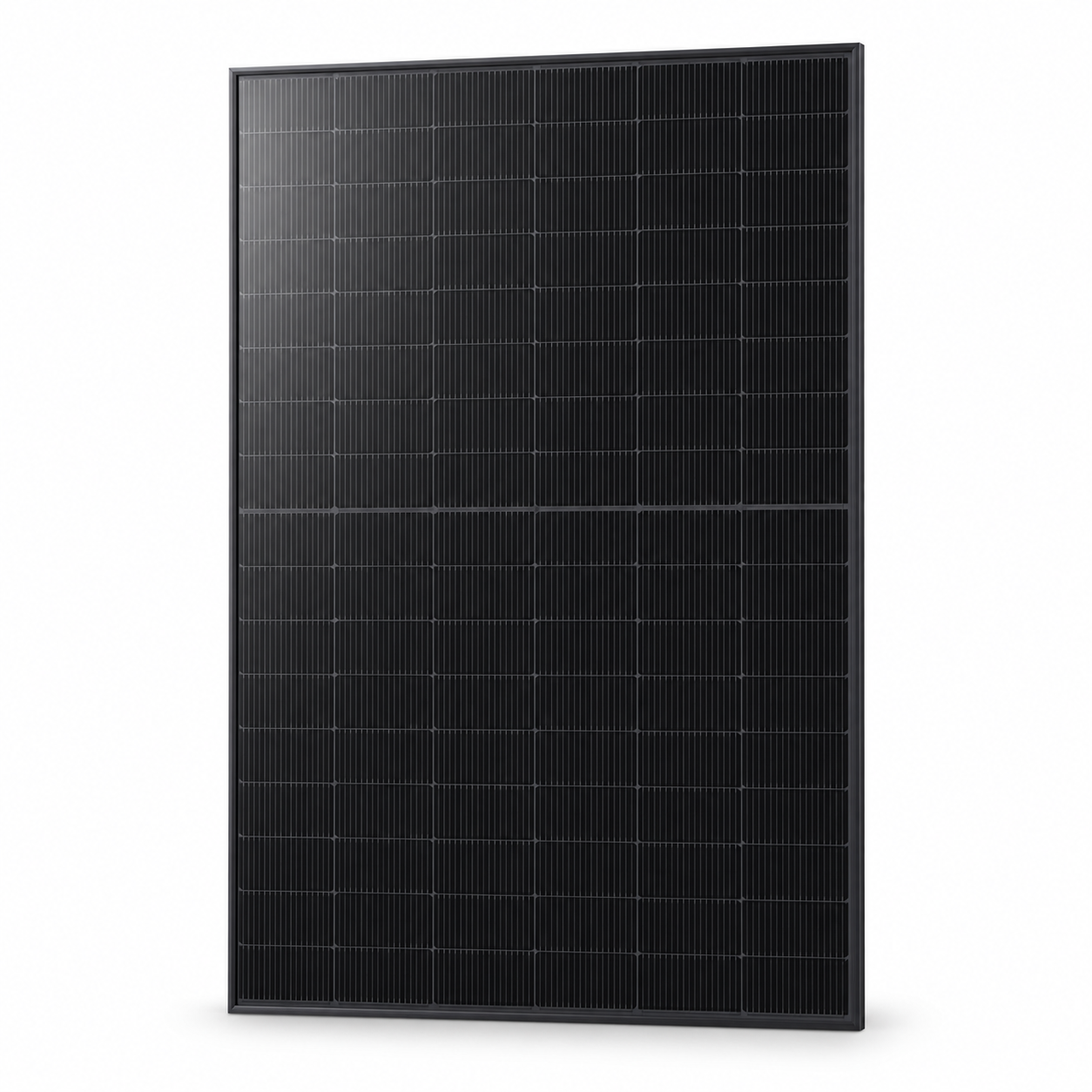

7 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

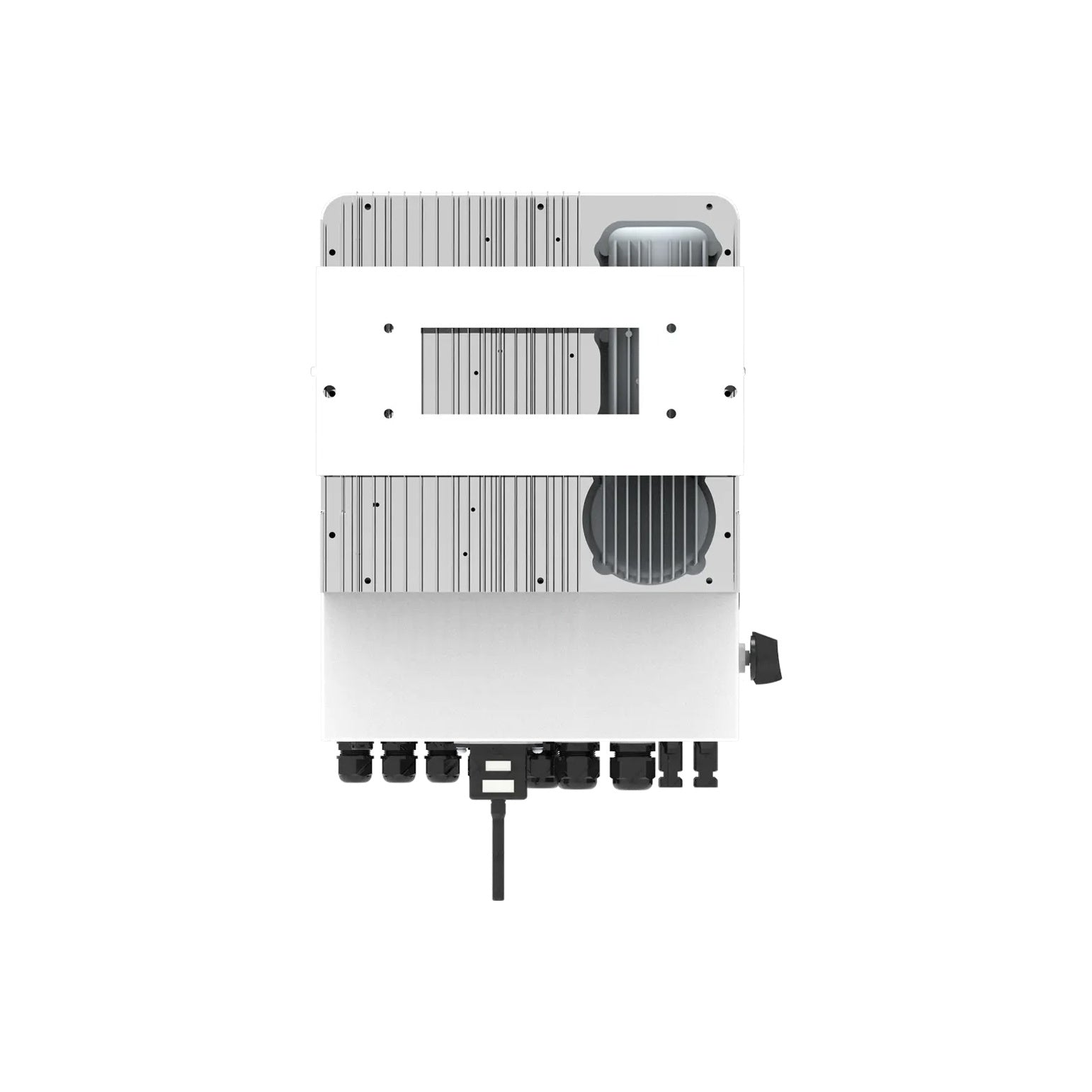

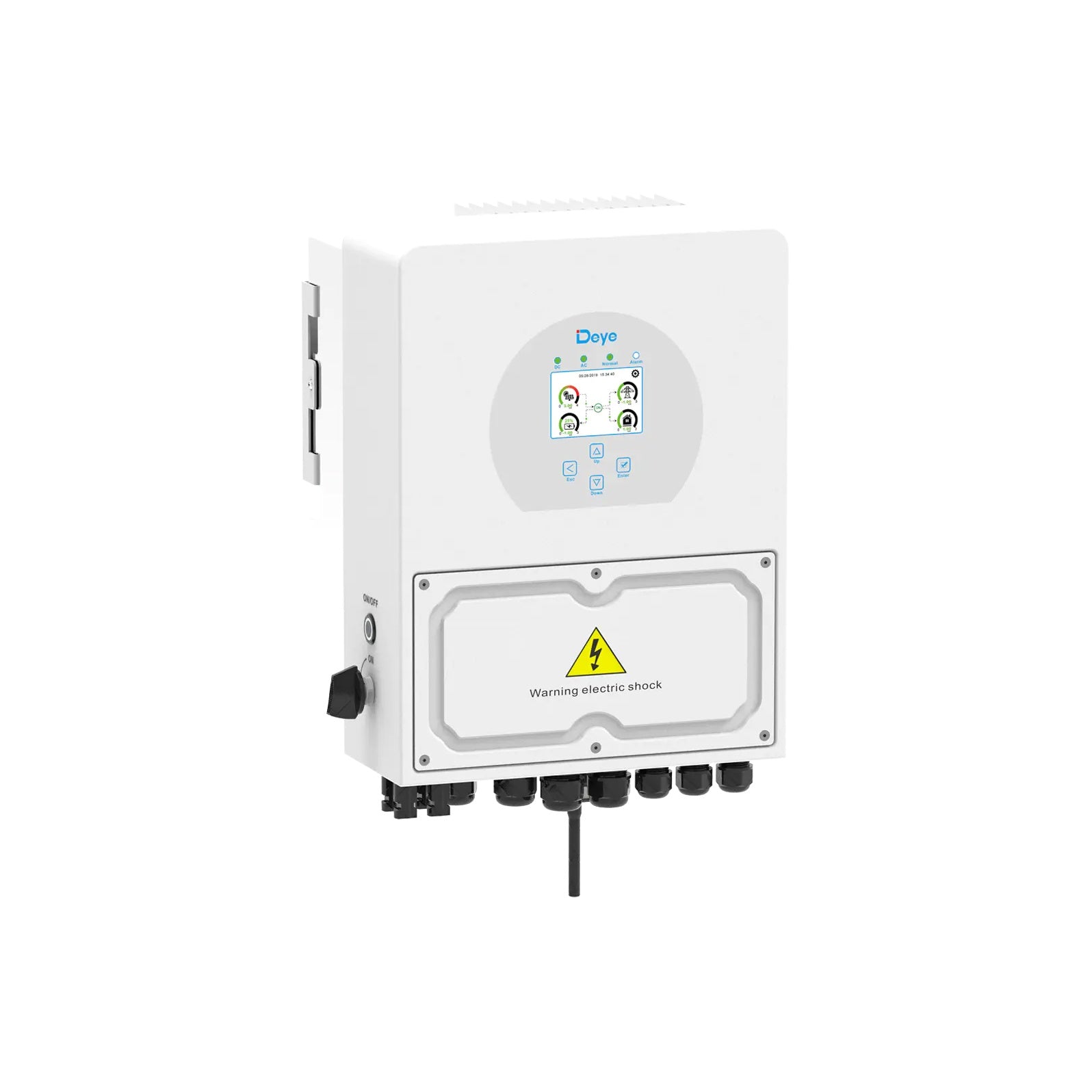

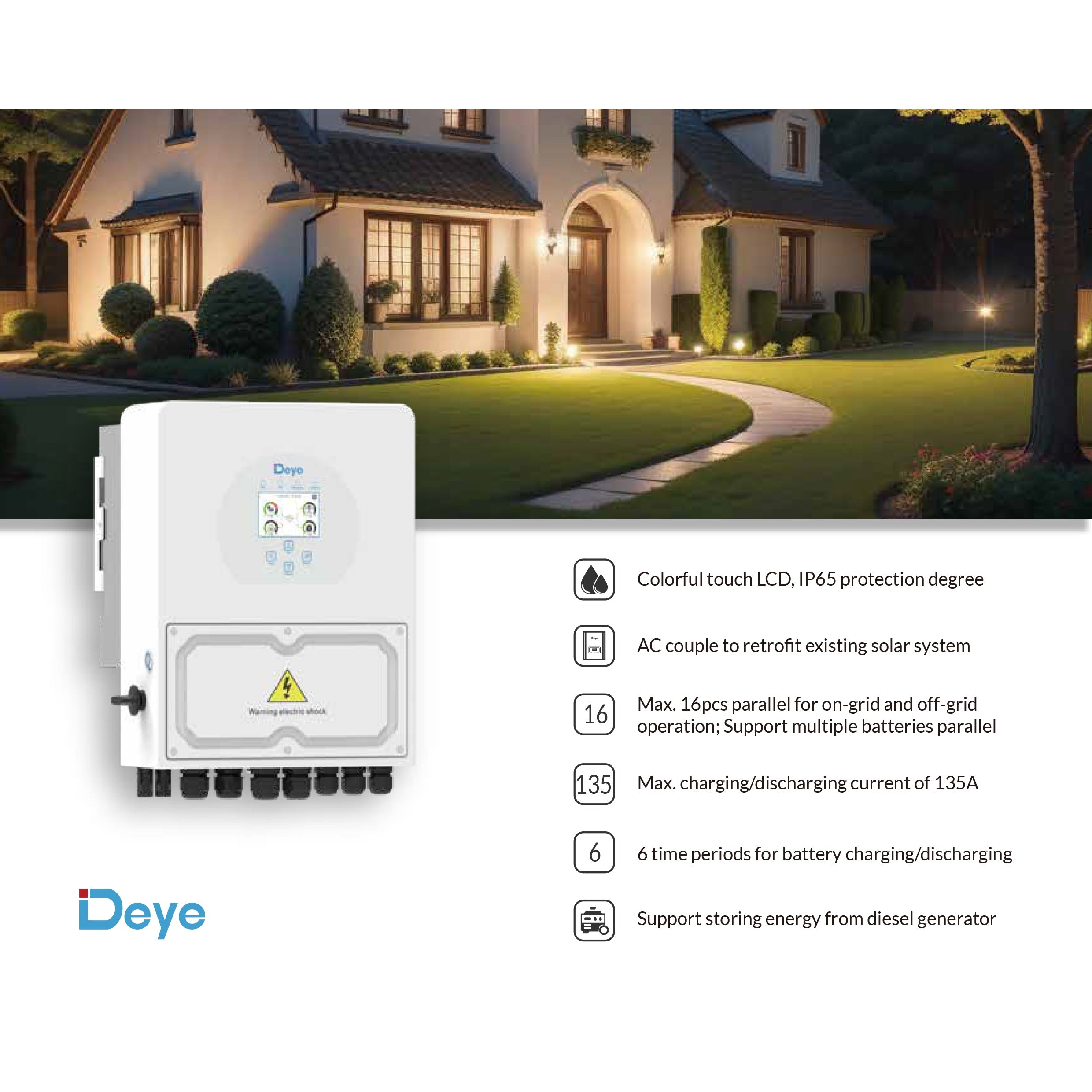

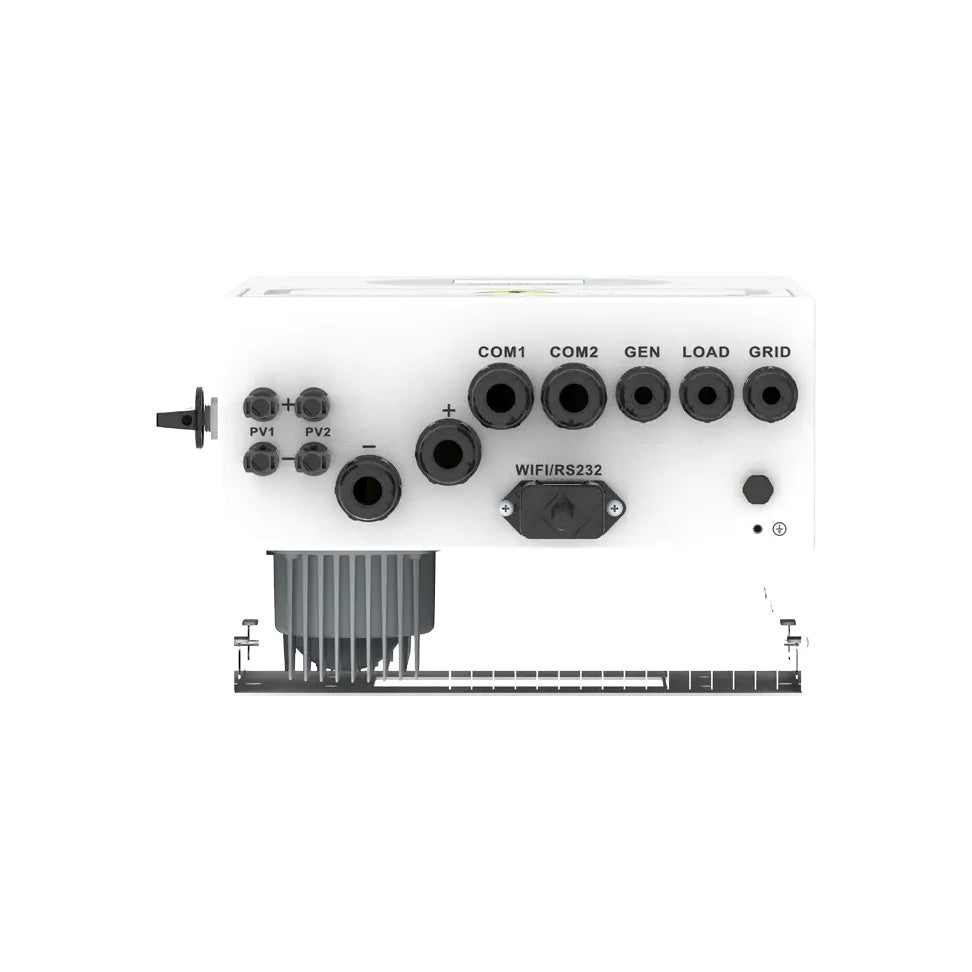

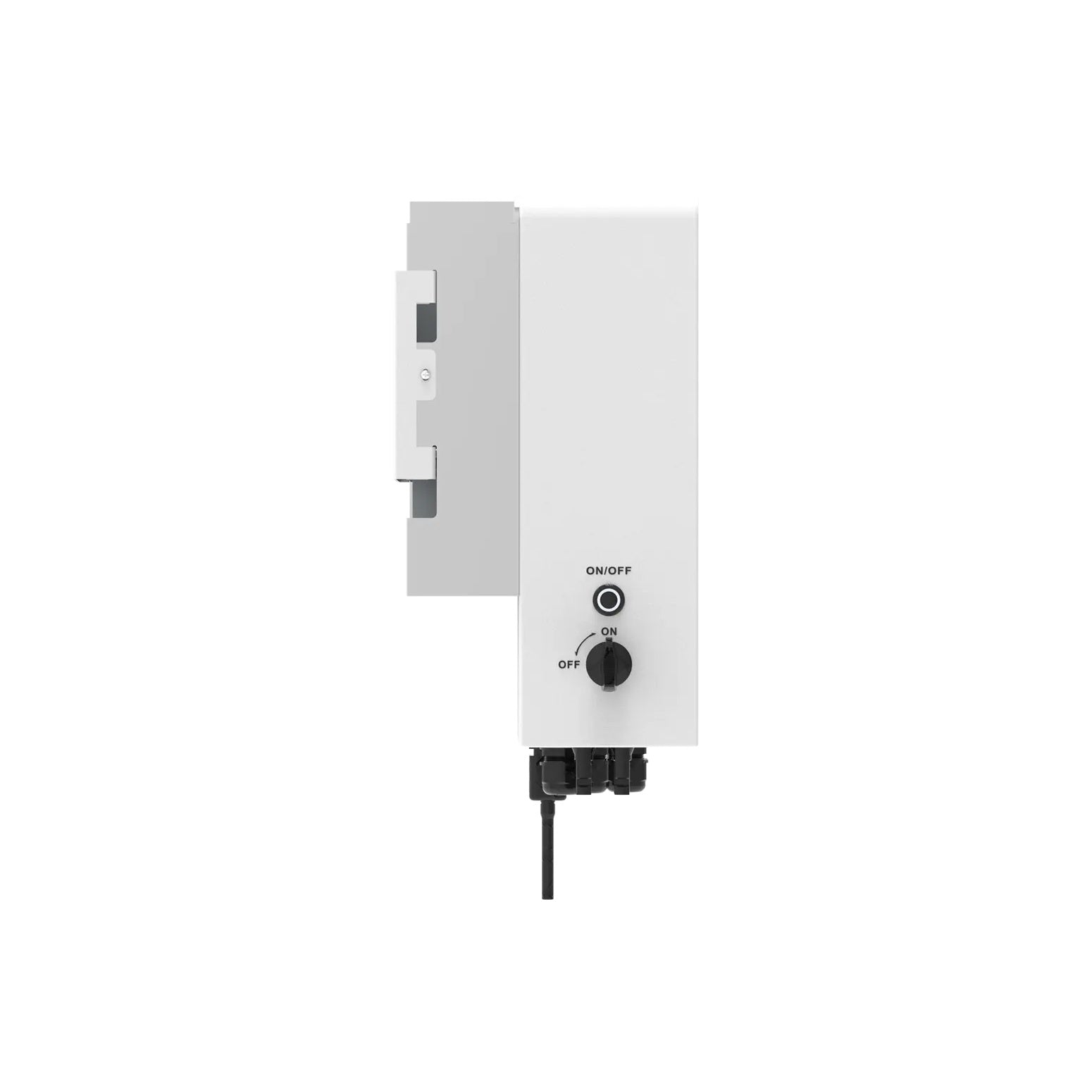

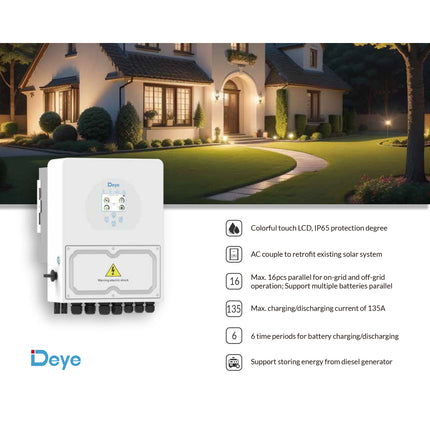

1 x Deye 3000W Hybrid Inverter SUN-3K-SG04LP1-AU
1 x 20m Twin 4mm PV Extension Cables with MC4 Connectors
7 x Mounting Rail System
No Battery
This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

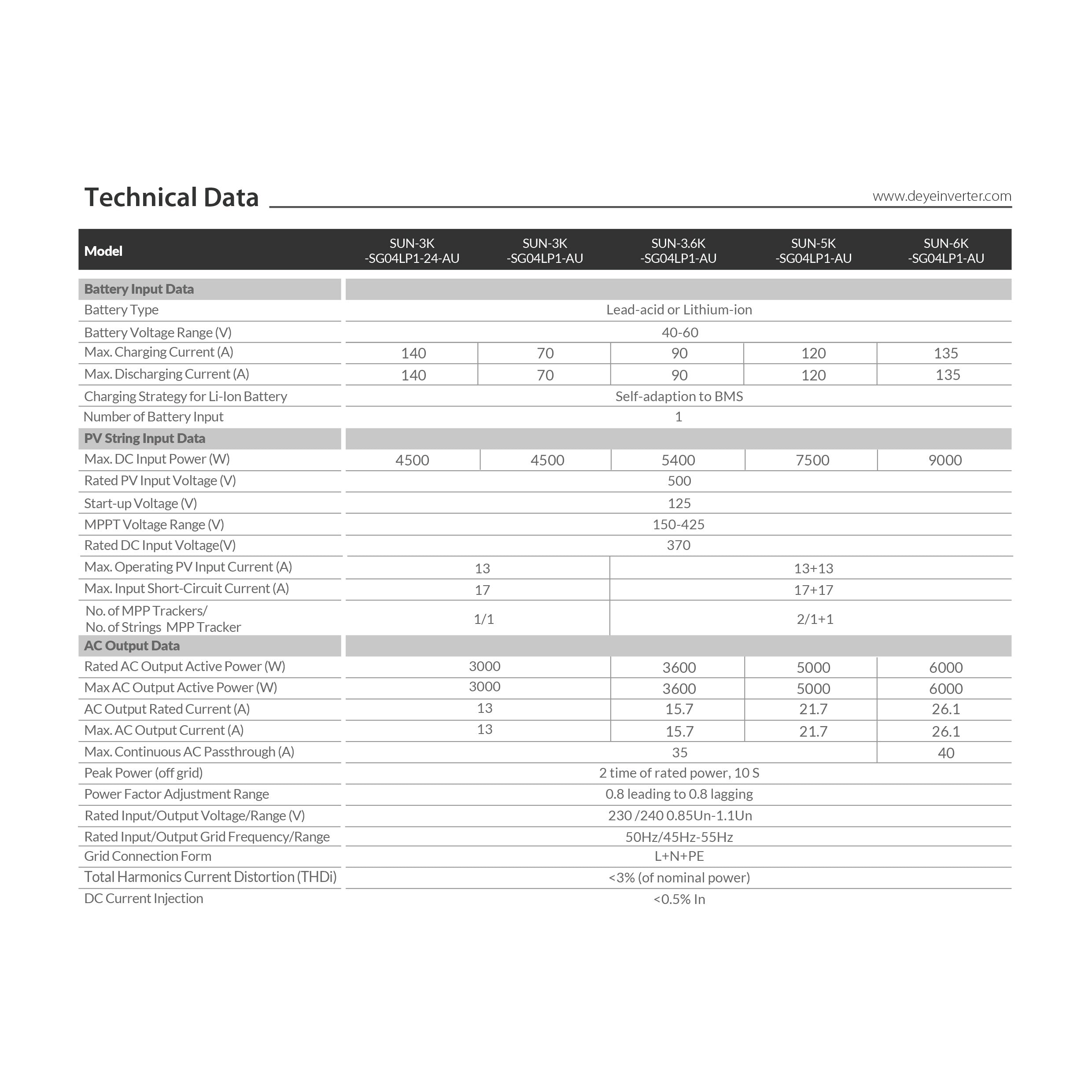

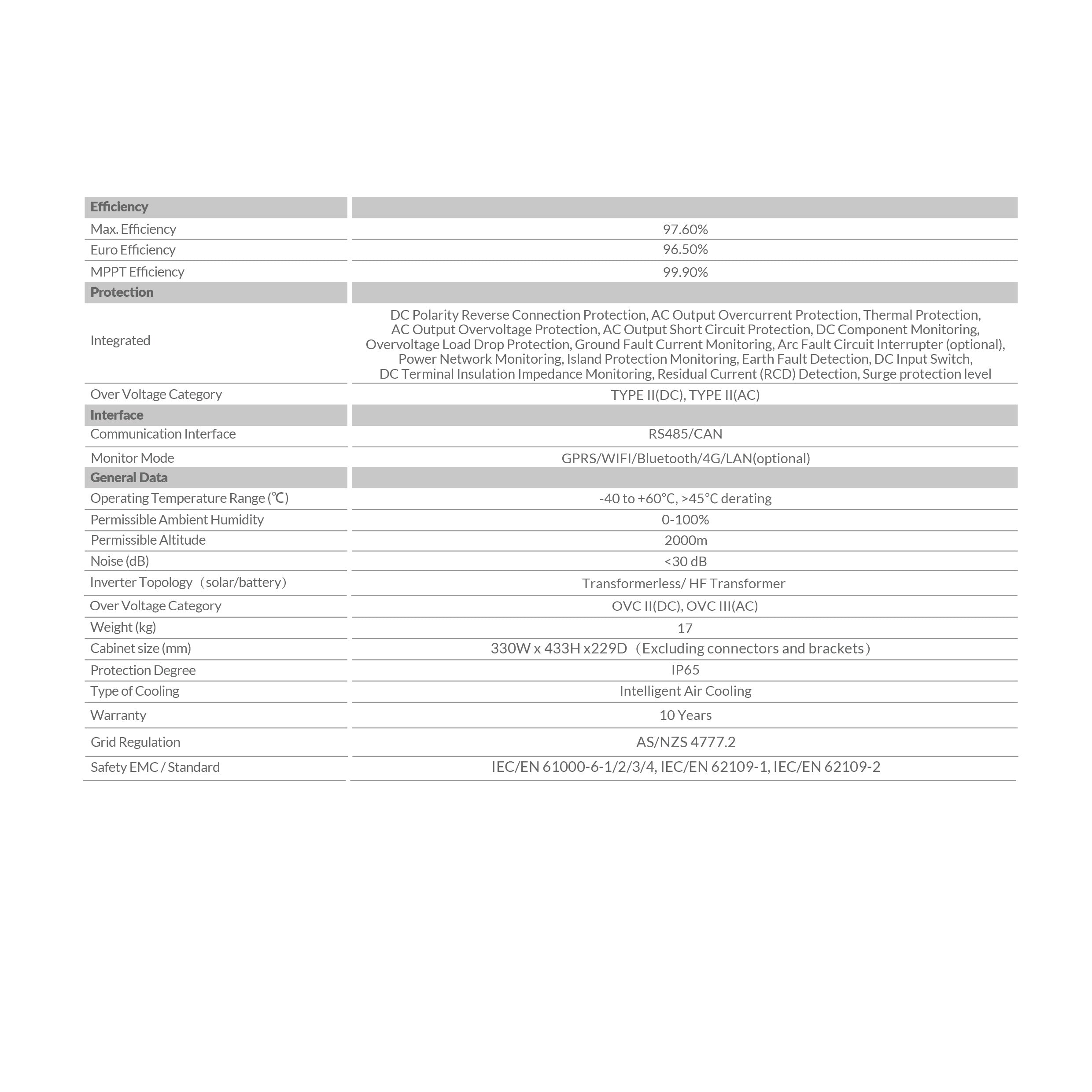

Model: SUN-3K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 70
Max. Discharging Current (A): 70
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
**Vector Approved Inverter**

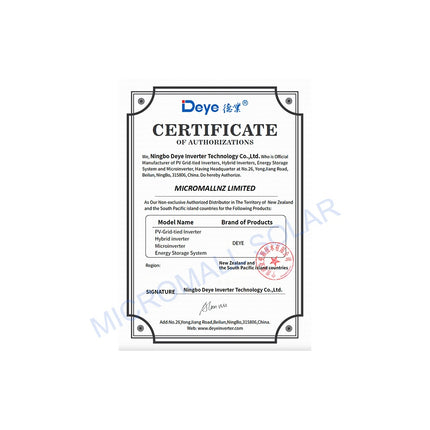

**DEYE New Zealand Distributor**
**Authorized Longi distributor in New Zealand**
