Description
Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.
Package Includes:

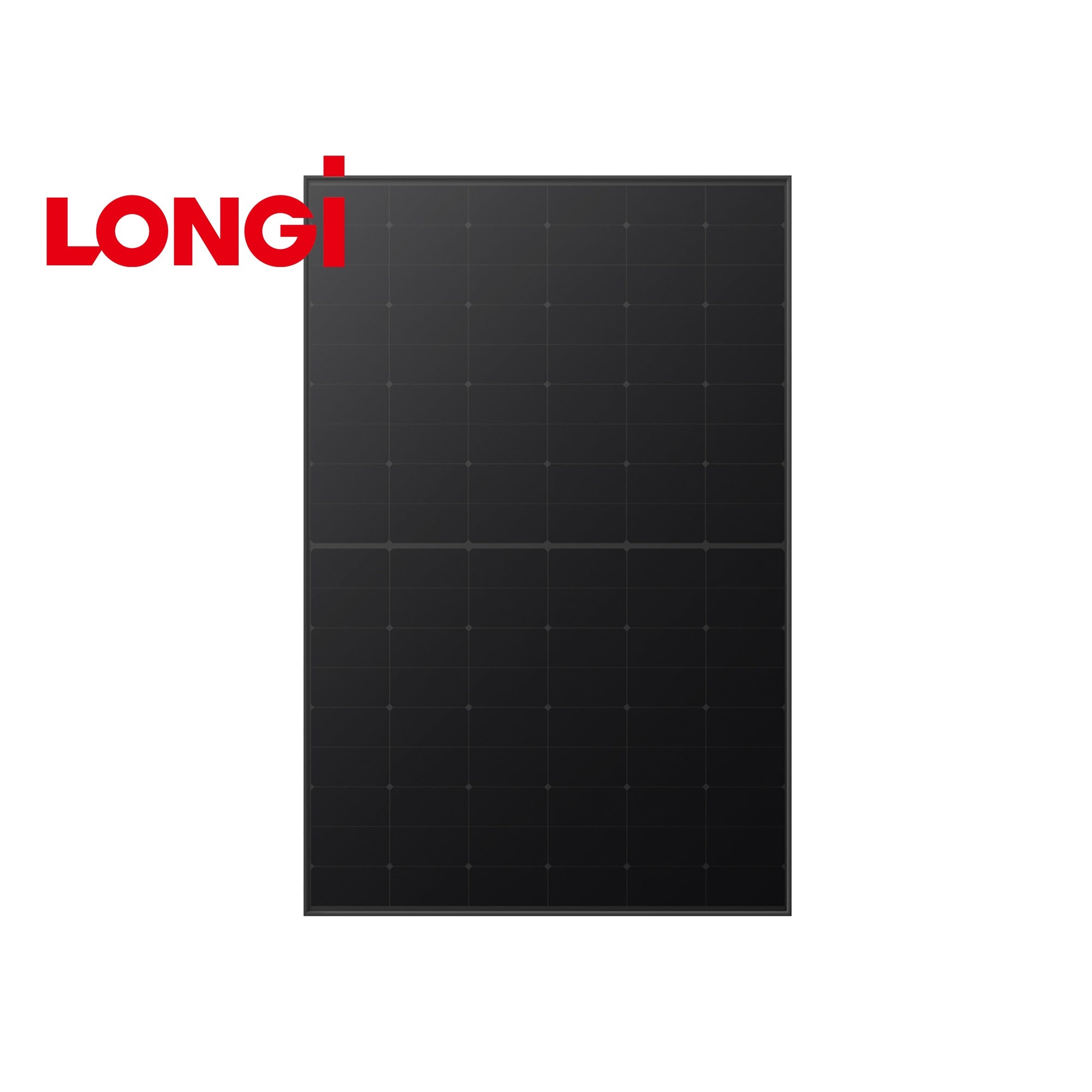

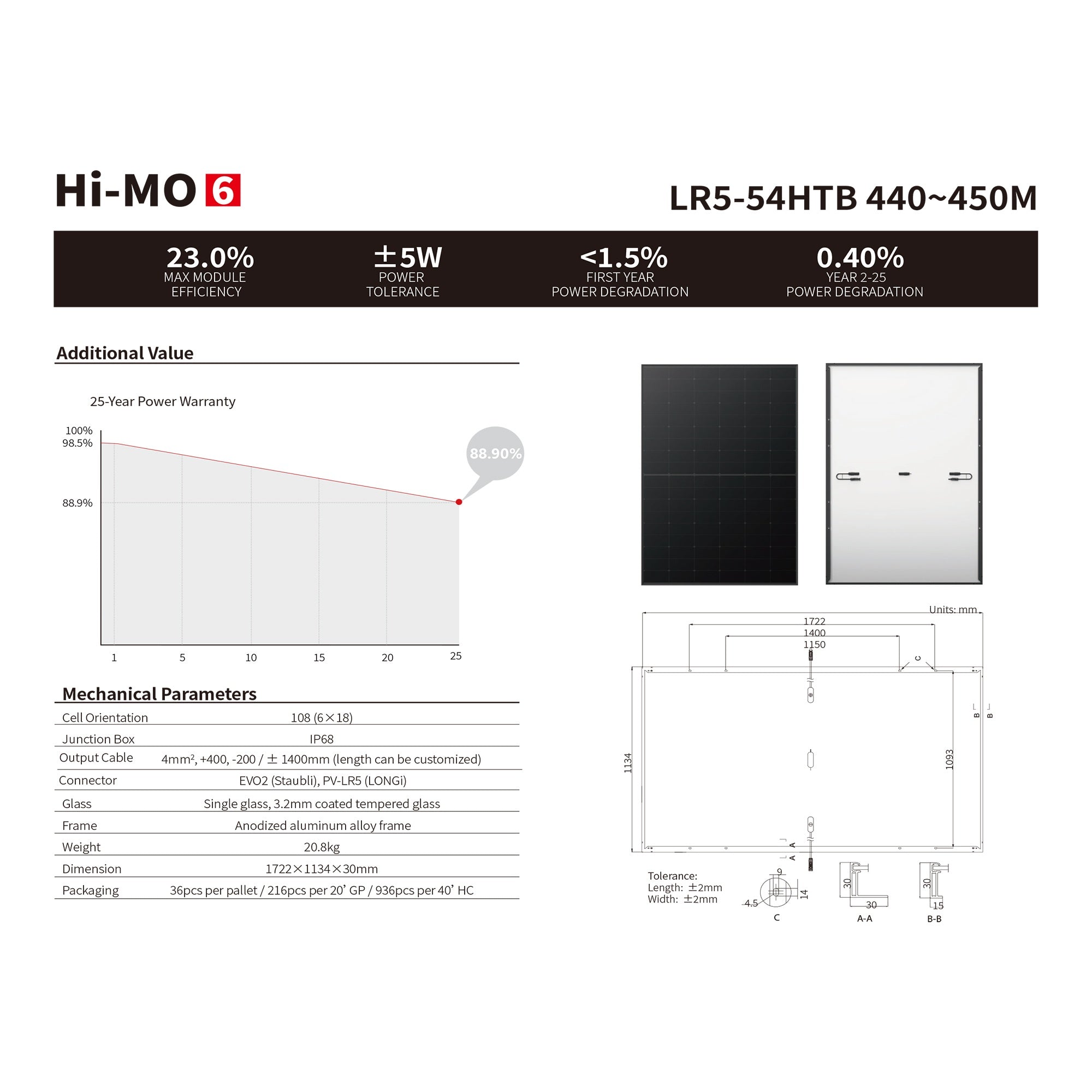

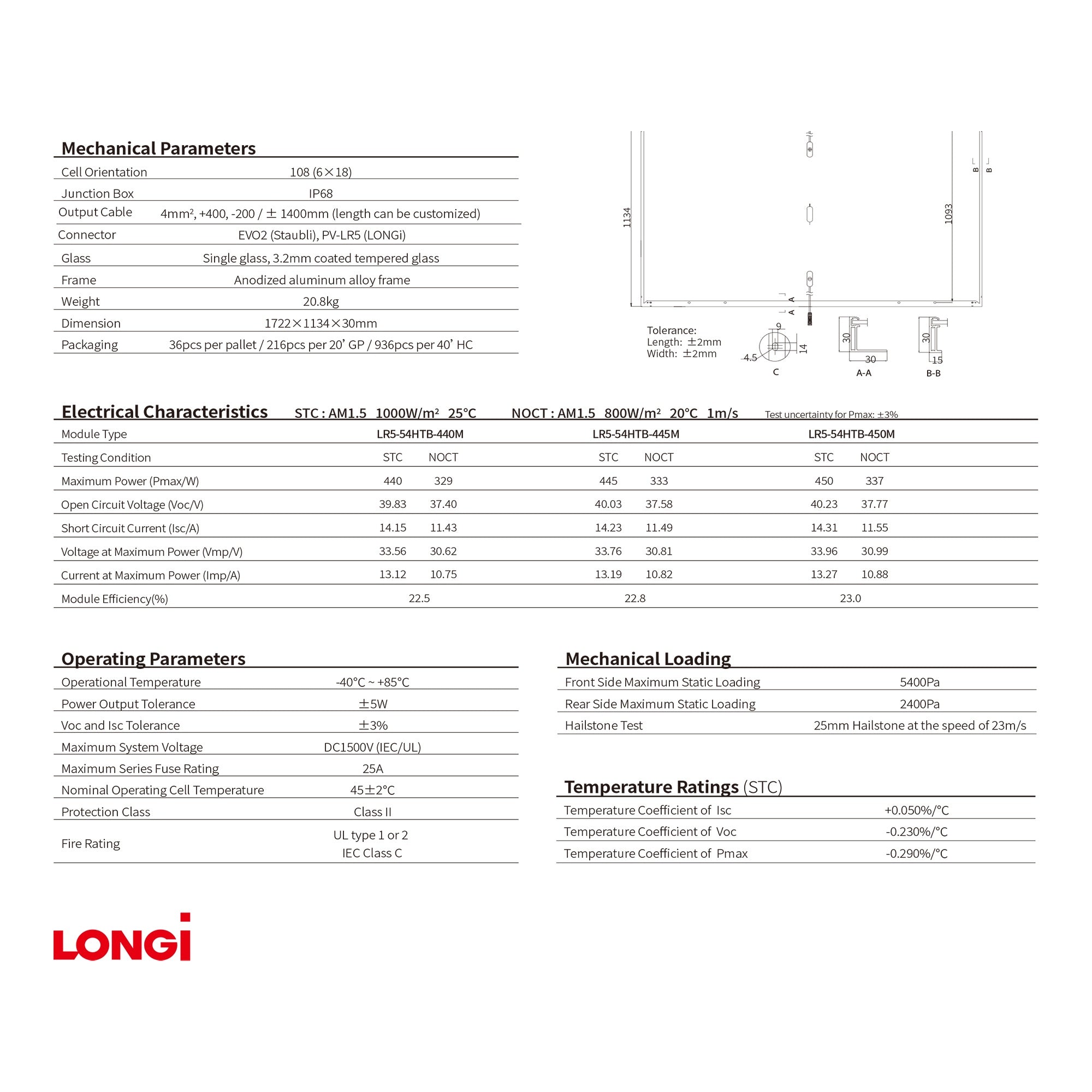

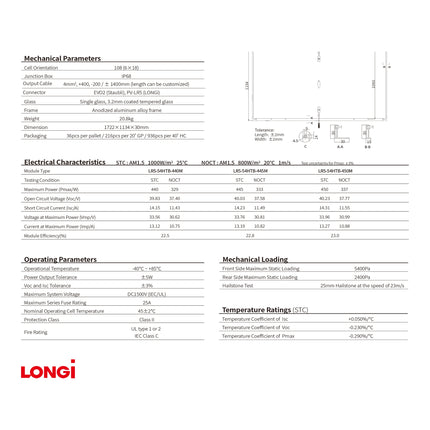

18 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

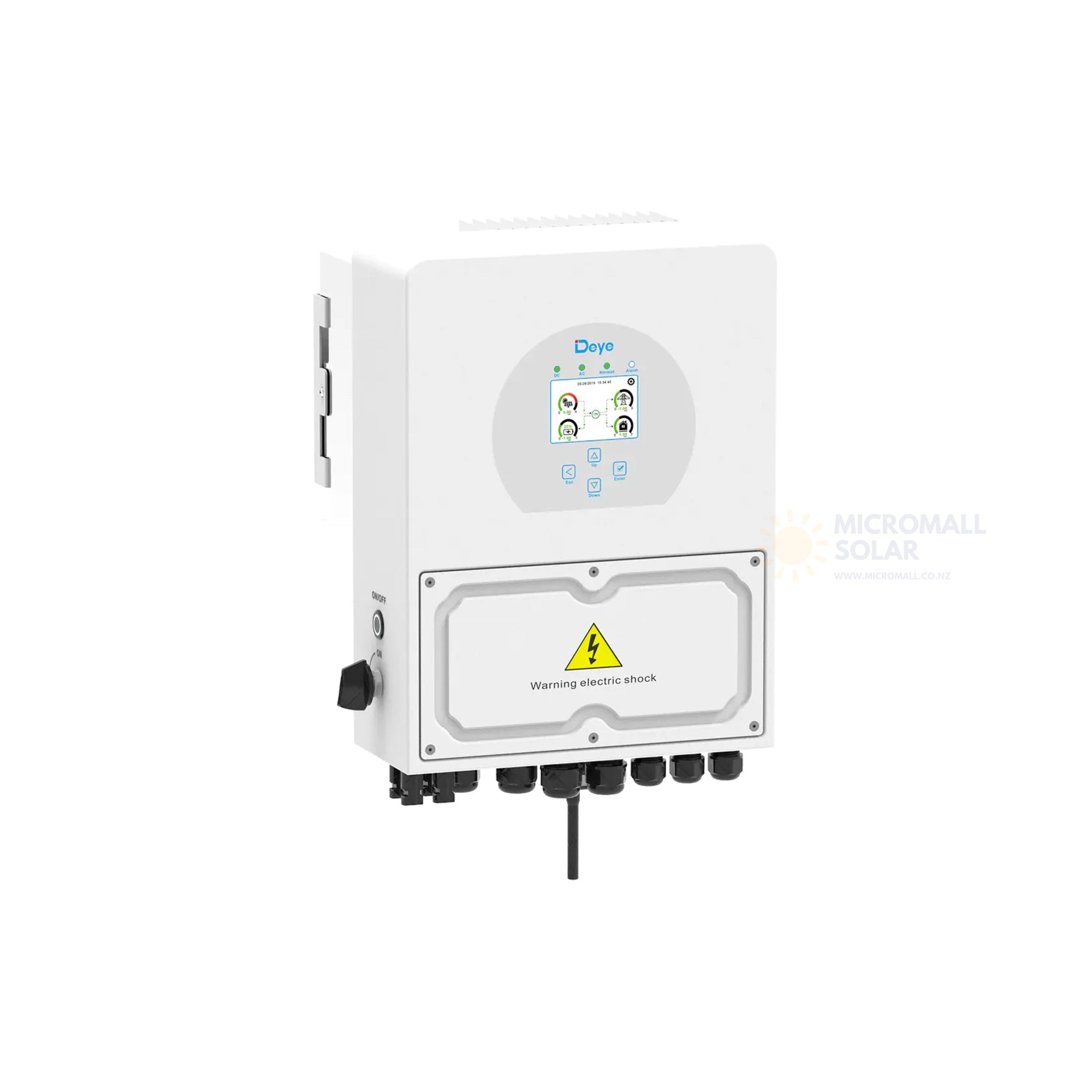

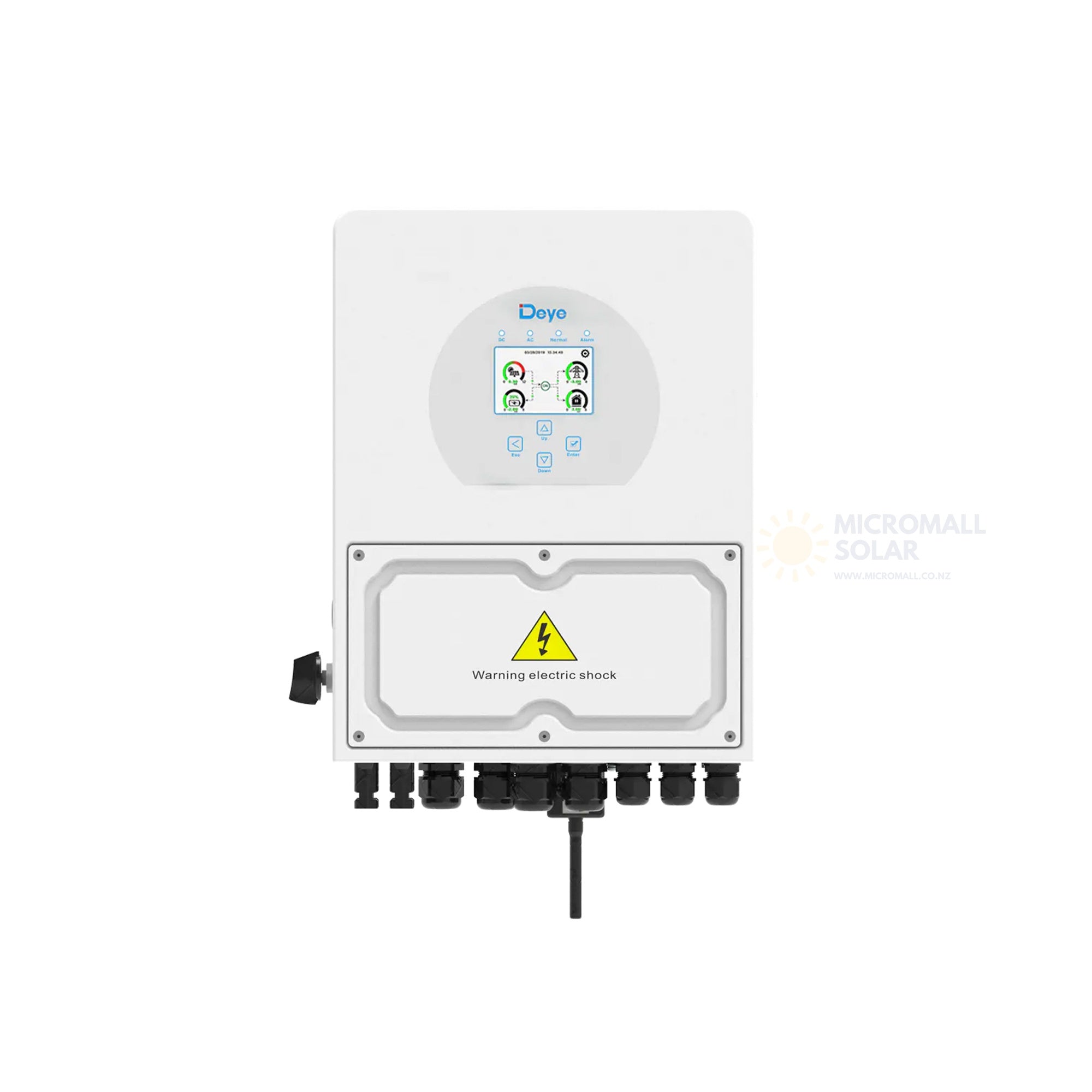

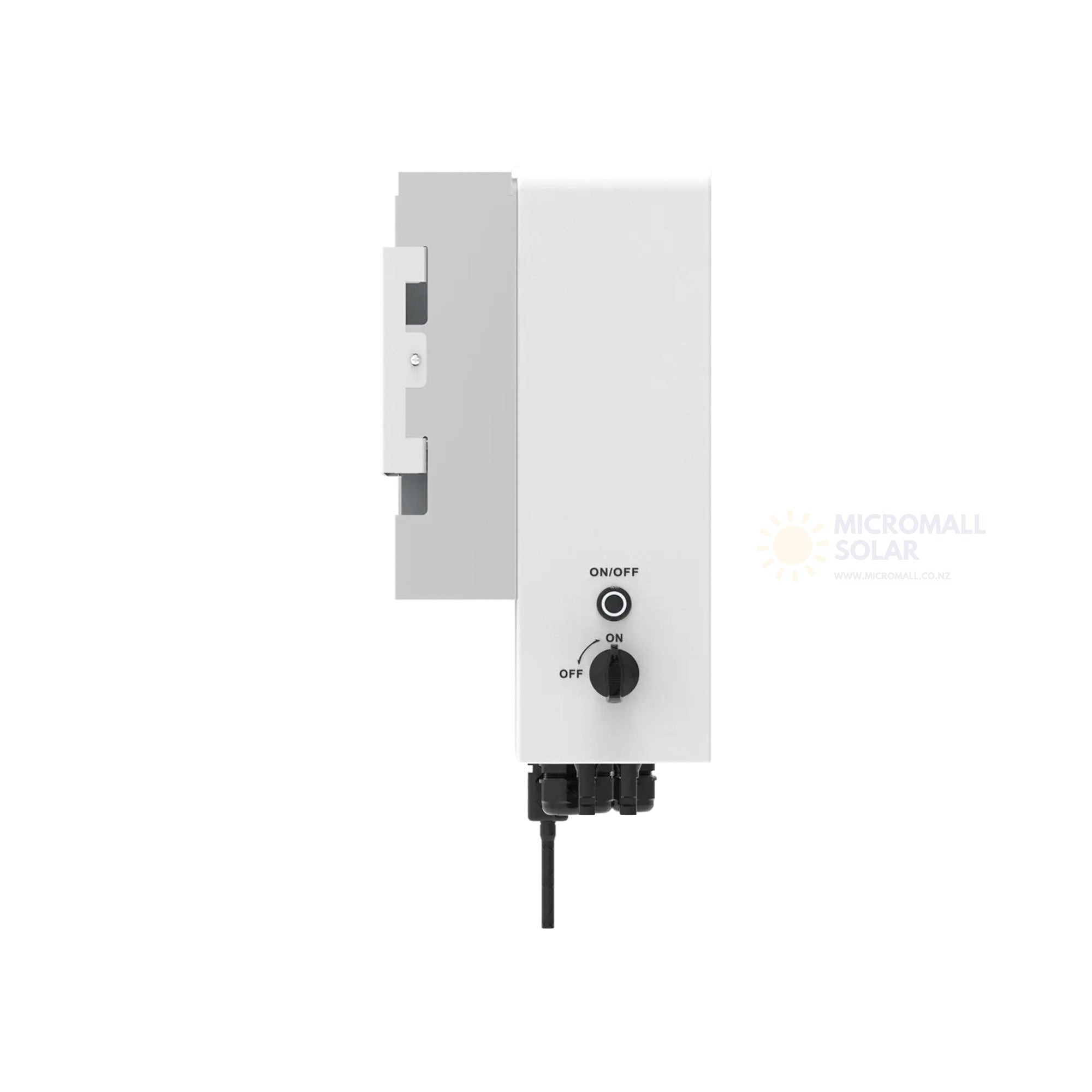

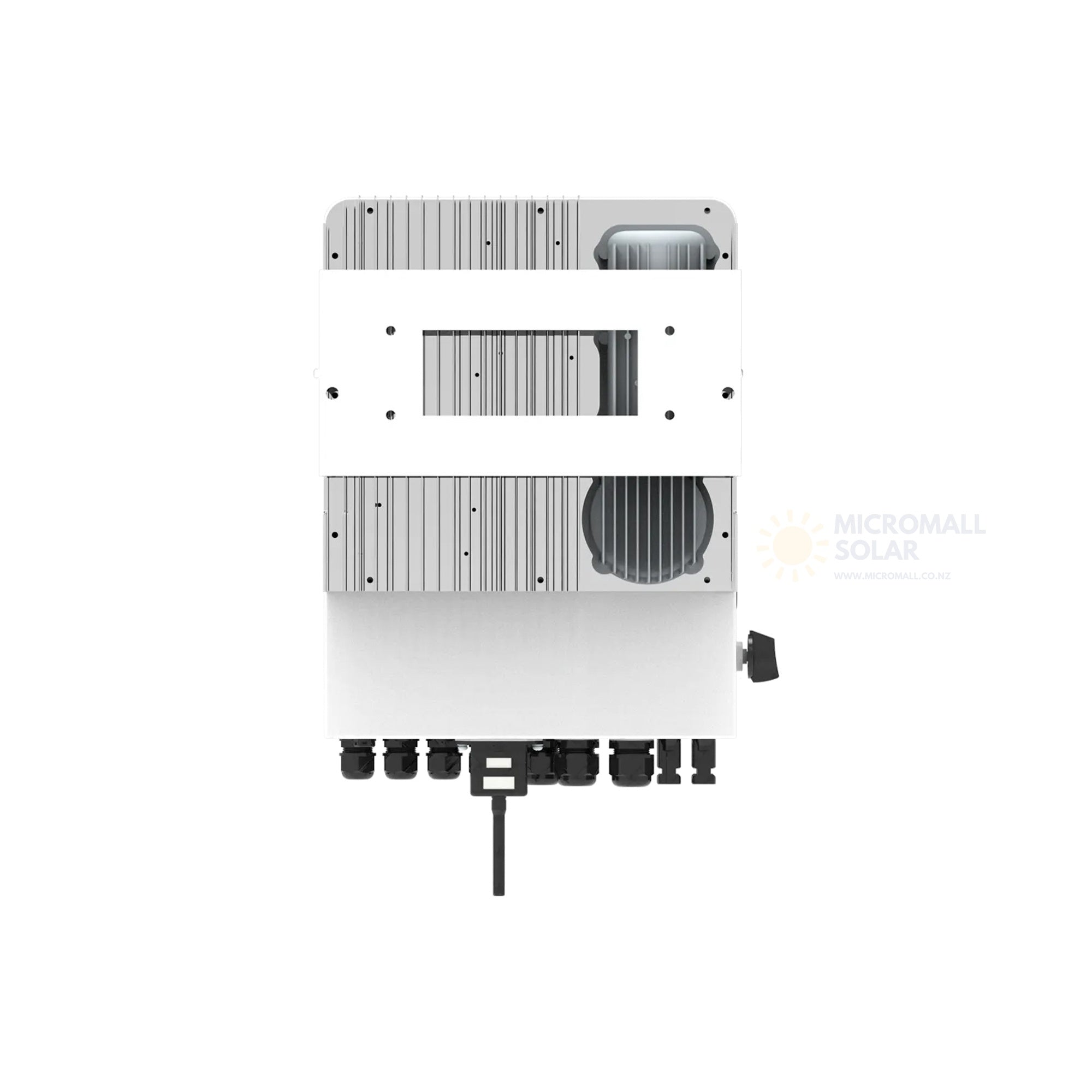

1 x DEYE 6000W Hybrid Inverter SUN-6K-SG04LP1-AU (10 Years Warranty)

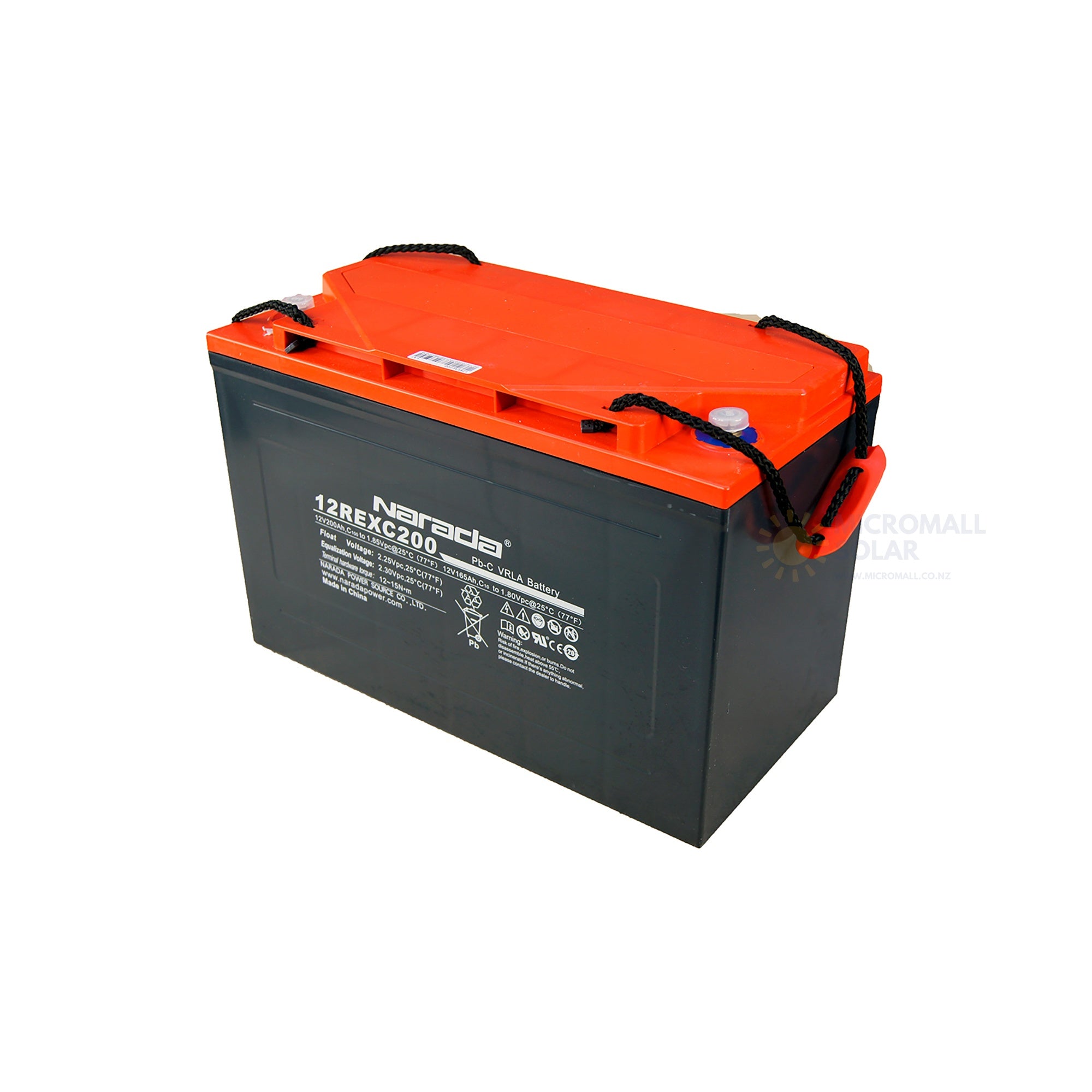

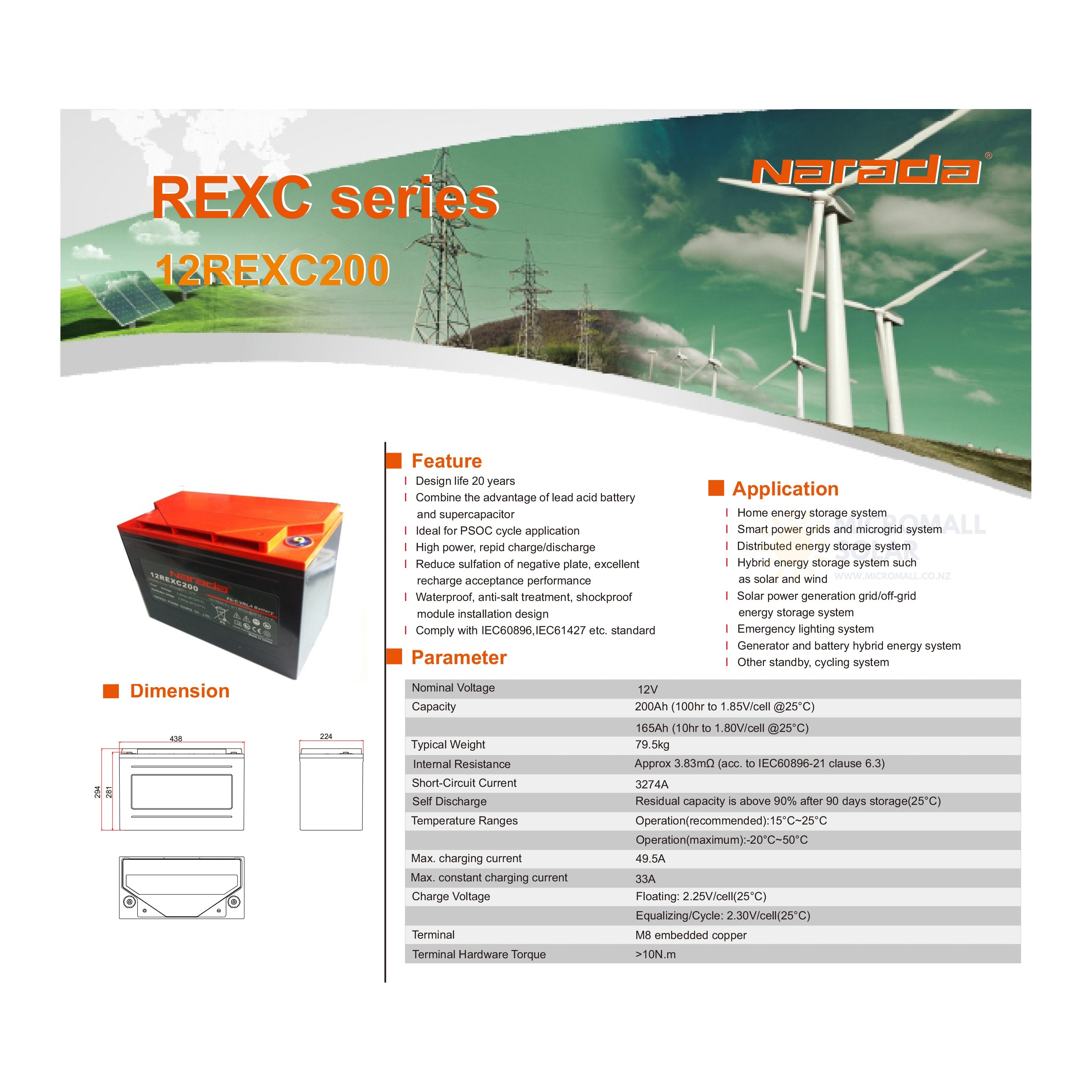

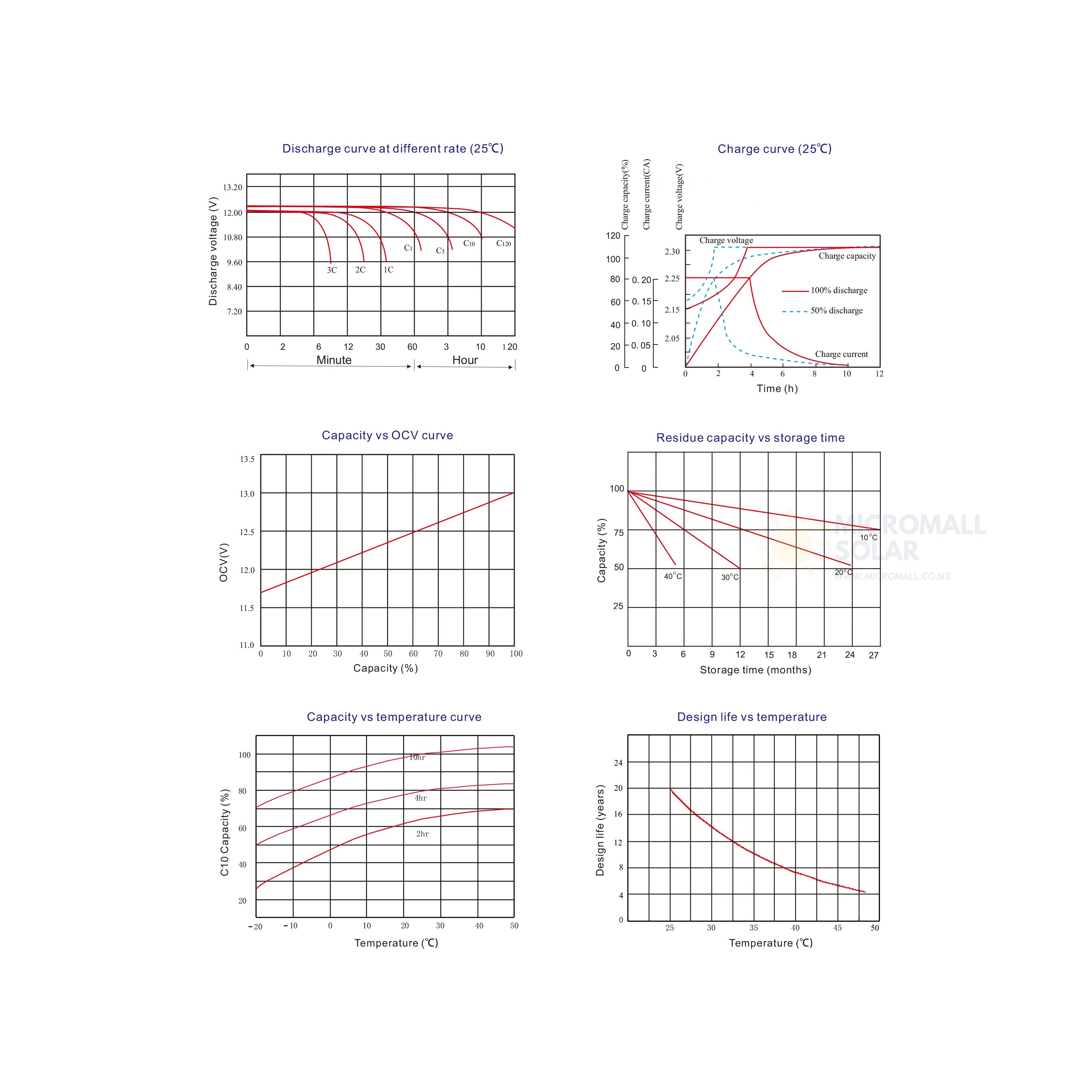

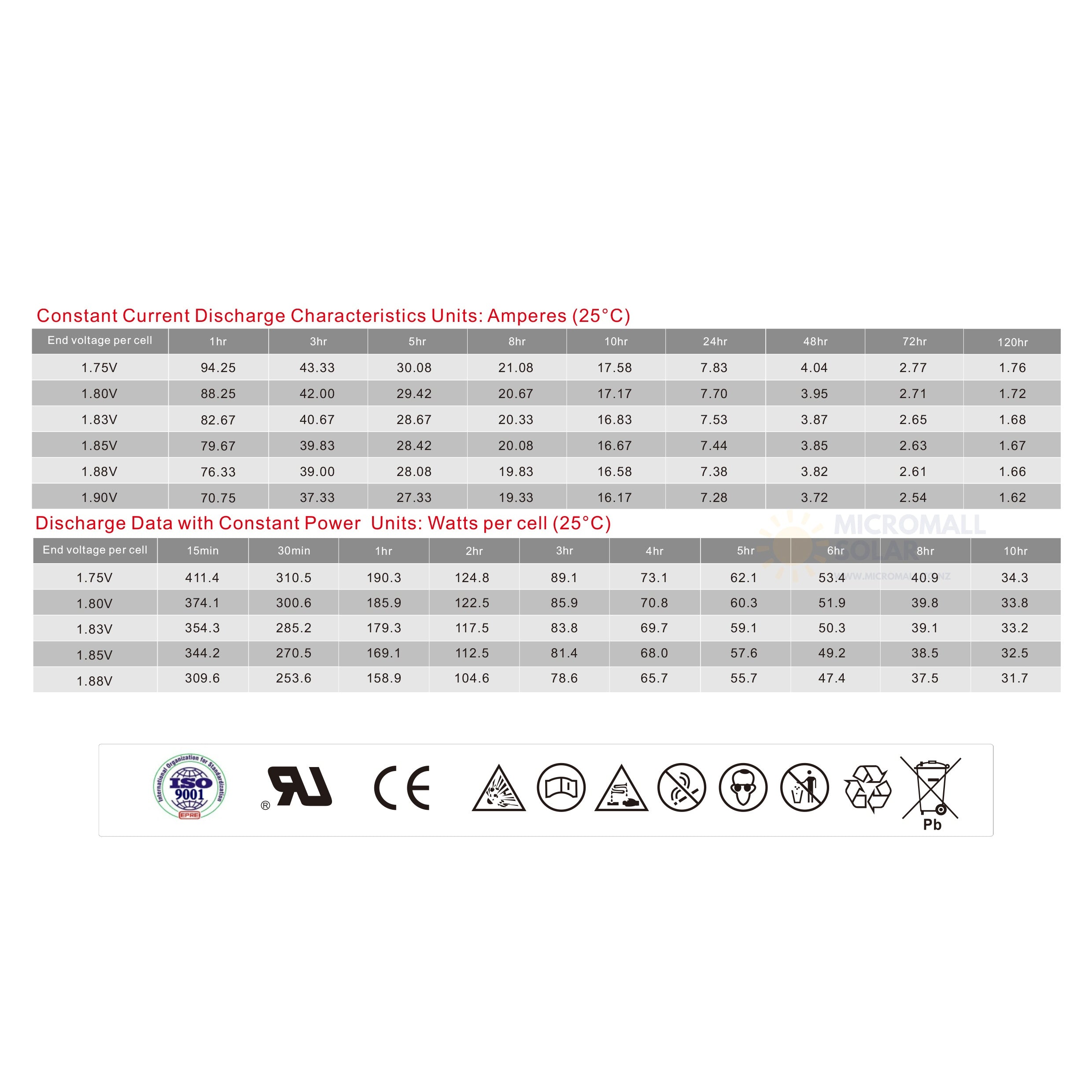

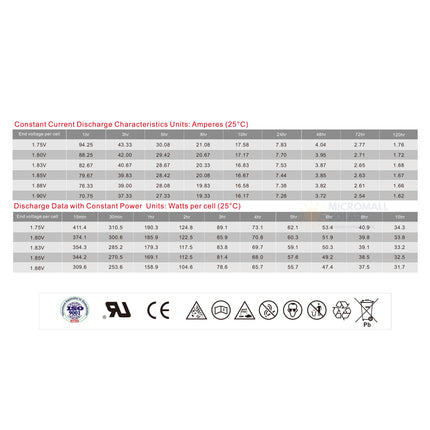

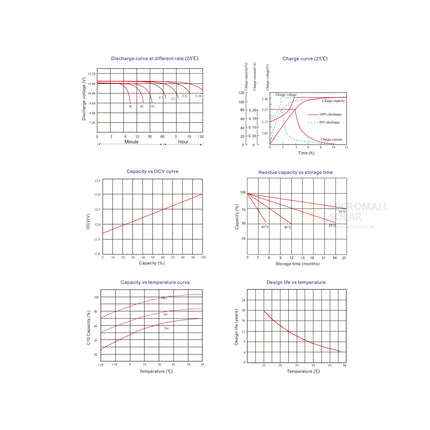

8 x Narada 12REXC200 12V 200Ah Ultra Lead Carbon Deep Cycle Solar Battery (3-year warranty)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors

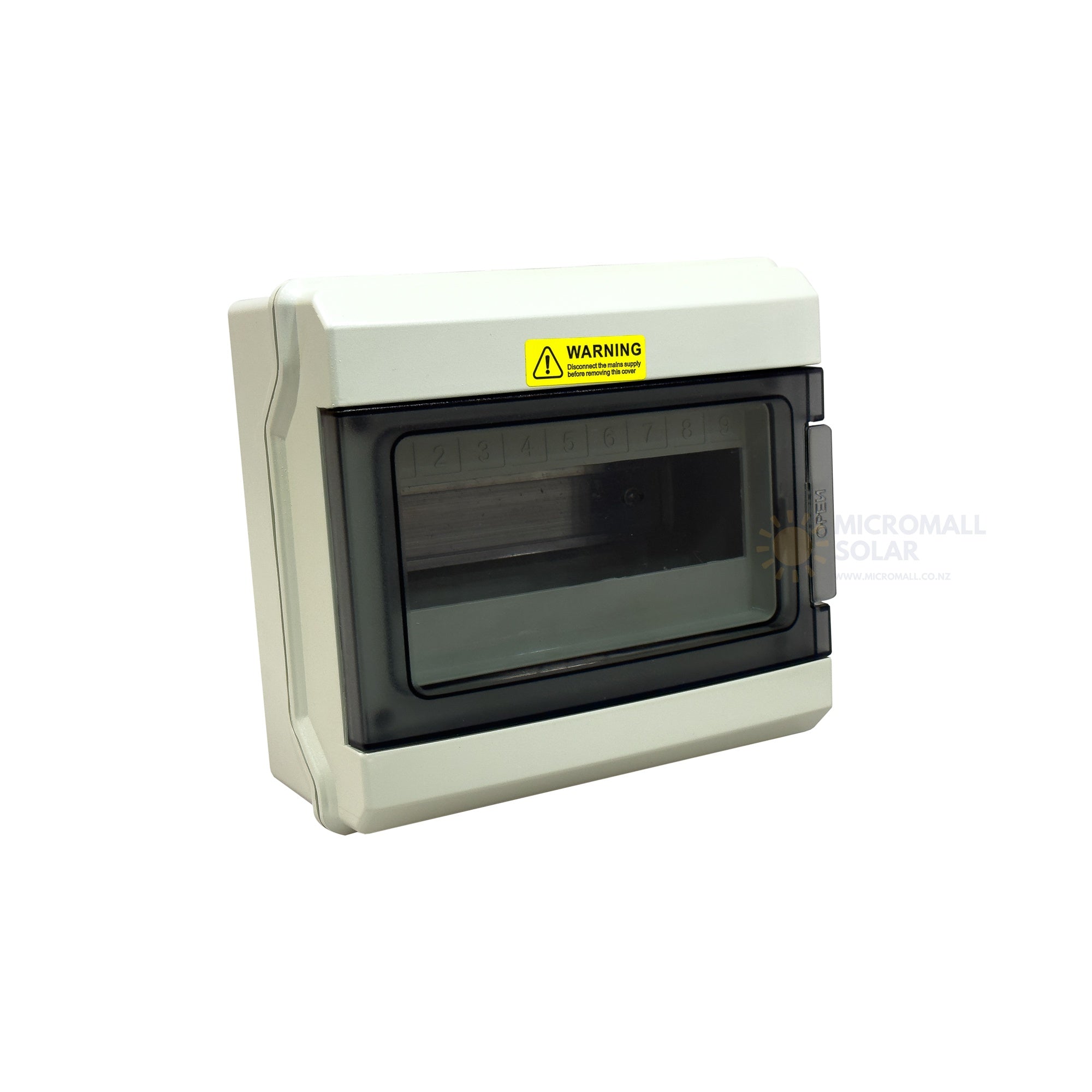

2 x PV Safety System with Fuse Box
18 x Rails System
2 x MC4 Port

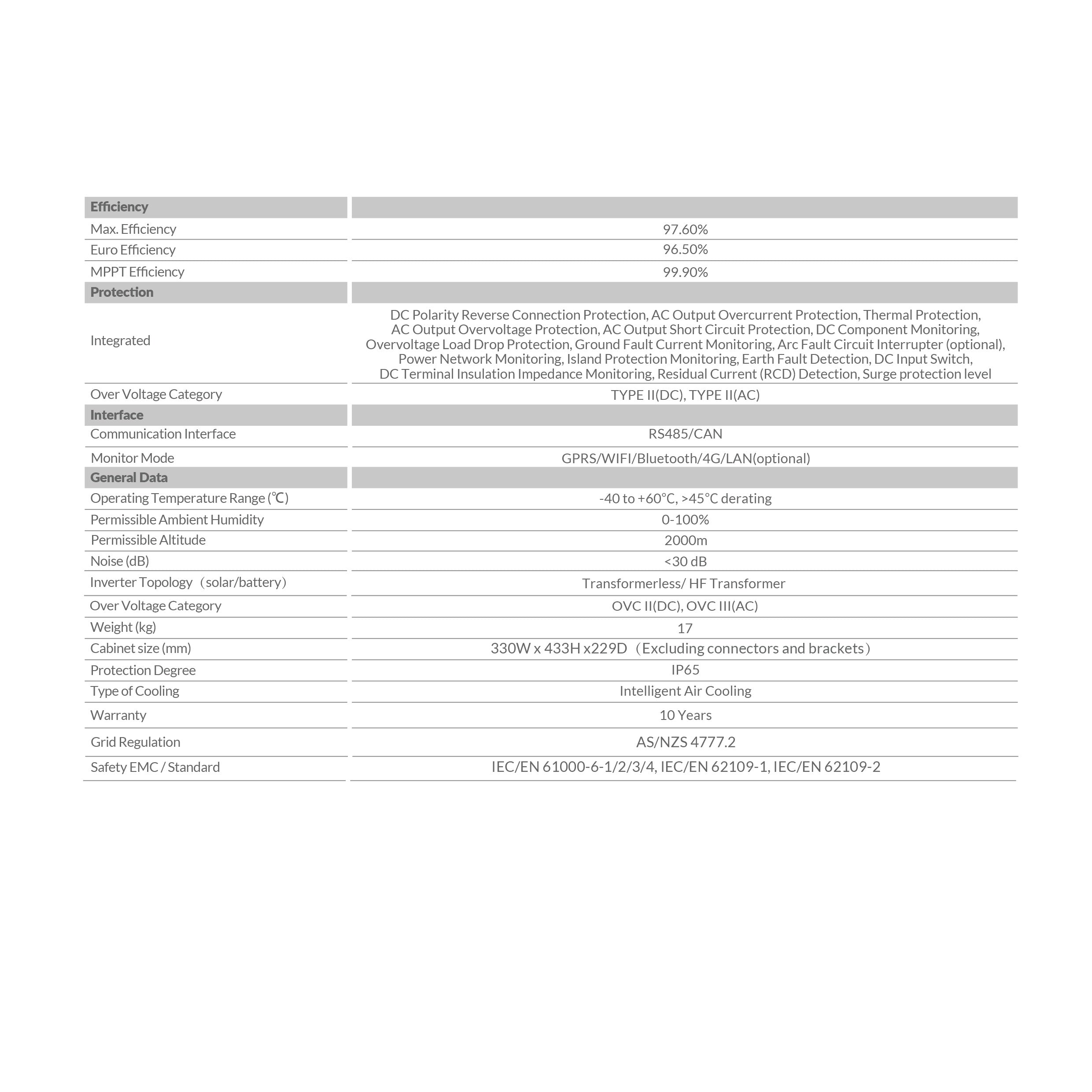

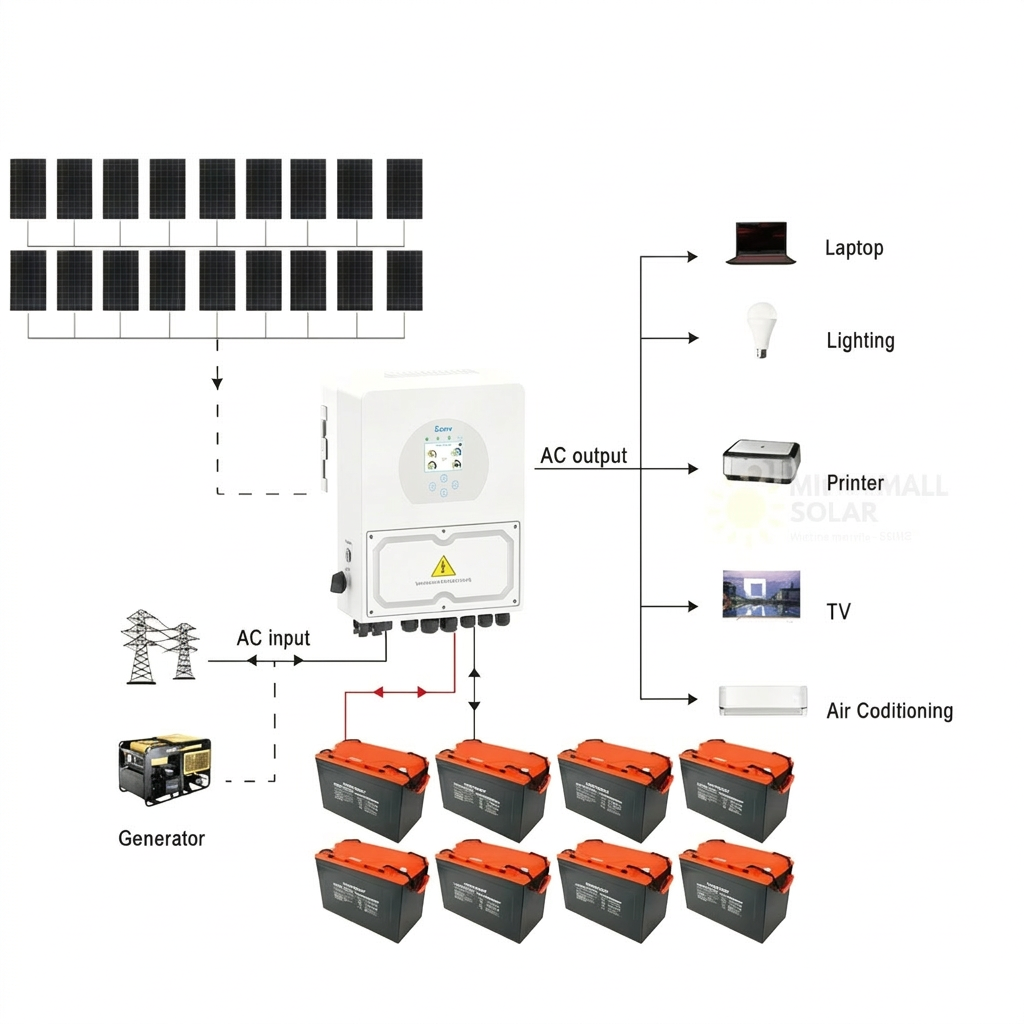

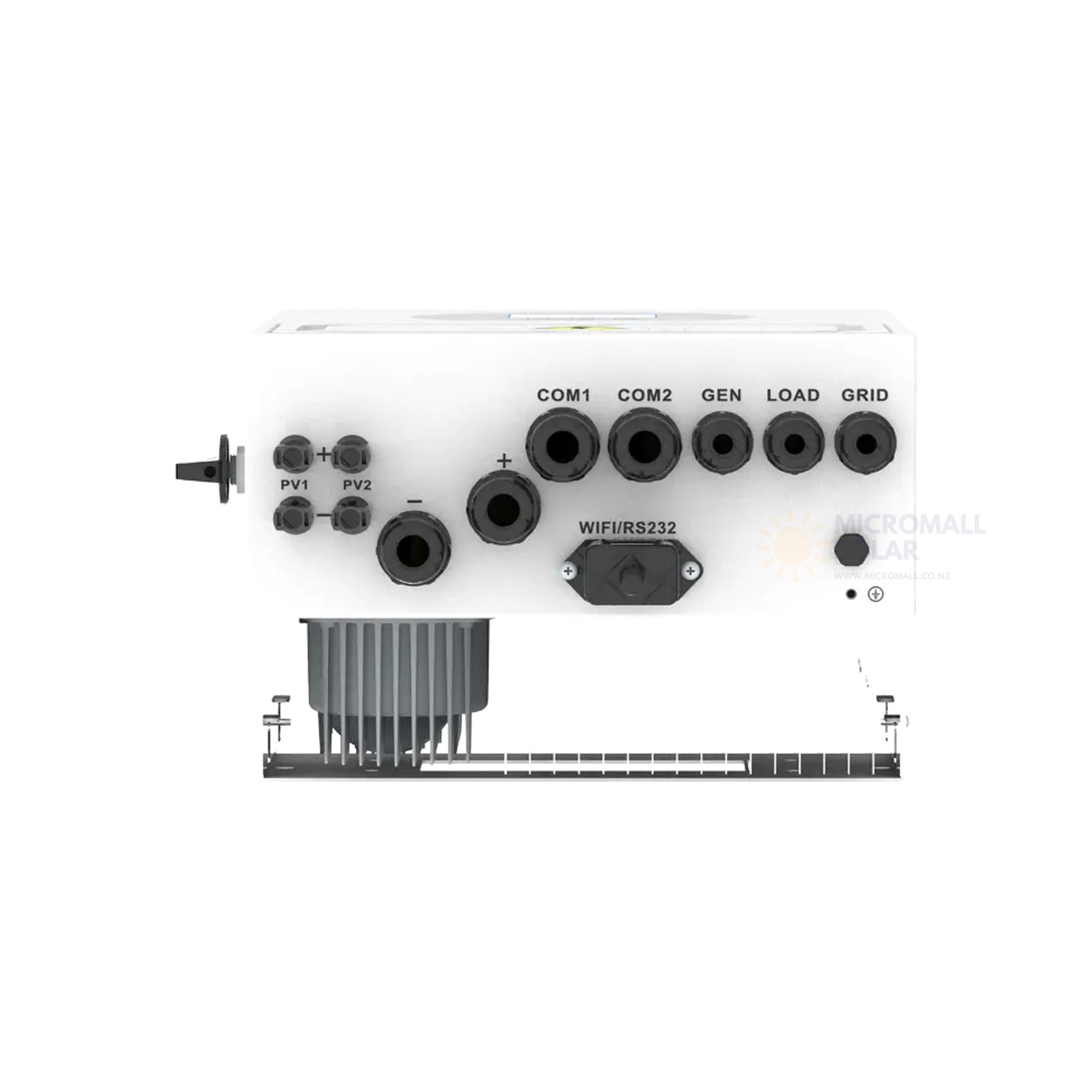

SUN-6K-SG04LP1-AU is a hybrid inverter ideal for home and light commercial use, optimizing solar self-consumption and enhancing energy independence. During the day, it powers loads using solar, storing excess energy in the battery. This stored energy is used when needed. The battery can also be charged by a diesel generator during grid outages. The inverter has an RS485/CAN port for battery communication and uses a safer 24V battery system.

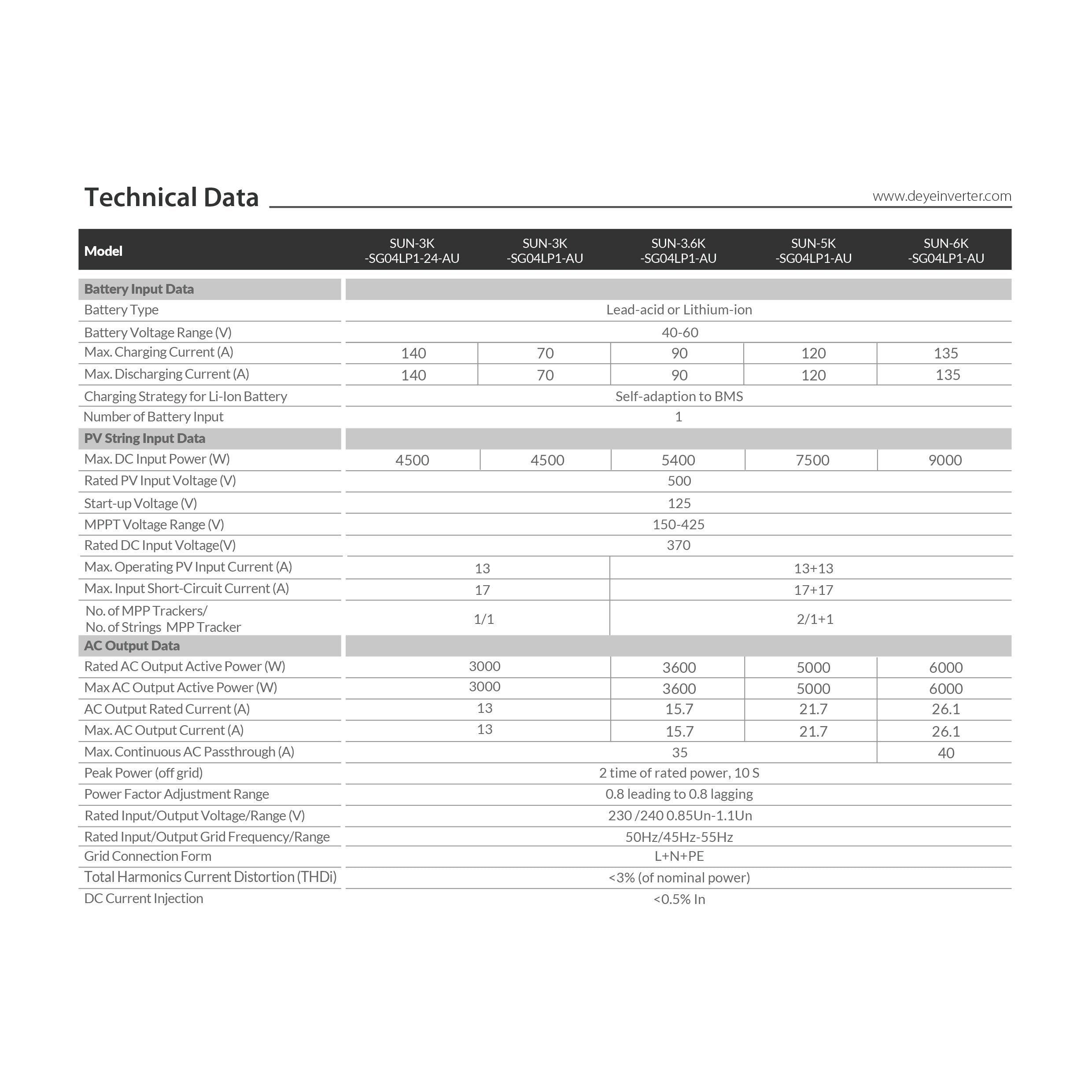

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
MPPT Voltage Range (V): 150-425
Start-up Voltage (V): 125
PV Input Current (A): 13+13
MPPT Trackers: 1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6600
Peak Power (off grid): 2 times of rated power, 10 S
AC Output Rated Current: 26.1A
Max AC Output Current: 26.1A
Grid Type: Single Phase
Weight: 17kg
Size: 330×433×229mm
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**Authorized Longi distributor in New Zealand**
