Description
Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.
3 Phase, Real 12KW Off Grid/Grid Tie/On Grid
Package Includes:

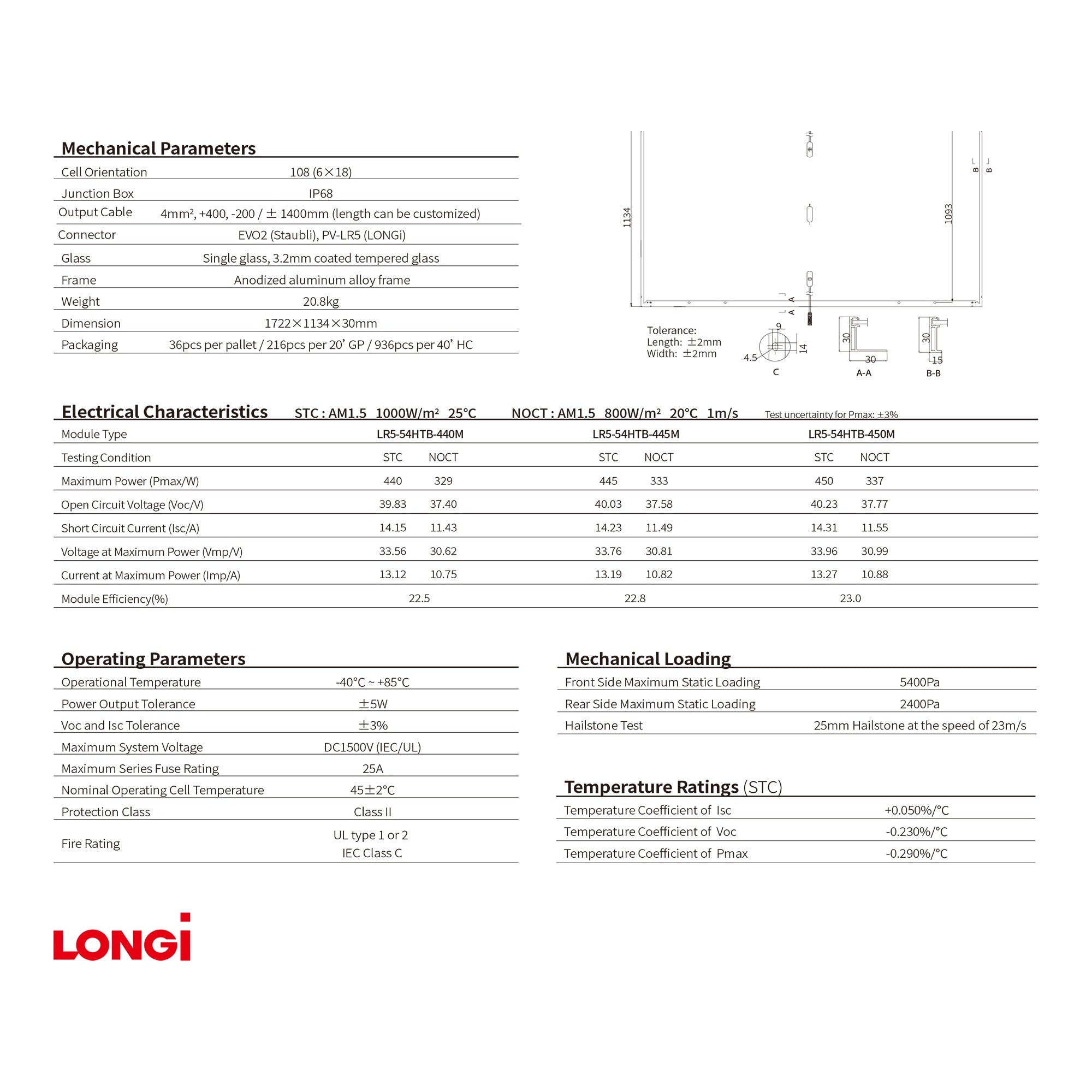

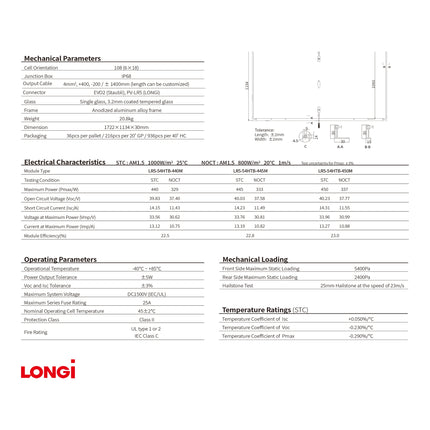

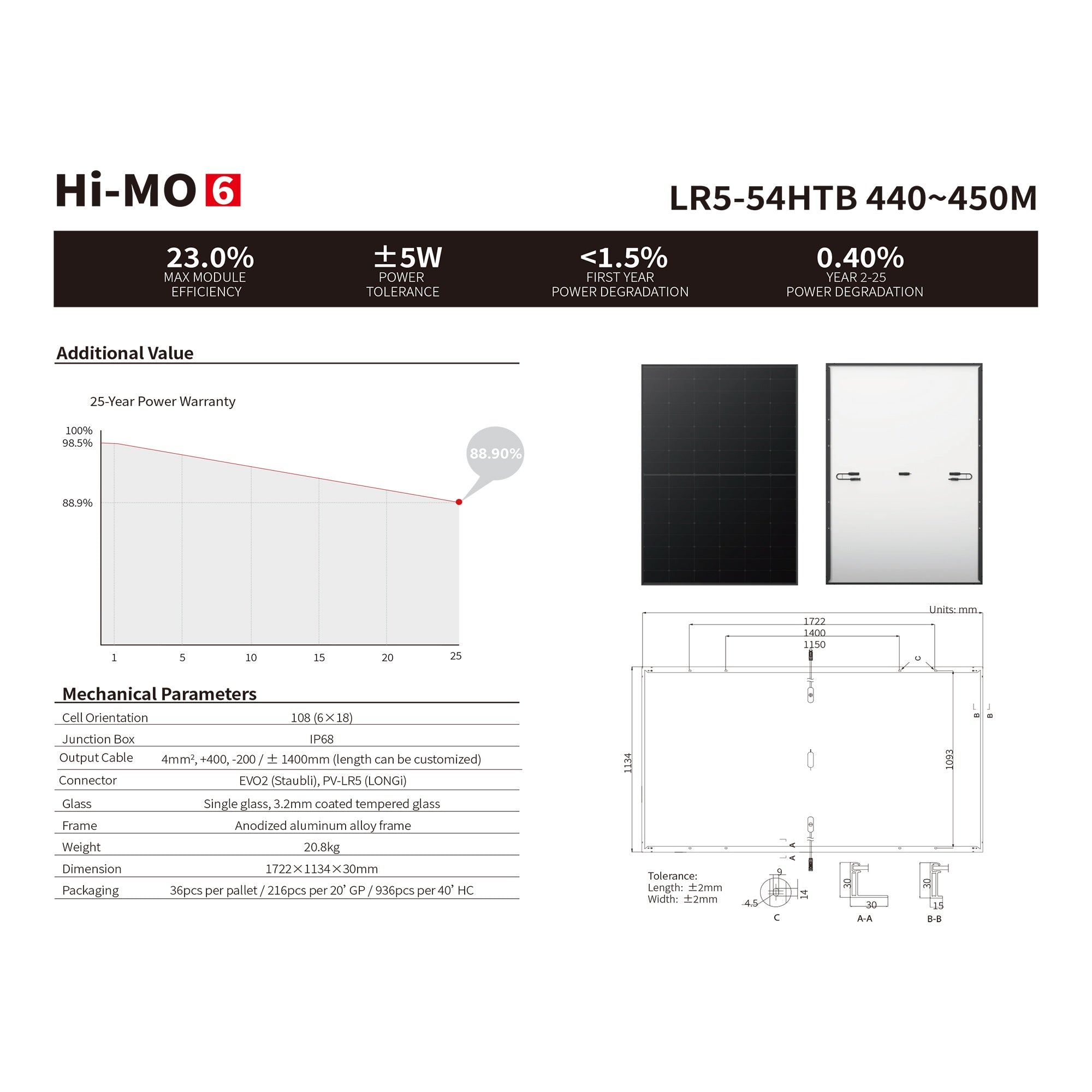

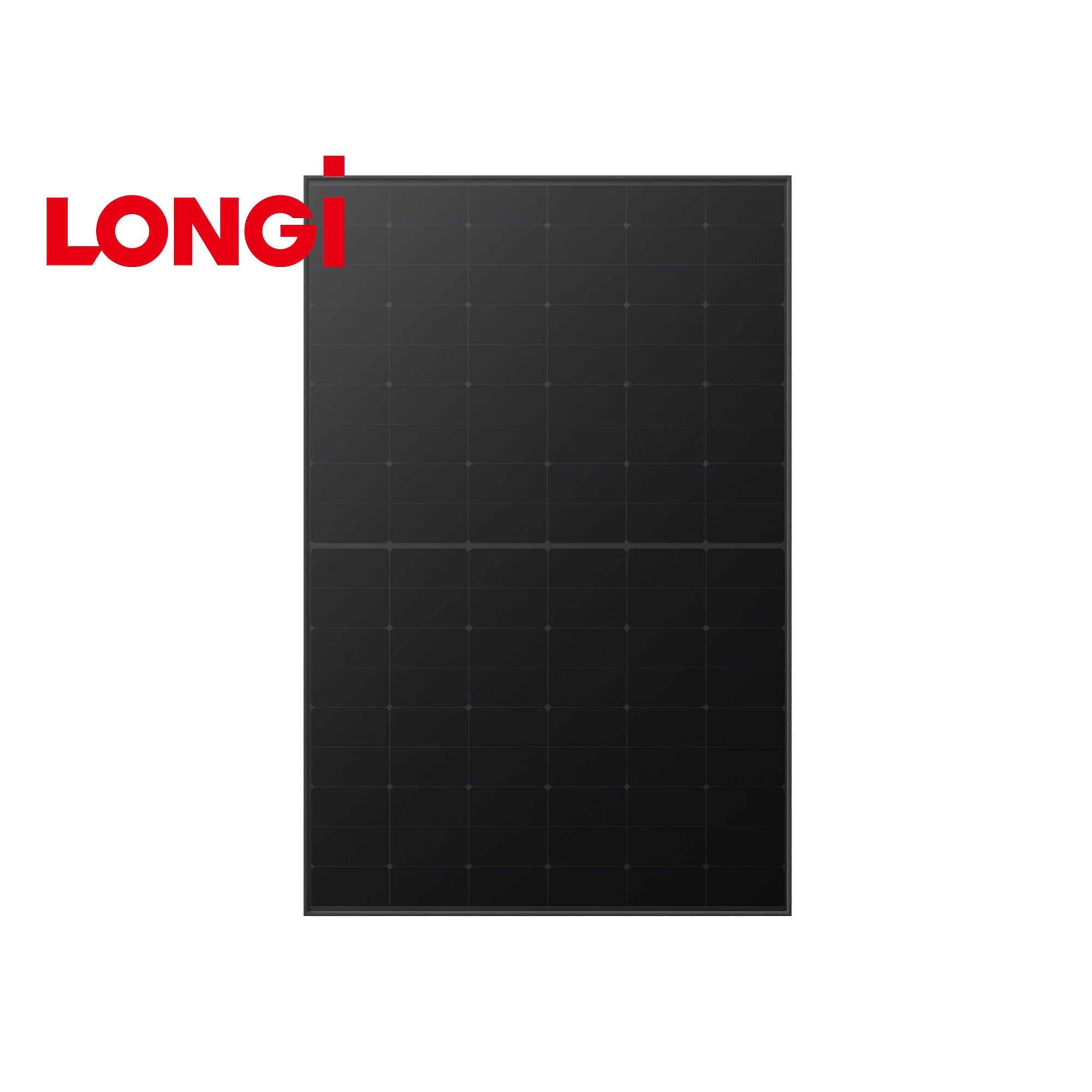

20 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

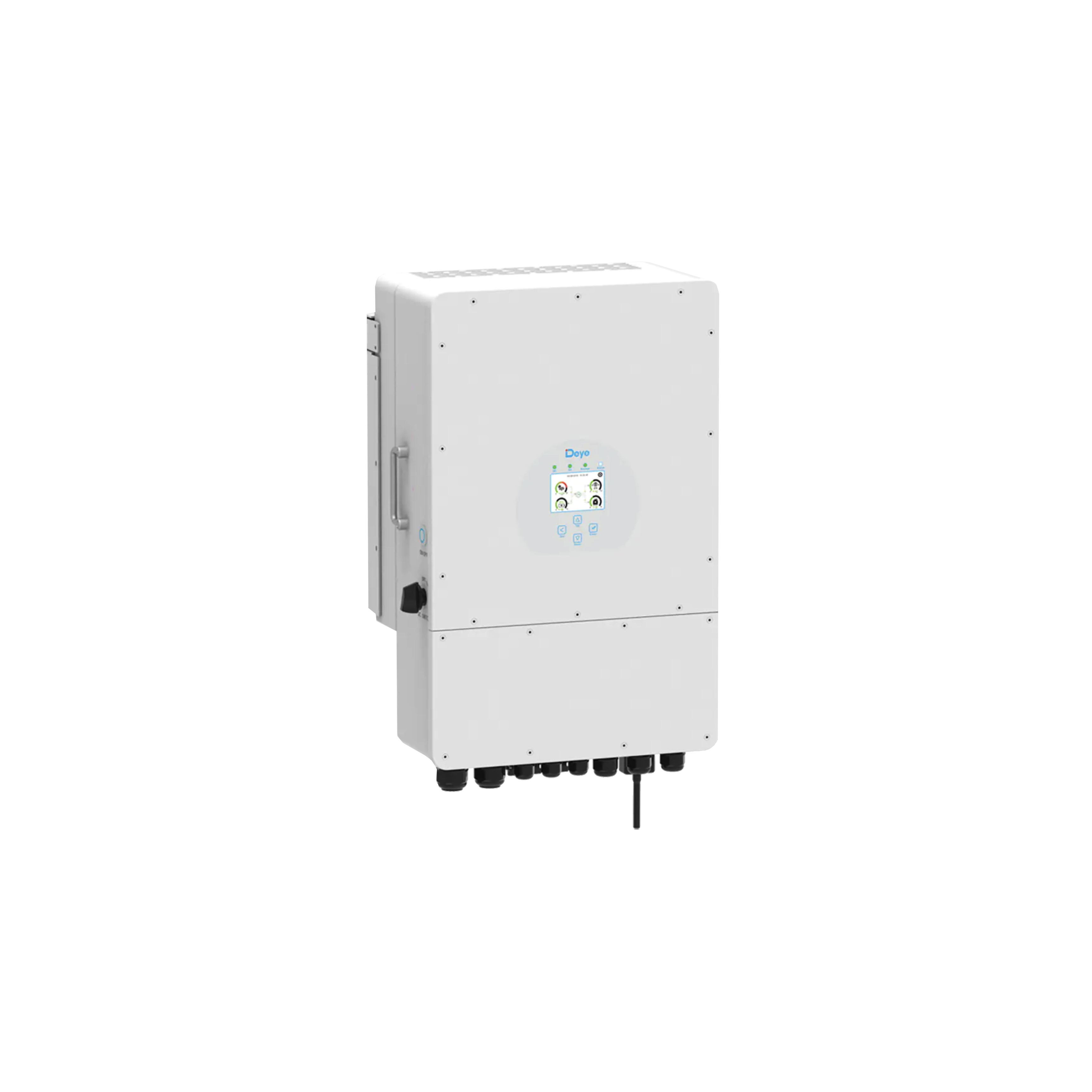

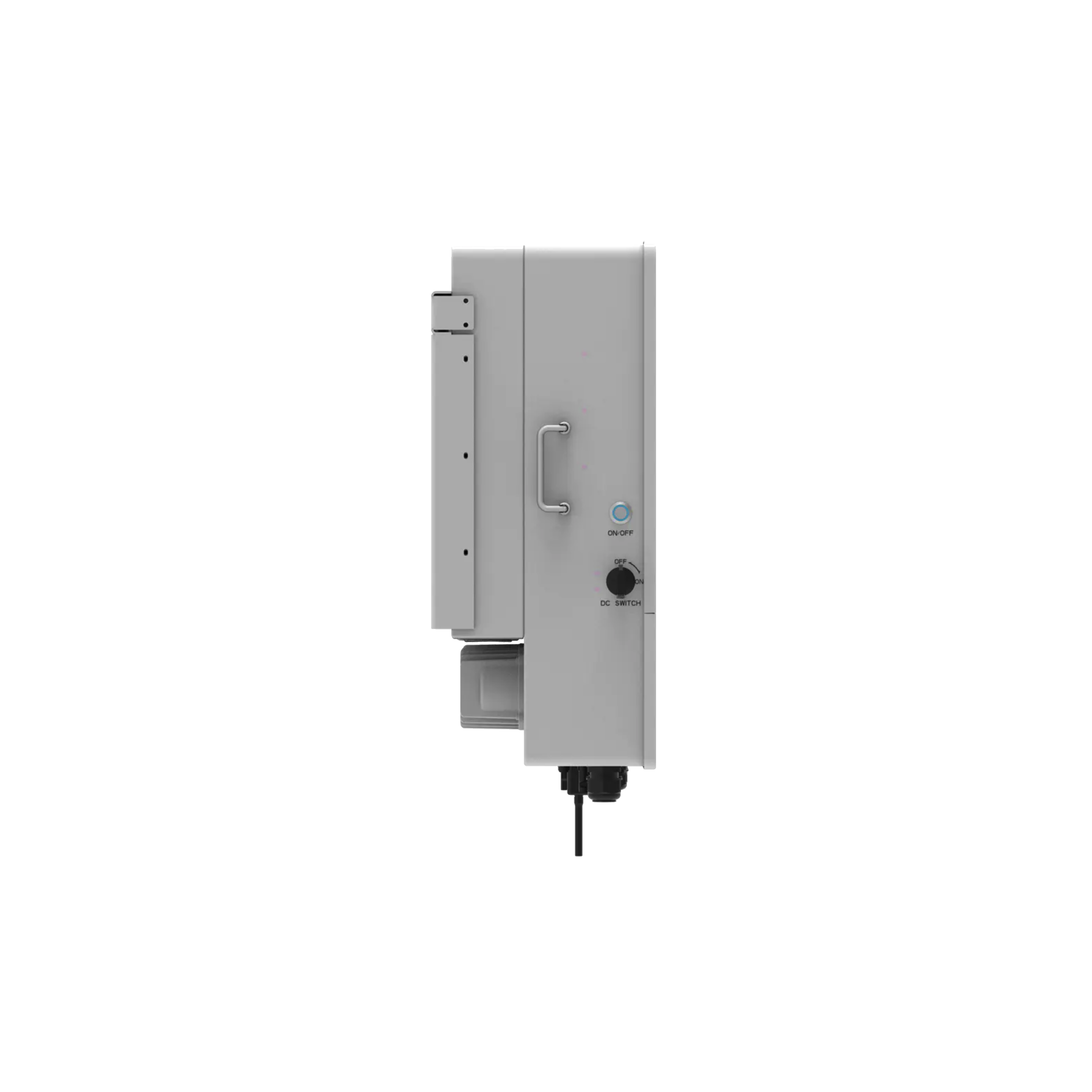

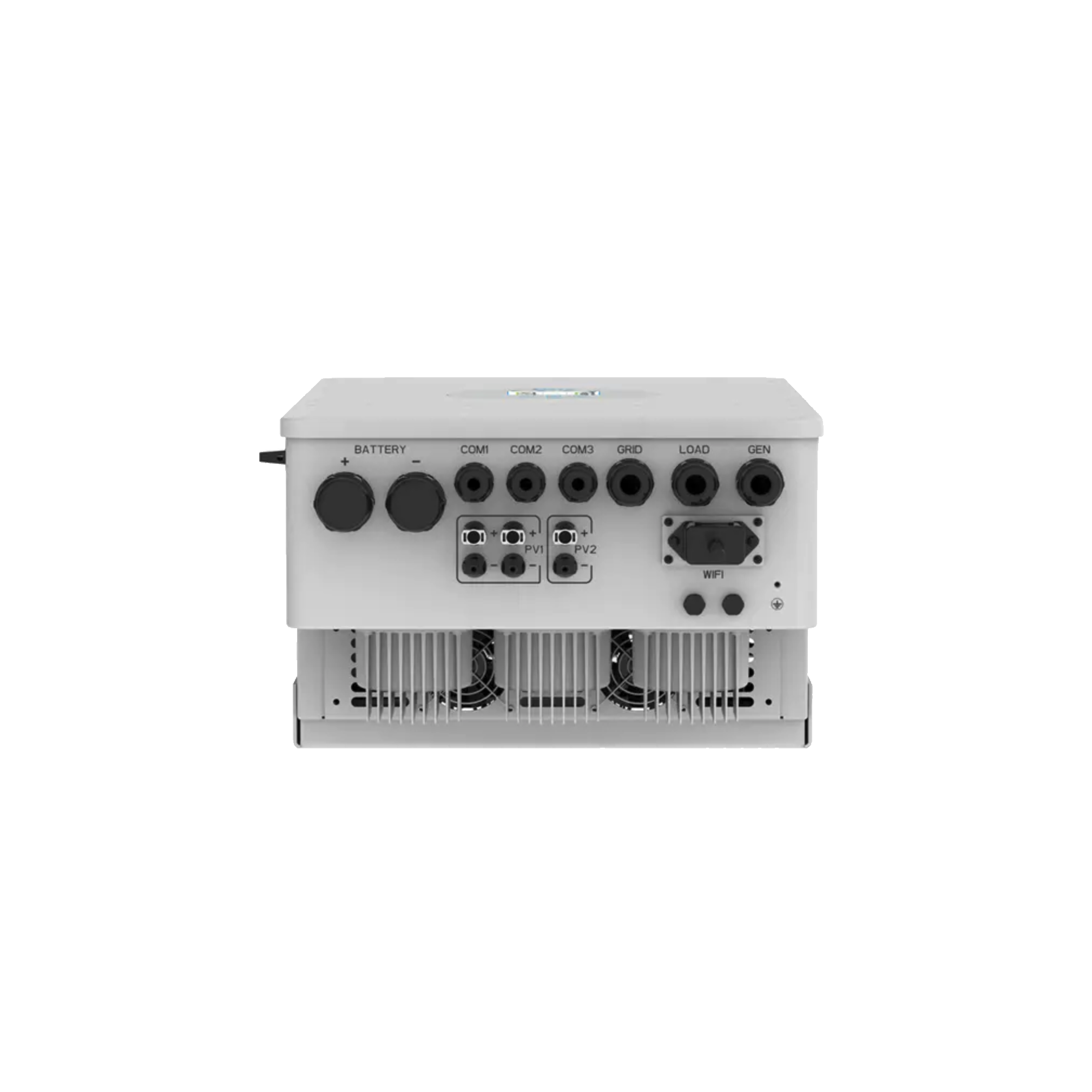

1 x Deye 3 Phase 2 MPPT Hybrid Inverter SUN-12K-SG04LP3-AU (5 Years Warranty)

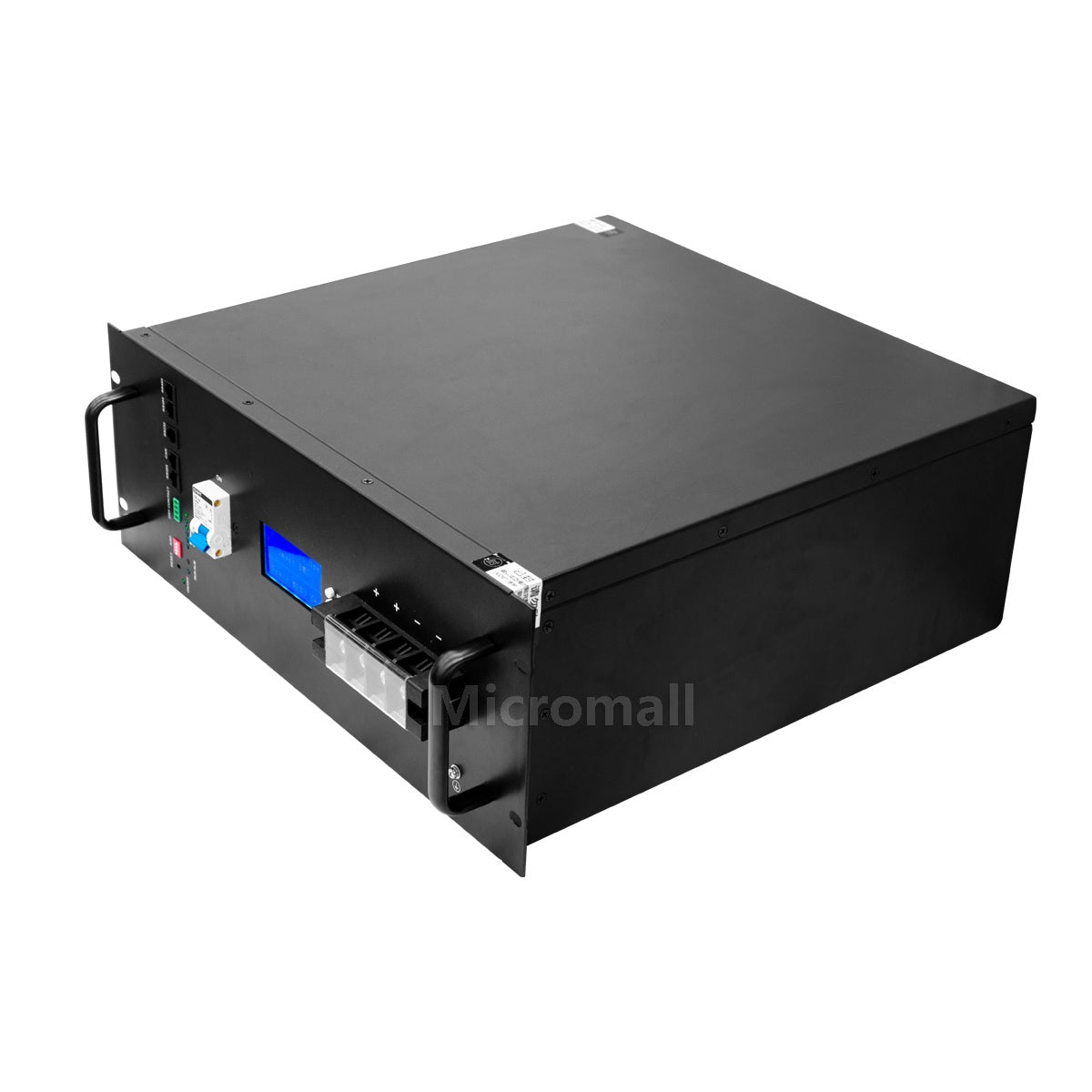

4 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors

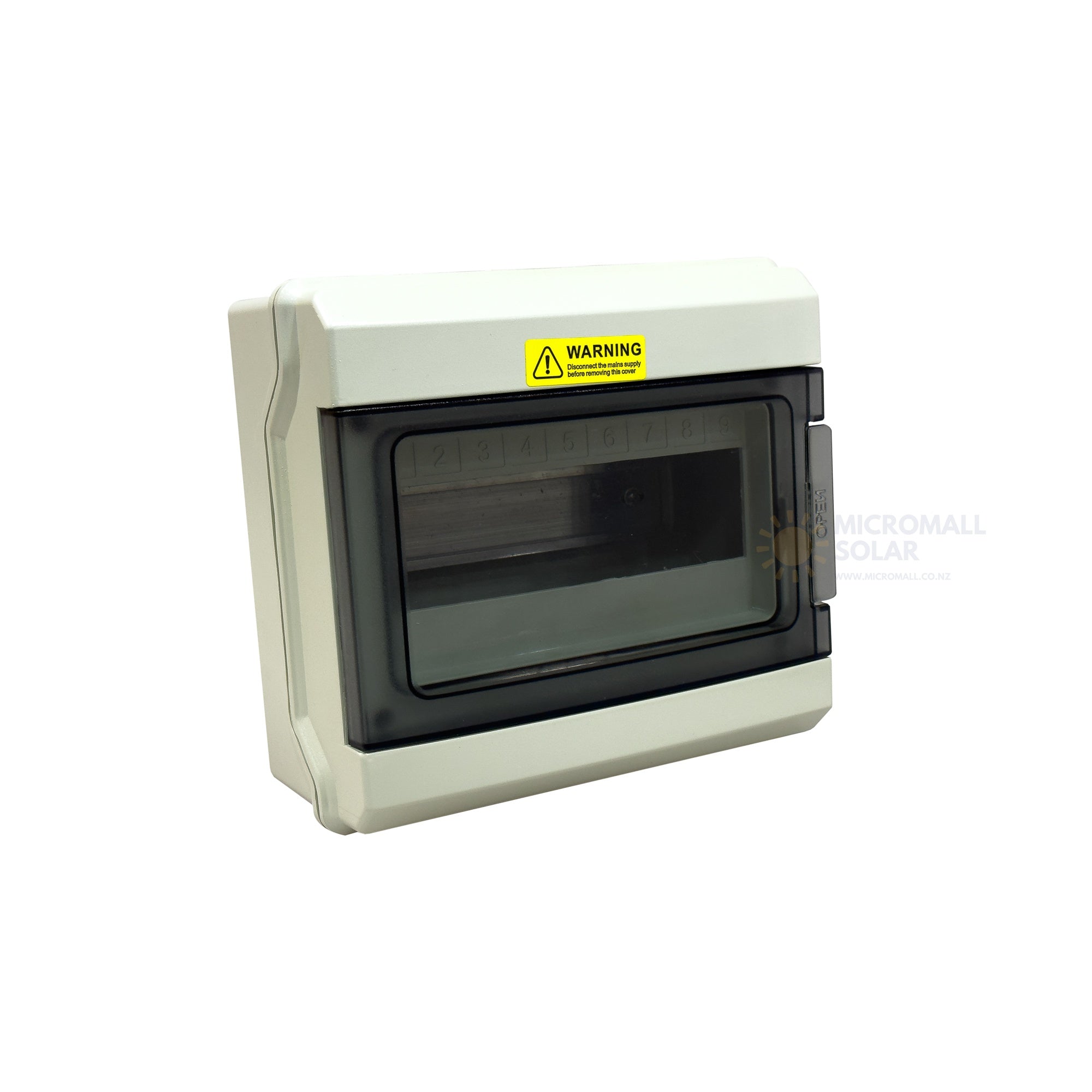

2 x PV Safety System with Fuse Box
20 x Commercial Mount Kits Adjustable Angle Version
4 x MC4 Port
1 x Cabinet (dimensions: 63x63x1802mm)

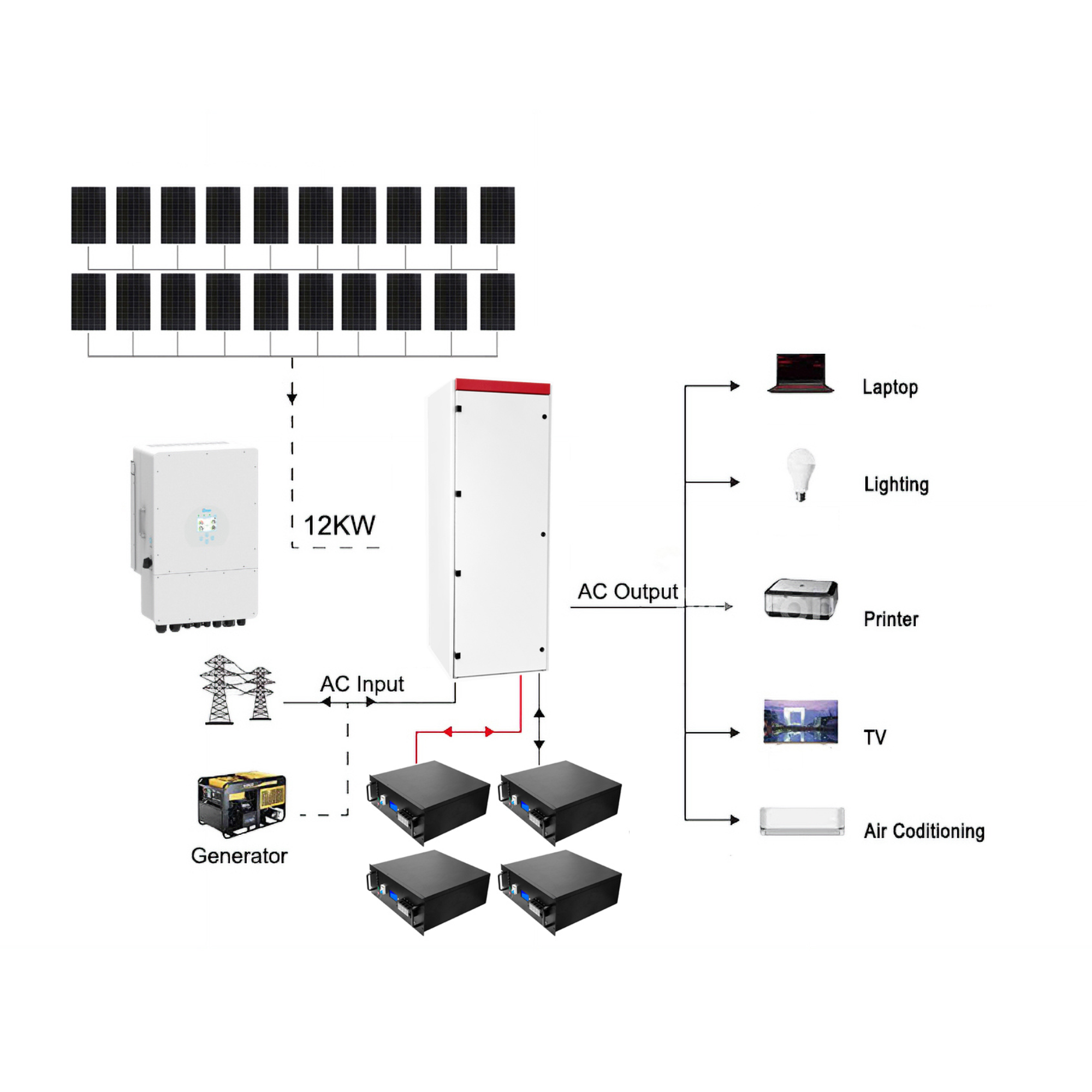

Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

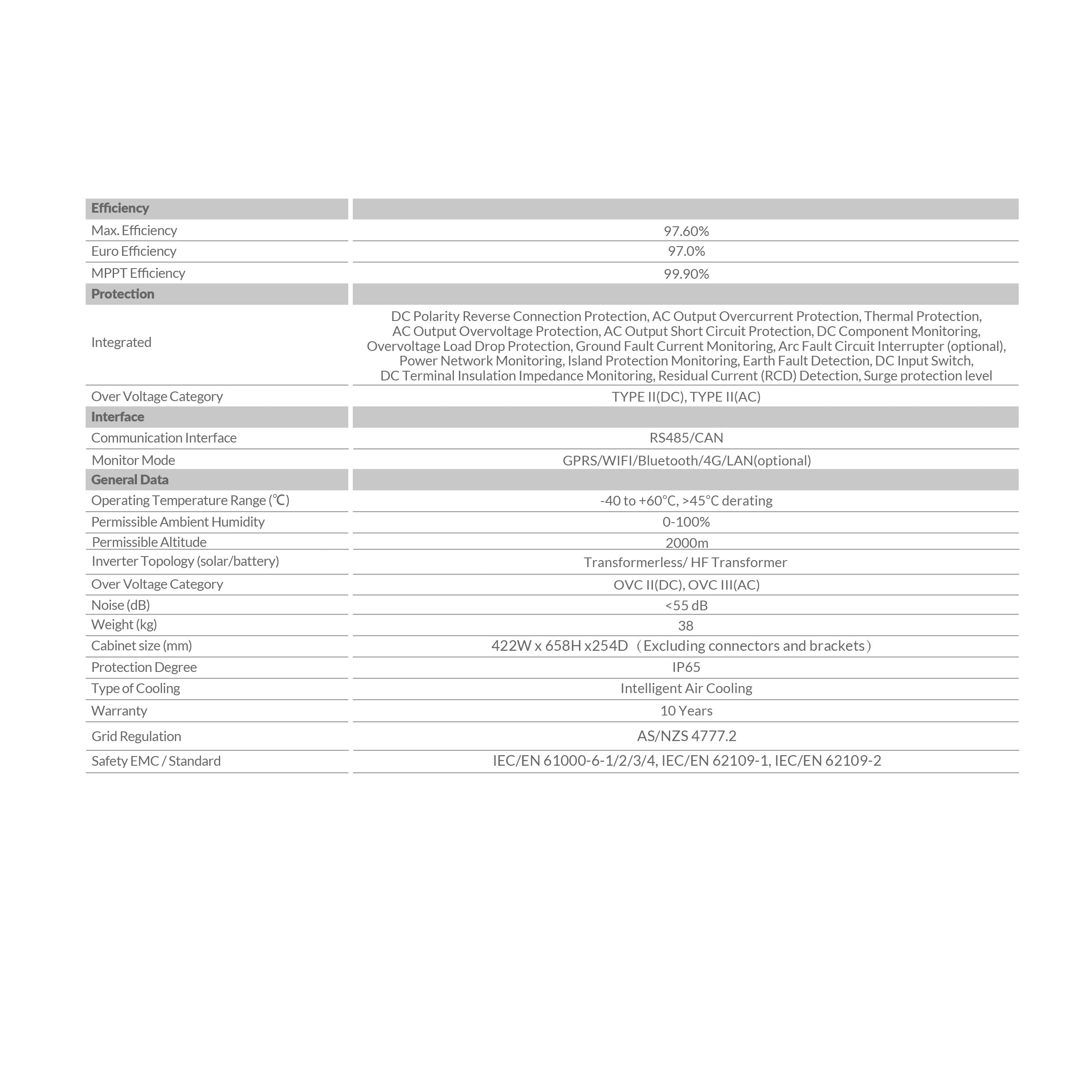

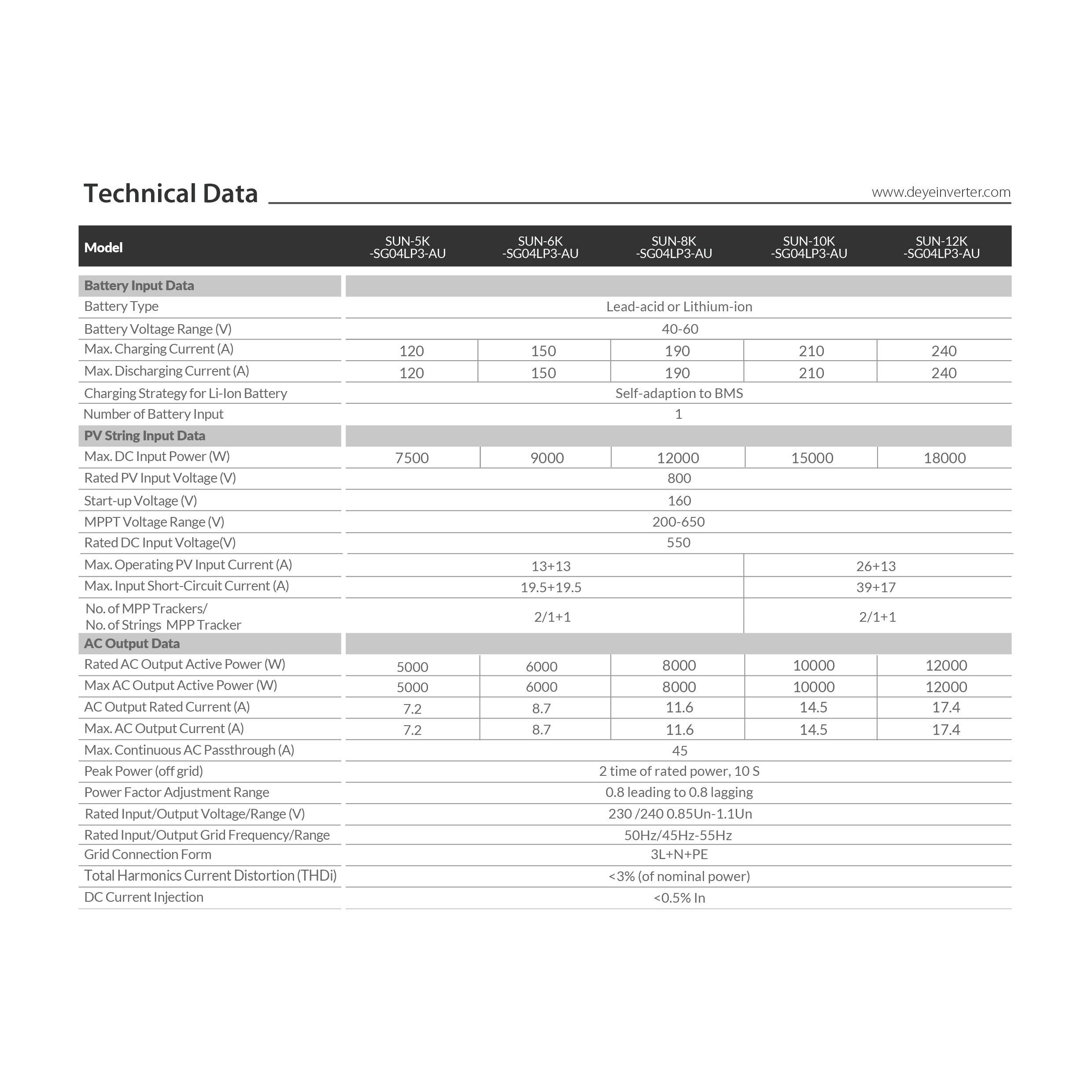

Model: SUN-12K-SG04LP3-AU
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 240A
Max. Discharging Current (A): 240A
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Max. DC Input Power (W): 18000W
Rated PV Input Voltage (V): 800V
Start-up Voltage (V): 160V
MPPT Range (V): 200V-650V
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A):26+13
Max. Input Short-Circuit Current (A): 39+17
Number of MPPT / Strings per MPPT: 2/2+1
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W):12000
SAA NZ Certificated Inverter
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
