9-Layer Rack

Description

Key Features

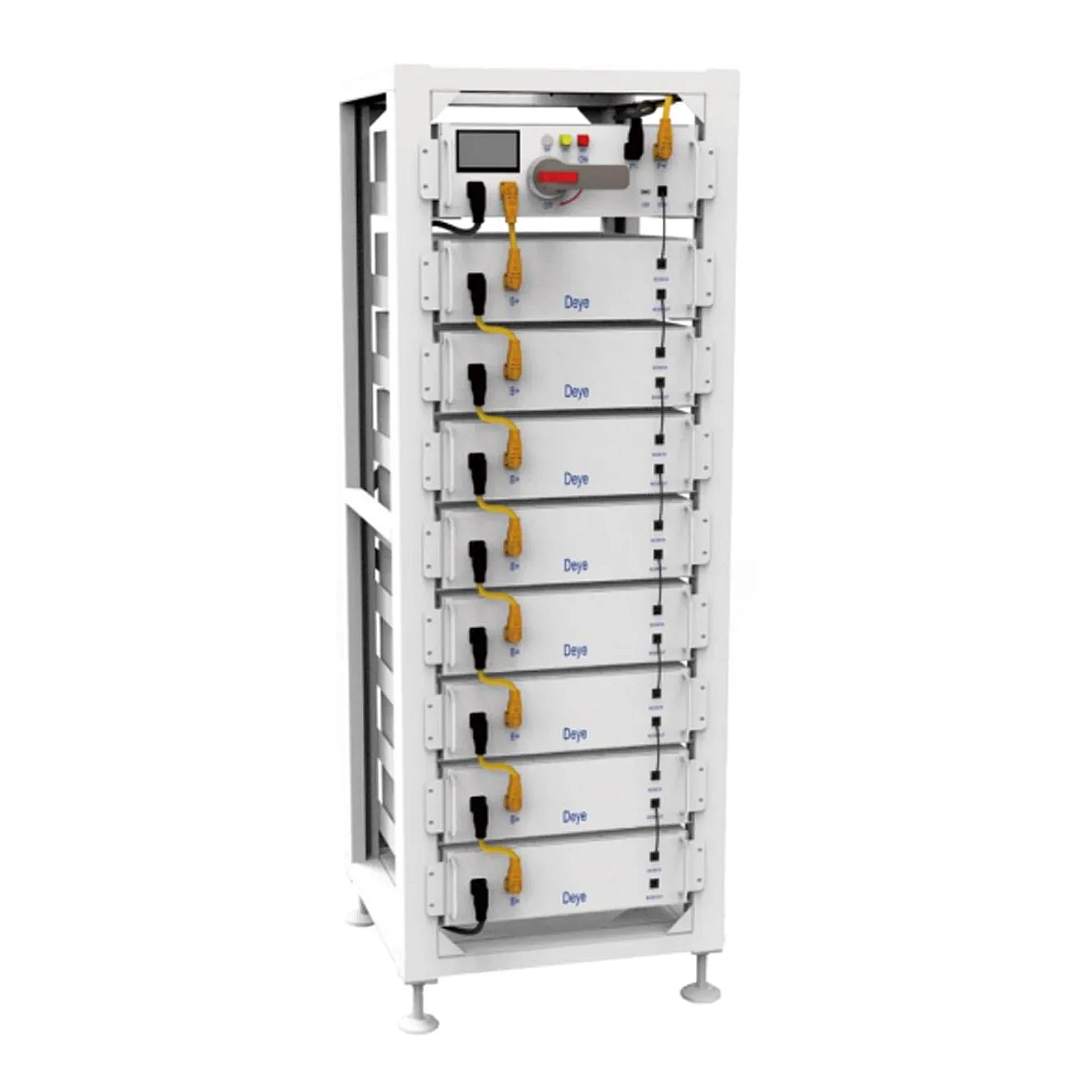

  • Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system
  • Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation
  • Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations
  • Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations
  • Environmentally friendly: Completely free of toxic substances and built from recyclable materials

Specifications

  • Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
  • Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation.
  • Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.
  • Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations.
  • Environmentally friendly: Completely free of toxic substances and built from recyclable materials.

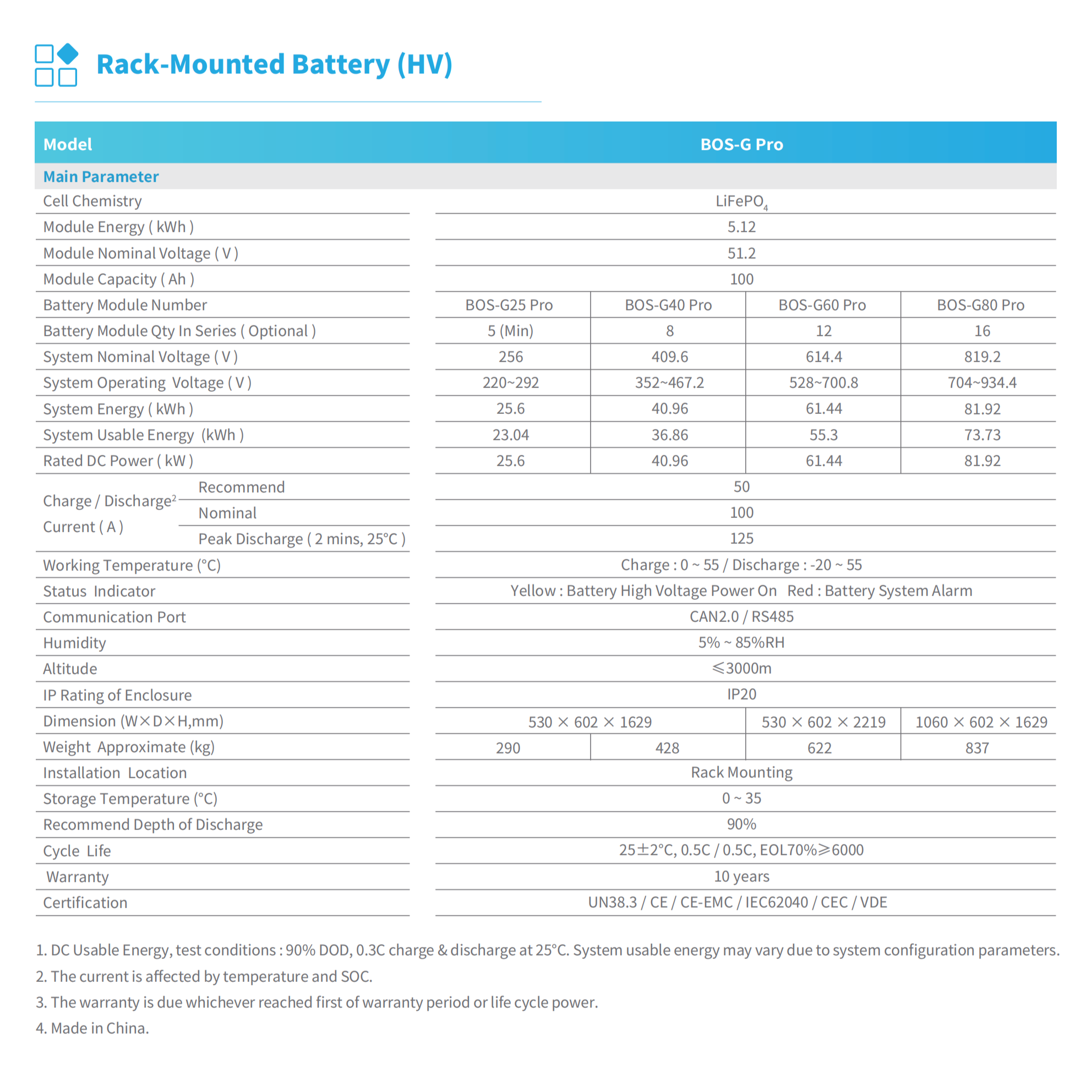

  • System capacity: Max 40.96 kWh (8 × 5.12kWh modules)
  • Nominal system voltage: 409.6 V(8 × 51.2V modules)
  • Usable energy: 36.86 kWh (at 90% DoD)
  • Dimensions (W × H × D): 530 × 602 × 1629 mm
  • Weight: approx. 428 kg (including batteries)
  • Ingress protection: IP20
  • Communication: CAN2.0 / RS485
  • Recommended depth of discharge (DOD): 90%
  • Certifications: UN38.3, CE, CE-EMC, IEC62040, VDE, etc.

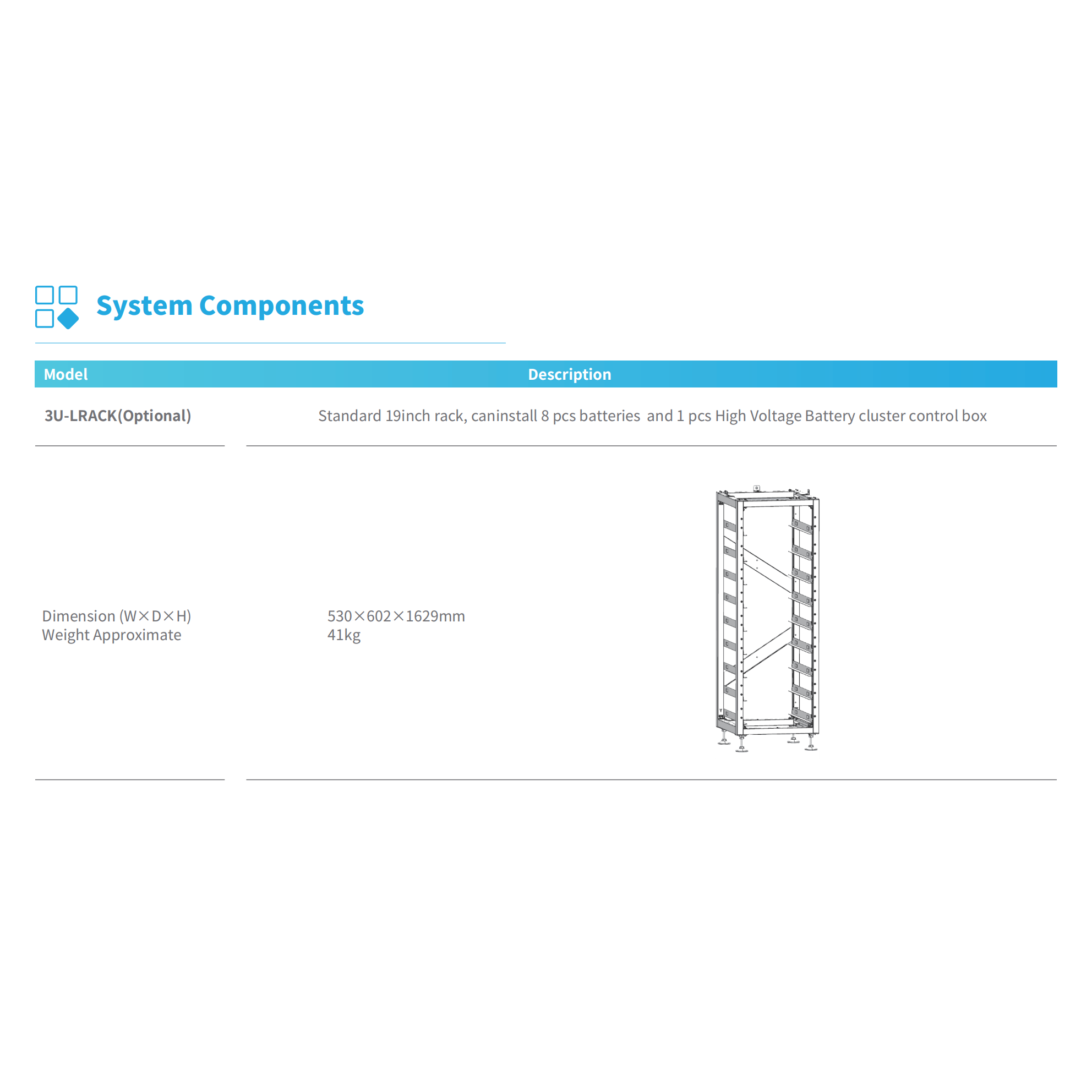

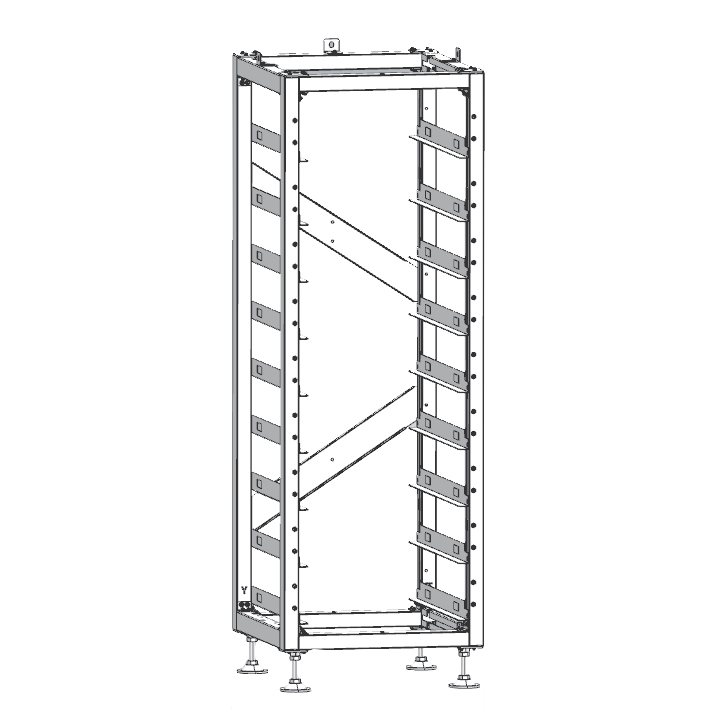

  • 3U-HRACK:
  • Dimension (W×D×H): 530 × 602 × 1629mm
  • Weight Approximate: 51kg

9-Layer Rack

Product form

SKU: 3U-LRack

$819.00

Or 4 payments of $204.75 fortnightly with Afterpay
    • Advanced, Patented Solar Technology
    • No Middlemen - Directly Savings to You
    • Professional Installation & Ongoing Support

    Description

    Key Features

    • Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system
    • Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation
    • Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations
    • Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations
    • Environmentally friendly: Completely free of toxic substances and built from recyclable materials

    Specifications

    • Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
    • Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation.
    • Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.
    • Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations.
    • Environmentally friendly: Completely free of toxic substances and built from recyclable materials.
    • System capacity: Max 40.96 kWh (8 × 5.12kWh modules)
    • Nominal system voltage: 409.6 V(8 × 51.2V modules)
    • Usable energy: 36.86 kWh (at 90% DoD)
    • Dimensions (W × H × D): 530 × 602 × 1629 mm
    • Weight: approx. 428 kg (including batteries)
    • Ingress protection: IP20
    • Communication: CAN2.0 / RS485
    • Recommended depth of discharge (DOD): 90%
    • Certifications: UN38.3, CE, CE-EMC, IEC62040, VDE, etc.
    • 3U-HRACK:
    • Dimension (W×D×H): 530 × 602 × 1629mm
    • Weight Approximate: 51kg
