Deye BOS-G-PDU-2 100A High Voltage Battery Control Box 200-1000V Battery Cluster

Description

Deye BOS-G-PDU-2 100A High Voltage Battery Control Box 200-1000V Battery Cluster Controller for Solar Storage

BOS-G-PDU-2 is a High Voltage Battery cluster control box conforming to European or British Standards.

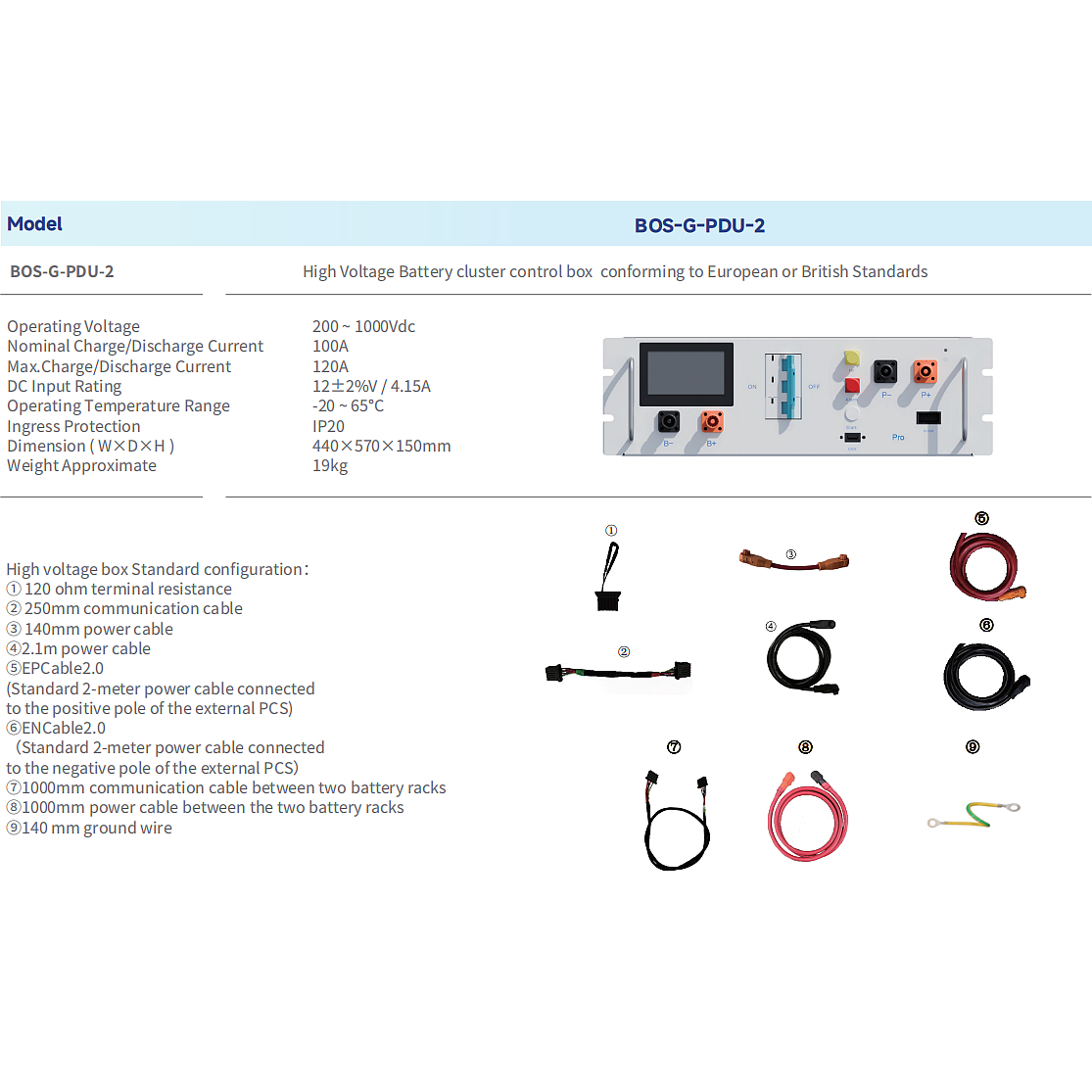

Specifications:
Operating Voltage: 200~1000Vdc
Nominal Charge/Discharge Current: 100A
Max.Charge/Discharge Current: 120A
DC Input Rating: 12±2%V/4.15A
Operating Temperature Range: -20~65°C
Ingress Protection: IP20
Dimension (WxDXH): 440x570x150mm
Weight Approximate: 19kg

High voltage box Standard configuration：
1. 120ohm terminal resistance
2. 250mm communication cable
3. 140mm power cable
4. 2.1m power cable
5. EPCable2.0(Standard 2-meter power cable connected to the positive pole of the external PCS)
6. ENCable2.0(Standard 2-meter power cable connected to the negative pole of the external PCS)
7. 1000mm communication cable between two battery racks
8. 1000mm power cable between the two battery racks
9. 140 mm ground wire

BOS-G-PDU-2, an EU/UK standard high-voltage battery cluster control box, features stable performance and complete accessories, ideal for residential and commercial industrial high-voltage energy storage scenarios.

Deye BOS-G-PDU-2 100A High Voltage Battery Control Box 200-1000V Battery Cluster

Product form

SKU: BOS-G-PDU-2

$2,129.00

Or 4 payments of $532.25 fortnightly with Afterpay

Free pickup in our shop(s)

    • Advanced, Patented Solar Technology
    • No Middlemen - Directly Savings to You
    • Professional Installation & Ongoing Support

    Description

    Deye BOS-G-PDU-2 100A High Voltage Battery Control Box 200-1000V Battery Cluster Controller for Solar Storage

    BOS-G-PDU-2 is a High Voltage Battery cluster control box conforming to European or British Standards.

    Specifications:
    Operating Voltage: 200~1000Vdc
    Nominal Charge/Discharge Current: 100A
    Max.Charge/Discharge Current: 120A
    DC Input Rating: 12±2%V/4.15A
    Operating Temperature Range: -20~65°C
    Ingress Protection: IP20
    Dimension (WxDXH): 440x570x150mm
    Weight Approximate: 19kg

    High voltage box Standard configuration：
    1. 120ohm terminal resistance
    2. 250mm communication cable
    3. 140mm power cable
    4. 2.1m power cable
    5. EPCable2.0(Standard 2-meter power cable connected to the positive pole of the external PCS)
    6. ENCable2.0(Standard 2-meter power cable connected to the negative pole of the external PCS)
    7. 1000mm communication cable between two battery racks
    8. 1000mm power cable between the two battery racks
    9. 140 mm ground wire

    BOS-G-PDU-2, an EU/UK standard high-voltage battery cluster control box, features stable performance and complete accessories, ideal for residential and commercial industrial high-voltage energy storage scenarios.
