Description

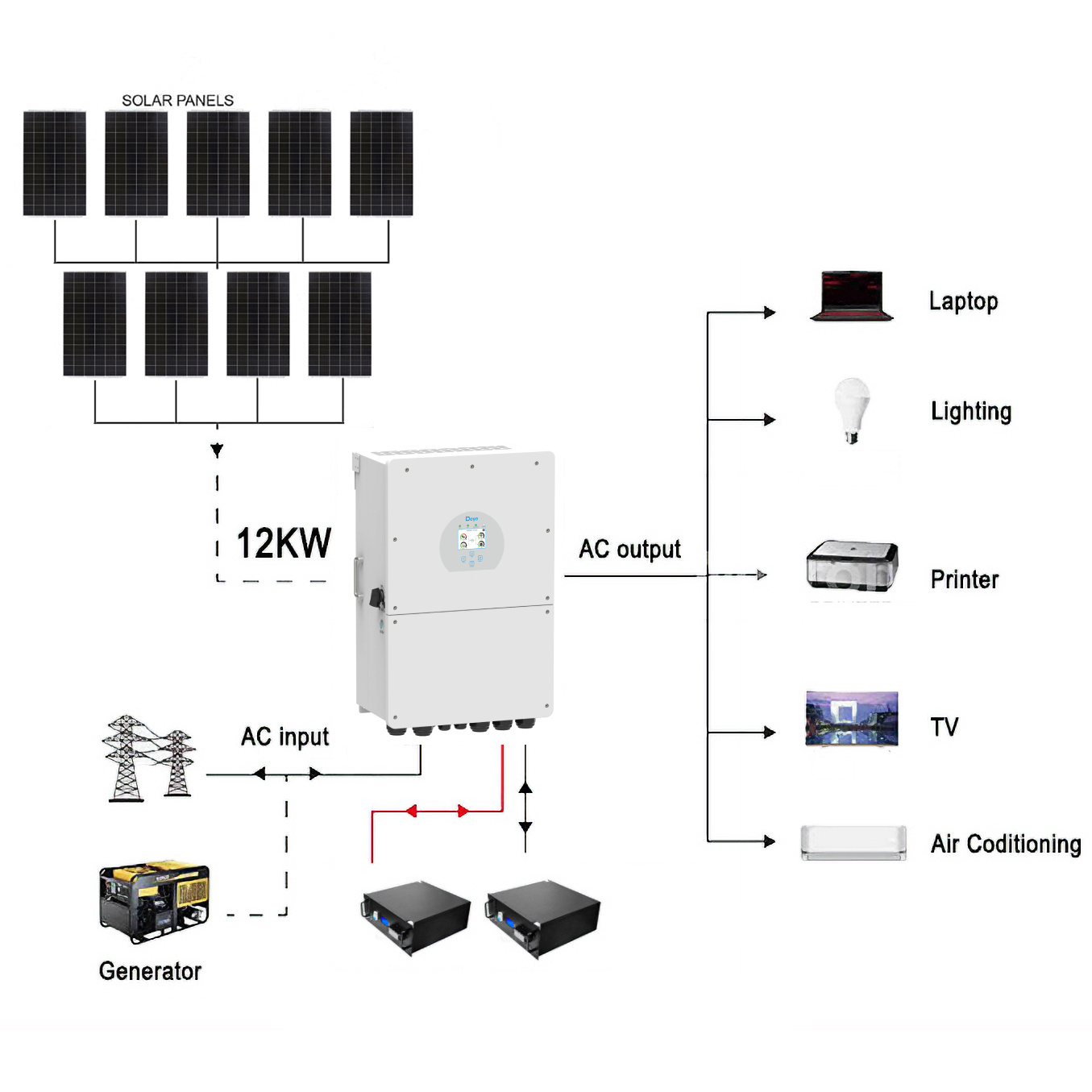

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.(Powered by Micromall battery)

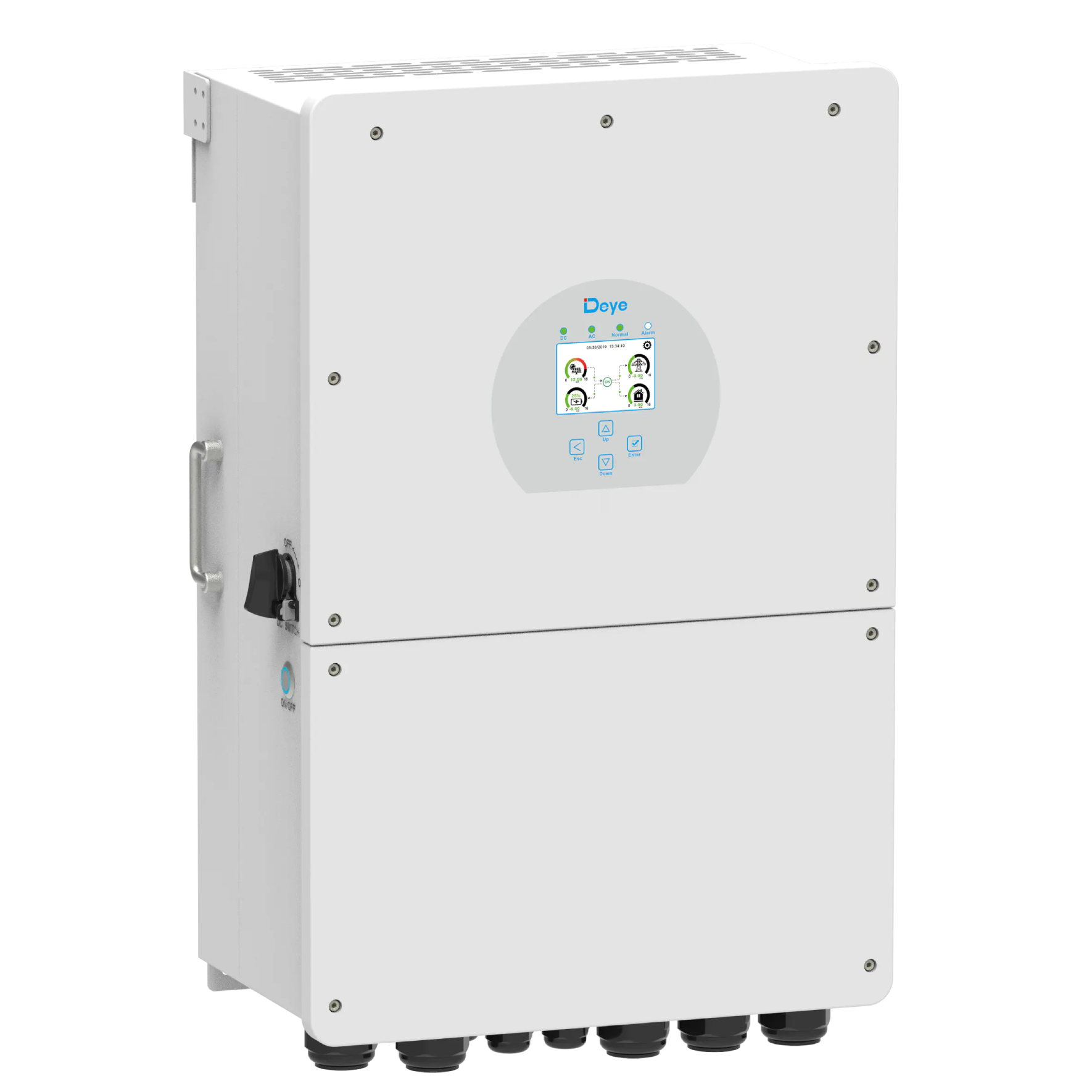

1 x 12000W Deye Single Phase Hybrid Inverter SUN-12K-SG01LP1-EU (5 years warranty)
9 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x PV Safety System with Fuse Box
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
9 x Commercial Mounting Kits with Adjustable Angle Version
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
- Model: SUN-12K-SG01LP1-EU
Features
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 290A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

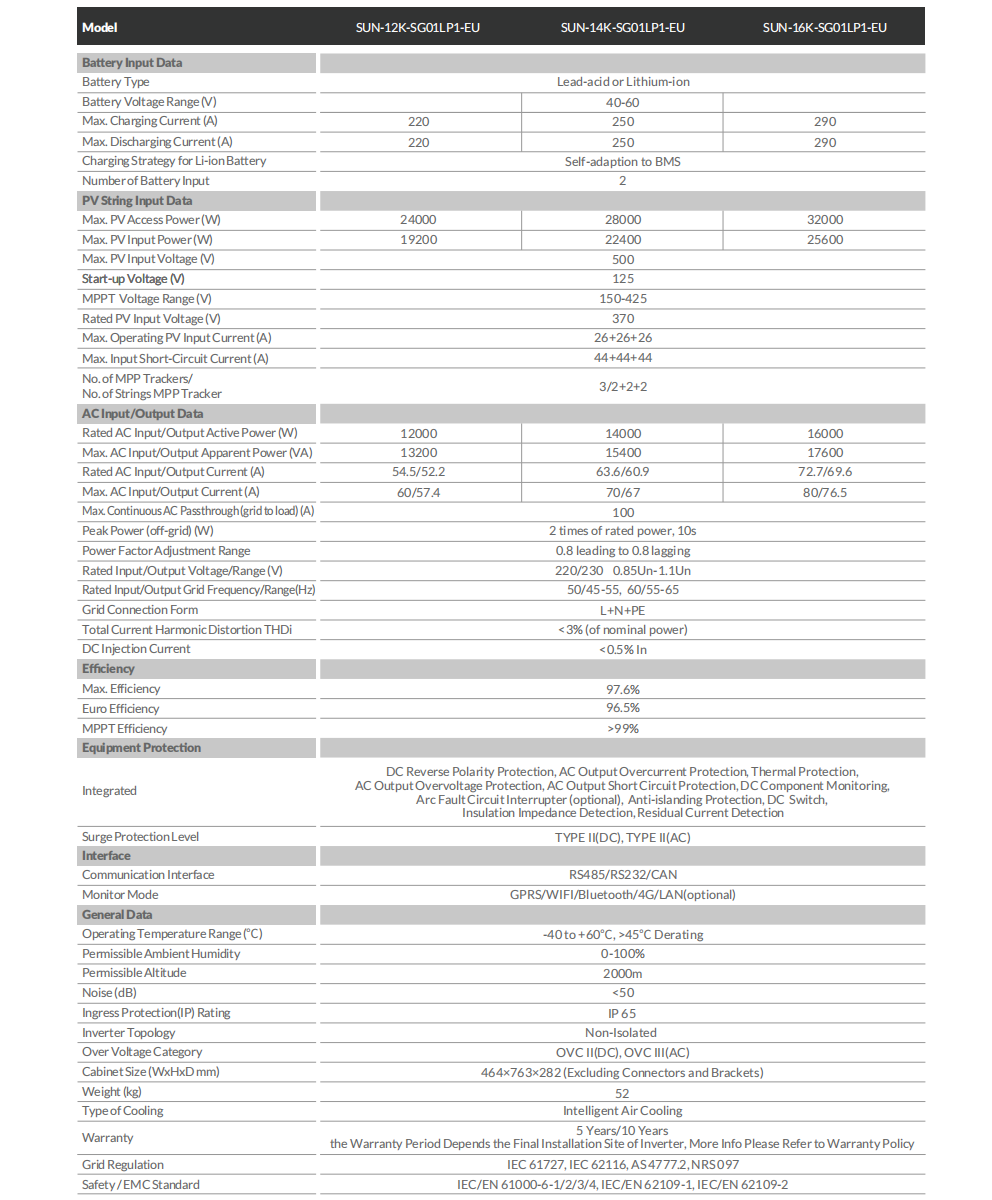

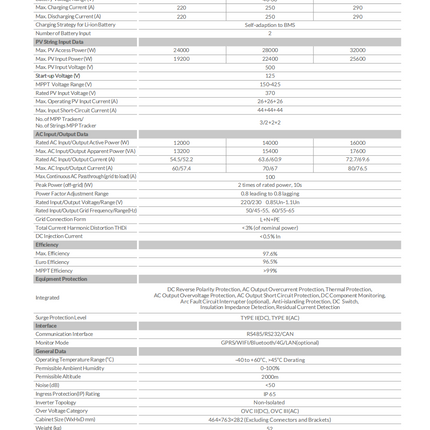

Specifications
- Rated AC Input/Output Active Power (W): 12000
- Max. AC Input/Output Apparent Power (VA): 13200
- Rated AC Input/Output Current (A): 54.5/52.2
- Max. AC Input/Output Current (A): 60/57.4
- Max. Continuous AC Passthrough (grid to load) (A): 100
- Weight: 52kg
- Dimension: 464 x 763 x 282 (Excluding Connectors and Brackets)
- Protection Degree: IP65
- Temperature: -40 - 60°C, >45°C Derating
- Cooling Method: Intelligent Air Cooling
- Warranty: 5 years
