**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

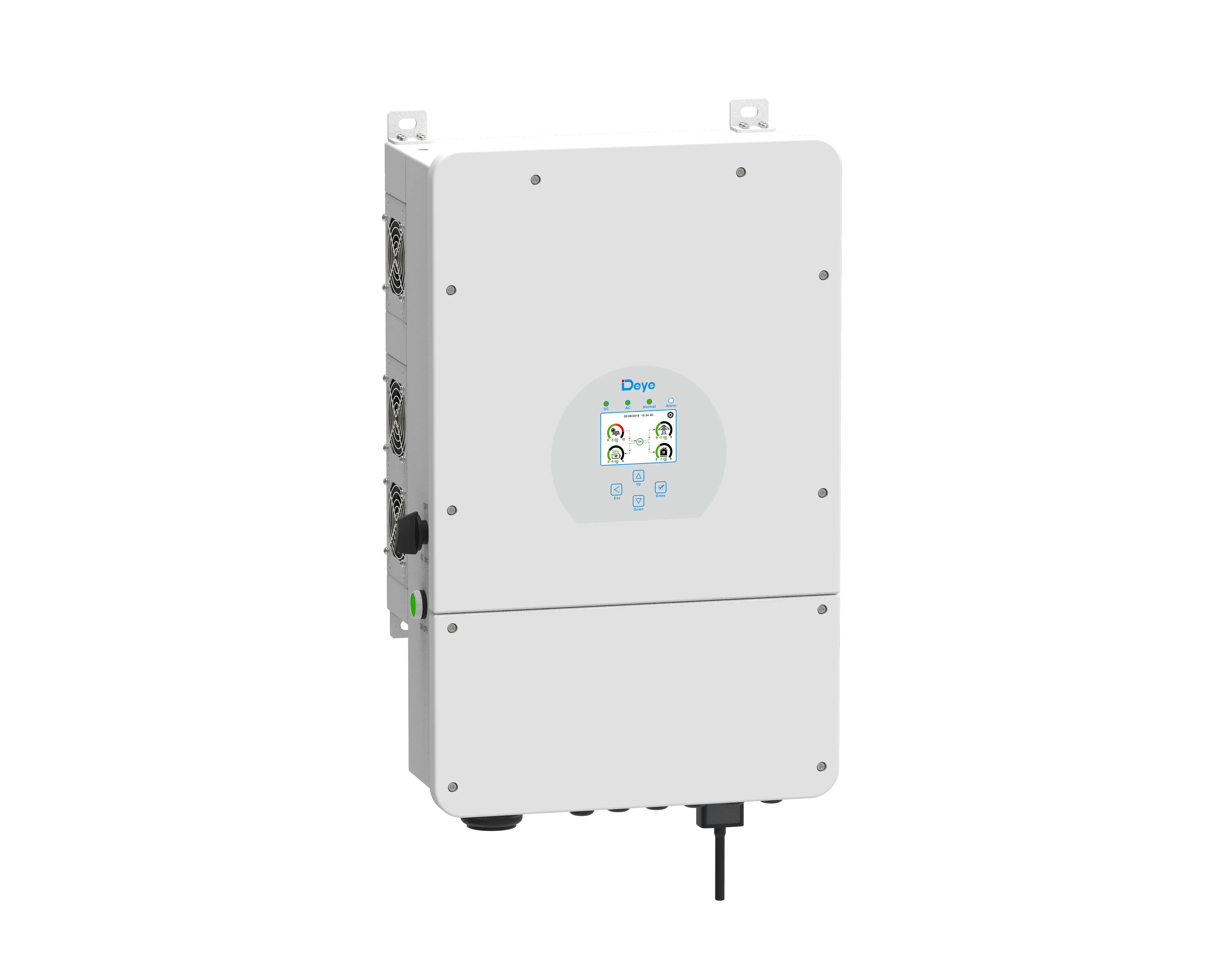

SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

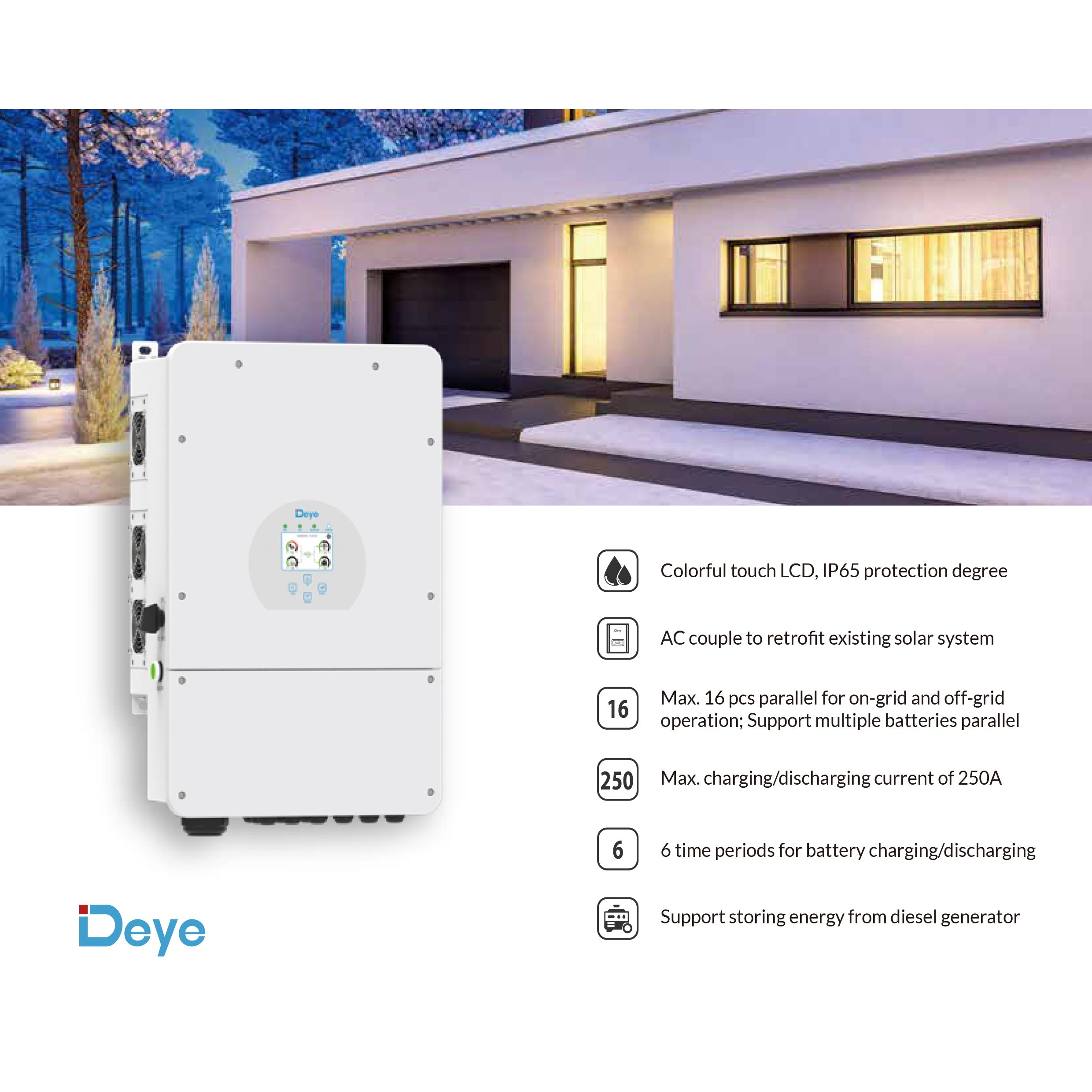

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

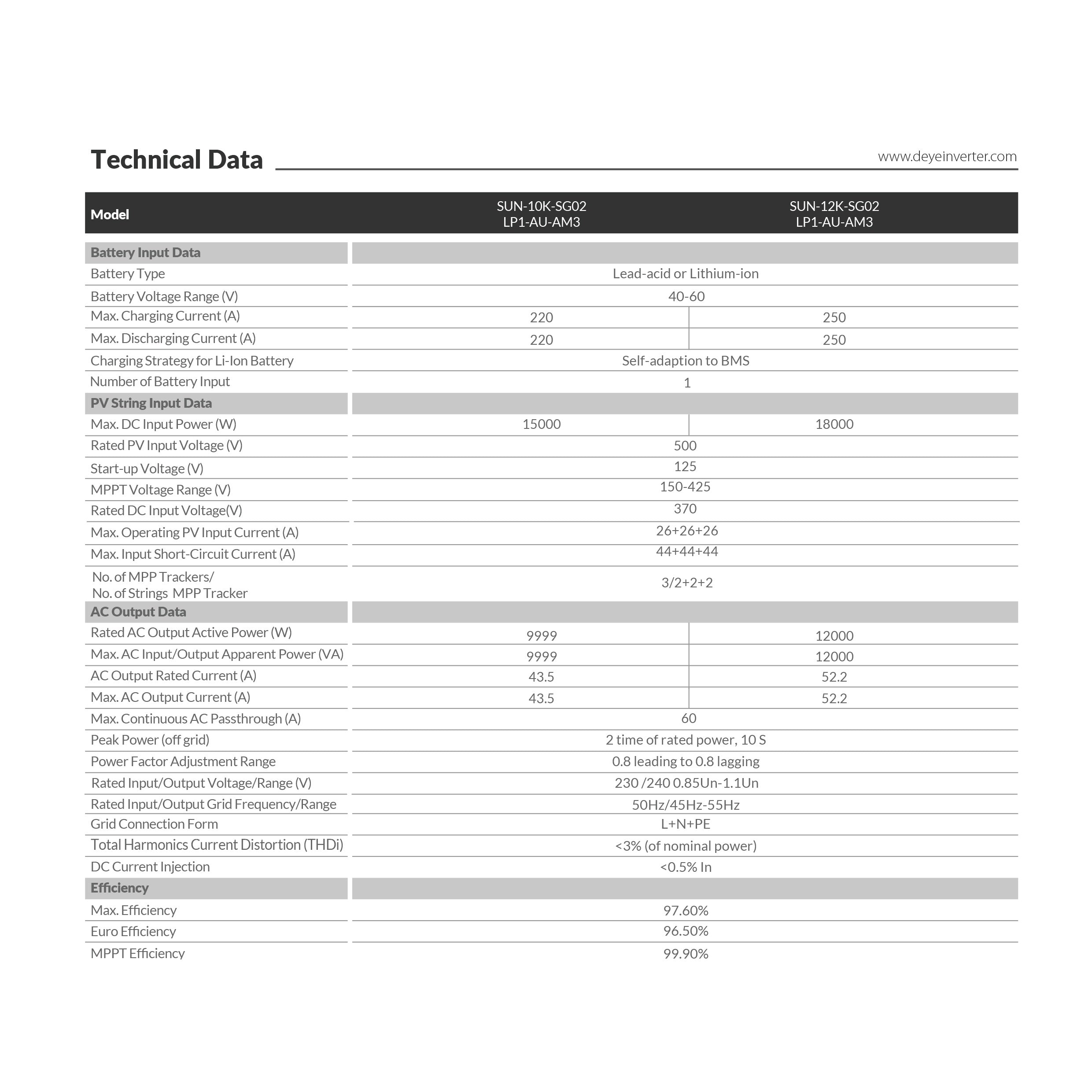

Model: SUN-10K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2

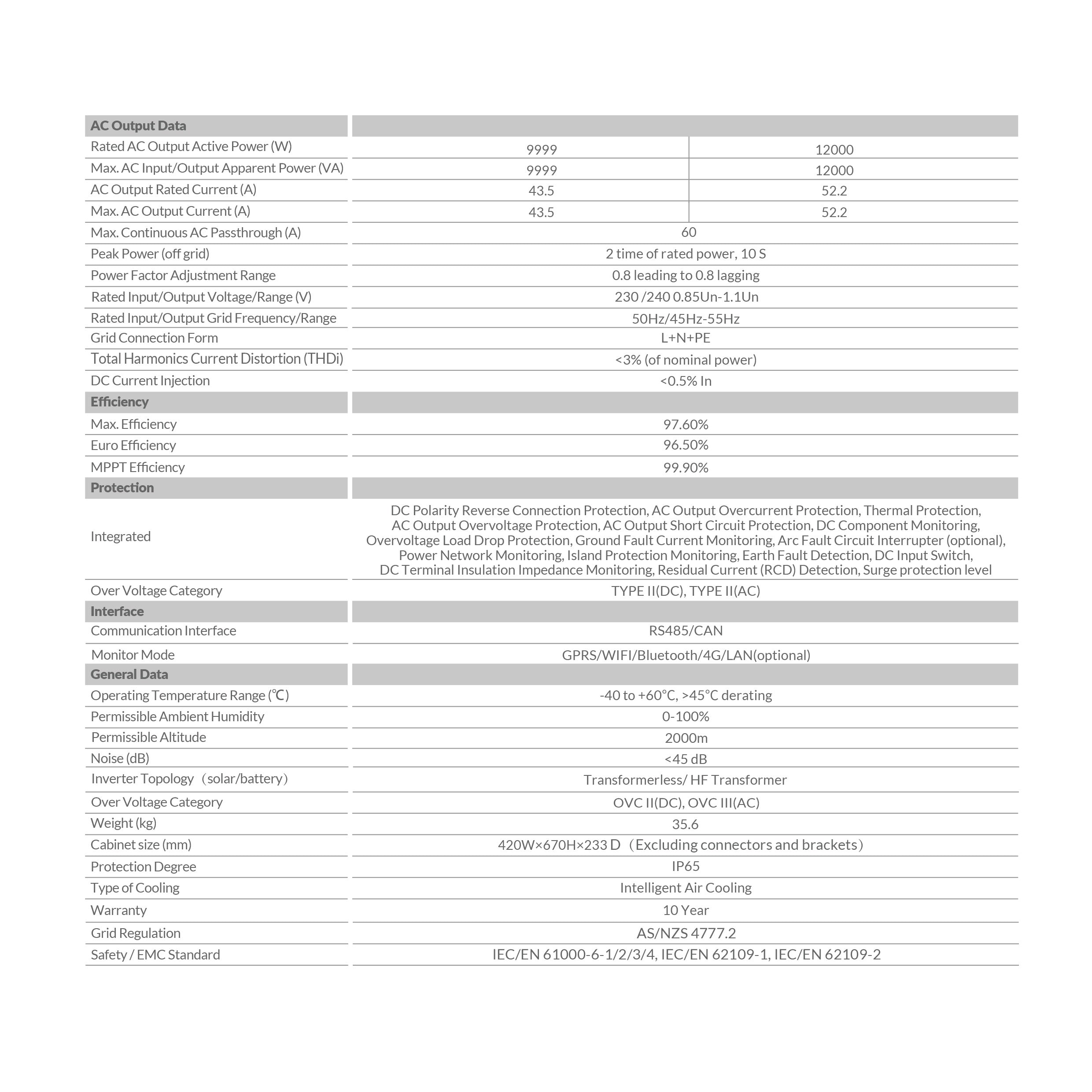

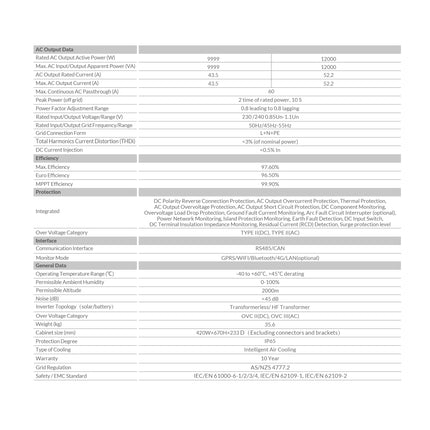

AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
Max. AC Output Current (A): 43.5
Max. Continuous AC Passthrough (A): 60
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets)
Weight (kg): 35.6
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
