**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

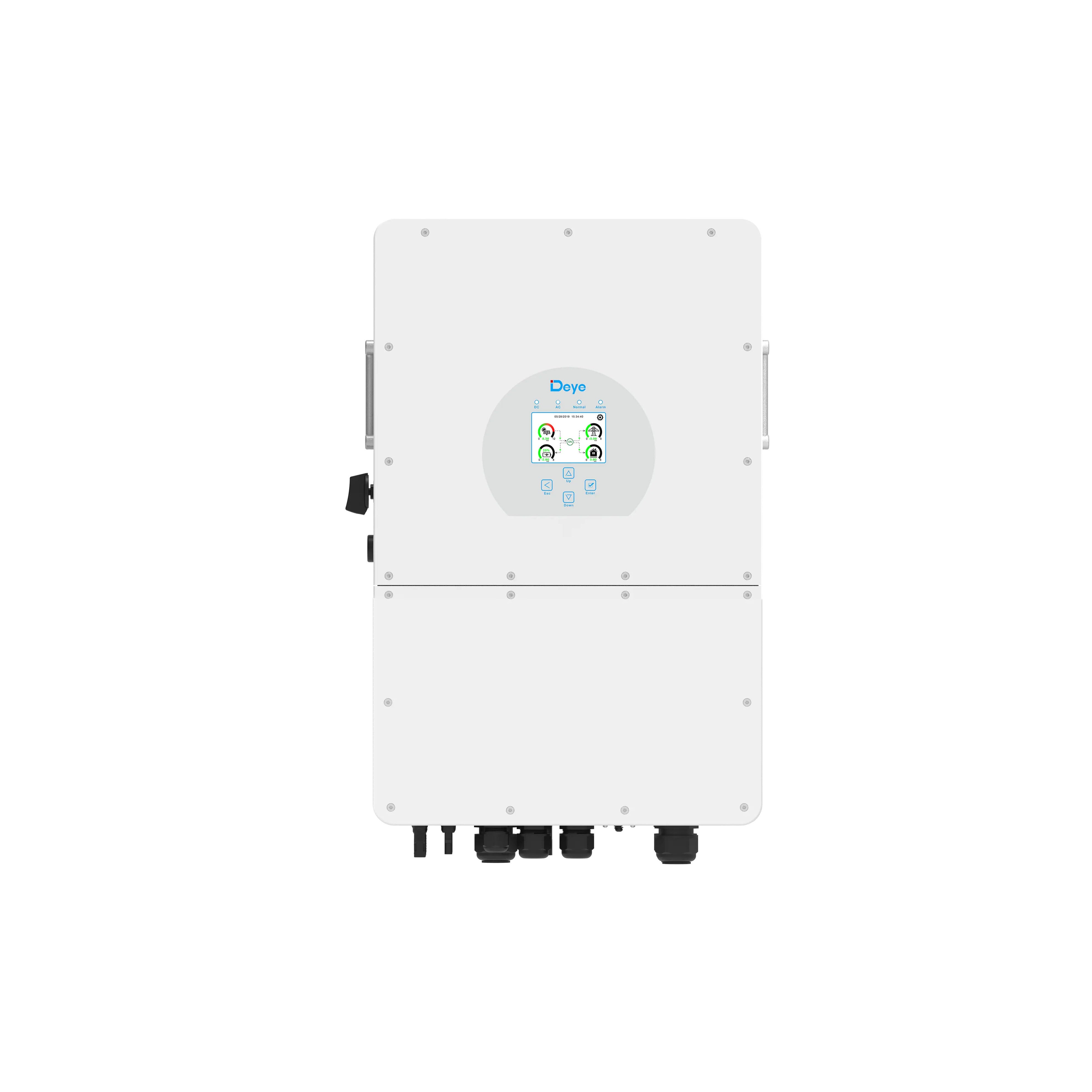

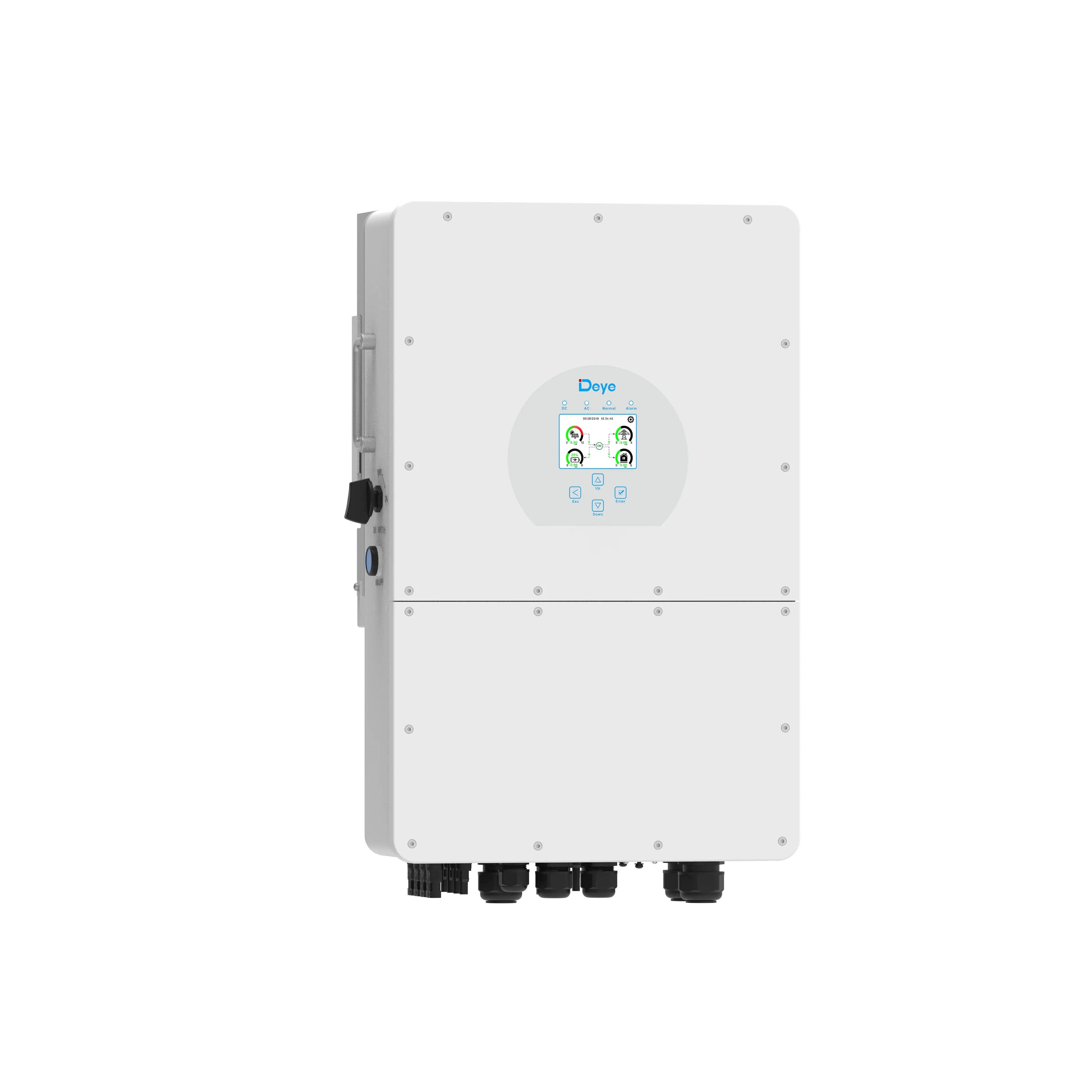

SUN-10K-SG01HP3-AU-AM2 | 10kW | Three Phase | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 37A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

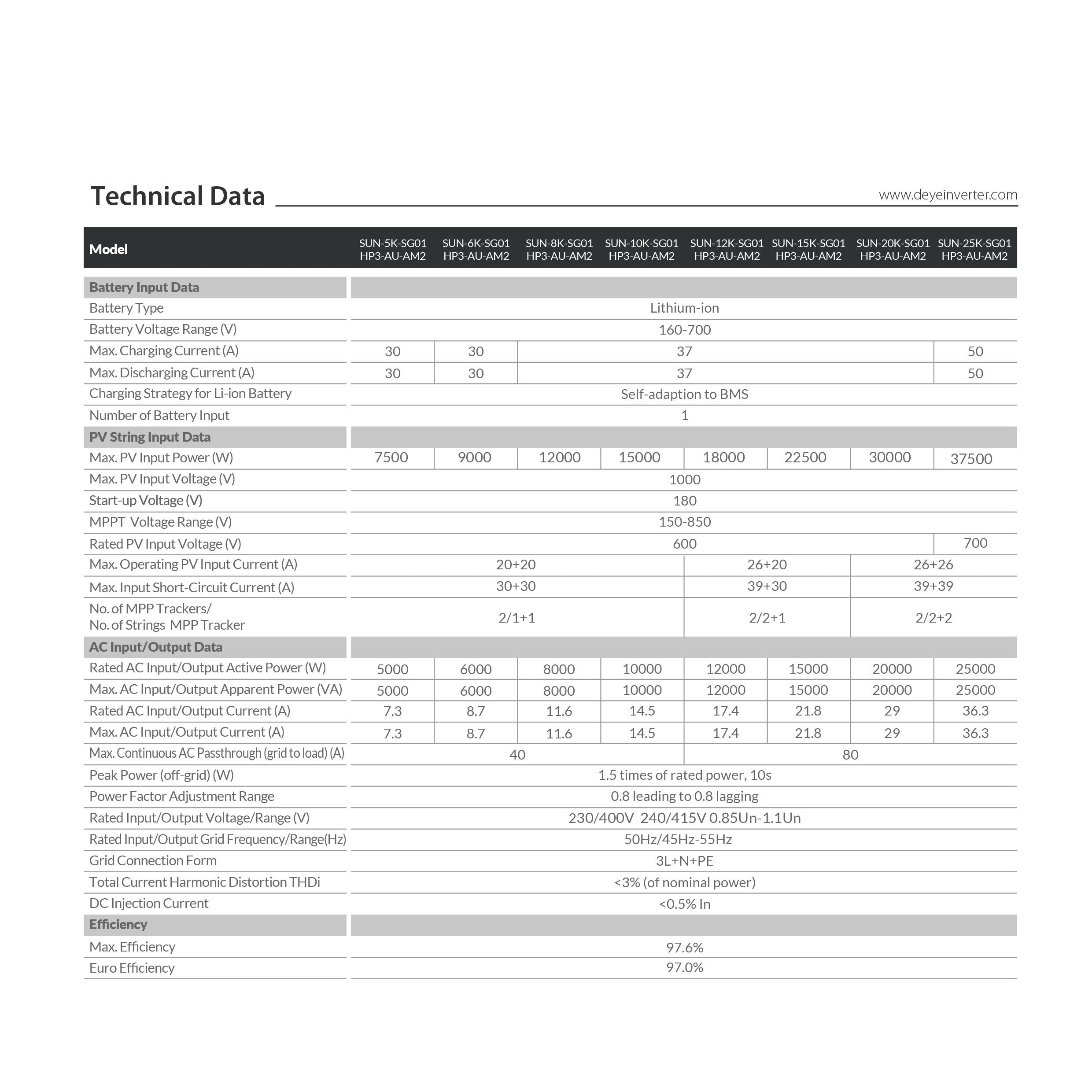

Model: SUN-10K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 15000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage(V): 600
Max. Operating PV Input Current (A): 20+20
Max. Input Short-Circuit Current (A): 30+30
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1

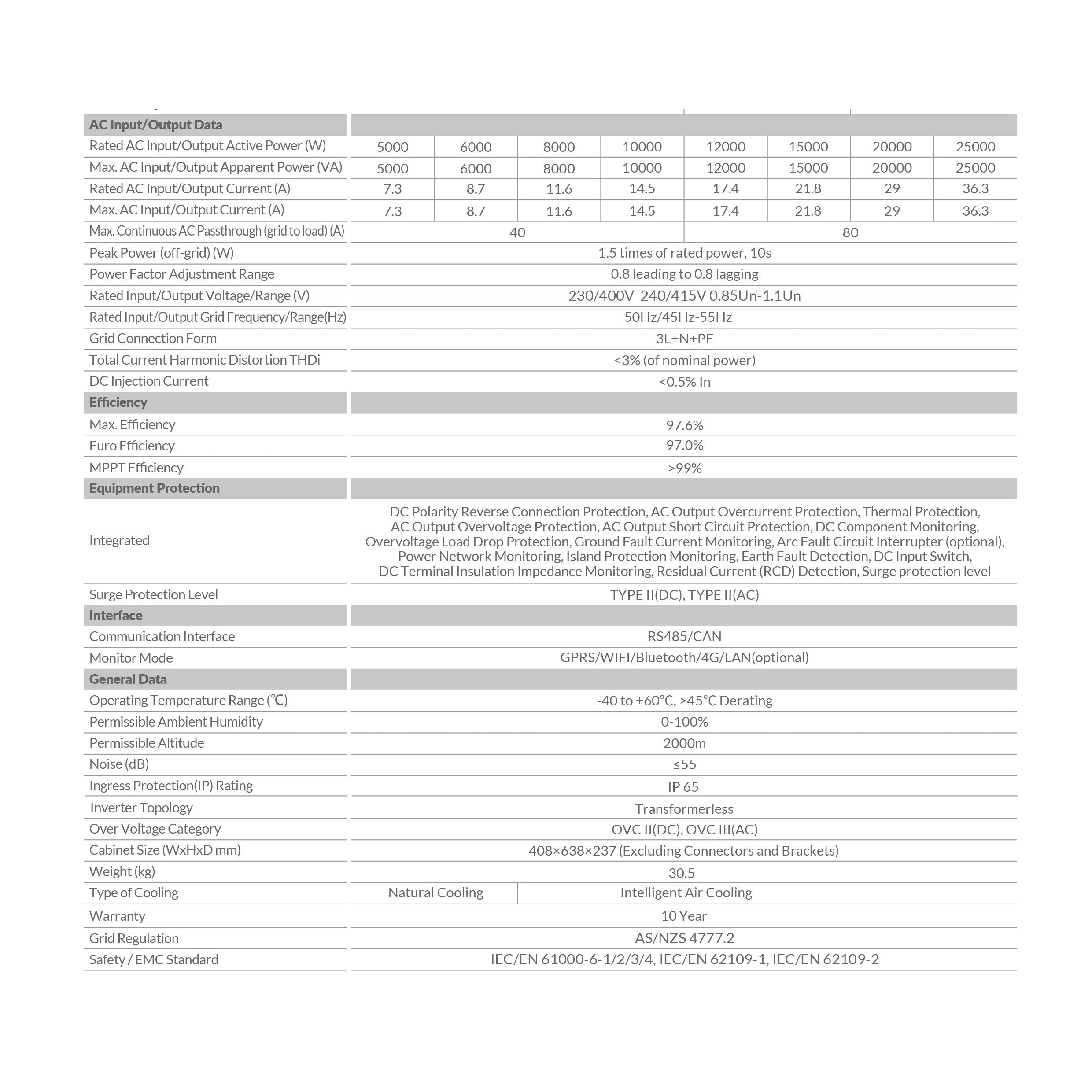

AC Output Data
Rated AC Input/Output Active Power (W): 10000
Max AC Input/Output Active Power (VA): 10000
Rated AC Input/Output Current (A): 14.5
Max. AC Input/Output Current (A): 14.5
Max. Continuous AC Passthrough (grid to load) (A): 40
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 30.5
Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets)
