Description
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**

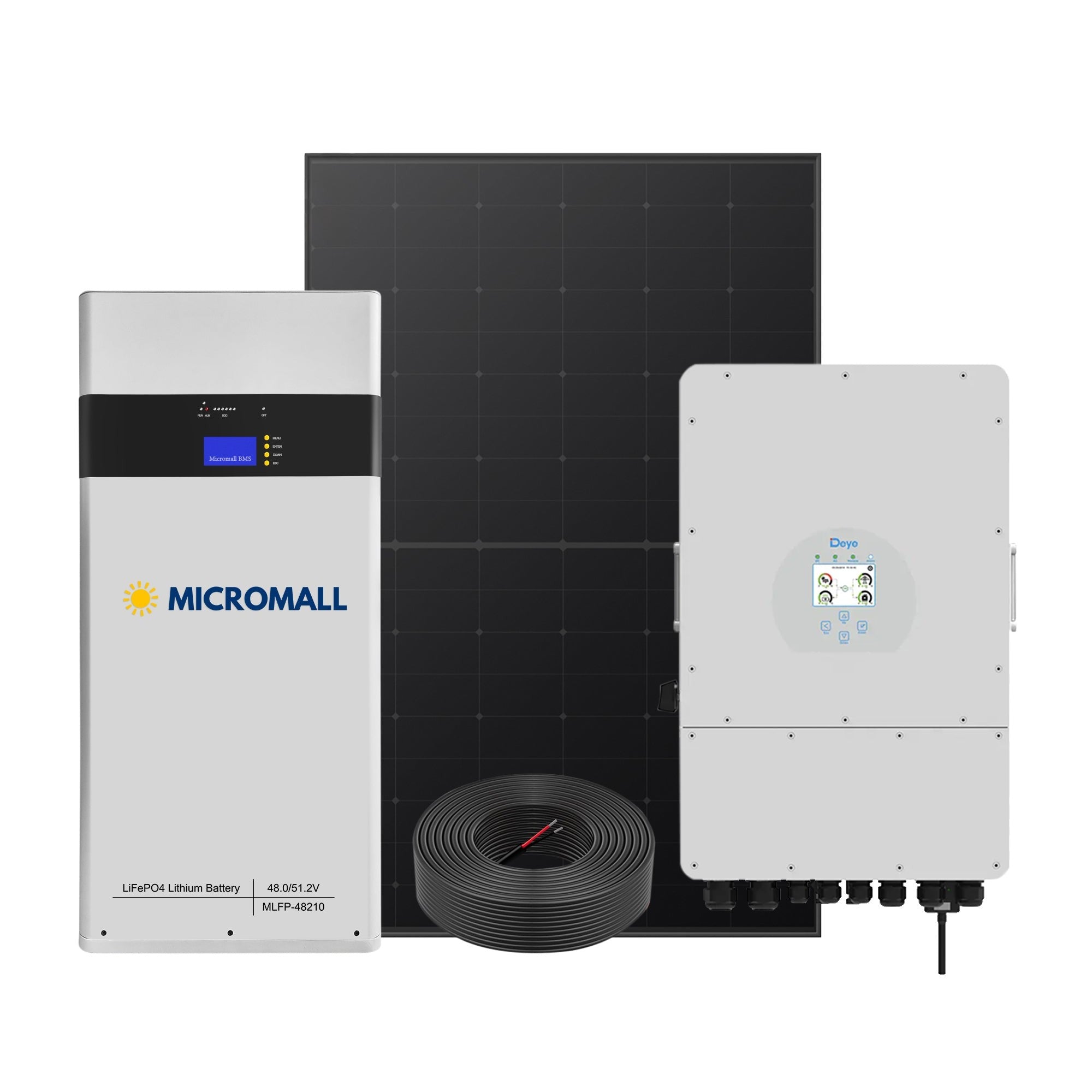

Introducing an exceptional Smart Hybrid system that showcases the latest LONGi HPBC solar panels and a Deye premium hybrid solar inverter system.
Package Includes:

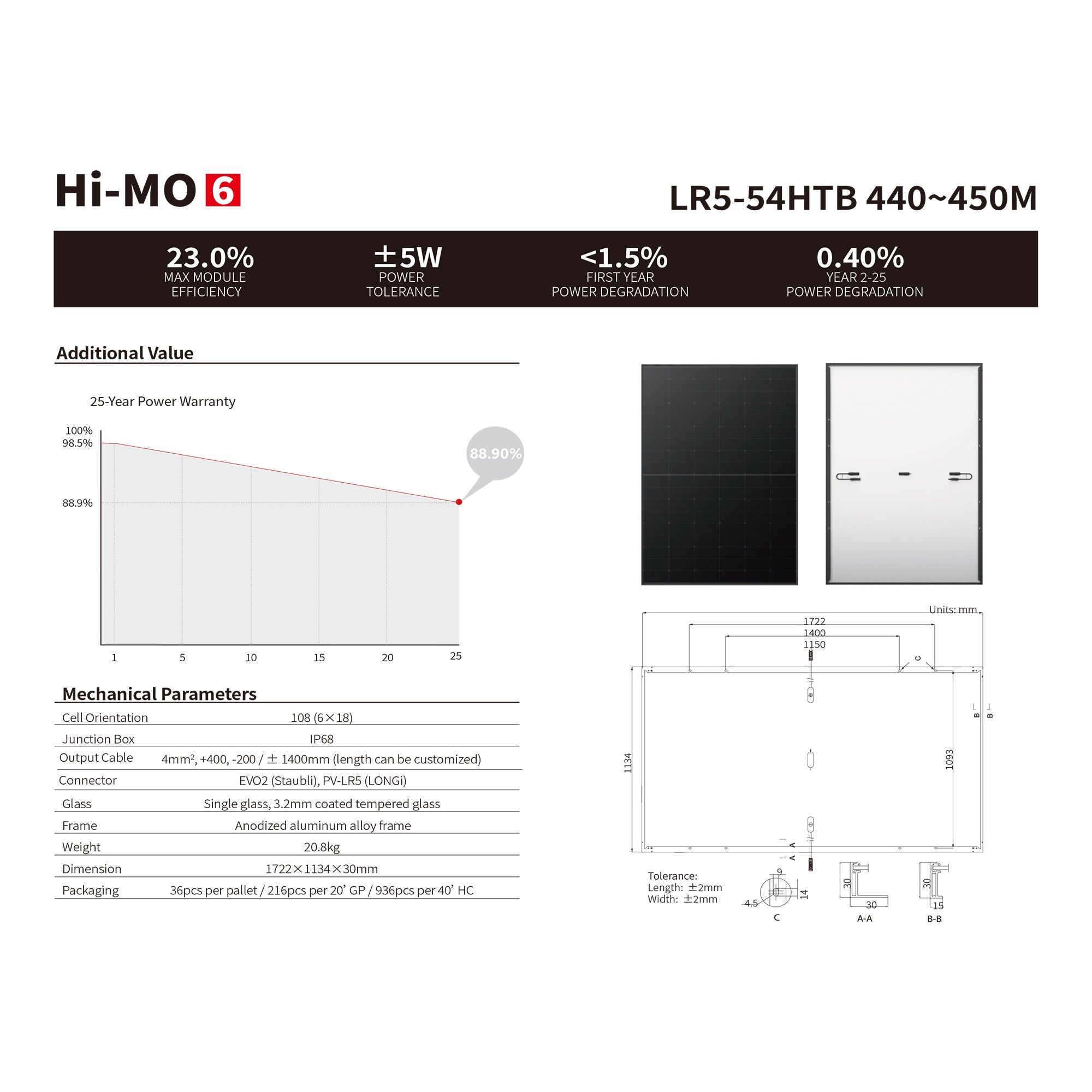

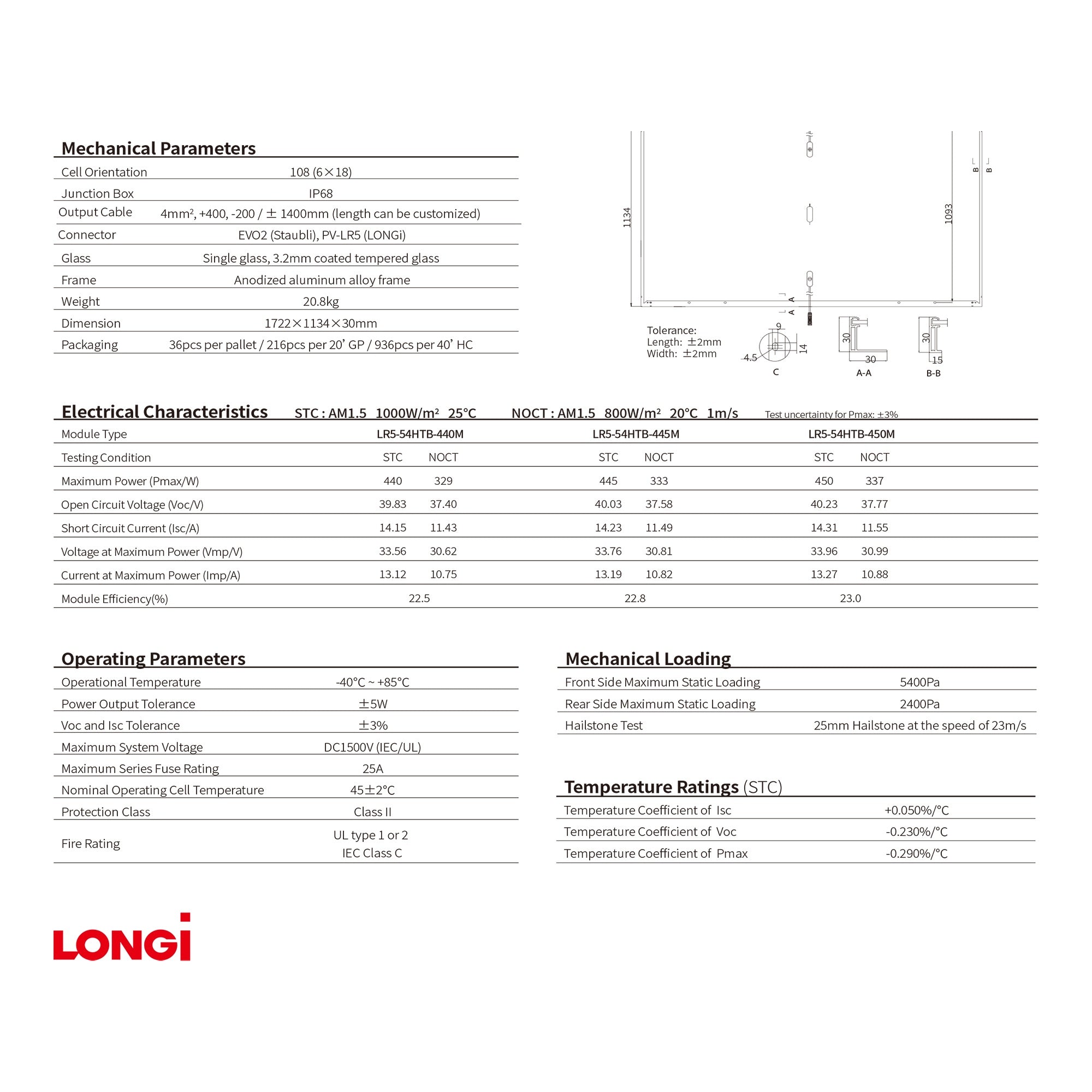

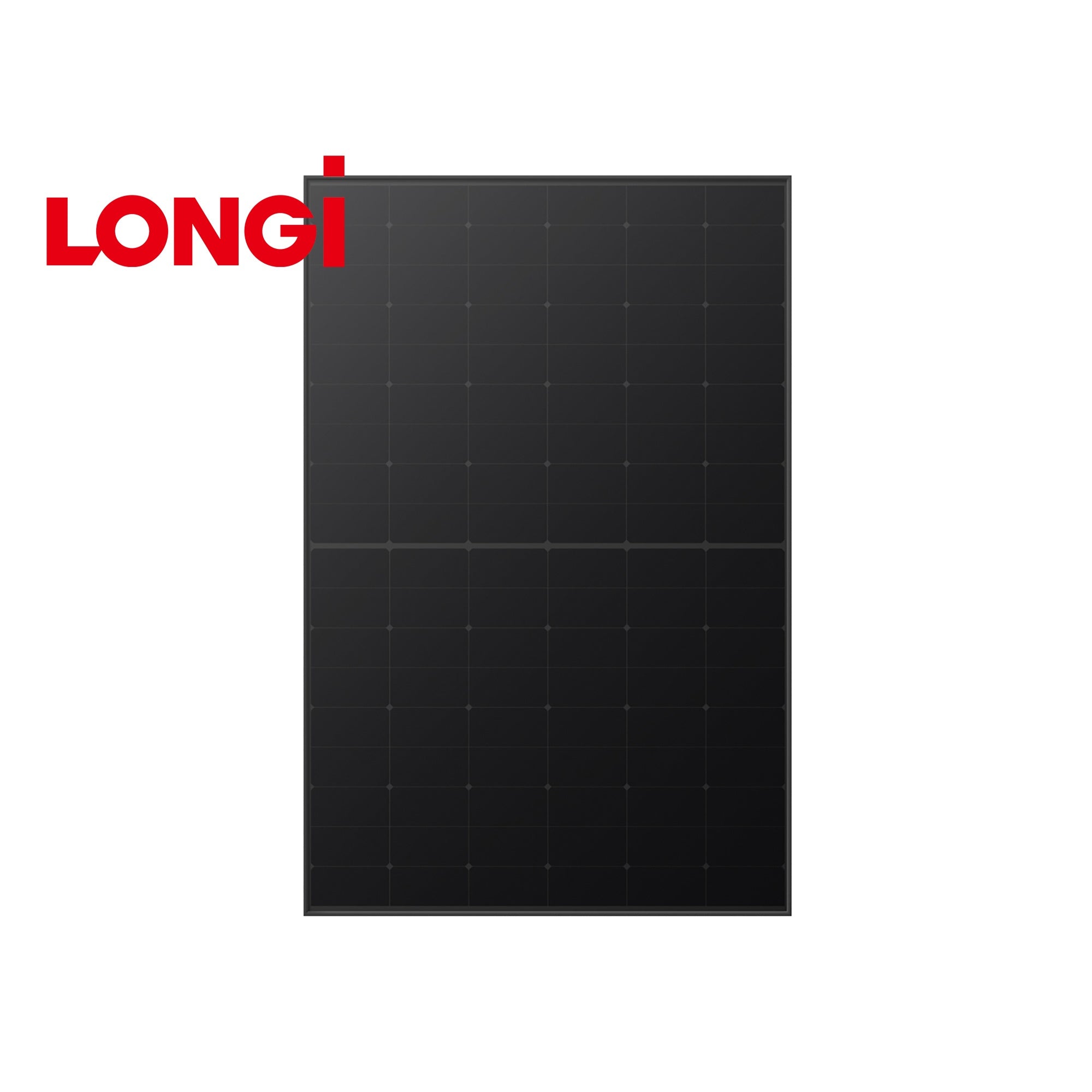

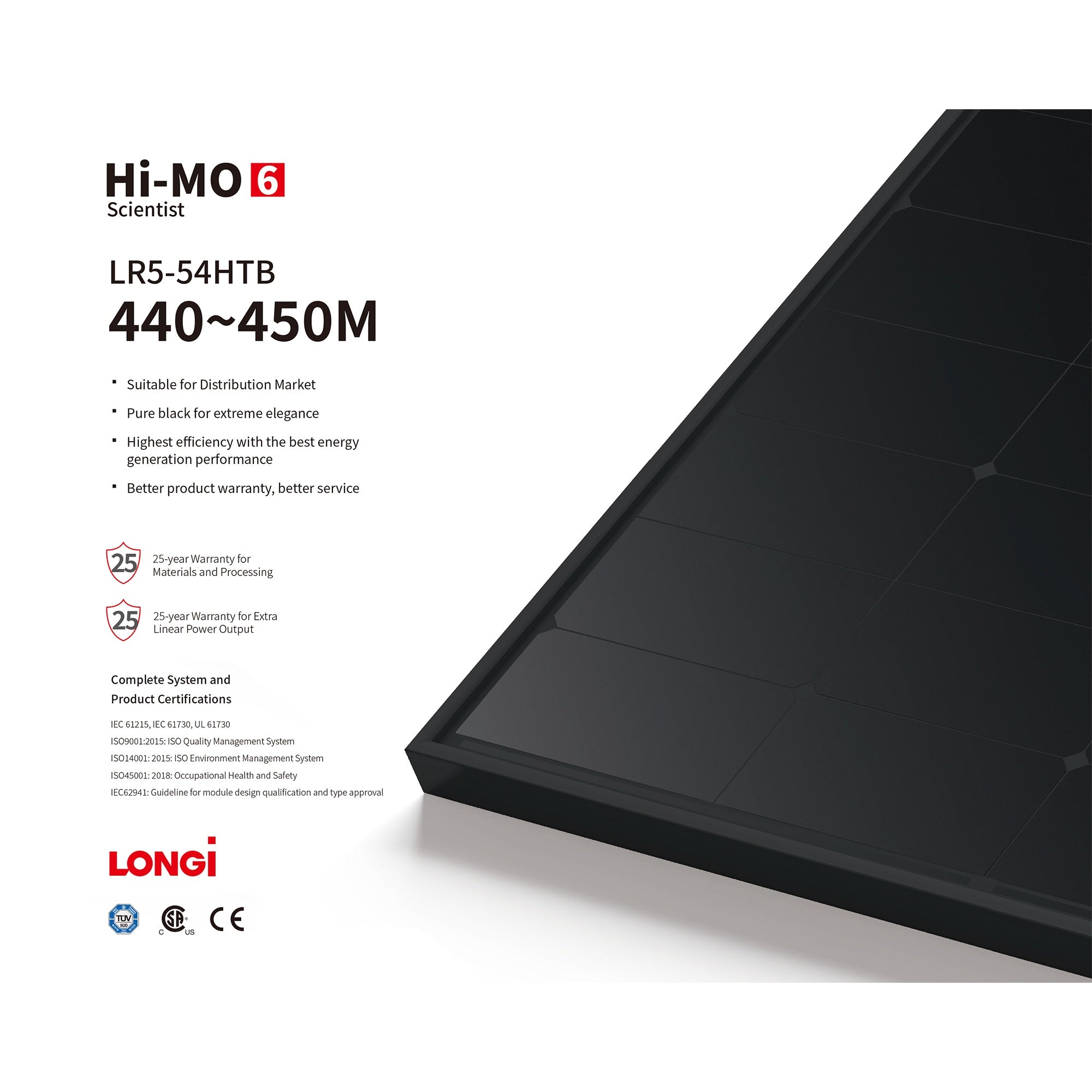

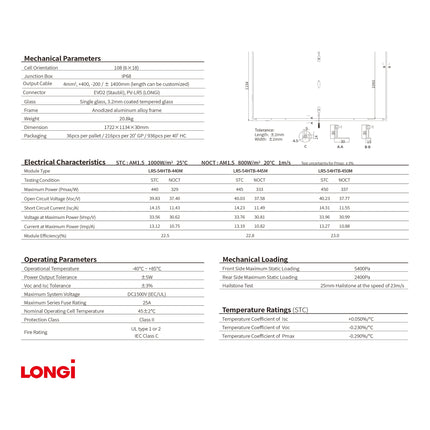

22 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

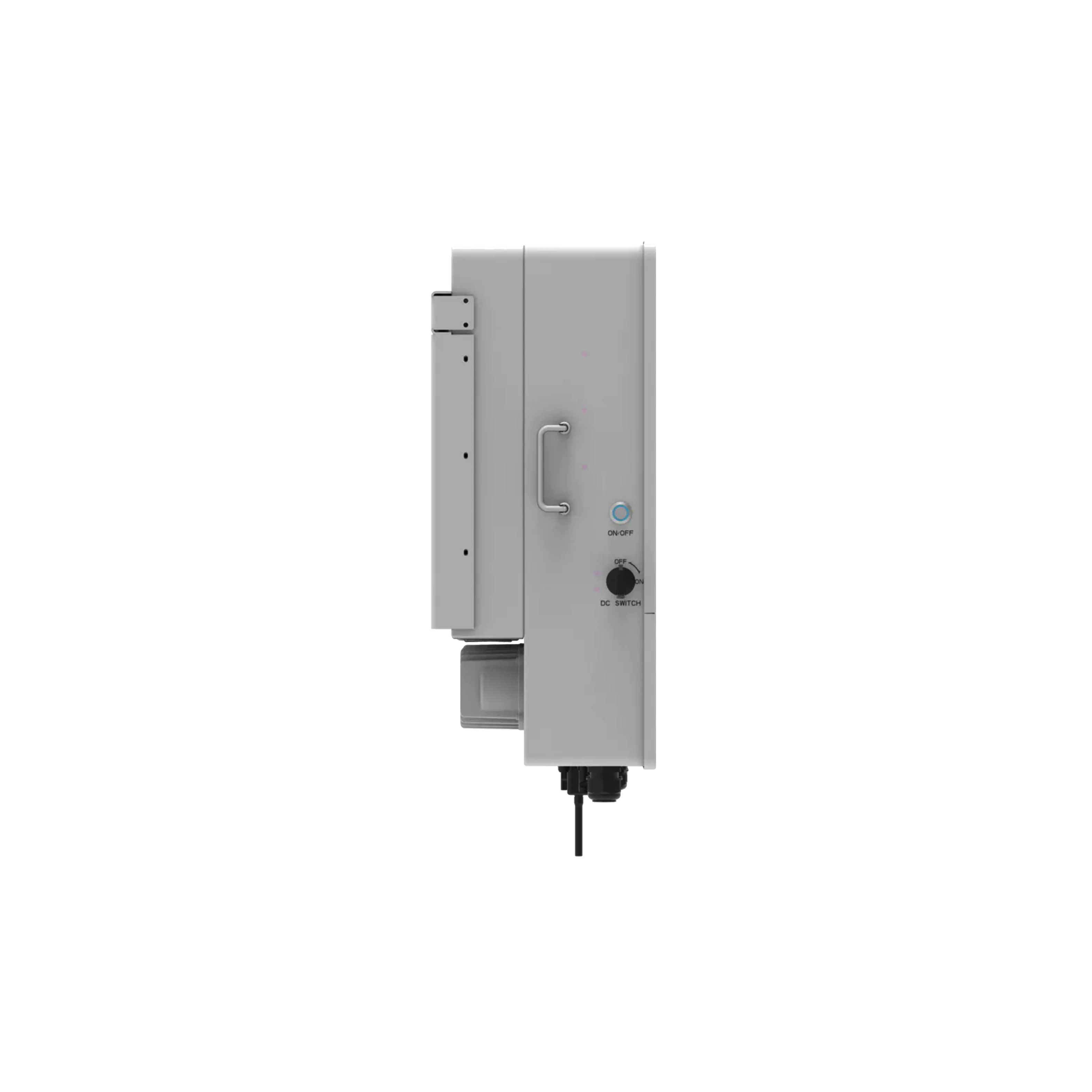

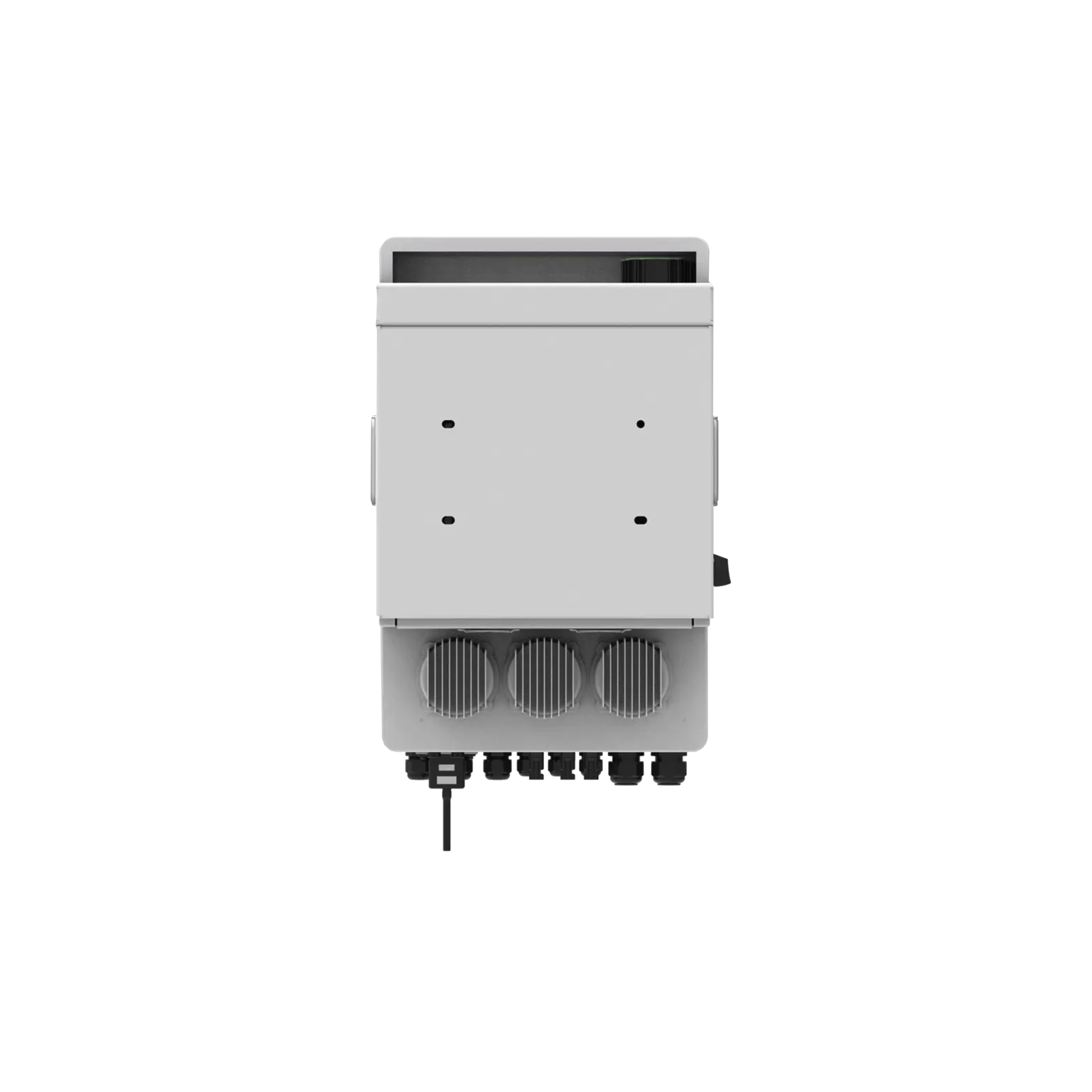

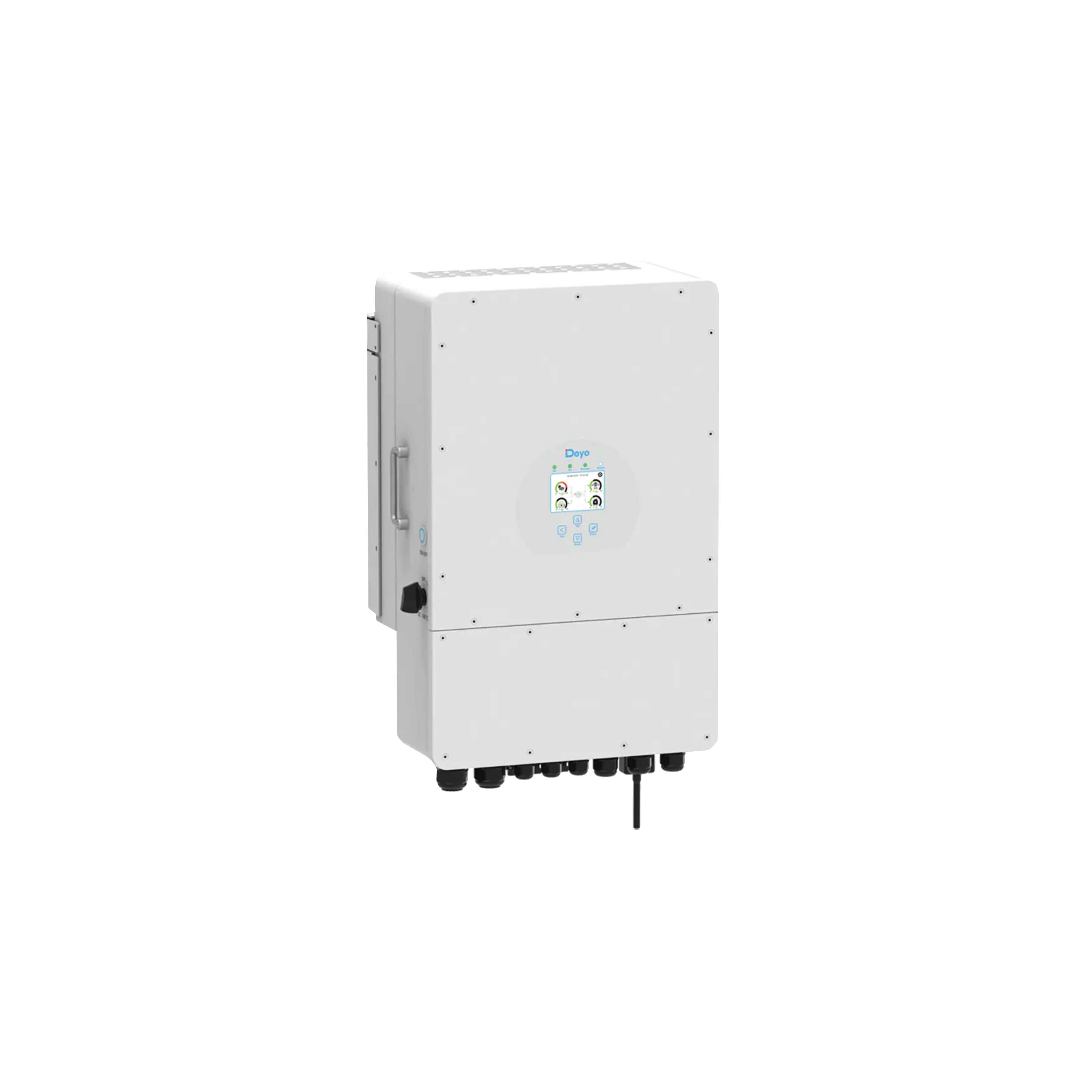

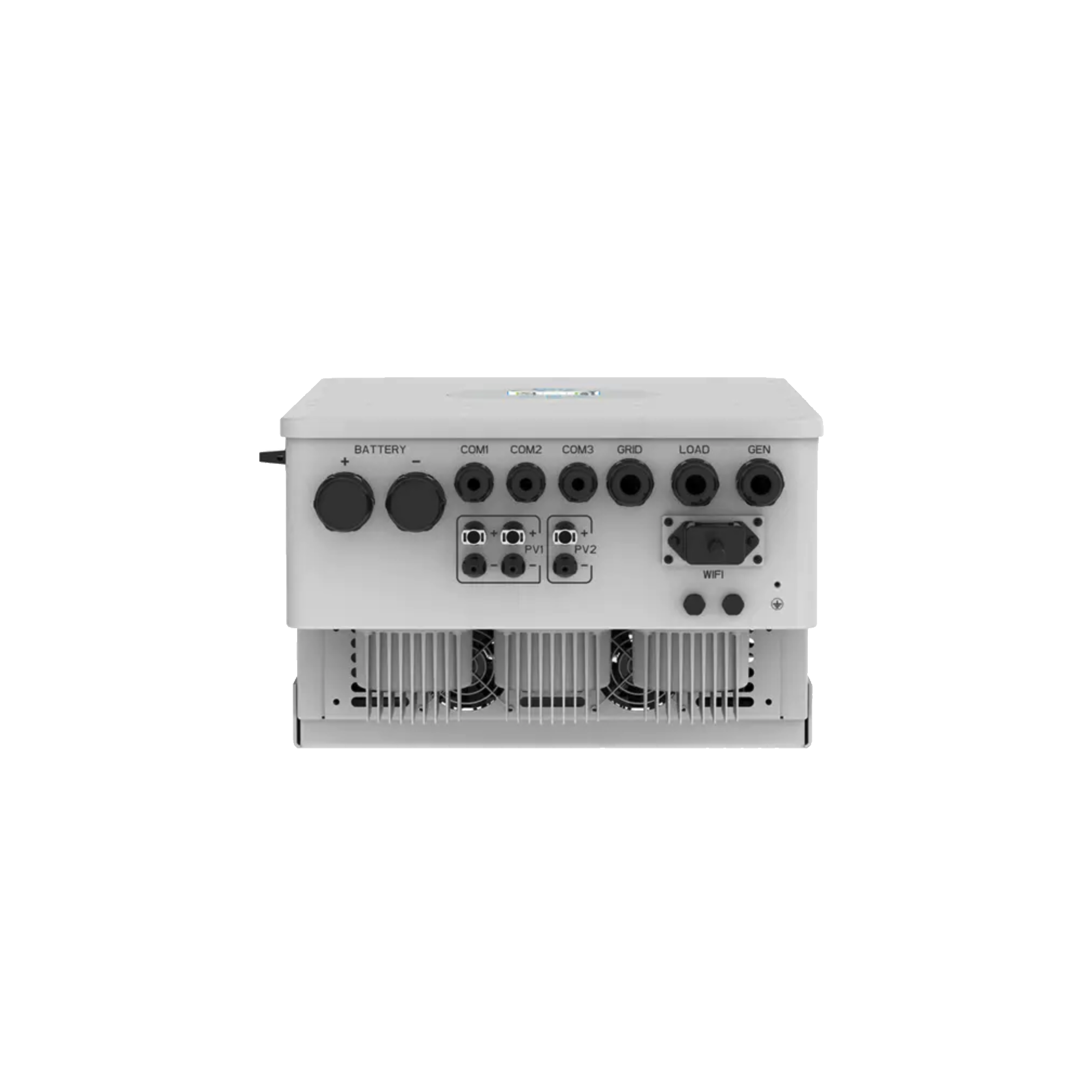

1 x Deye 10kW Single Phase 3 MPPT Hybrid Inverter SUN-10K-SG02LP1-AU (10 Years Warranty)

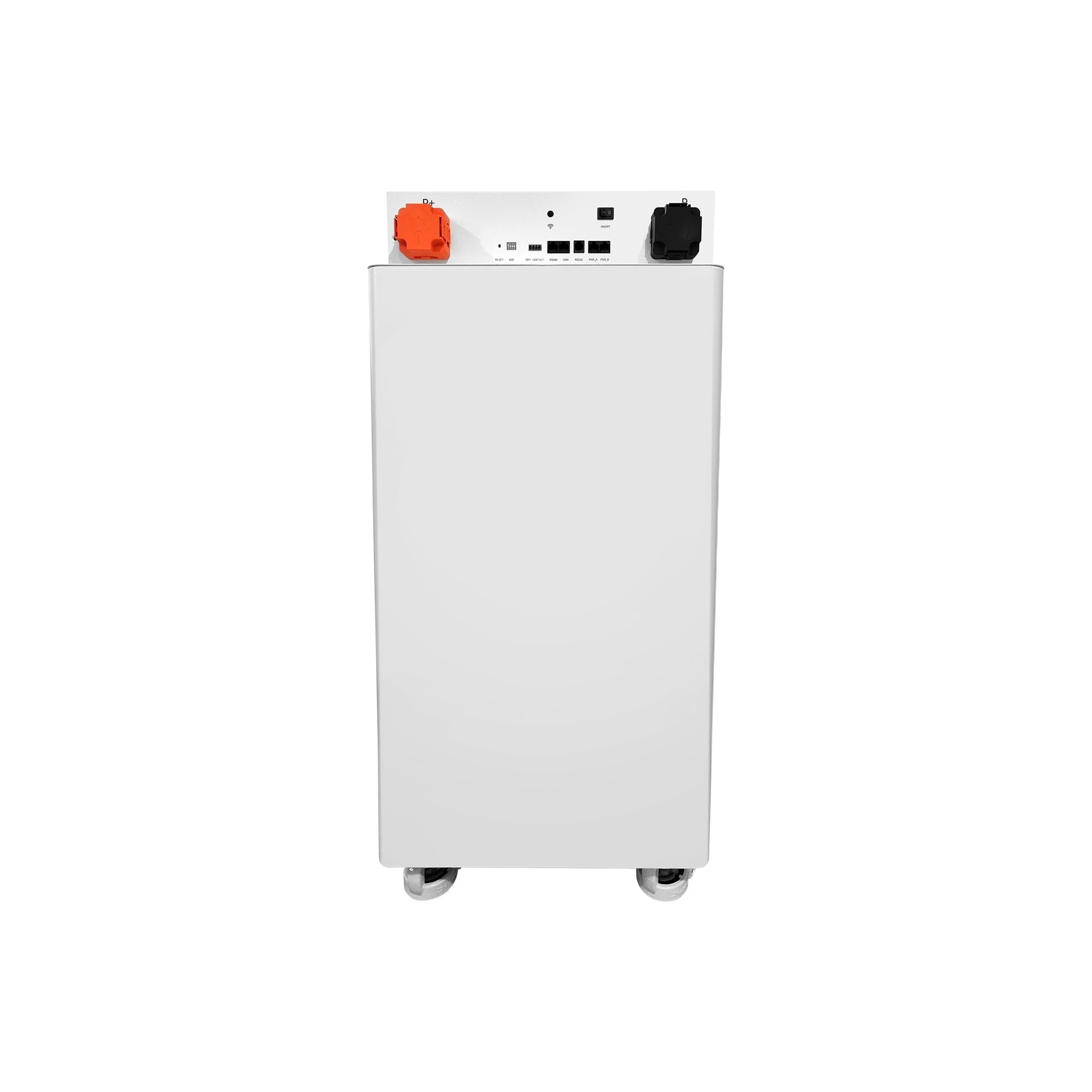

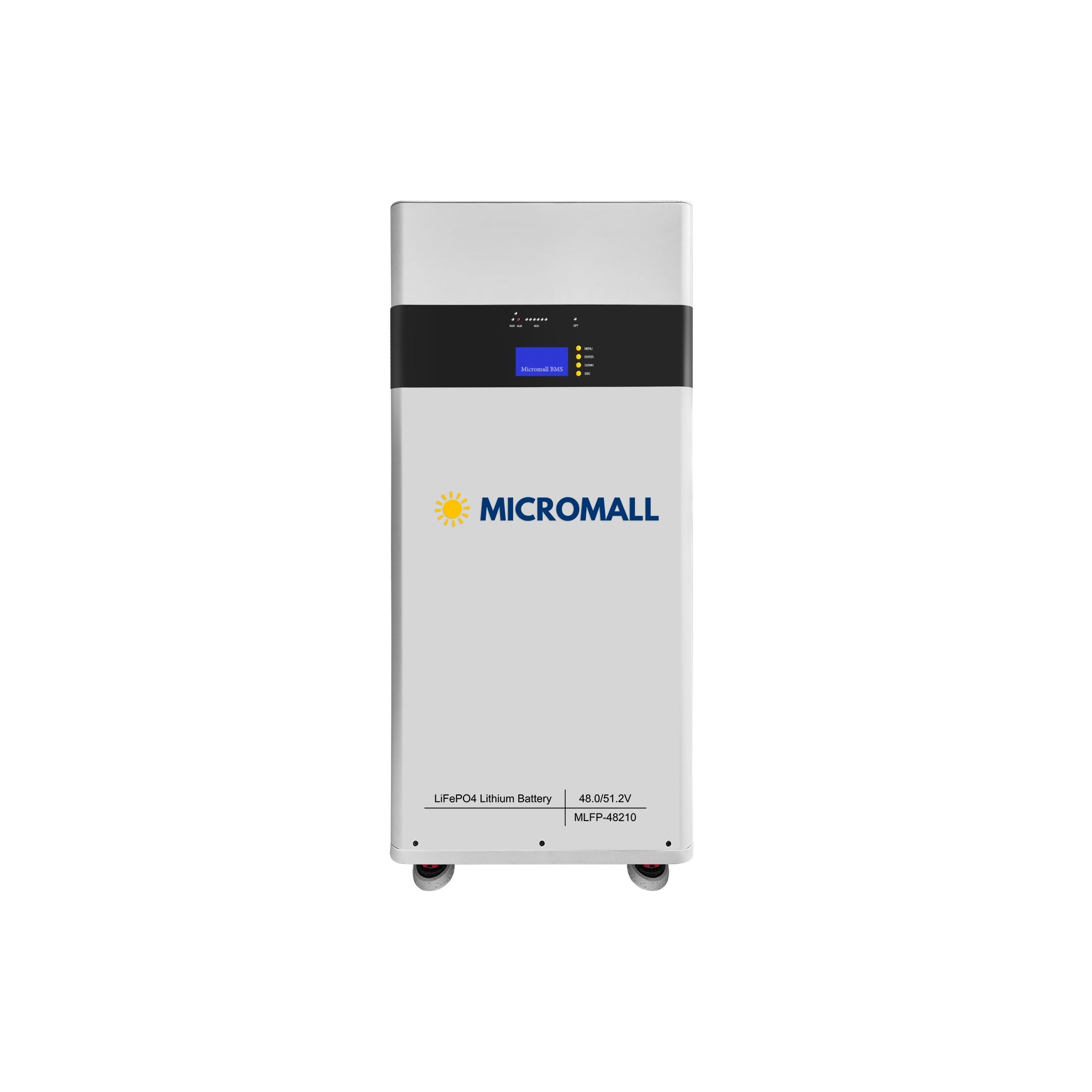

1 x Micromall 48V 51.2V 200Ah 210Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 x Safety Switchboard
22 x Mounting Rail System
1 x Solar PV + Battery Label Kit

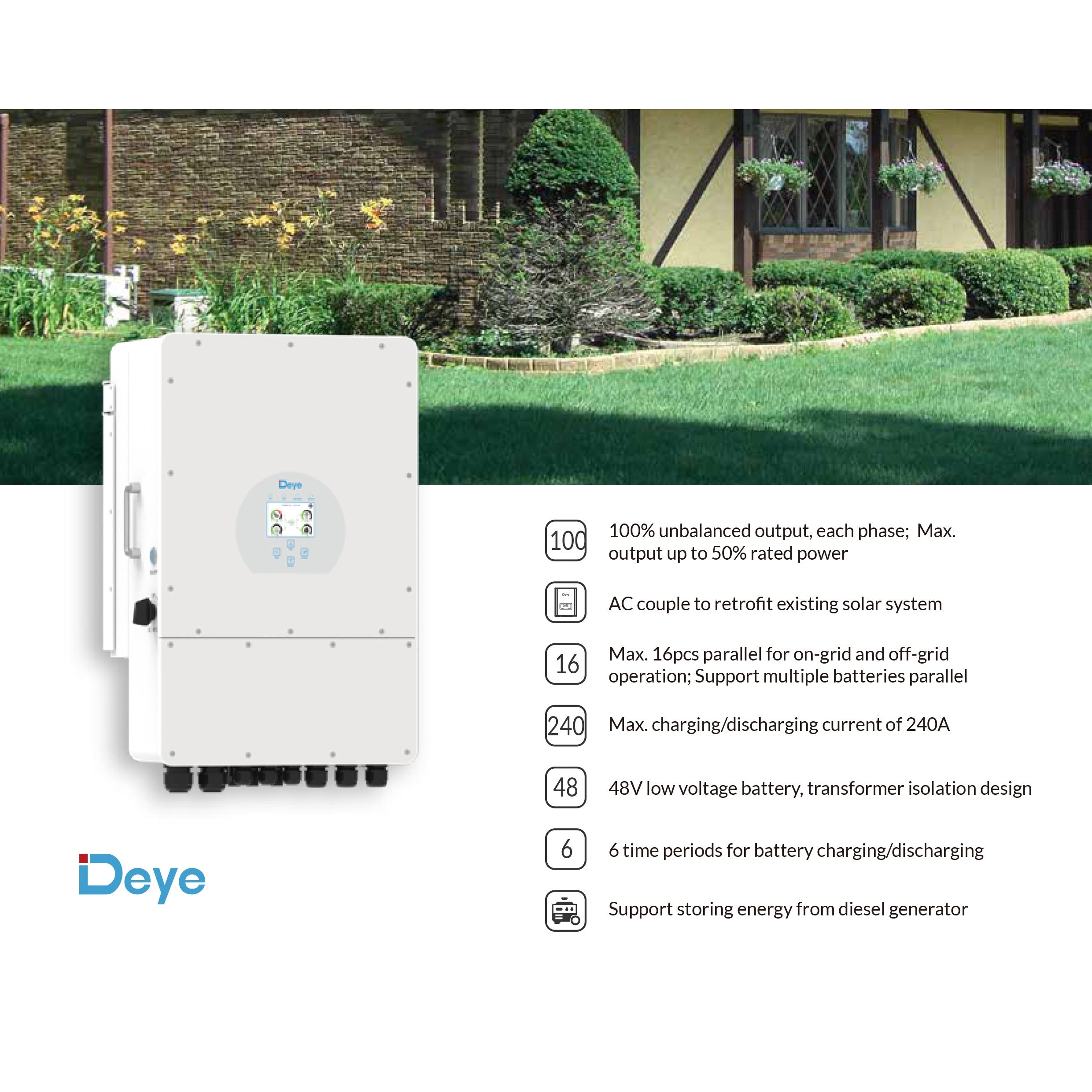

This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

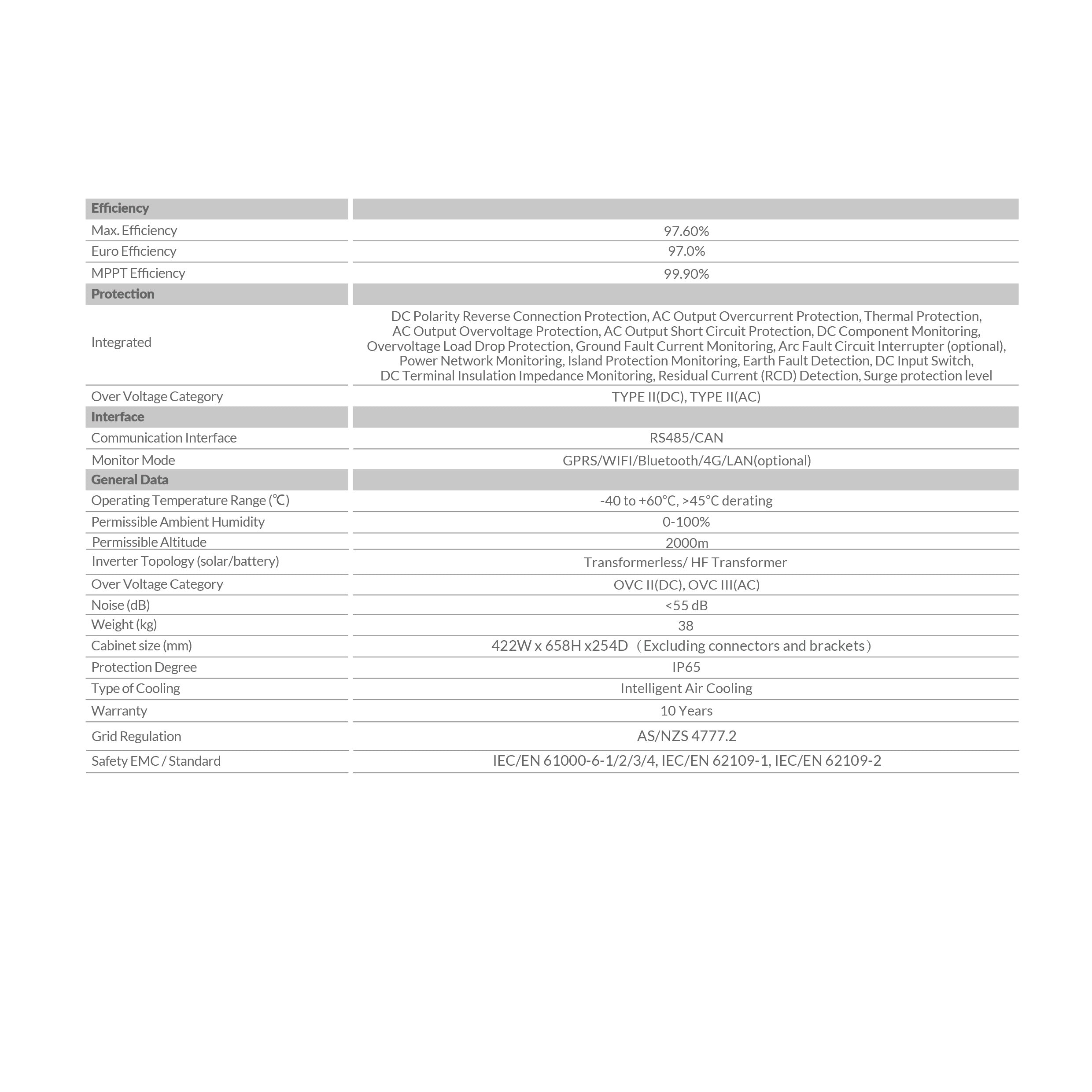

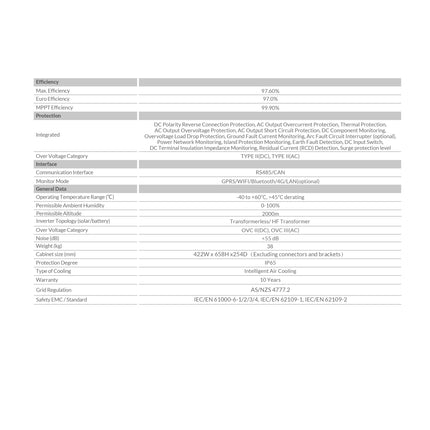

Model: SUN-10K-SG02LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
