Description
**Solar Panel Warranty: Manufacturer warranty applies to the supplied JA Solar 460W panel model**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**
Discover an advanced Smart Hybrid System featuring the low light performance JA Solar 460W Solar Panel, seamlessly integrated with the premium Deye Hybrid Solar Inverter for optimal efficiency and reliability.

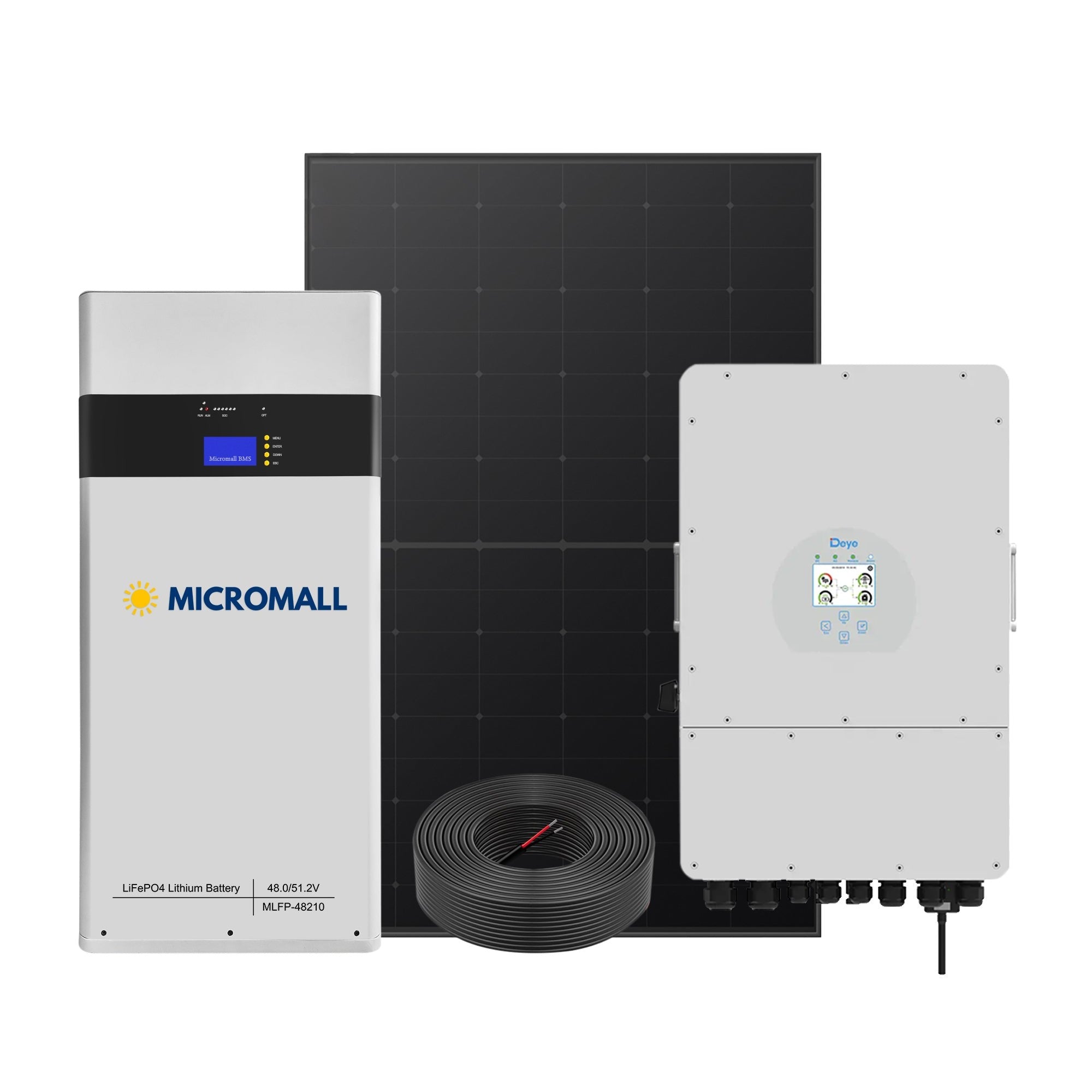

Package Includes:

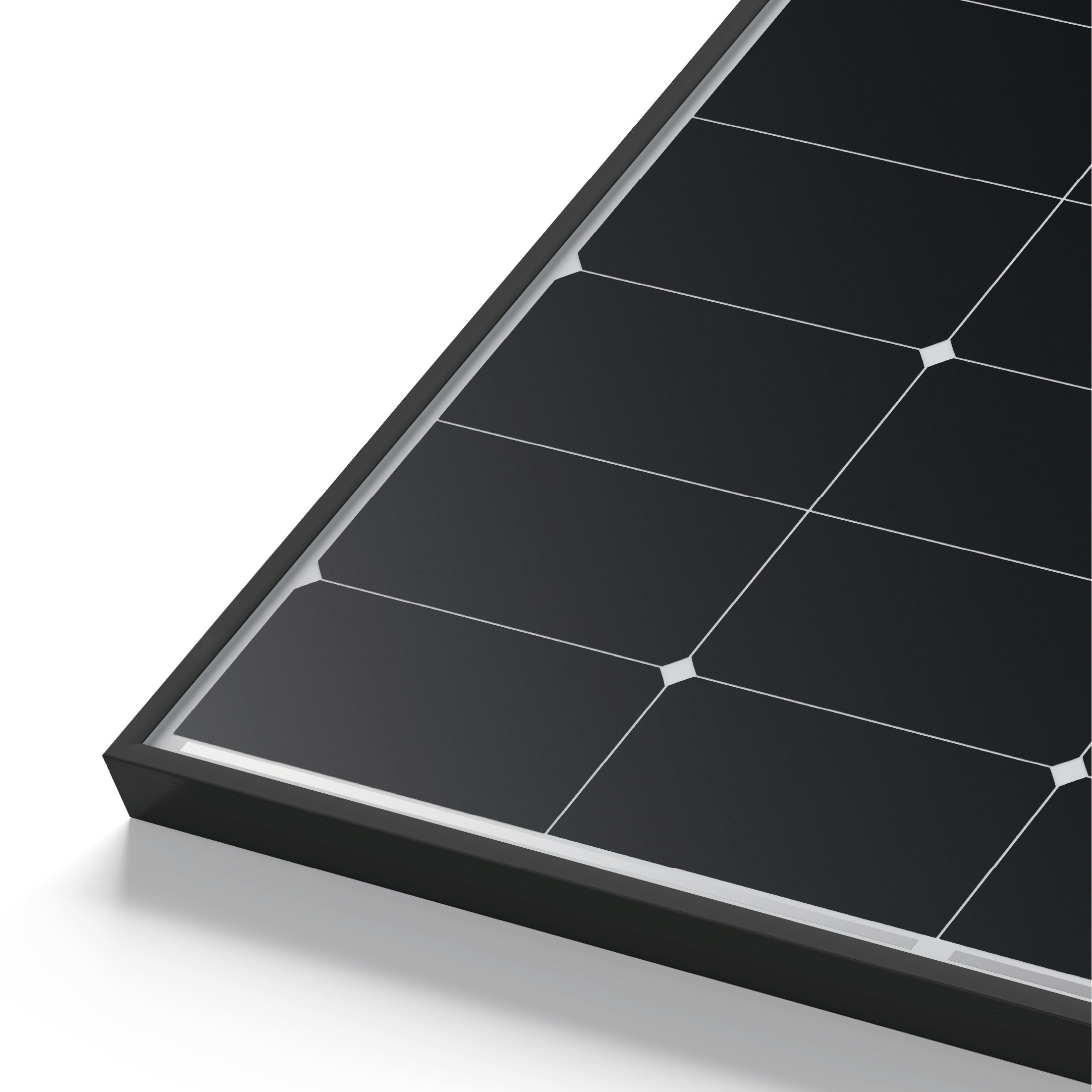

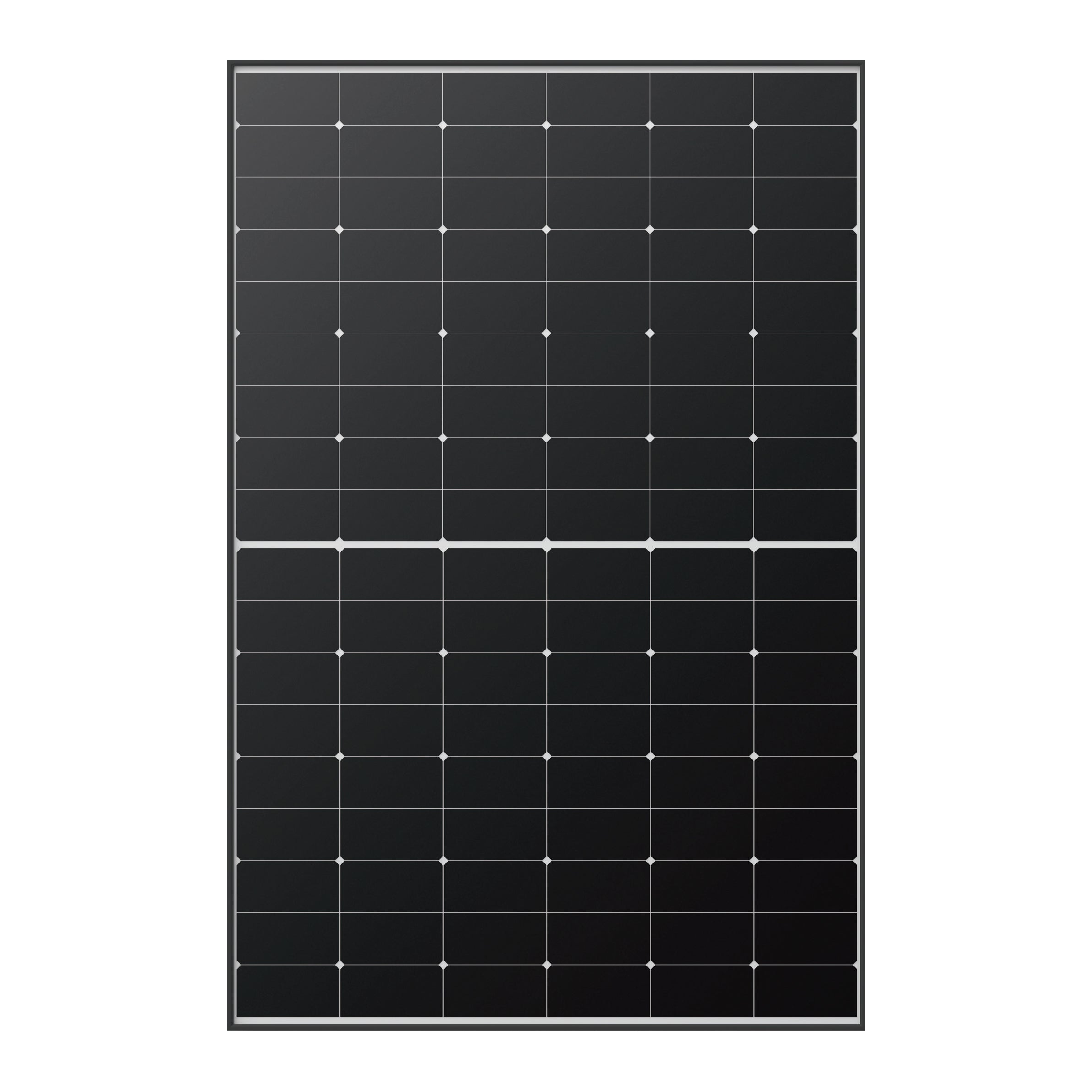

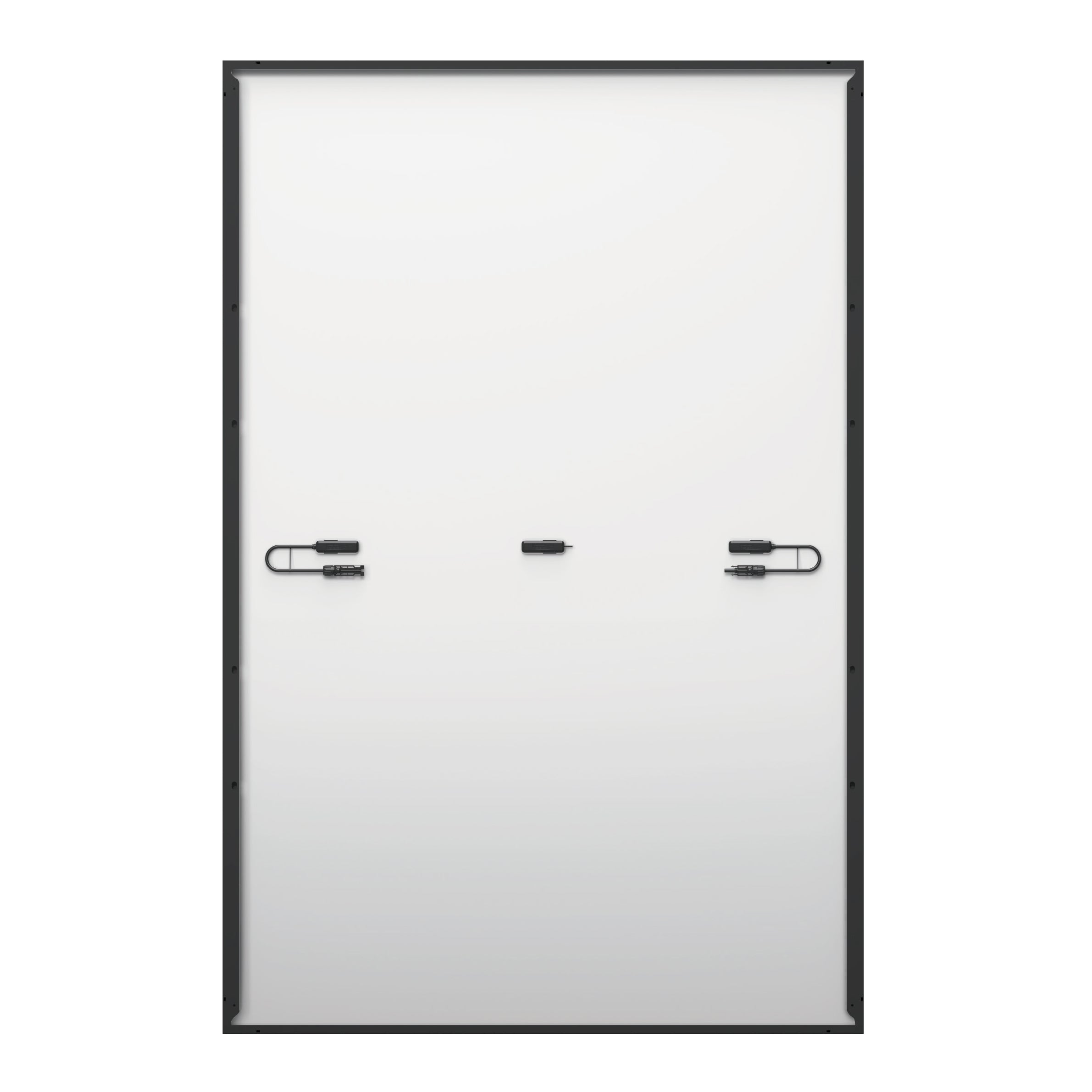

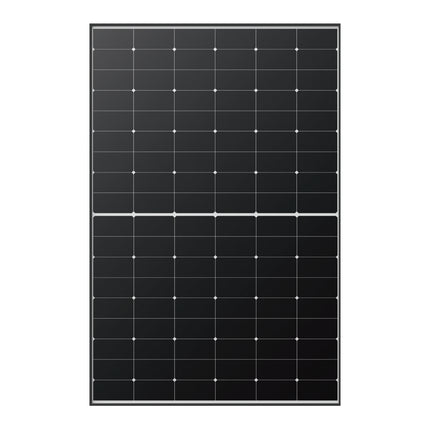

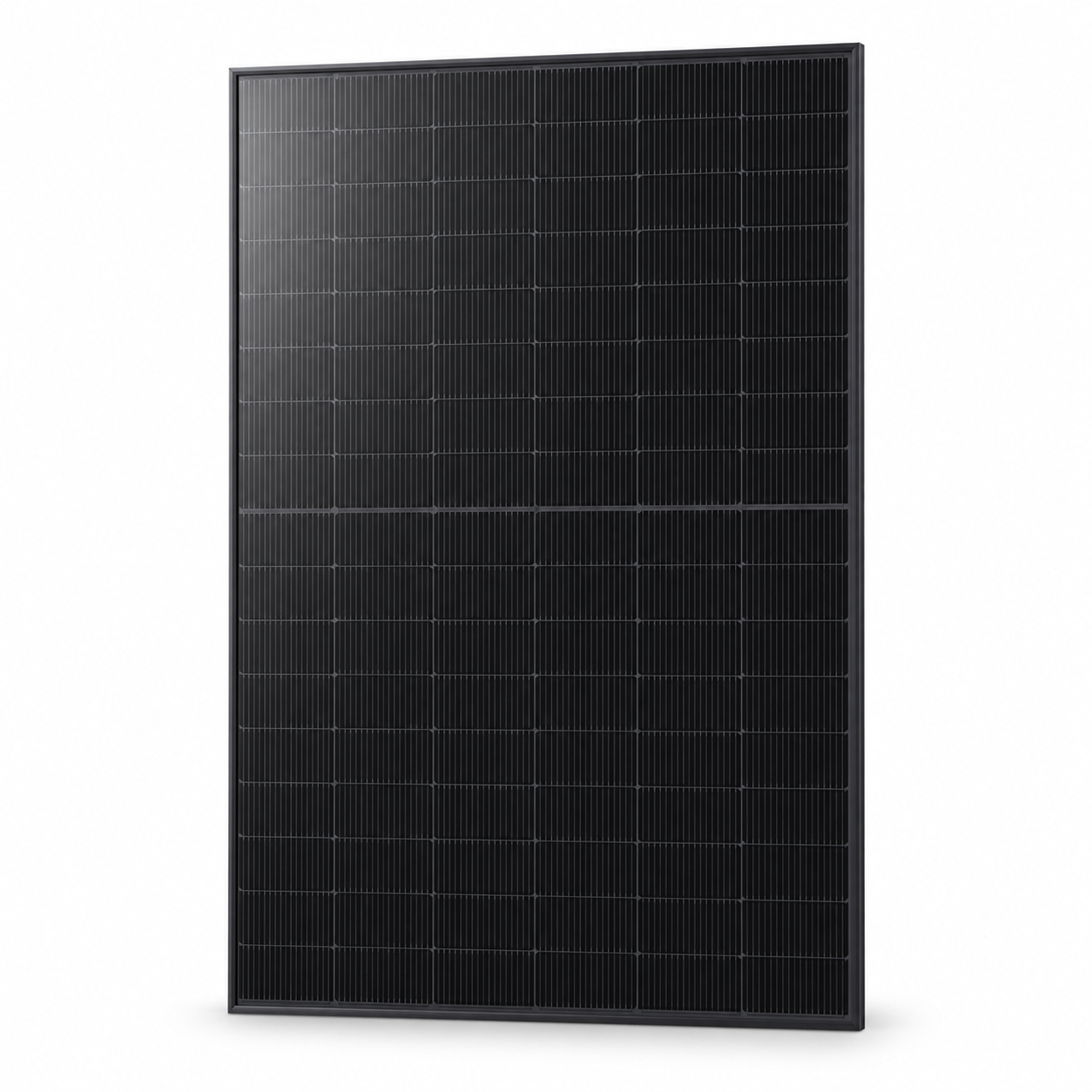

22 x JA Solar 460W Solar Panel

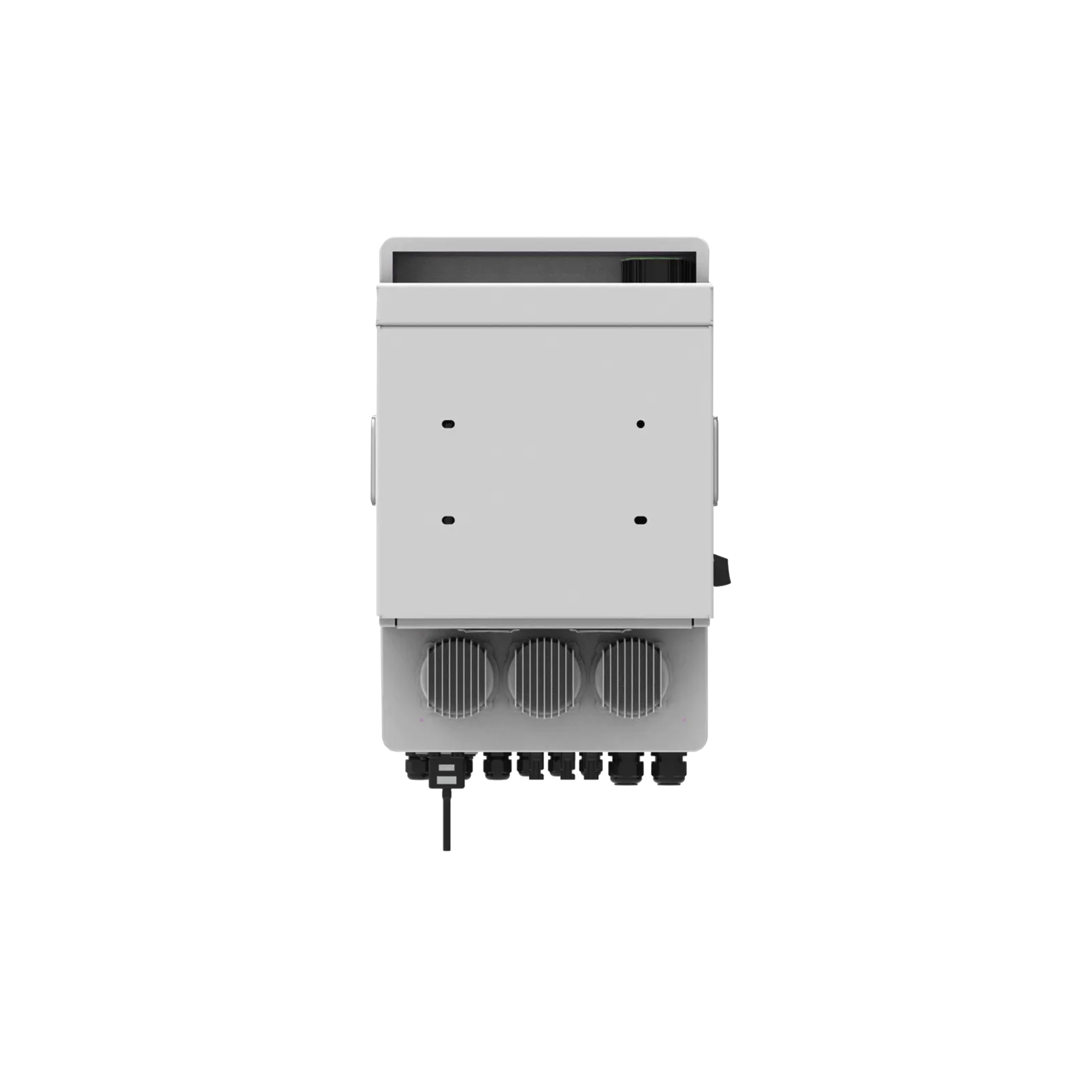

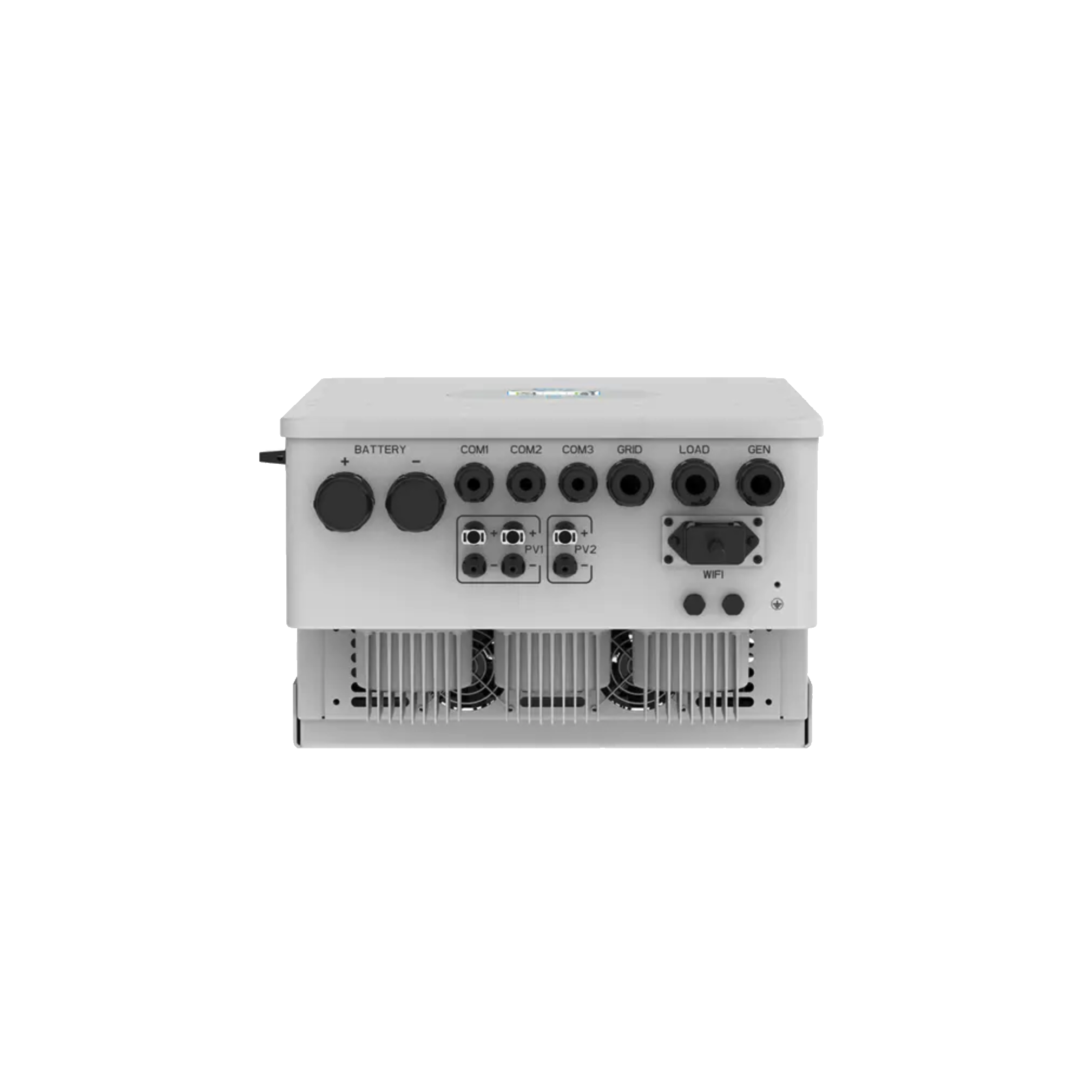

1 x Deye 10kW Three Phase Hybrid Inverter SUN-10K-SG04LP3-AU

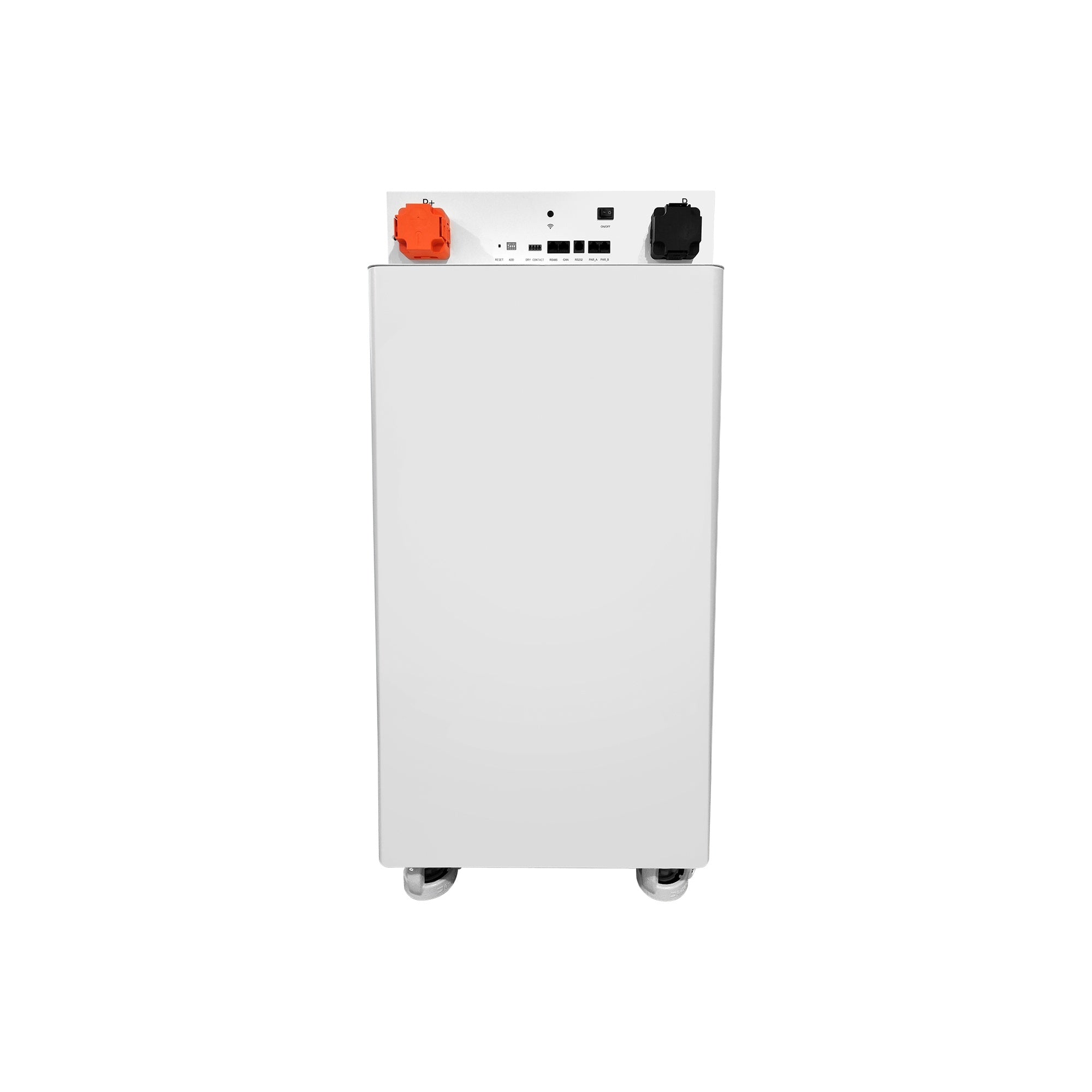

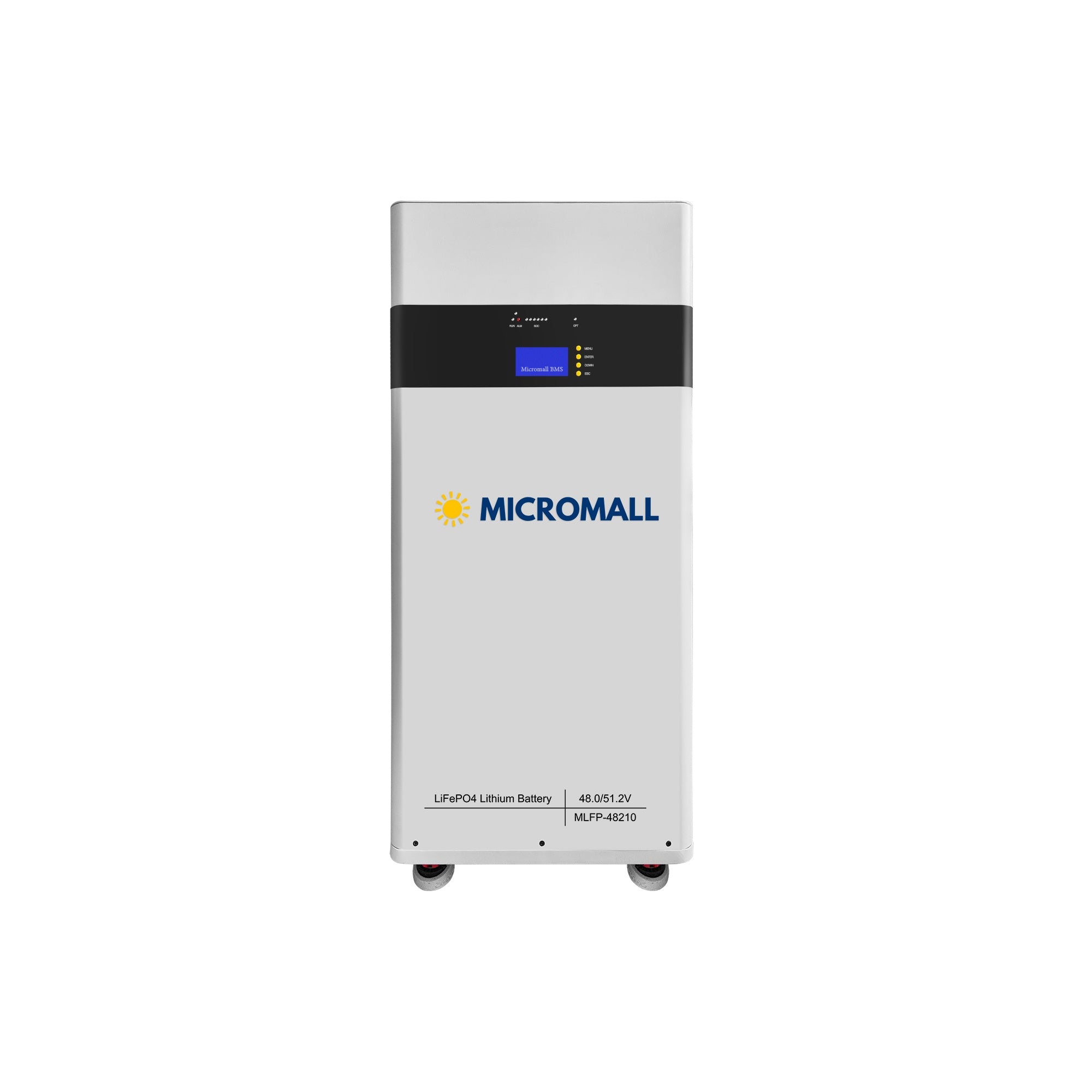

1 x Micromall 48V 51.2V 200Ah 210Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 4mm PV Extension Cables with MC4 Connectors
22 x Mounting Rail System

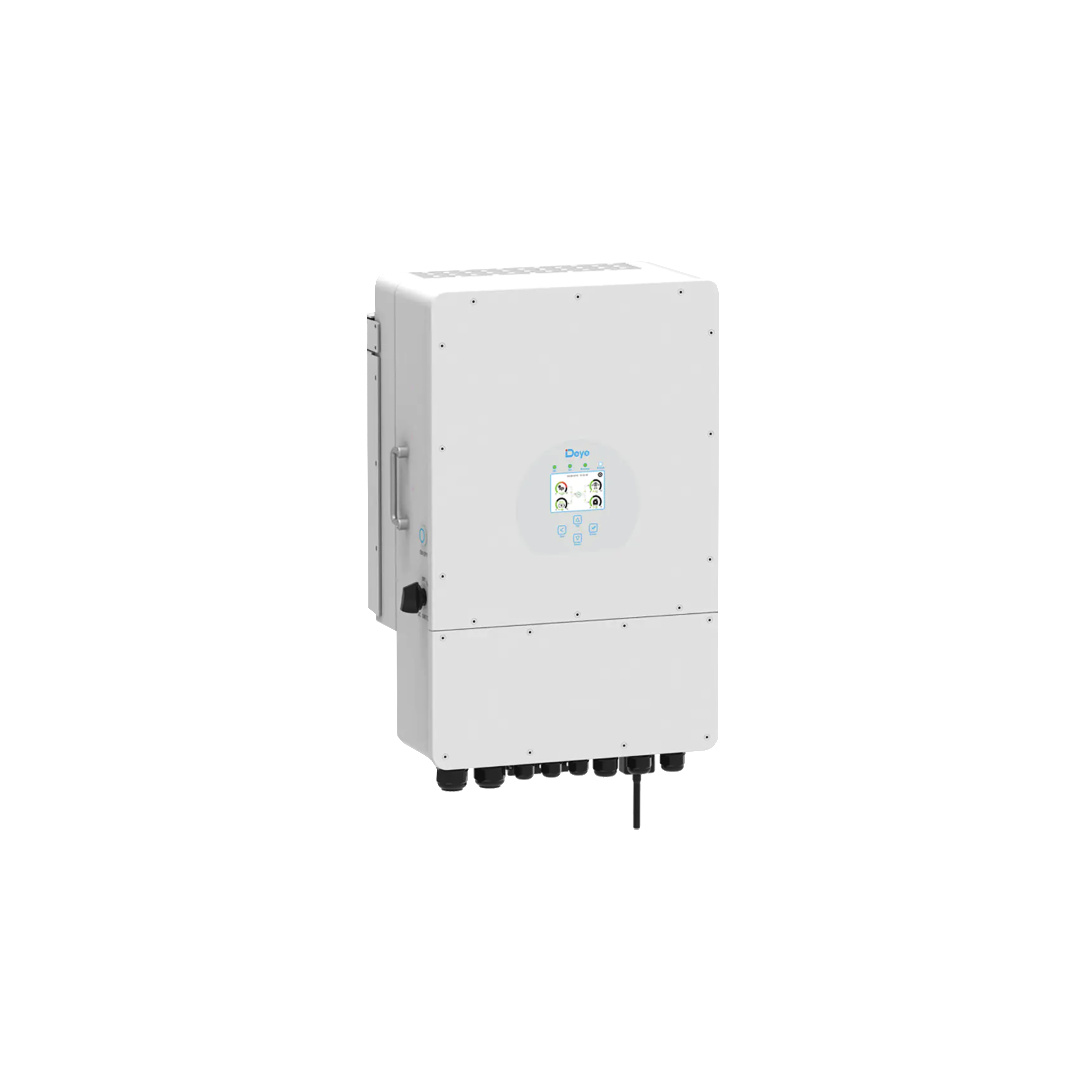

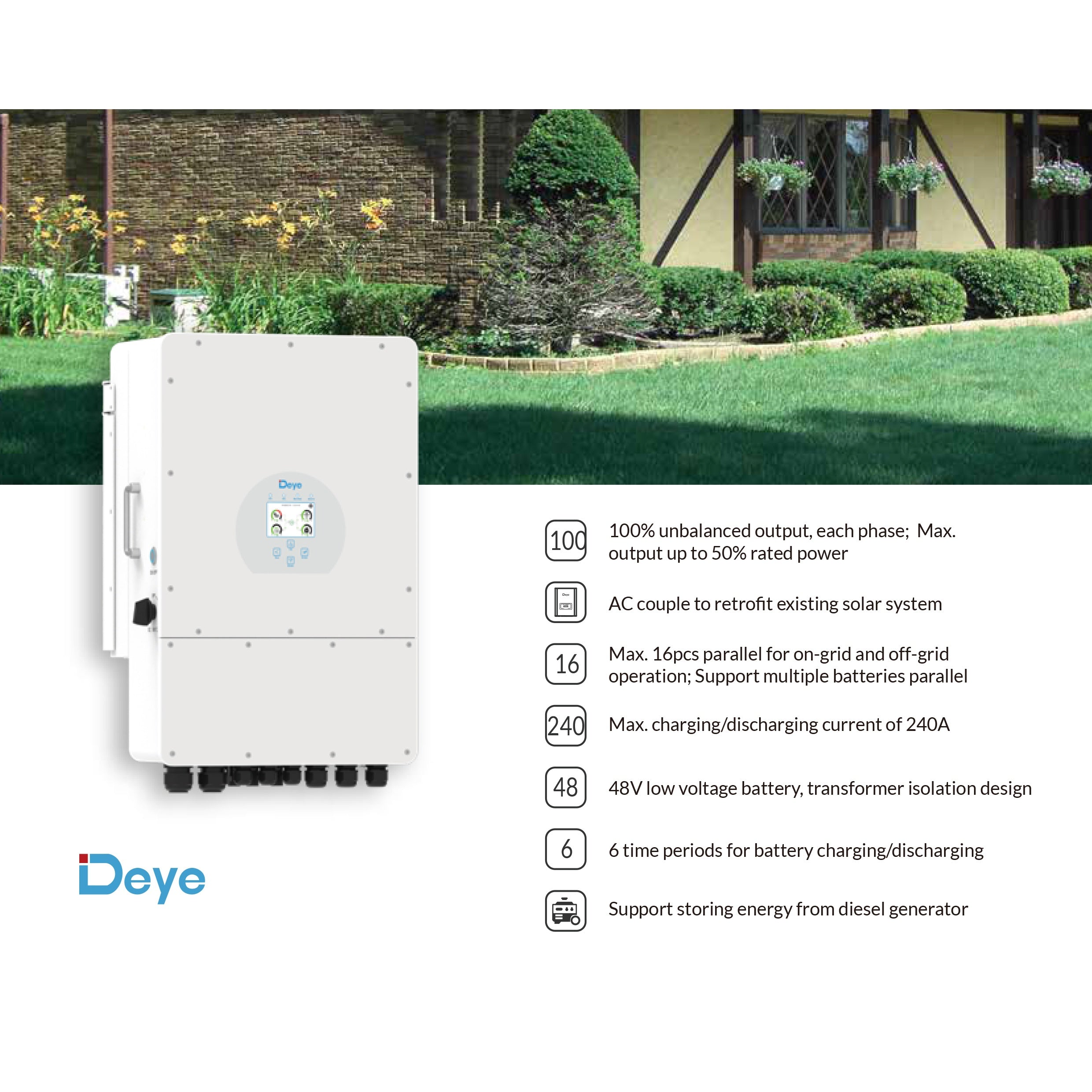

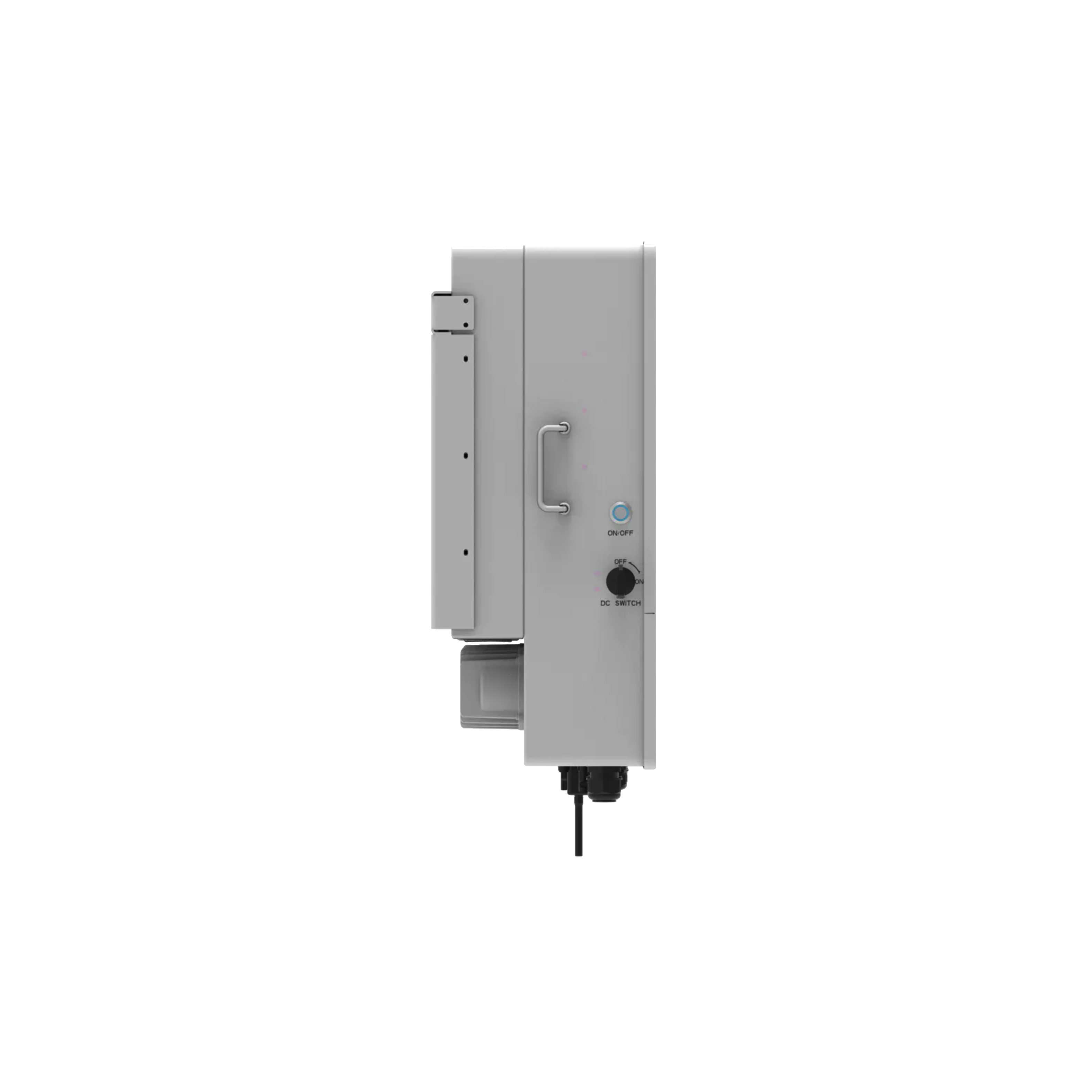

This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

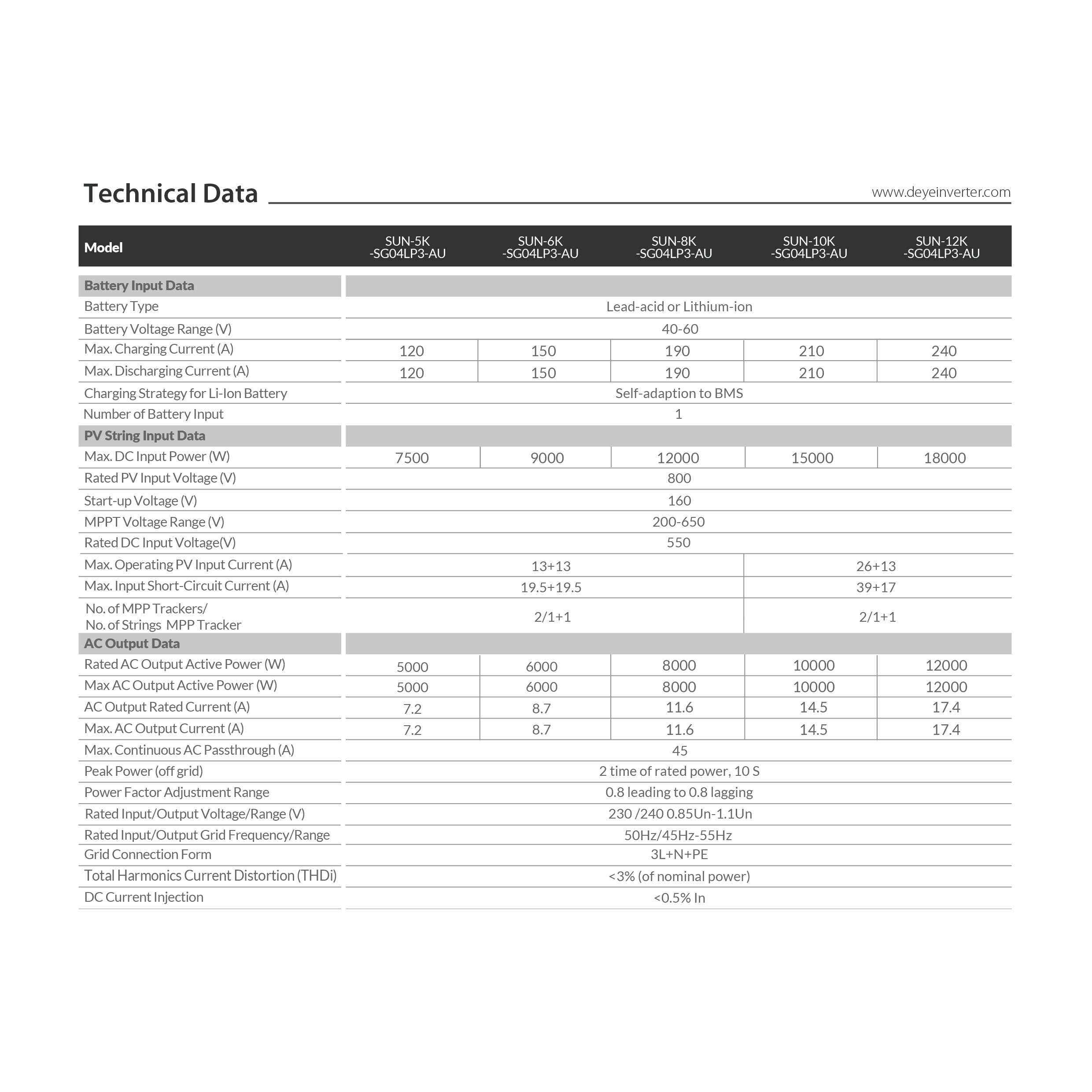

Model: SUN-10K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 10000
Max AC Output Active Power (W): 10000
AC Output Rated Current (A): 14.5
**Vector Approved Inverter**
**DEYE New Zealand Distributor**
