Description
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**

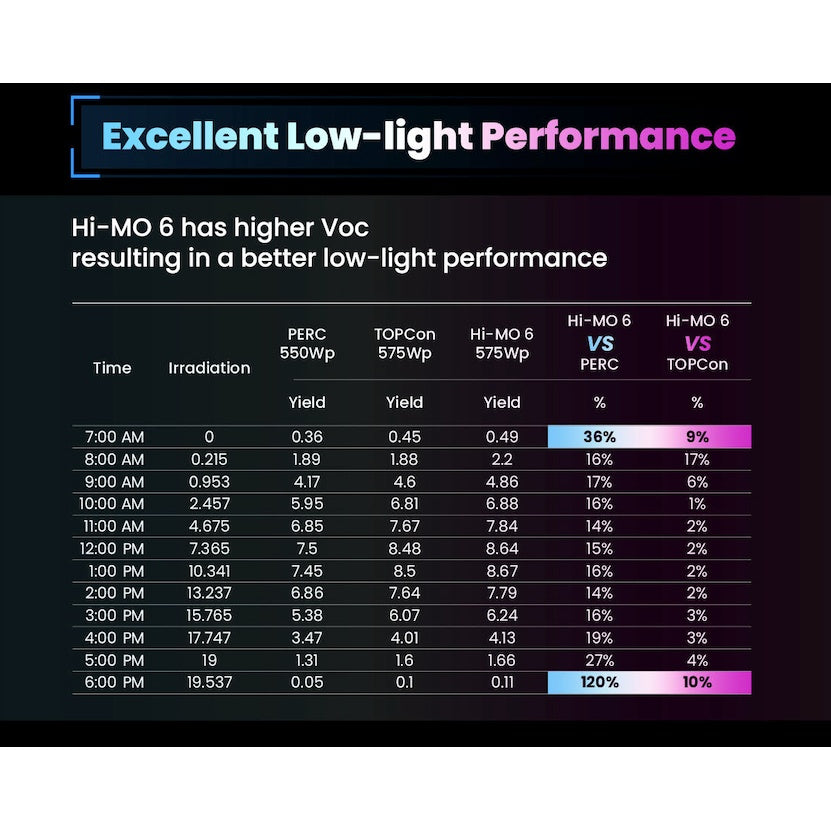

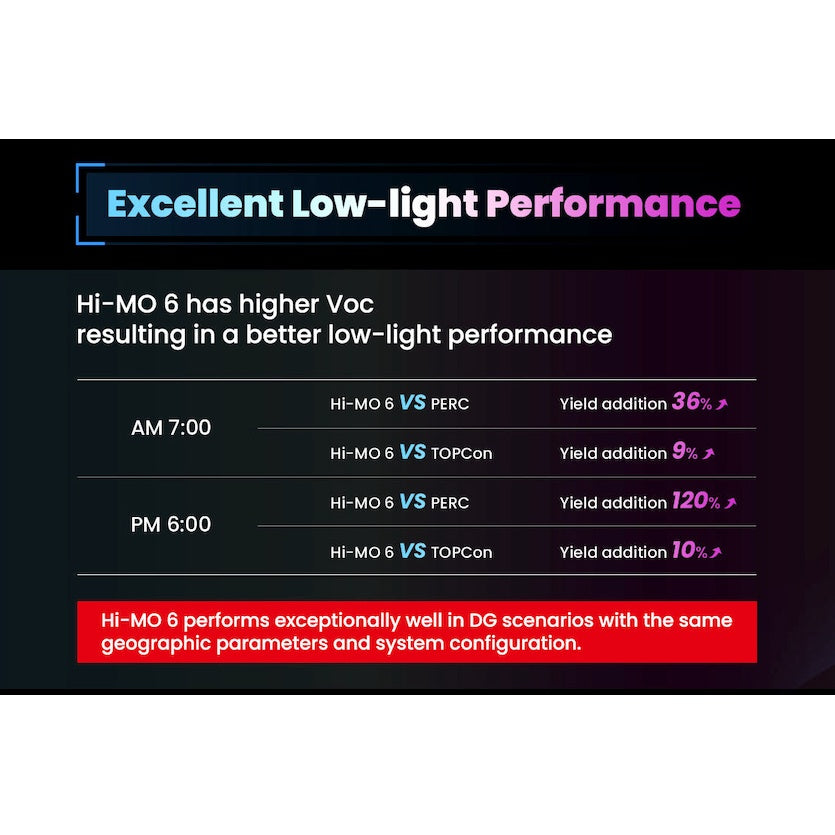

Discover an advanced Smart Hybrid System featuring the low light performance LONGi Hi-MO X6 LR5-54HTH 440W Solar Panel, seamlessly integrated with the premium Deye Hybrid Solar Inverter for optimal efficiency and reliability.

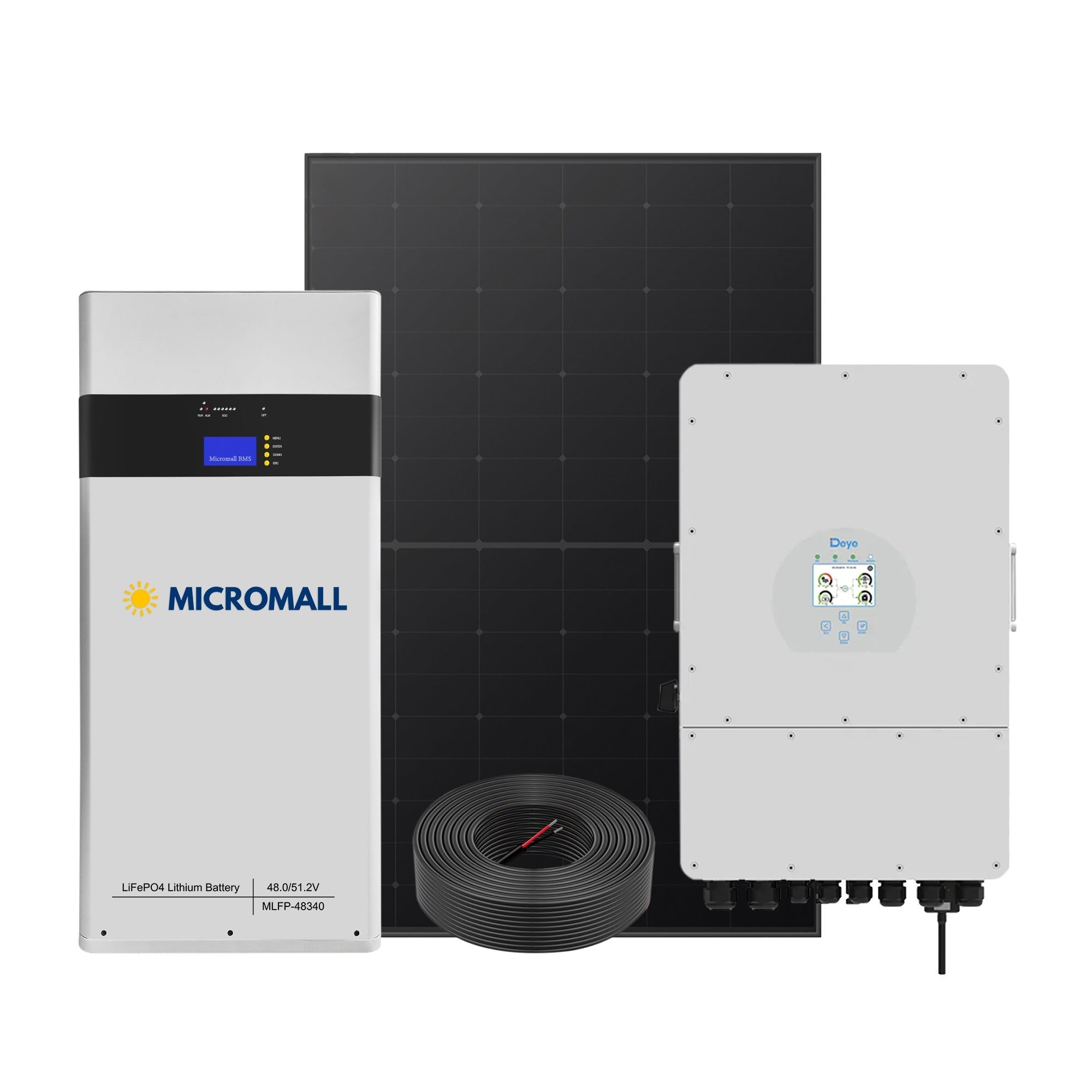

Package Includes:

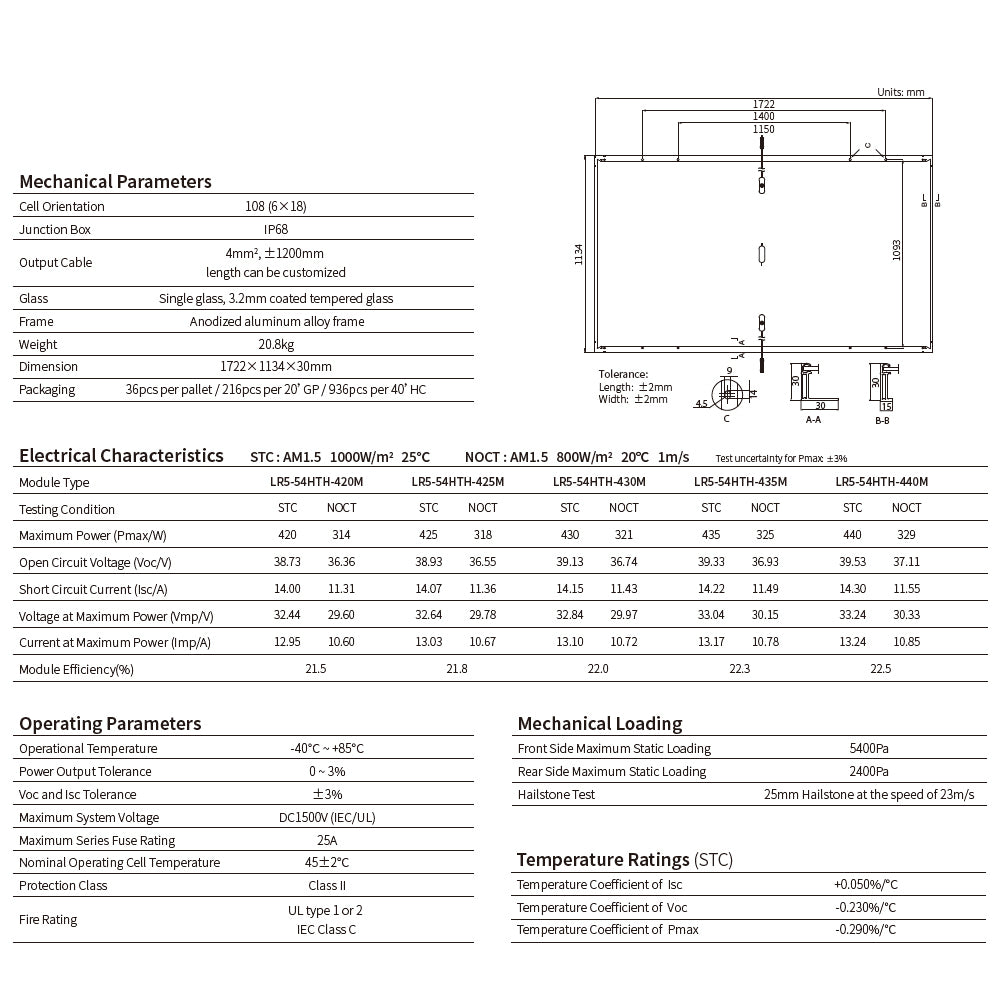

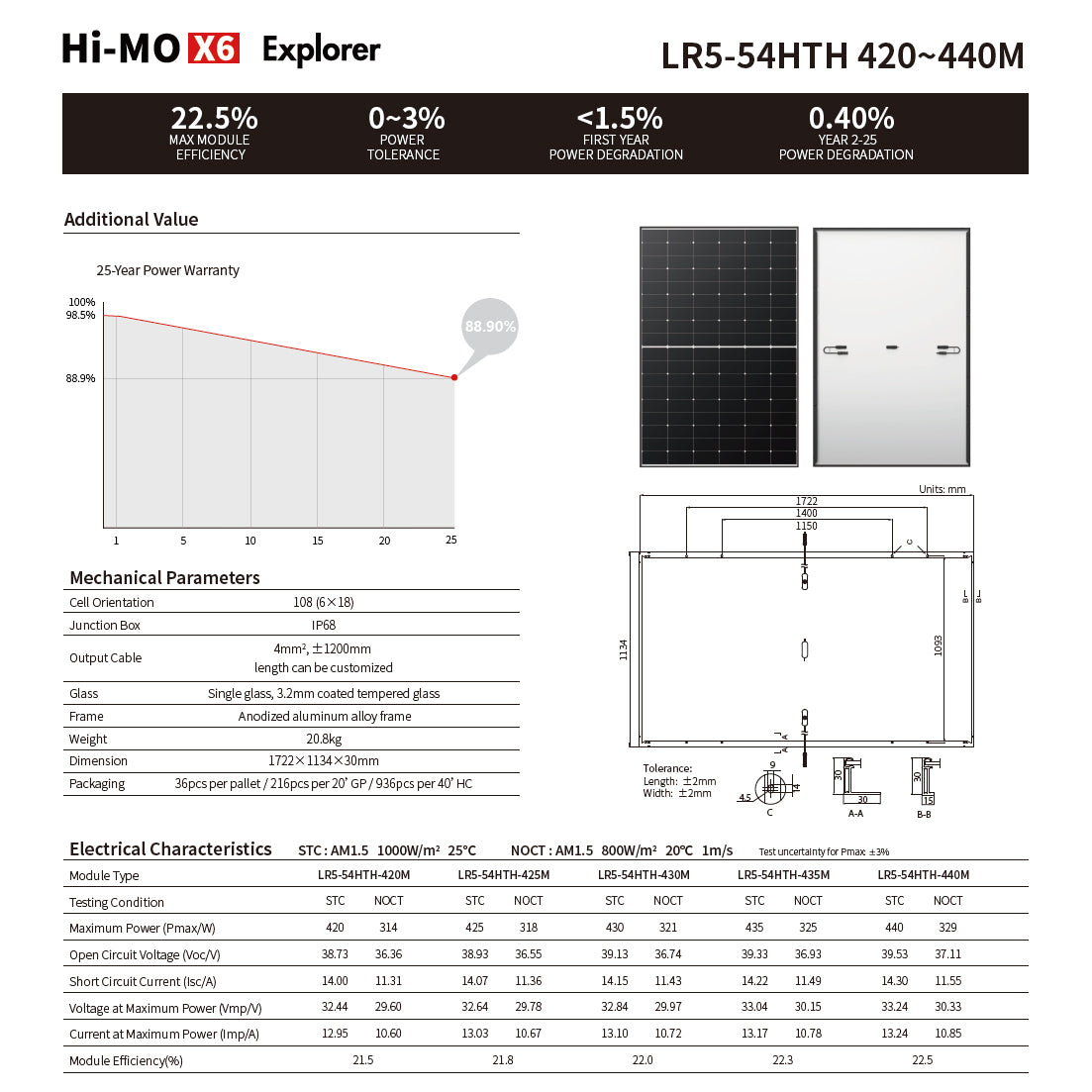

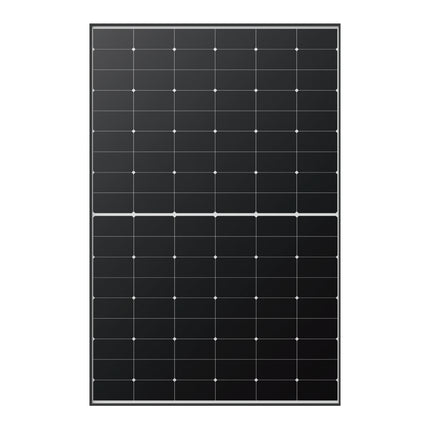

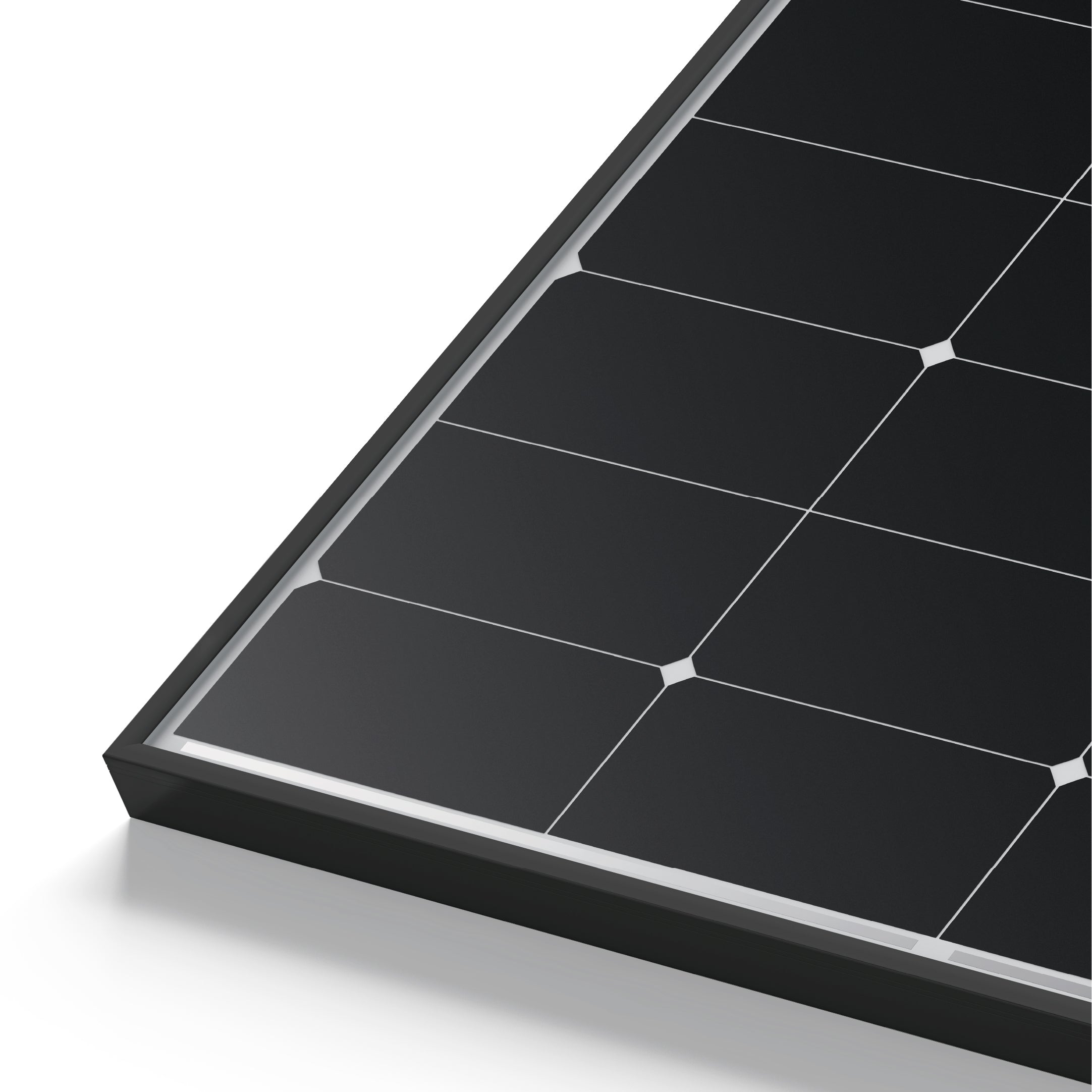

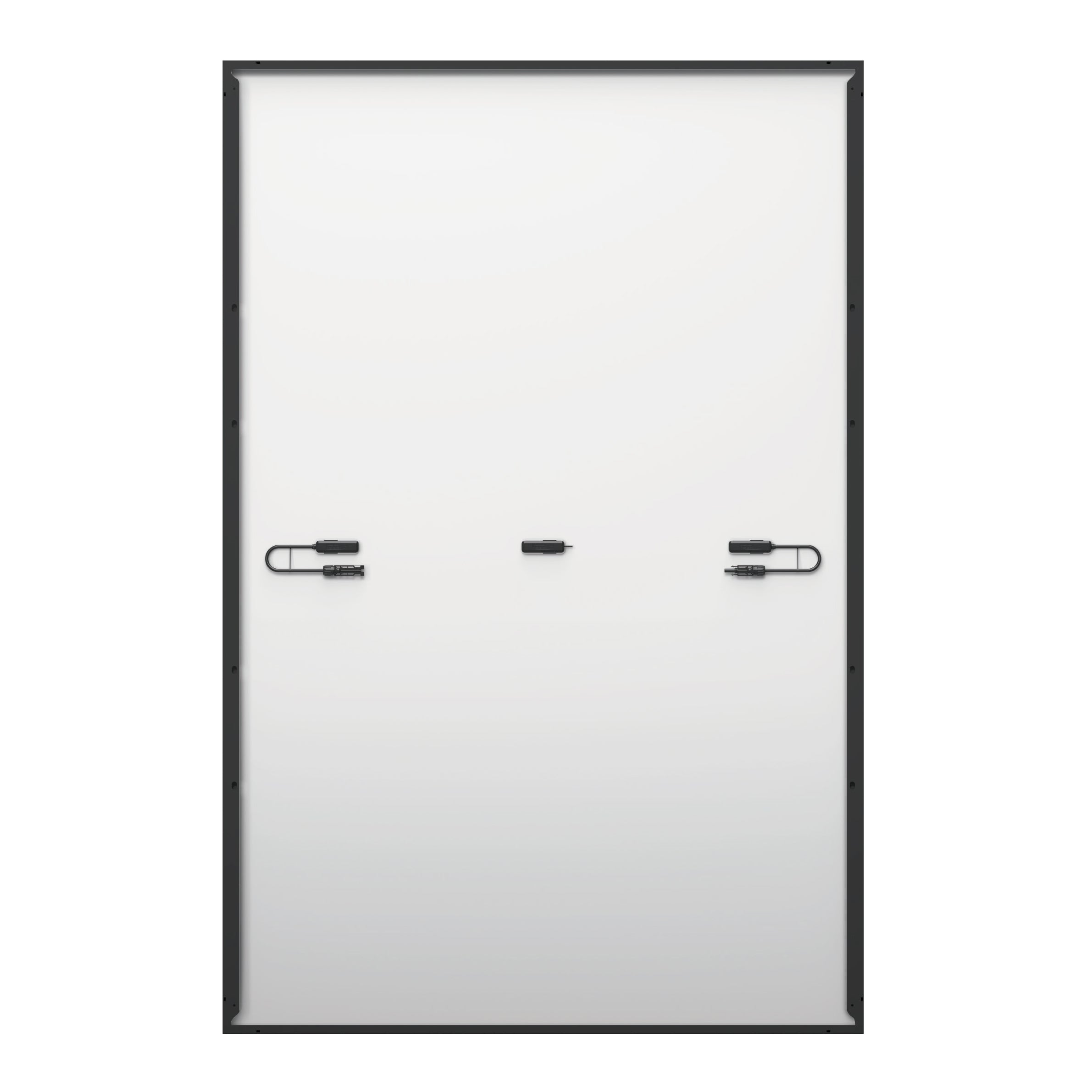

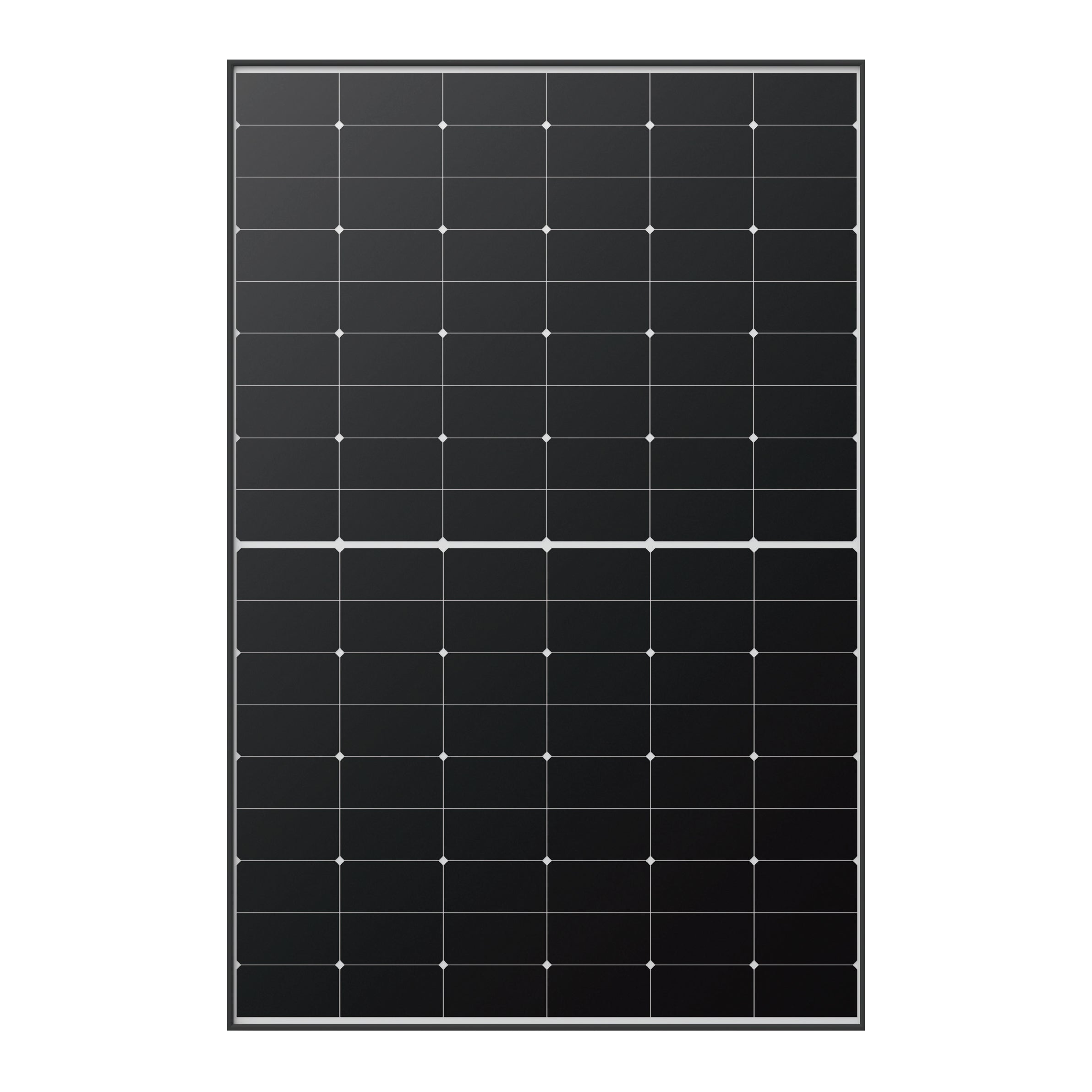

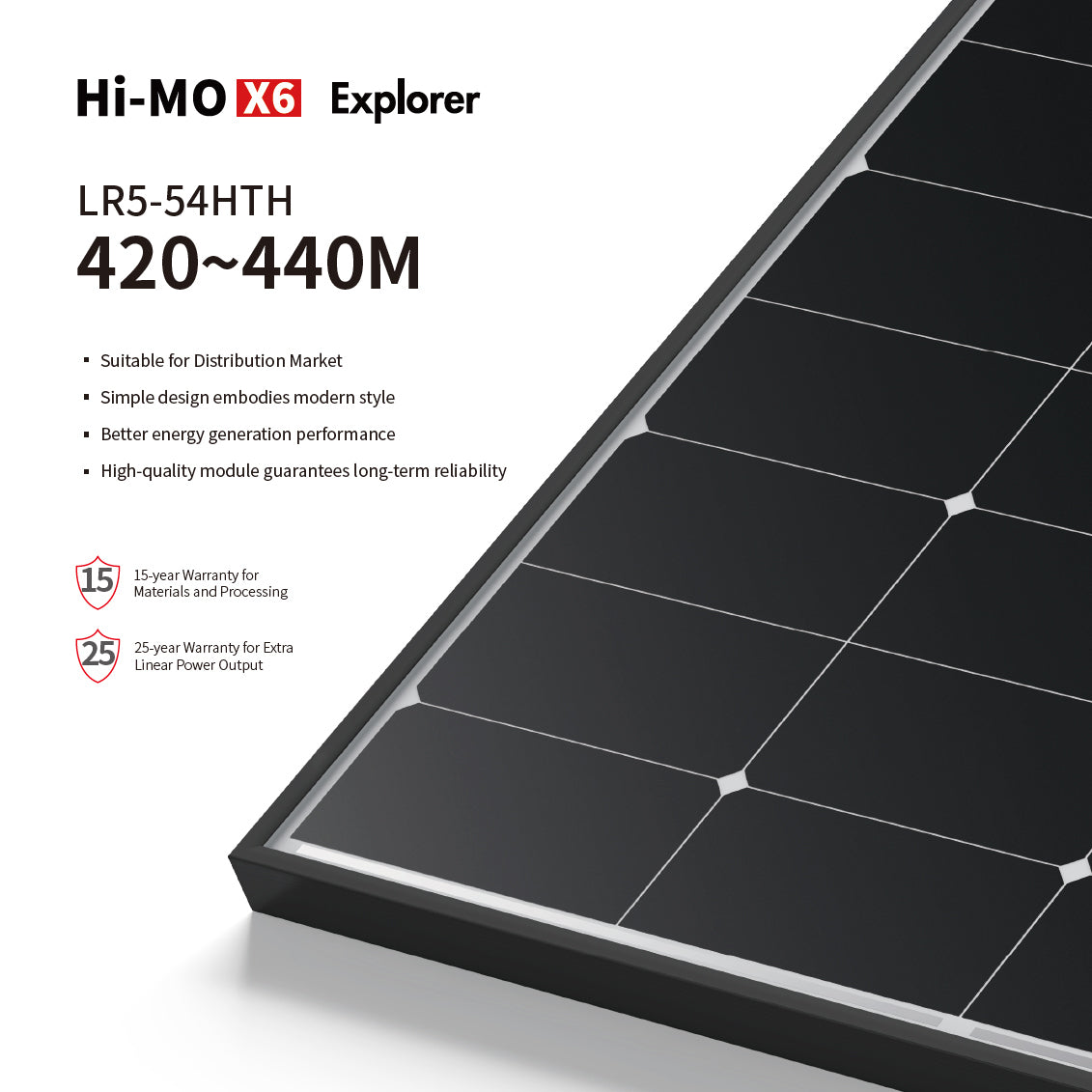

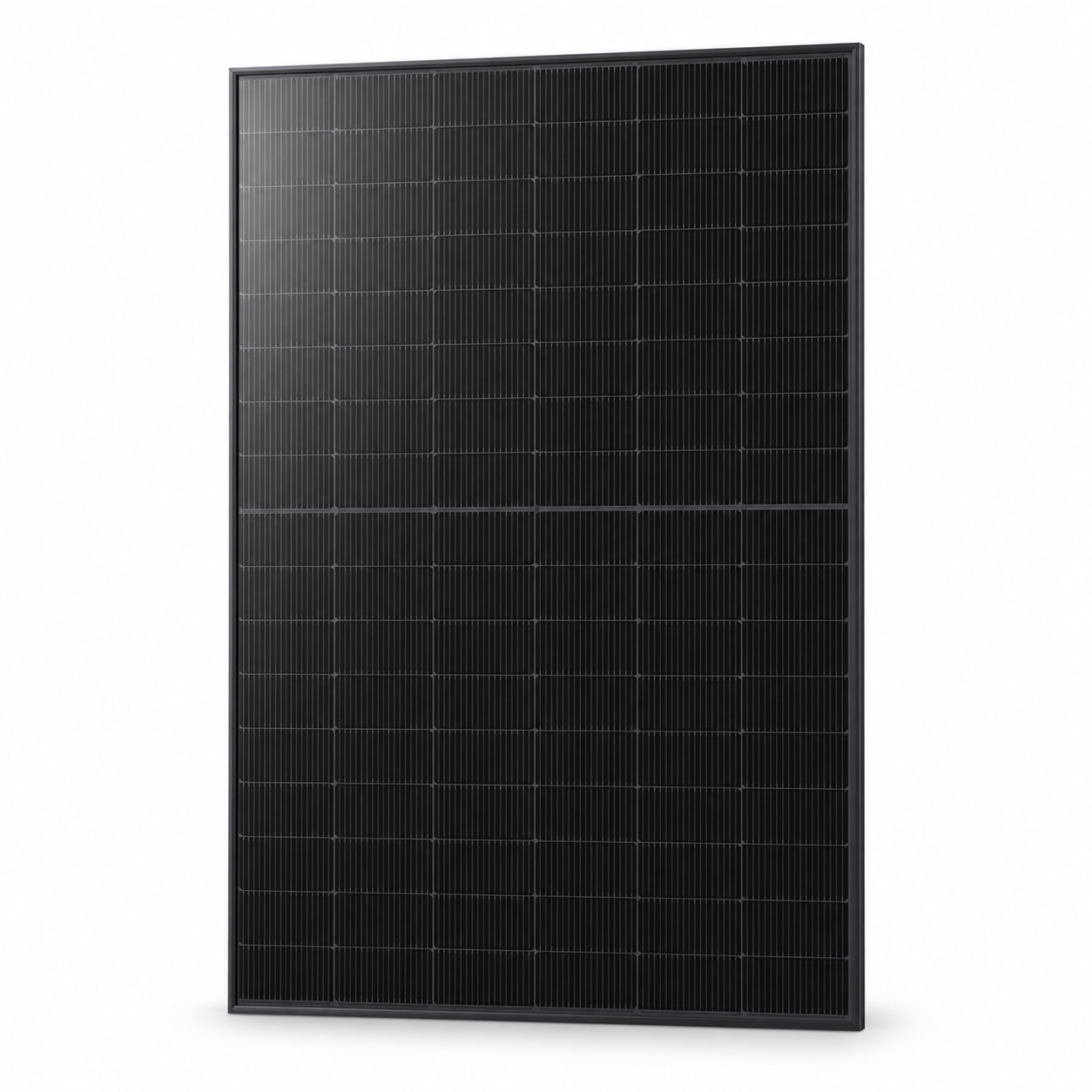

22 x LONGi Hi-MO X6 LR5-54HTH 440W HPBC Mono Solar Panel Low Light Performance

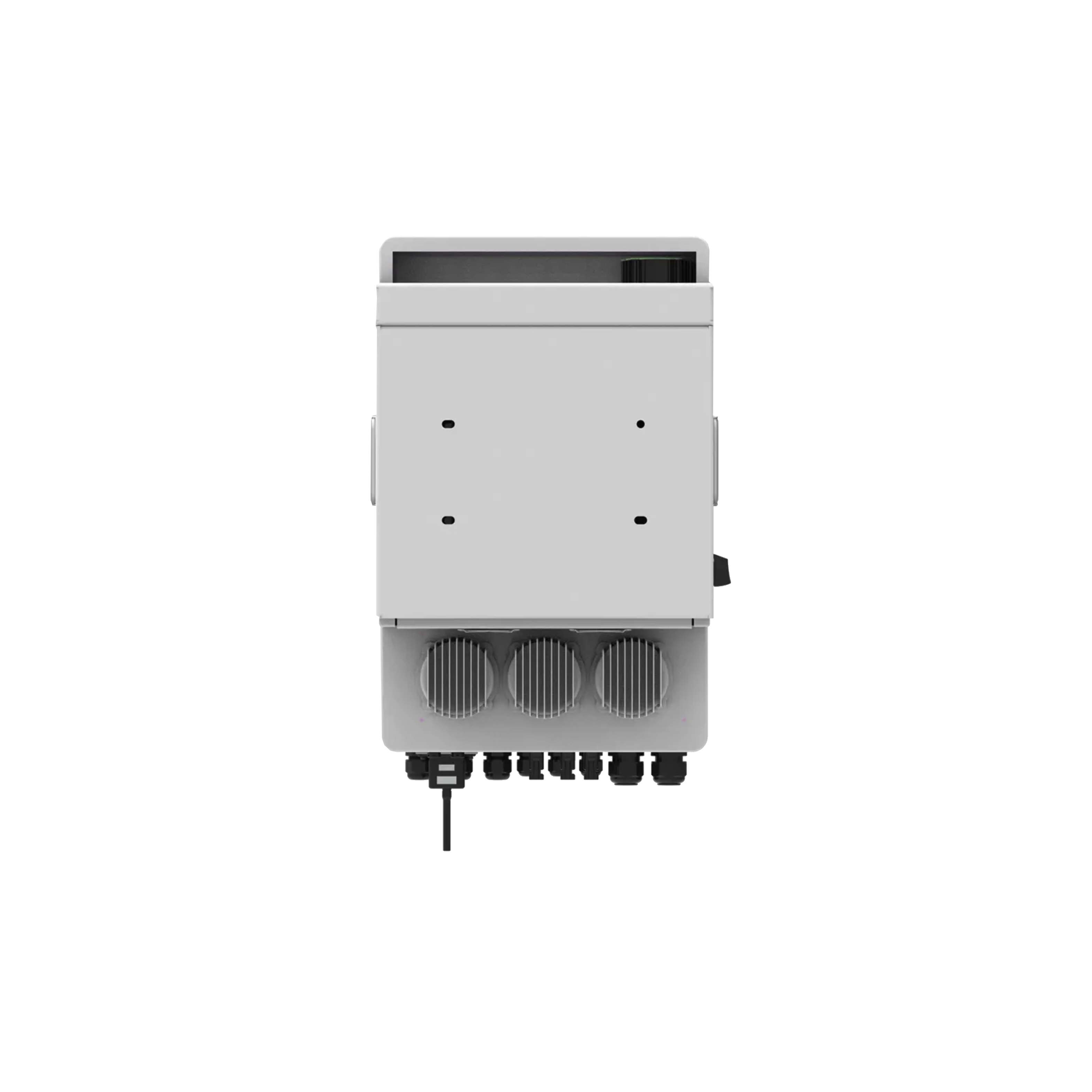

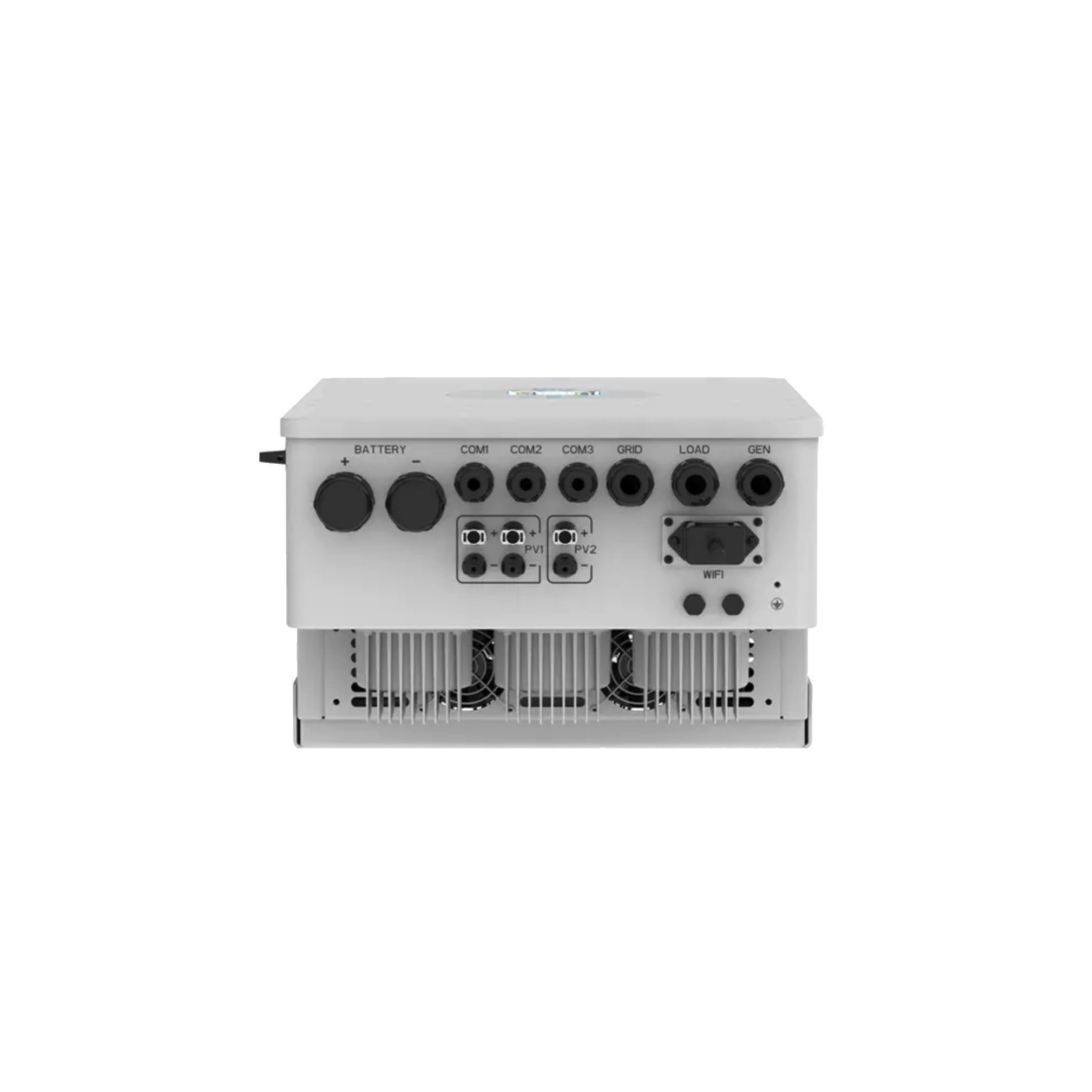

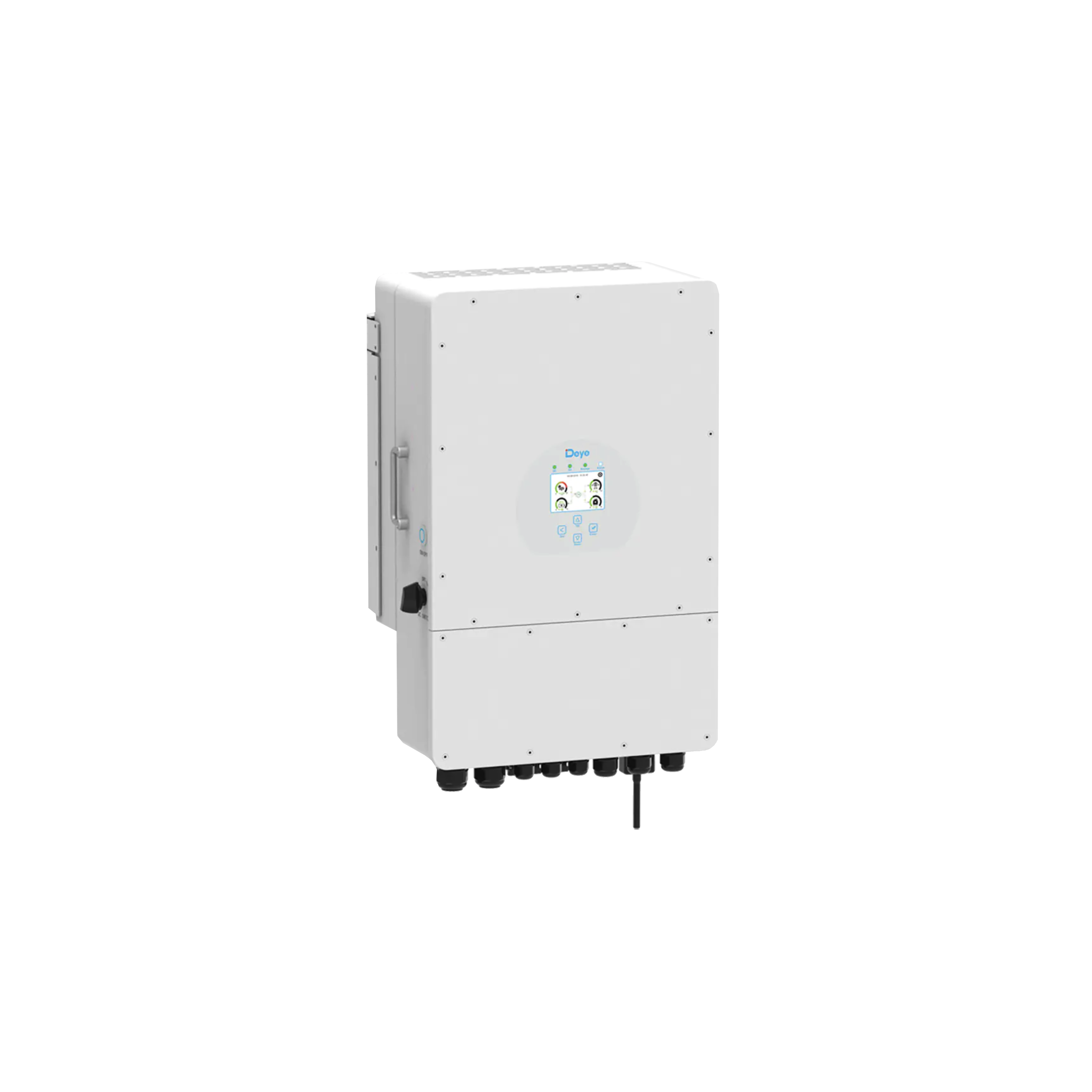

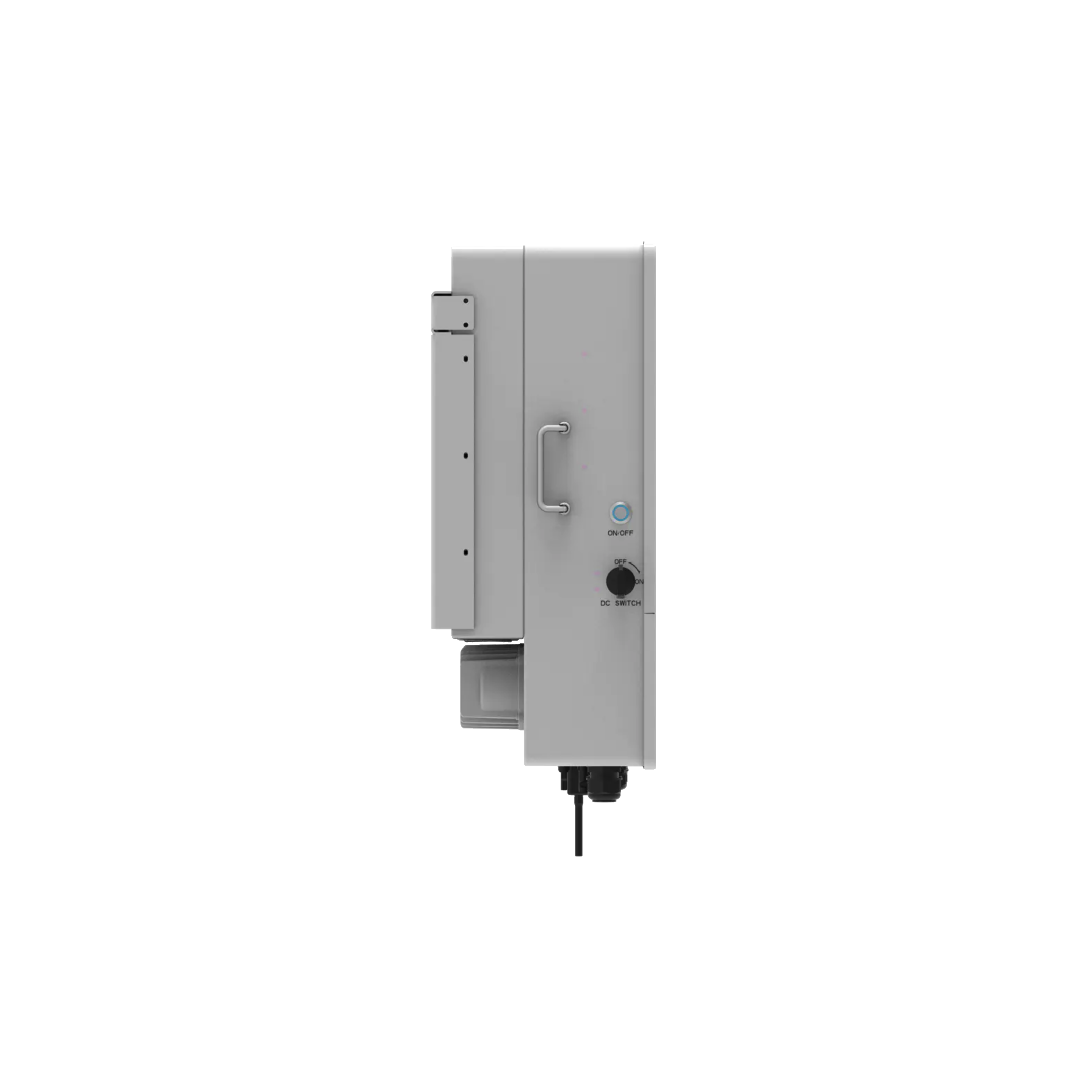

1 x Deye 10kW Three Phase Hybrid Inverter SUN-10K-SG04LP3-AU

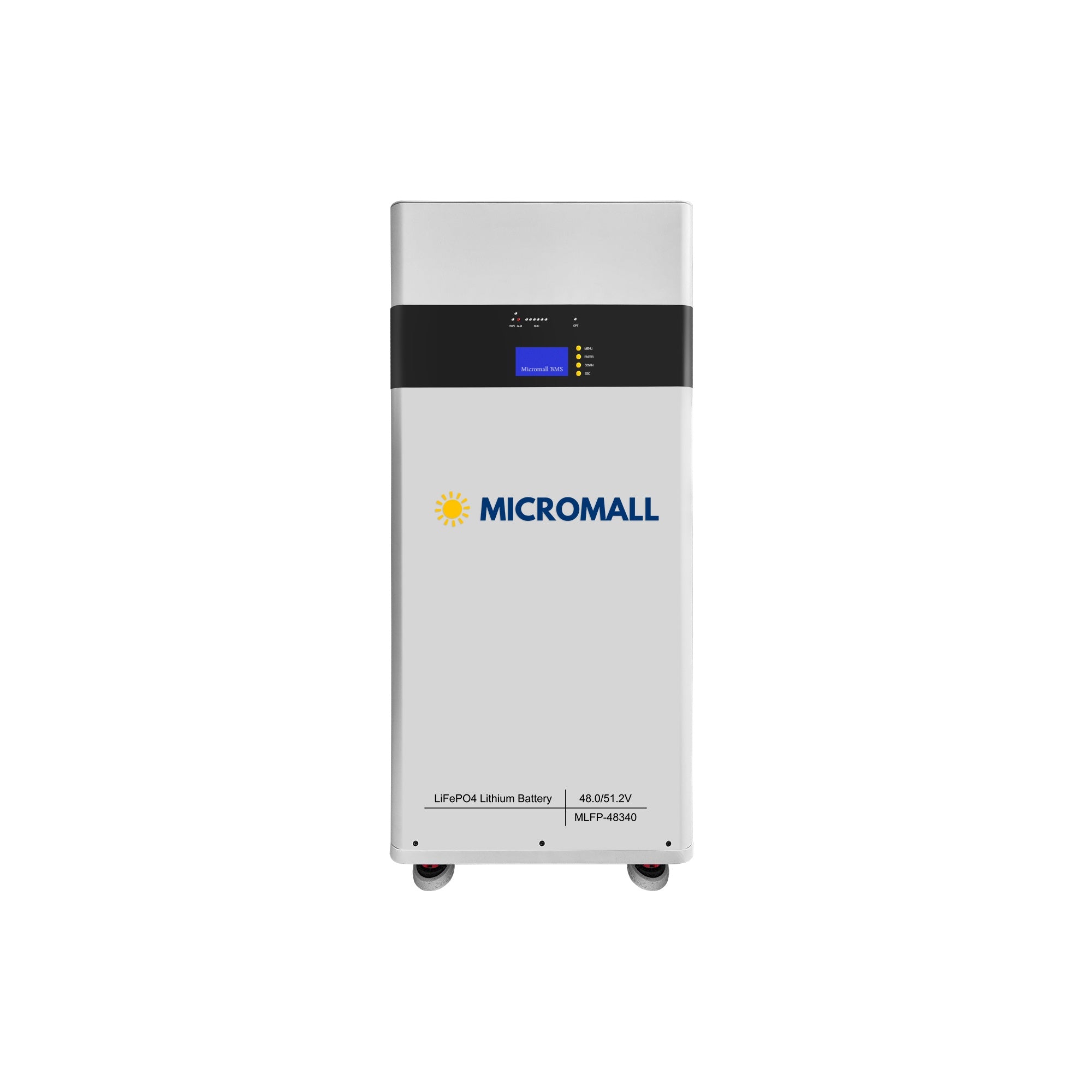

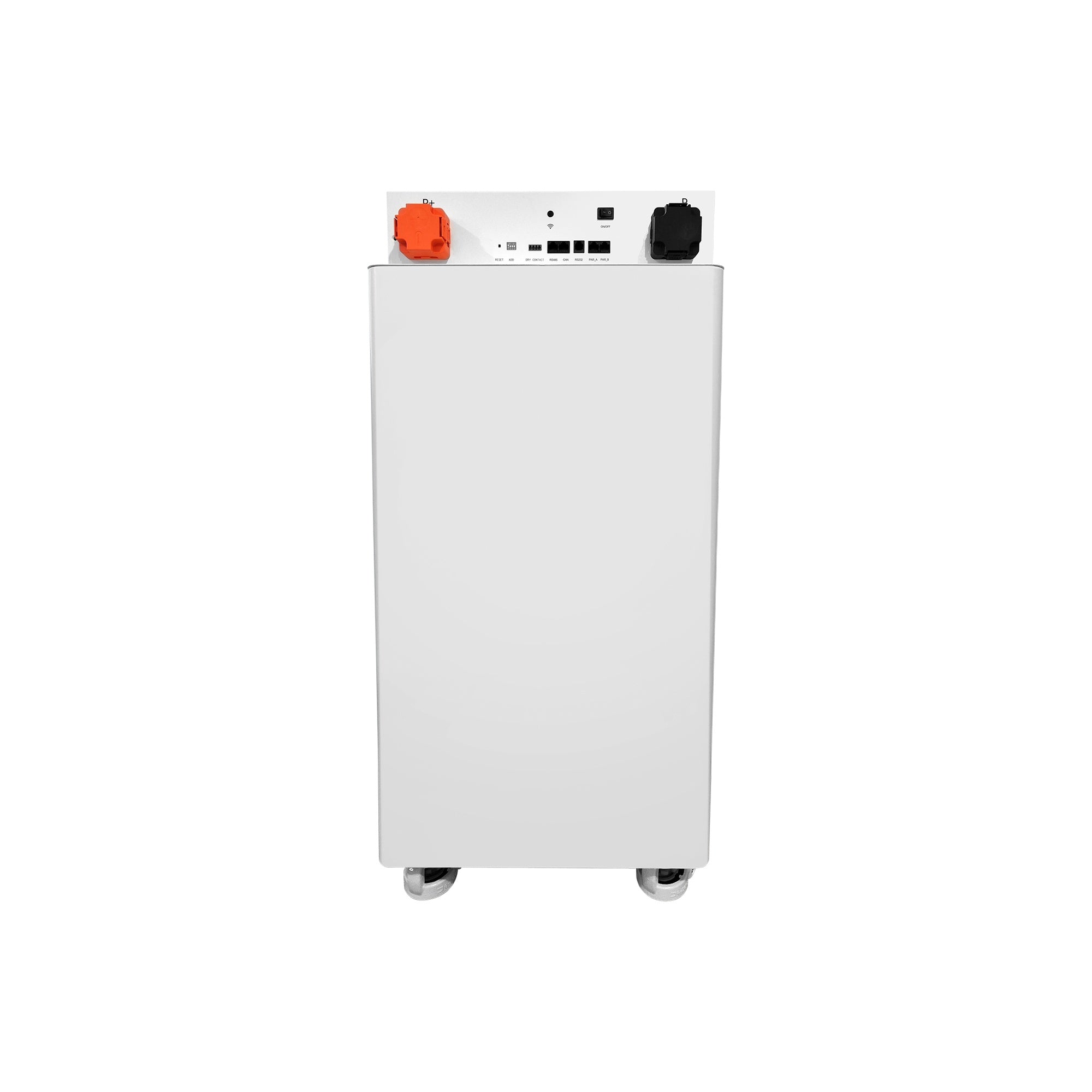

1 x Micromall 48V 51.2V 340Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 4mm PV Extension Cables with MC4 Connectors
22 x Mounting Rail System

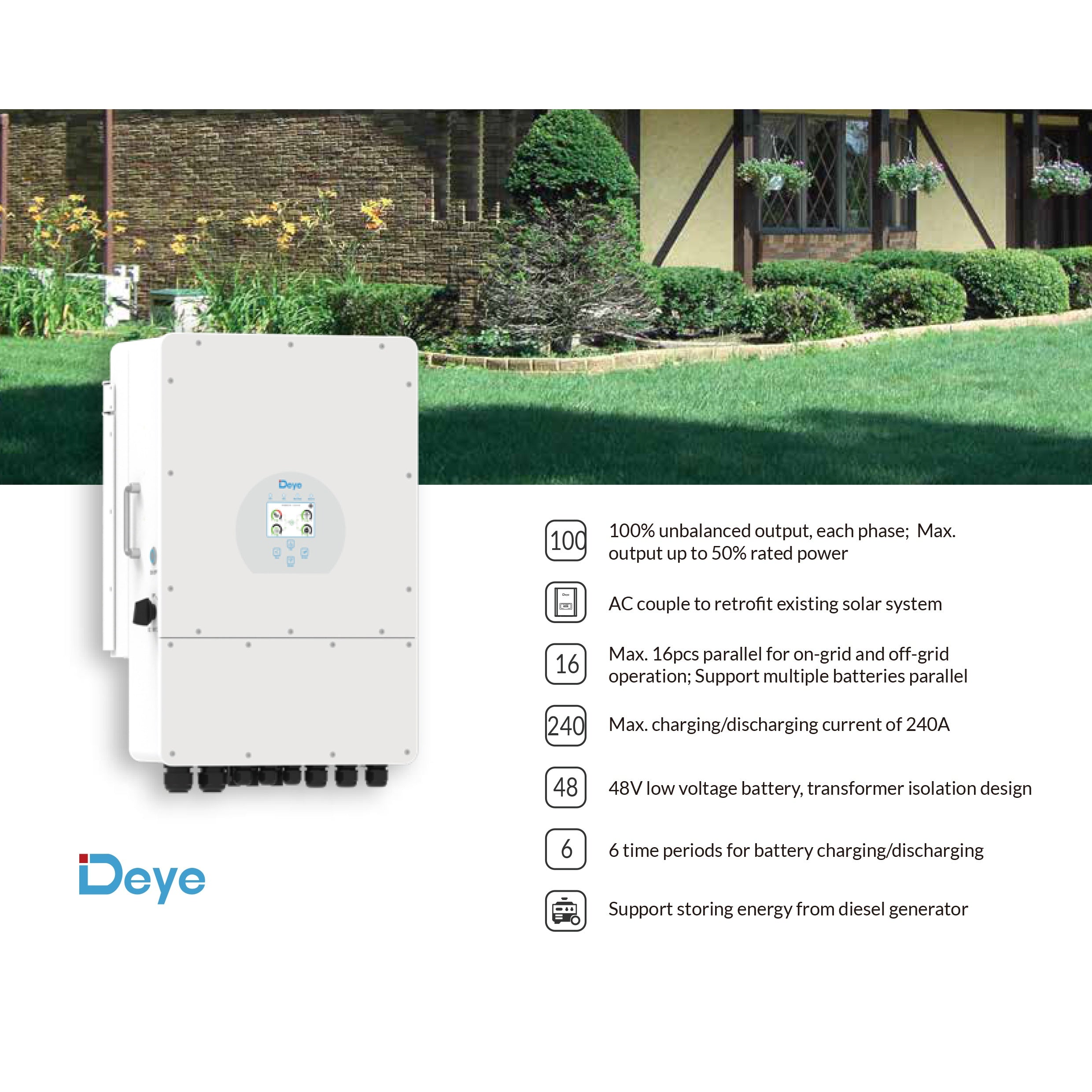

This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

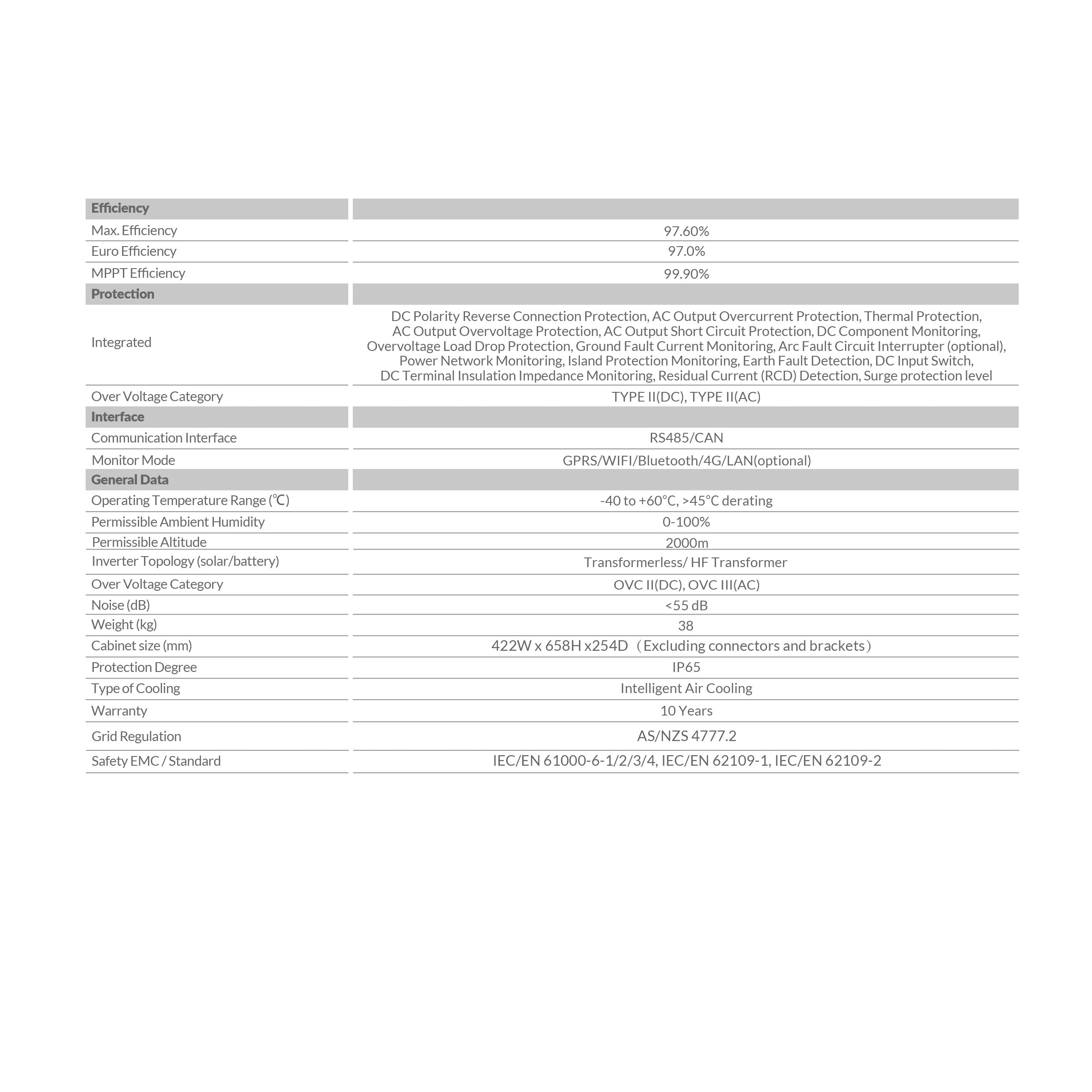

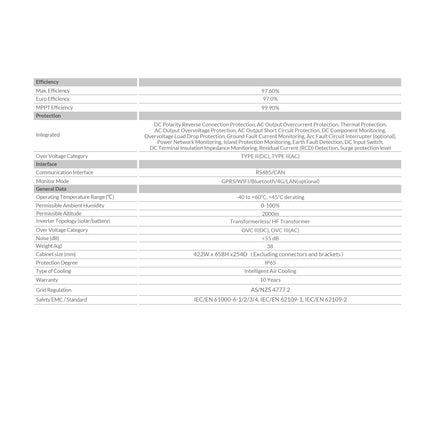

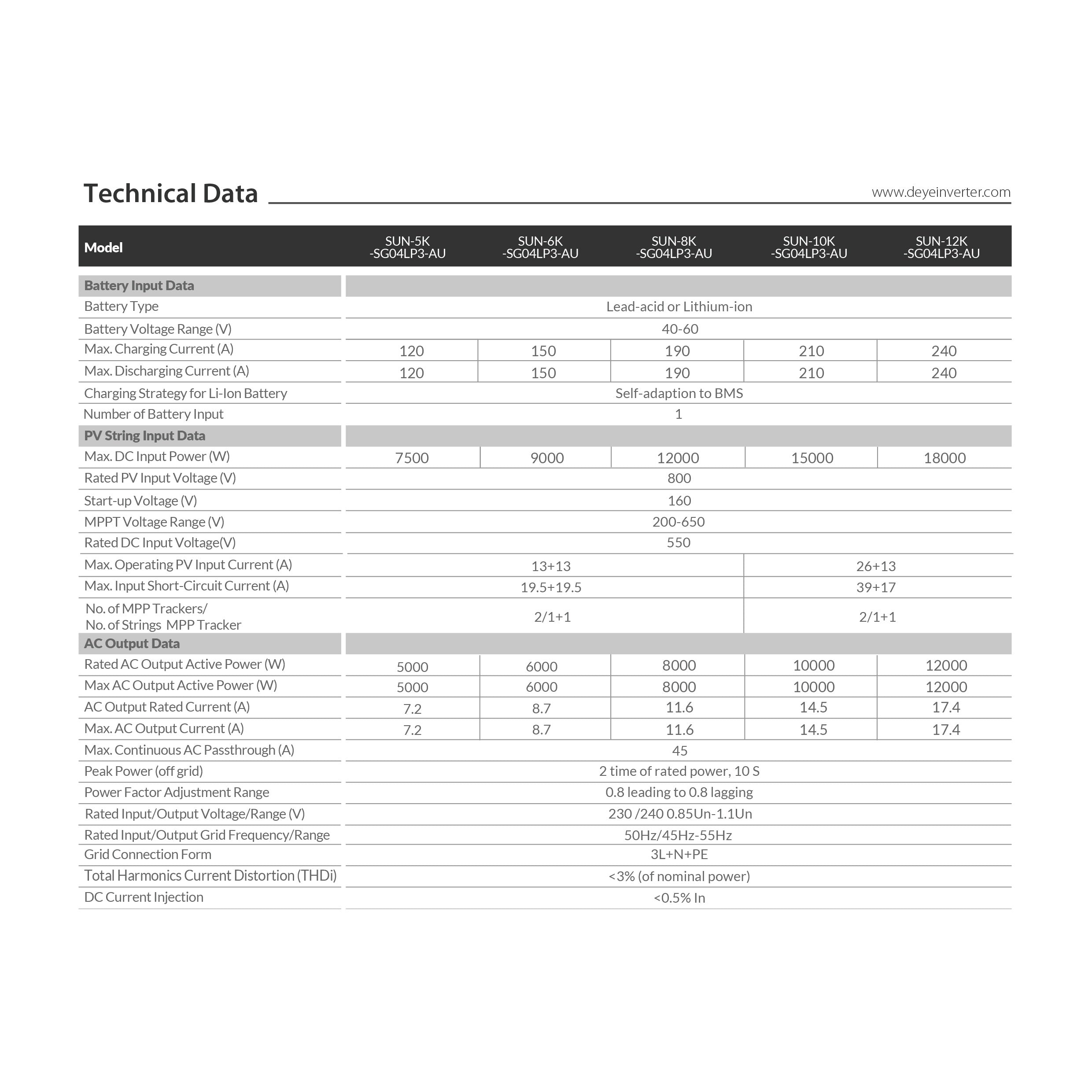

Model: SUN-10K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 10000
Max AC Output Active Power (W): 10000
AC Output Rated Current (A): 14.5
**Vector Approved Inverter**

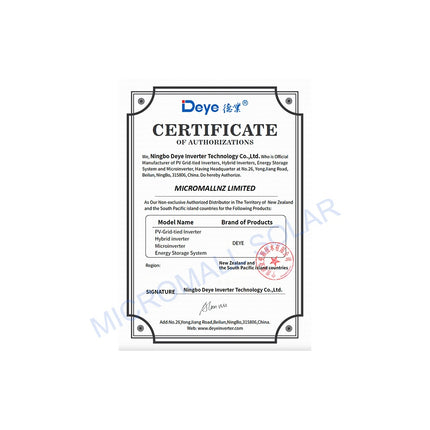

**DEYE New Zealand Distributor**
