Description

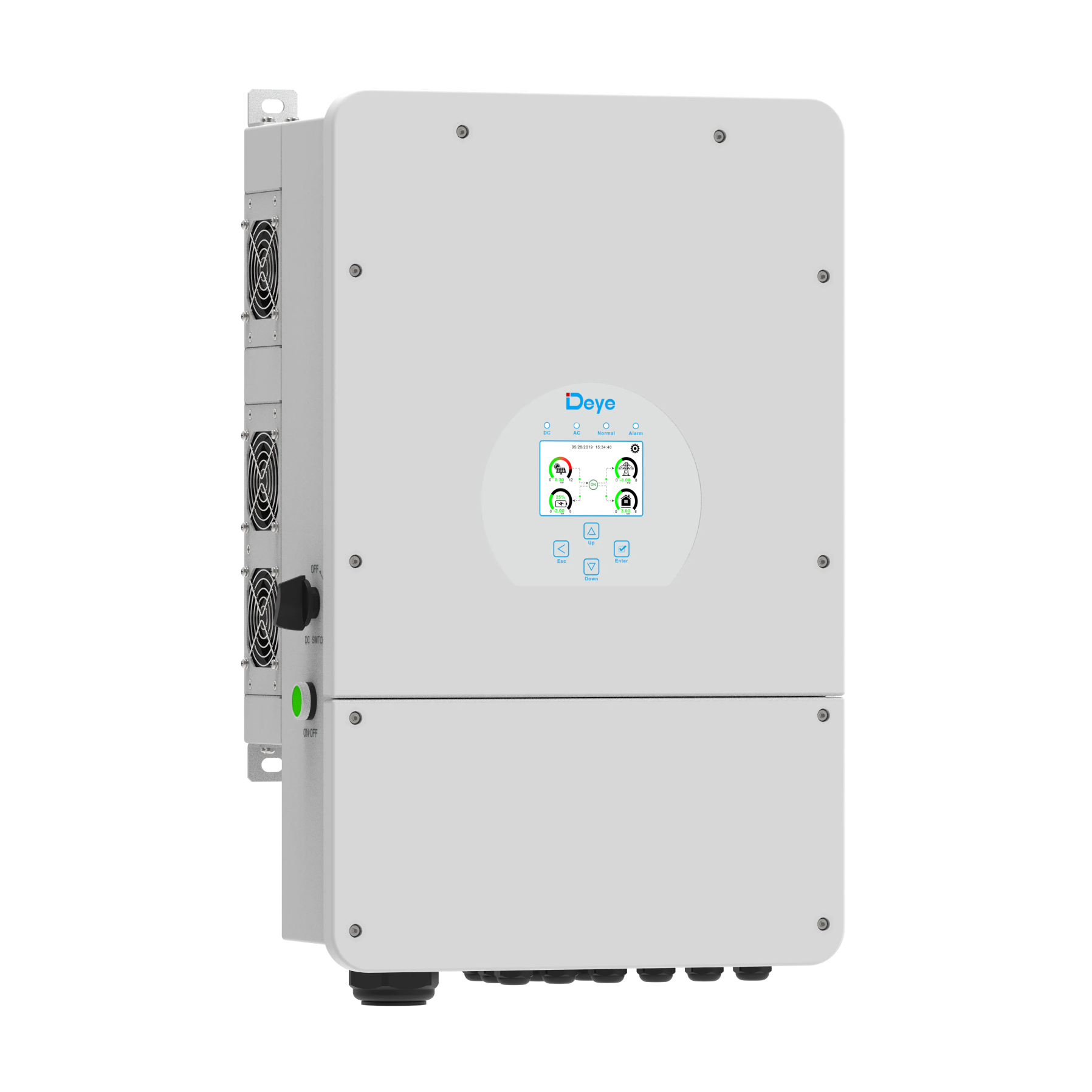

The Deye SUN-12K-SG02LP1-AU-AM3 is a 12kW single-phase hybrid inverter with three MPPT trackers for flexible solar and battery system design. It supports reliable energy management, backup operation and high-yield PV generation for New Zealand residential and commercial installations.
Key Features
- Vector Approved Inverter
- DEYE New Zealand Distributor - Micromall Solar
- 10-Year Warranty
- Higher yields / Safe & Reliable / Smart / User-friendly
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 250A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator

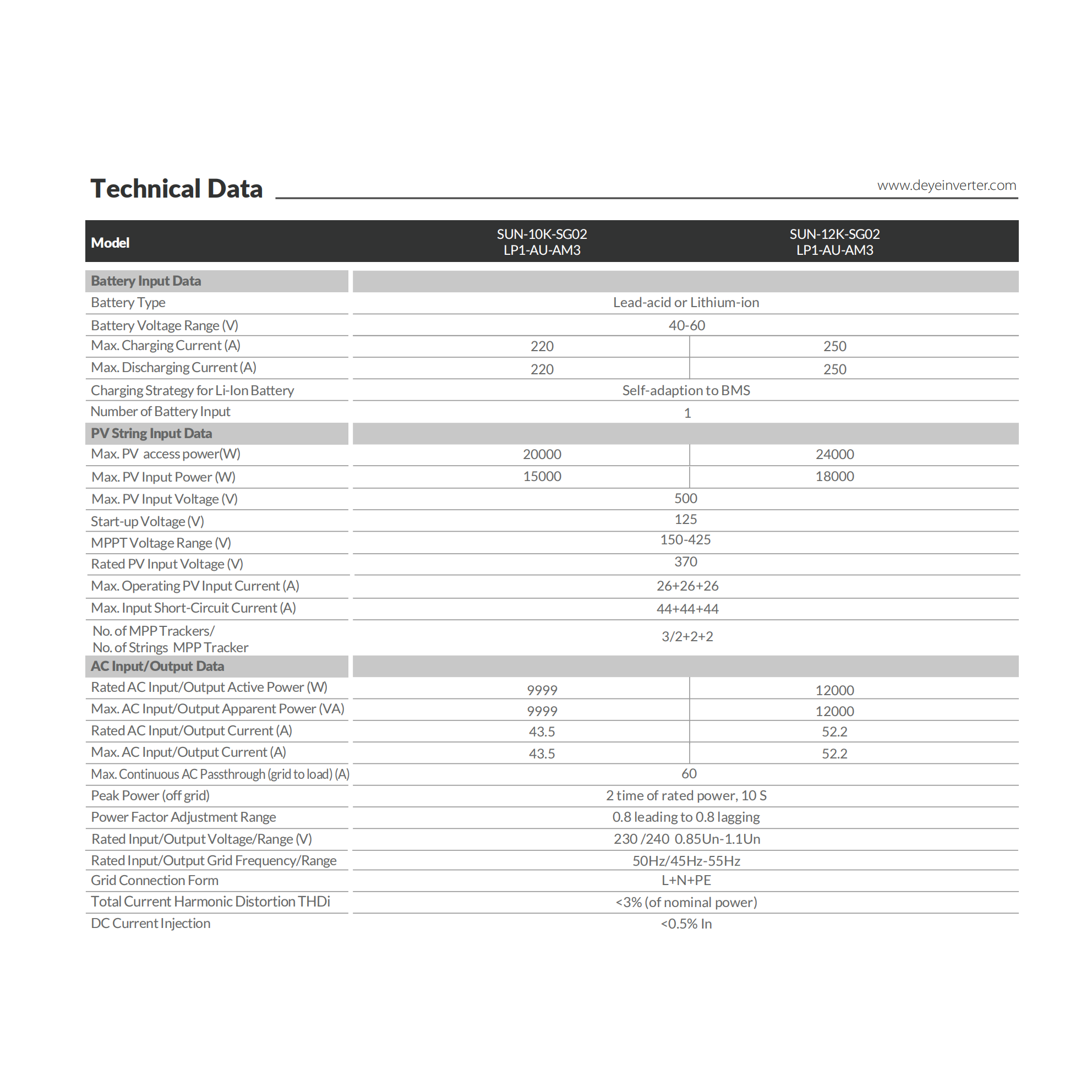

Specifications
- Model: SUN-12K-SG02LP1-AU-AM3
- Battery Type: Lead-acid or LiFePO4
- Battery Voltage Range (V): 40-60
- Max. Charging Current (A): 250
- Max. Discharging Current (A): 250
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS
- Number of Battery Input: 1
- Max. PV access power(W): 24000
- Max. DC Input Power (W): 18000
- Max. PV Input Voltage (V): 500
- Start-up Voltage (V): 125
- MPPT Voltage Range (V): 150-425
- Rated PV Input Voltage(V): 370
- Max. Operating PV Input Current (A): 26+26+26
- Max. Input Short-Circuit Current (A): 44+44+44
- No. of MPP Trackers
- No. of Strings MPP Tracker: 3/2+2+2
- AC Input/Output Data
- Rated AC Input/Output Active Power (W): 12000
- Max AC Input/Output Apparent Power (VA): 12000
- Rated AC Input/Output Current (A): 52.2
- Max. AC Input/Output Current (A): 52.2
- Max. Continuous AC Passthrough (grid to load) (A): 60

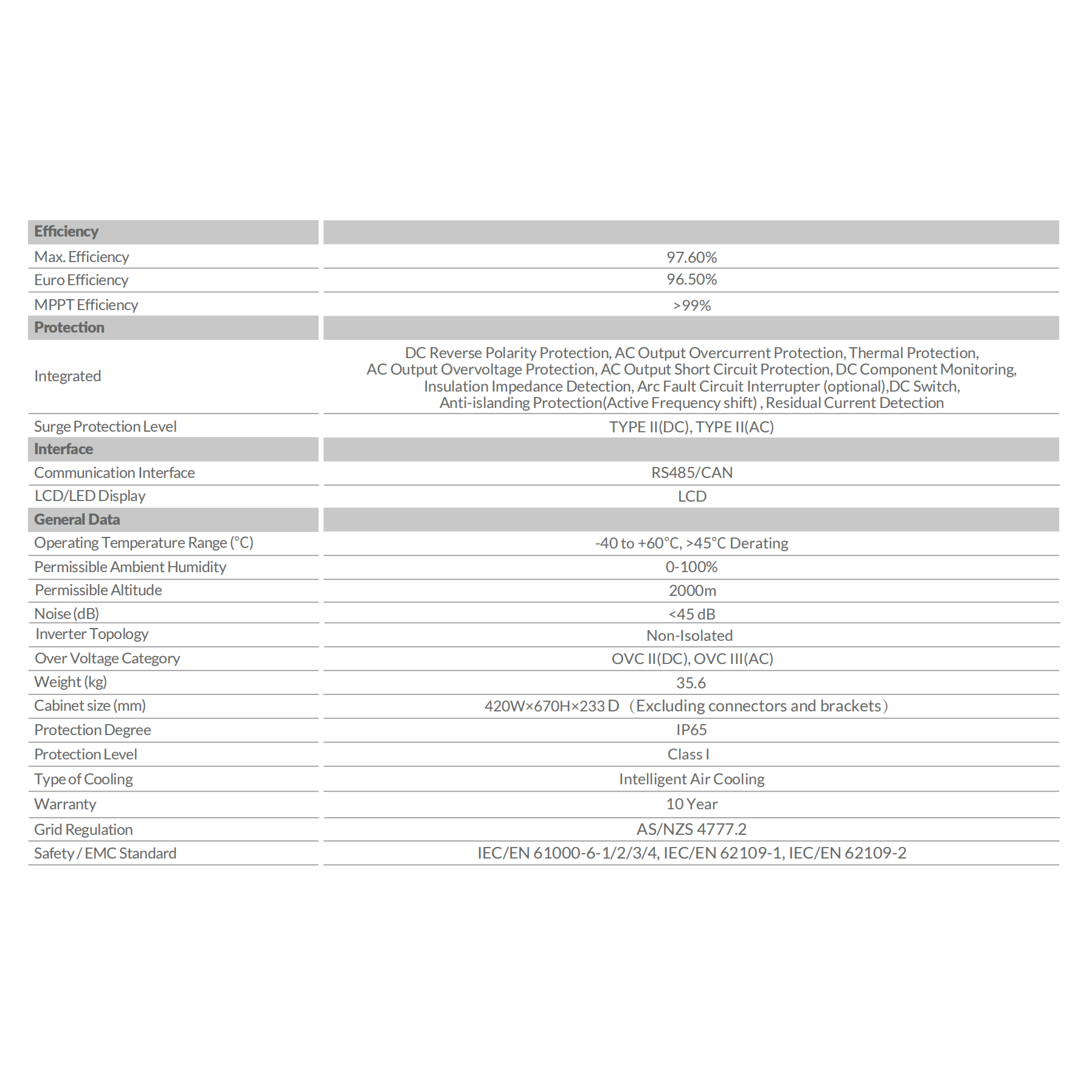

- Max. Efficiency: 97.60%
- Euro Efficiency: 96.50%
- MPPT Efficiency: > 99.90%
- Weight (kg): 35.6
- Cabinet size (mm): 420W x 670H x 233D(Excluding connectors and brackets)
- Protection Degree: IP65
