Description

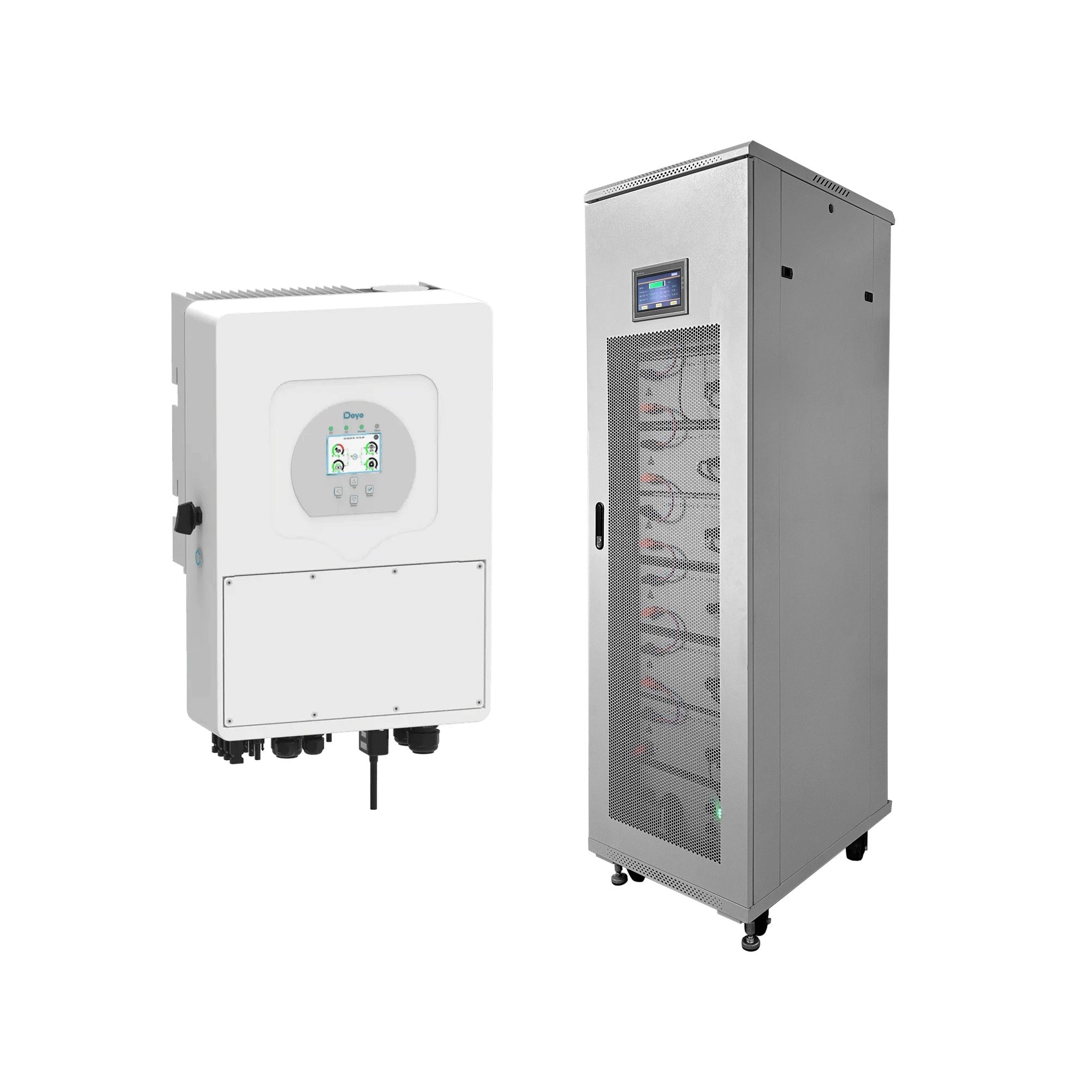

Package Includes:
1 x Deye SUN-20K-SG01HP3-AU-AM2 20KW Three-Phase Hybrid Inverter (10 Years Warranty)

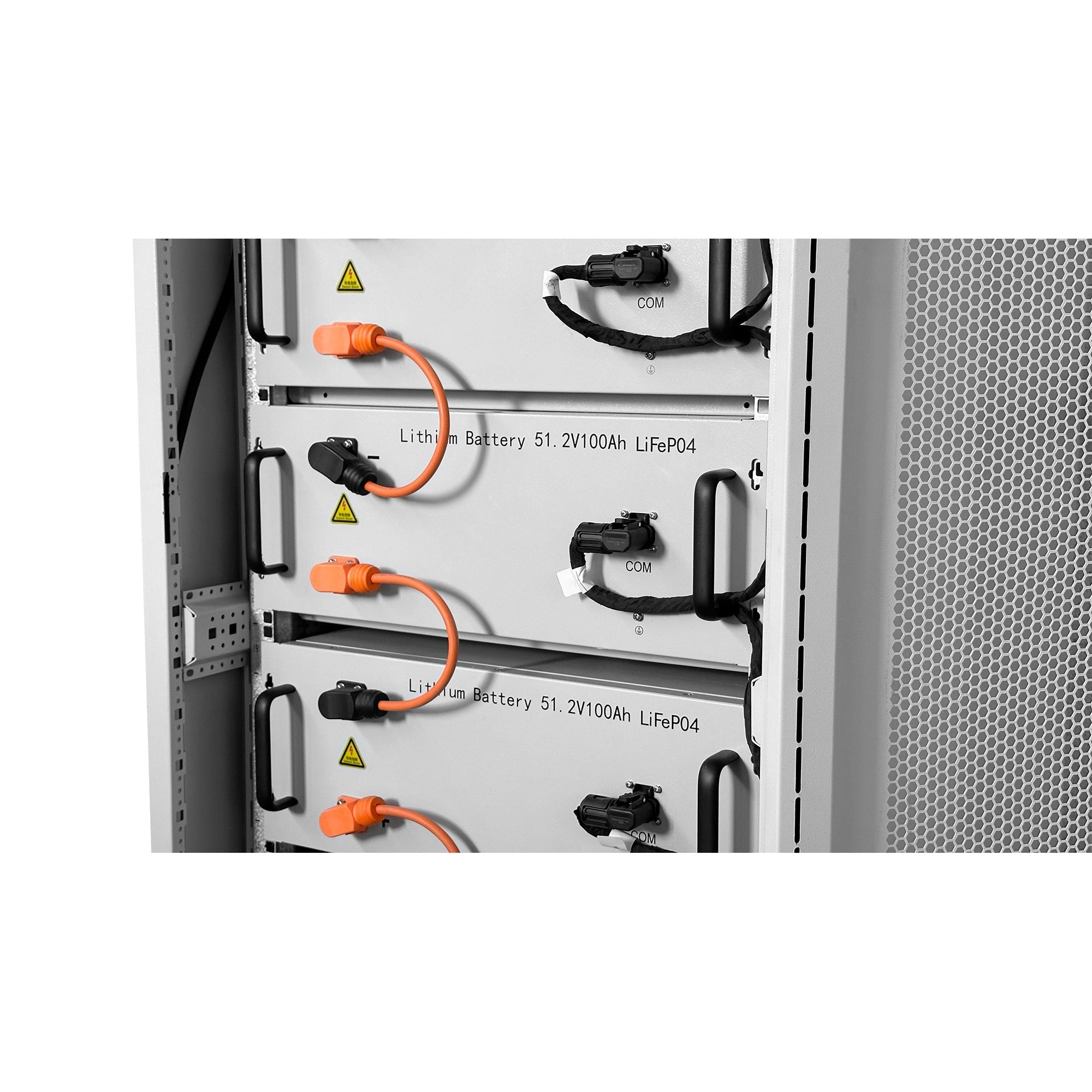

8 x Micromall 409V 5.2KW Batteries with 128 cells, 500amp Continuous (15-year warranty)

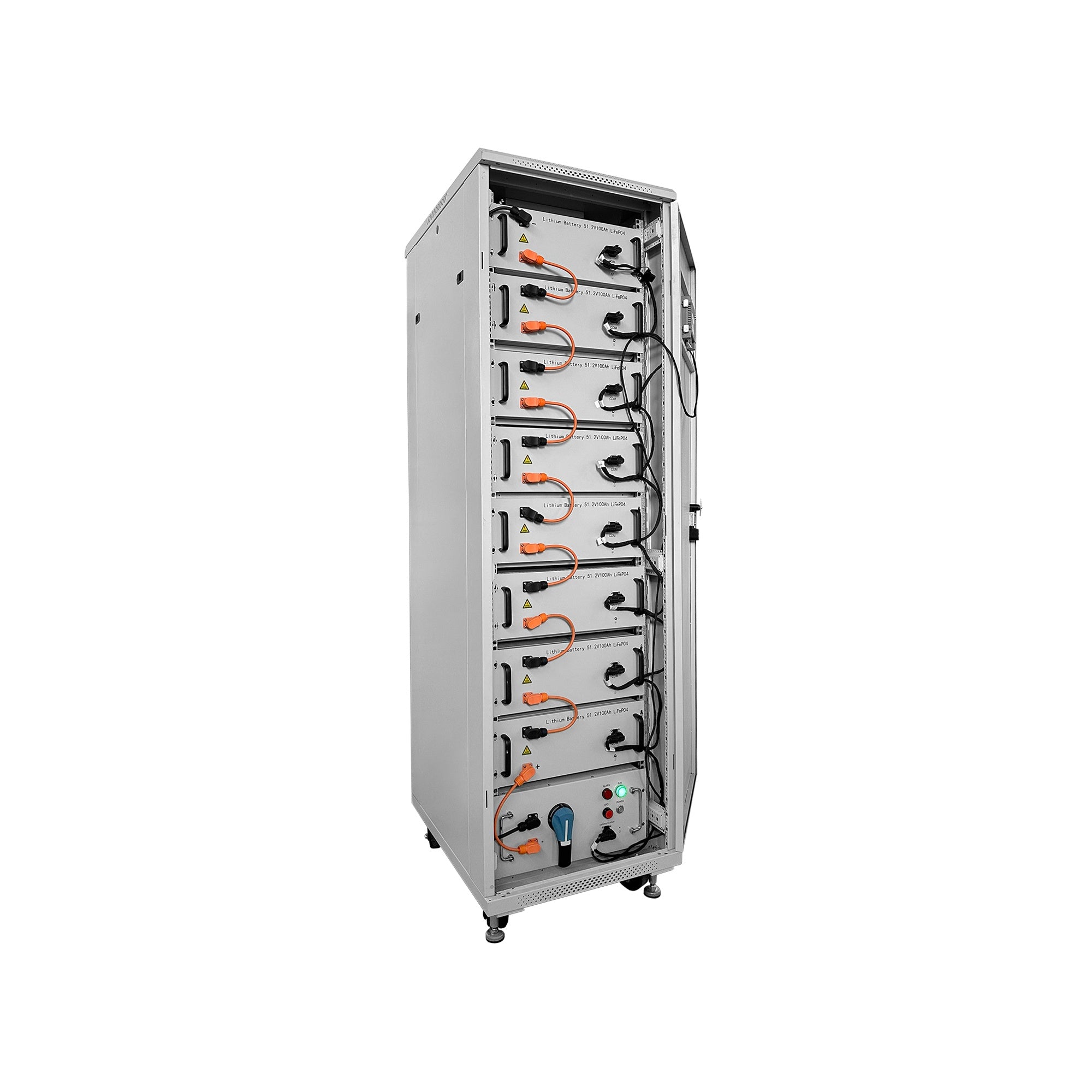

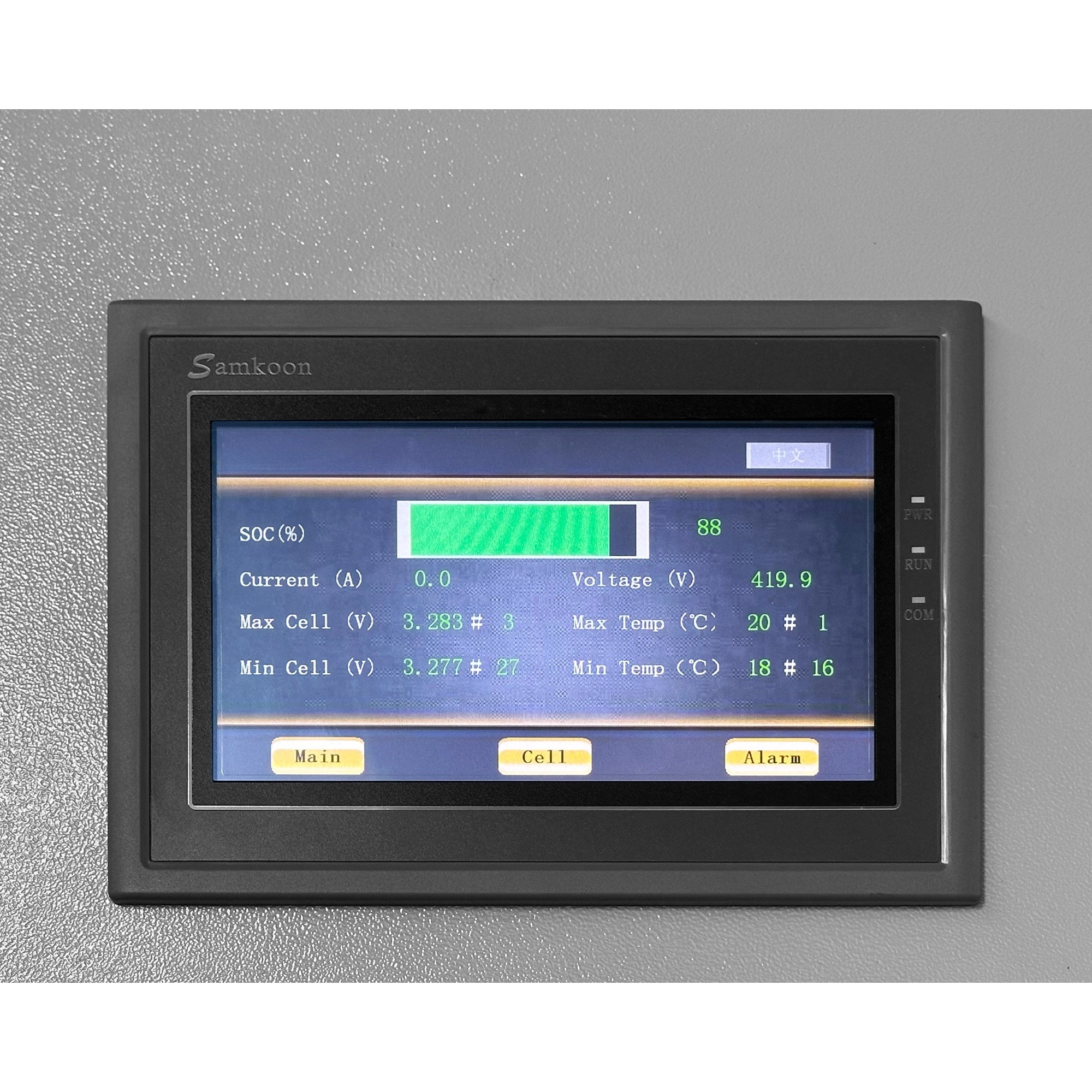

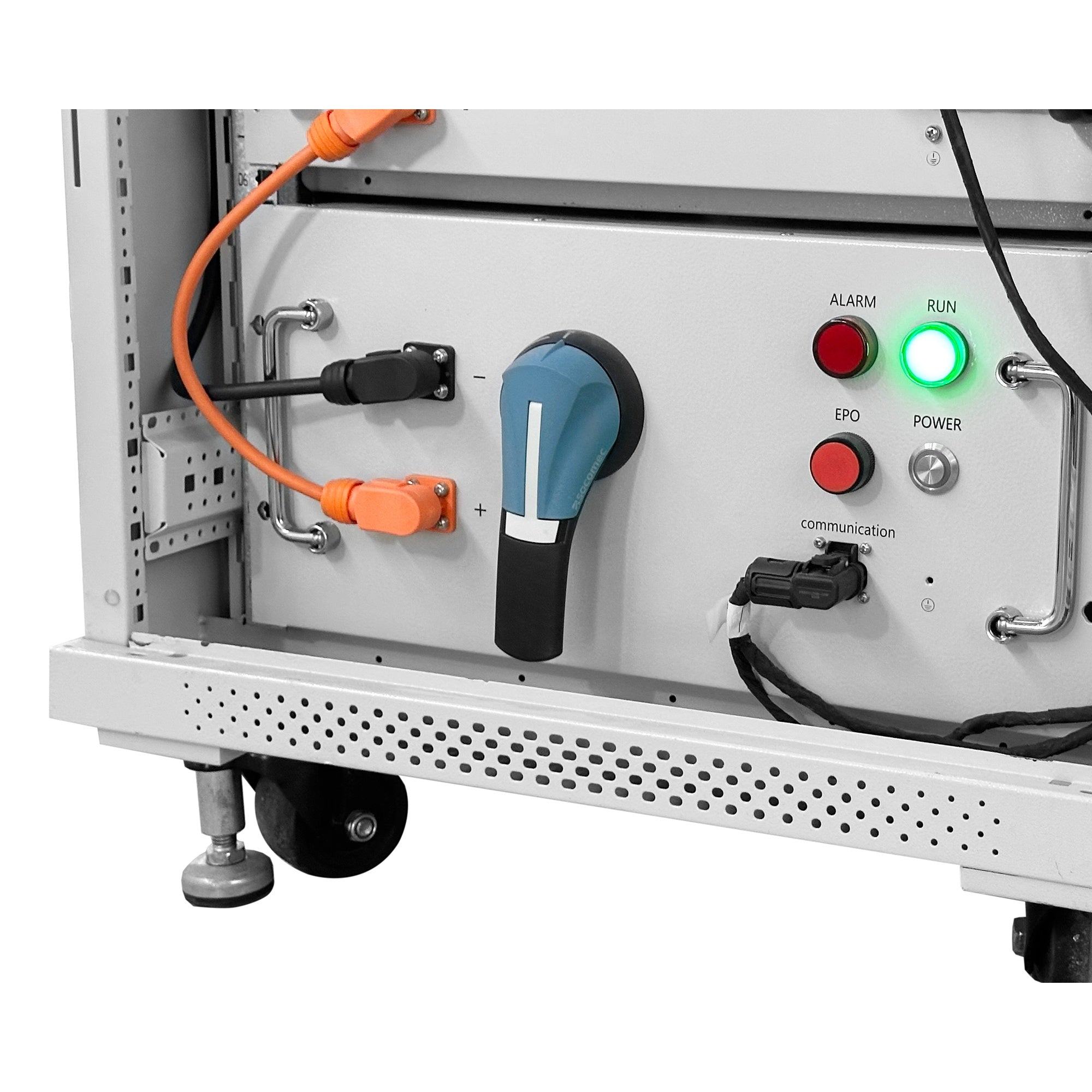

1 x High Voltage Cabinet with Control Operating System

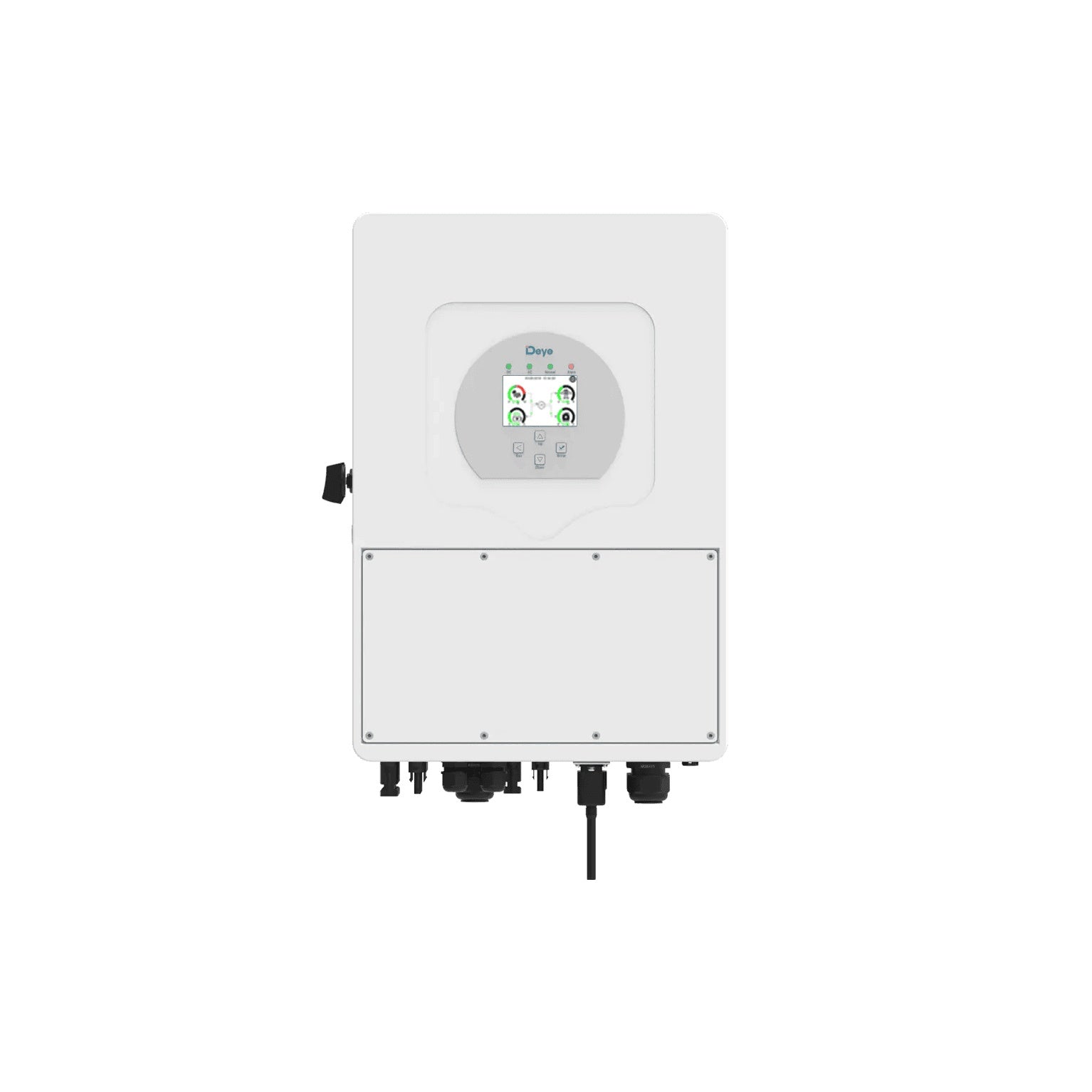

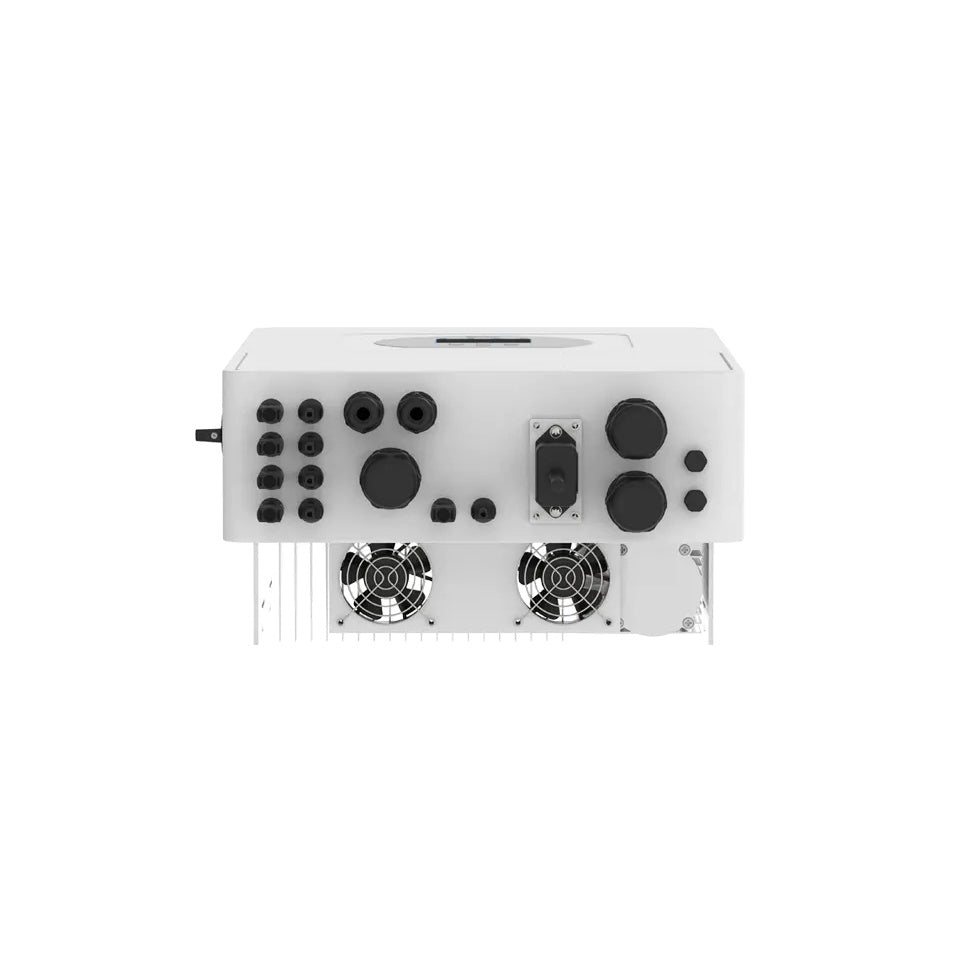

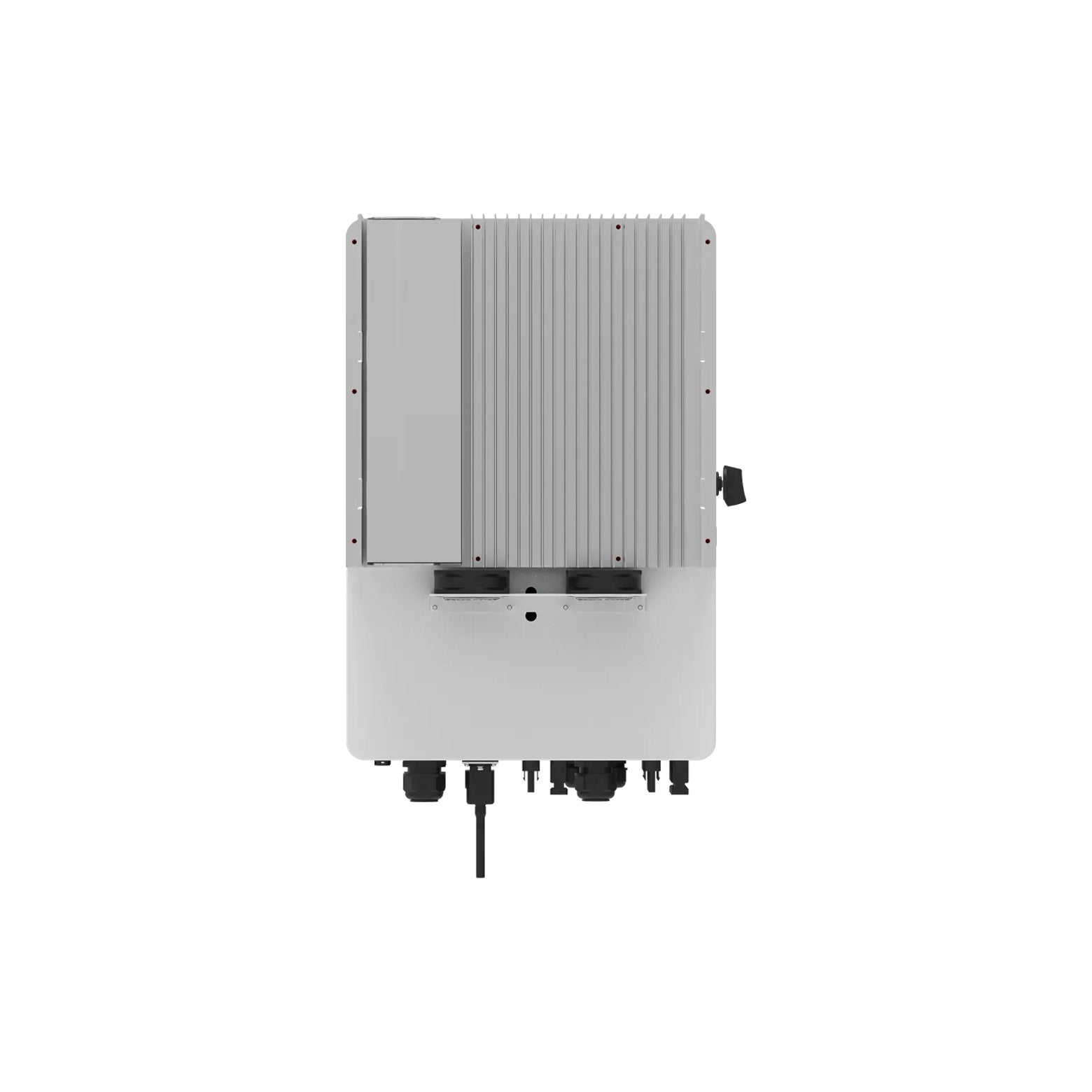

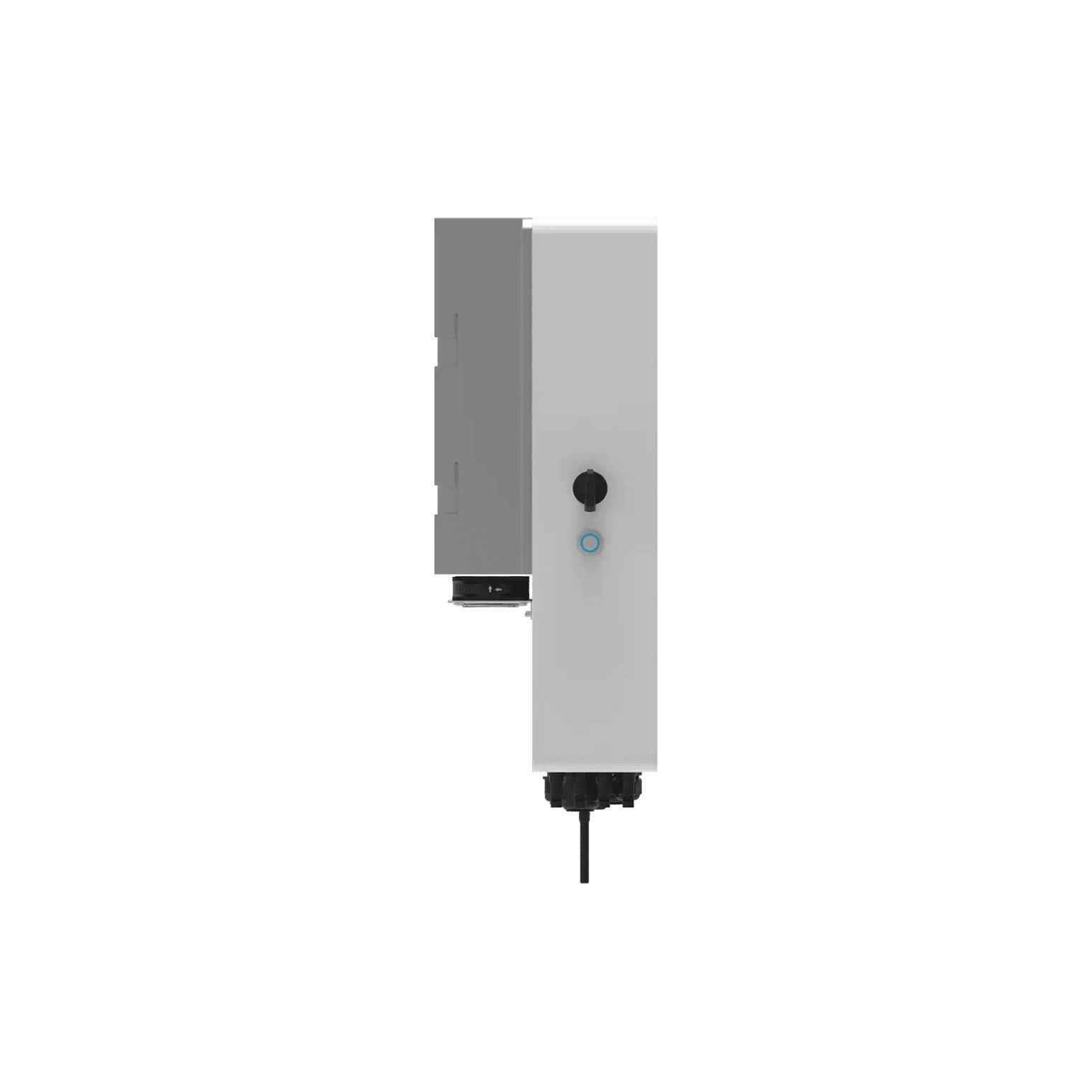

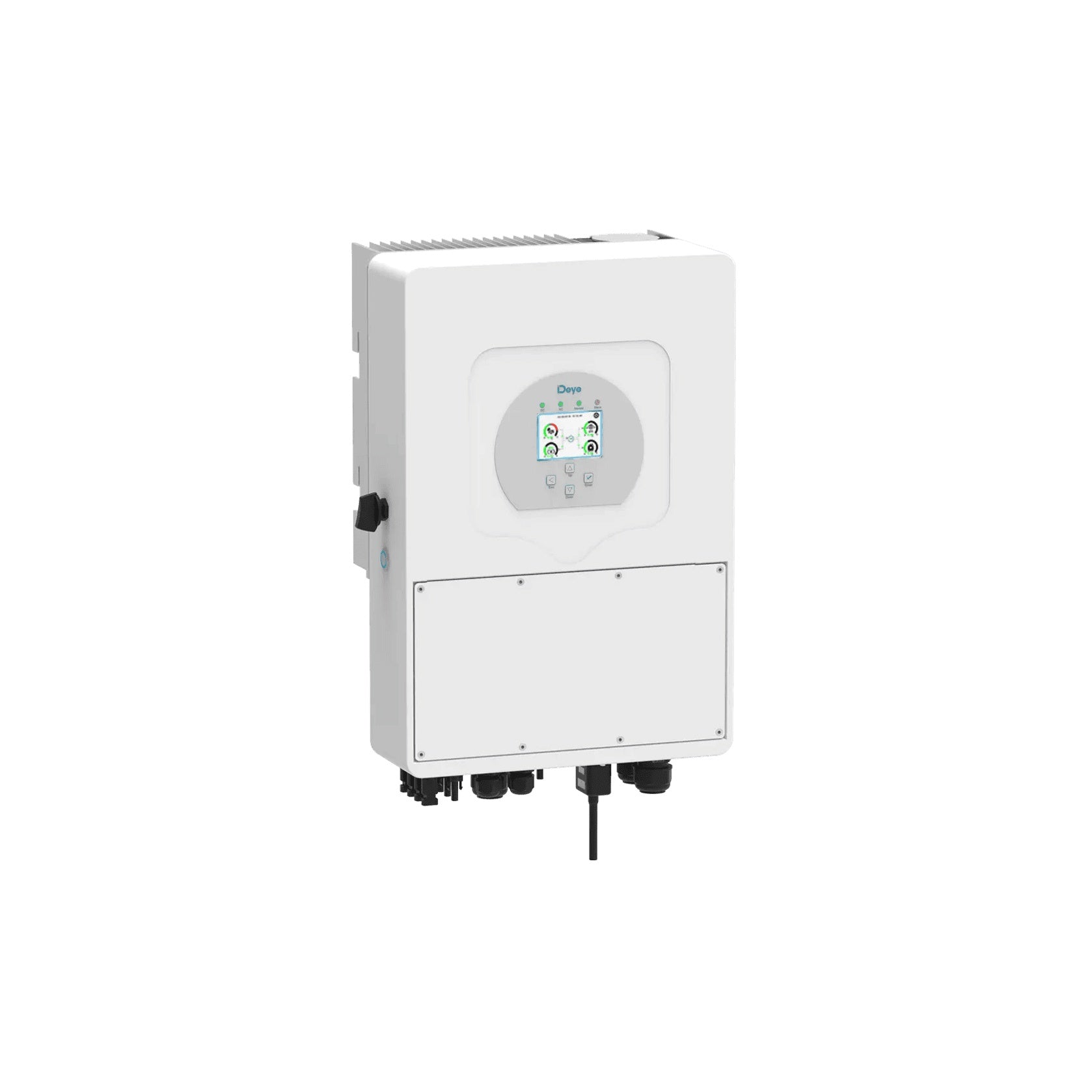

The SUN-20K-SG01HP3-AU-AM2 is a state-of-the-art three-phase hybrid inverter with high voltage battery compatibility, ensuring system safety and reliability. Its compact design and high-power density support a 1.3 DC/AC ratio, optimizing device investment. The inverter accommodates three-phase unbalanced output, expanding its application versatility. Equipped with dual CAN ports, one RS485 port for BMS, one RS232 port for remote control, and one DRM port, the system offers smart and flexible operation.
Battery Input Data:
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 160-700V
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Number of Battery Inputs: 1
Charging Strategy for Li-Ion Battery: Self-adaptation to BMS
PV String Input Data:
Max. PV Input Power (W): 30000W
Max. DC Input Voltage (V): 1000
Start-up Voltage (V): 180V
MPPT Range (V): 150V-850V
Rated PV Input Voltage (V): 600V
Full Load DC Voltage Range (V): 500-850
Max. Operating PV Input Current (A): 26A+26A
Max. Input Short-Circuit (A): 39A+39A
Number of MPPT / Strings per MPPT: 2/2
AC Output Data:
Rated AC Input/Output Active Power (W): 20000W
Max. AC Input/Output Apparent Power (VA): 20000A
Peak Power (Off-grid): 1.5 times of rated power, 10 S
Rated AC Input/Output Current (A): 29
Max. AC Input/Output Current (A): 29
Max. Continuous AC Passthrough (grid to load) (A): 80
Efficiency:
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%

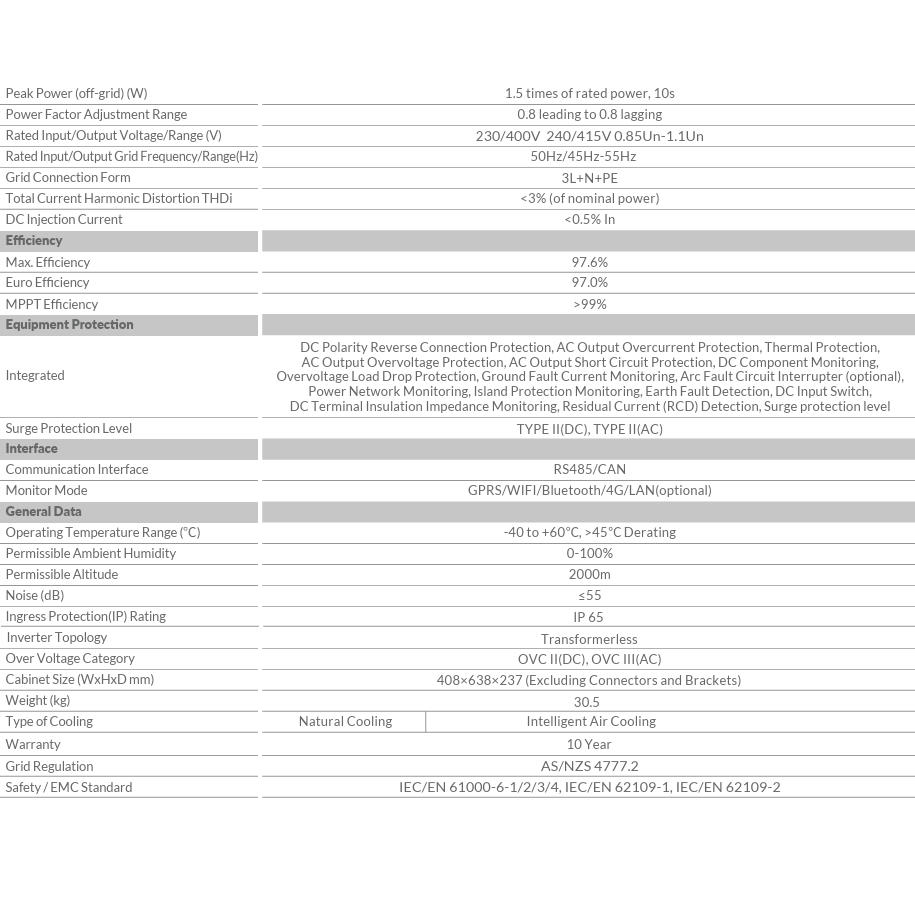

General Data:
Weight (kg): 30.5
Size (mm): 408W×638H×237D
**Vector Approved Inverter**
**DEYE LONGI New Zealand Distributor – Micromall Solar**
