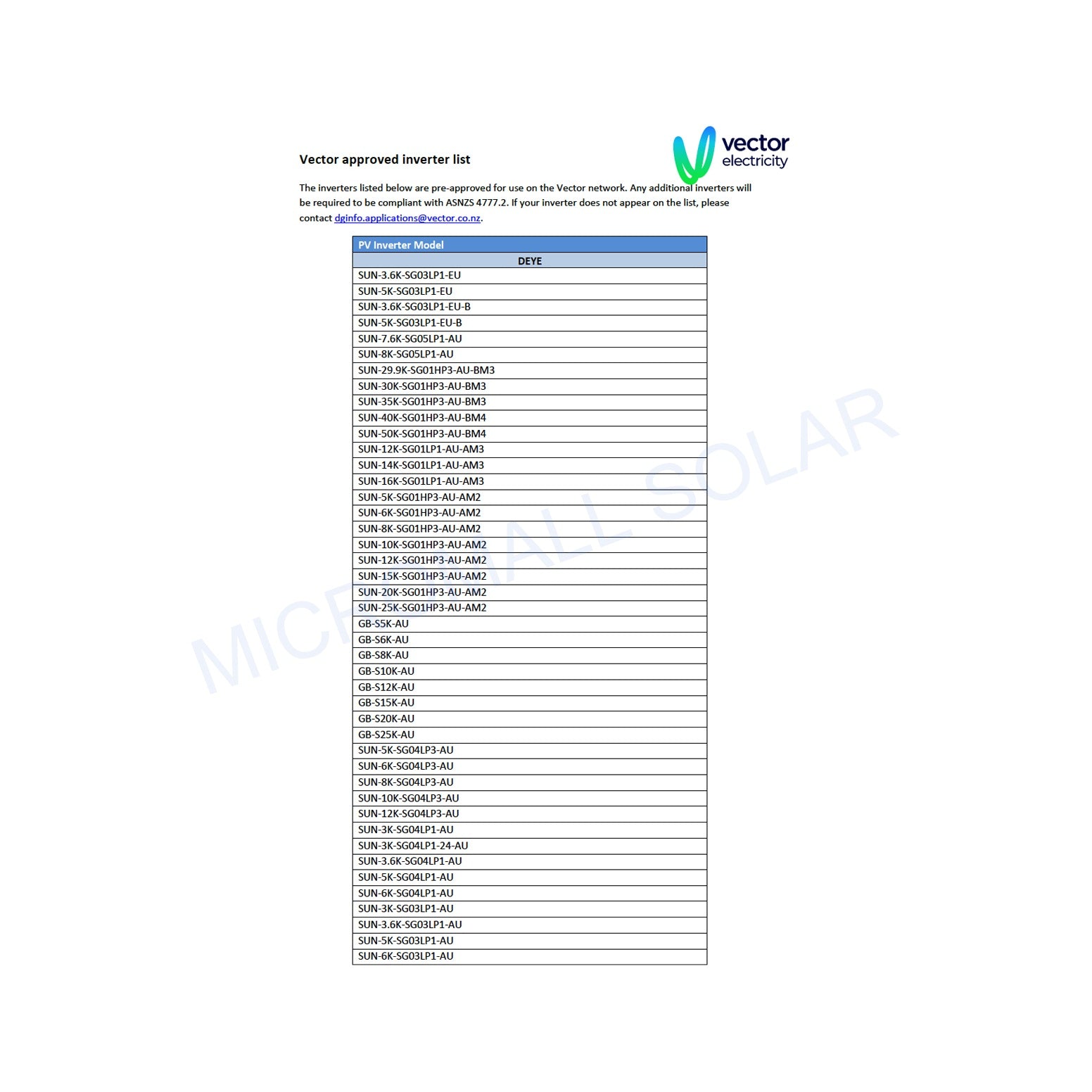

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**

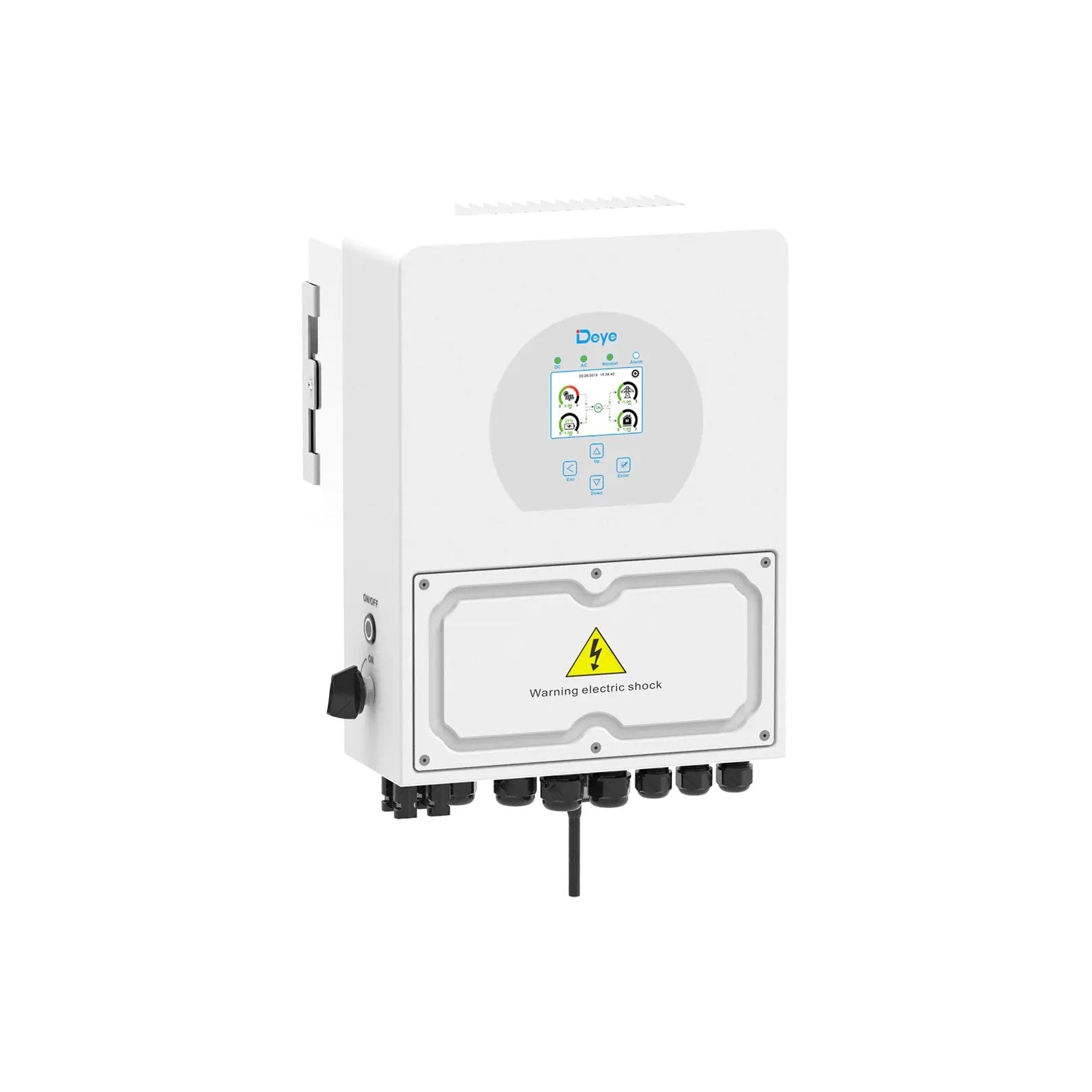

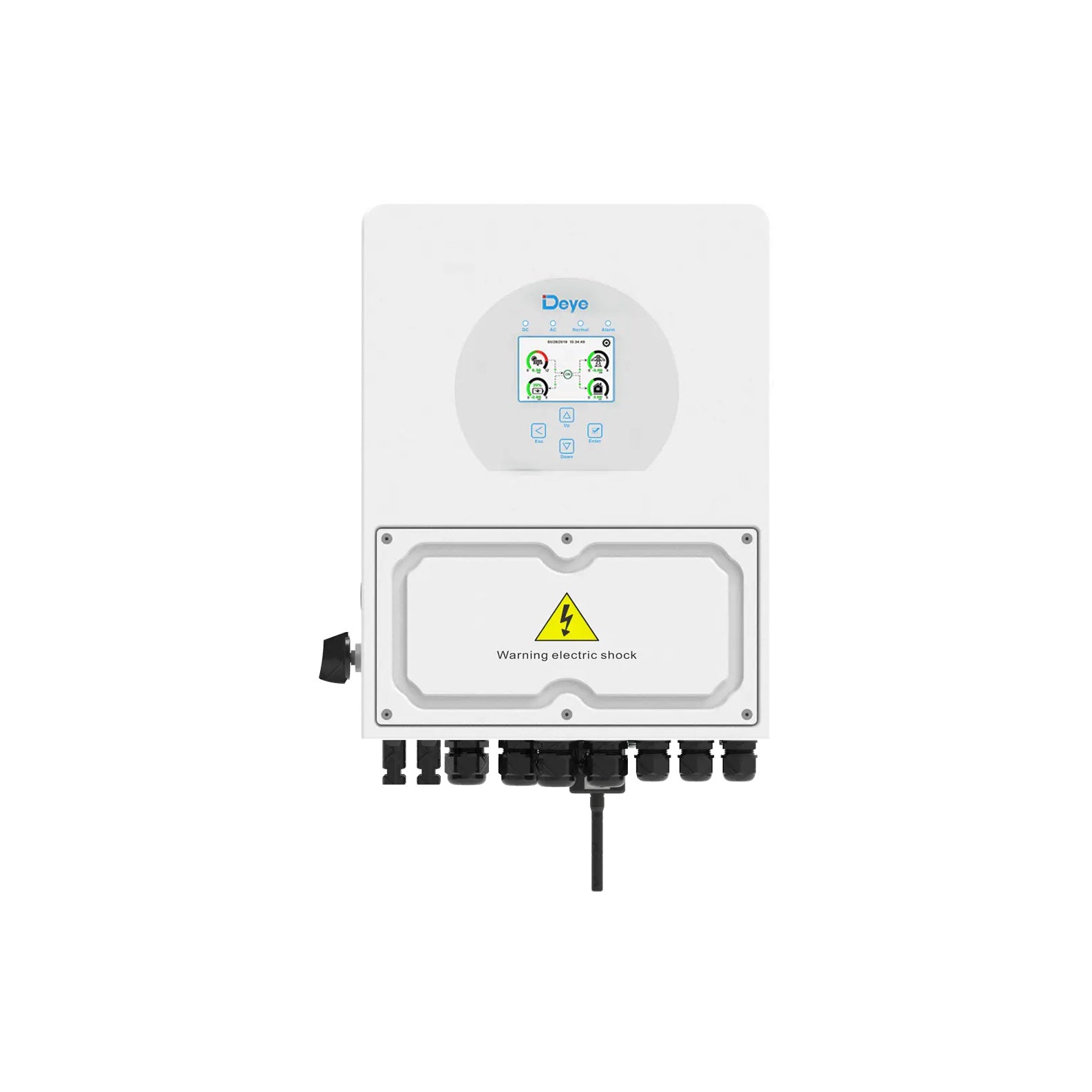

SUN-3K-SG04LP1-24-AU |24V | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported

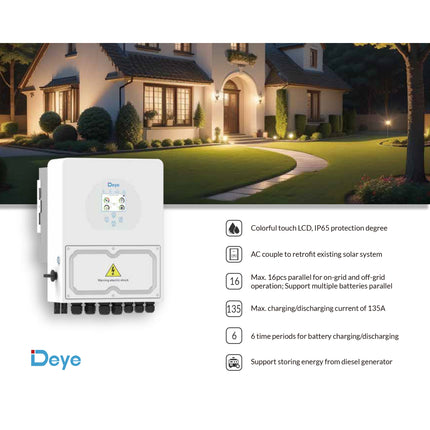

Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

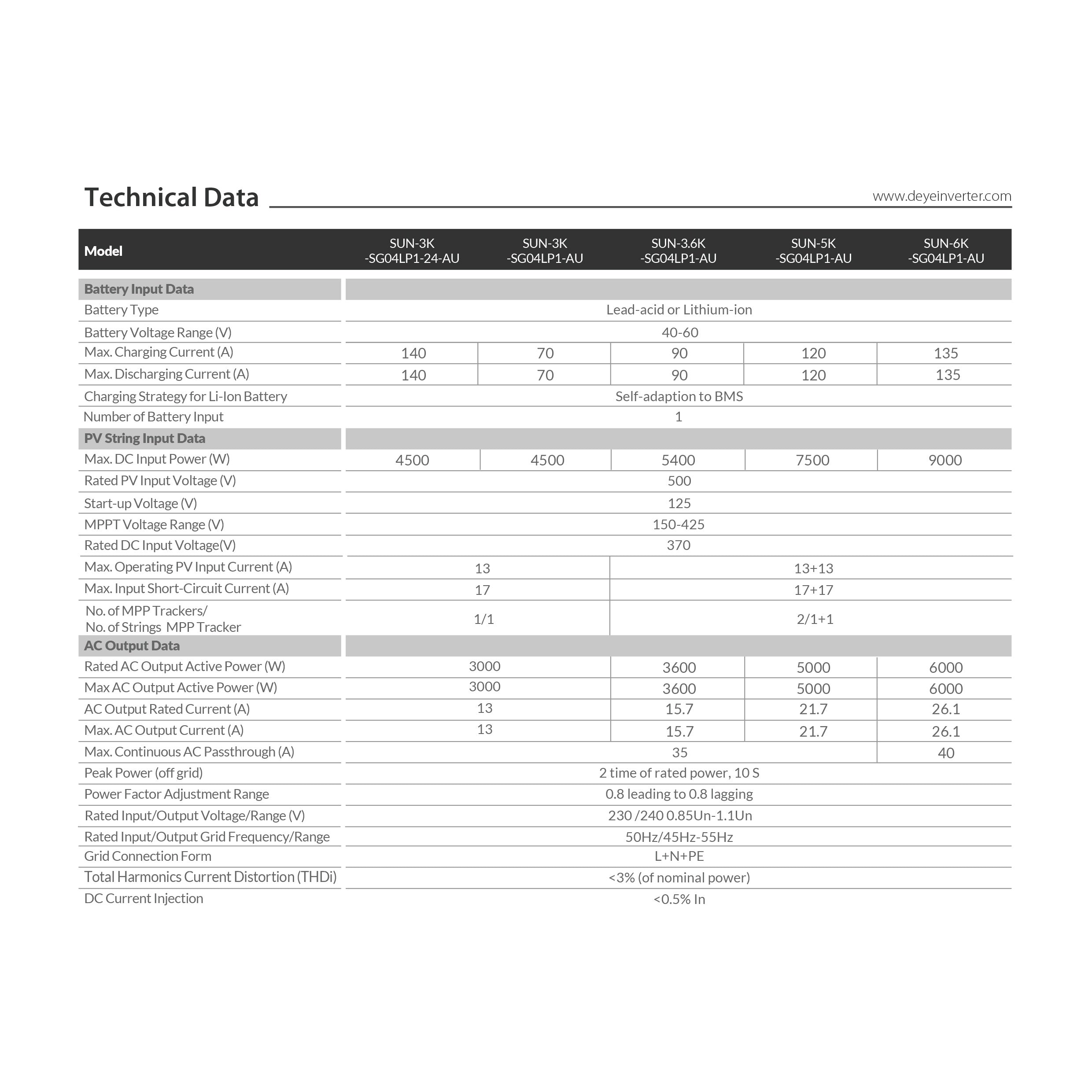

Model: SUN-3K-SG04LP1-24-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 20V-30V
Max. Charging Current (A): 140
Max. Discharging Current (A): 140
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S

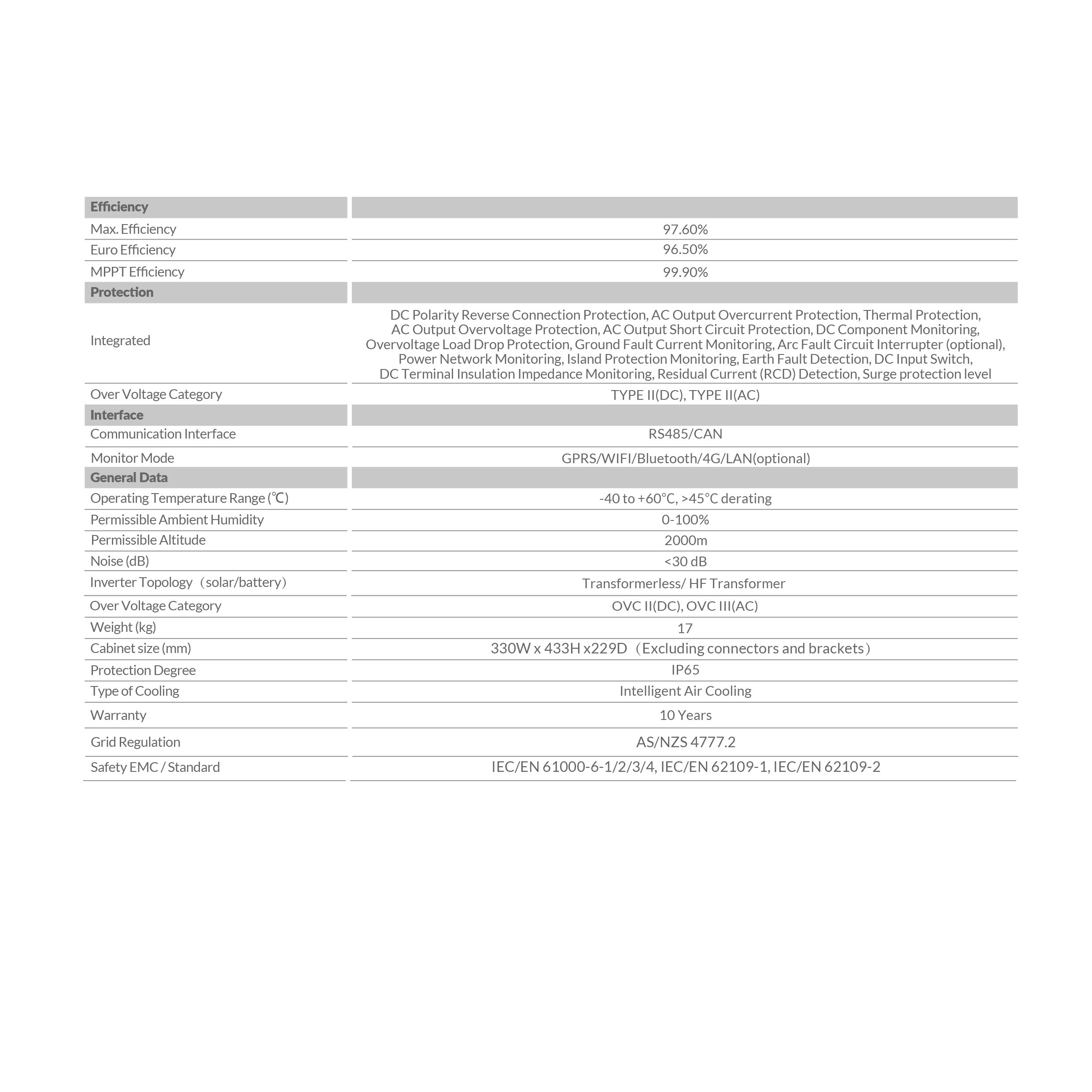

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
