Description

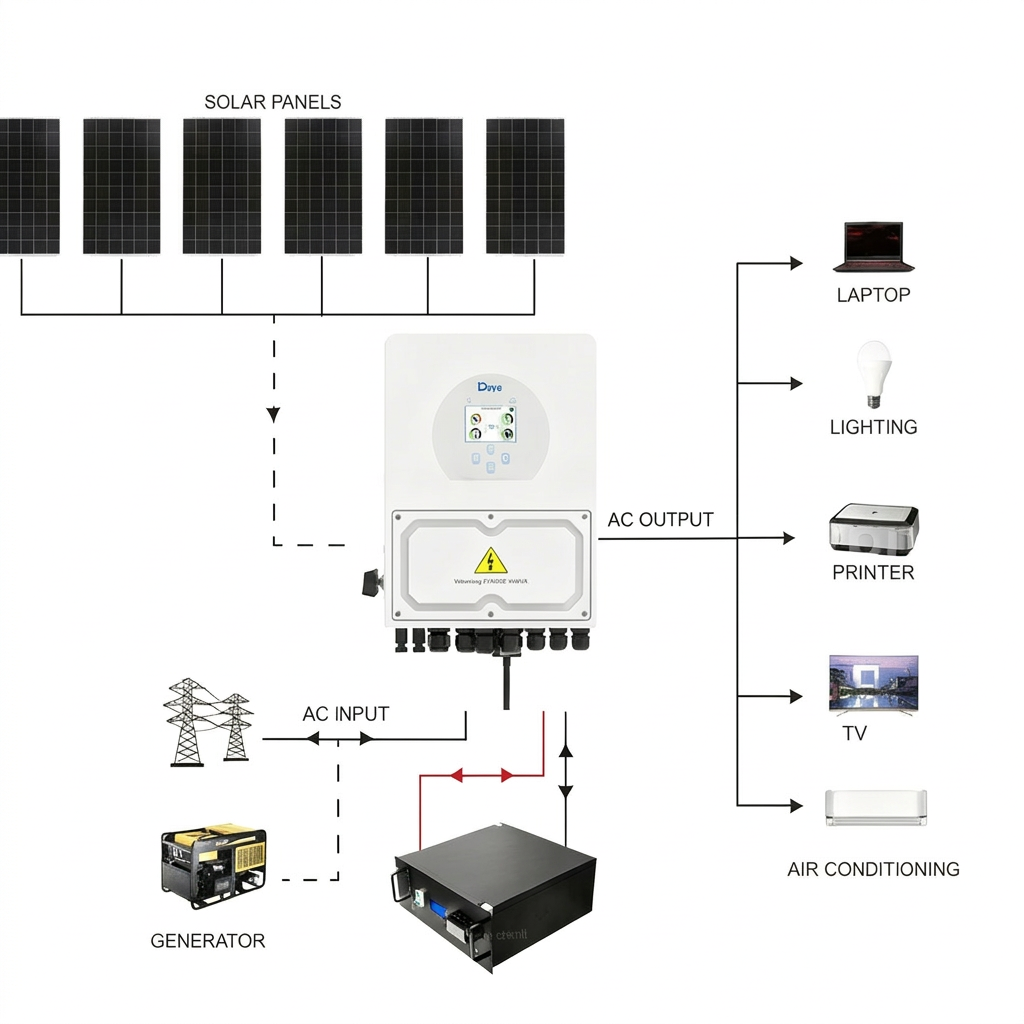

Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

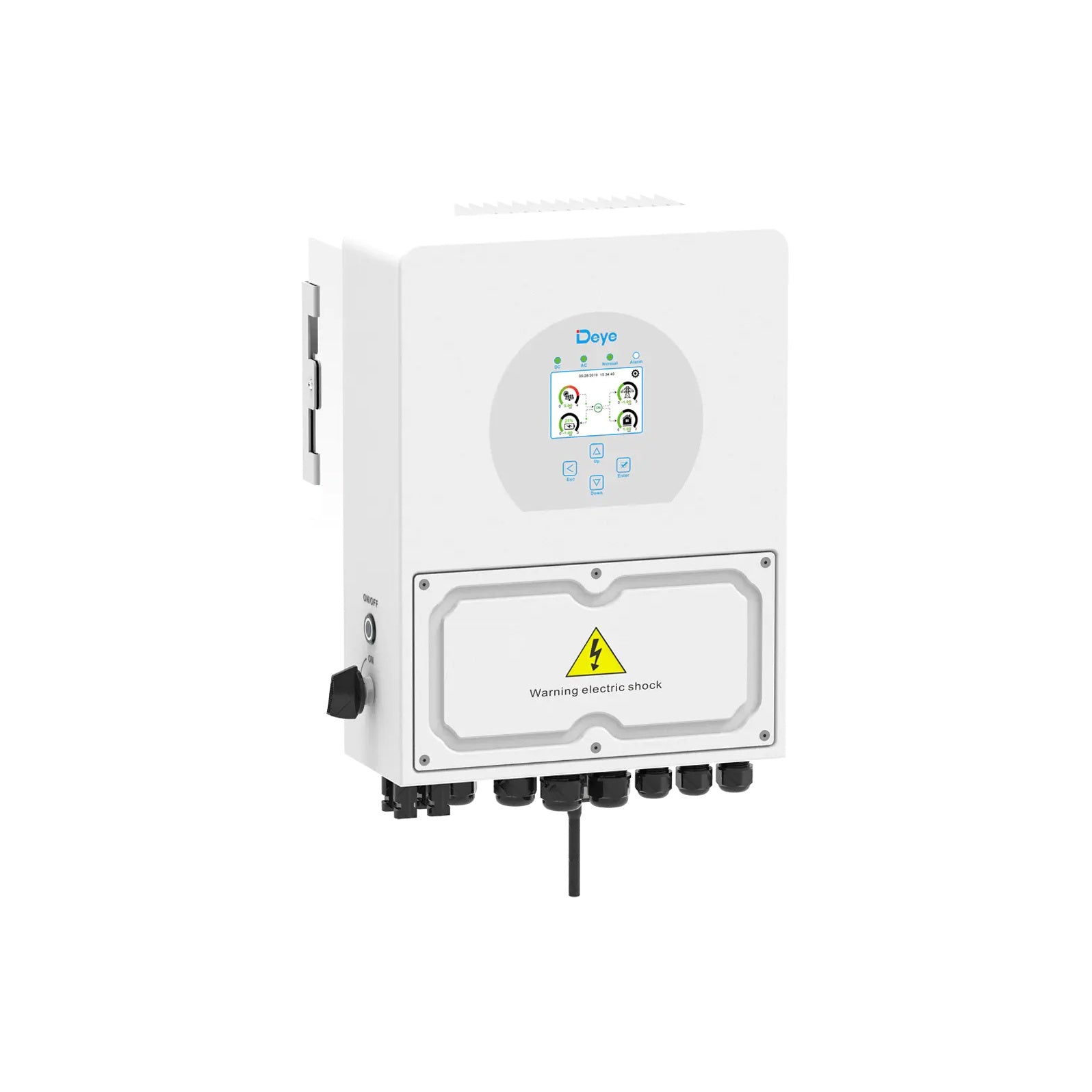

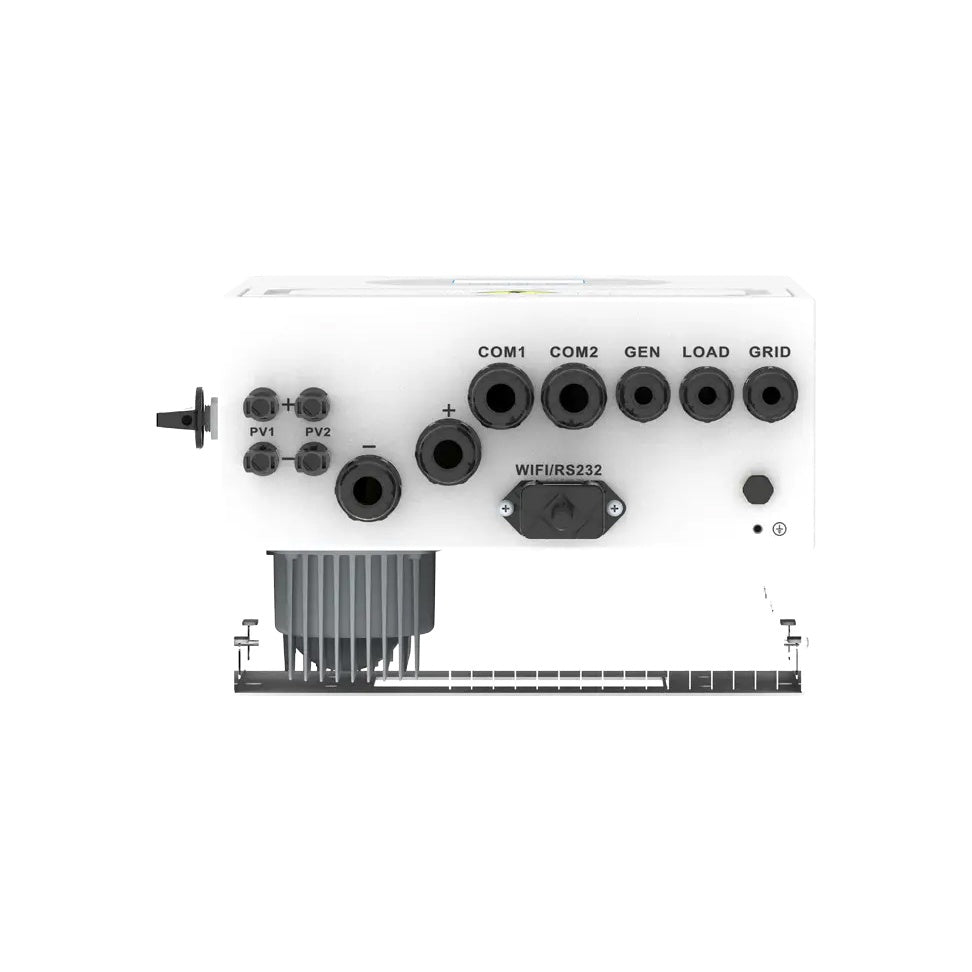

1 x Deye 5kW Single Phase 2 MPPT Hybrid Inverter SUN-5K-SG04LP1-AU (10 Years Warranty)

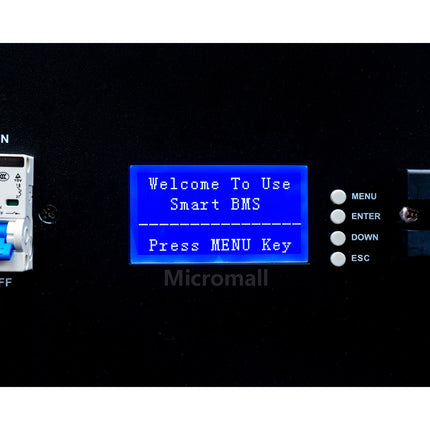

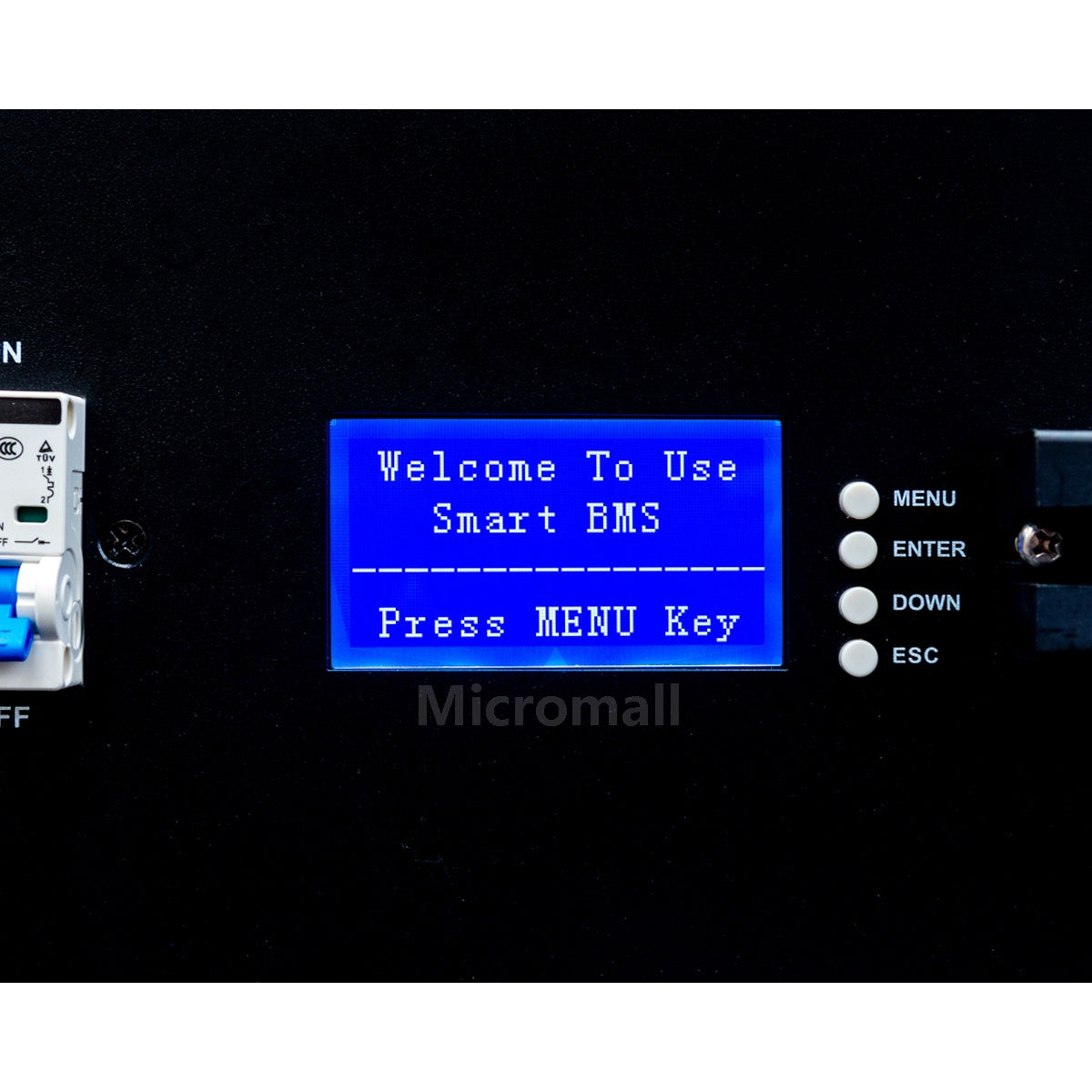

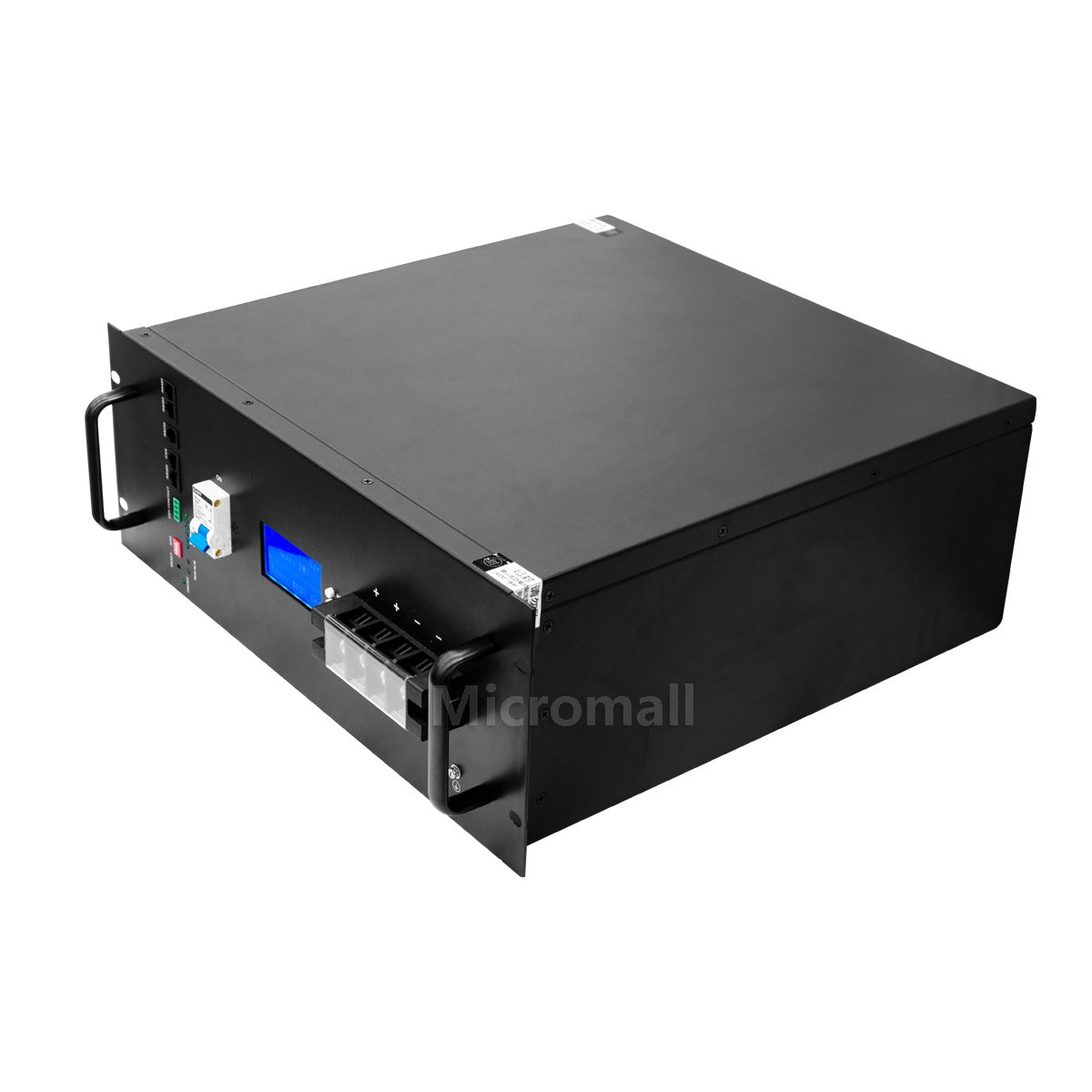

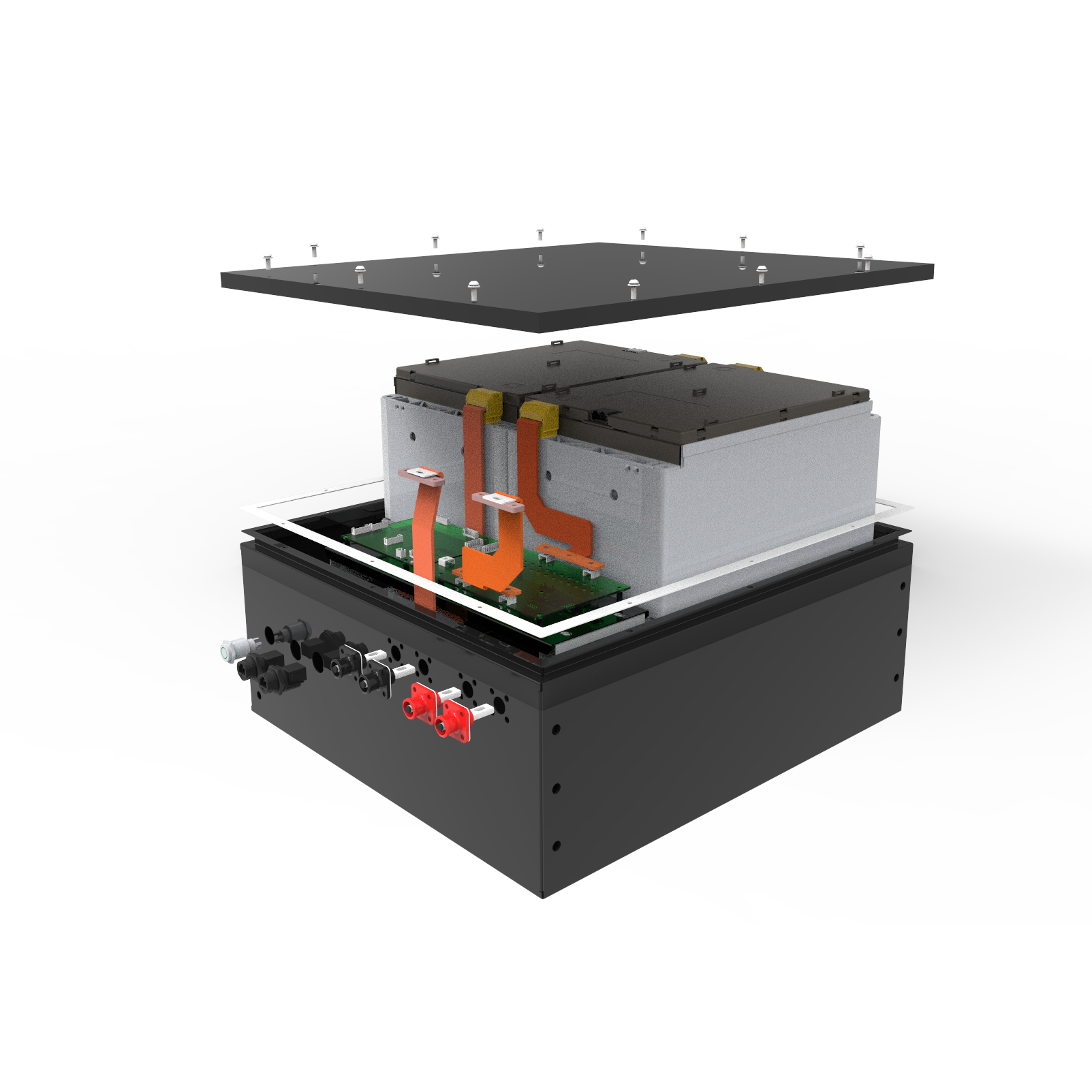

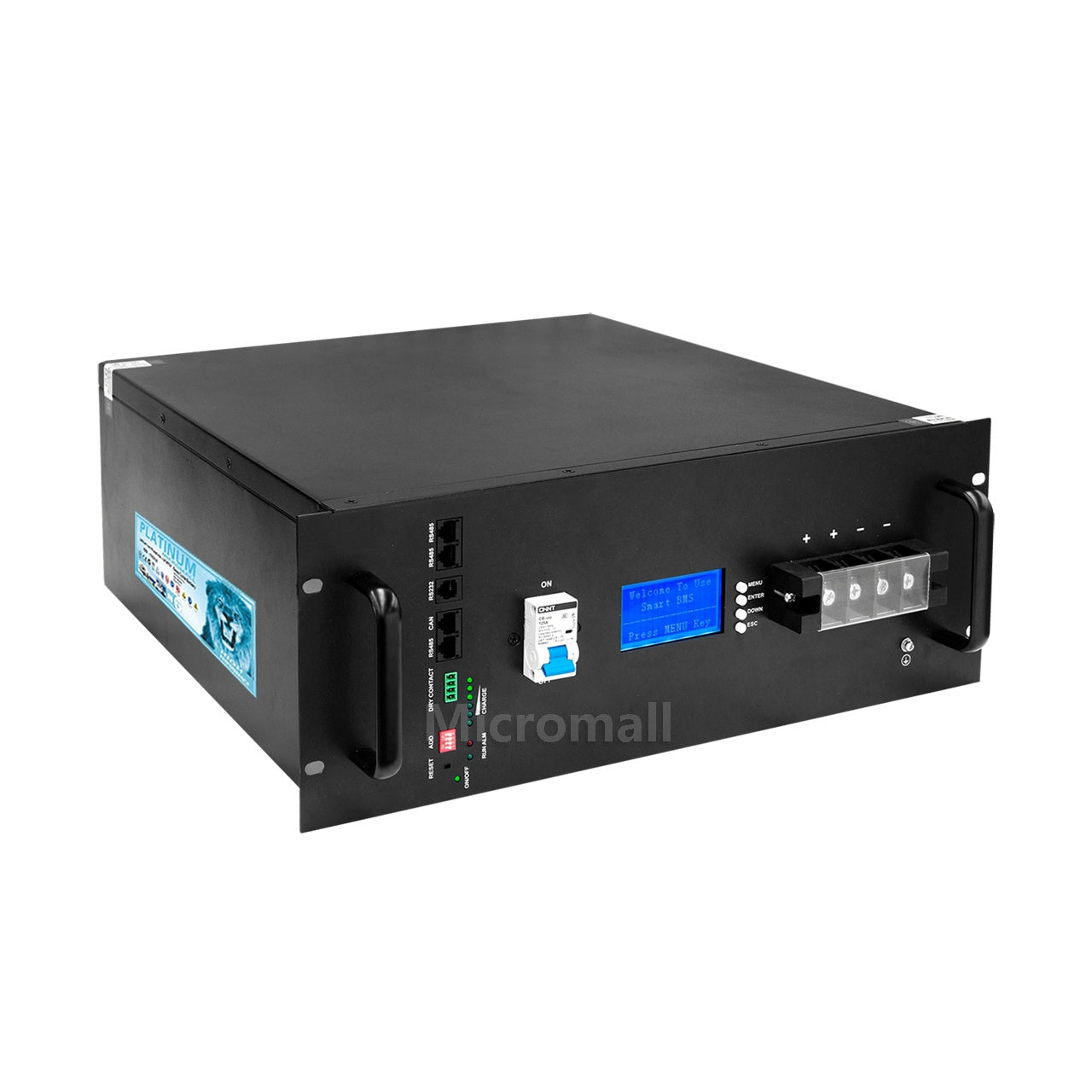

1 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 X Fuse Box

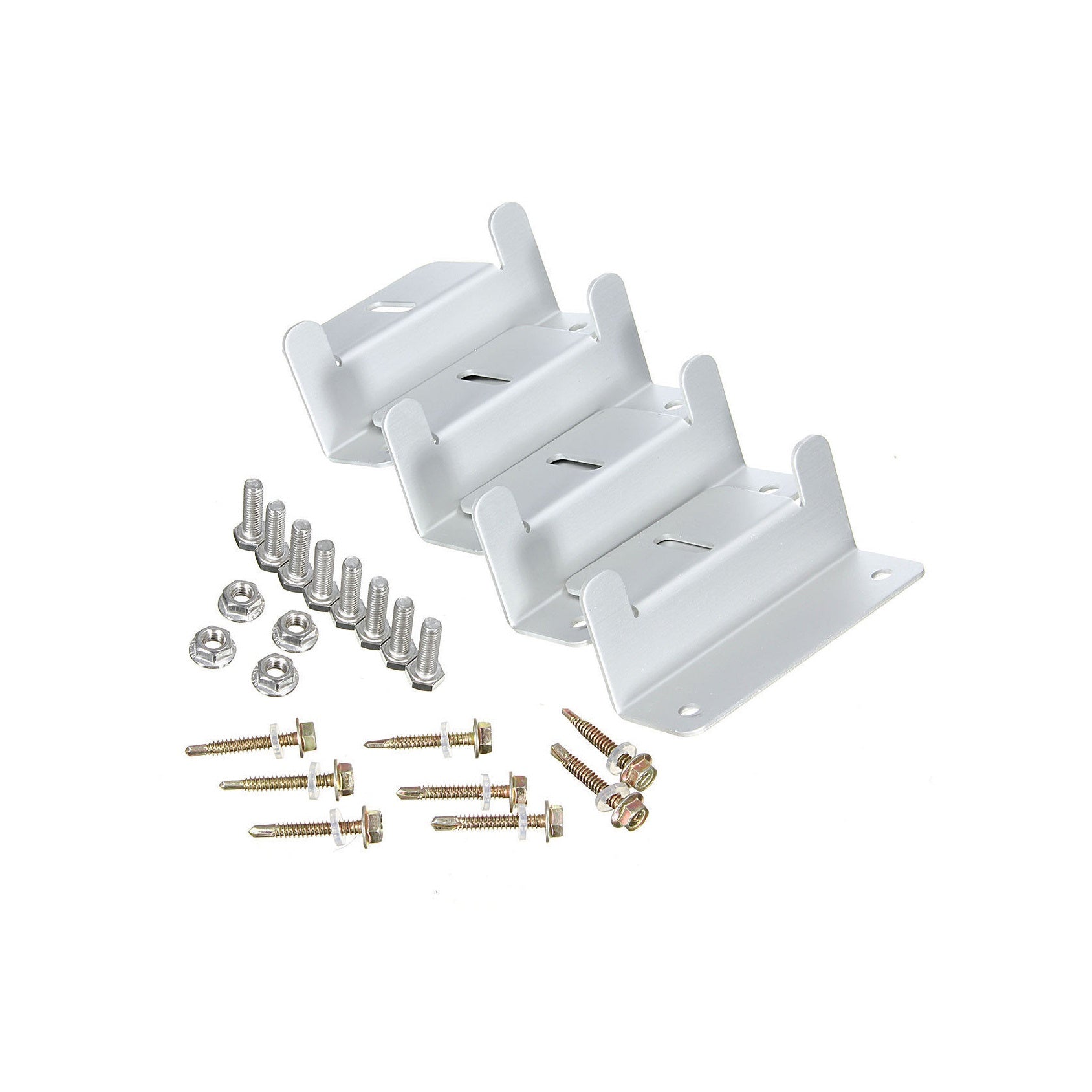

6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
The New SUN-5K-SG04LP1 hybrid inverter 10 years full local warranty! Install info professional service support! Communication with battery service support!

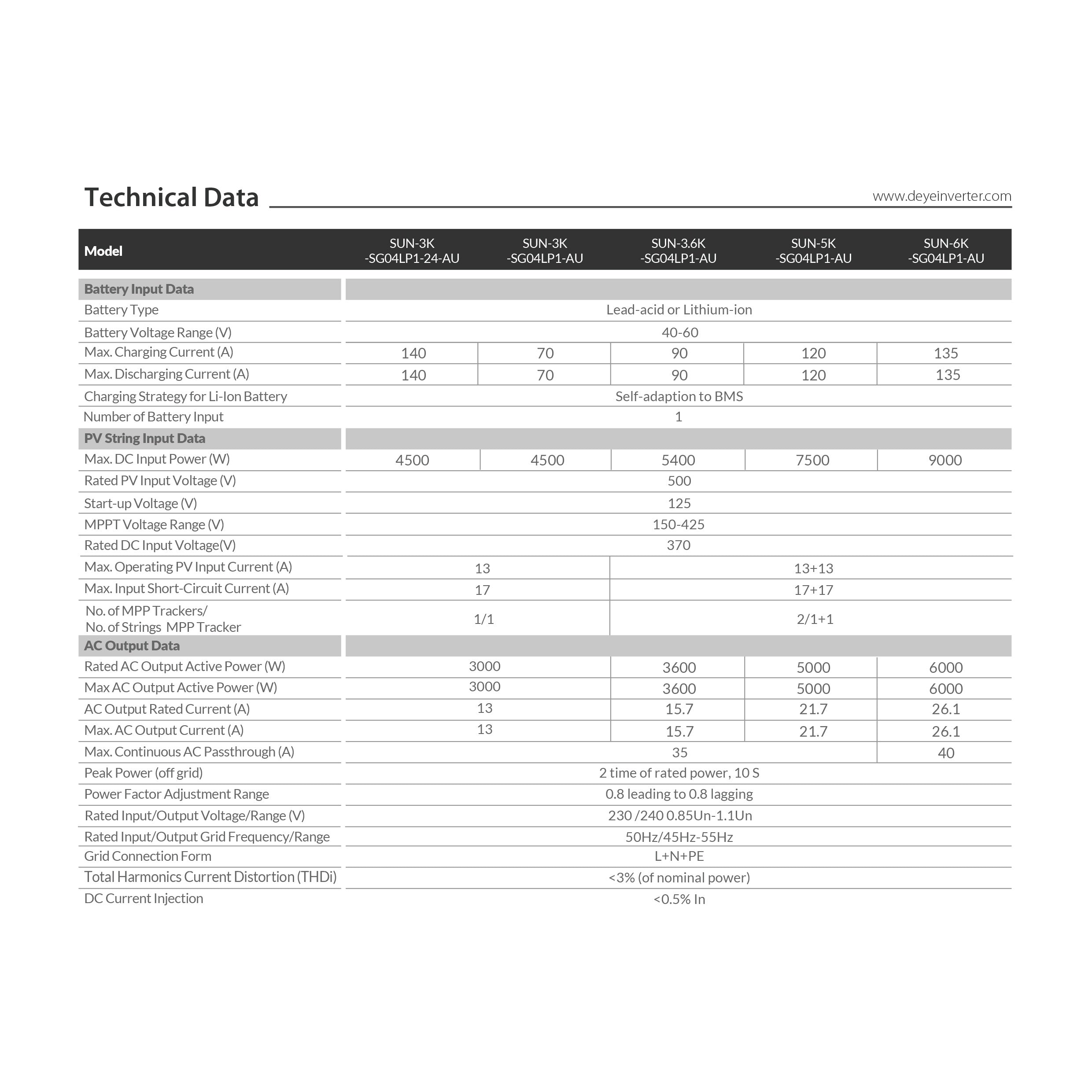

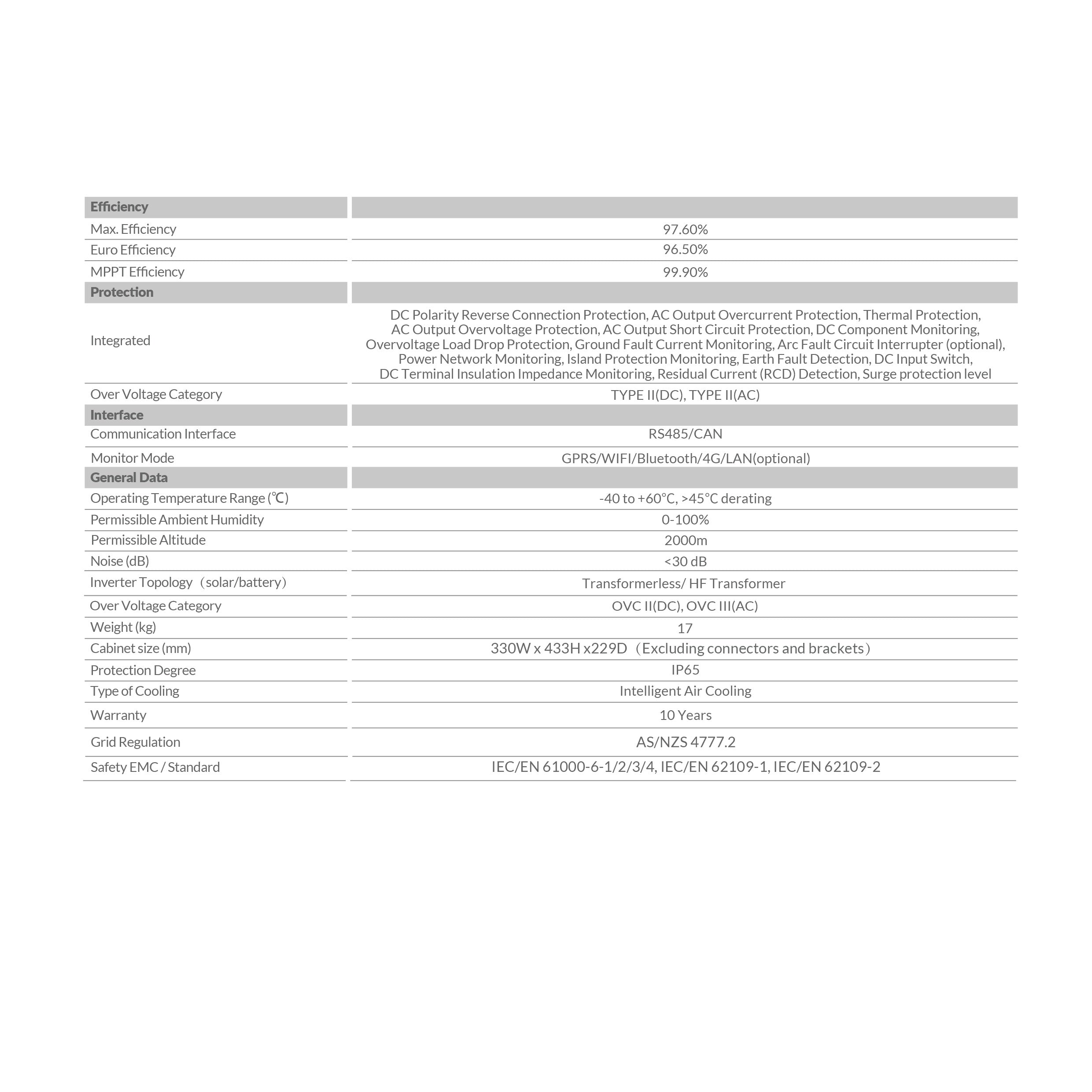

Specifications
Battery Type： Lead-acid or Lithium-ion
Battery Voltage Range (V)： 40-60
Max. Charging Current (A)： 120
Max. Discharging Current (A)： 120
Charging Strategy for Li-Ion Battery： Self-adaption to BMS
Number of Battery Input： 1
Max. DC Input Power (W)：7500
Rated PV Input Voltage (V)：500
Start-up Voltage (V)： 125
MPPT Voltage Range (V)： 150-425
Rated DC Input Voltage(V)：370
Max. Operating PV Input Current (A)：13+13
Max. Input Short-Circuit Current (A)： 17+17
No. of MPP Trackers/ No. of Strings MPP Tracker： 2/1+1
Rated AC Output Active Power (W)：5000
Max AC Output Active Power (W)： 5000
AC Output Rated Current (A)： 21.7
Max. AC Output Current (A)： 21.7
Weight (kg)： 17
Cabinet size (mm)：330W x 433H x229D(Excluding connectors and brackets)
Protection Degree：IP65

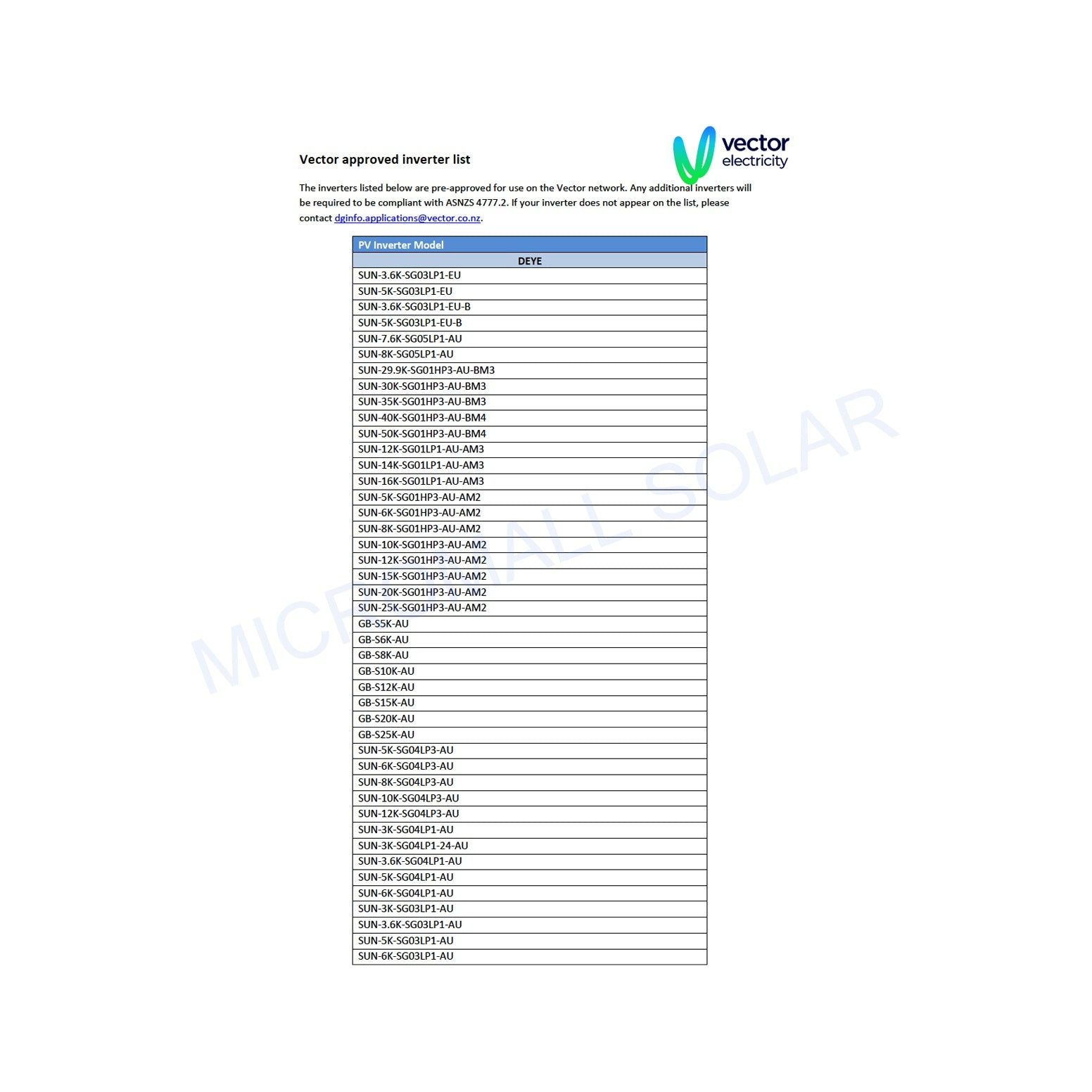

***Vector Approved Inverter***
***4th Generation AU Version Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**Authorized Longi distributor in New Zealand**
