Description

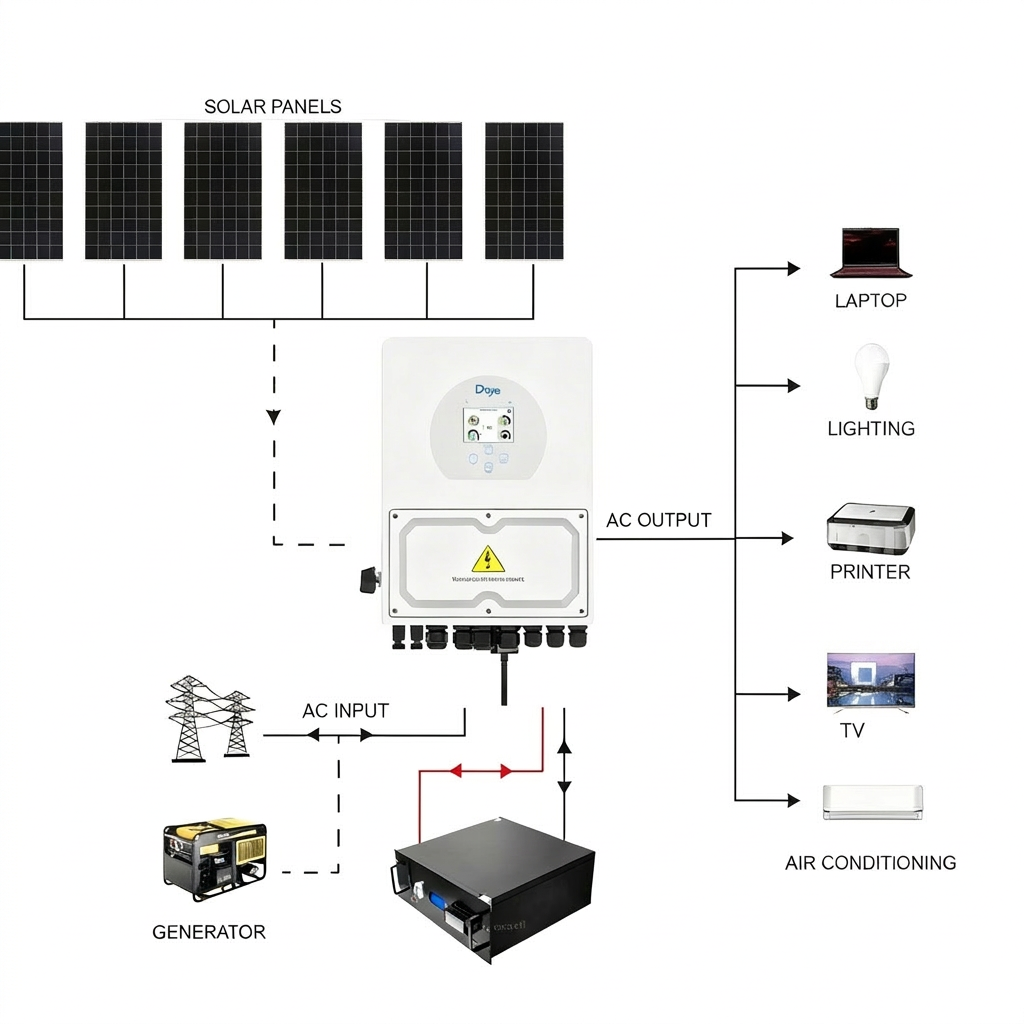

Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:

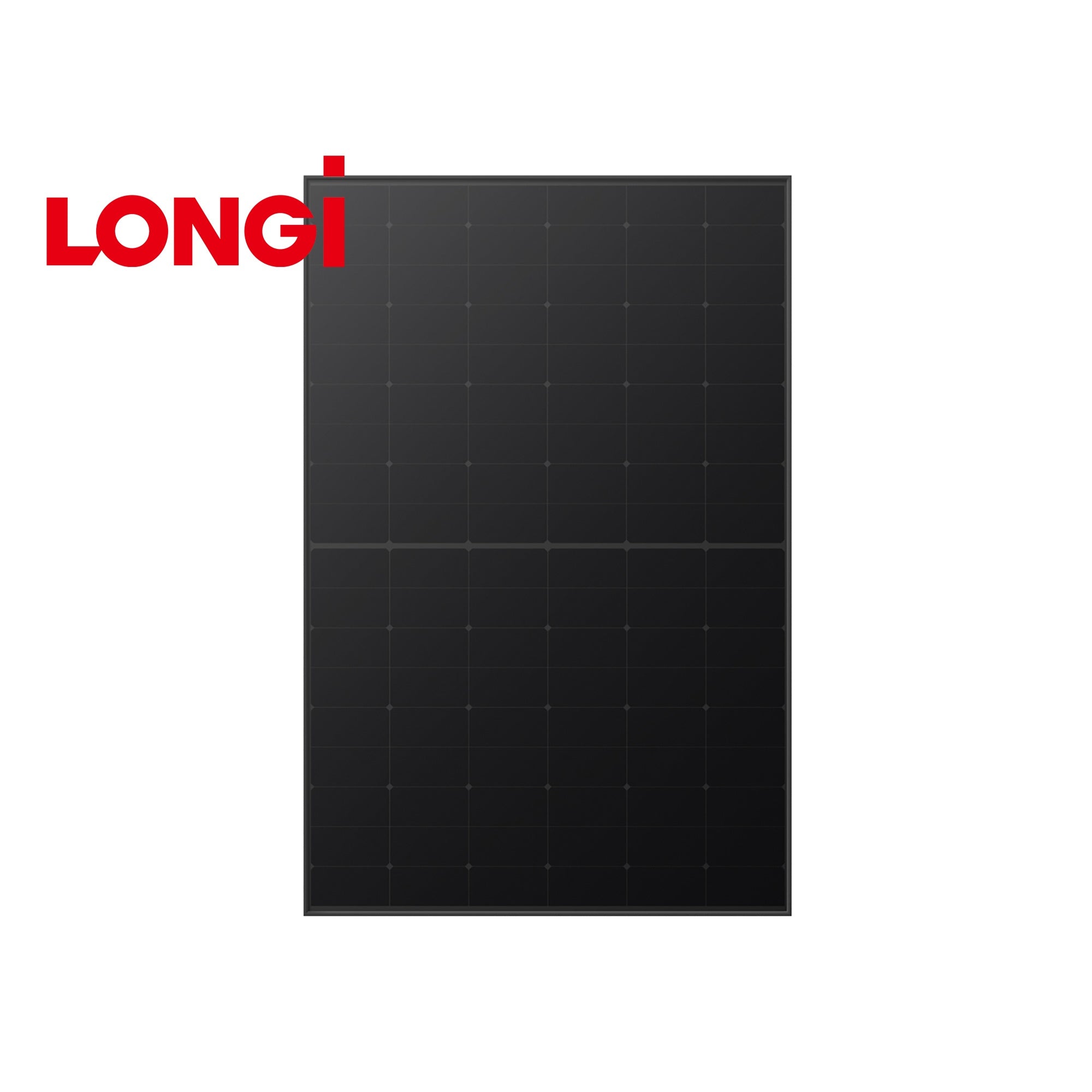

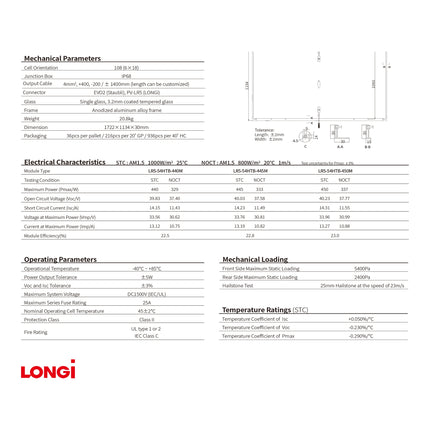

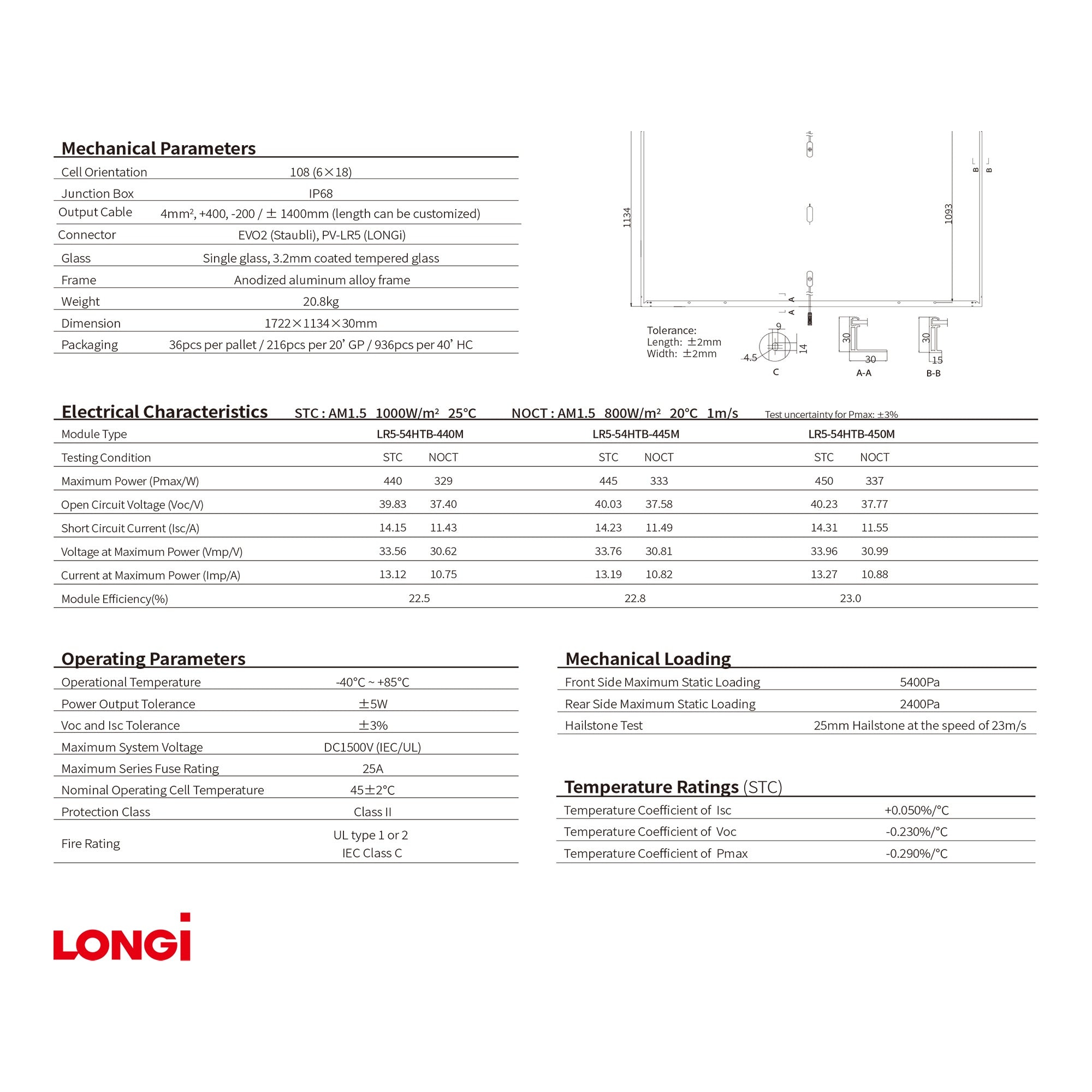

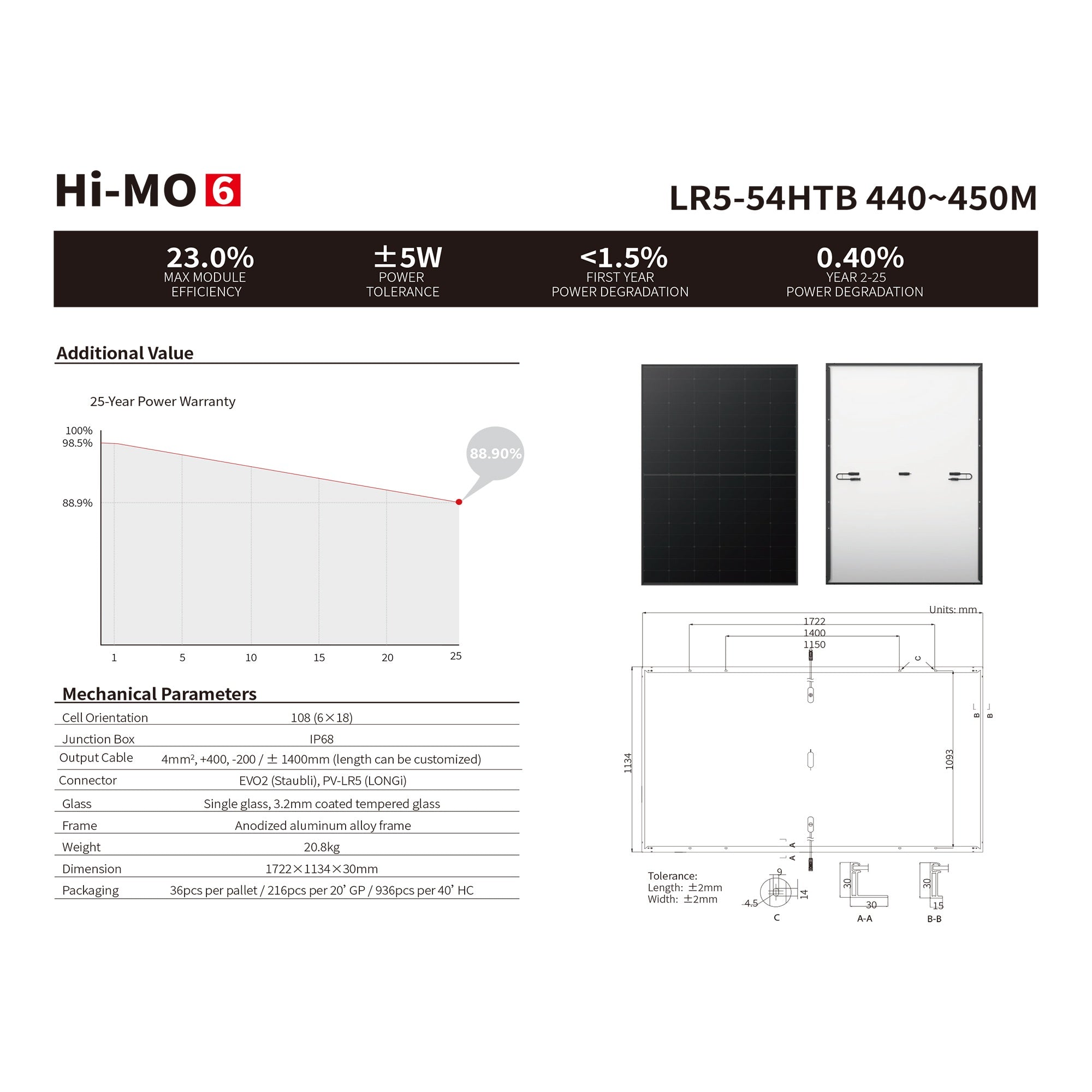

6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

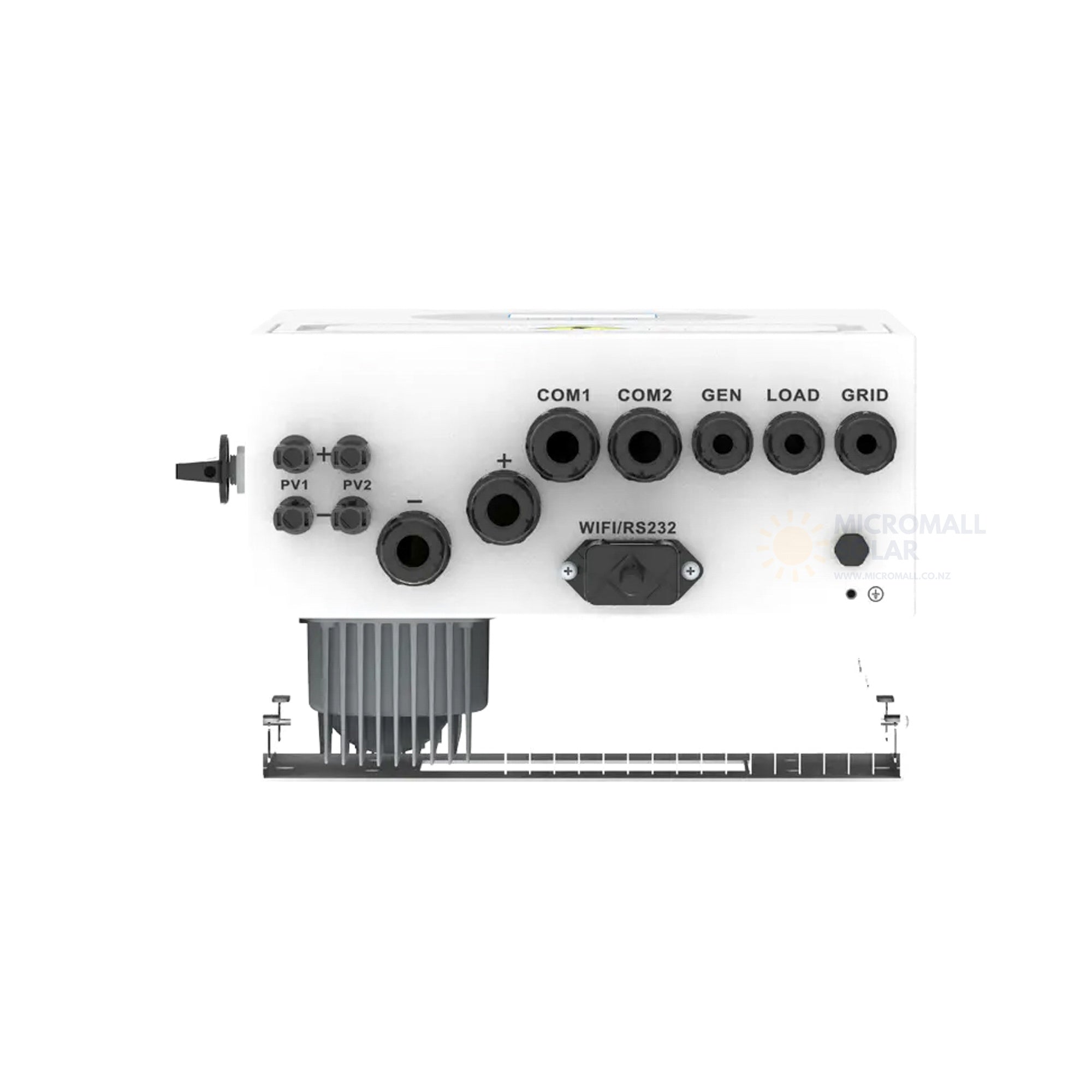

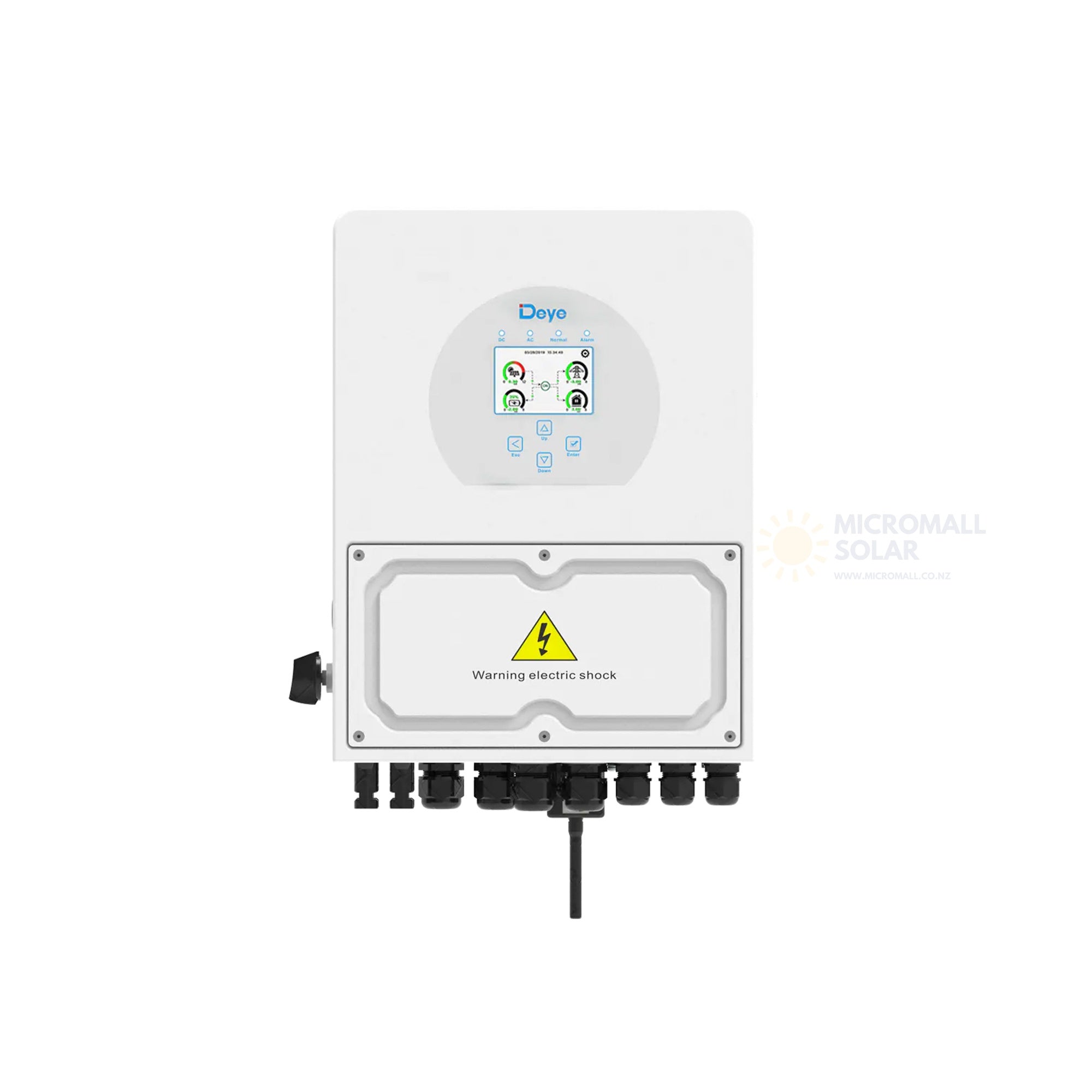

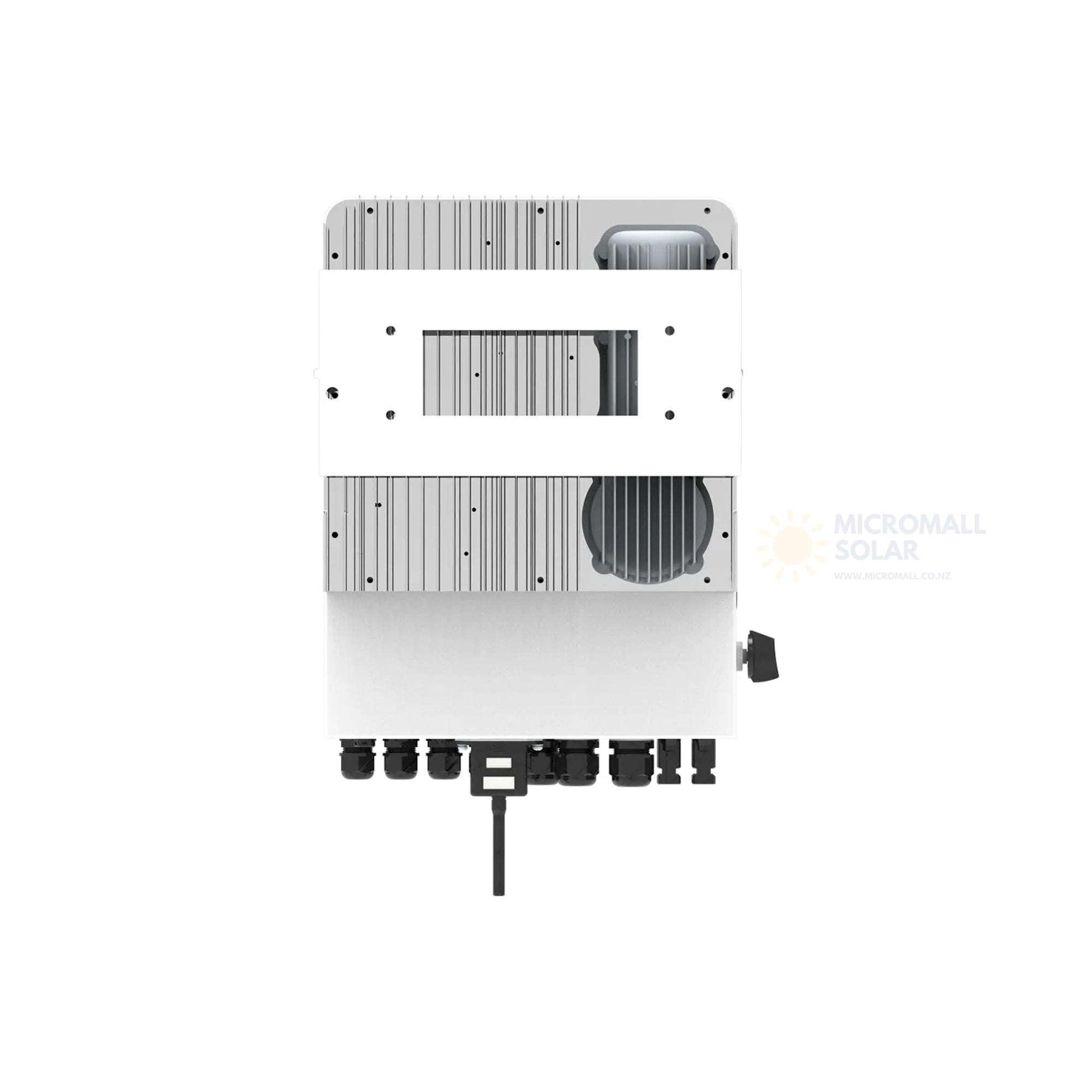

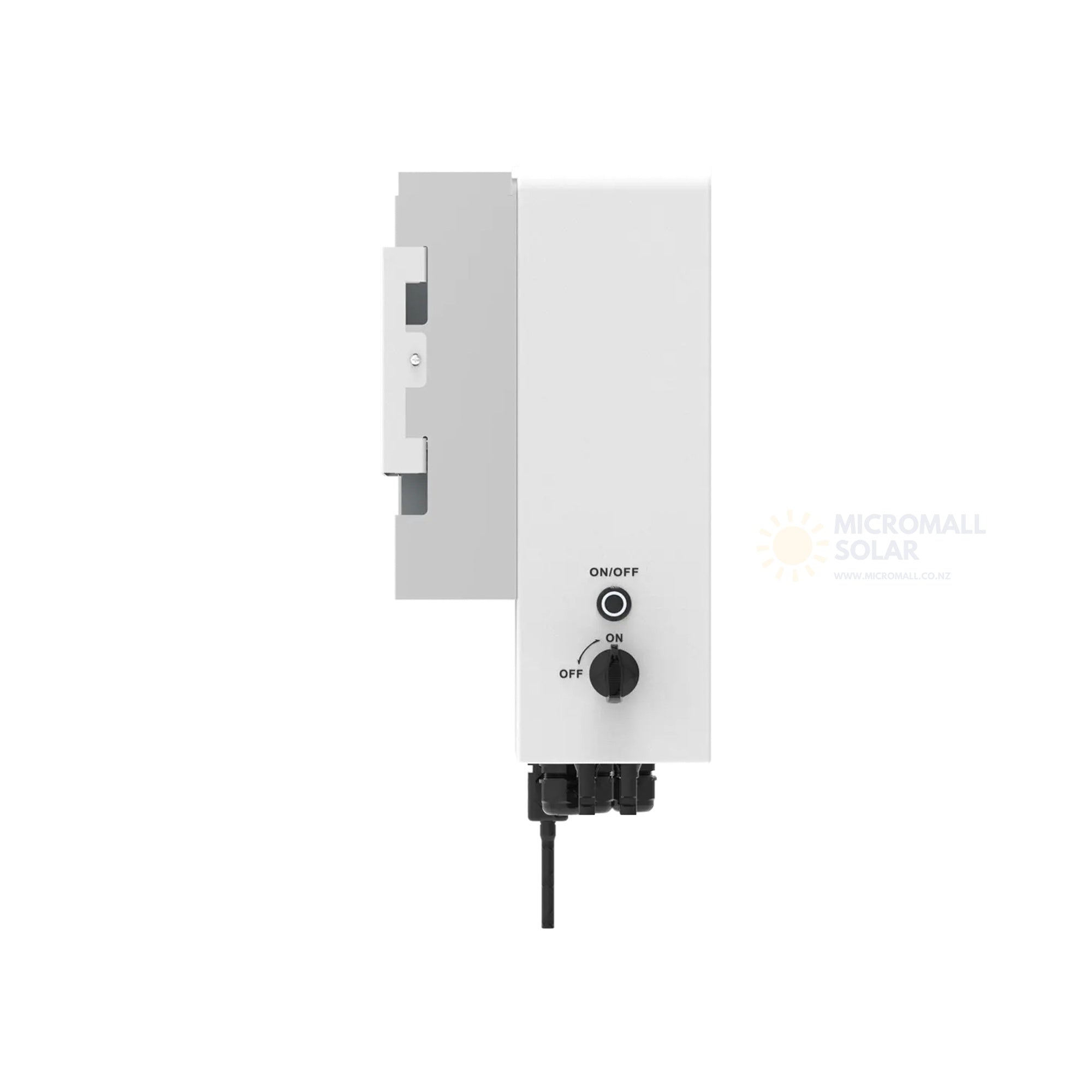

1 x Deye 6kW Single Phase 2 MPPT Hybrid Inverter SUN-6K-SG04LP1-AU (10 Years Warranty)

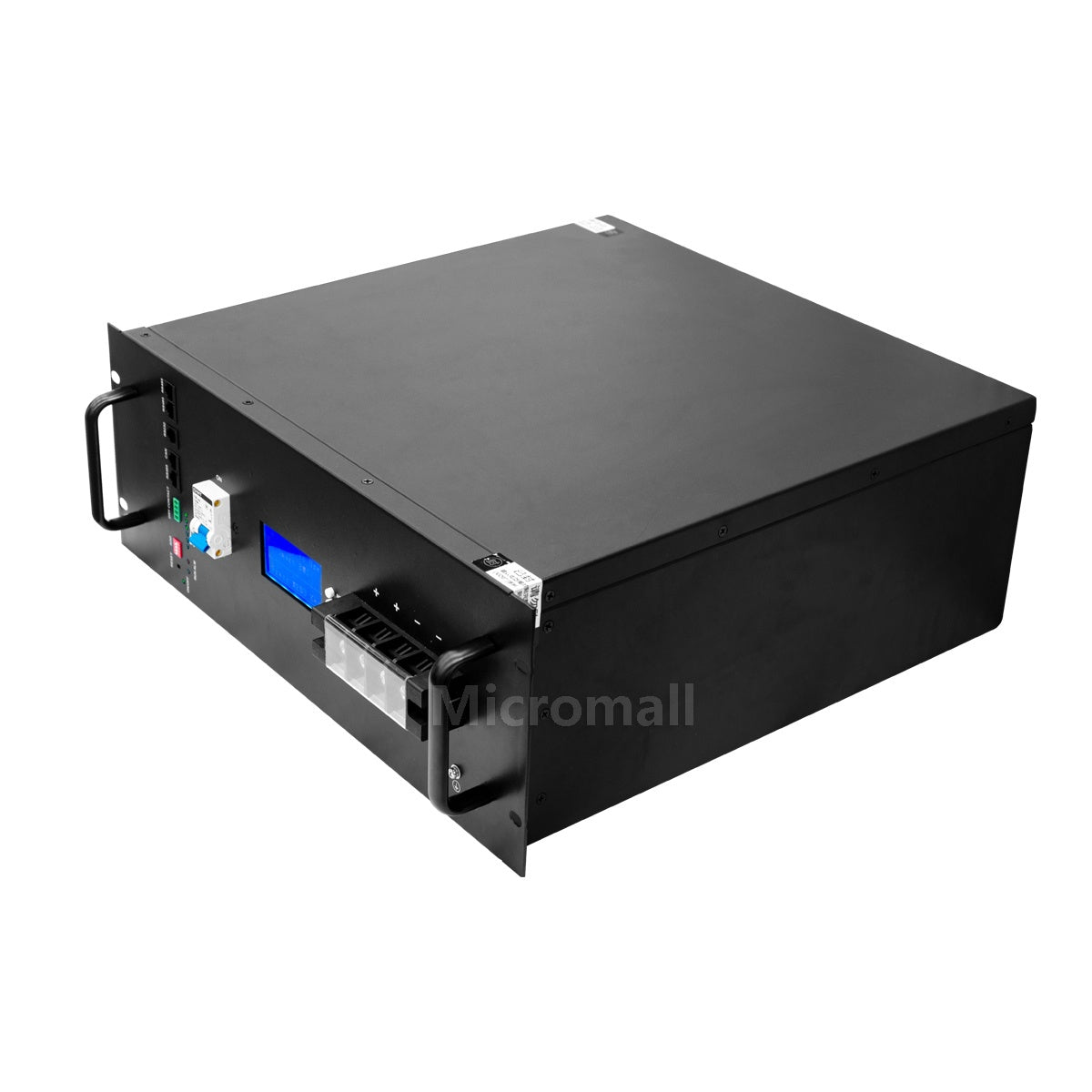

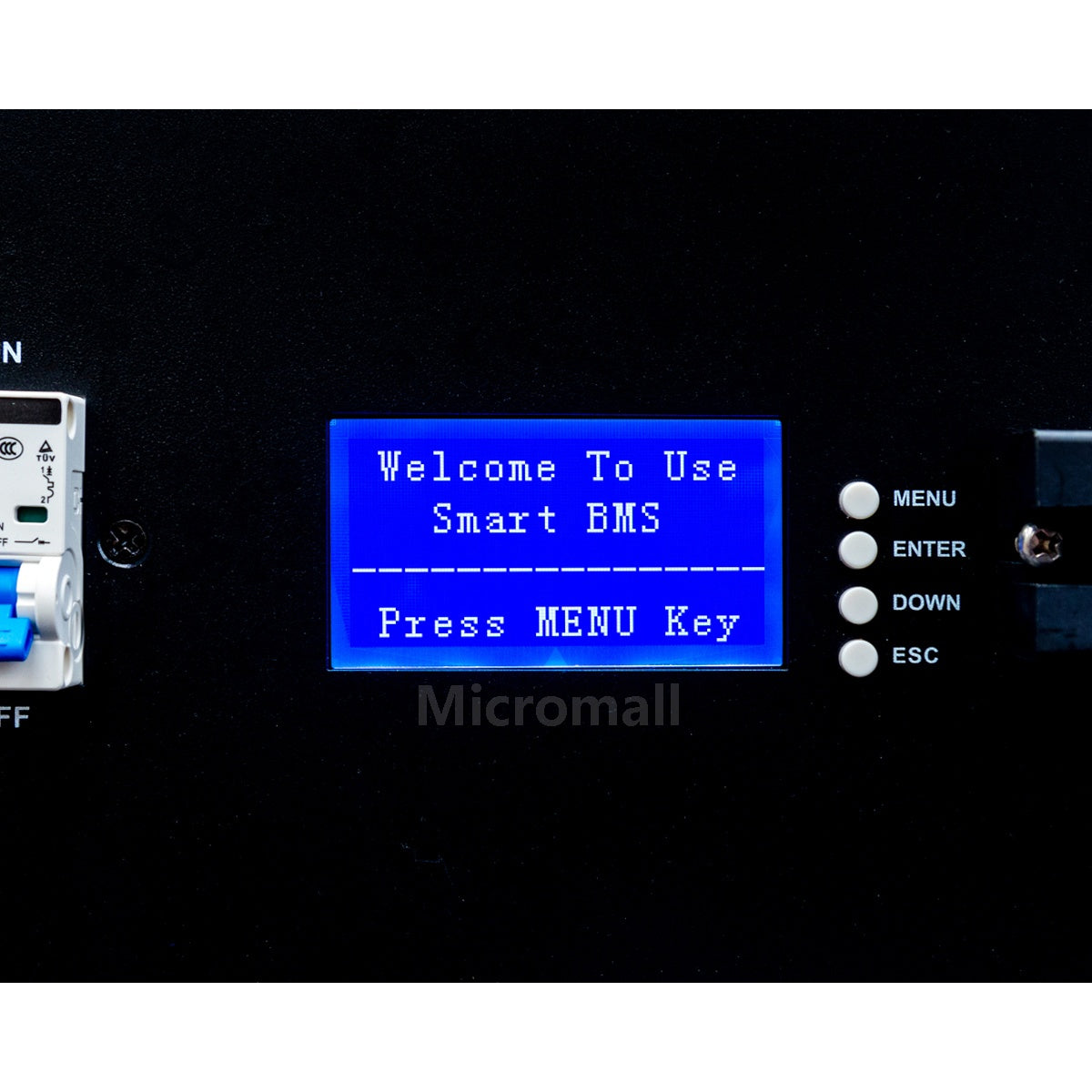

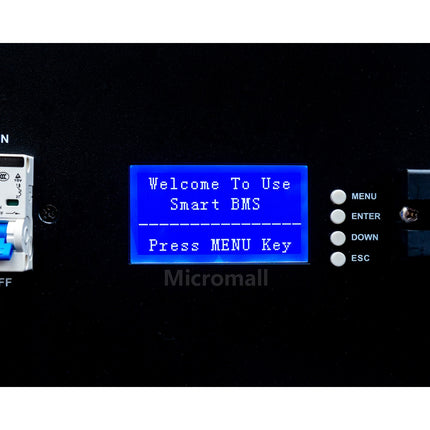

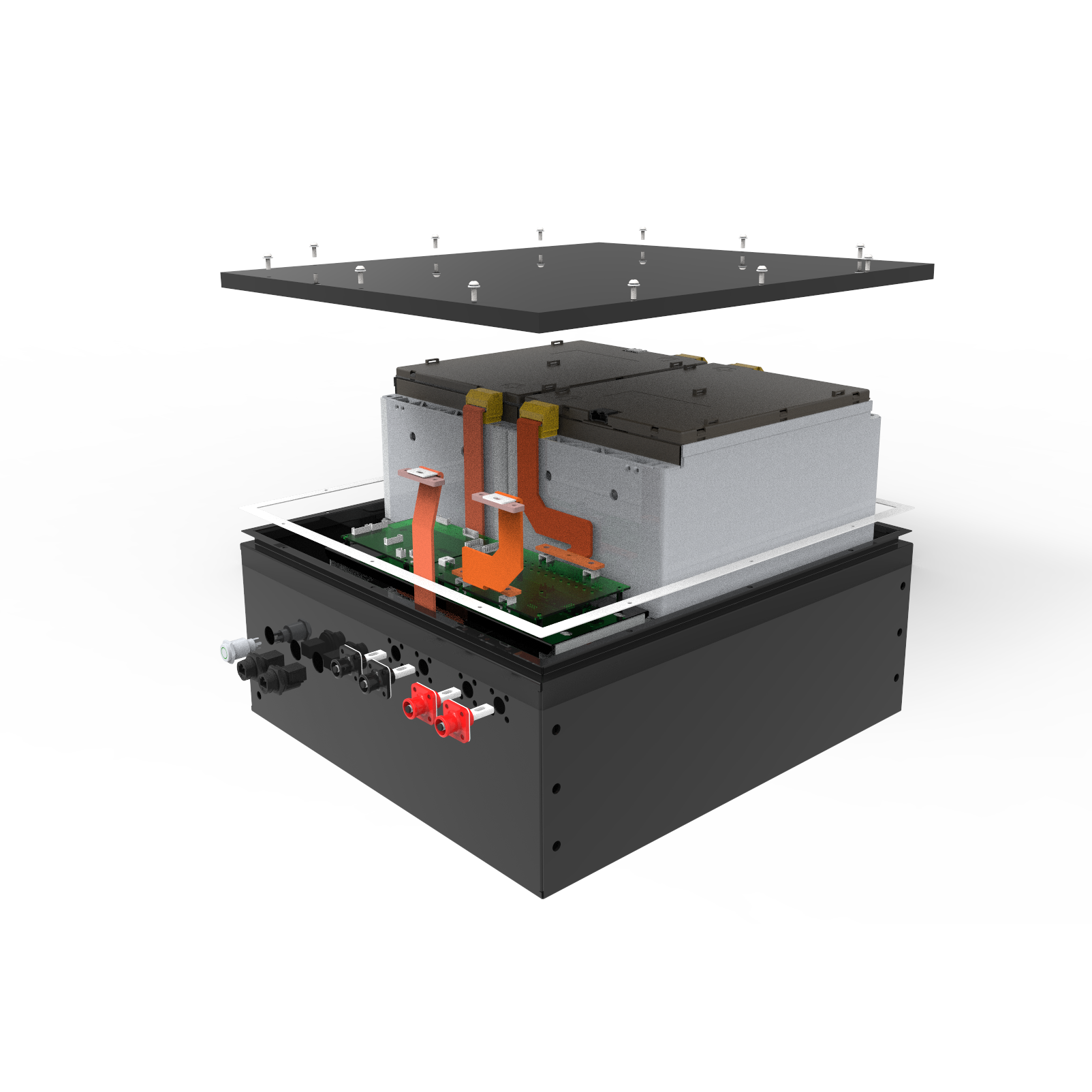

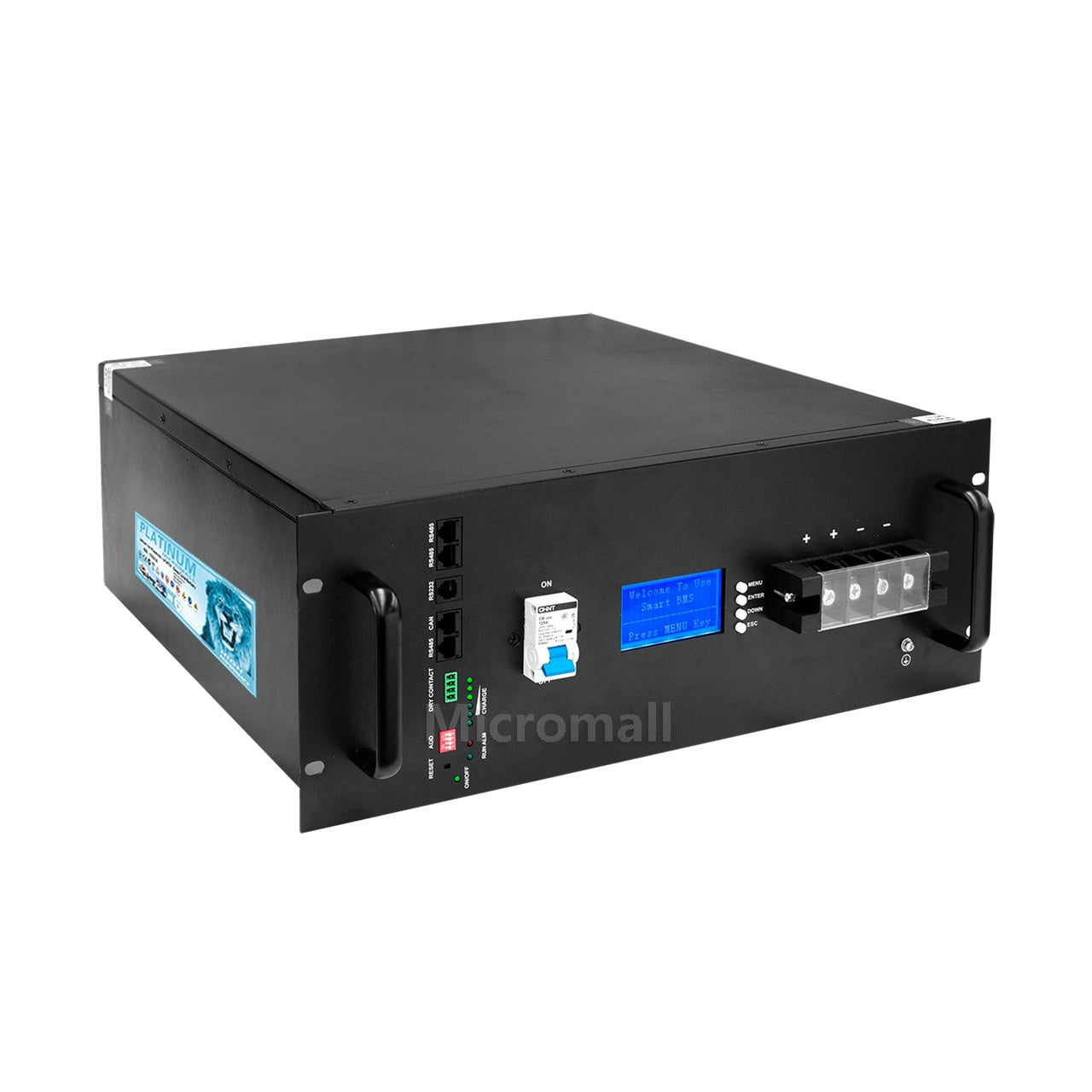

1 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x PV 16a Fuses
1 x PV 500v 25a Circuit Breaker
1 x Surge Protector

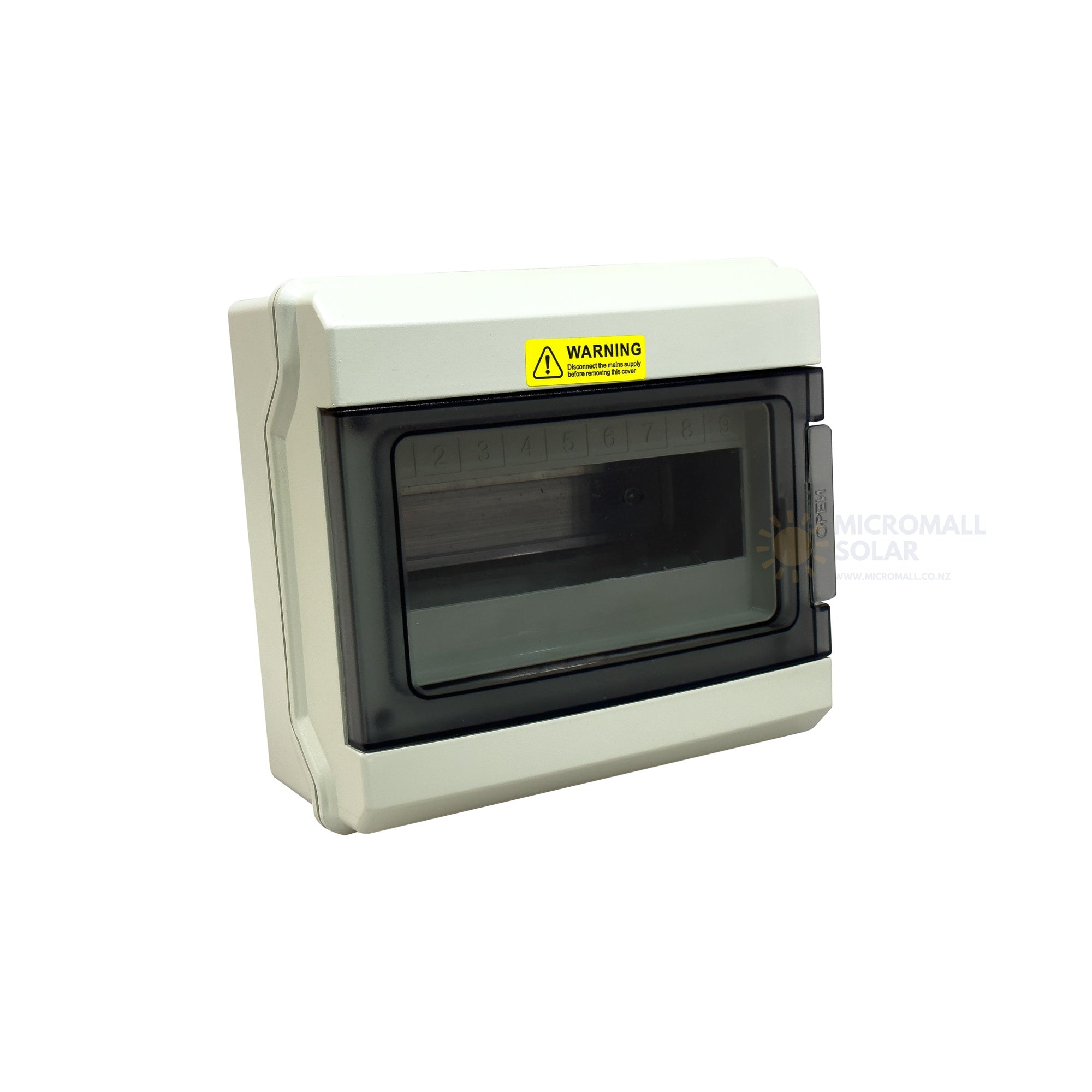

1 X 6 way Fuse Box

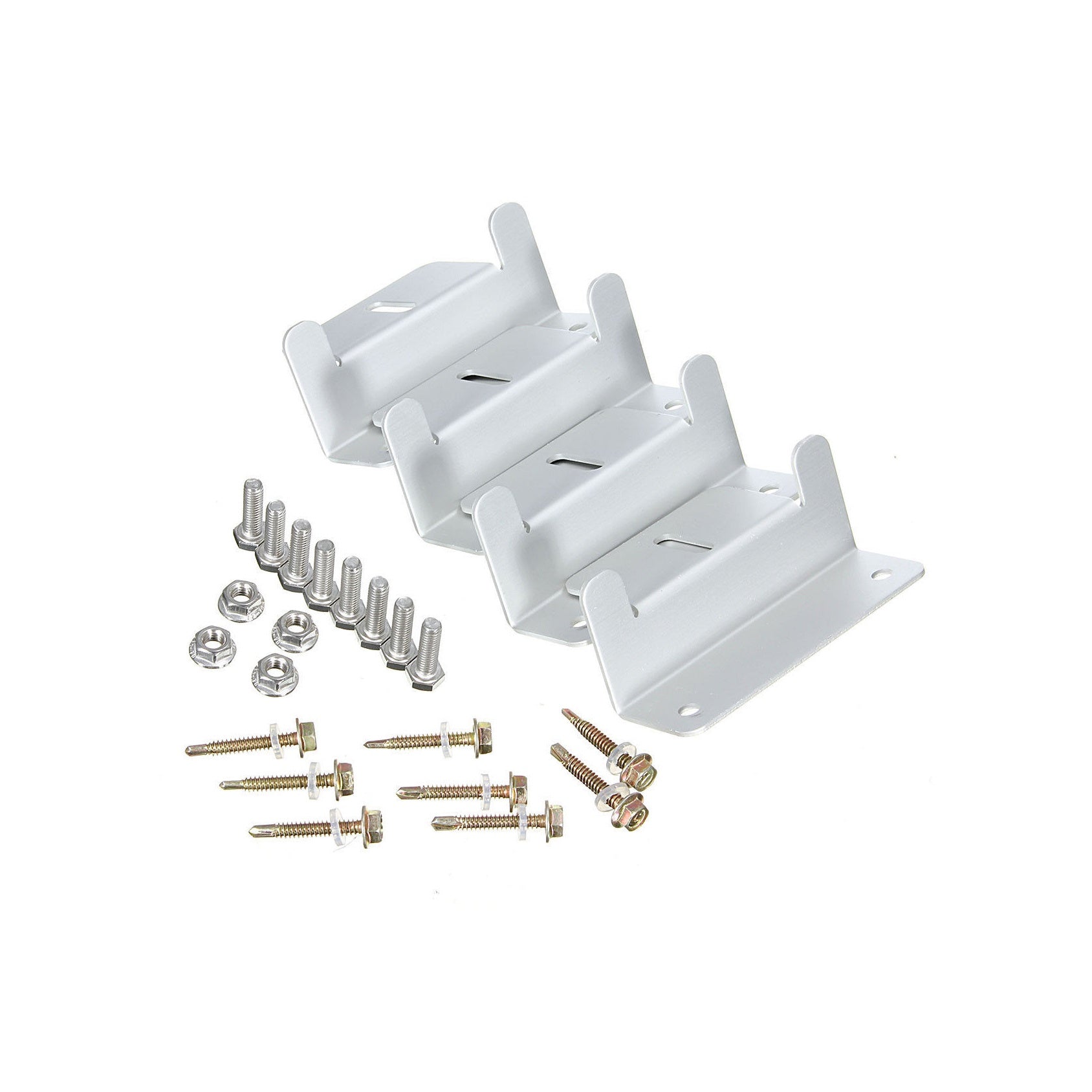

6 x Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

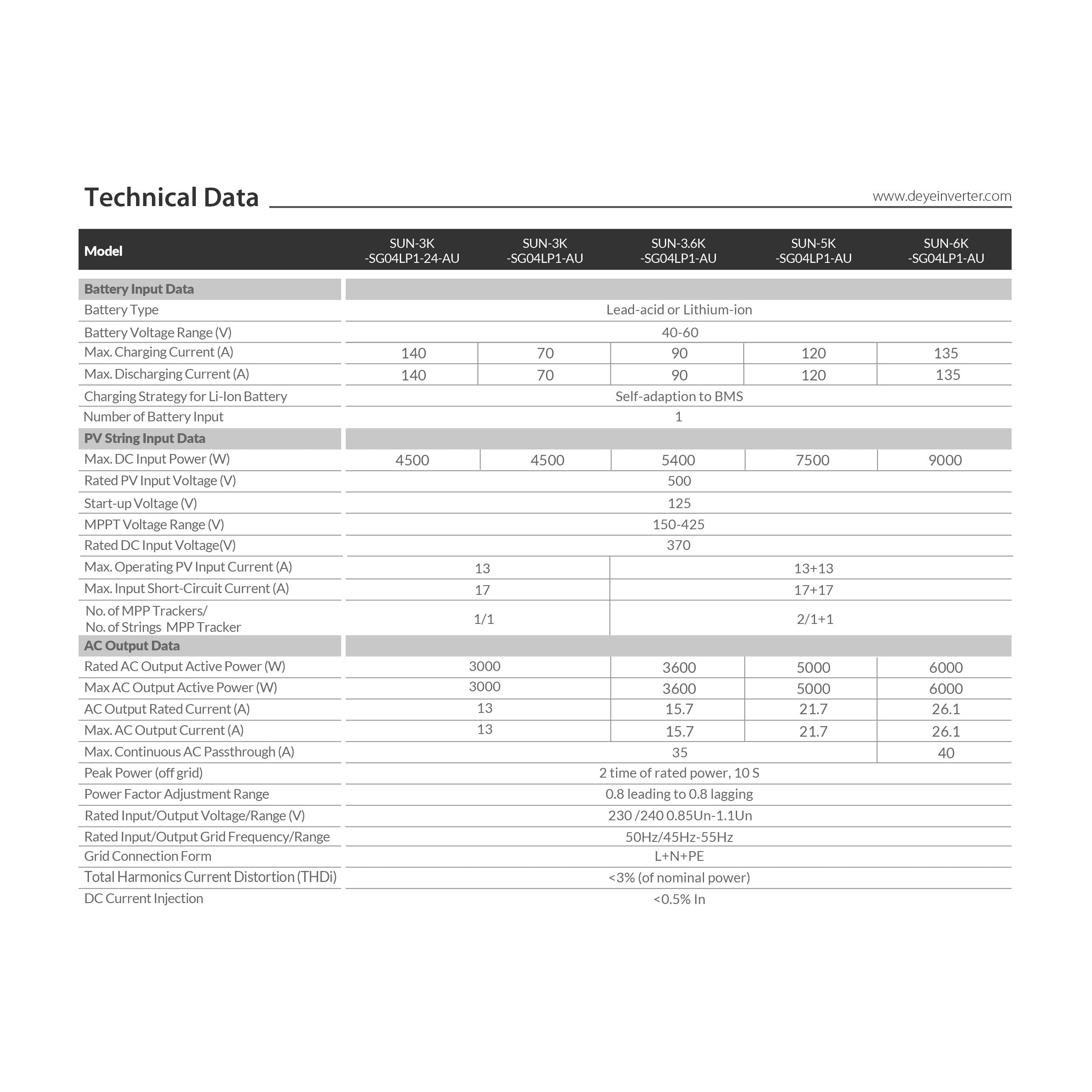

Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
MPPT Voltage Range (V): 150-425
Start-up Voltage (V): 125
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A):17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6600
Peak Power (off grid): 2 times of rated power, 10 S
AC Output Rated Current: 26.1A
Max AC Output Current: 26.1A
Weight: 17kg
Size: 330×433×229mm

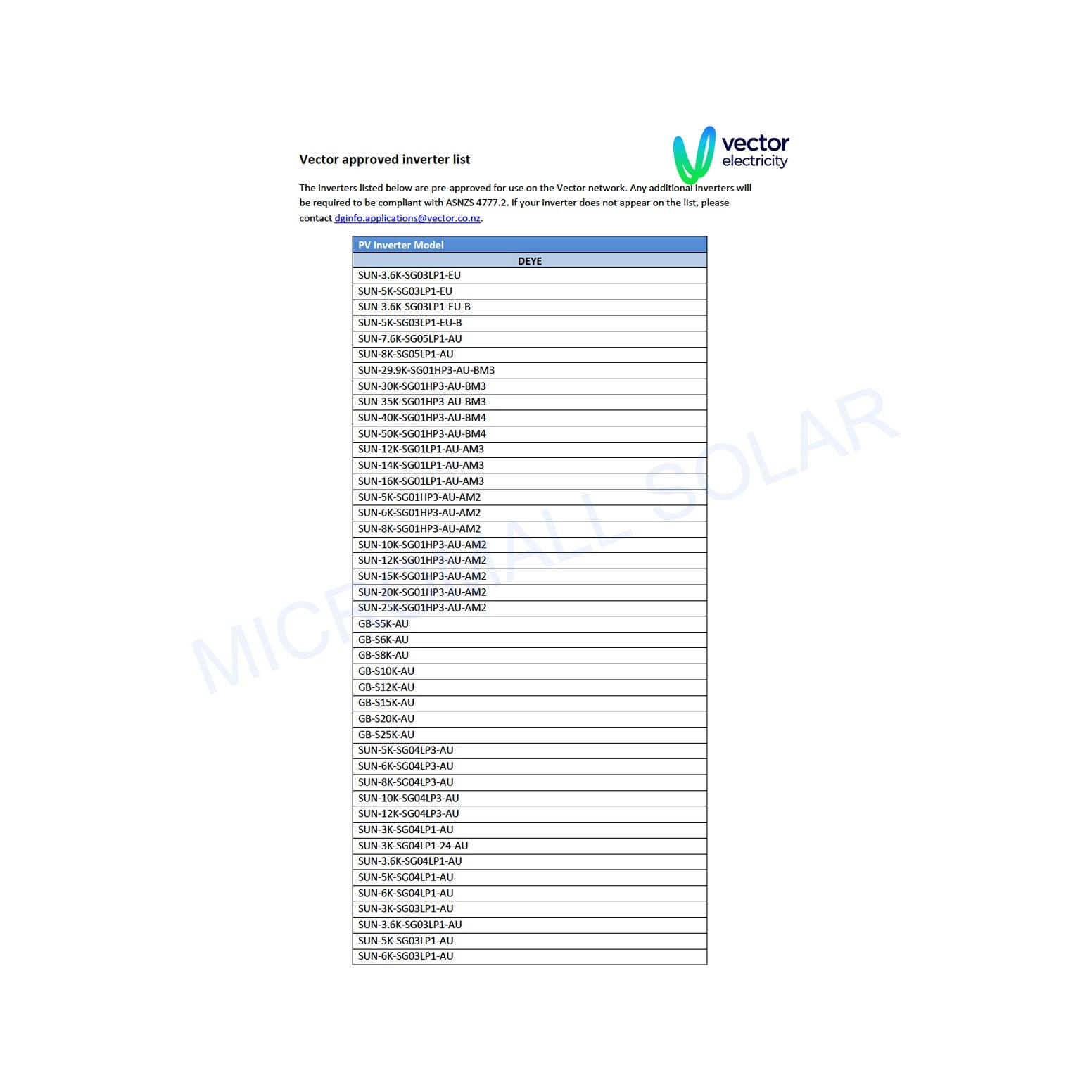

**Vector Approved Inverter***
