Description

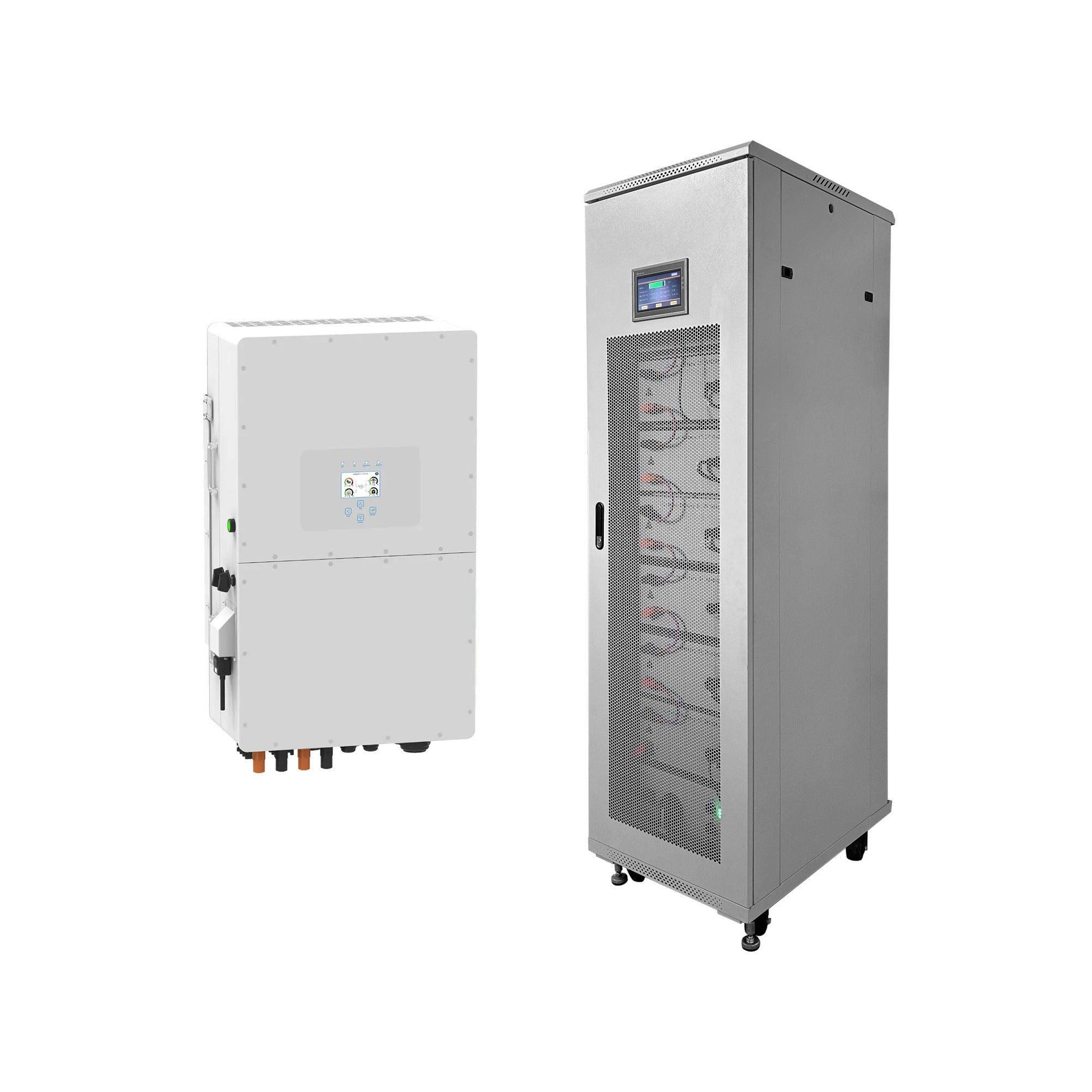

Package Includes:

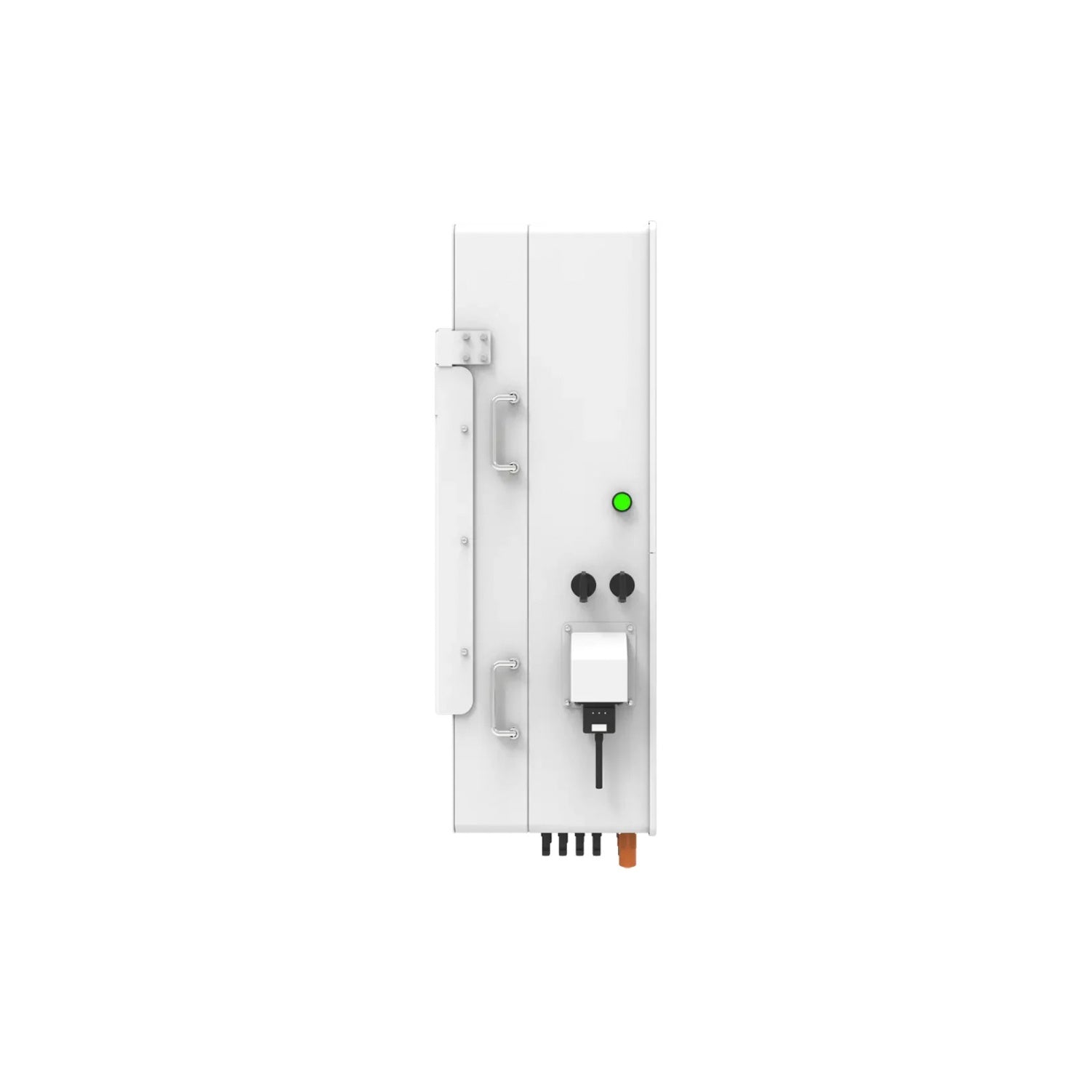

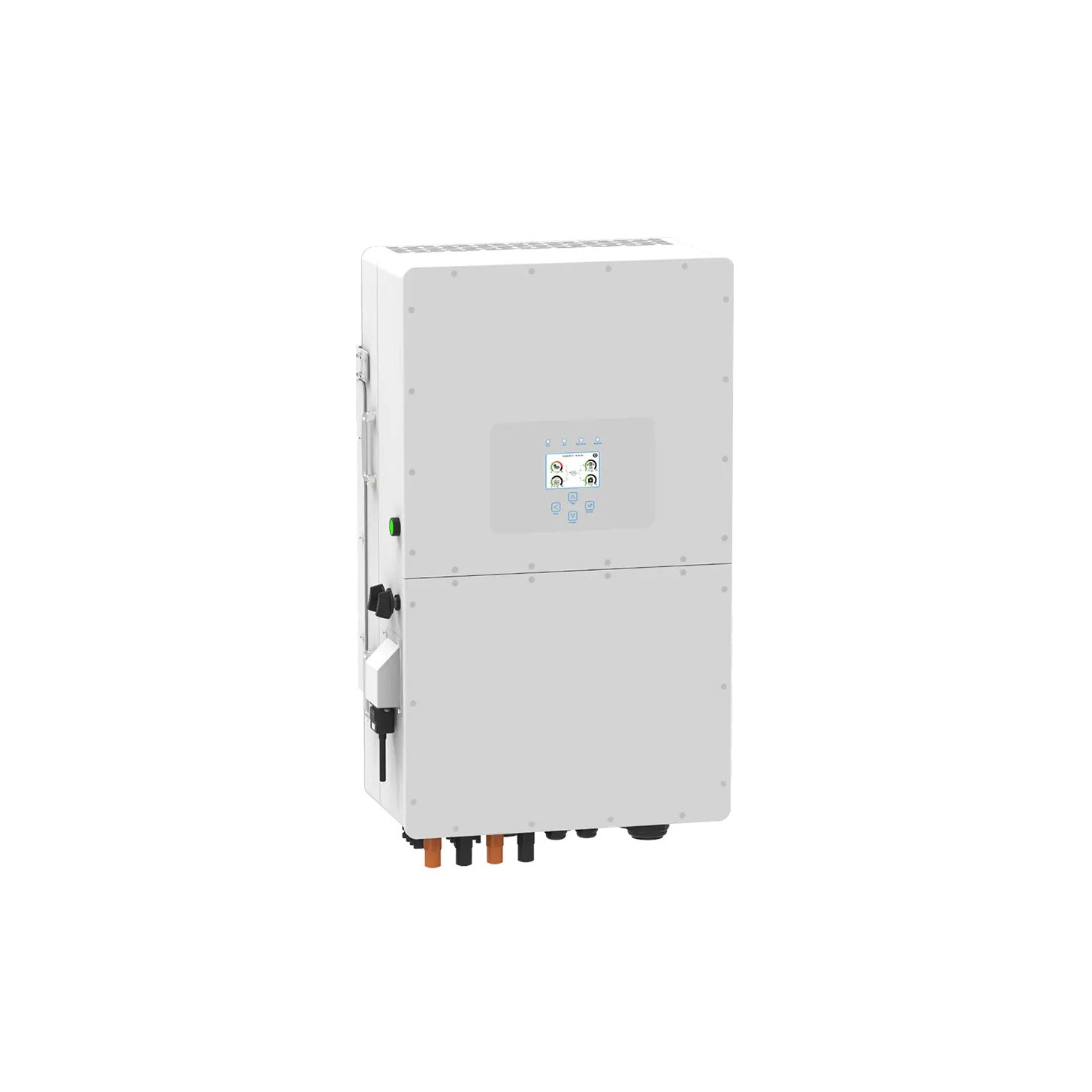

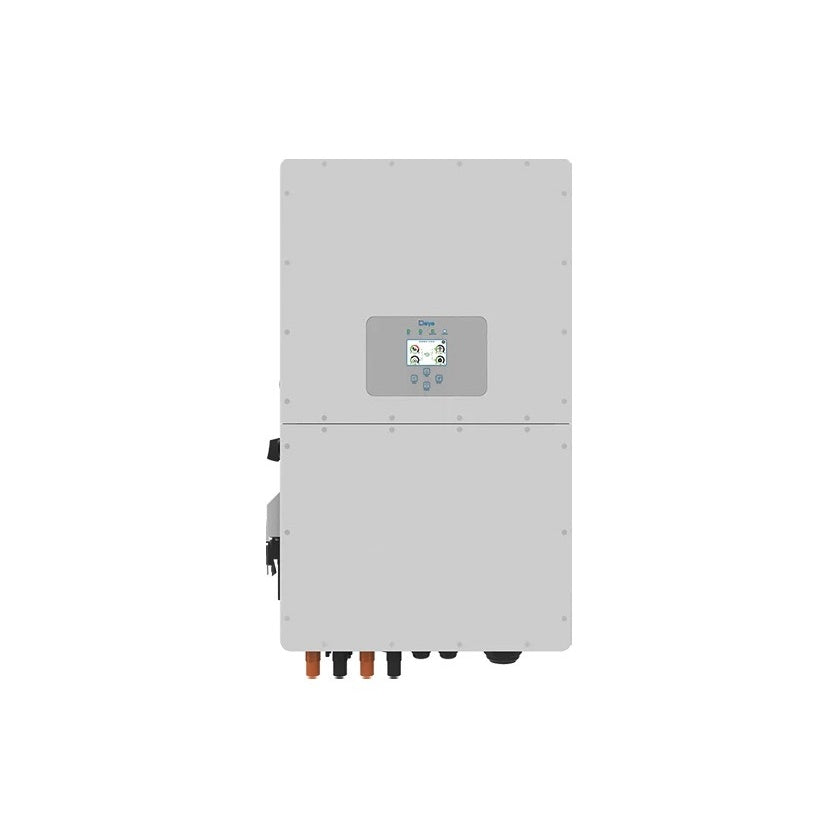

1 x Deye SUN-30K-SG01HP3-AU-BM3 30KW Three-Phase Hybrid Inverter (10 Years Warranty)

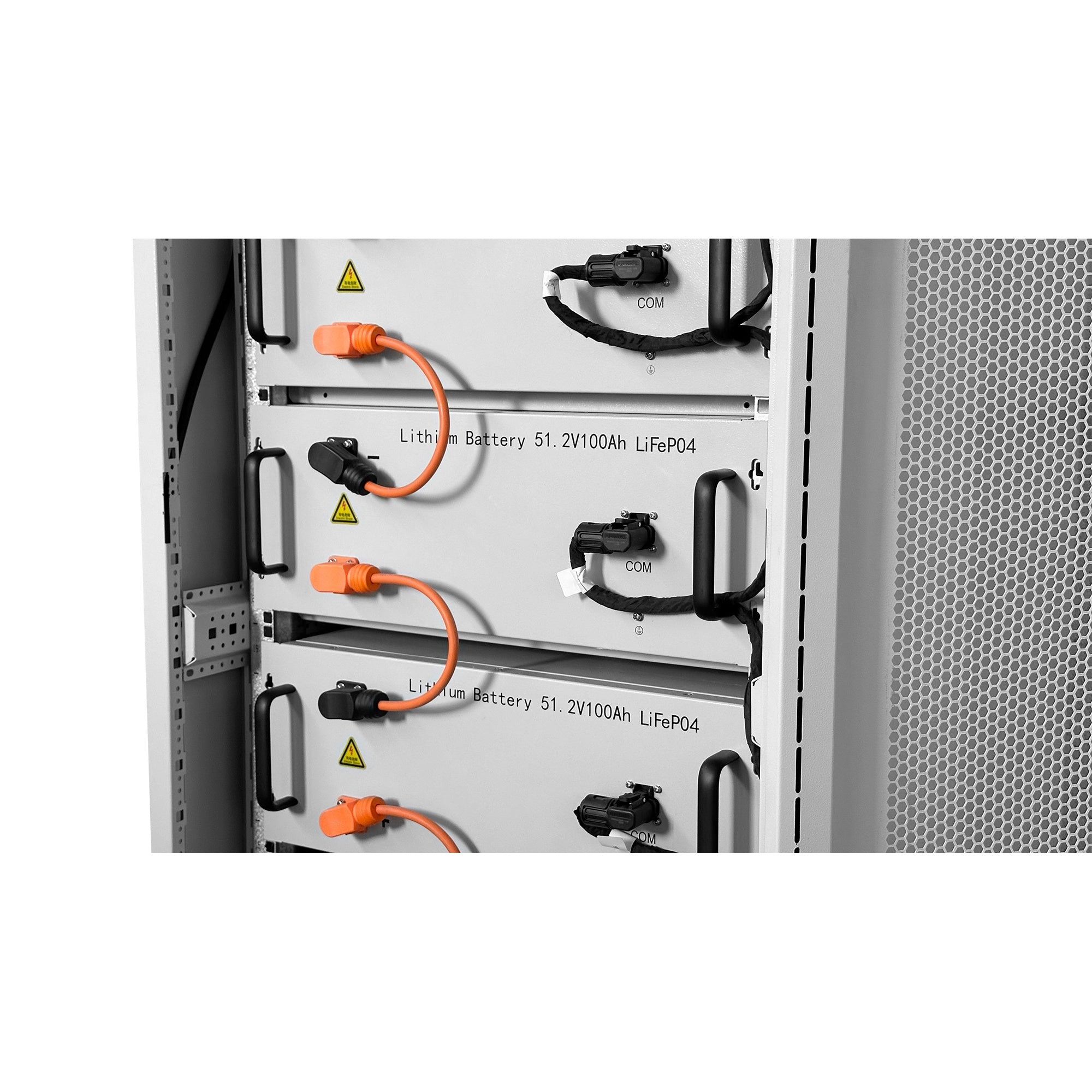

8 x Micromall 409V 5.2KW Battery with 128 cells, 500amp Continuous (15-Year warranty)

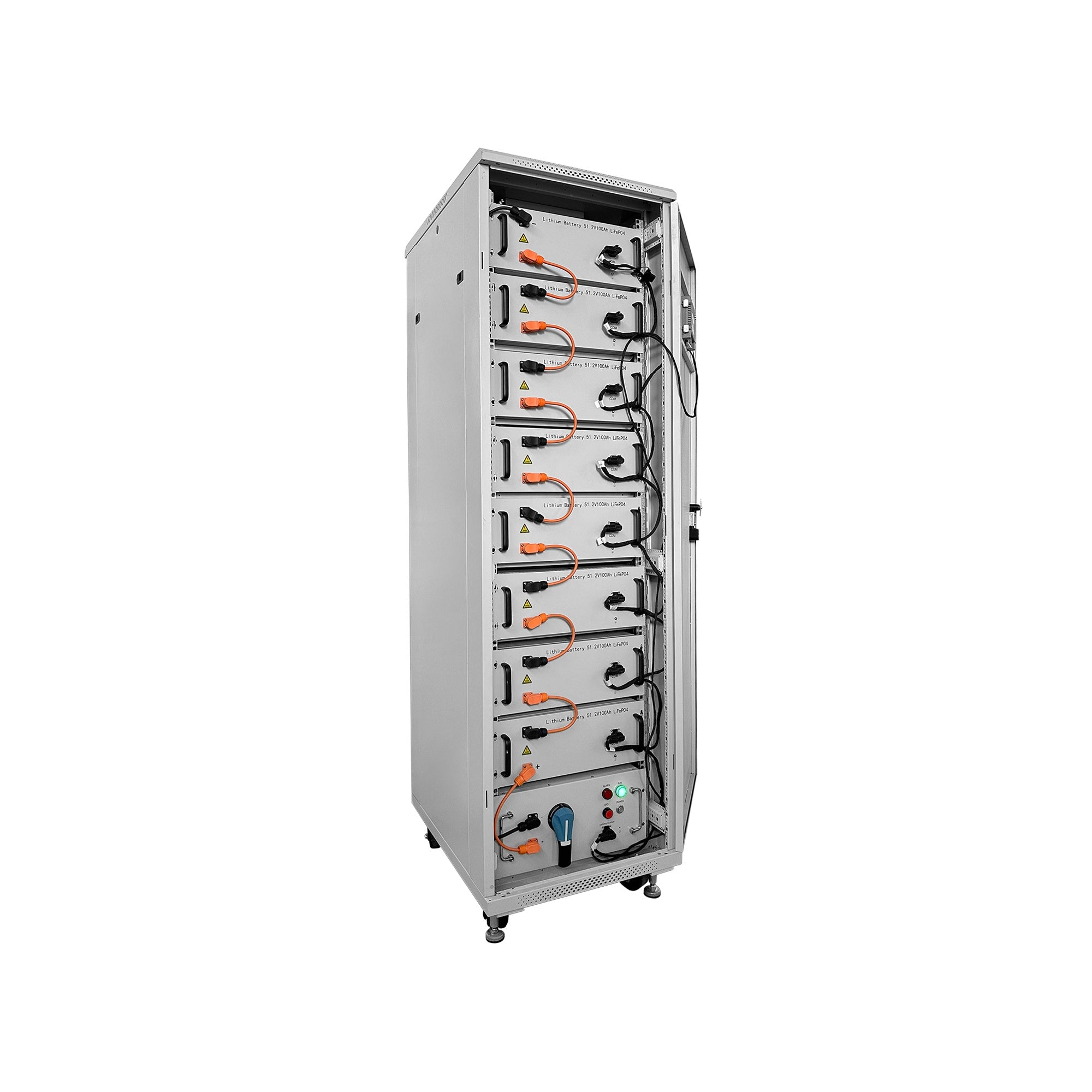

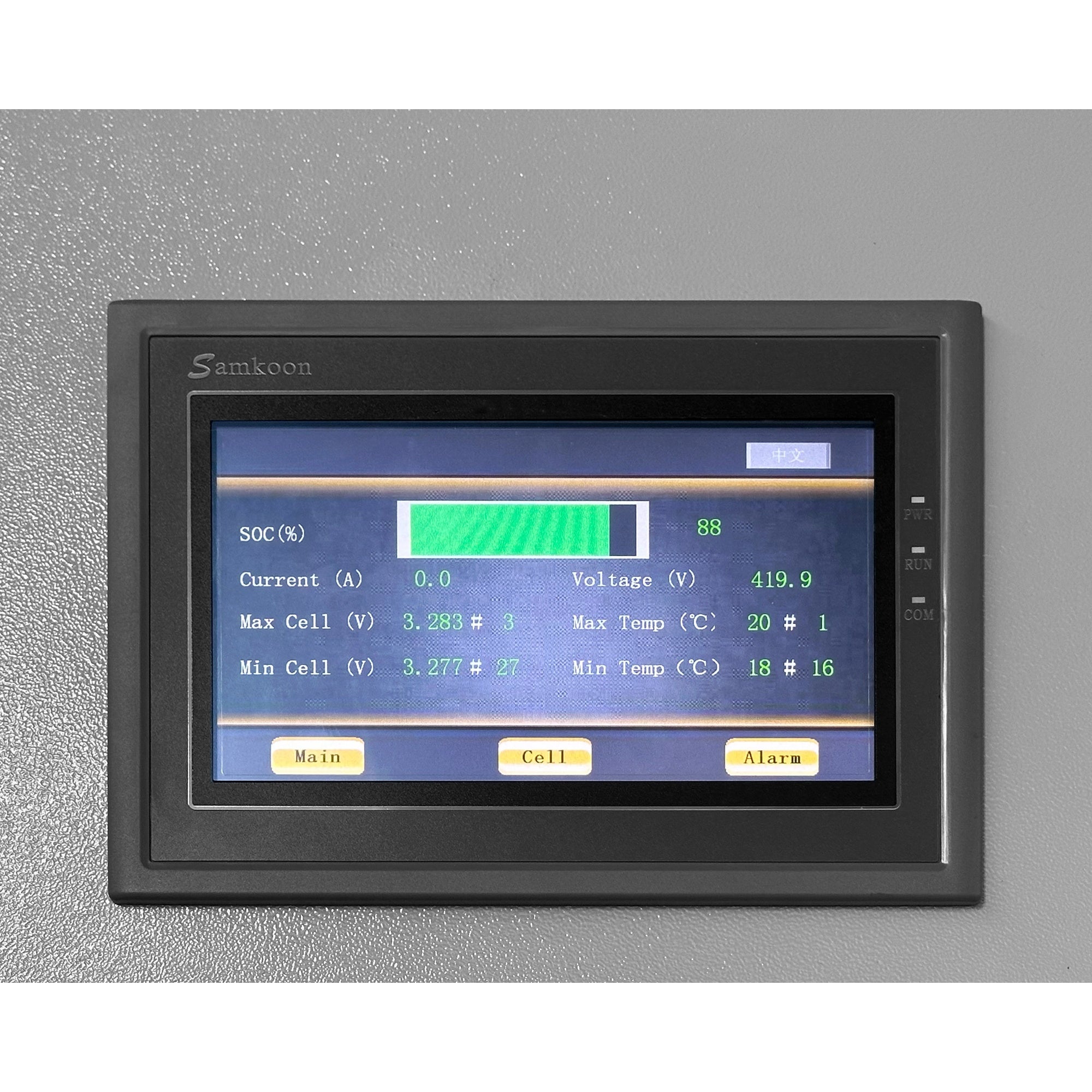

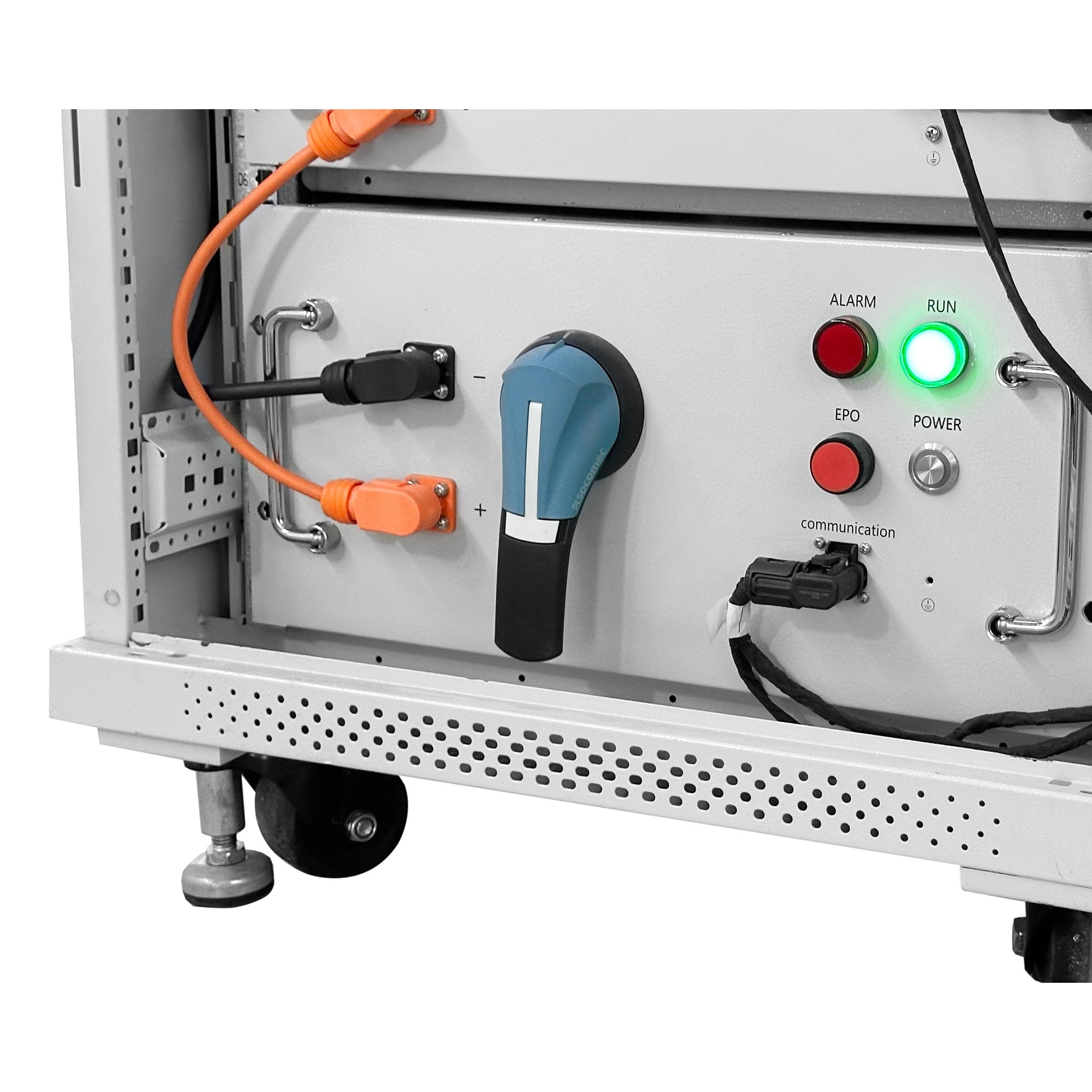

1 x High Voltage Cabinet with Control Operating System

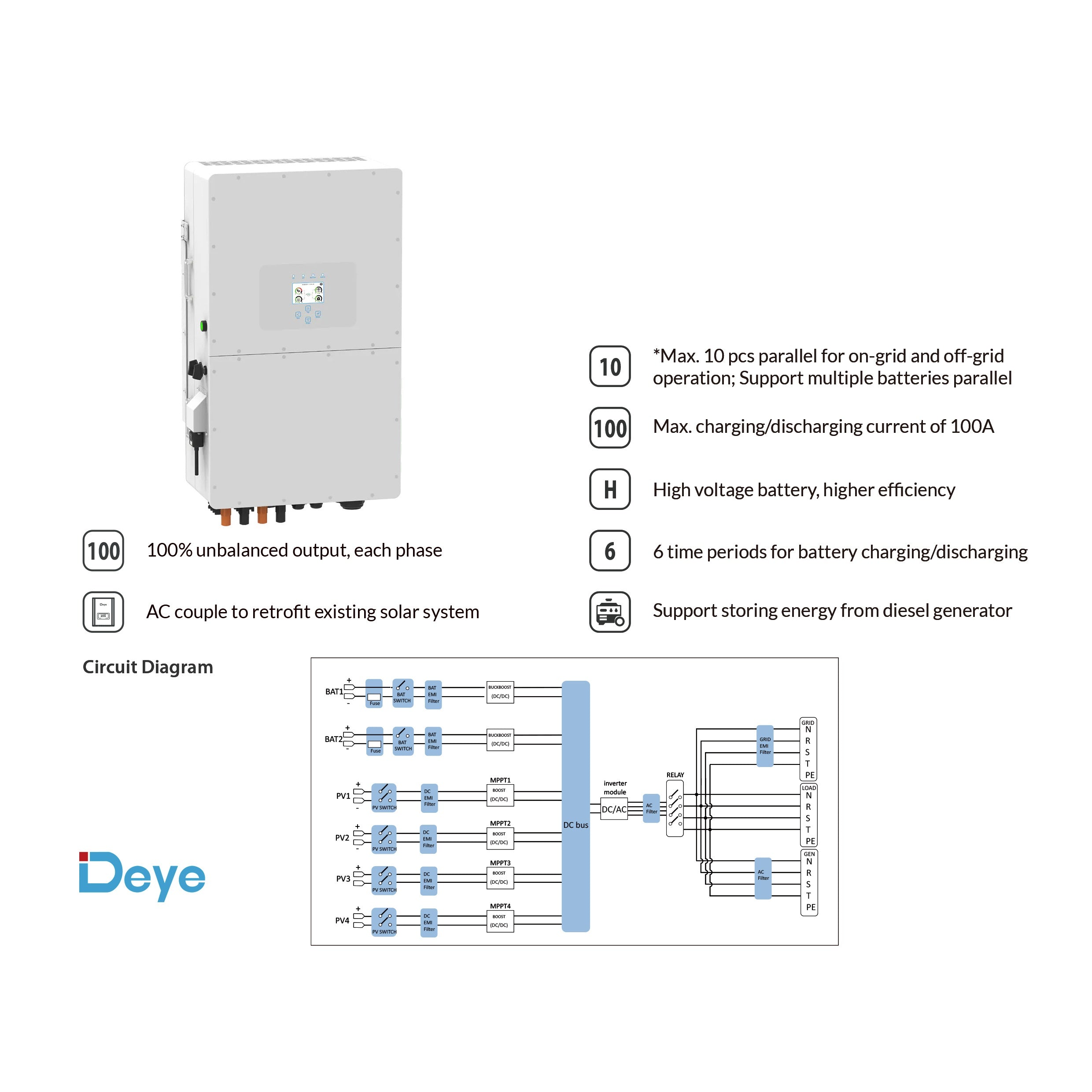

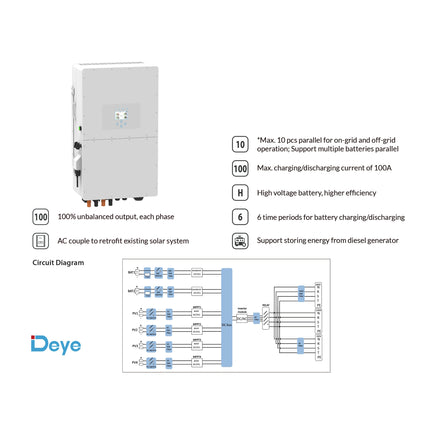

100% unbalanced output, each phase
AC couple to retrofit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

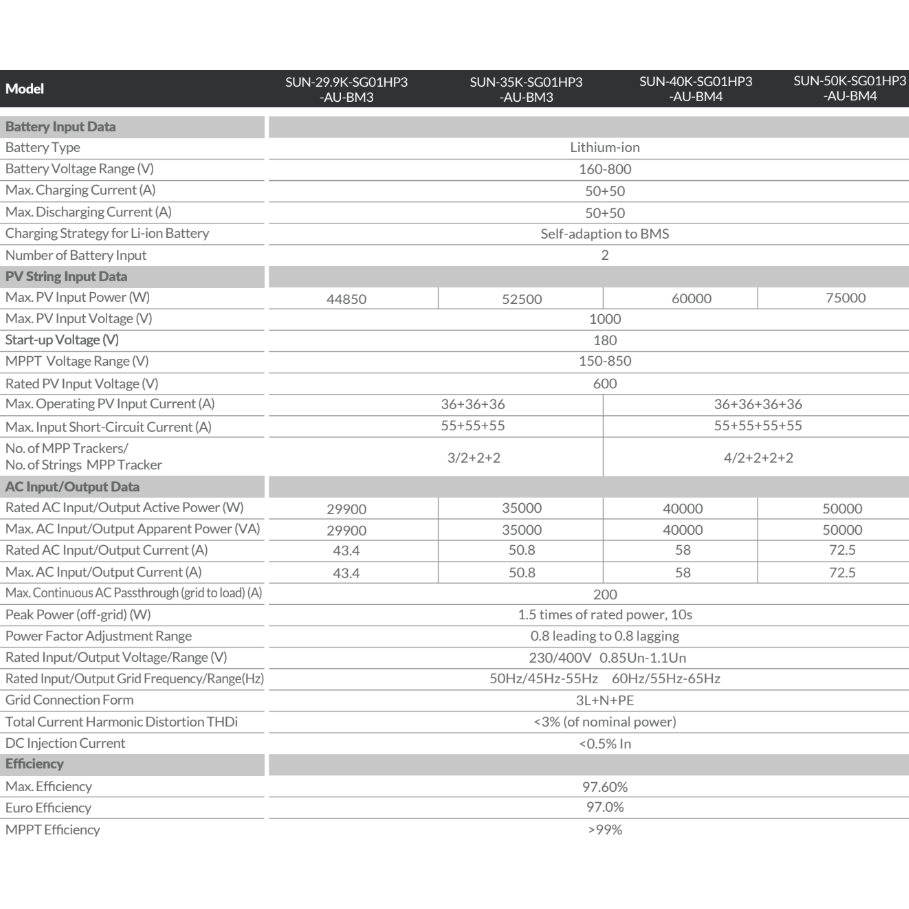

Model: SUN-30K-SG01HP3-AU-BM3
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Number of Battery Input: 2
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 44850
Max. DC Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
PV Input Current (A): 36+36+36
Max. PV IS C (A): 55+55+55
No.of MPP Trackers: 3
No.of Strings per MPP Tracker: 2+2+2
AC Output Data
Rated AC Output and UPS Power (W): 29900
Max. AC Output Apparent Power (VA): 29900
AC Output Rated Current (A): 43.4
Max. AC Output Current（A）: 43.4

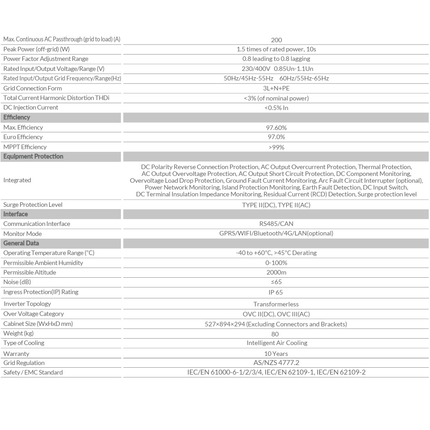

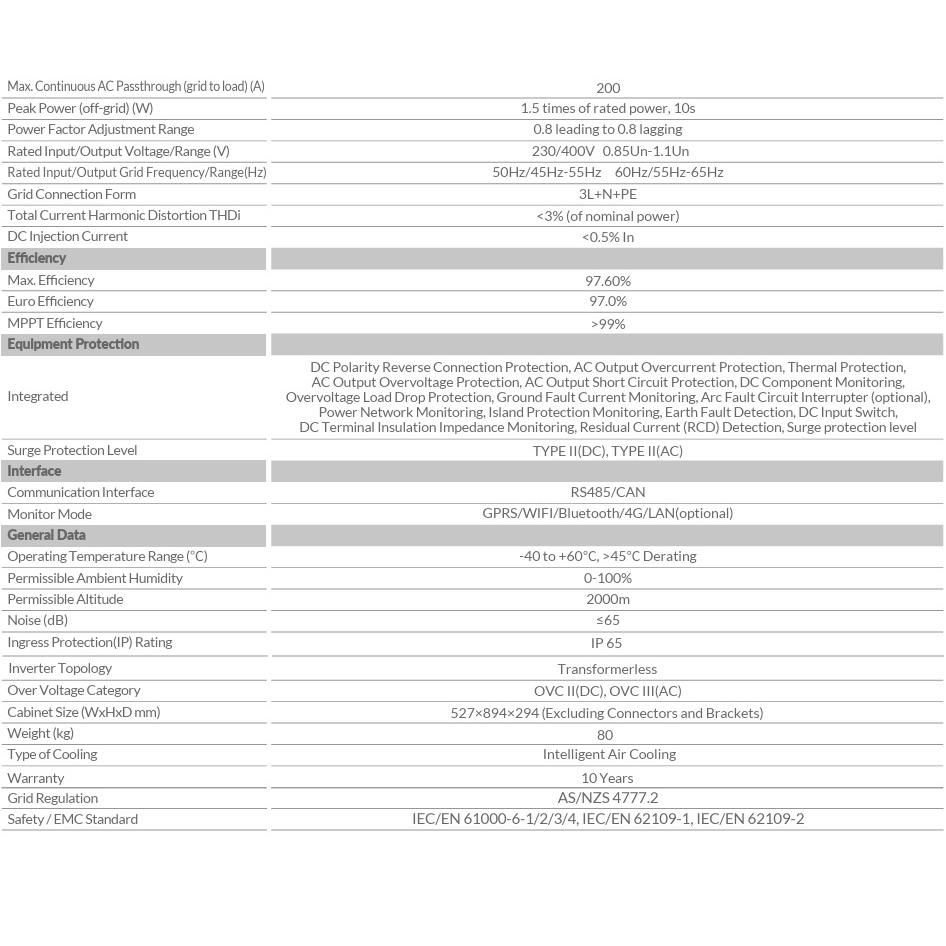

Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S

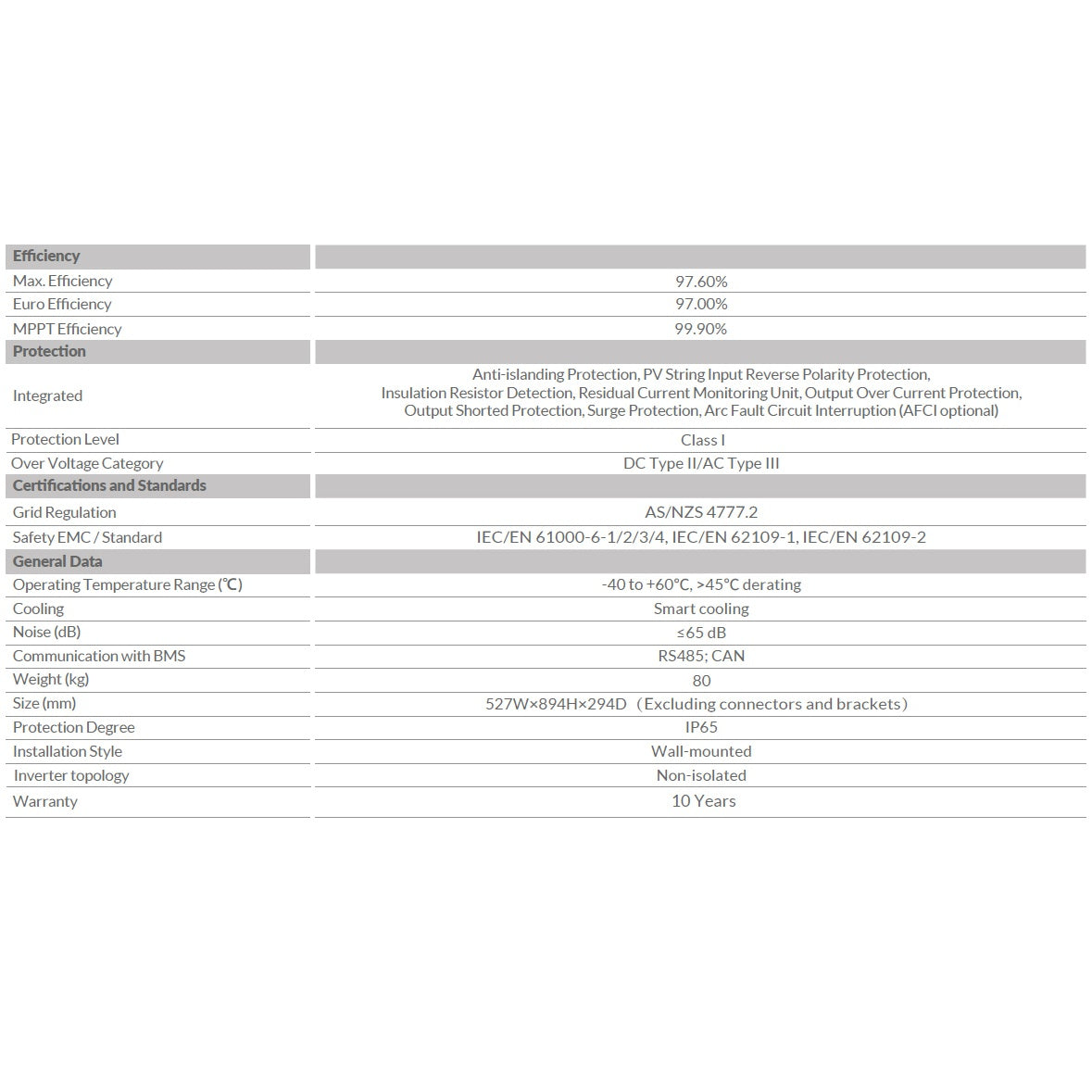

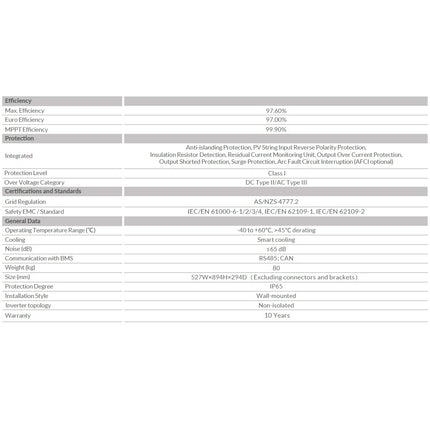

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: >99%
Size (mm): 527W×894H×294D（Excluding connectors and brackets）
Weight (kg): 80
**Vector Approved Inverter**
**DEYE LONGI New Zealand Distributor – Micromall Solar**
