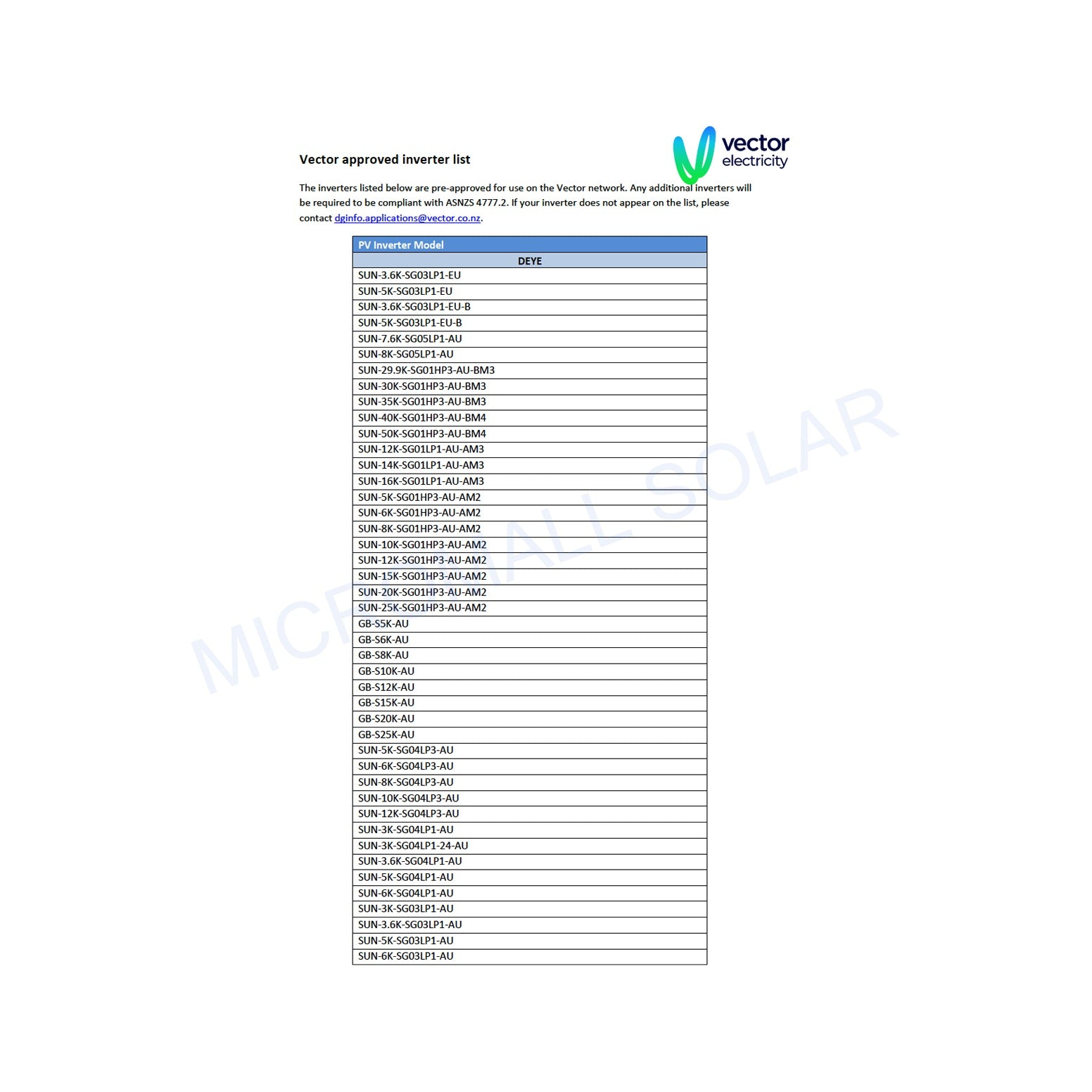

Vector Approved Inverter

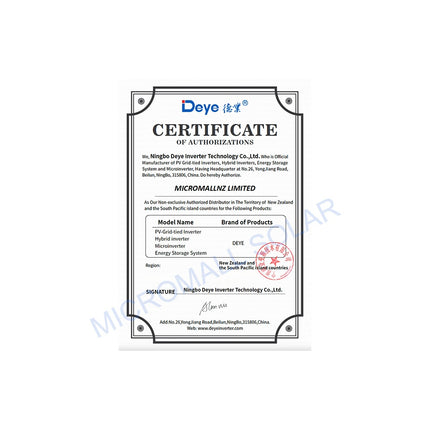

Deye New Zealand Distributor - Micromall Solar
10-Year Warranty

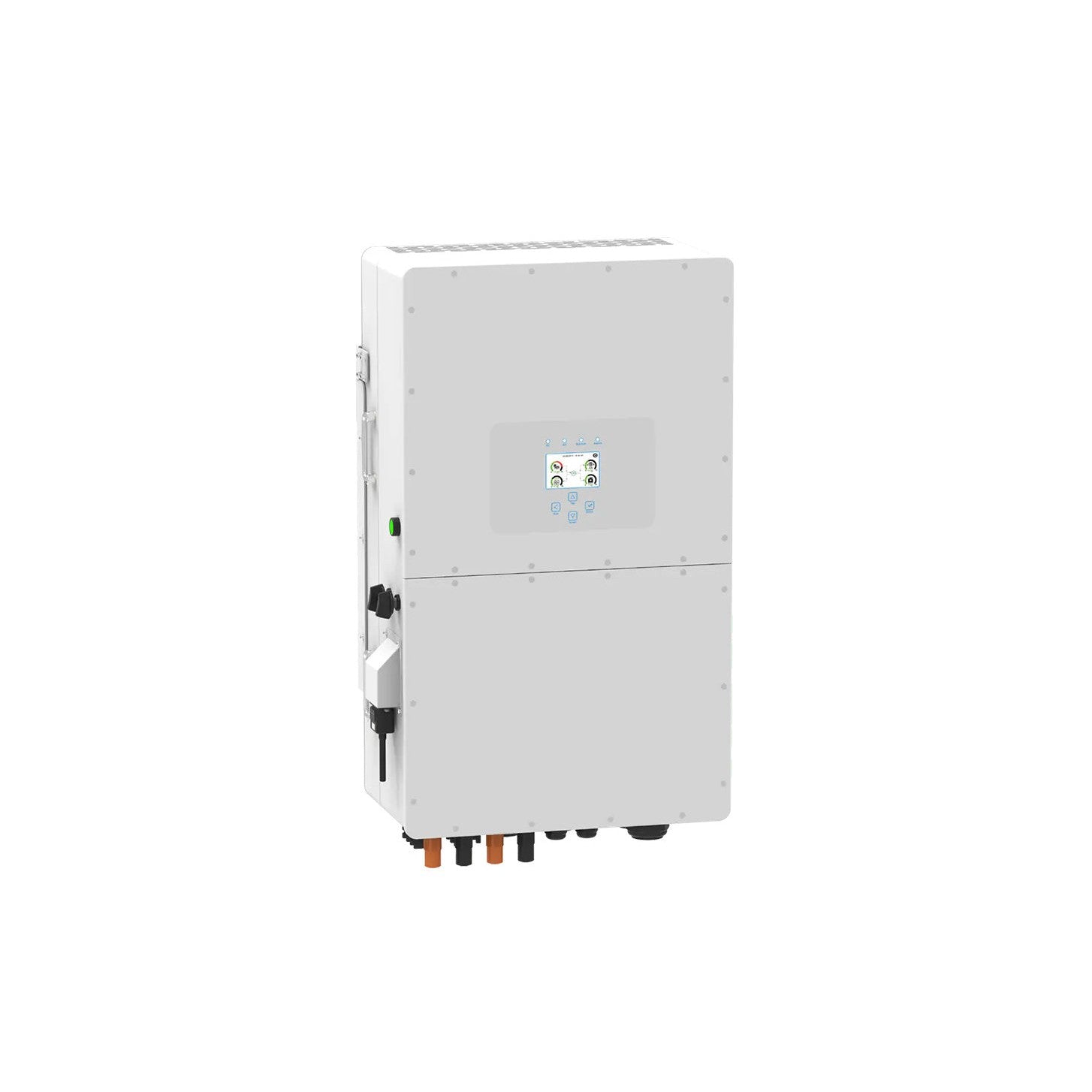

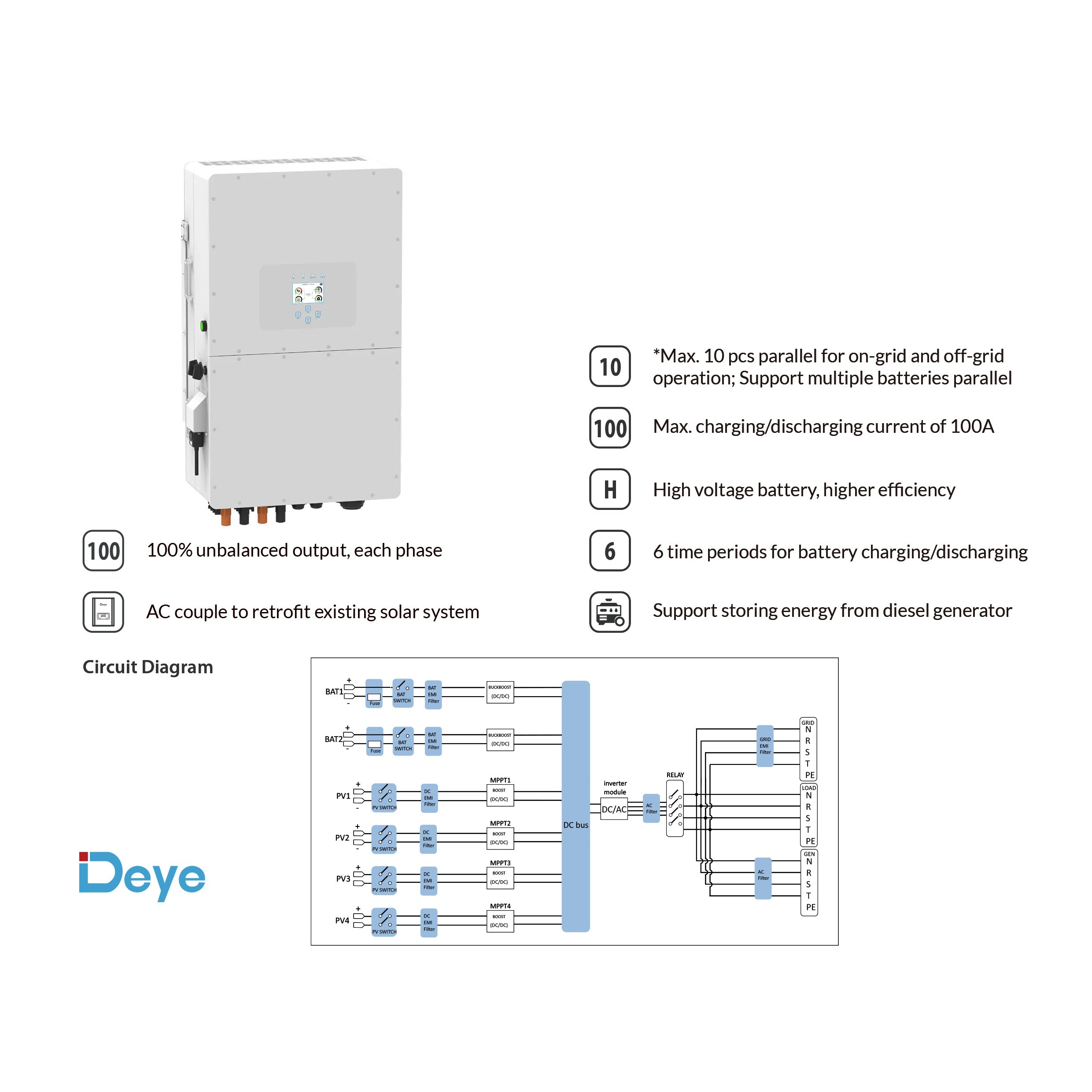

The Deye SUN-30K-SG01HP3-AU-BM3 is a 30kW three-phase hybrid inverter for high-voltage lithium-ion battery systems. It provides three MPPT trackers, dual battery inputs and support for on-grid and off-grid operation.

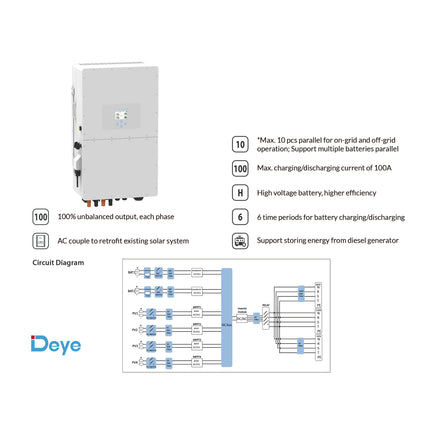

Key features
- High-voltage battery design for higher system efficiency
- AC coupling for retrofitting an existing solar system
- Up to 10 inverters in parallel for on-grid and off-grid operation
- Supports multiple batteries in parallel
- Six configurable battery charging and discharging time periods
- Maximum combined charging/discharging current: 100A (50A + 50A)
- Supports energy storage from a diesel generator

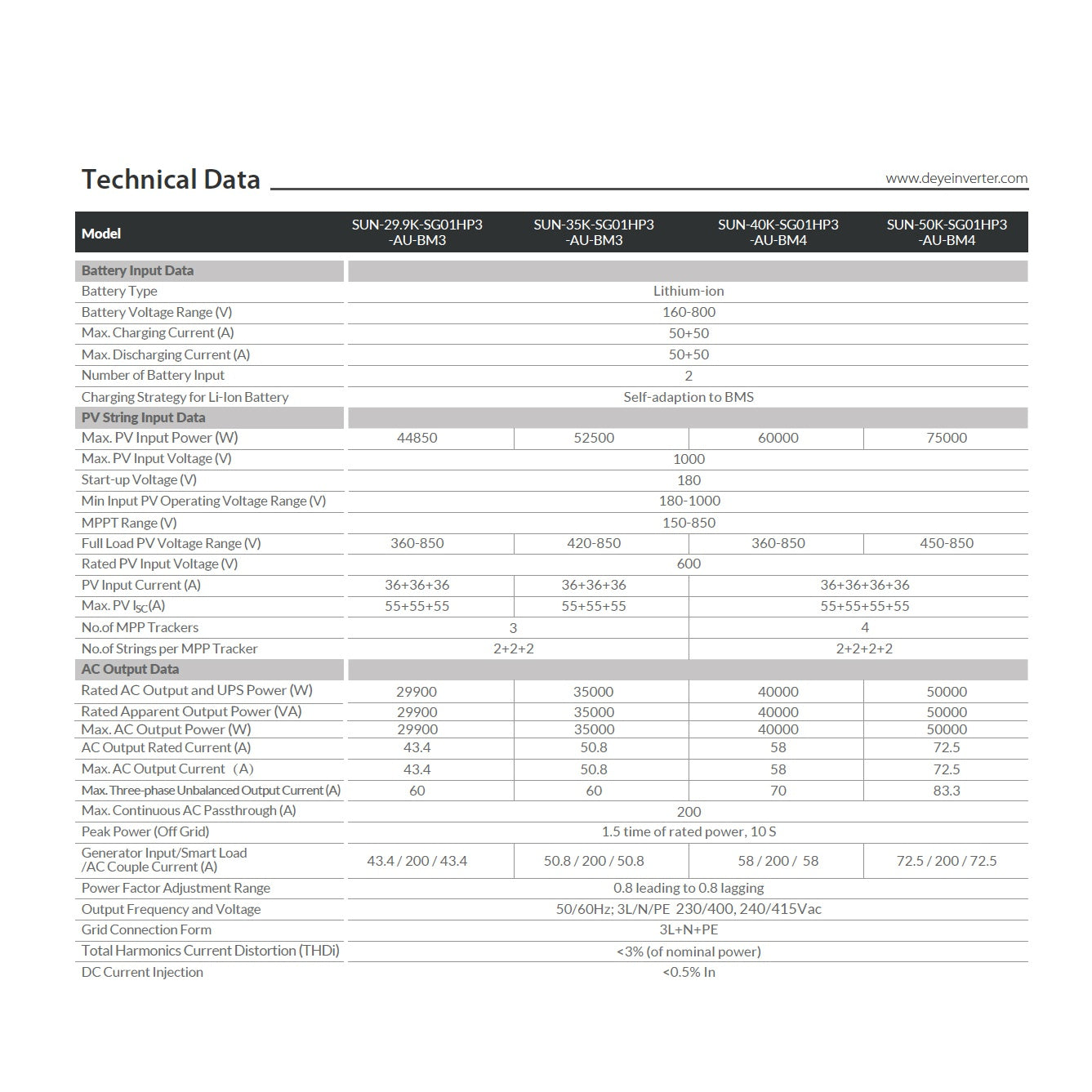

Technical specifications
Model: SUN-30K-SG01HP3-AU-BM3

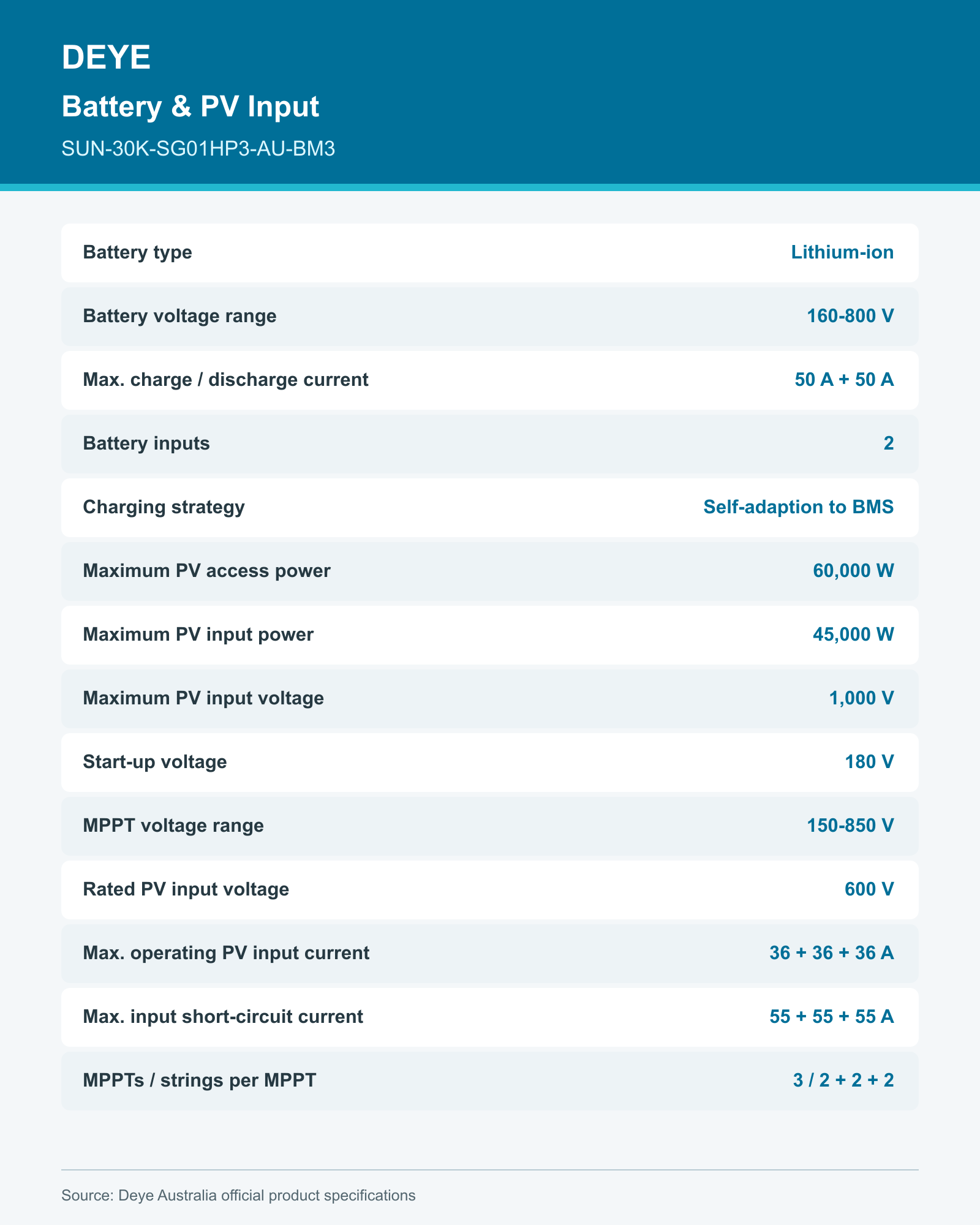

Battery input
- Battery type: Lithium-ion
- Battery voltage range: 160-800V
- Maximum charging/discharging current: 50A + 50A
- Battery inputs: 2
- Charging strategy: Self-adaption to BMS
PV input
- Maximum PV access power: 60,000W
- Maximum PV input power: 45,000W
- Maximum PV input voltage: 1,000V
- Start-up voltage: 180V
- MPPT voltage range: 150-850V
- Rated PV input voltage: 600V
- Maximum operating PV input current: 36A + 36A + 36A
- Maximum input short-circuit current: 55A + 55A + 55A
- MPPT trackers / strings per tracker: 3 / 2 + 2 + 2

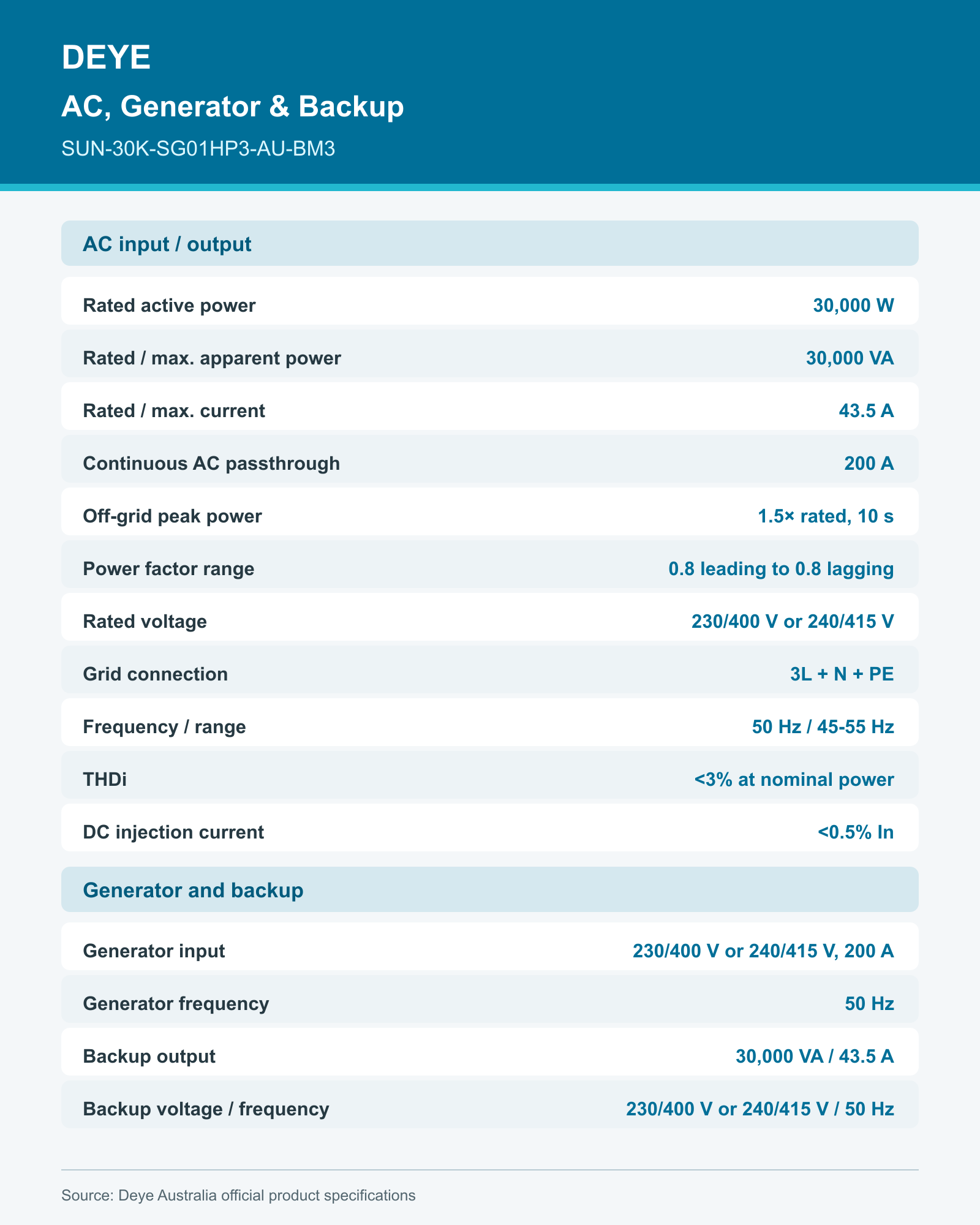

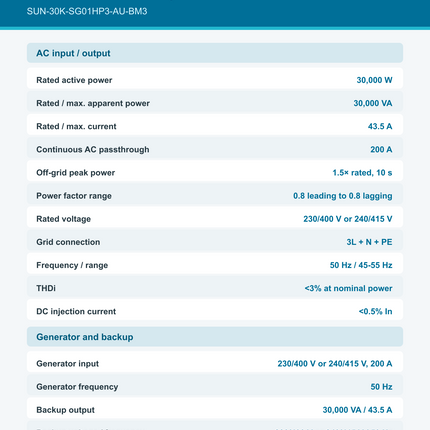

AC input/output
- Rated active power: 30,000W
- Rated/maximum apparent power: 30,000VA
- Rated/maximum current: 43.5A
- Maximum continuous AC passthrough (grid to load): 200A
- Off-grid peak power: 1.5 times rated power for 10 seconds
- Rated voltage: 230/400V or 240/415V, 3L + N + PE
- Rated frequency/range: 50Hz / 45-55Hz
- Power factor adjustment: 0.8 leading to 0.8 lagging
- Total current harmonic distortion: <3% at nominal power

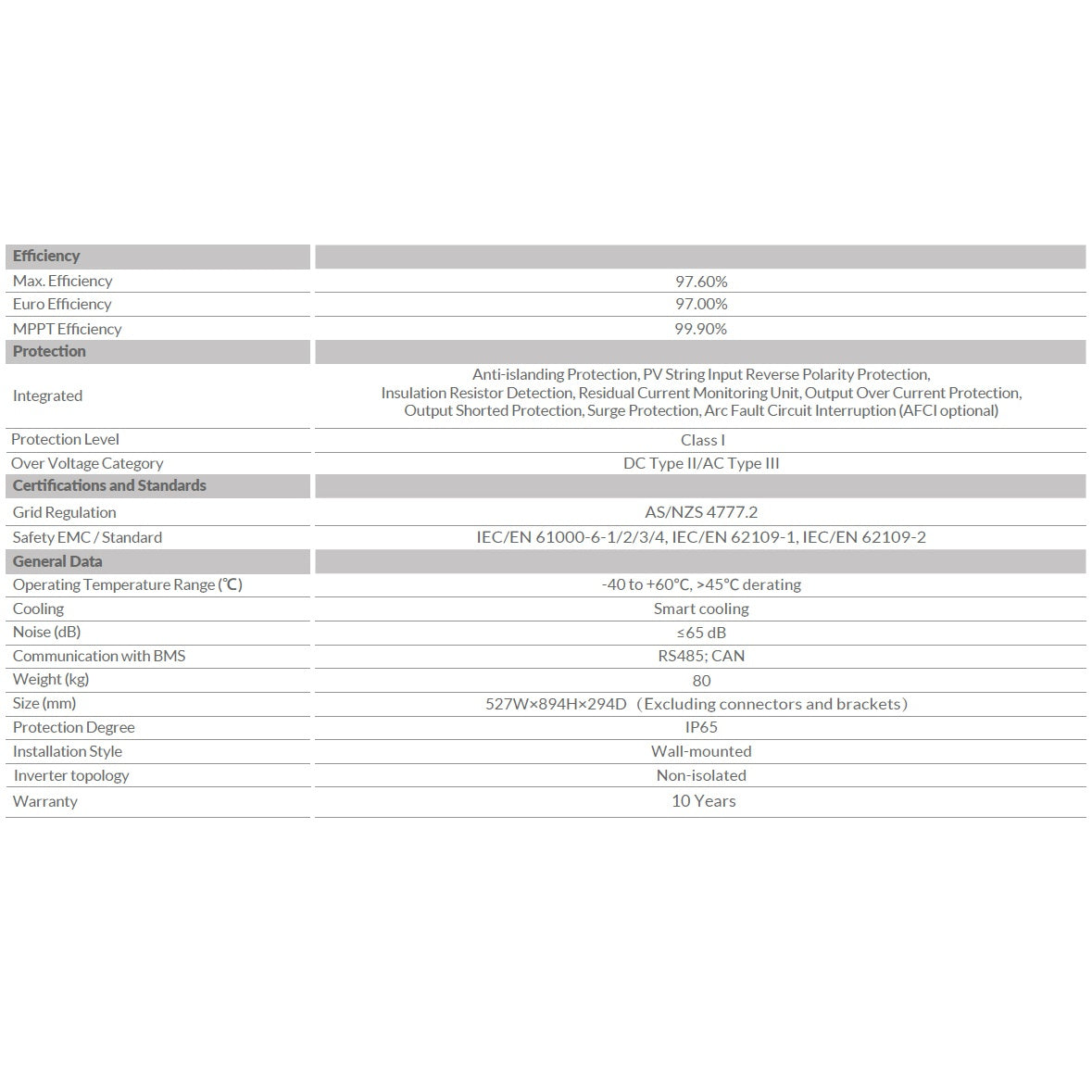

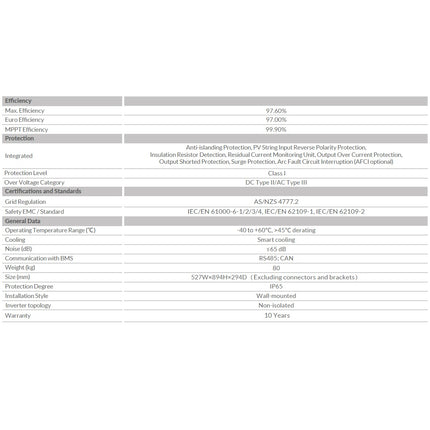

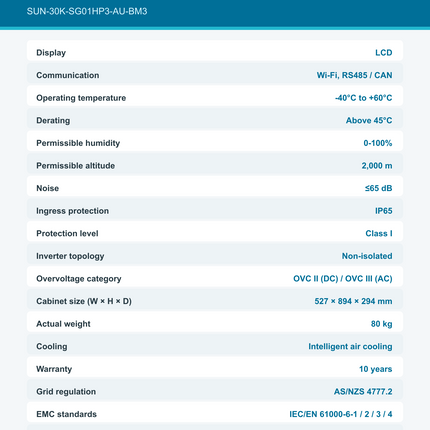

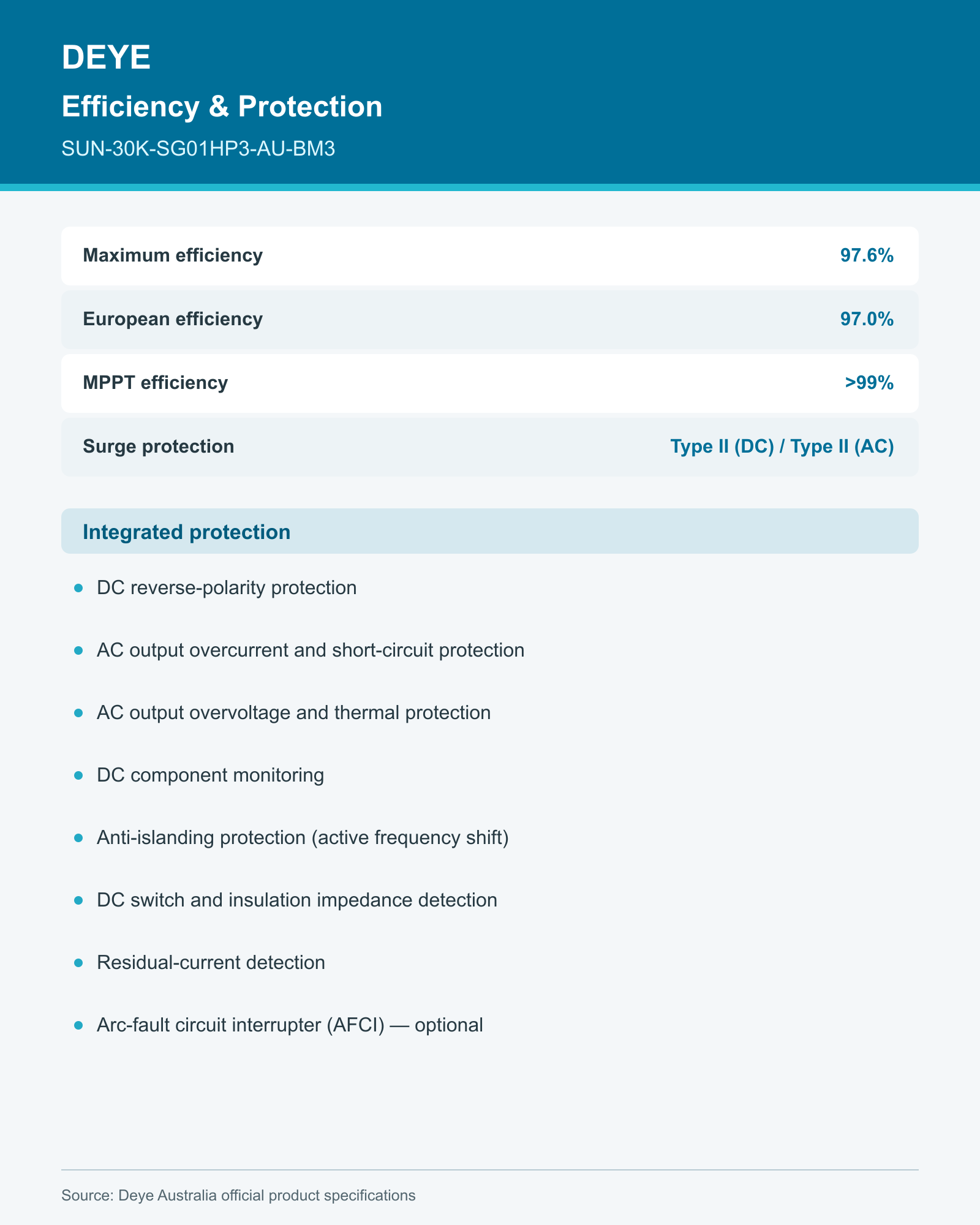

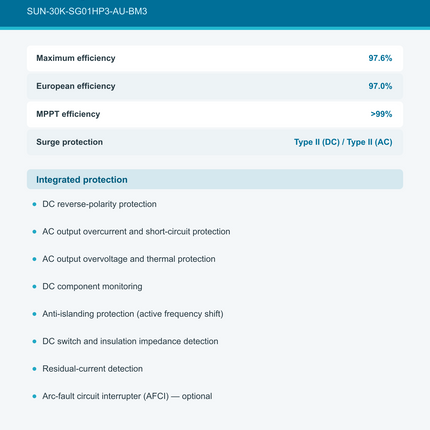

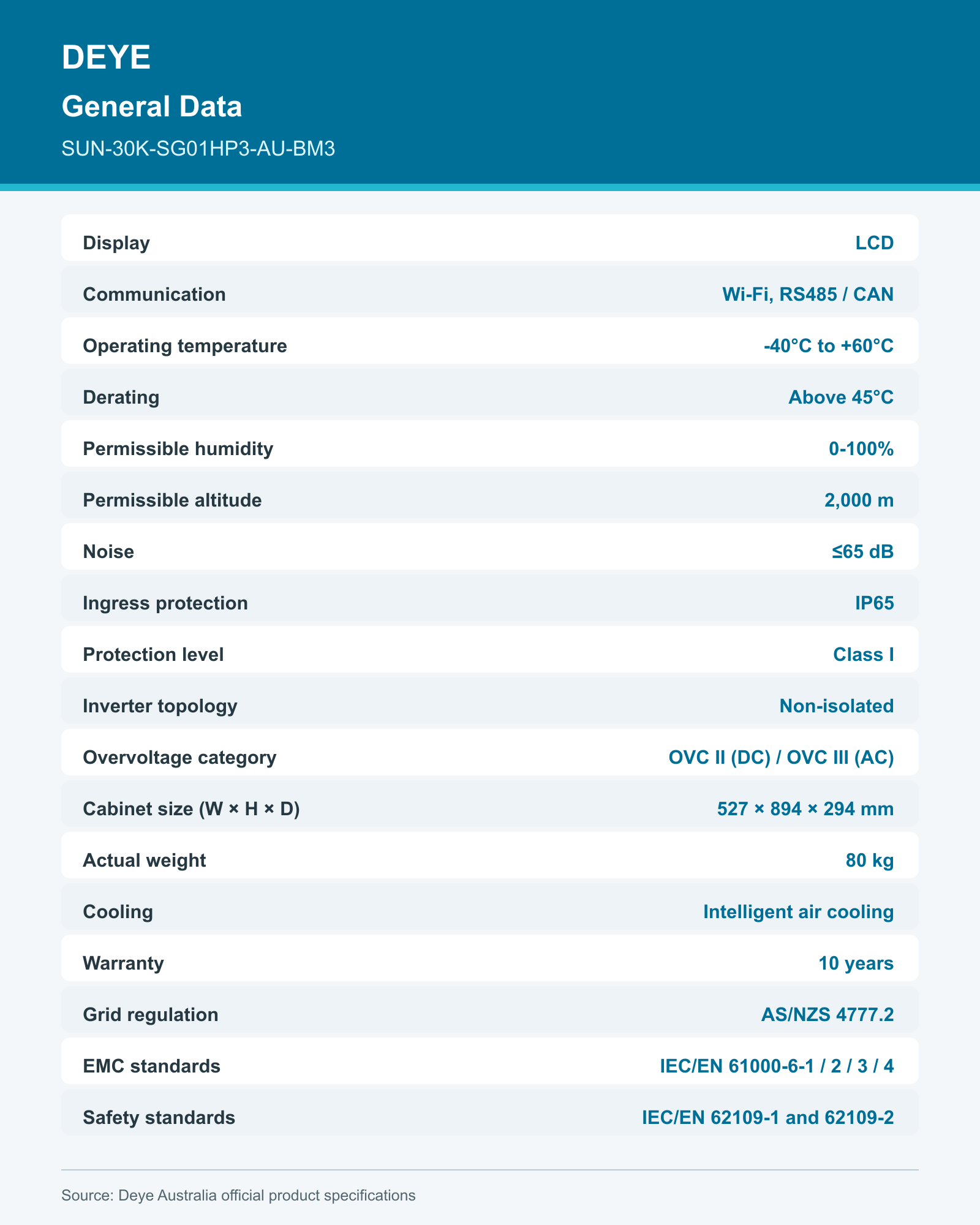

Efficiency and general data
- Maximum efficiency: 97.6%
- European efficiency: 97.0%
- MPPT efficiency: >99%
- Ingress protection: IP65
- Dimensions (W × H × D): 527 × 894 × 294mm, excluding connectors and brackets
- Actual weight: 80 kg
- Operating temperature: -40°C to +60°C, derating above 45°C
- Permissible humidity: 0-100%
- Permissible altitude: 2,000m
- Noise: ≤65dB
- Cooling: Intelligent air cooling
- Display and communications: LCD; Wi-Fi, RS485 and CAN
- Surge protection: Type II (DC), Type II (AC)
- Grid regulation: AS/NZS 4777.2
- Warranty: 10 years
Installation and grid connection must follow the manufacturer's instructions and applicable local requirements.
