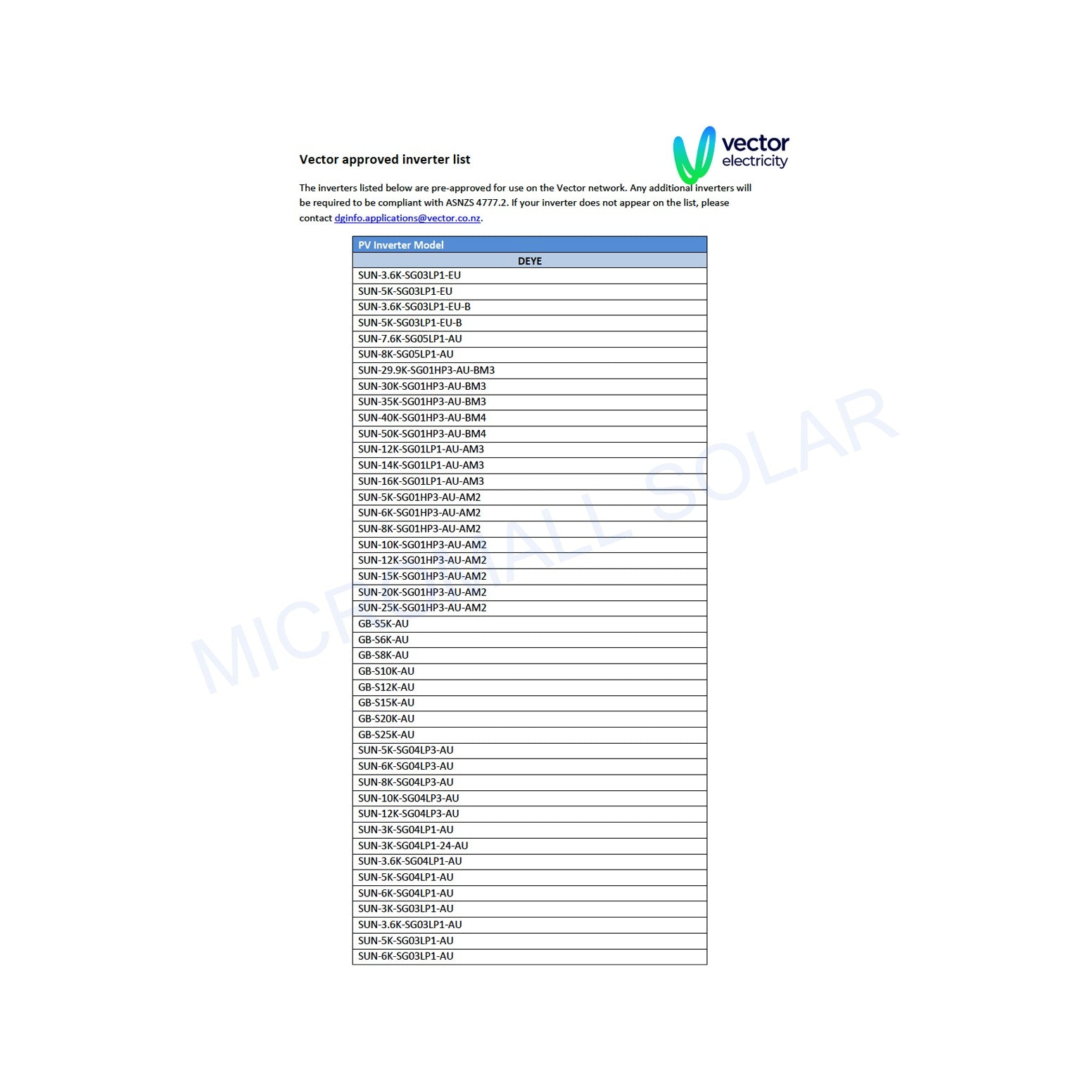

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**

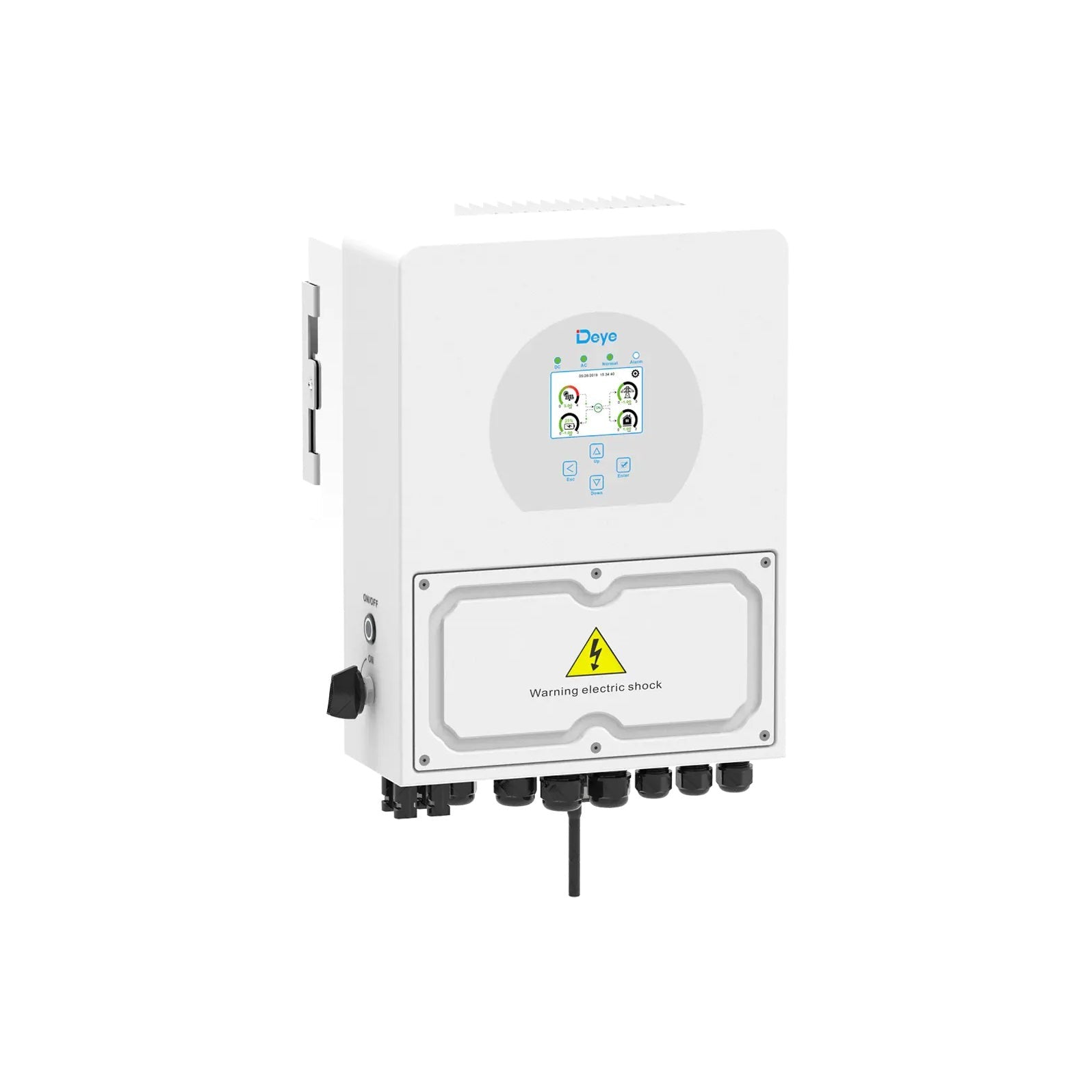

SUN-3.6K-SG04LP1-AU | 3.6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly

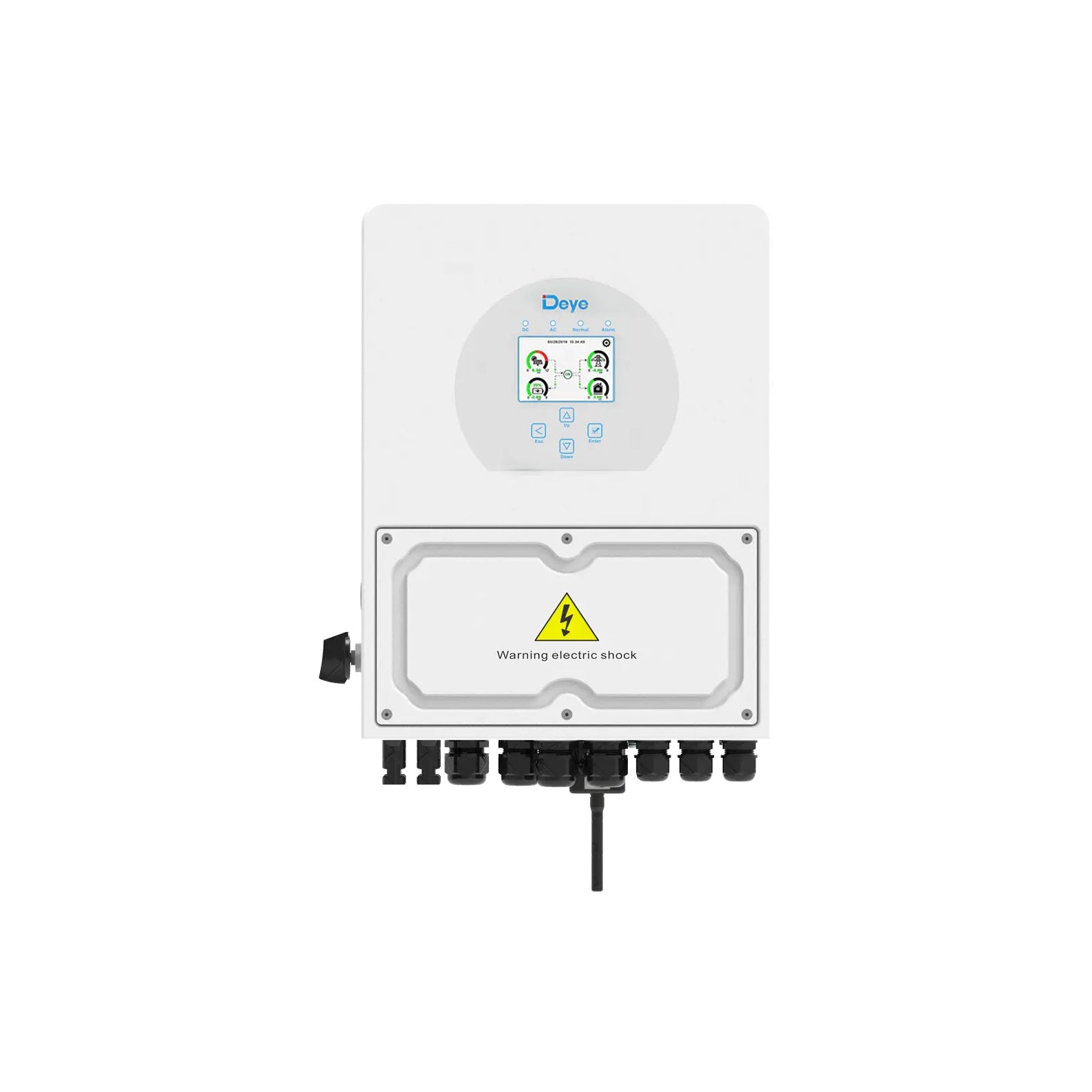

Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 90A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

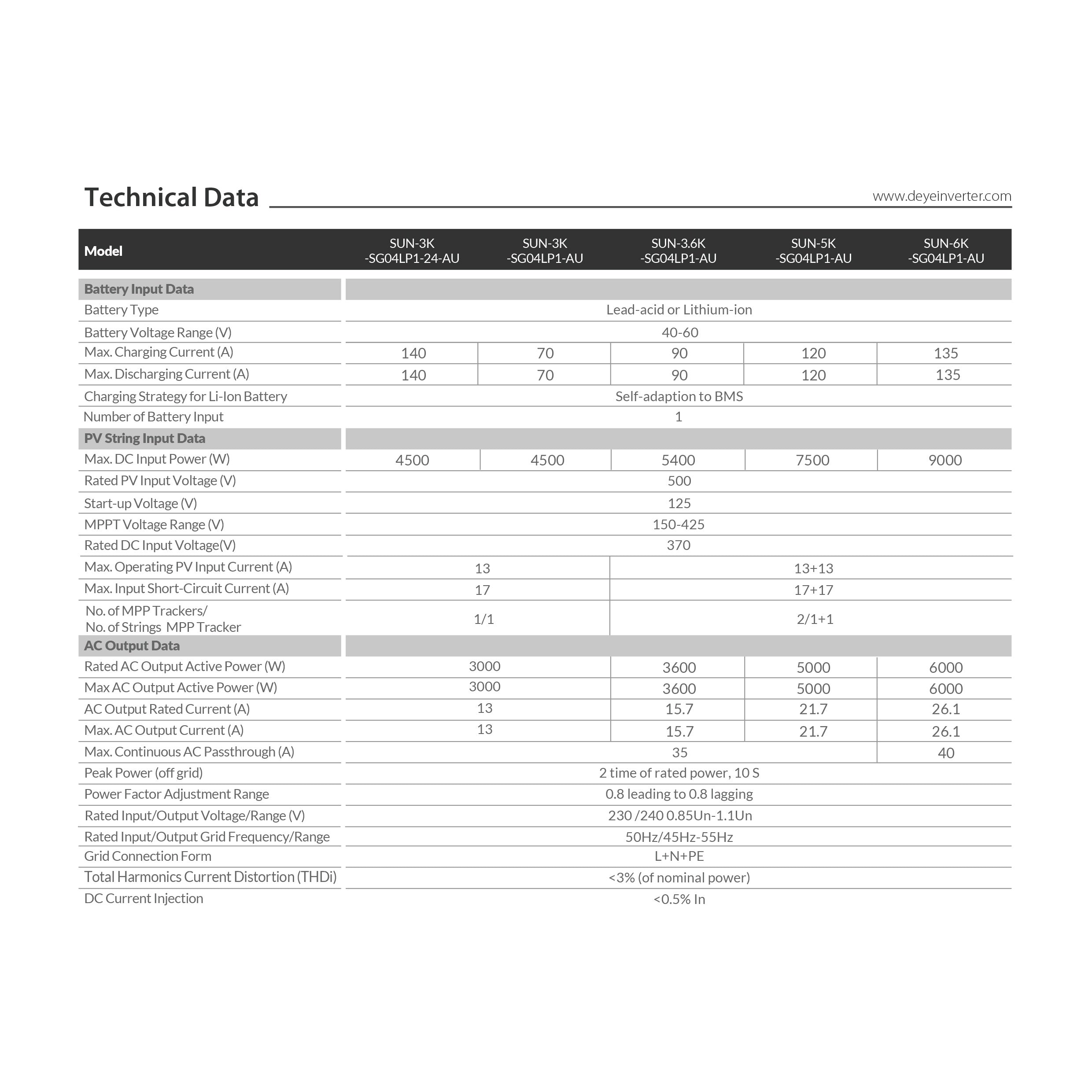

Model: SUN-3.6K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 90
Max. Discharging Current (A): 90
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 5400
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 3600
Max AC Output Active Power (W): 3600
AC Output Rated Current (A): 15.7
Max. AC Output Current (A): 15.7
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S

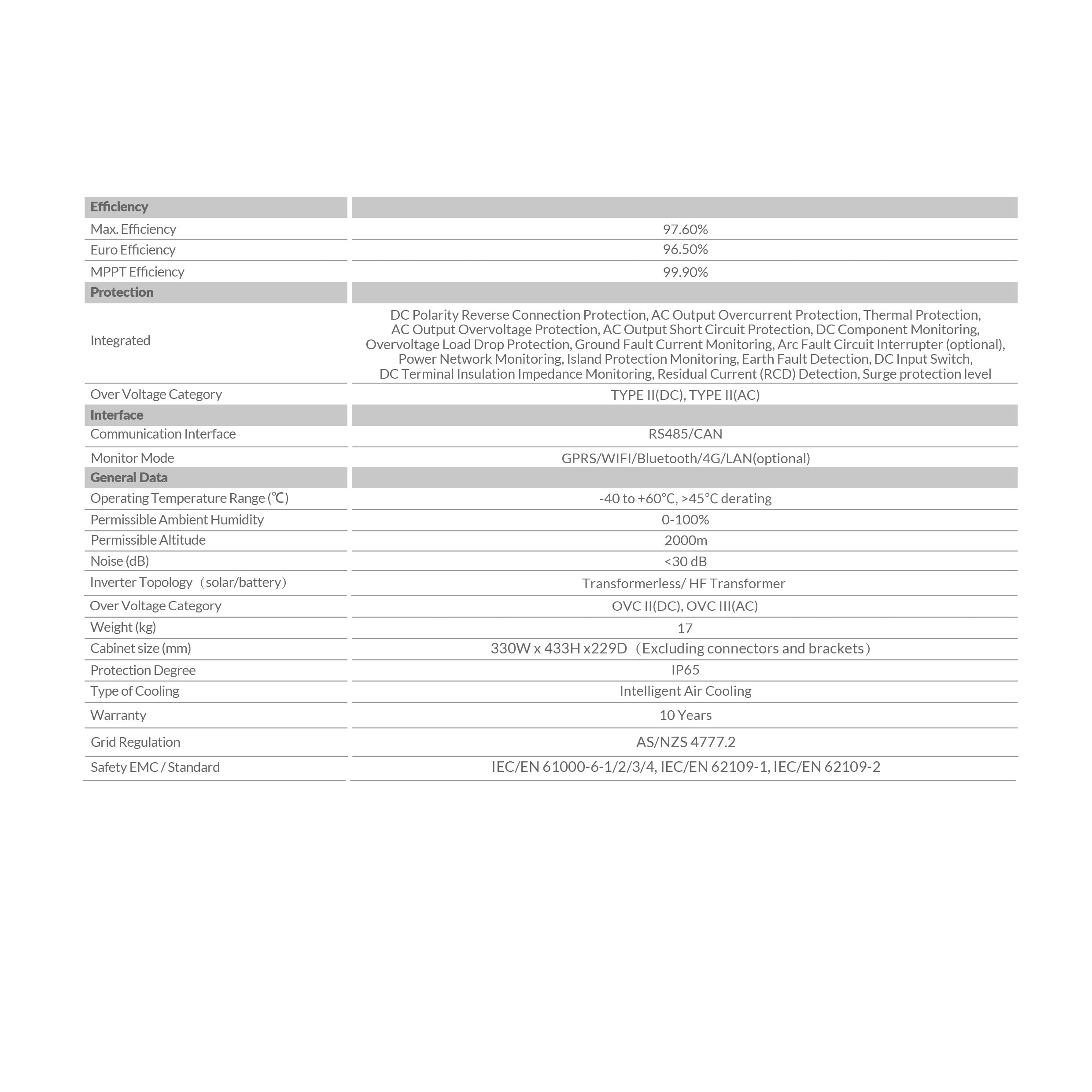

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
