Description

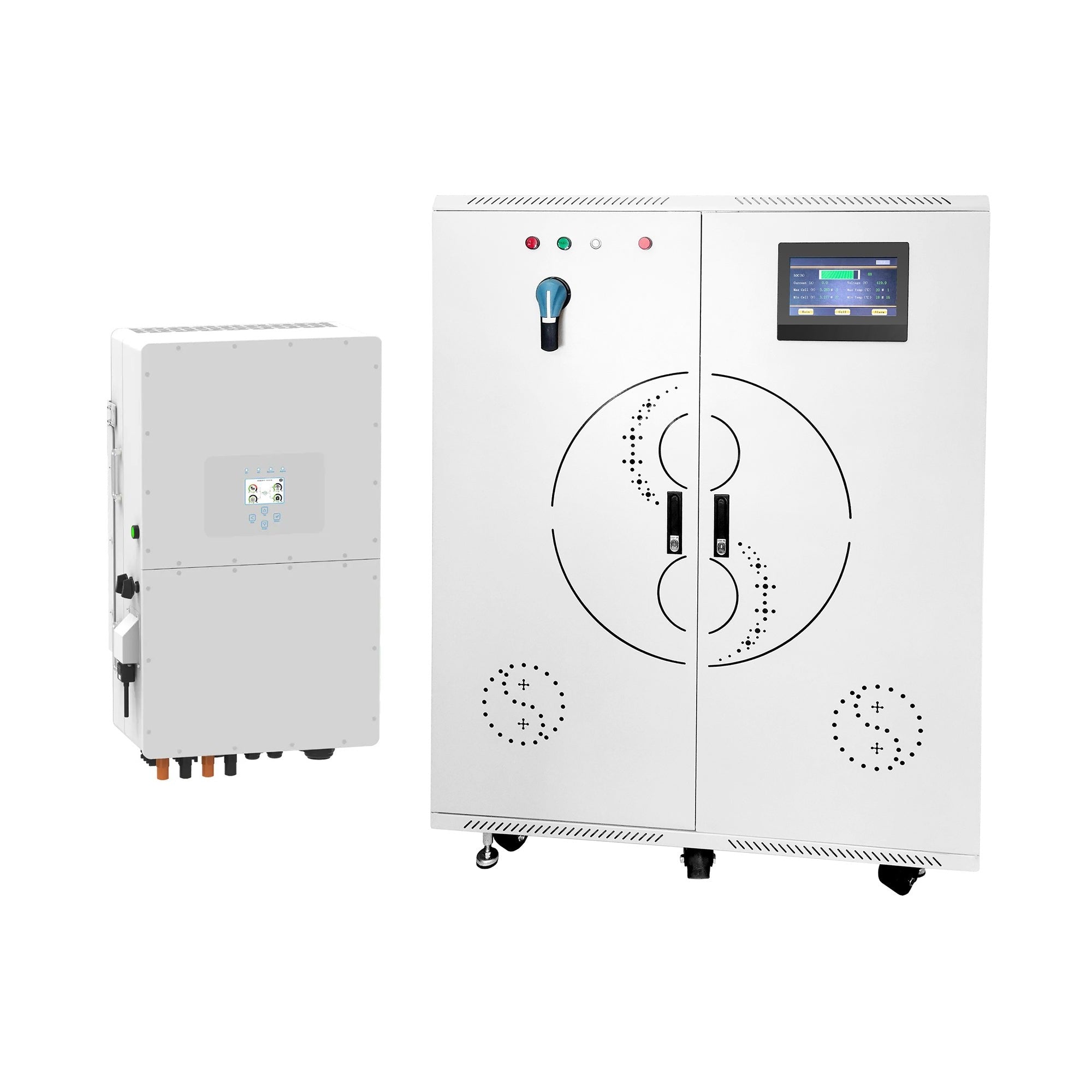

Package Includes:

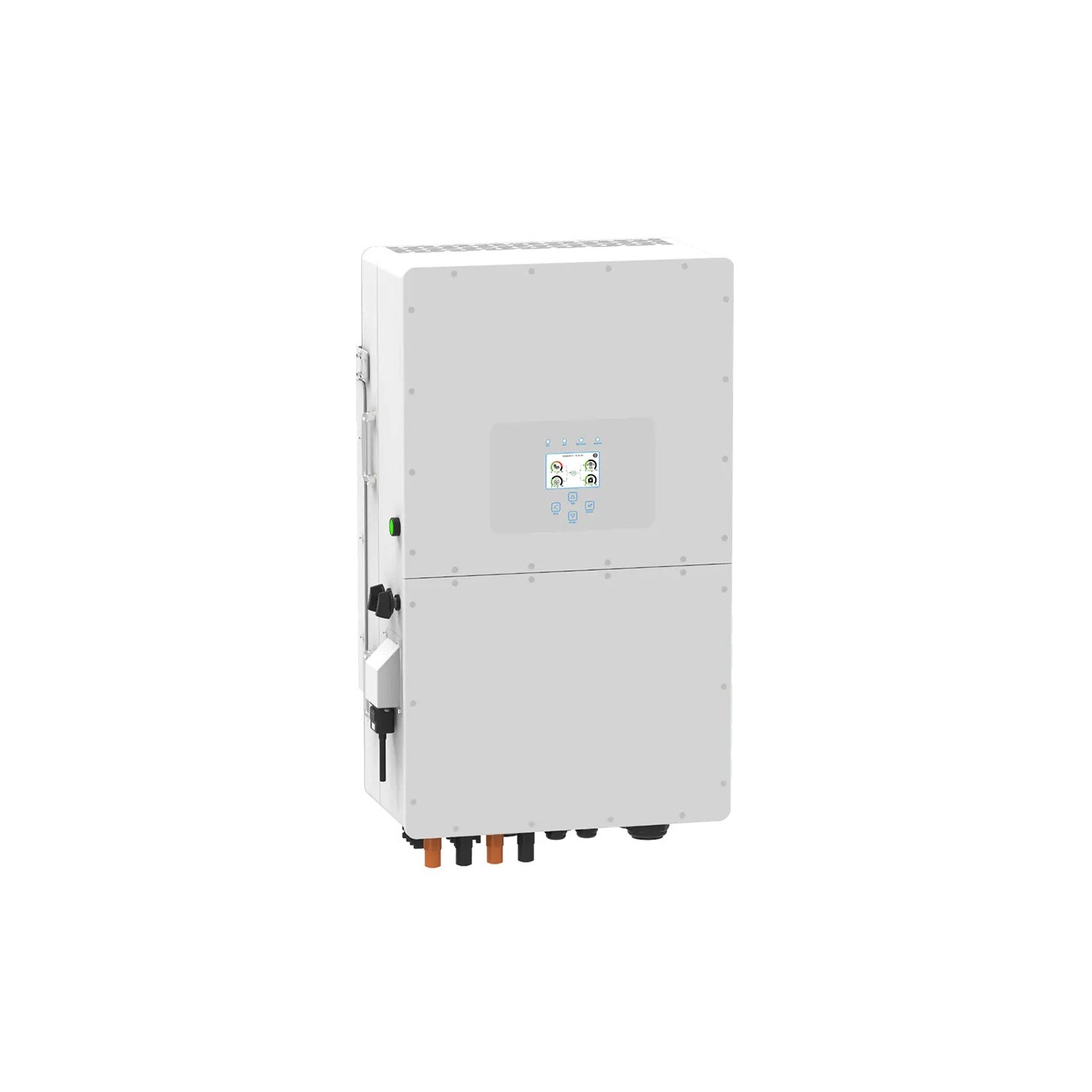

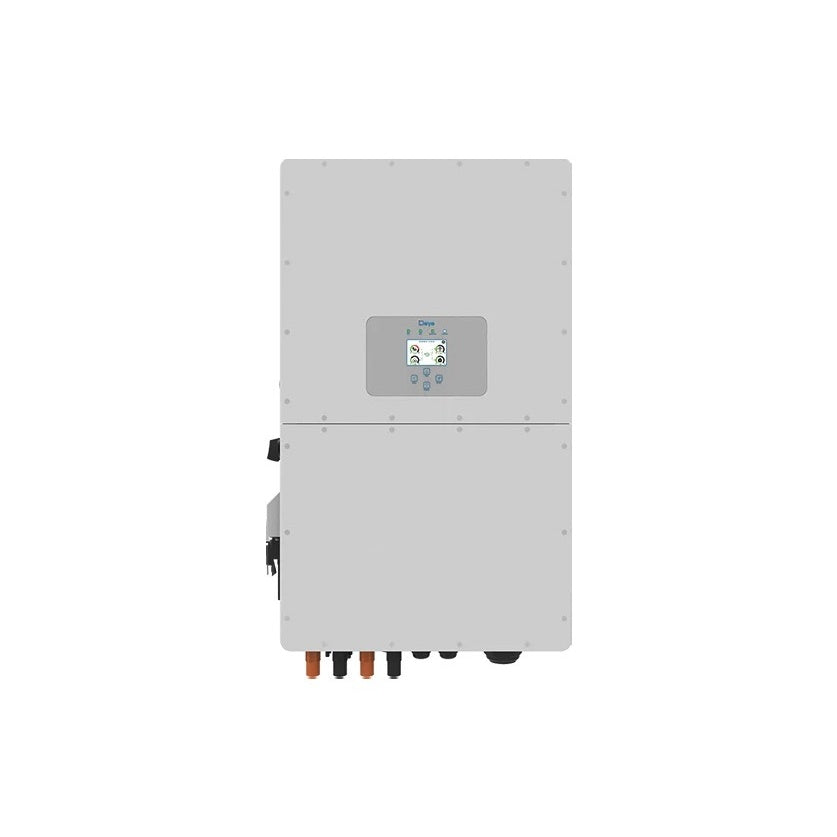

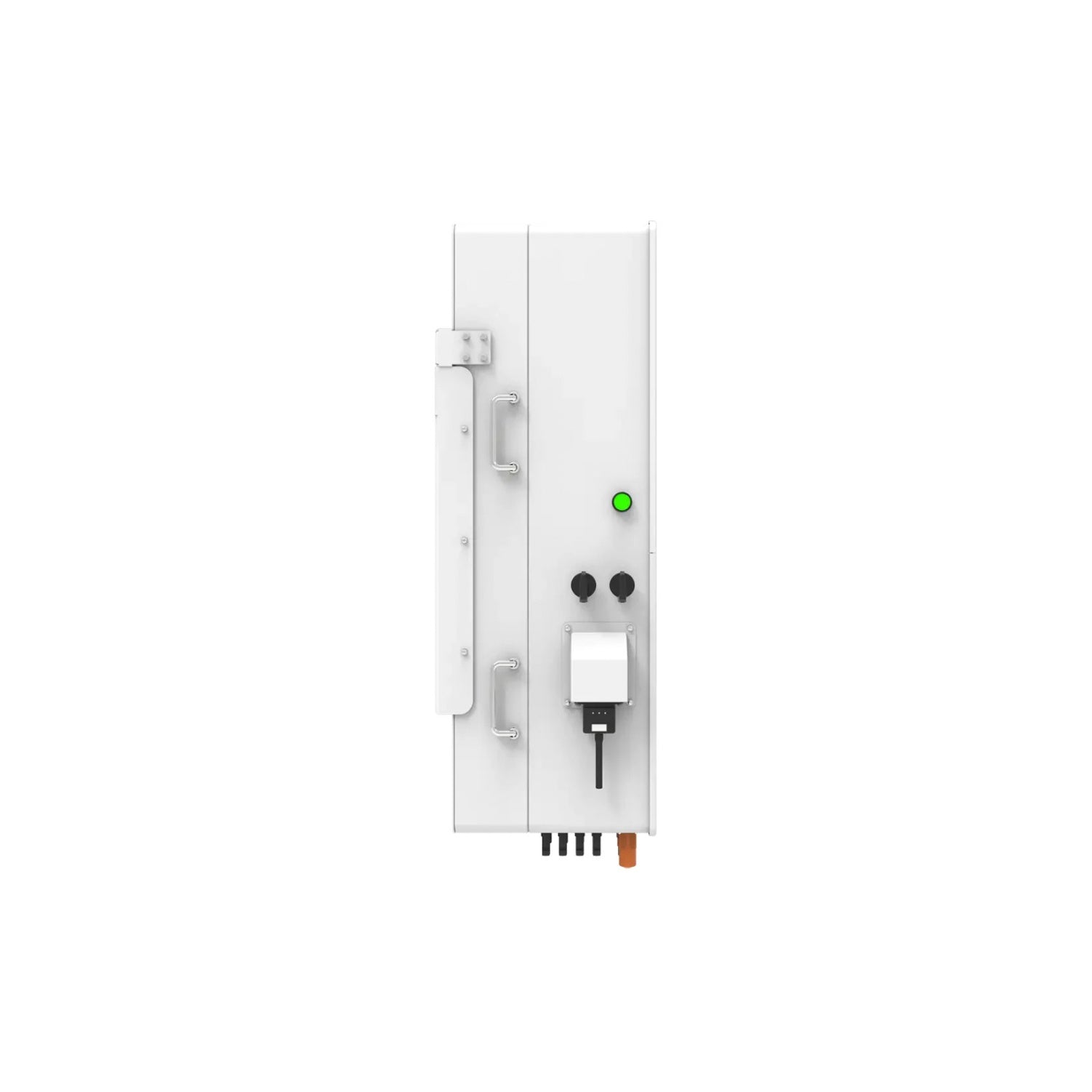

1 x Deye SUN-50K-SG01HP3-AU-BM4 50KW Three-Phase Hybrid Inverter (10 Years Warranty)
8 x Micromall 409V 210Ah Battery (15-year warranty)

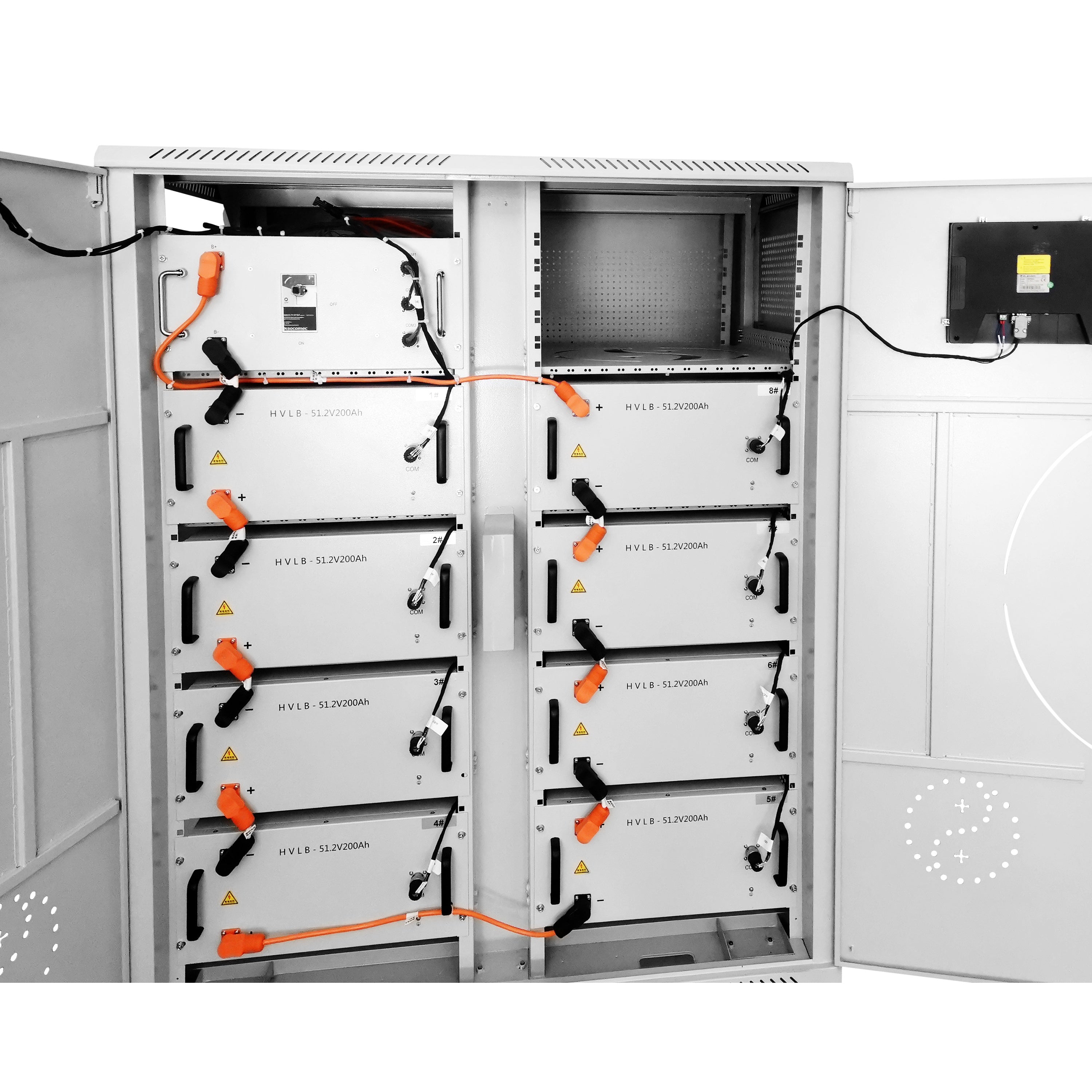

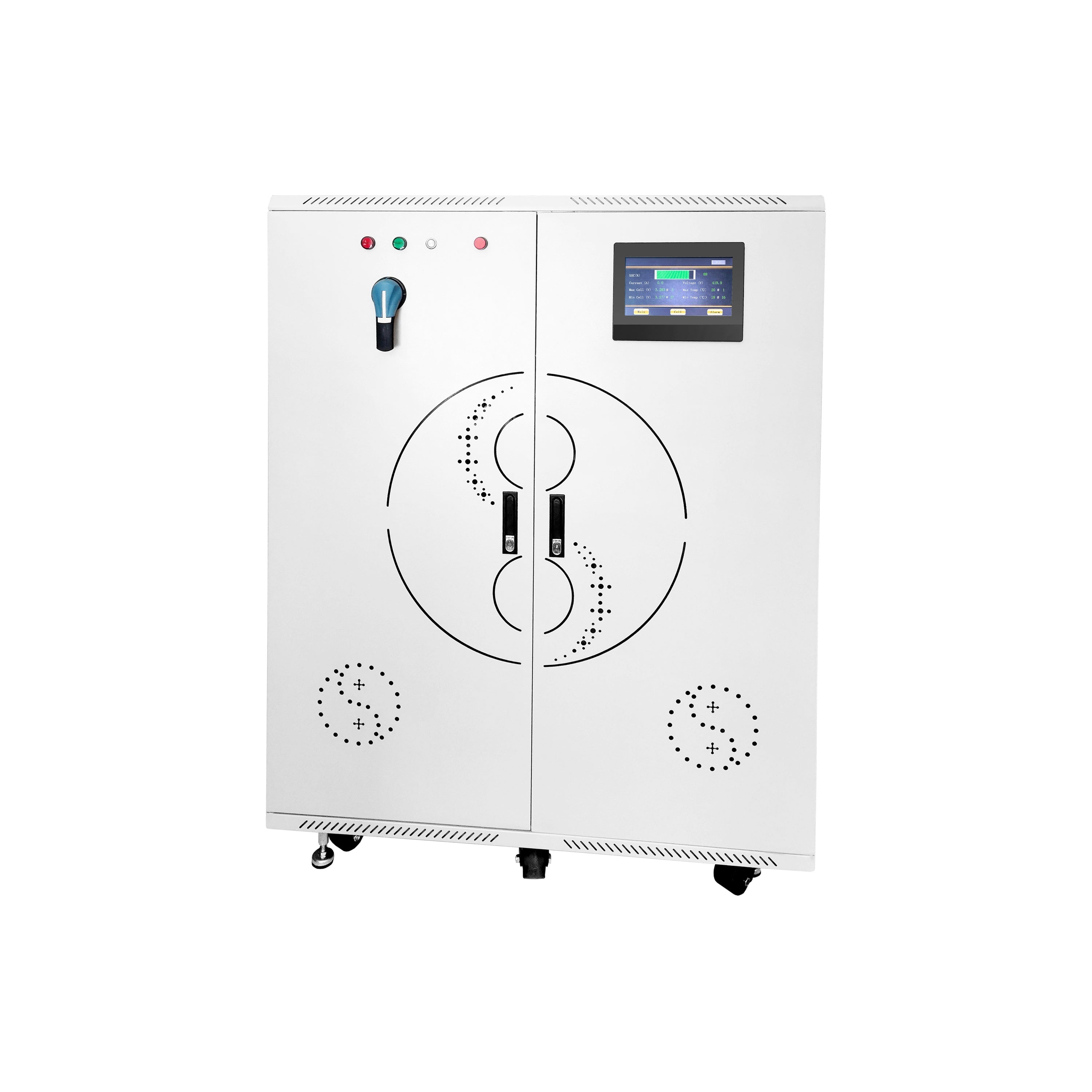

1 x High Voltage Cabinet with Control Operating System

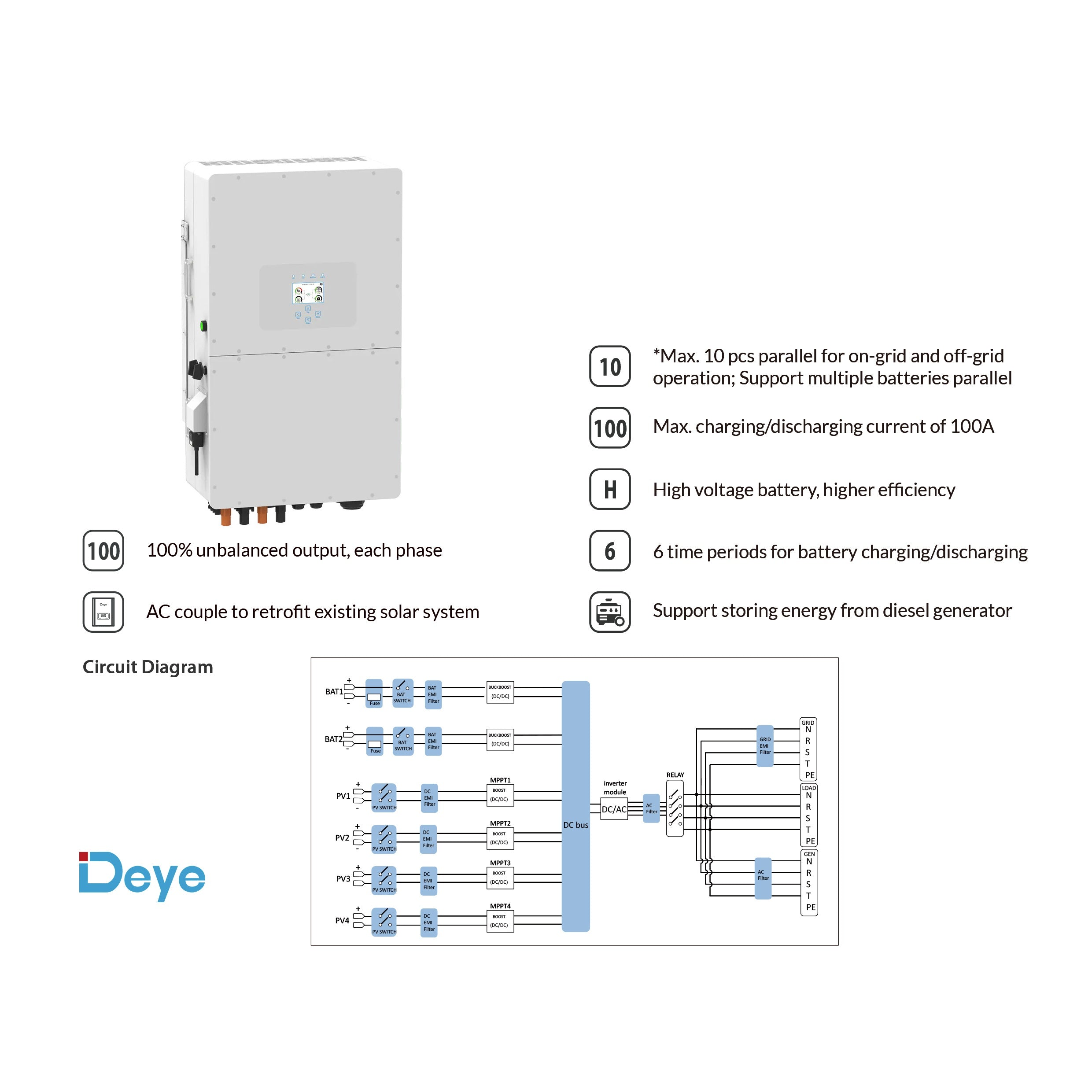

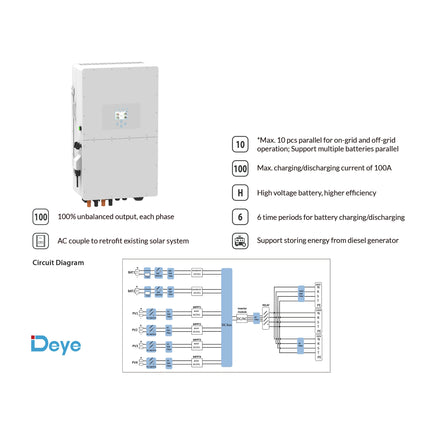

100% unbalanced output, each phase
AC couple to retrofit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

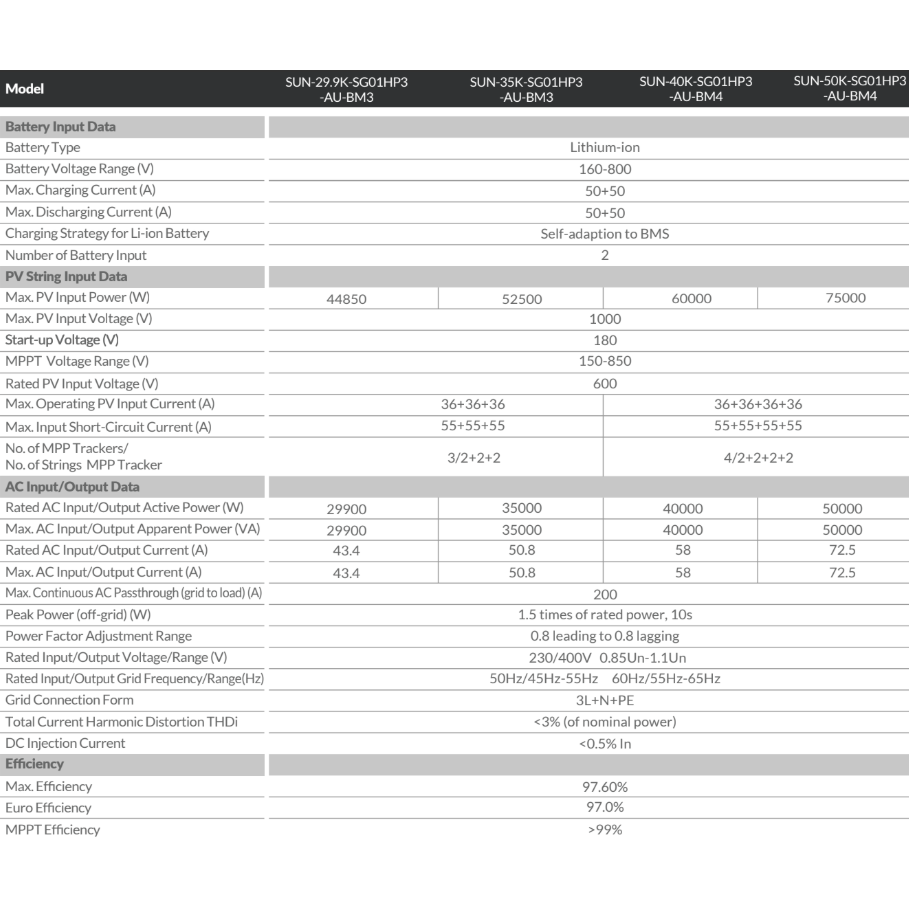

Model: SUN-50K-SG01HP3-AU-BM4
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Number of Battery Input: 2
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 36+36+36+36
Max. Input Short-Circuit Current (A):55+55+55+55
No.of MPP Trackers: 4
No.of Strings per MPP Tracker: 2+2+2+2
AC Output Data
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5

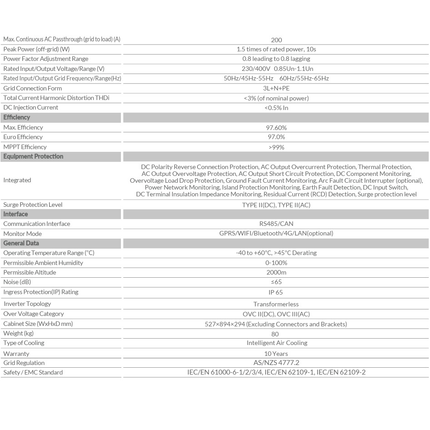

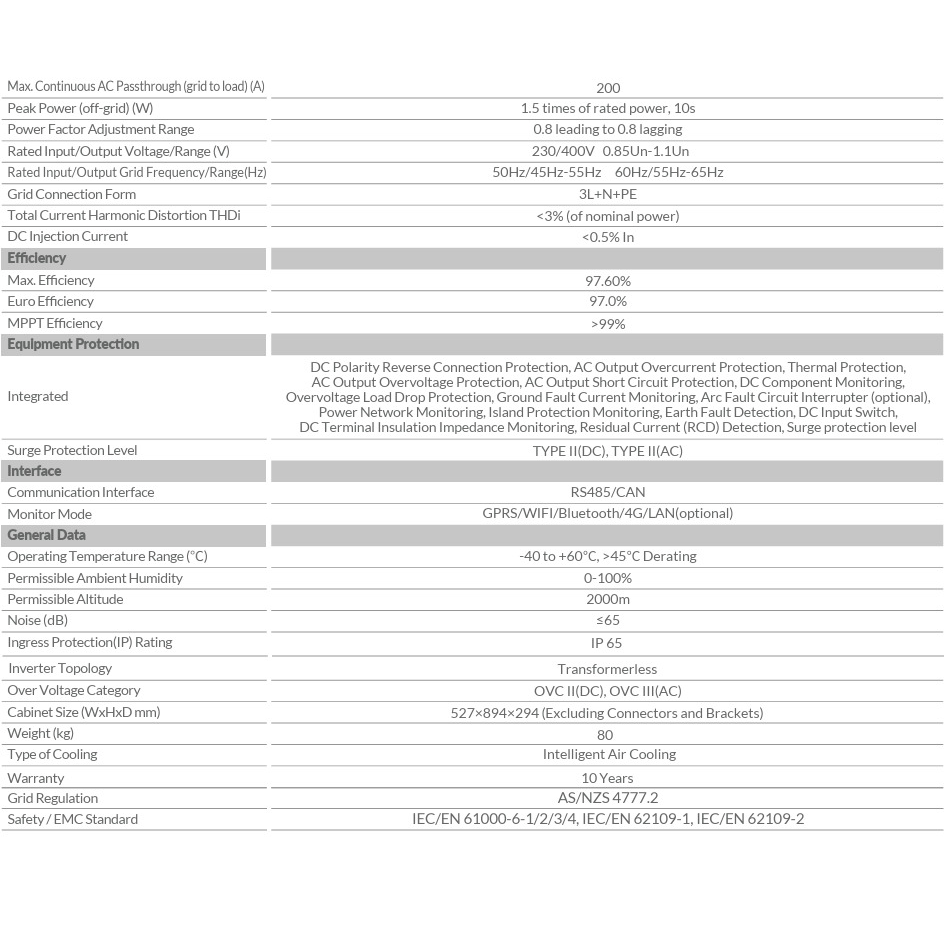

Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S
Rated Input/Output Grid Frequency/Range(Hz): 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: >99.9%
Size (mm): 527W×894H×294D（Excluding connectors and brackets）
Weight (kg): 80
**Vector Approved Inverter**
**DEYE LONGI New Zealand Distributor – Micromall Solar**
