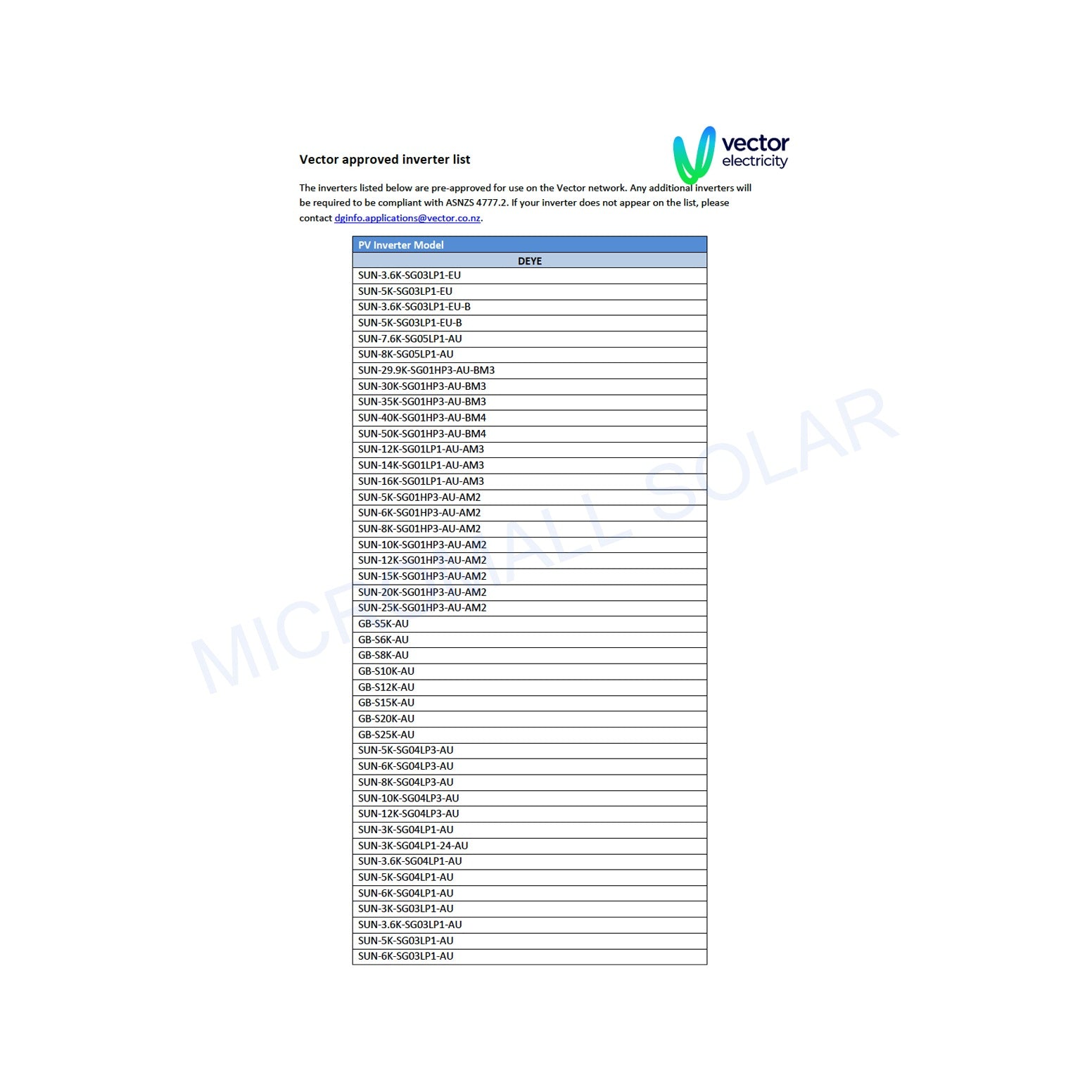

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

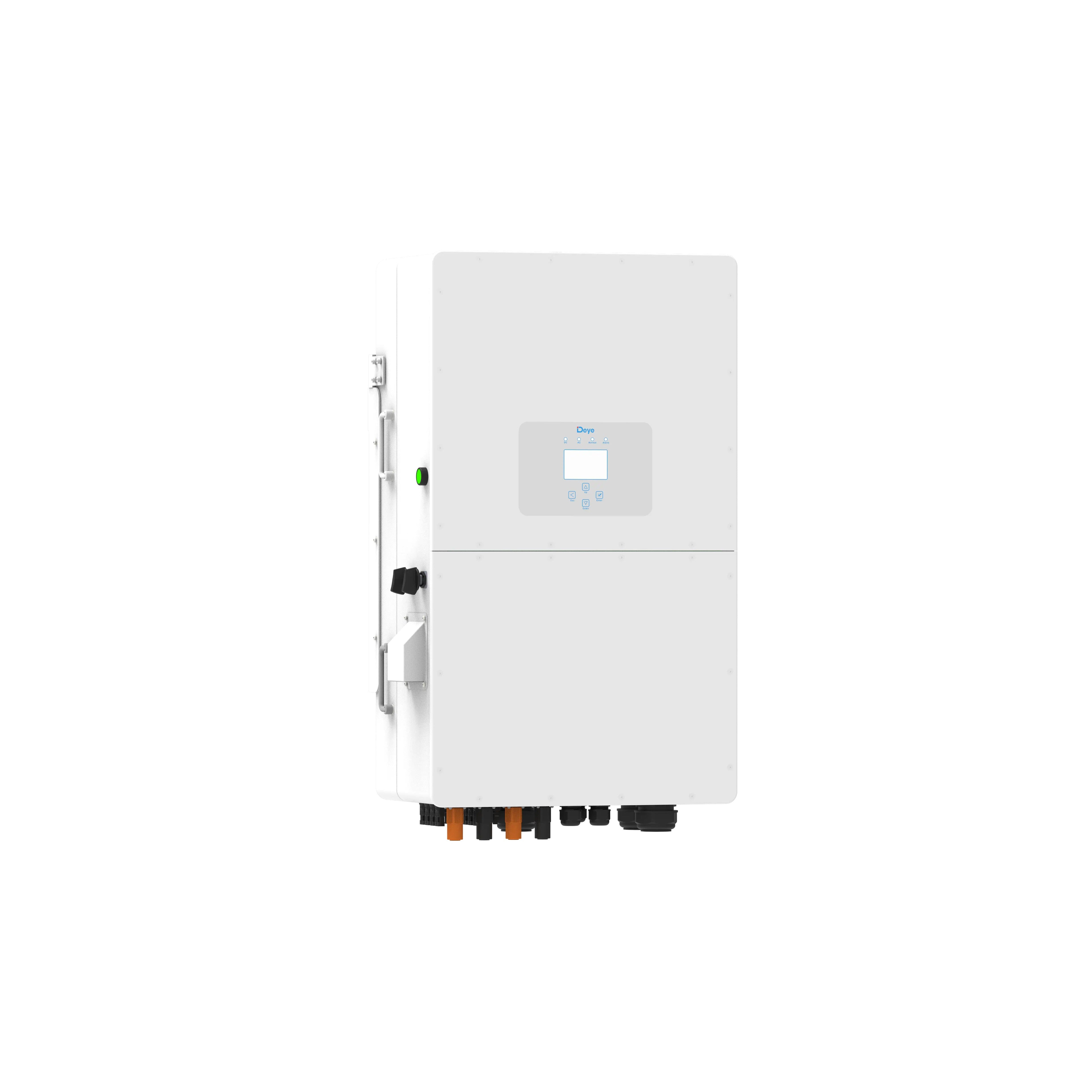

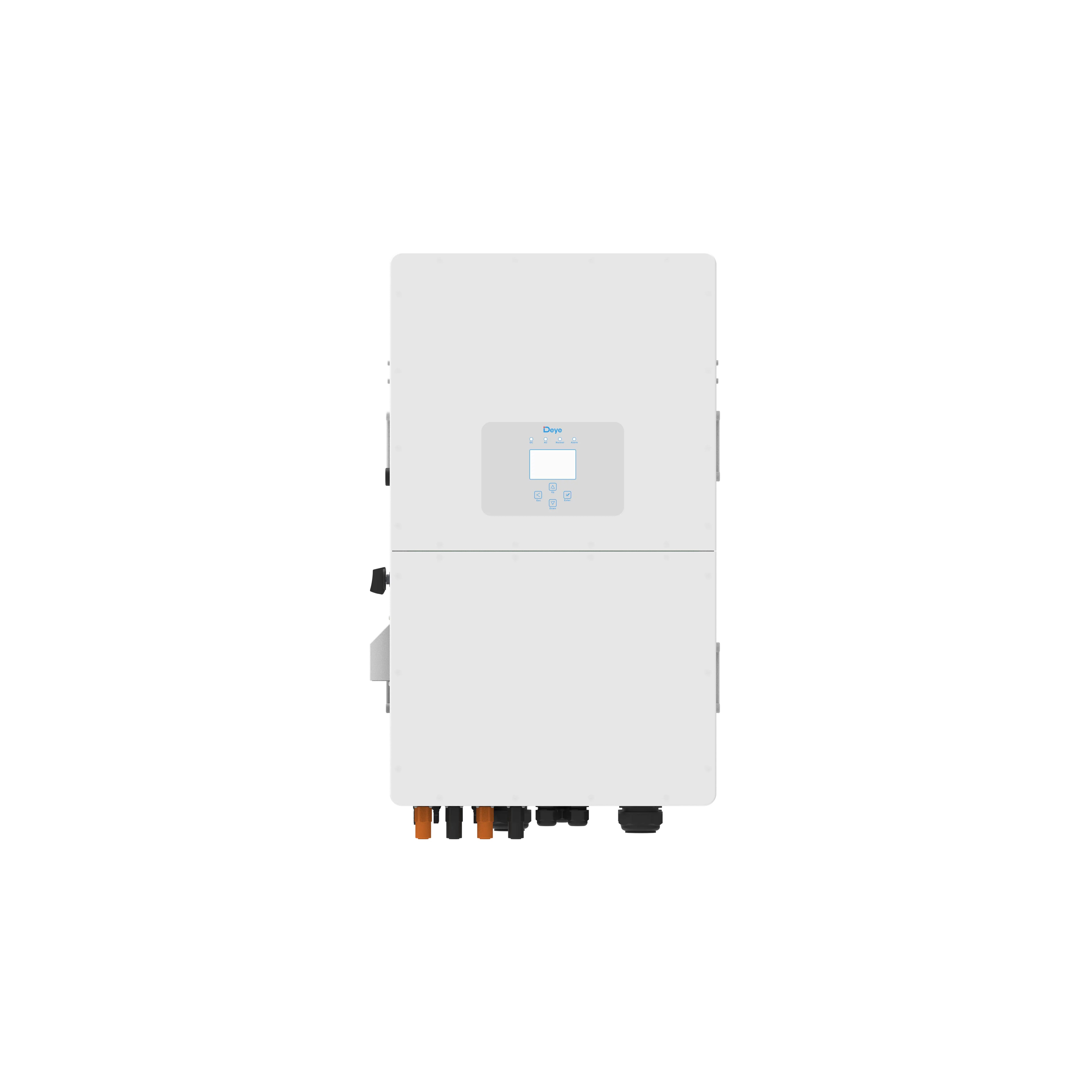

SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

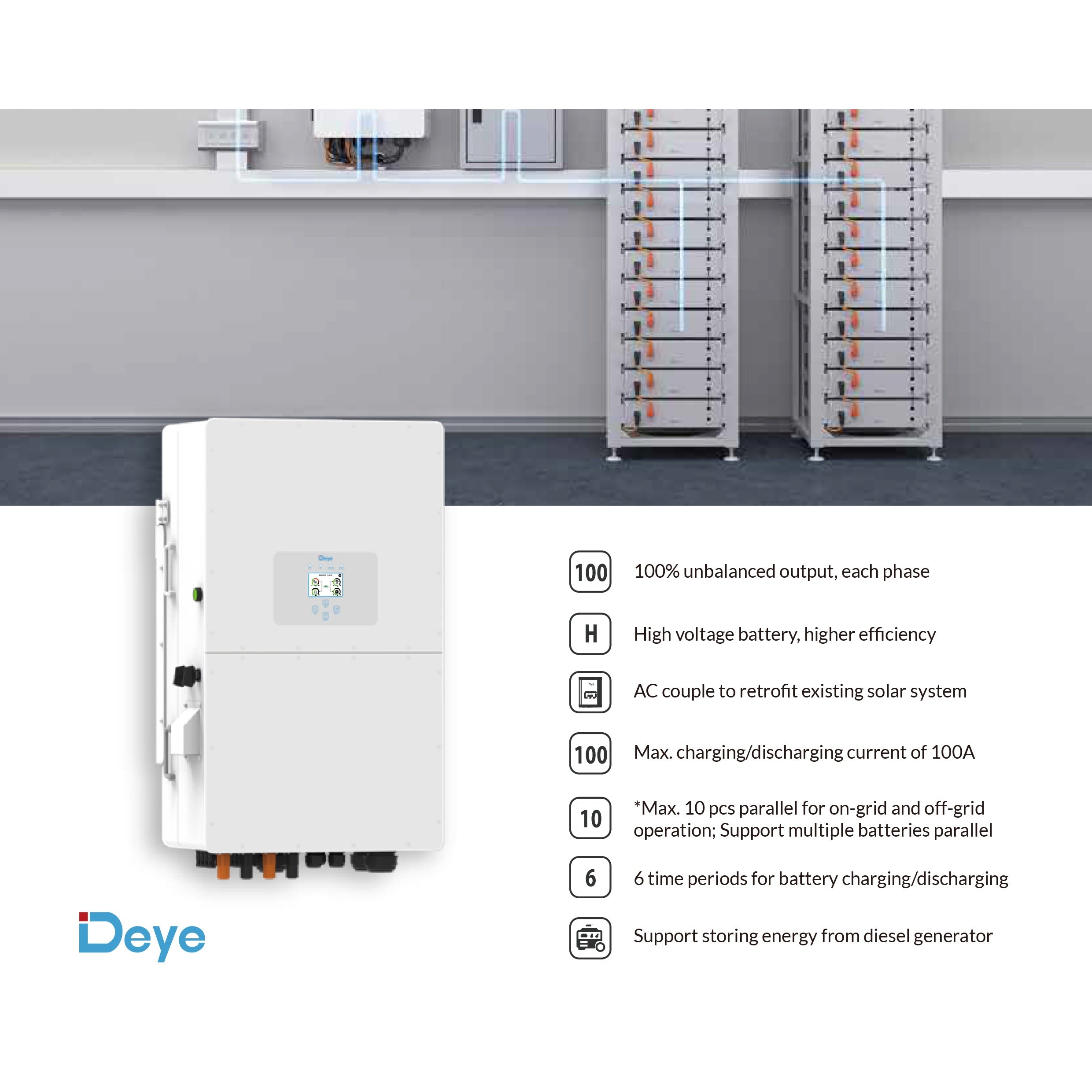

100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

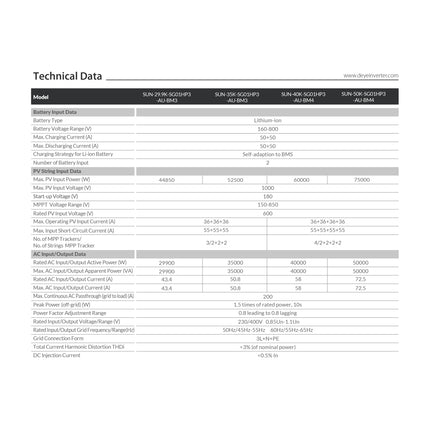

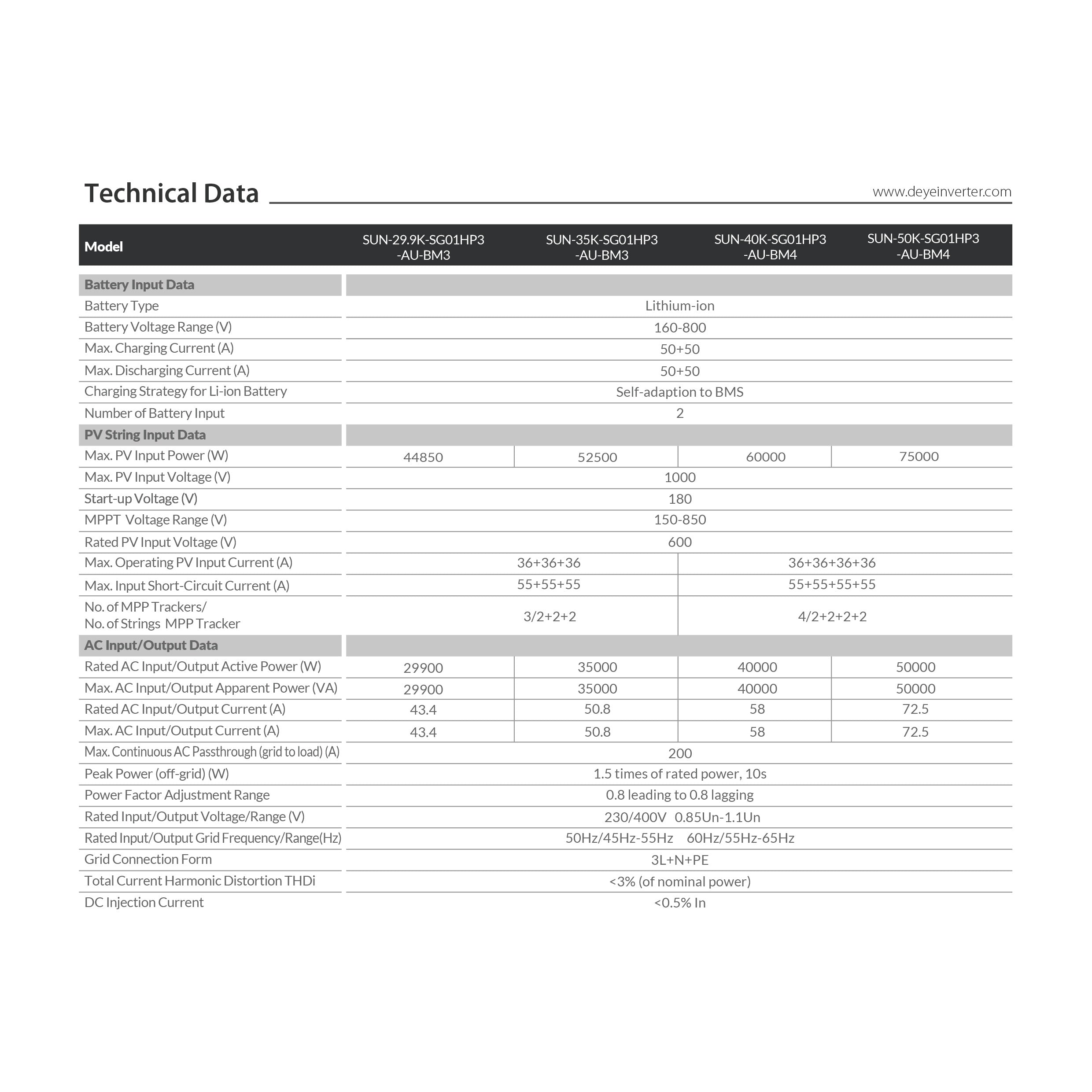

Model: SUN-50K-SG01HP3-AU-BM4
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 36+36+36+36
Max. Input Short-Circuit Current (A): 55+55+55+55
No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5
Max. Continuous AC Passthrough (grid to load) (A): 200
Peak Power (off-grid) (W): 1.5 times of rated power, 10s

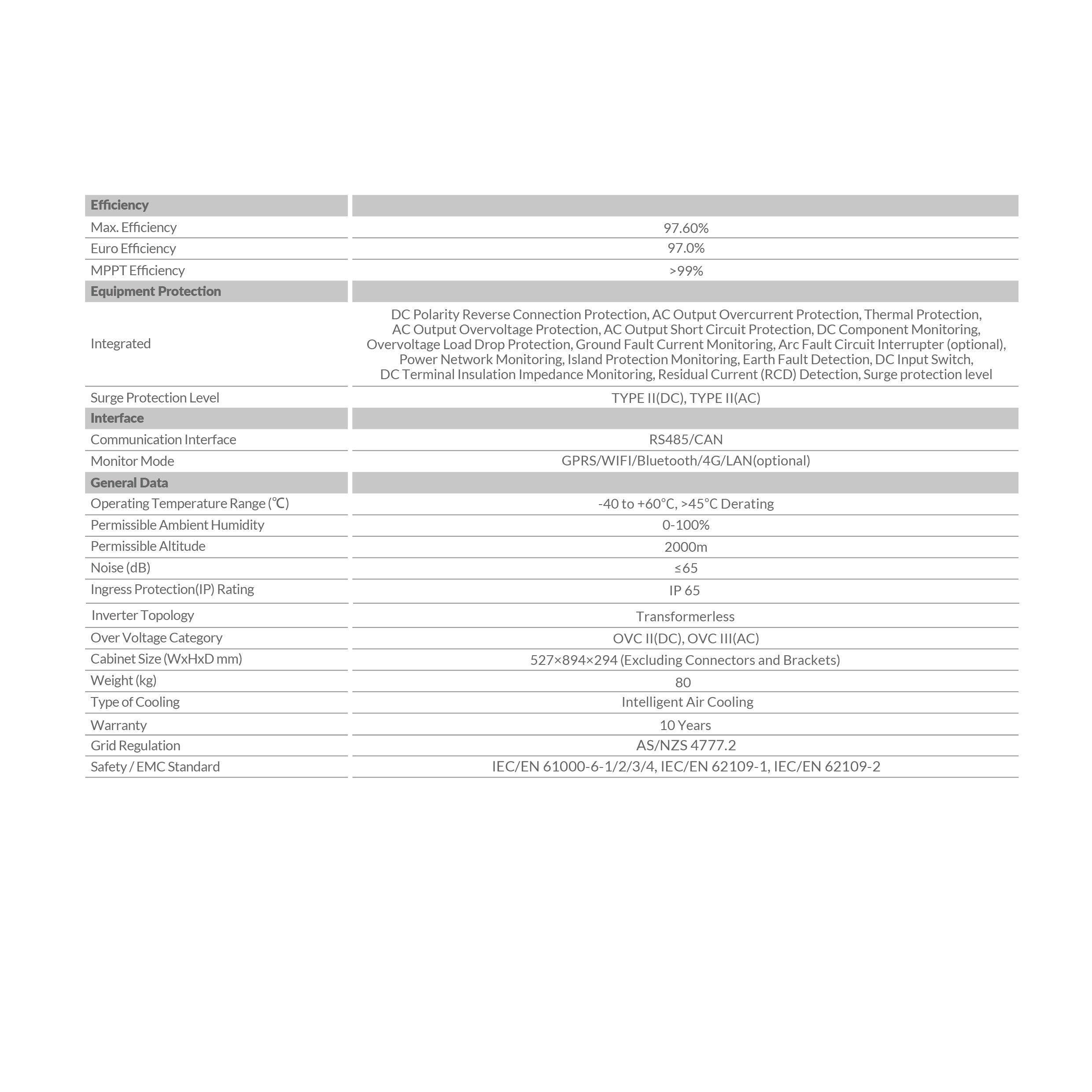

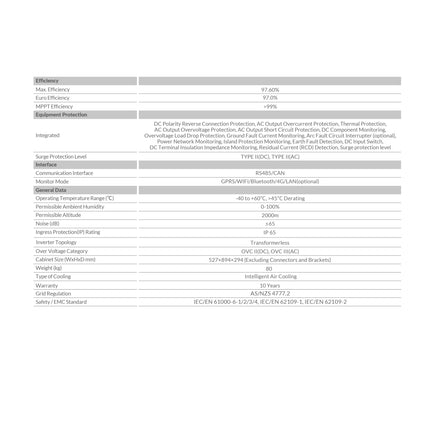

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
Weight (kg): 80
