Description

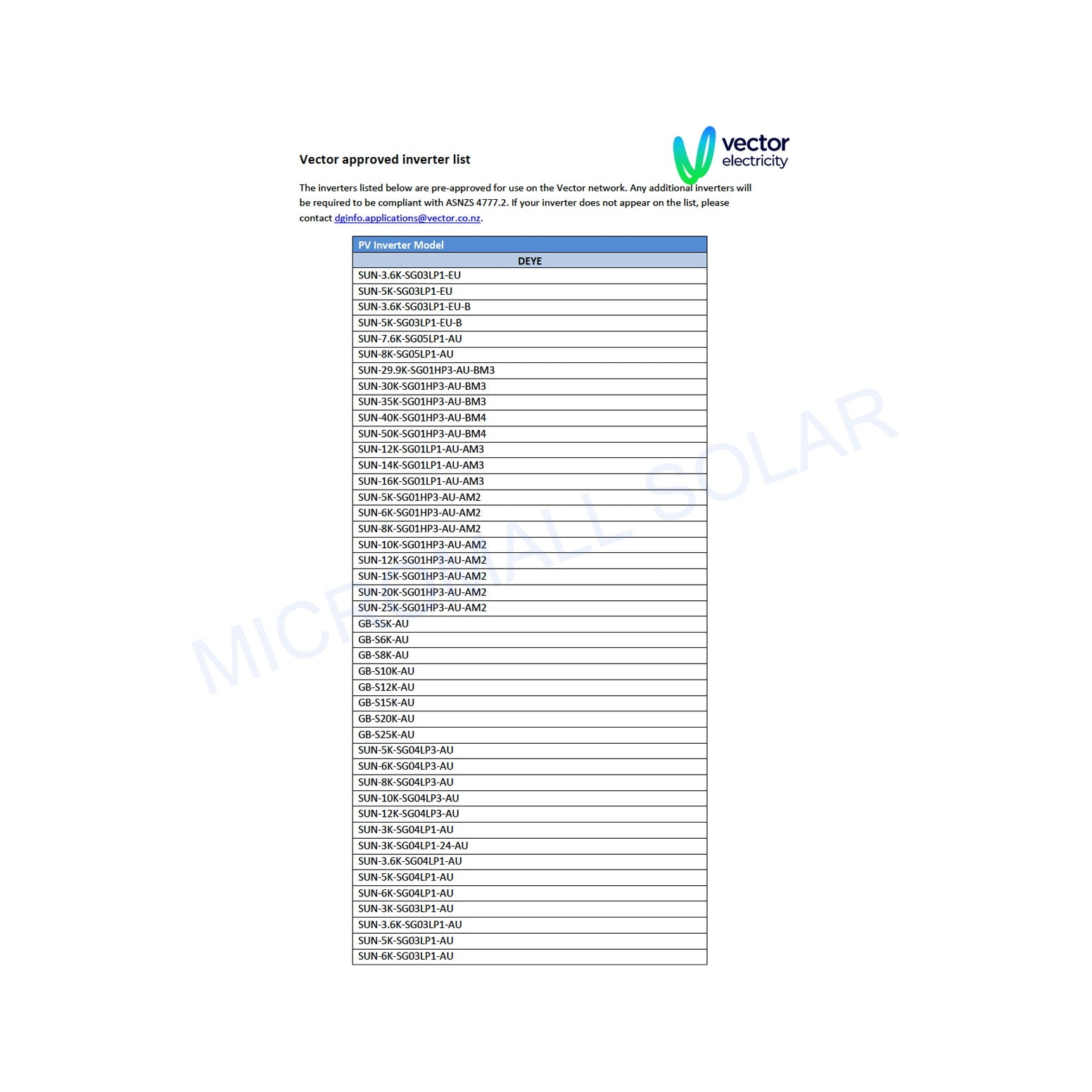

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported

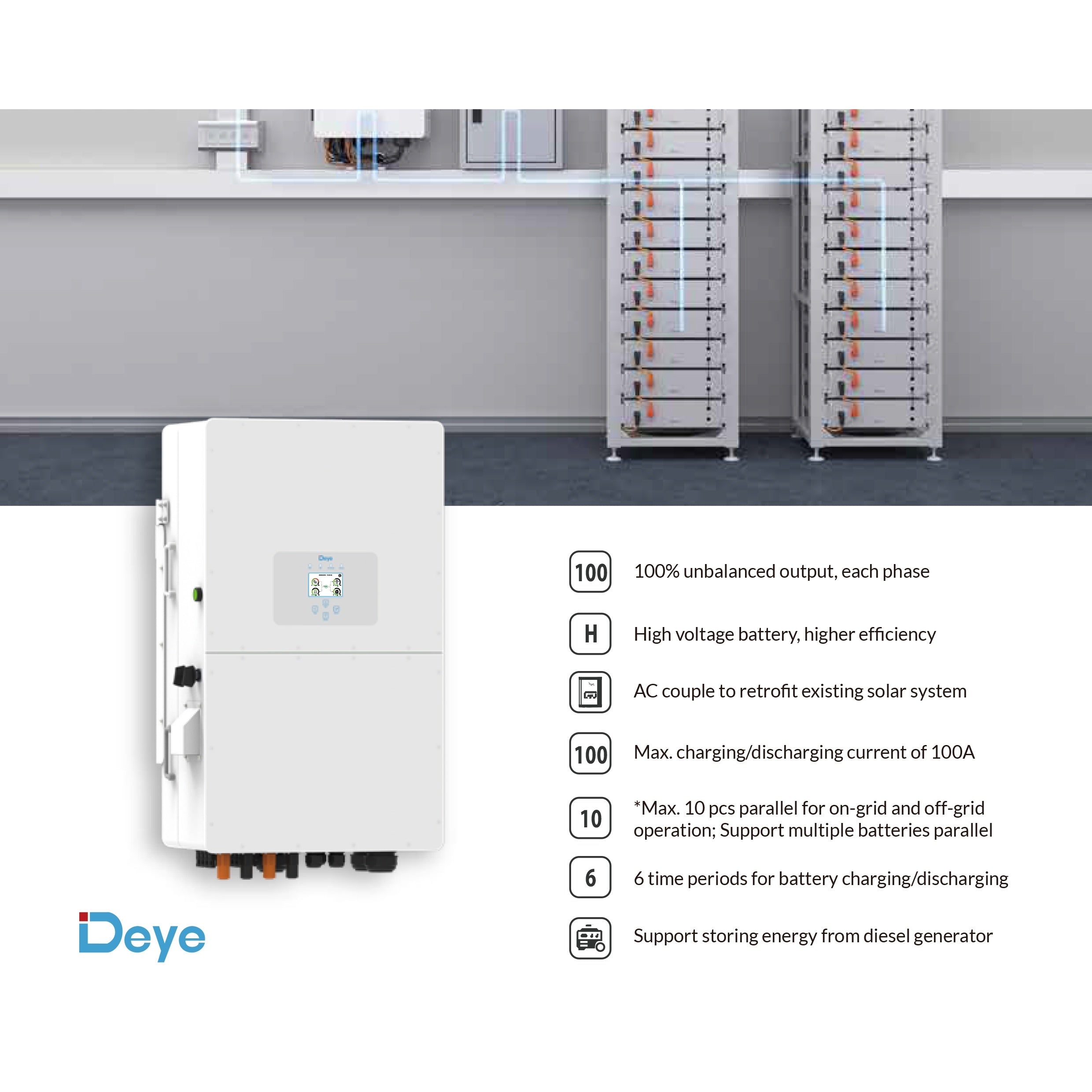

Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

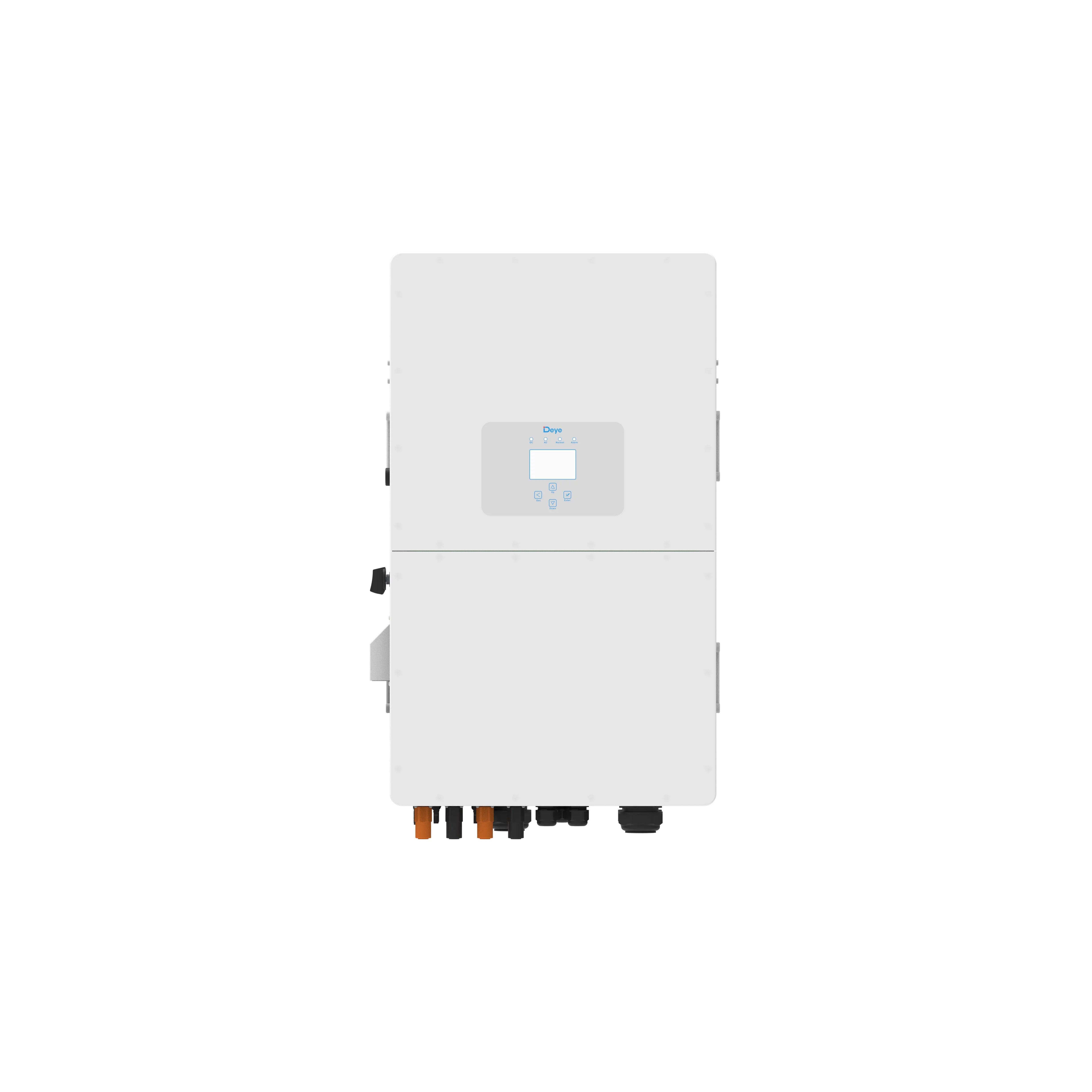

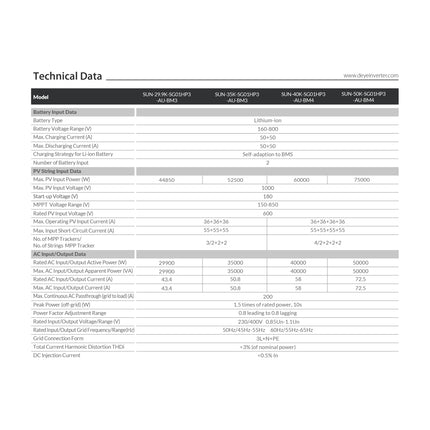

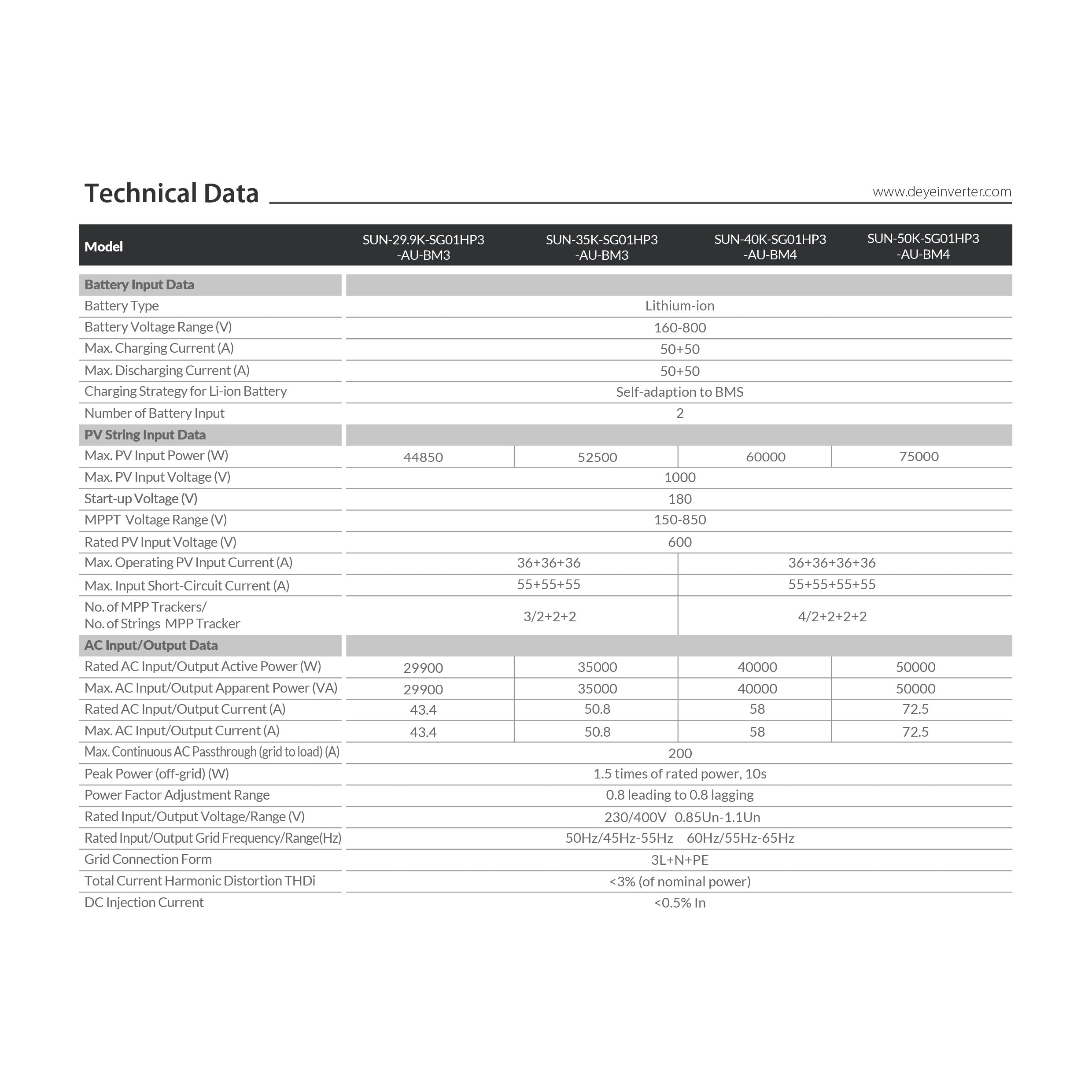

Model: SUN-50K-SG01HP3-AU-BM4
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5

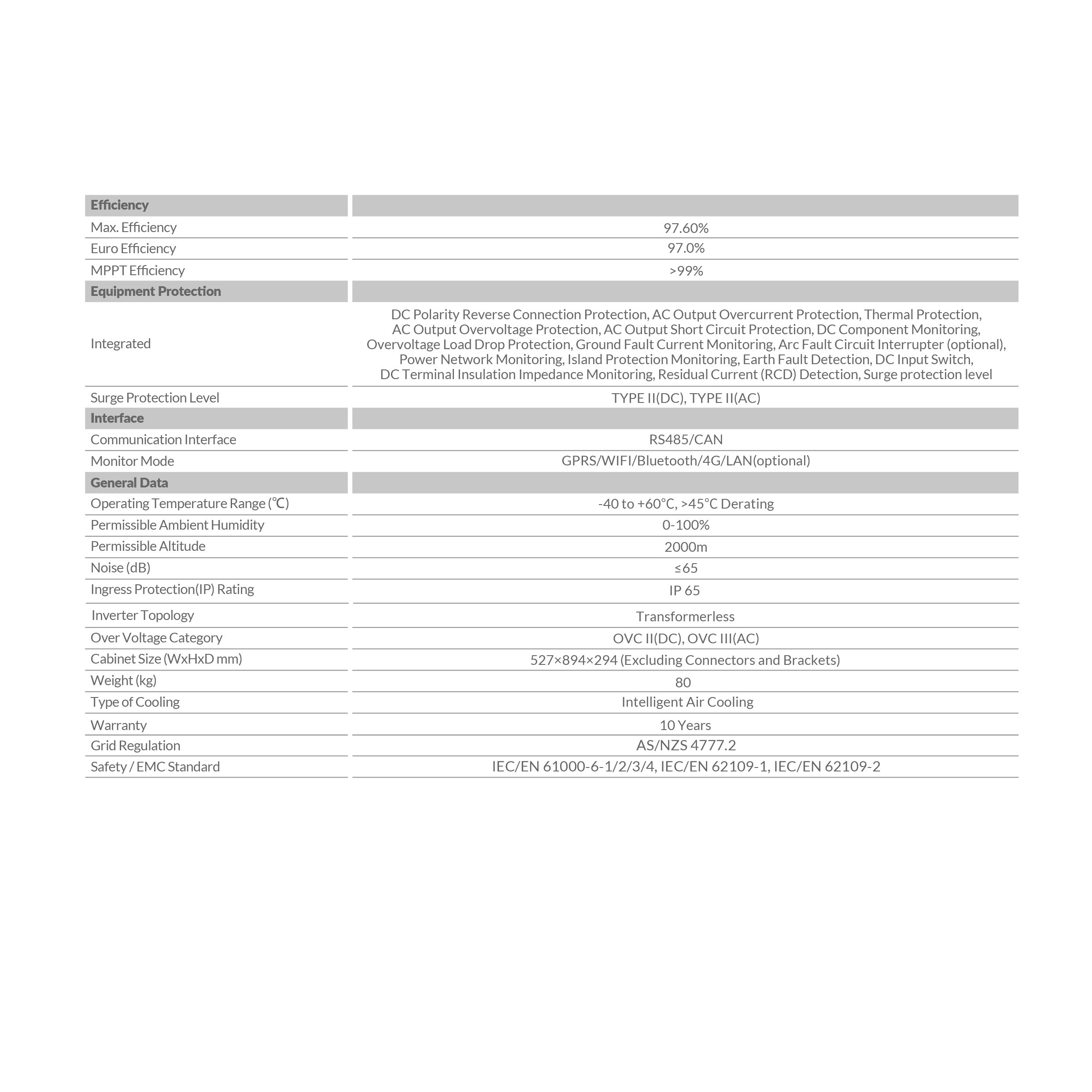

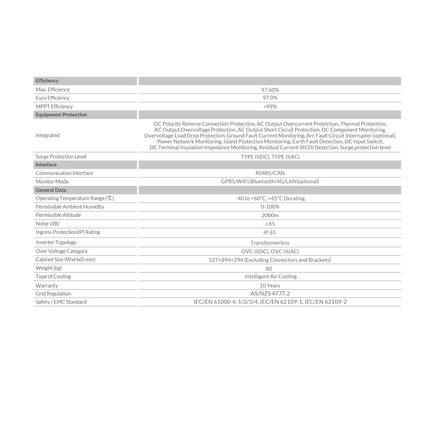

Max. Efficiency: 97.60%
Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
Weight (kg): 80

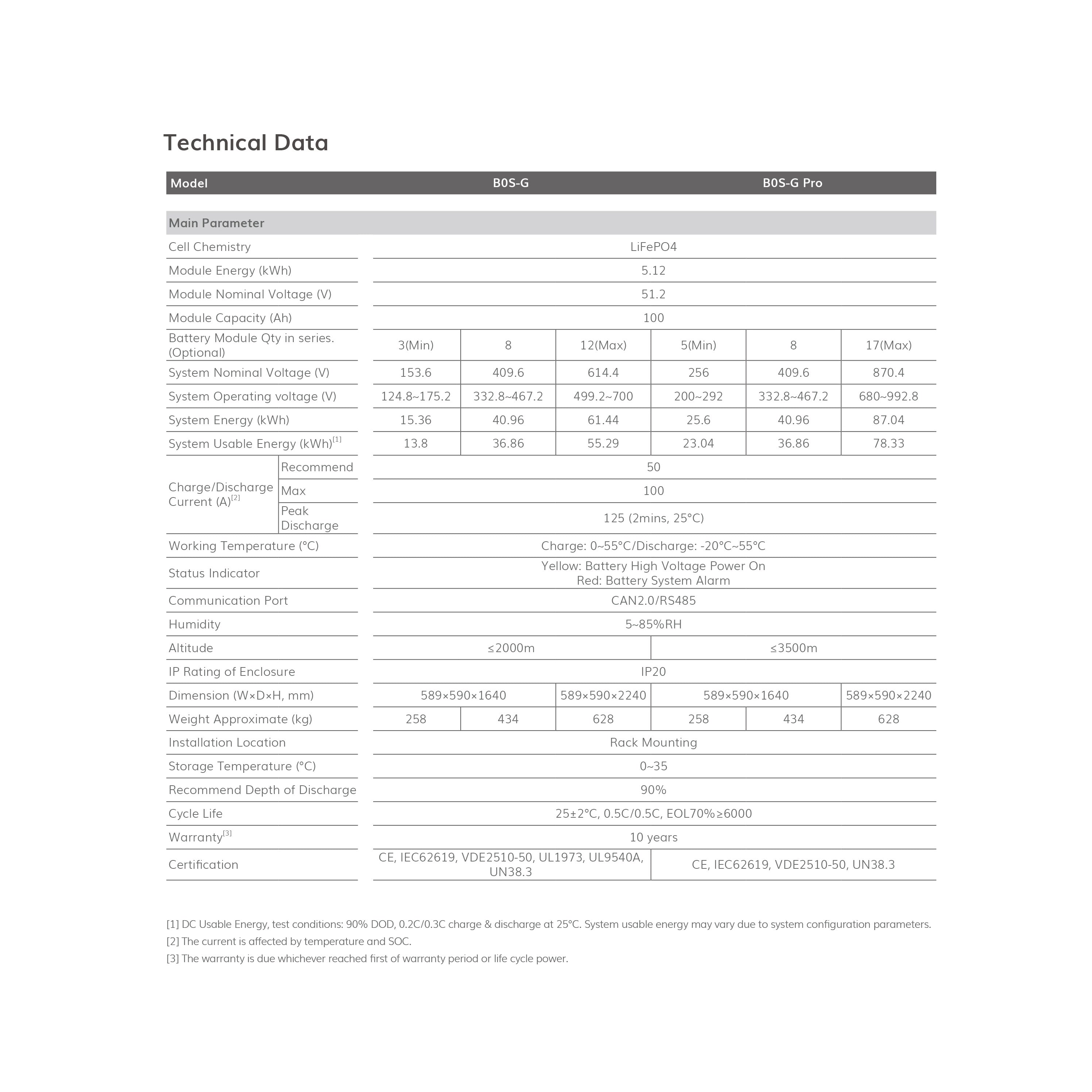

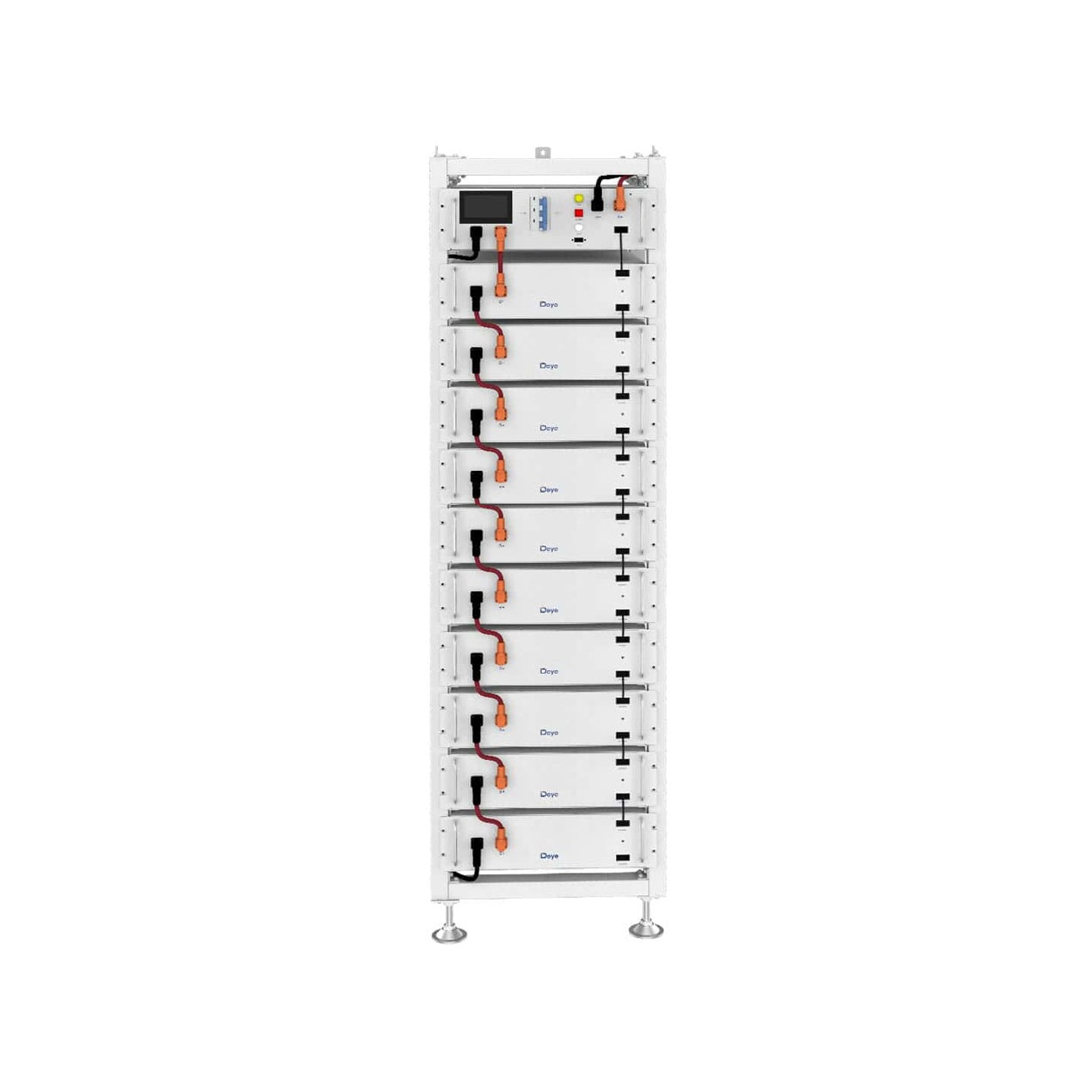

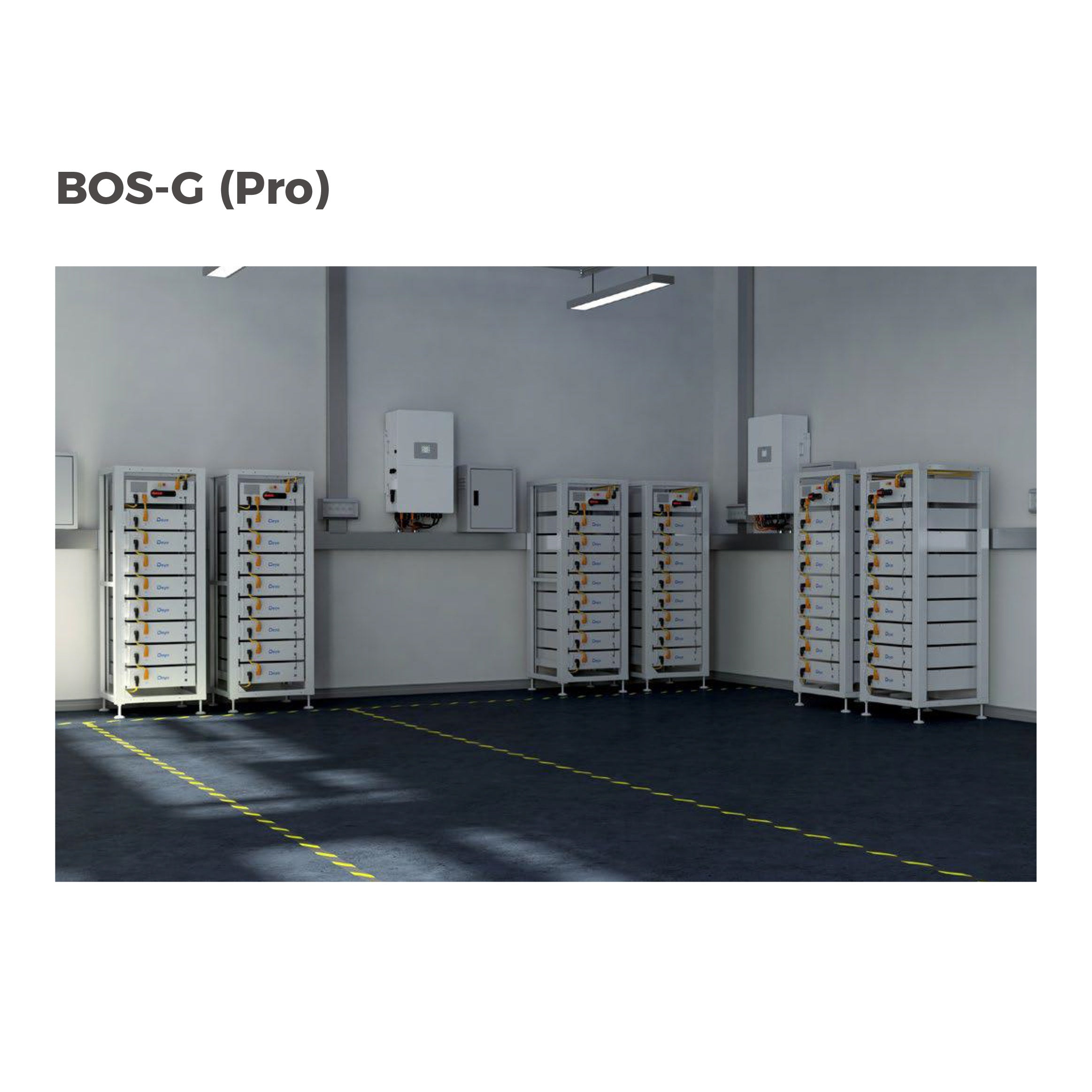

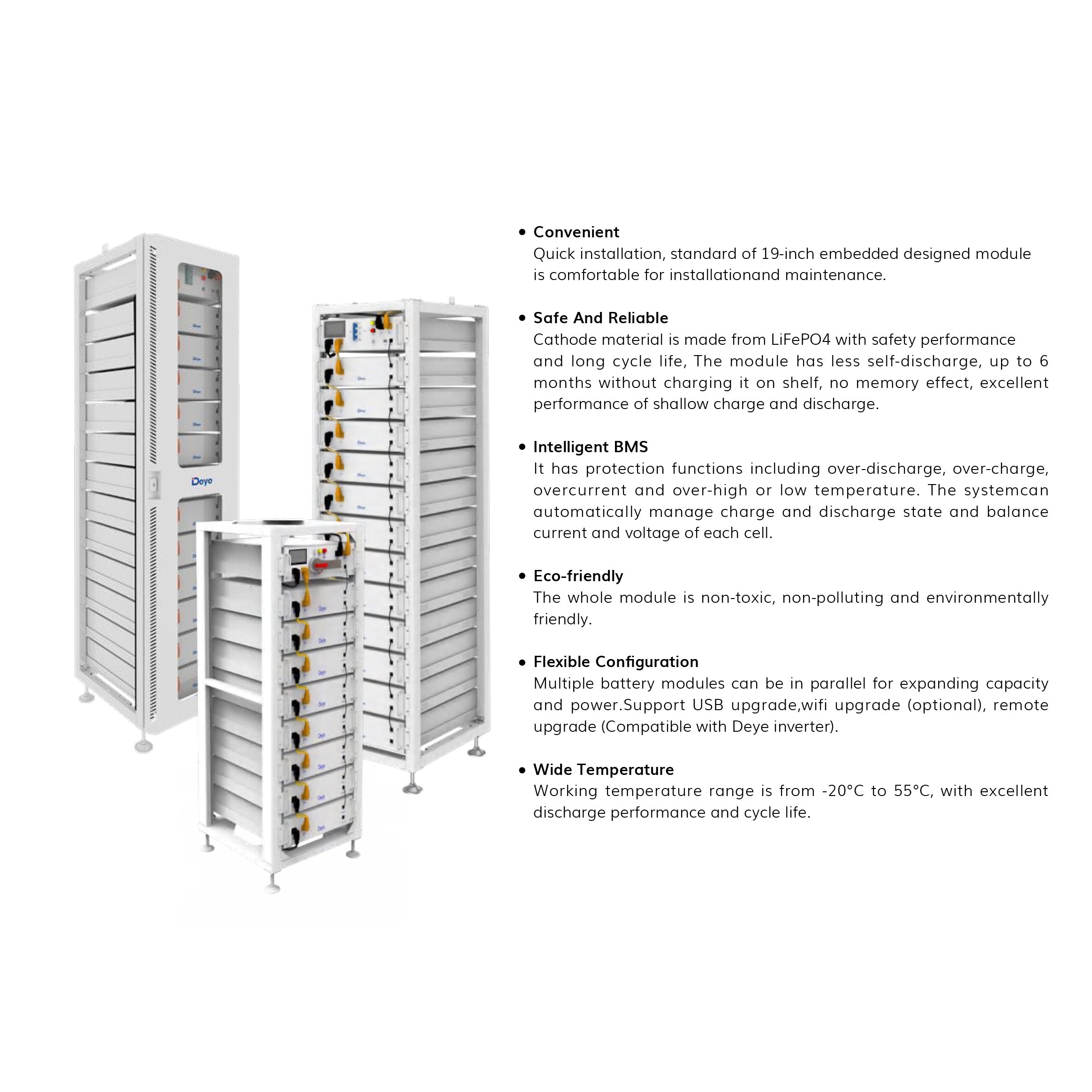

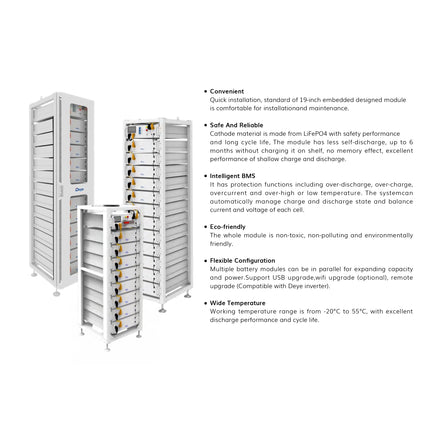

Model: B0S-G Pro
Warranty: 10 years
Cell Chemistry: LiFePO4
Energy (kWh): 5.12
Nominal Voltage (V): 51.2
Capacity (Ah): 100
Battery Module Qty in series: 8
System Nominal Voltage (V): 409.6
System Operating voltage (V): 332.8 - 467.2
System Energy (kWh): 40.96
System Usable Energy (kWh): 36.86
Charge/Discharge Max Current (A)
Recommend: 50
Max: 100
Peak Discharge: 125
IP Rating of Enclosure: IP20
Dimension (W×D×H, mm): 589x590x1640
Weight: 434kg

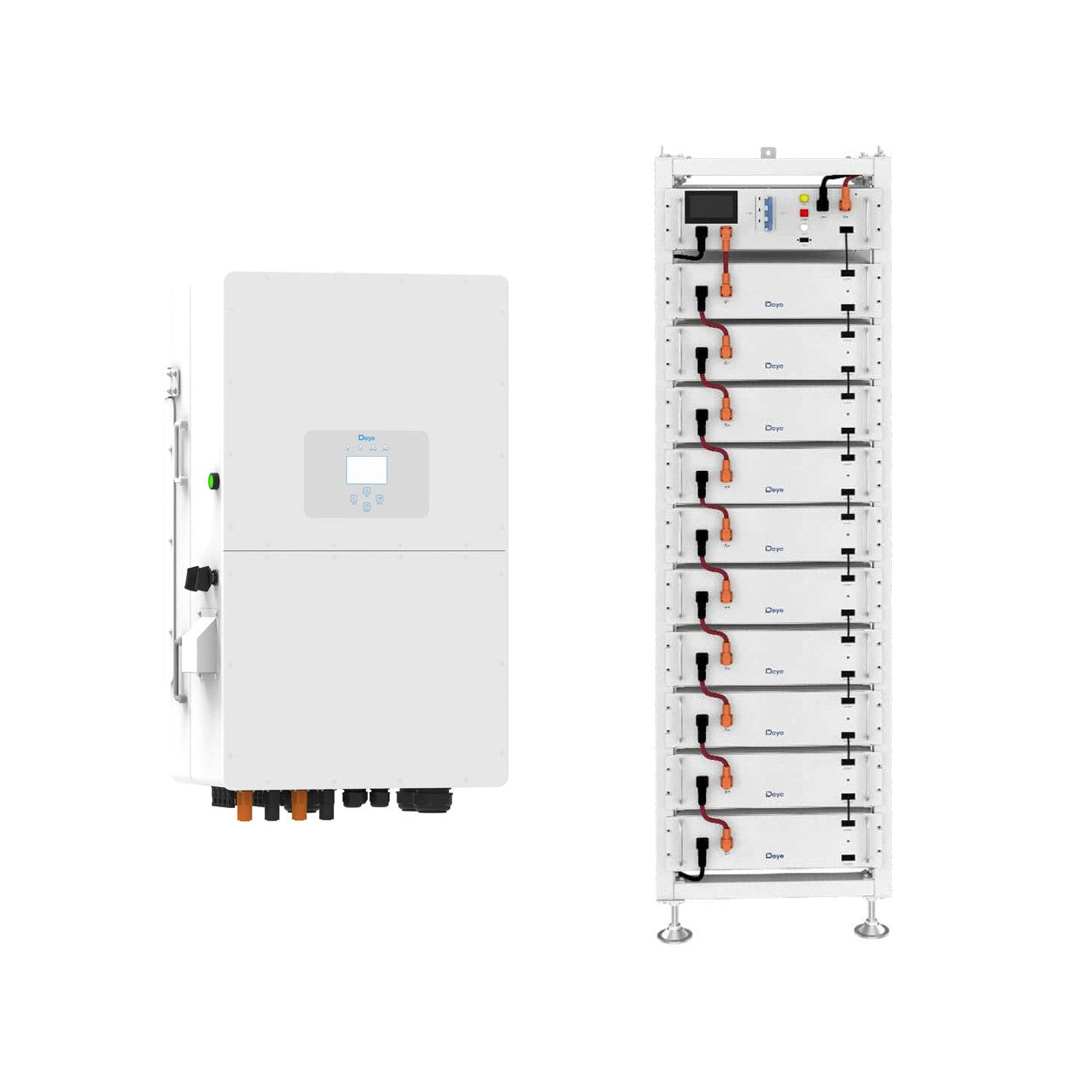

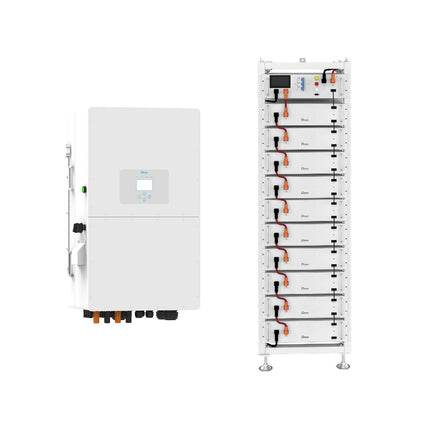

Package included:

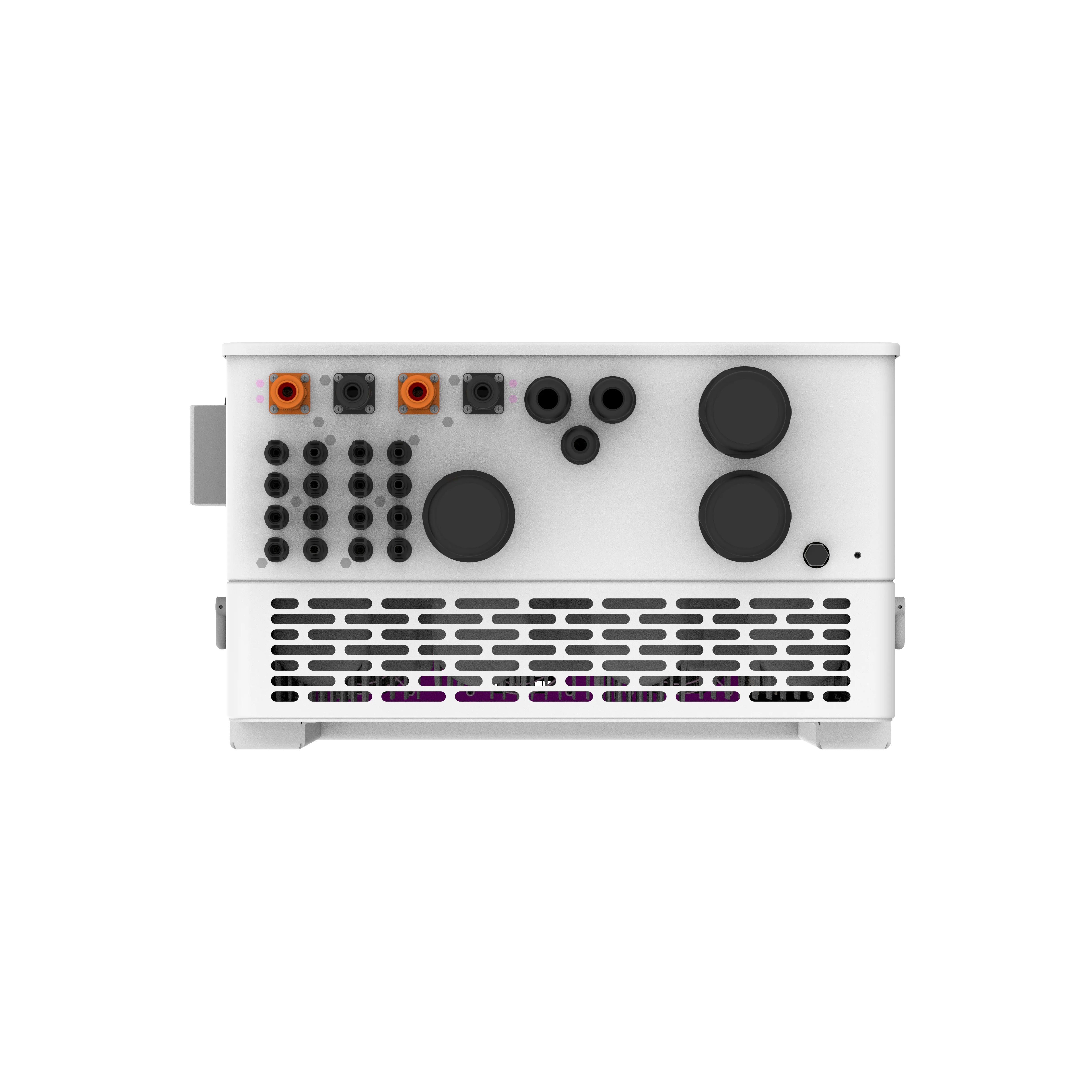

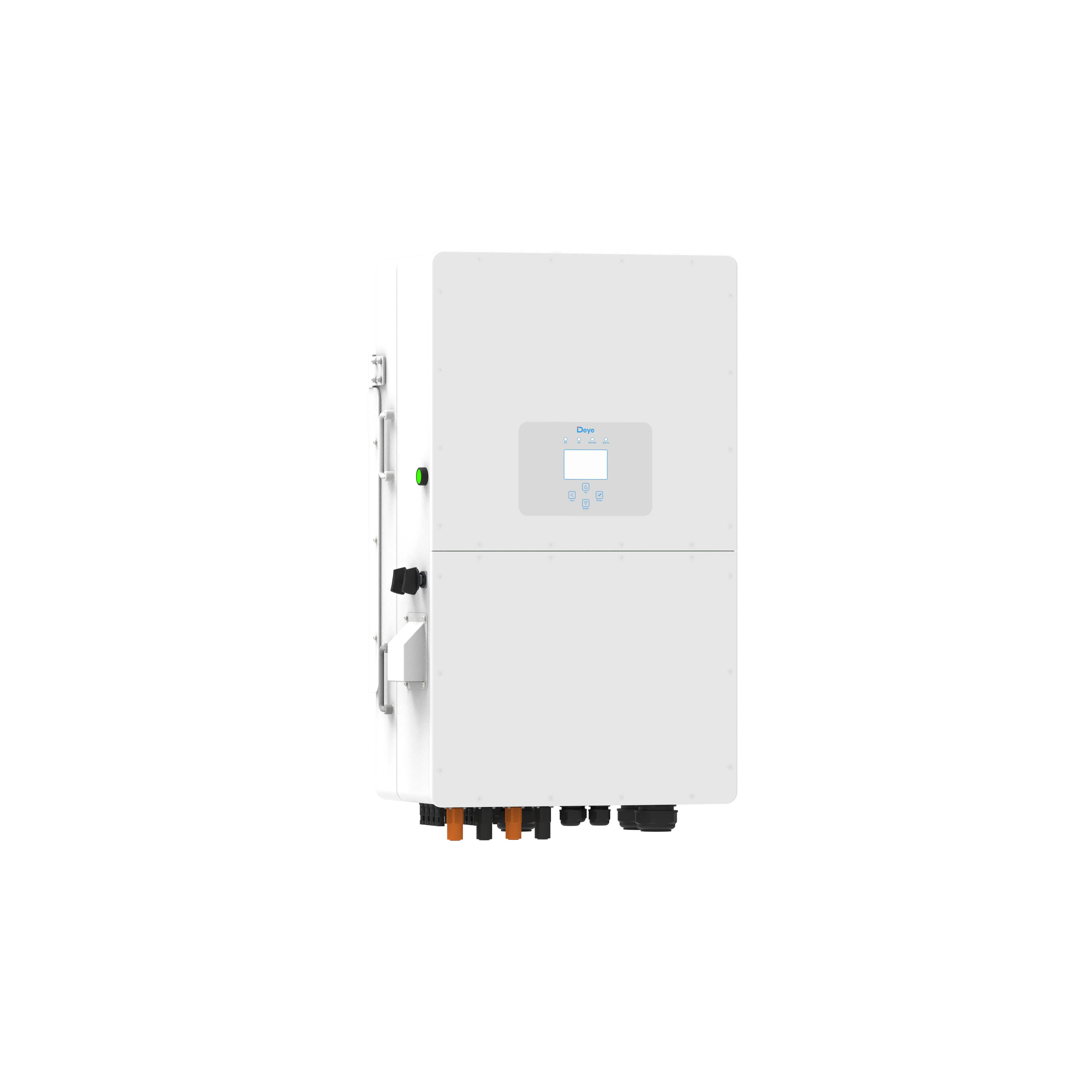

1x Deye 50kW Three Phase Hybrid Inverter SUN-50K-SG01HP3-AU-BM4
10X Deye B0S-G Pro 51.2V 100Ah LiFePO4 Battery
