Description
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**
Introducing an exceptional Smart Hybrid system that showcases the latest LONGi HPBC solar panels and a Deye premium hybrid solar inverter system.

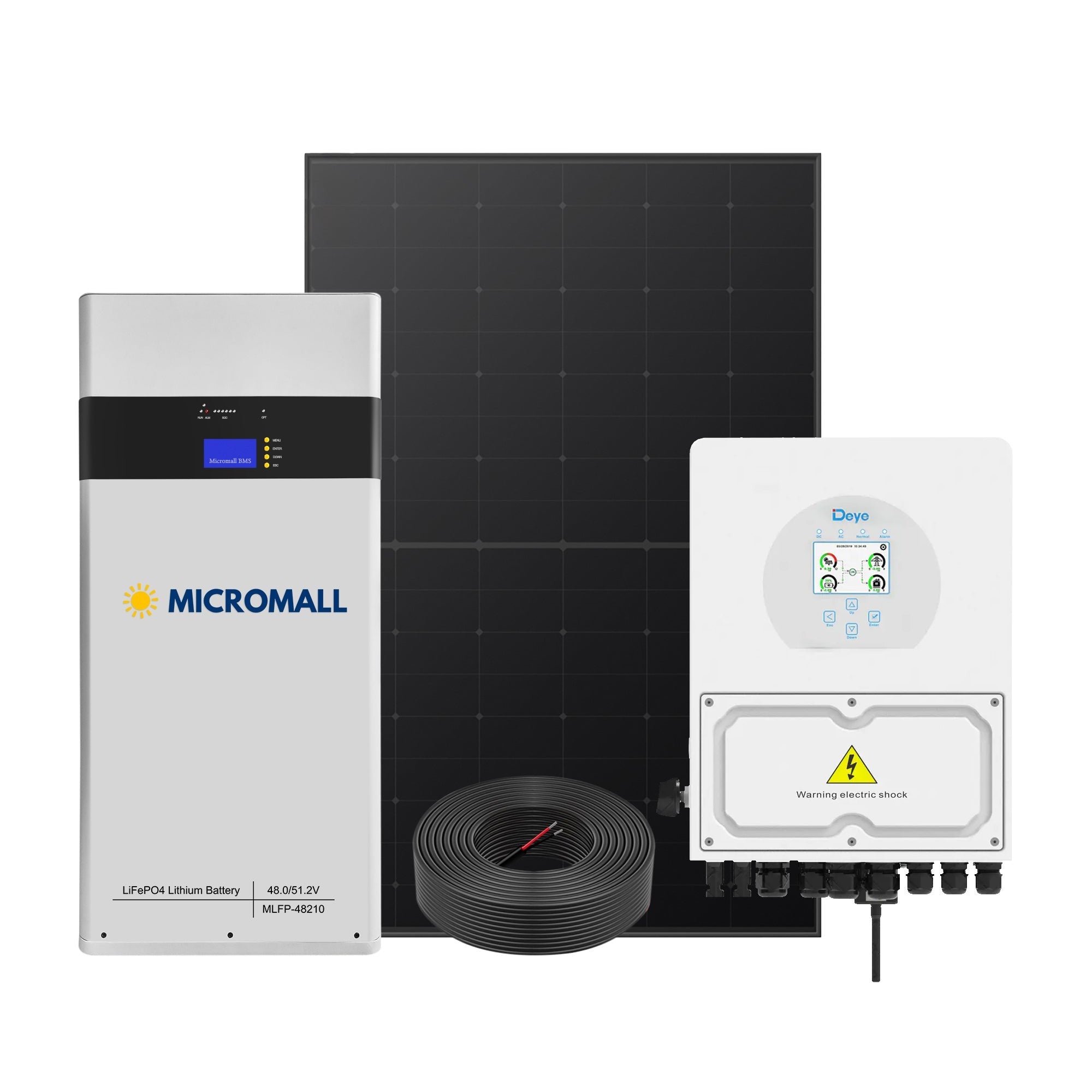

Package Includes:
12 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

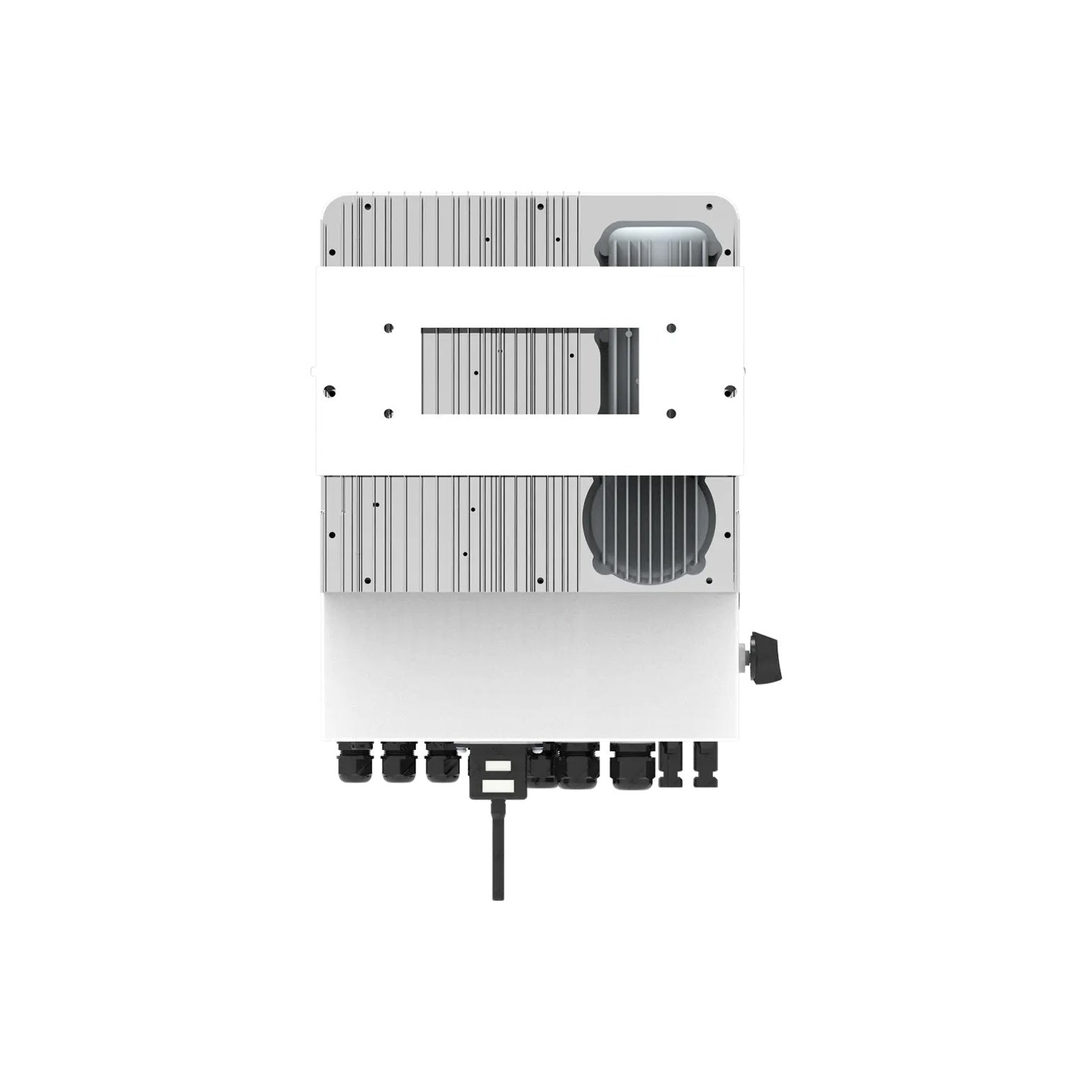

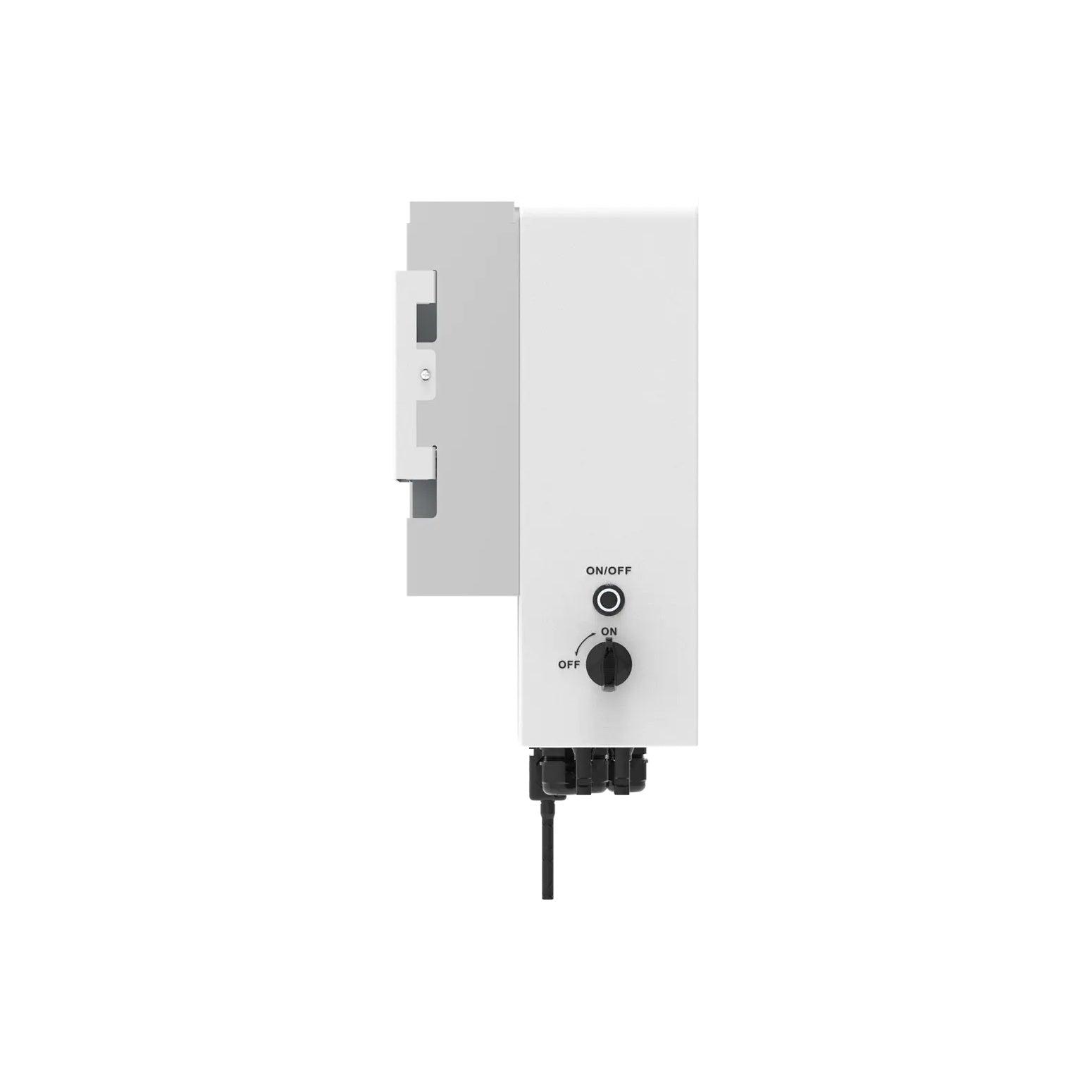

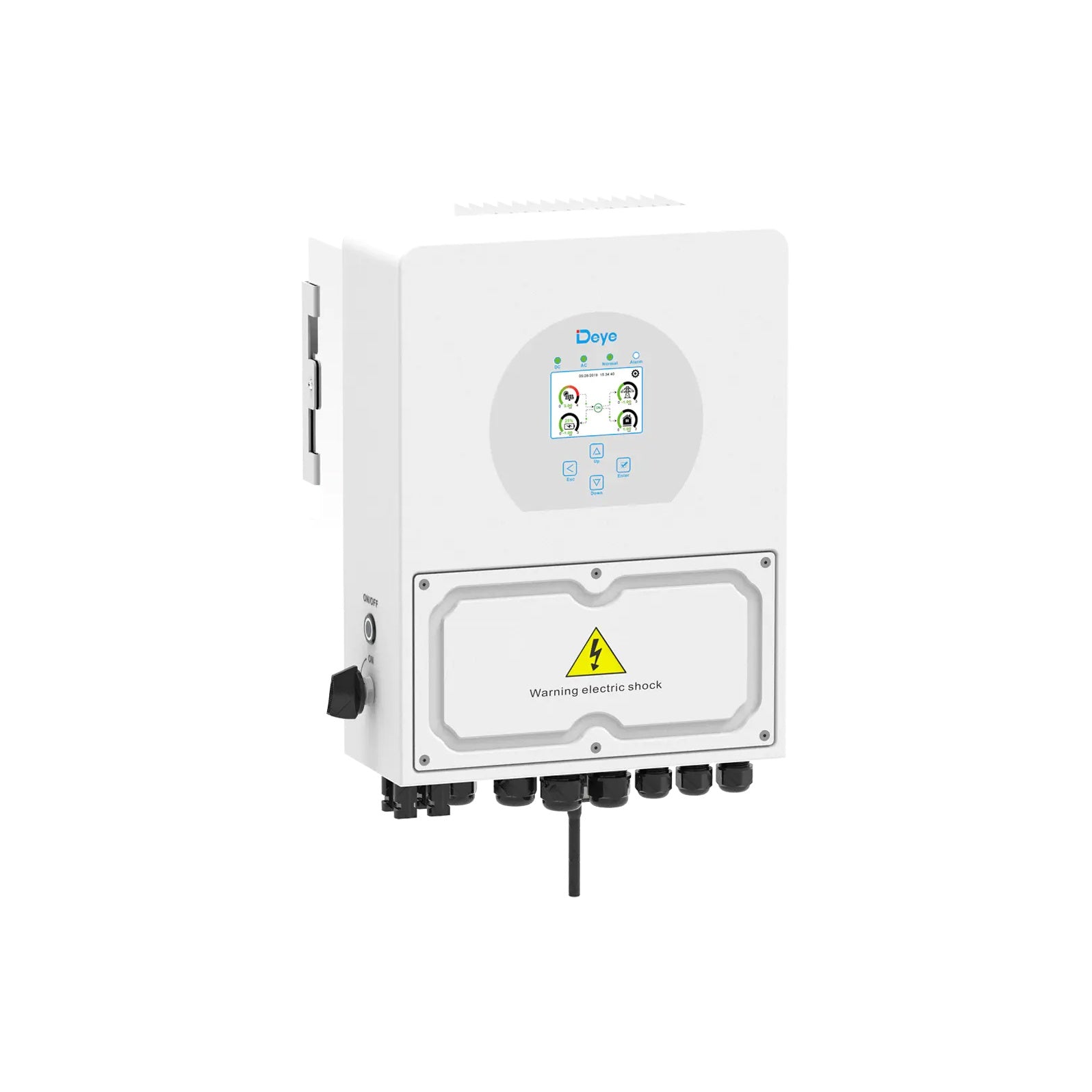

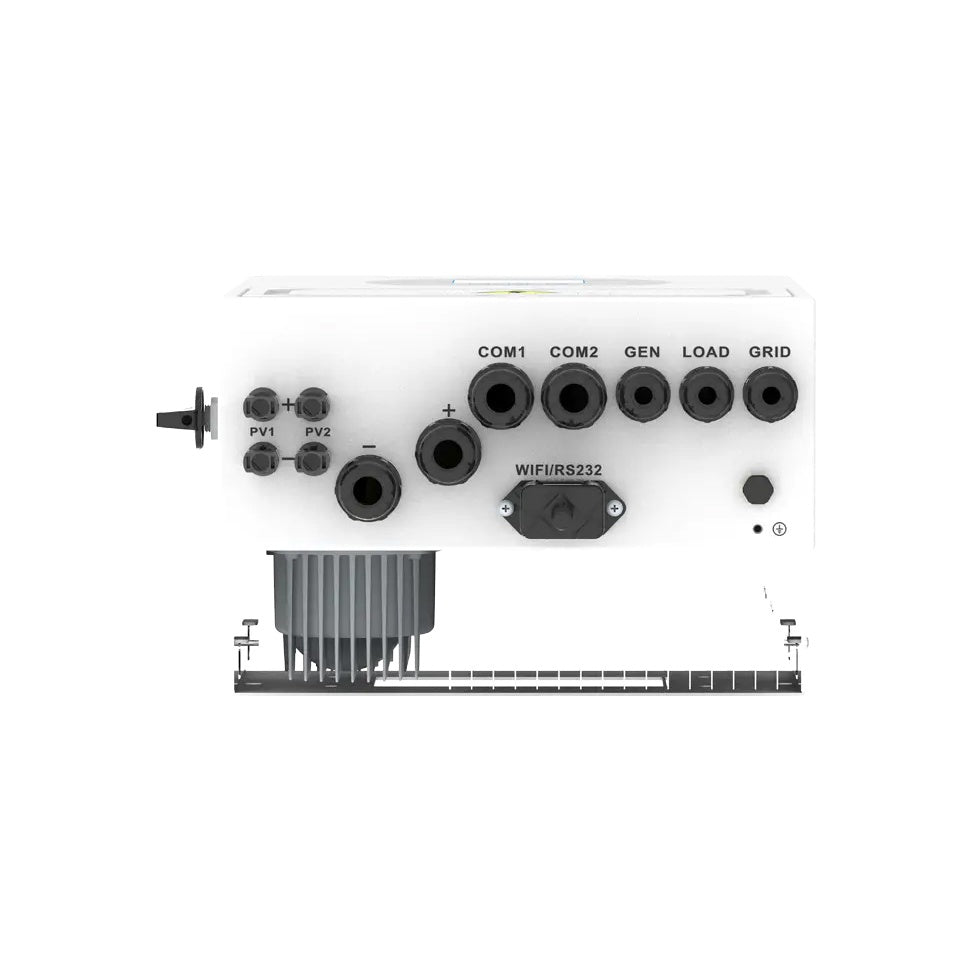

1 x DEYE 5000W Hybrid Inverter SUN-5K-SG04LP1-AU (10 Years Warranty)
1 x Micromall 48V 51.2V 200Ah 210Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 x Safety Switchboard
12 x Mounting Rail System
1 x Solar PV + Battery Label Kit

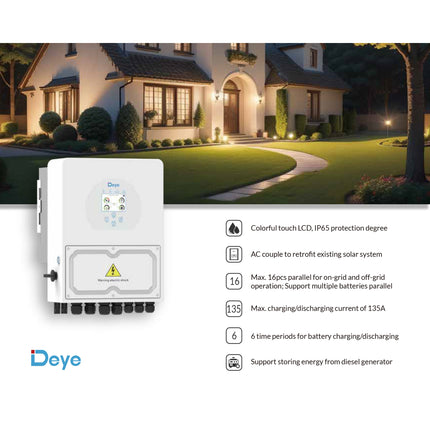

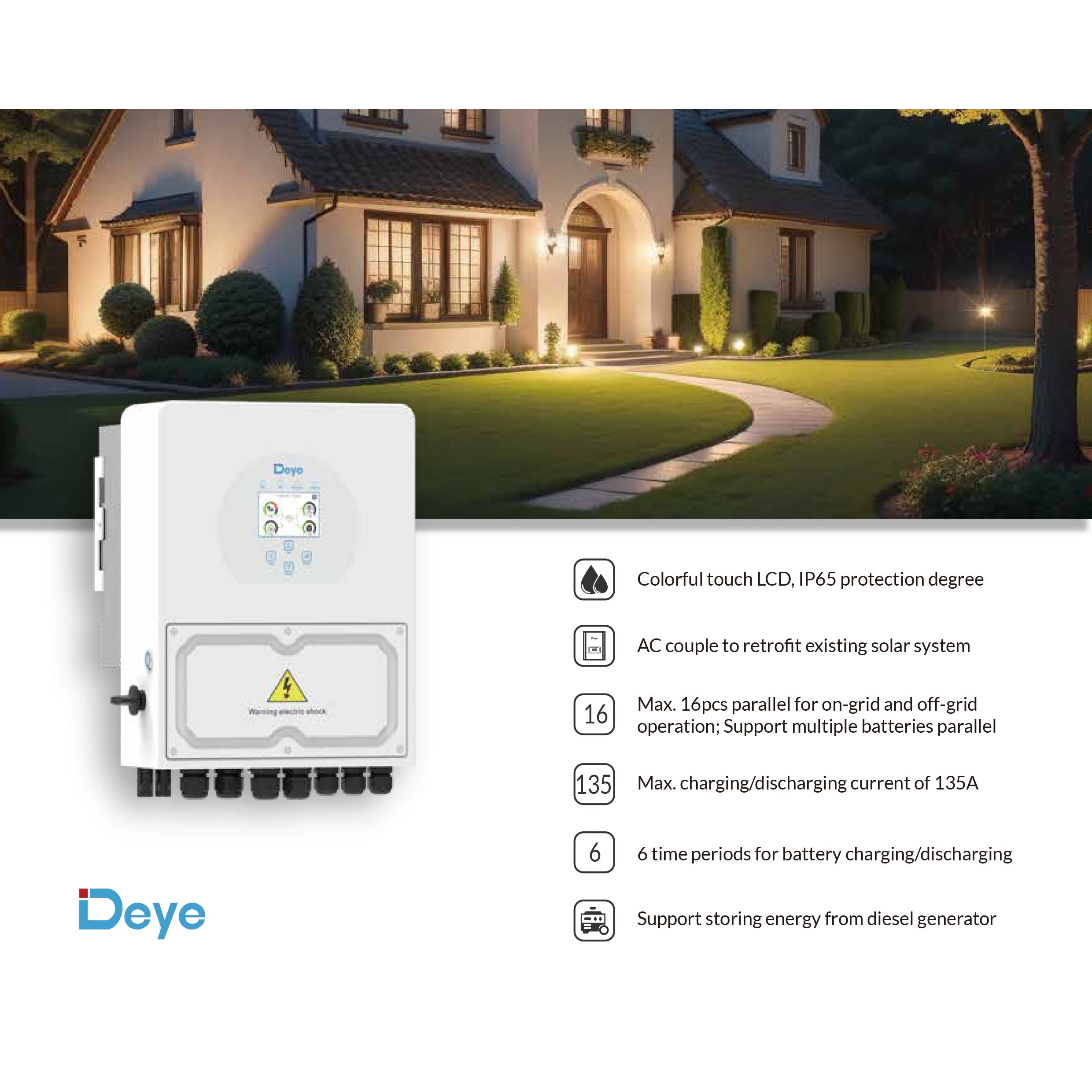

This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.

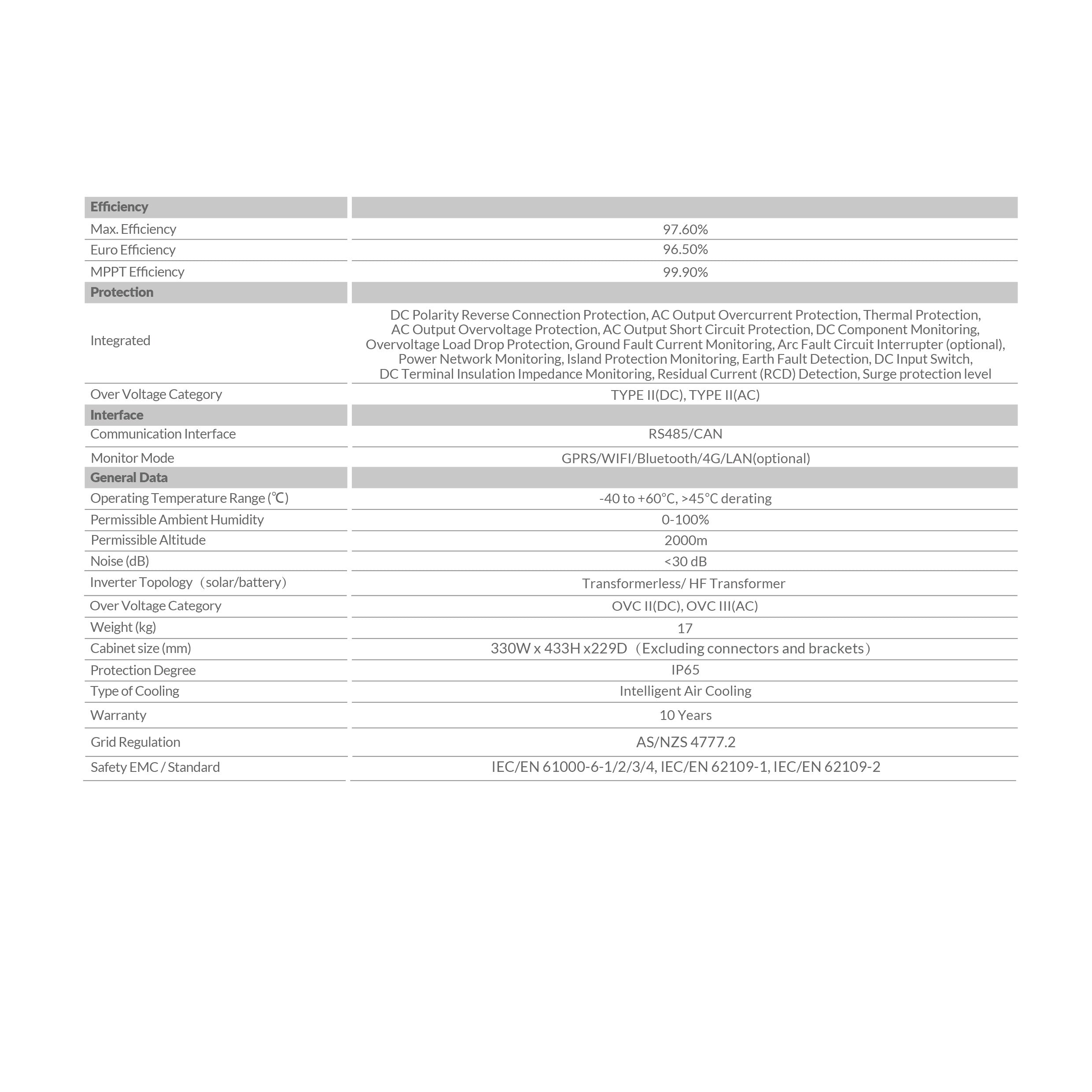

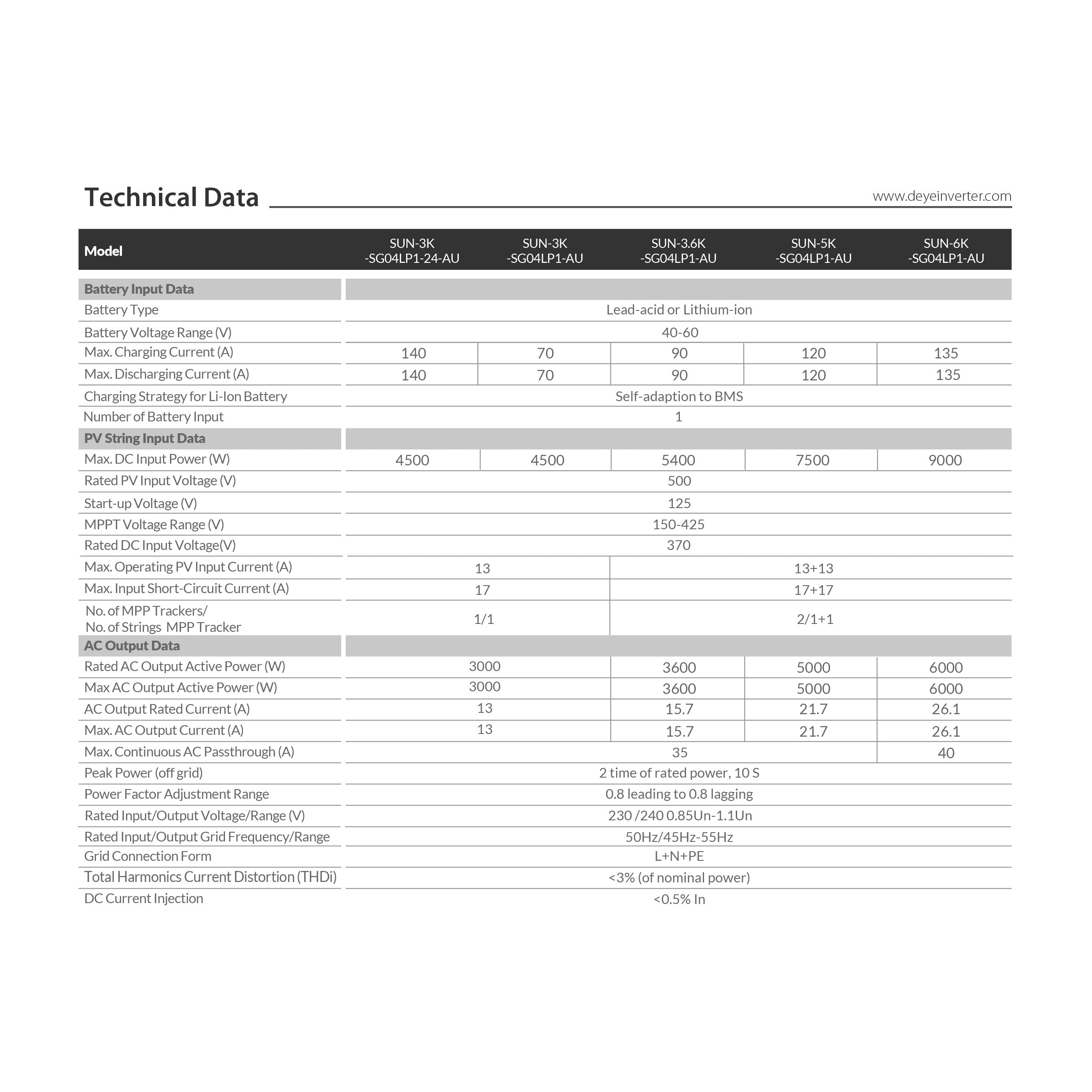

Technical Specifications:
Battery Type： Lead-acid or Lithium-ion
Battery Voltage Range (V)： 40-60
Max. Charging Current (A)： 120
Max. Discharging Current (A)： 120
Charging Strategy for Li-Ion Battery： Self-adaption to BMS
Number of Battery Input： 1
Max. DC Input Power (W)：7500
Rated PV Input Voltage (V)：500
Start-up Voltage (V)： 125
MPPT Voltage Range (V)： 150-425
Rated DC Input Voltage(V)：370
Max. Operating PV Input Current (A)：13+13
Max. Input Short-Circuit Current (A)： 17+17
AC Output Rated Current (A)： 21.7
Max. AC Output Current (A)： 21.7
Weight (kg)： 17
Cabinet size (mm)：330W x 433H x229D(Excluding connectors and brackets)
Protection Degree：IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor**
**Authorized Longi distributor in New Zealand**
