Description
***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**10 Years Warranty**

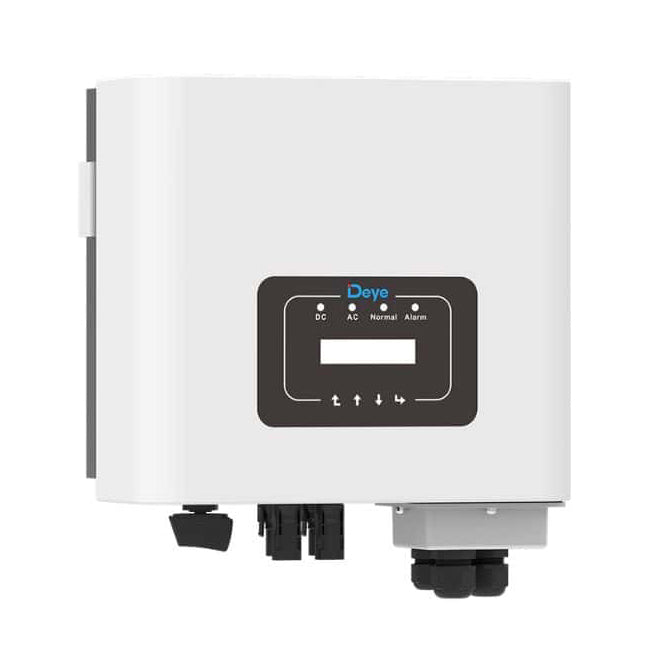

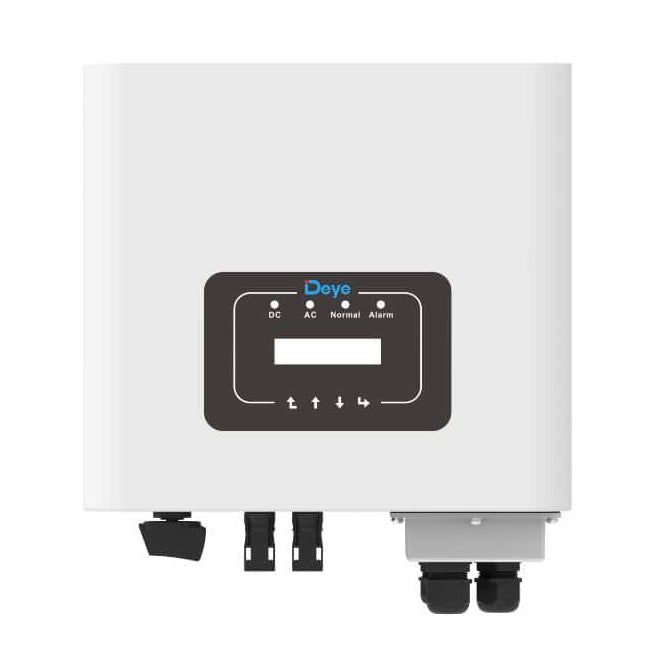

SUN-6K-G05P1-AU-AM2 | 6kW | Single Phase | 2 MPPT

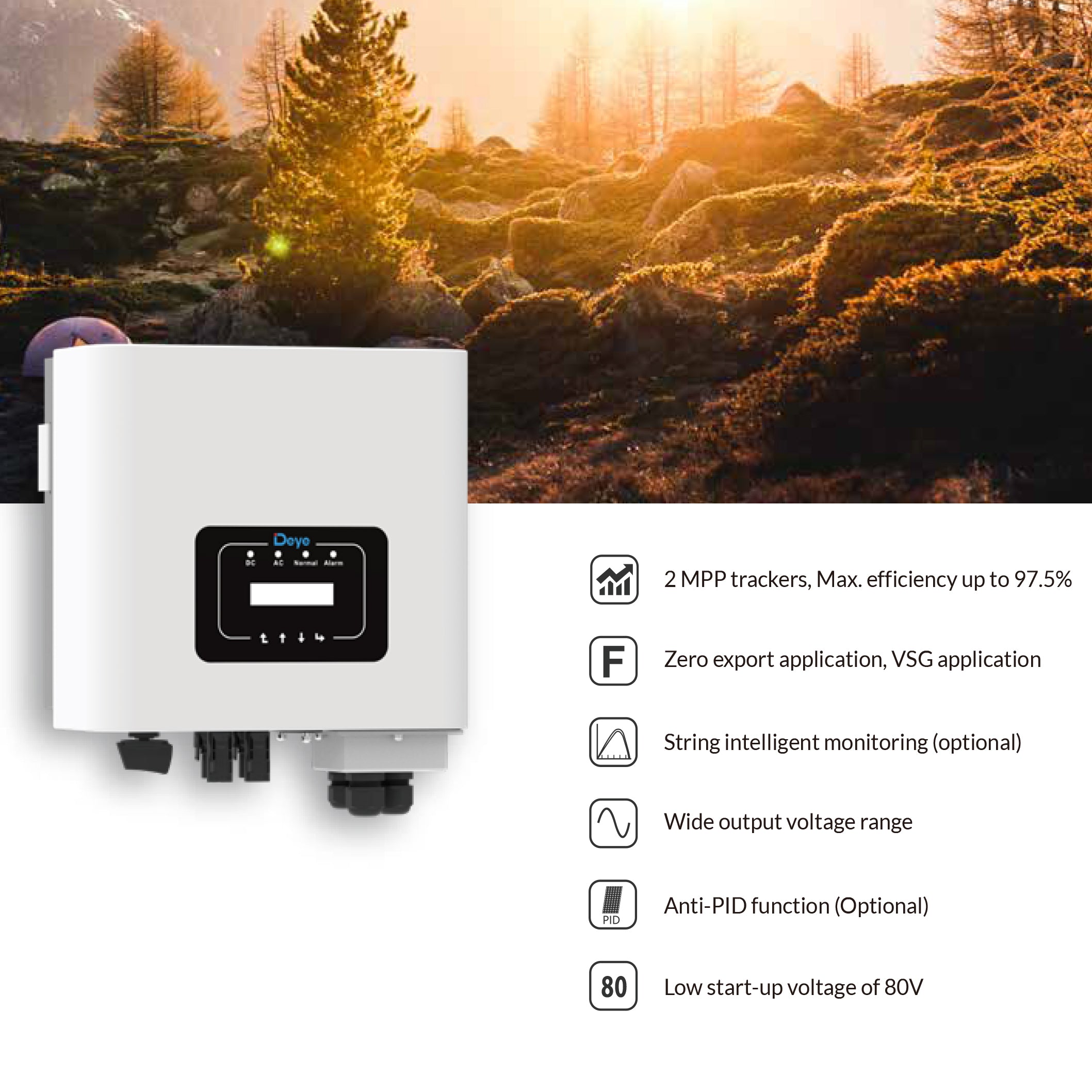

2 MPP trackers, Max. efficiency up to 97.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Low start-up voltage of 80V

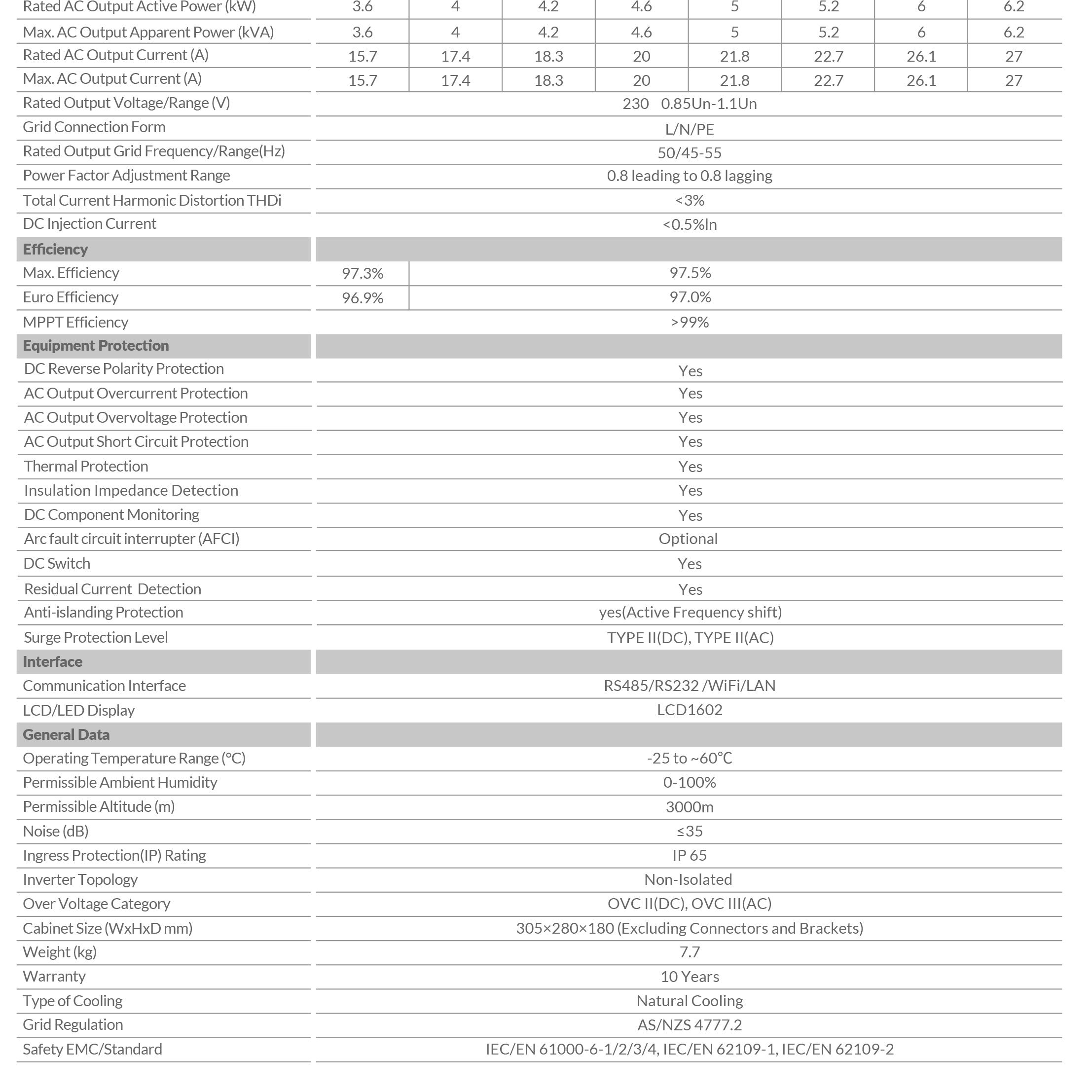

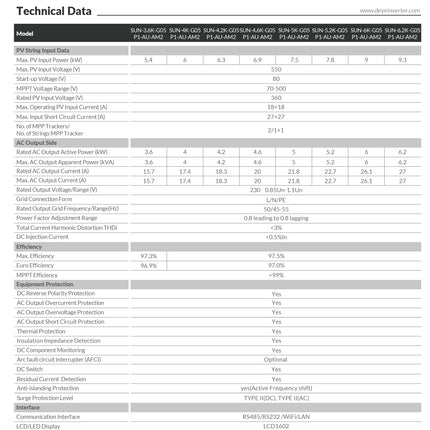

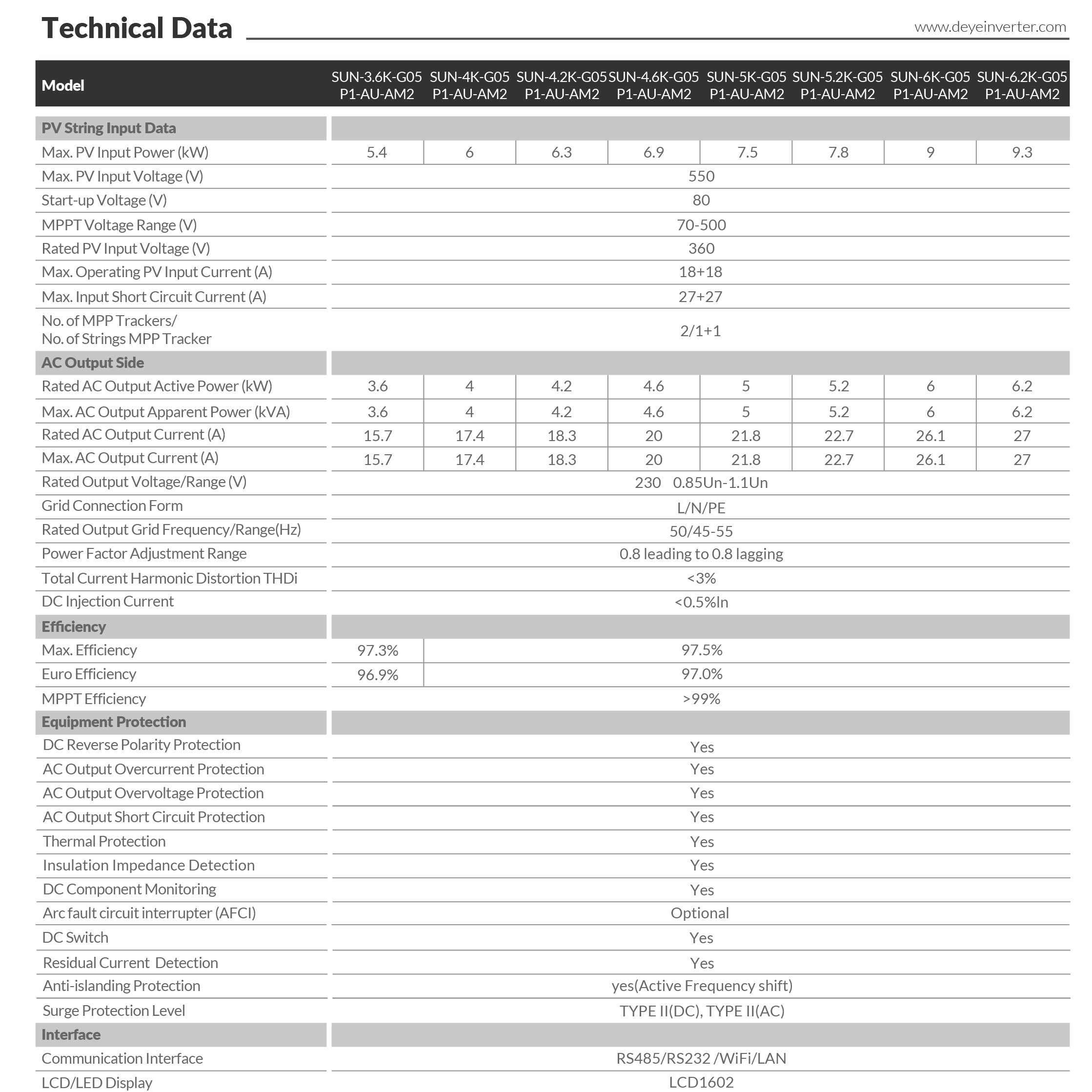

Technical Specifications:
Model: SUN-6K-G05P1-AU-AM2
PV String Input Data
Max. PV Input Power (kW): 9
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 18+18
Max. Input Short Circuit Current (A): 27+27
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power(kW): 6
Max. AC Output Apparent Power(kVA): 6
Rated AC Output current (A): 26.1
Max. AC Output Current(A): 26.1
Efficiency:
Max. Efficiency: 97.5%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data:
Dimensions: 305×280×180mm
Weight: 7.7kg
This inverter is a blend of high efficiency, safety, and user-friendly features, making it a superb choice for residential solar power systems.
