Description

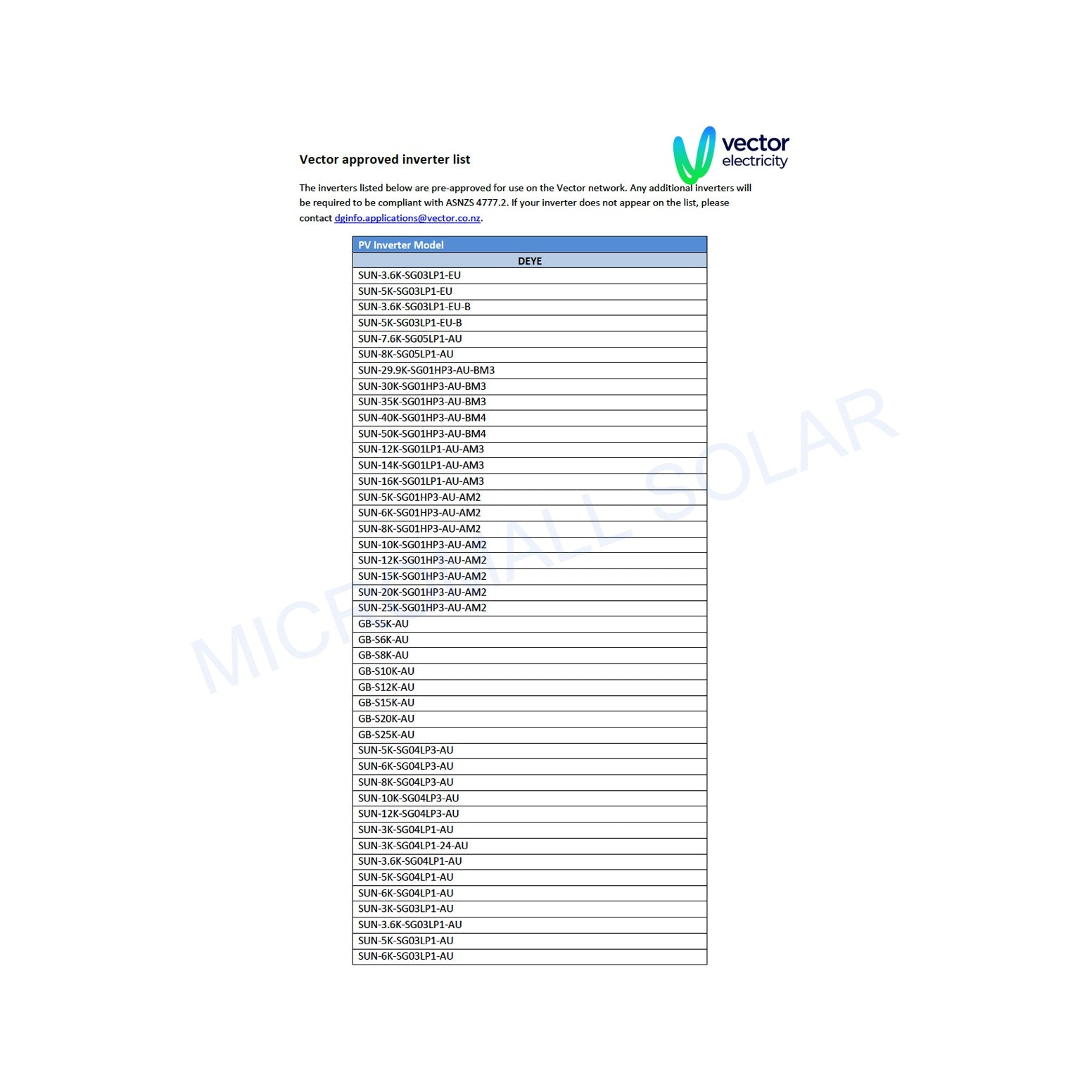

***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
**10 Years Warranty**

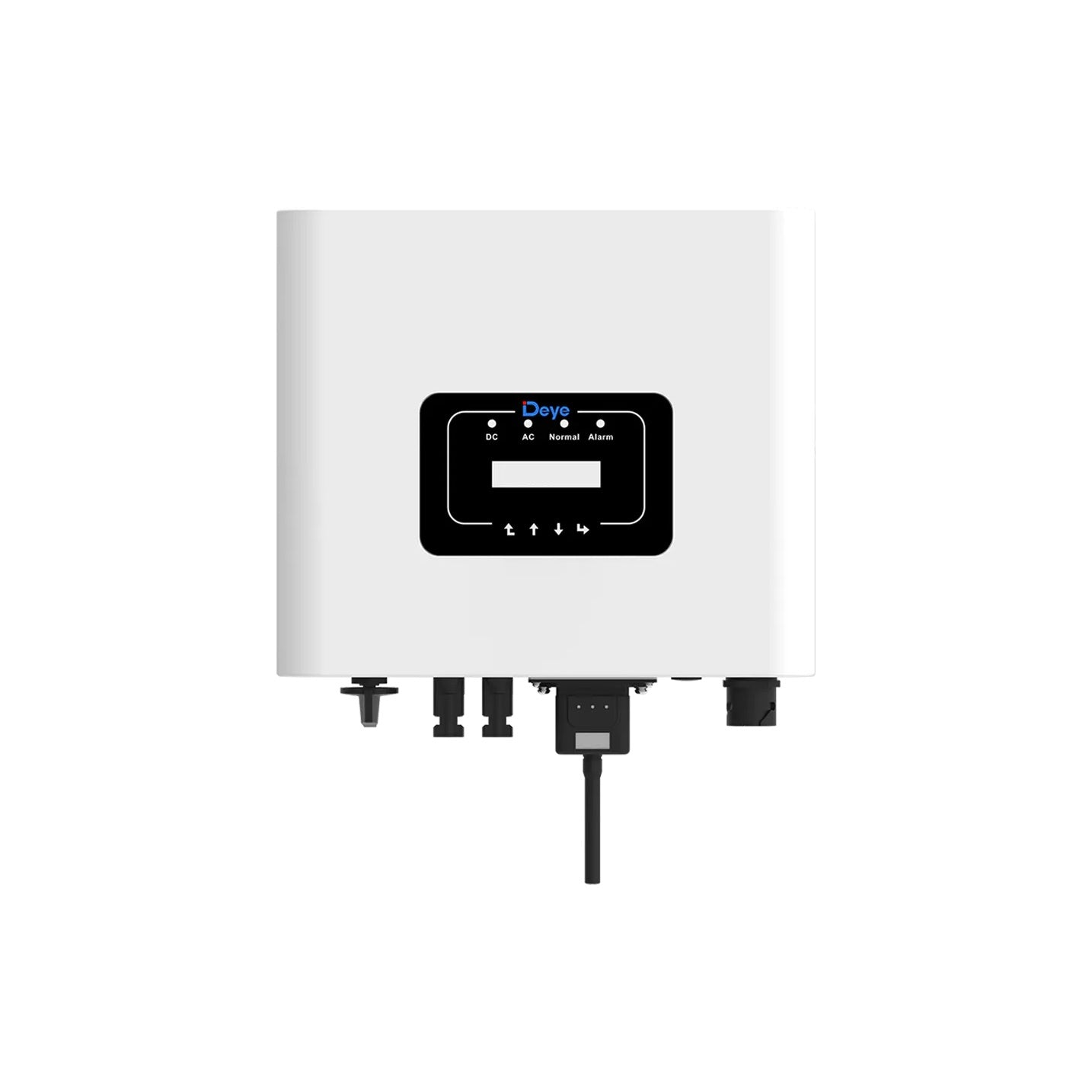

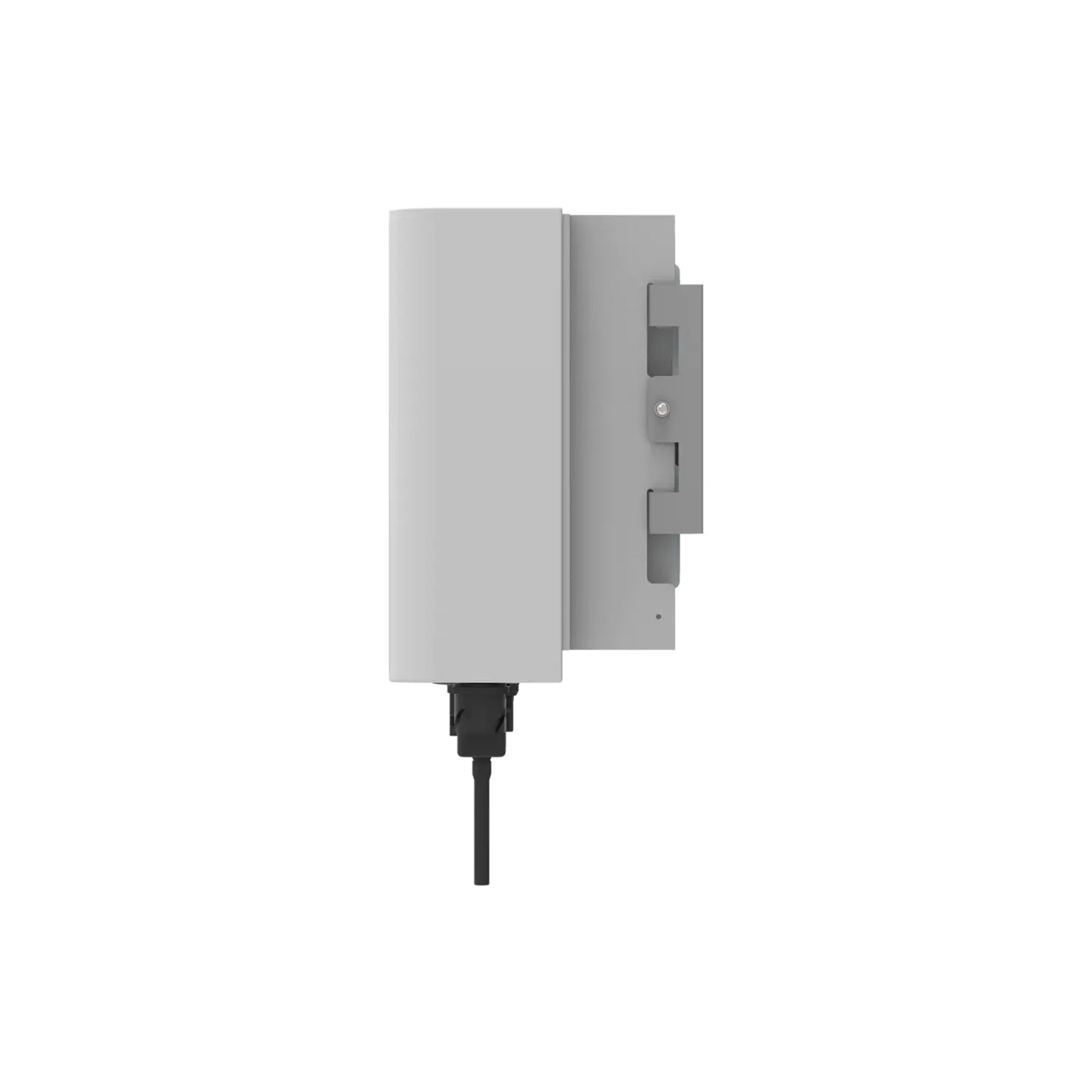

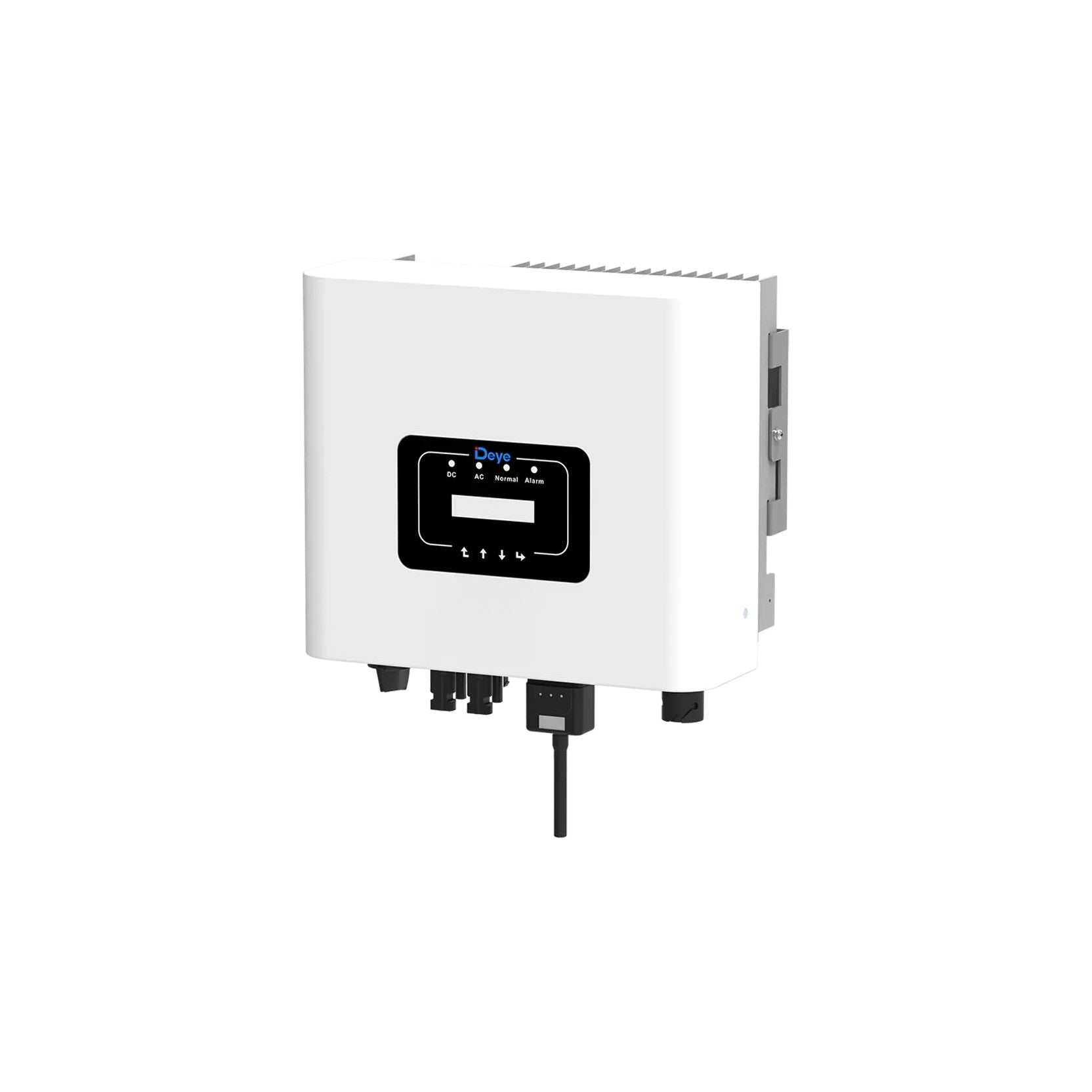

SUN-6K-G04-AU | 6kW | Single Phase | 2 MPPT
Higher yields / Safe & Reliable / Smart / User-friendly
1 MPP tracker, Max. efficiency up to 97.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Low start-up voltage of 80V

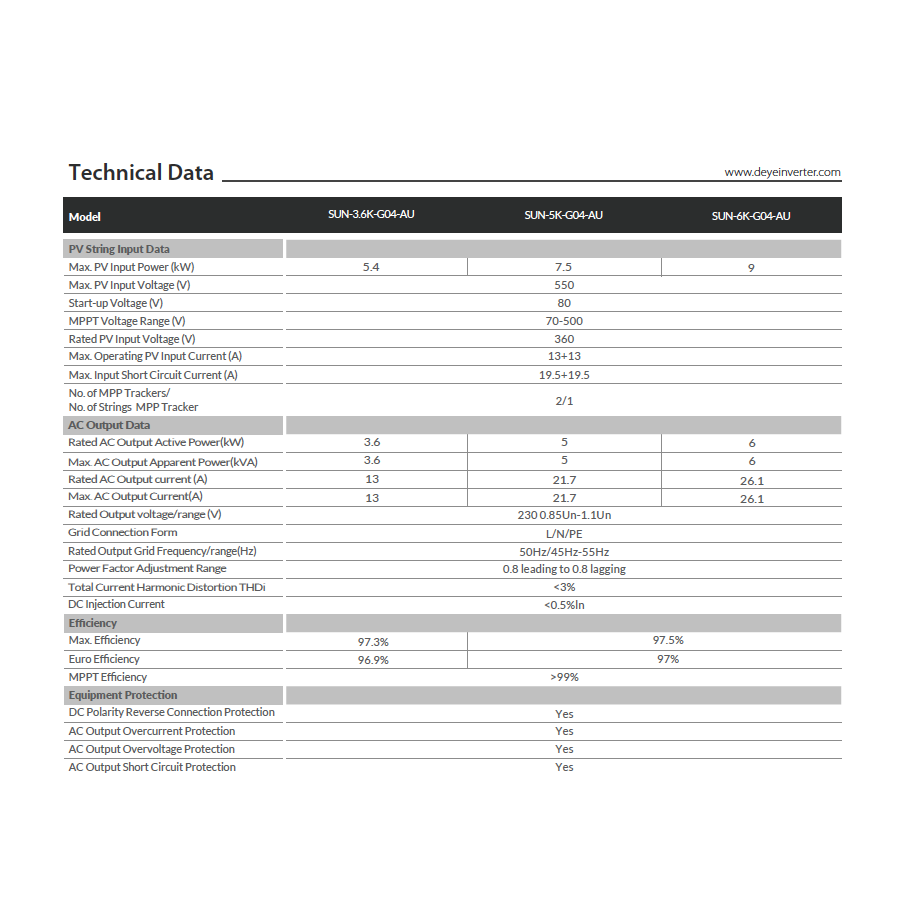

Technical Specifications:
Model: SUN-6K-G04-AU
PV String Input Data
Max. PV Input Power (kW): 9
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 13+13
Max. Input Short Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1
AC Output Data
Rated AC Output Active Power(kW): 6
Max. AC Output Apparent Power(kVA): 6
Rated AC Output current (A): 26.1
Max. AC Output Current(A): 26.1

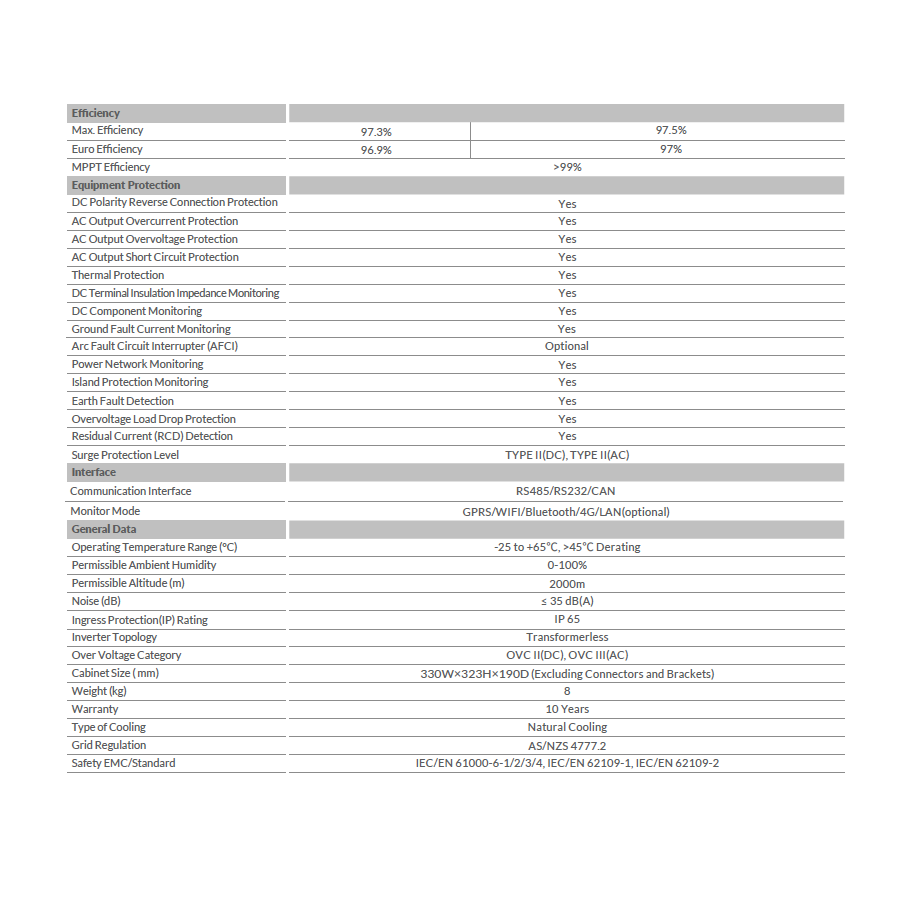

Efficiency:
Max. Efficiency: 97.5%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data:
Dimensions: 330×323×190mm
Weight: 8kg
This inverter is a blend of high efficiency, safety, and user-friendly features, making it a superb choice for residential solar power systems.
