Description

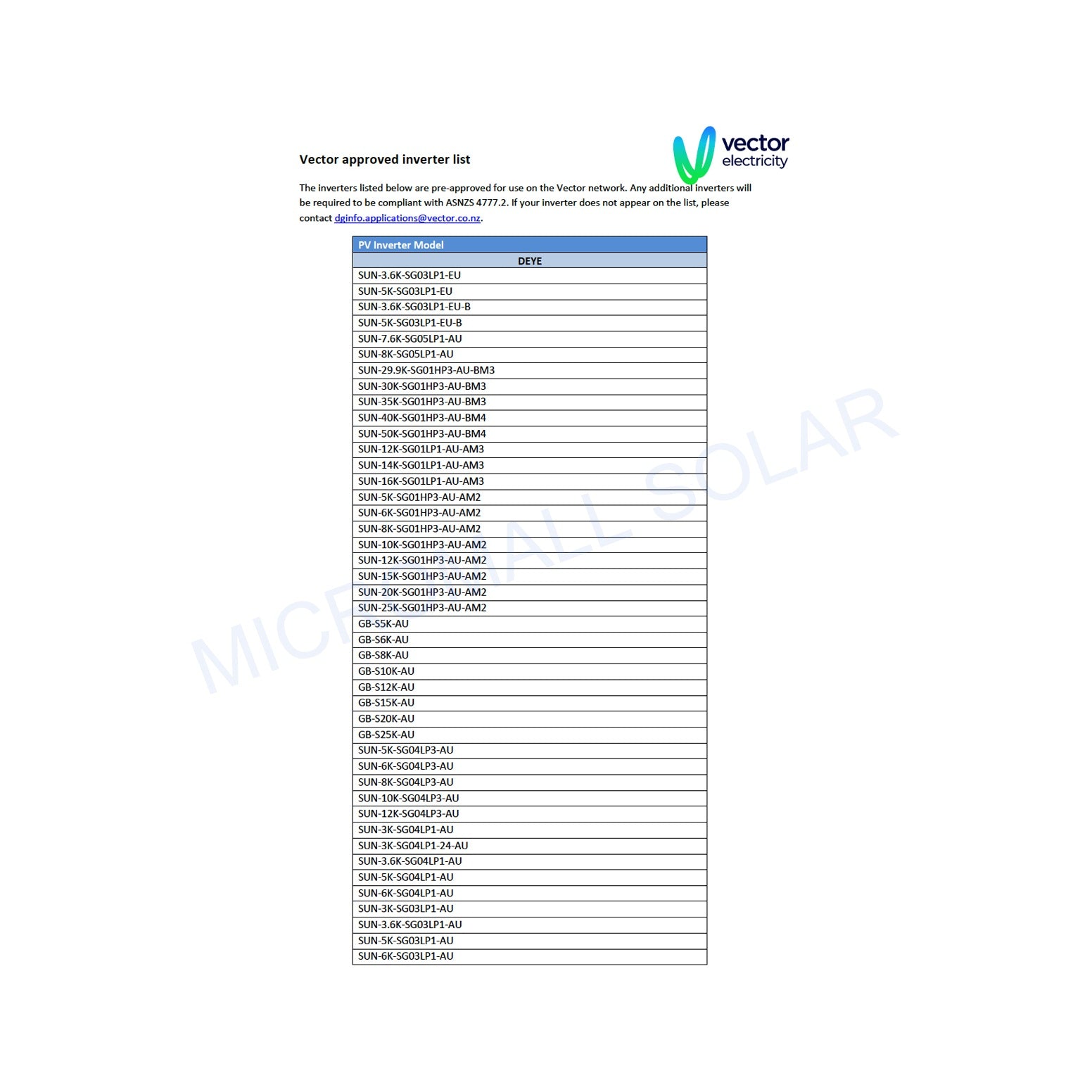

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Higher yields / Safe & Reliable / Smart / User-friendly
Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-8K-SG05LP1-AU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

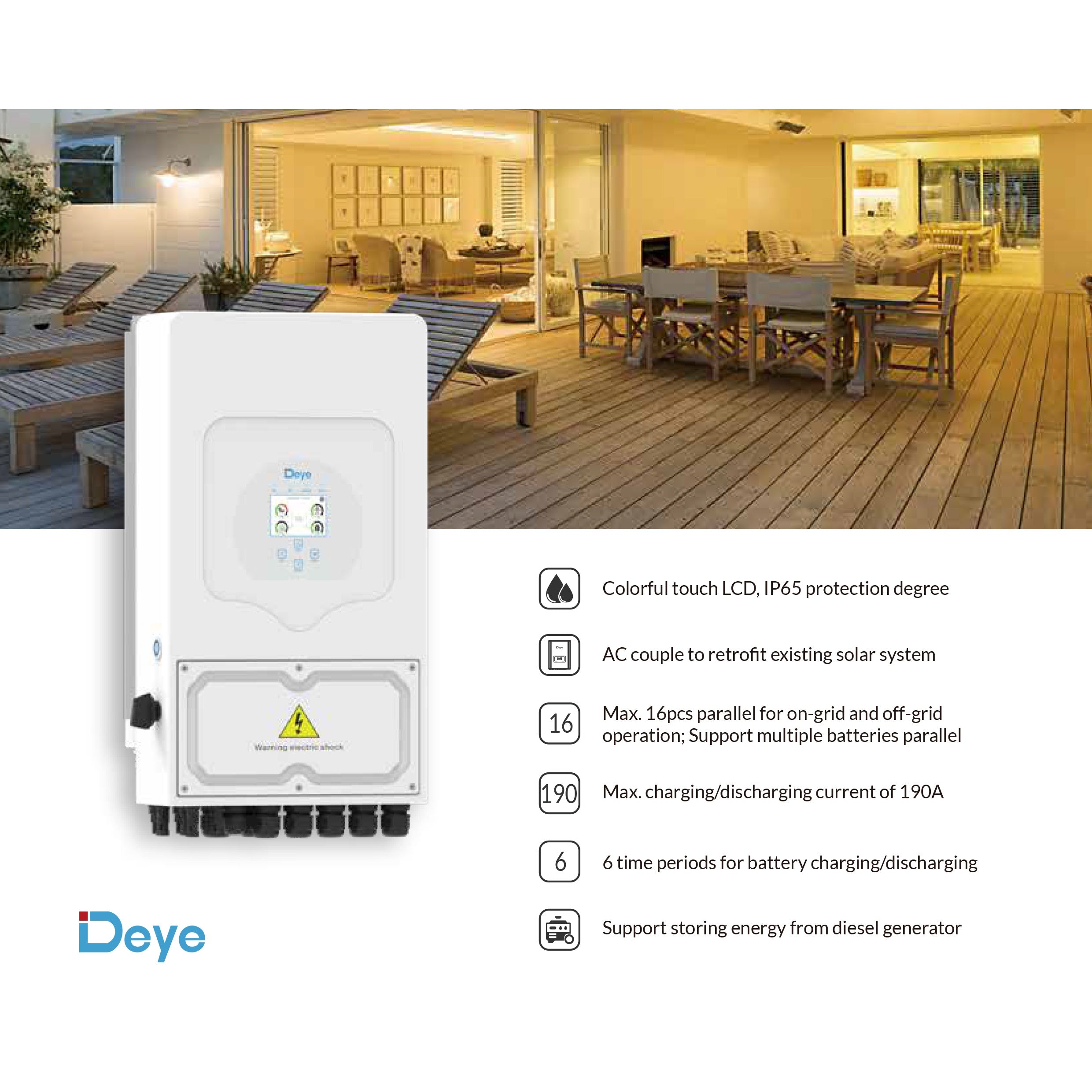

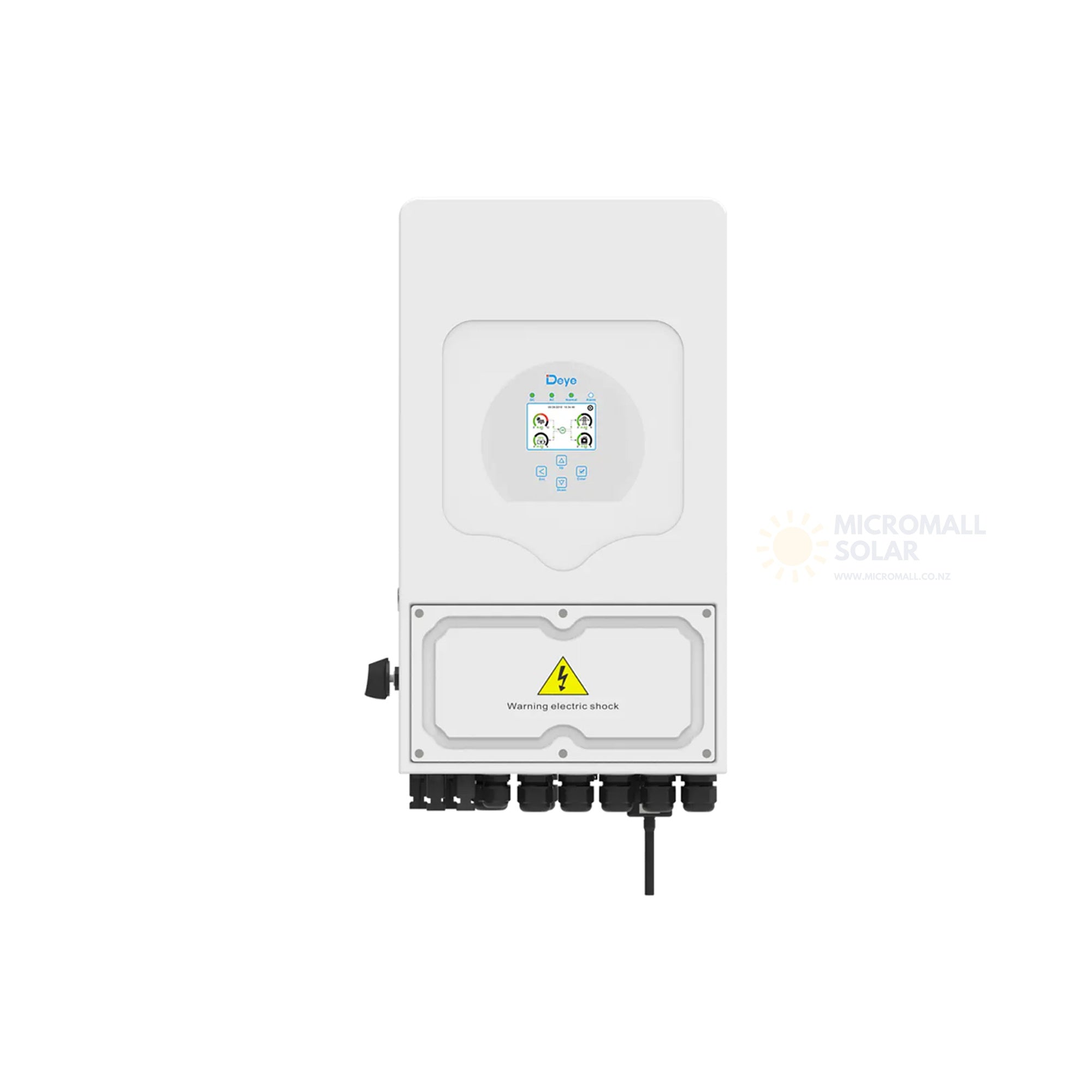

Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
Support storing energy from diesel generator

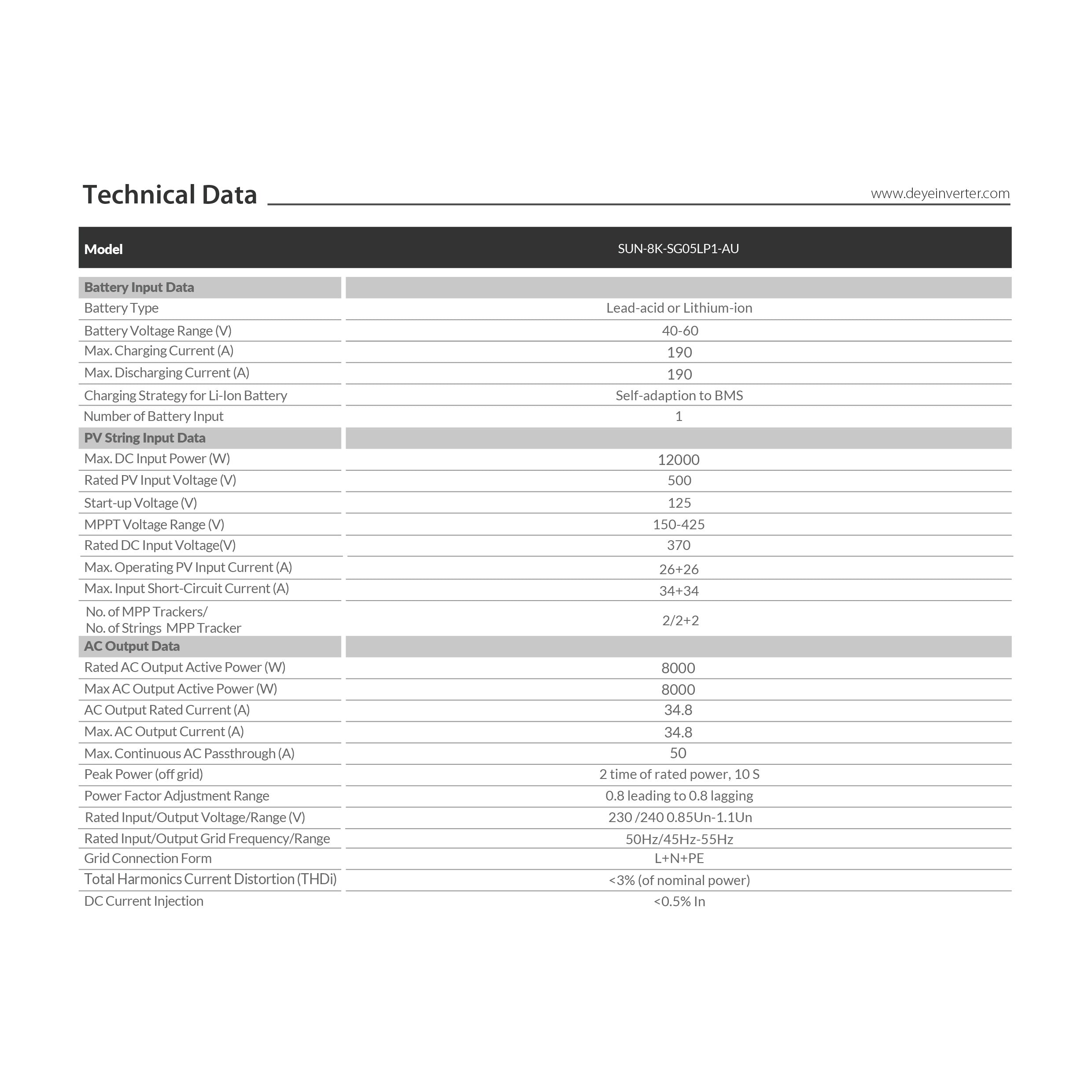

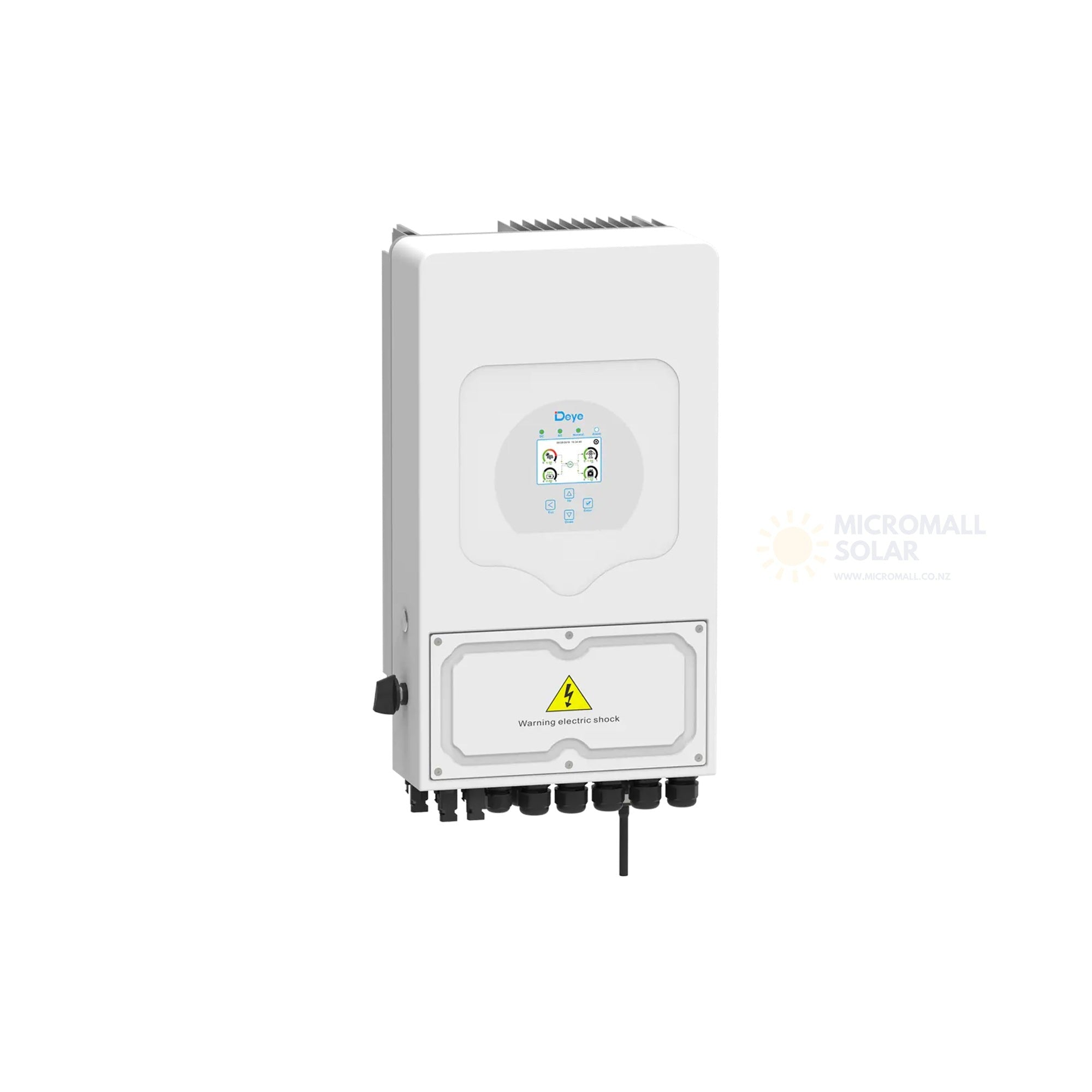

Model: SUN-8K-SG05LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 34.8
Max. AC Output Current (A): 34.8
Max. Continuous AC Passthrough (A): 50
Peak Power (off grid): 2 time of rated power, 10 S

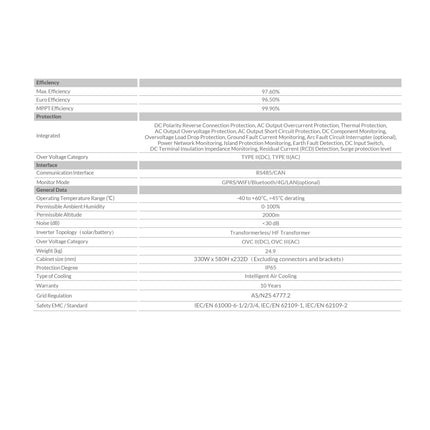

Max. Efficiency: 97.60%

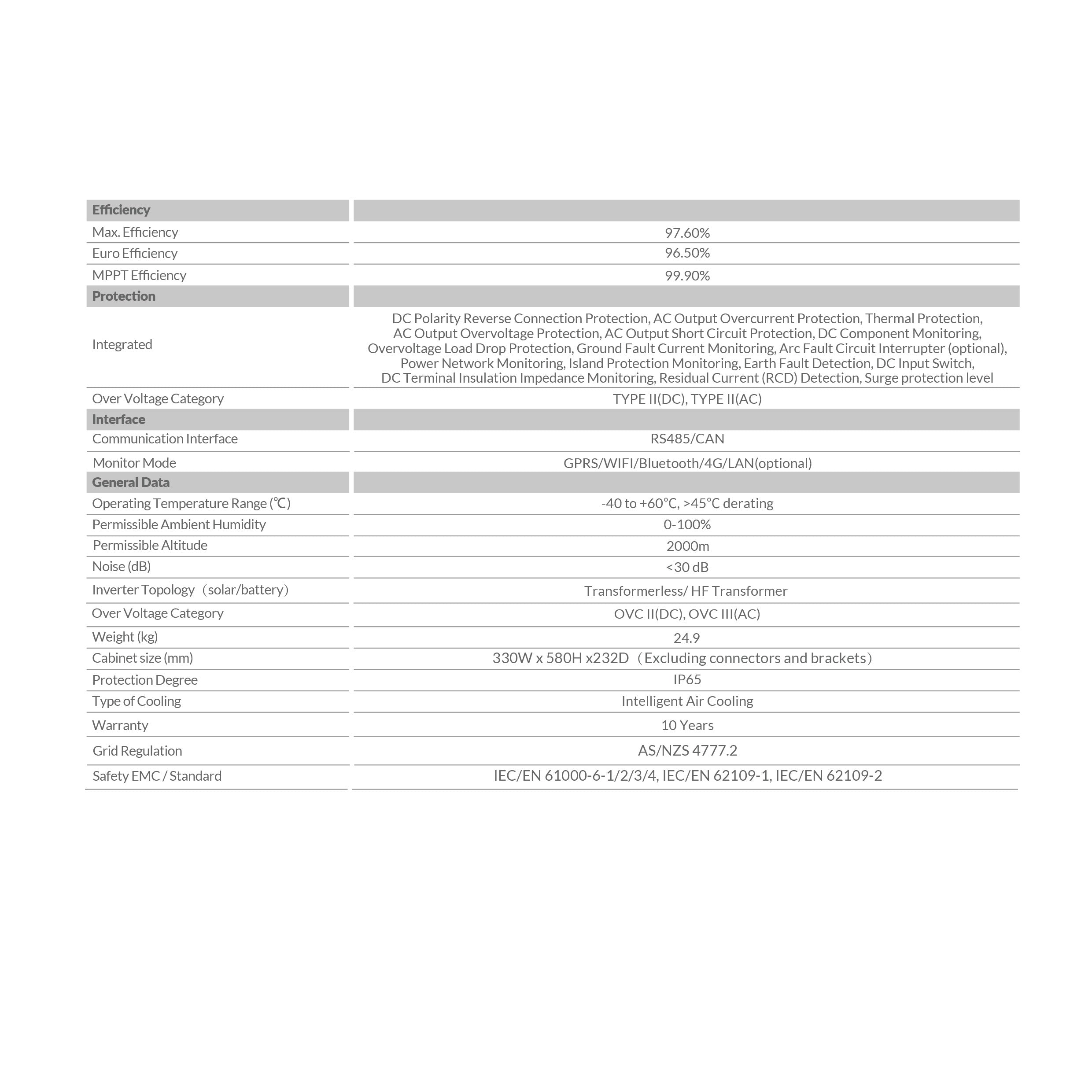

General Data
Weight (kg): 24.9
Cabinet size (mm): 330W x 580H x232D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
