Description

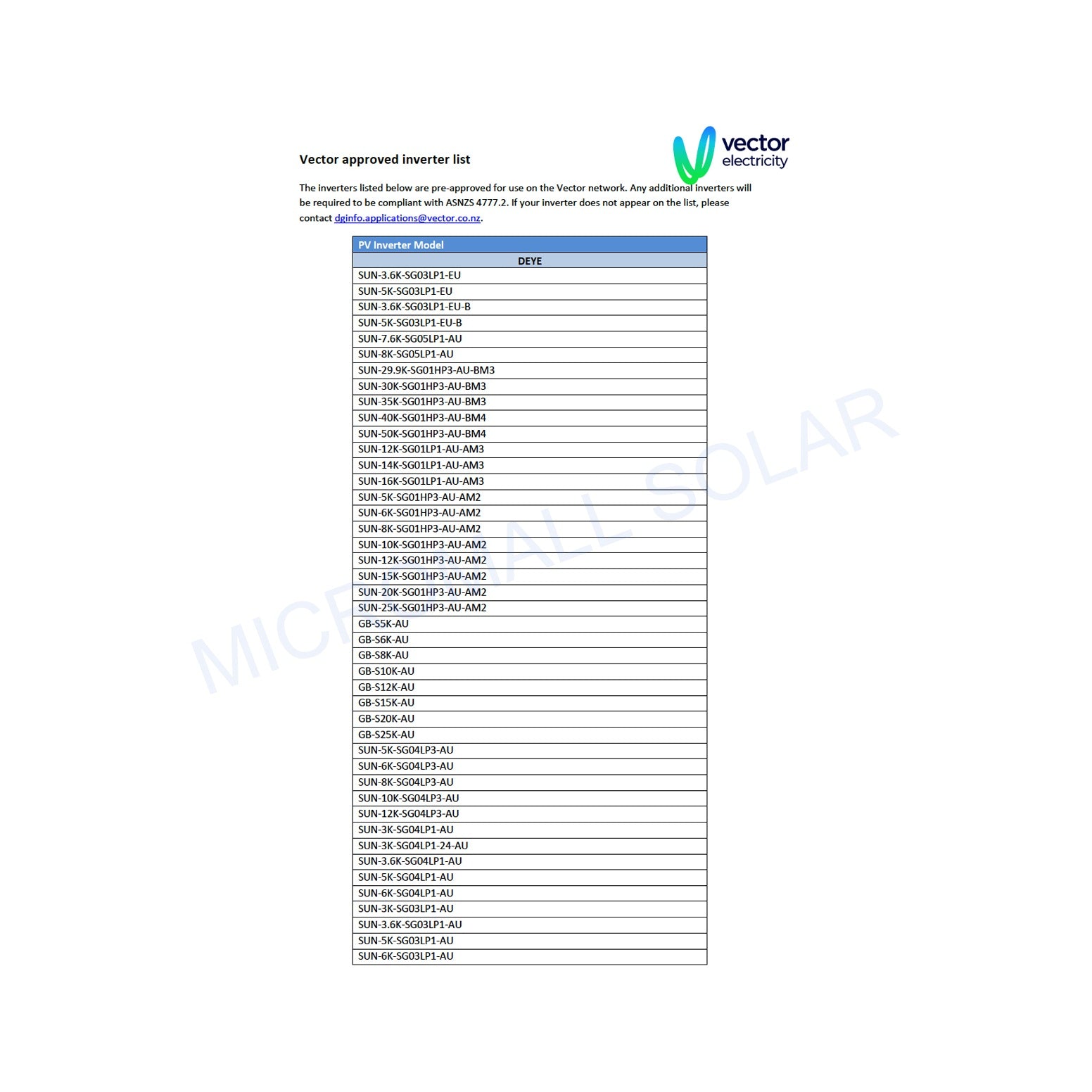

**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Manufacturer Warranty**

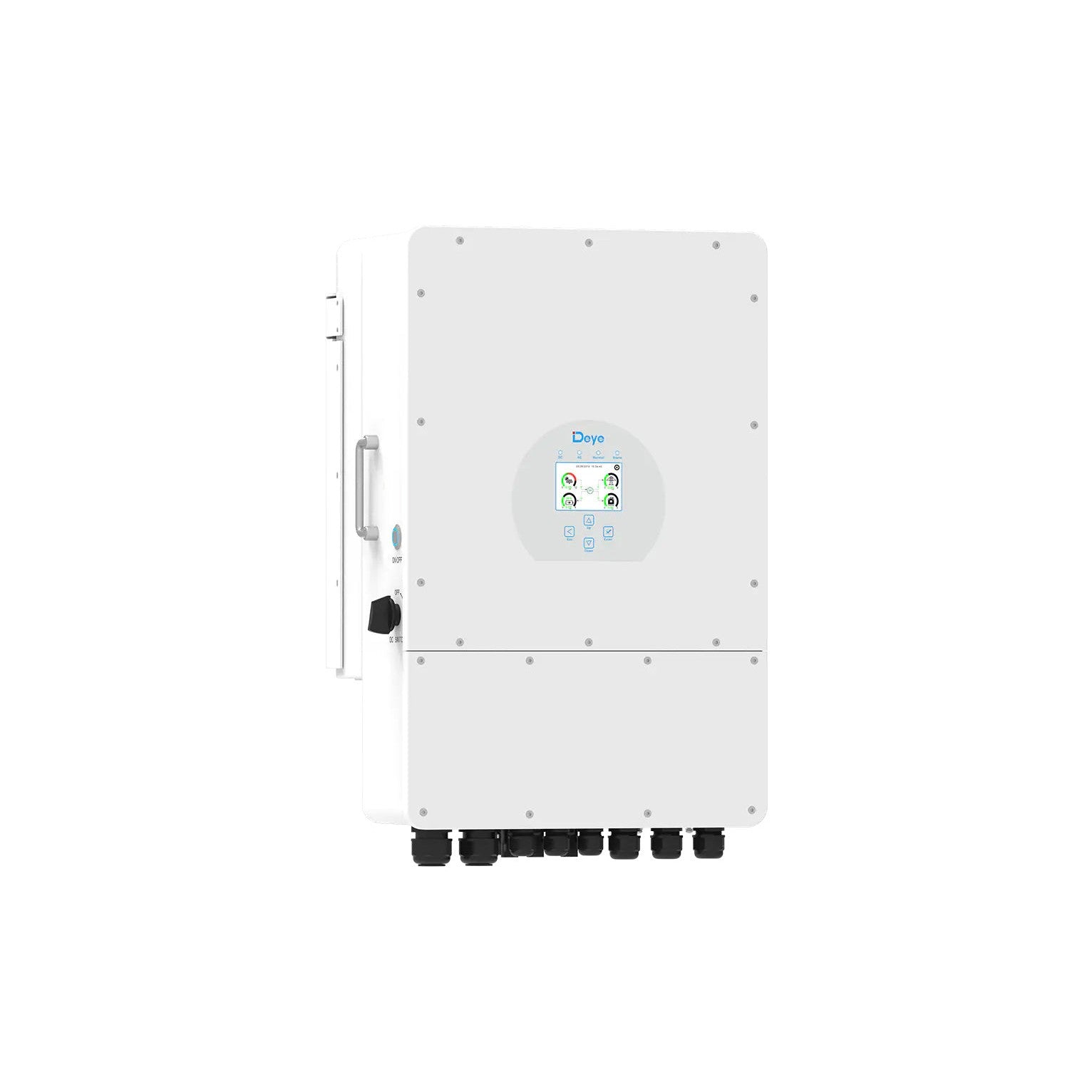

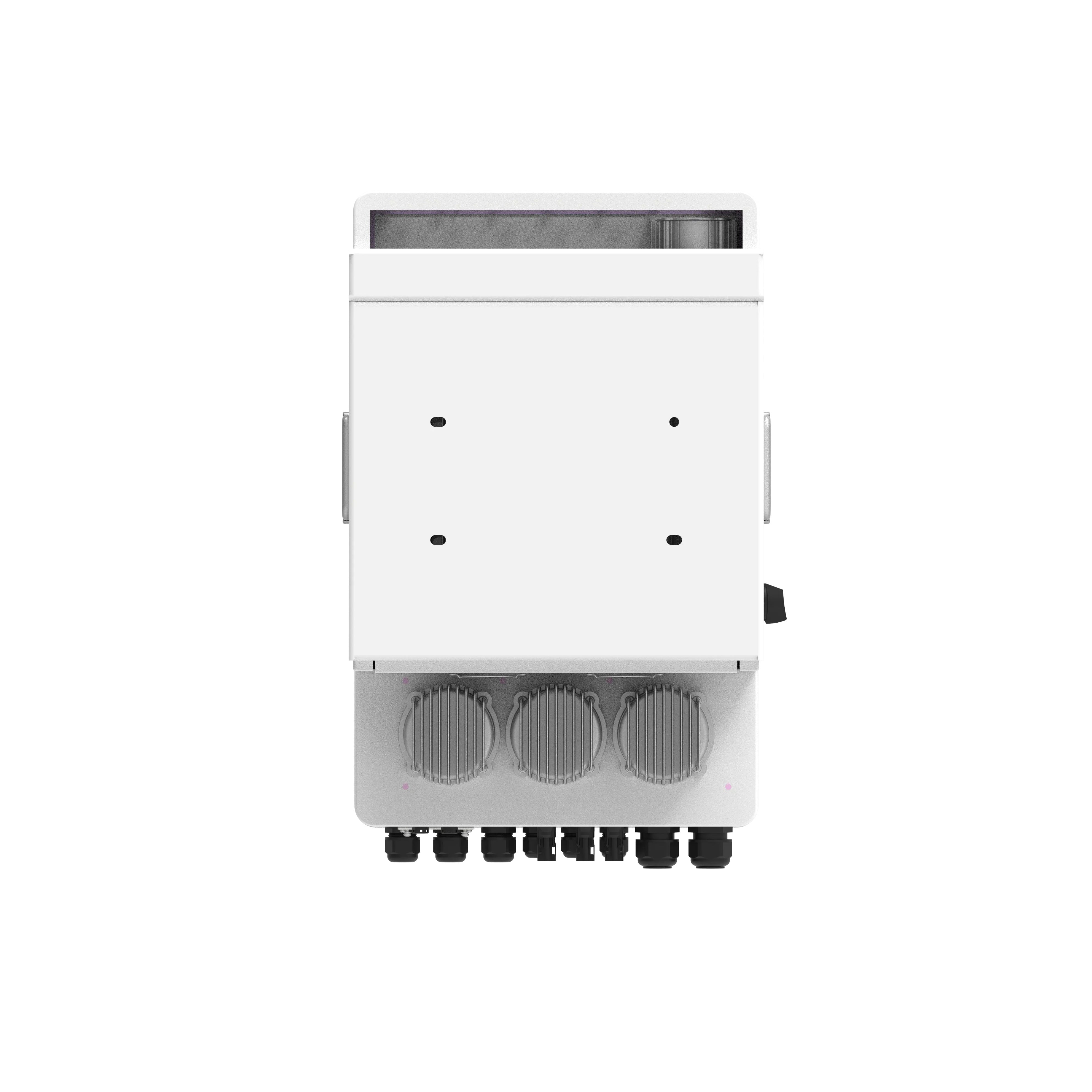

SUN-8K-SG04LP3-AU | 8kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Model: SUN-8K-SG04LP3-AU

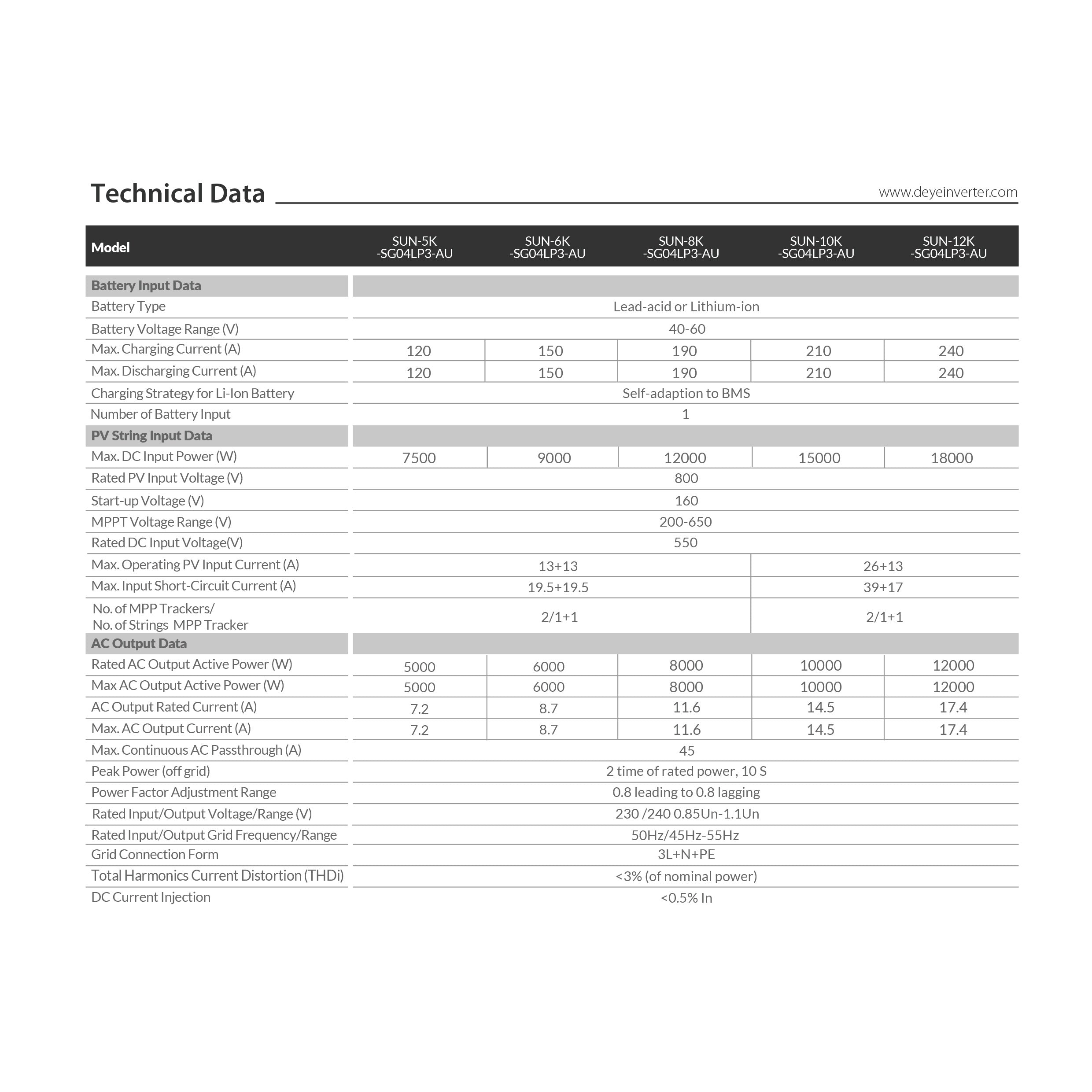

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Curve: 3 Stages / Equalization
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 19.5+19.5
No. of MPP Trackers/Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 11.6
Max. AC Output Current (A): 11.6
Max. Continuous AC Passthrough (A):45
Peak Power (off grid): 2 time of rated power, 10 S

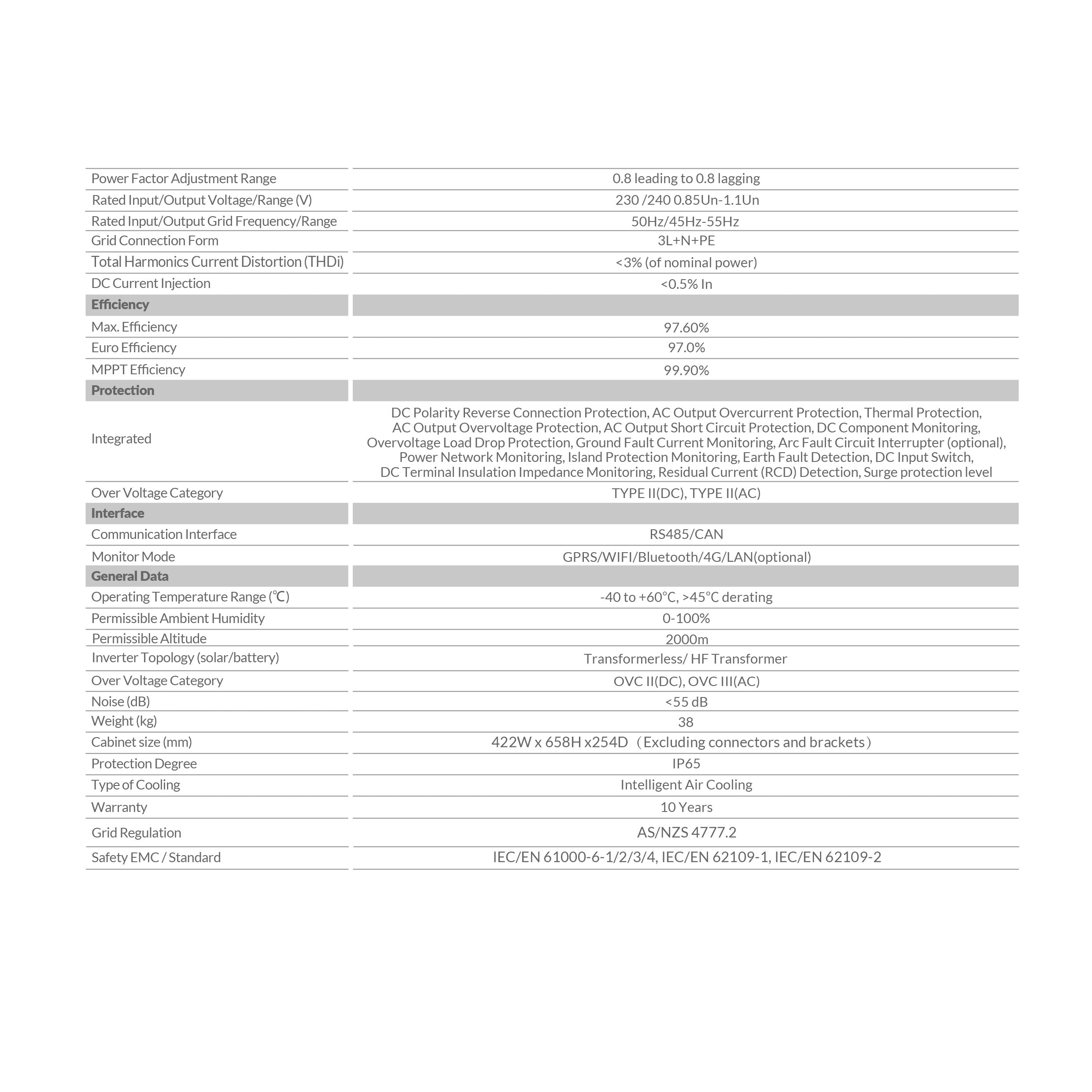

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
Dedicated communication with battery service assistance.
