Description

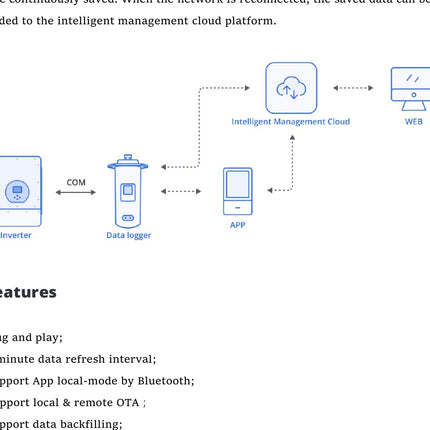

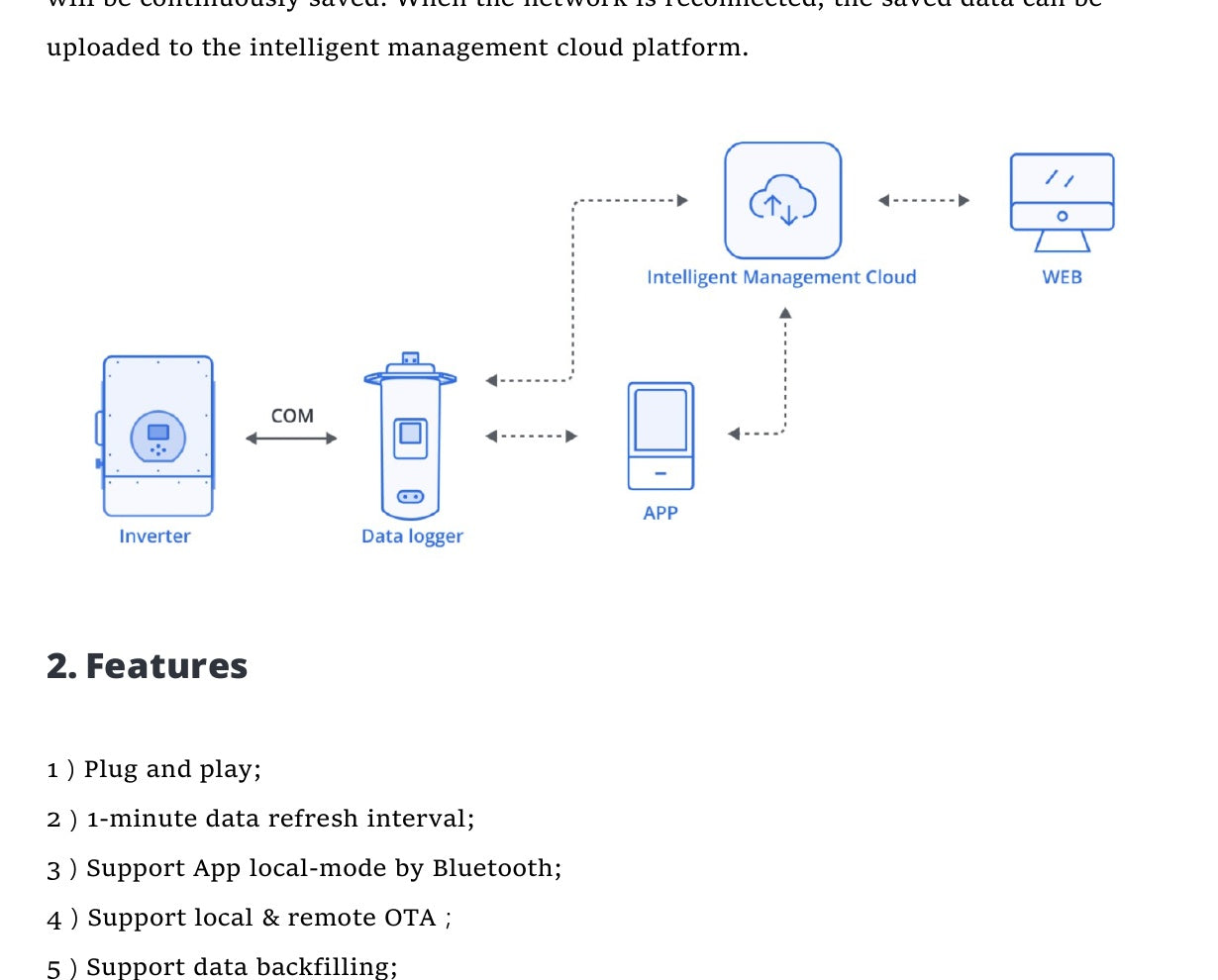

The Deye DL1000B-ETH is an Ethernet data logger for remote monitoring and management of compatible Deye inverter systems. Its plug-and-play connection, 10/100Mbps Ethernet interface and regular cloud data updates provide convenient access to system performance information.
Key Features
- Ethernet data logger for Deye inverter monitoring through Deye Cloud
- 10/100 Mbps Ethernet with up to 100 m direct communication range
- Plug-and-play connection to the inverter communication interface
- One-minute default data refresh interval
- Bluetooth BLE local mode for on-site data access and setup
- Supports Modbus command transparent transmission and custom configuration
- Local and remote OTA firmware upgrades
- Remote inverter parameter adjustment and debugging
- Automatic data backfilling after network interruption
- Encrypted transmission and IP65 protection

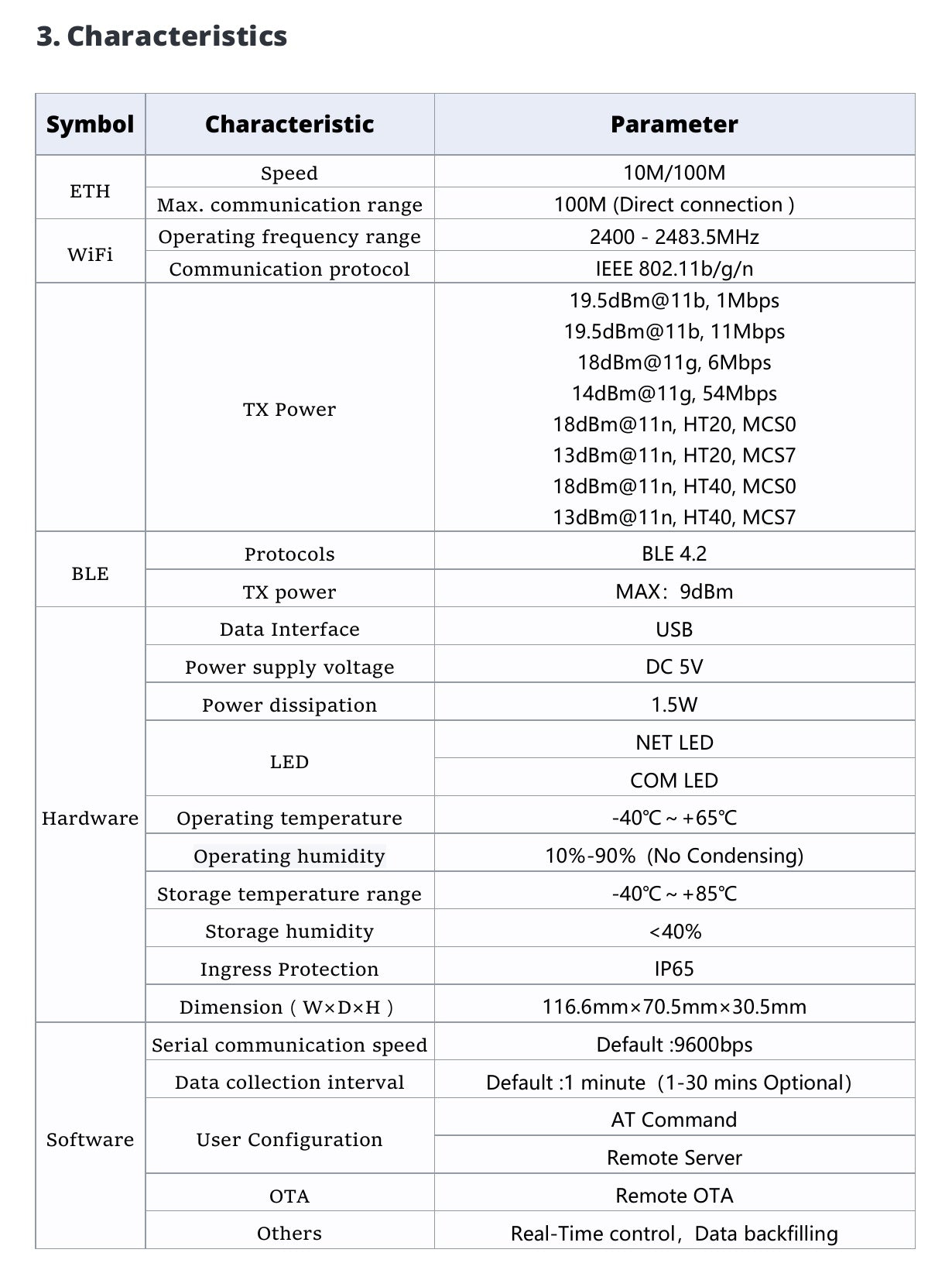

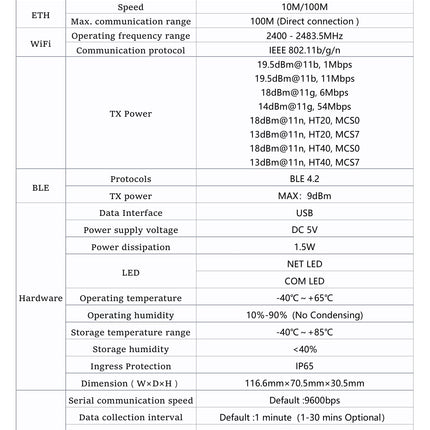

Specifications
- Model: DL1000B-ETH
- Version: V1.0
- Ethernet speed: 10M / 100M
- Maximum Ethernet communication range: 100 m direct connection
- Built-in configuration ports: TCP 80 and Modbus TCP 502
- Bluetooth protocol: BLE 4.2
- Maximum BLE transmit power: 9 dBm
- Data interface: USB
- Power supply: DC 5 V
- Power consumption: 1.5 W
- Input requirement: DC 5 V, at least 2.5 W
- Indicators: NET LED and COM LED
- Operating temperature: -40°C to +65°C
- Operating humidity: 10%-90%, non-condensing
- Storage temperature: -40°C to +85°C
- Ingress protection: IP65

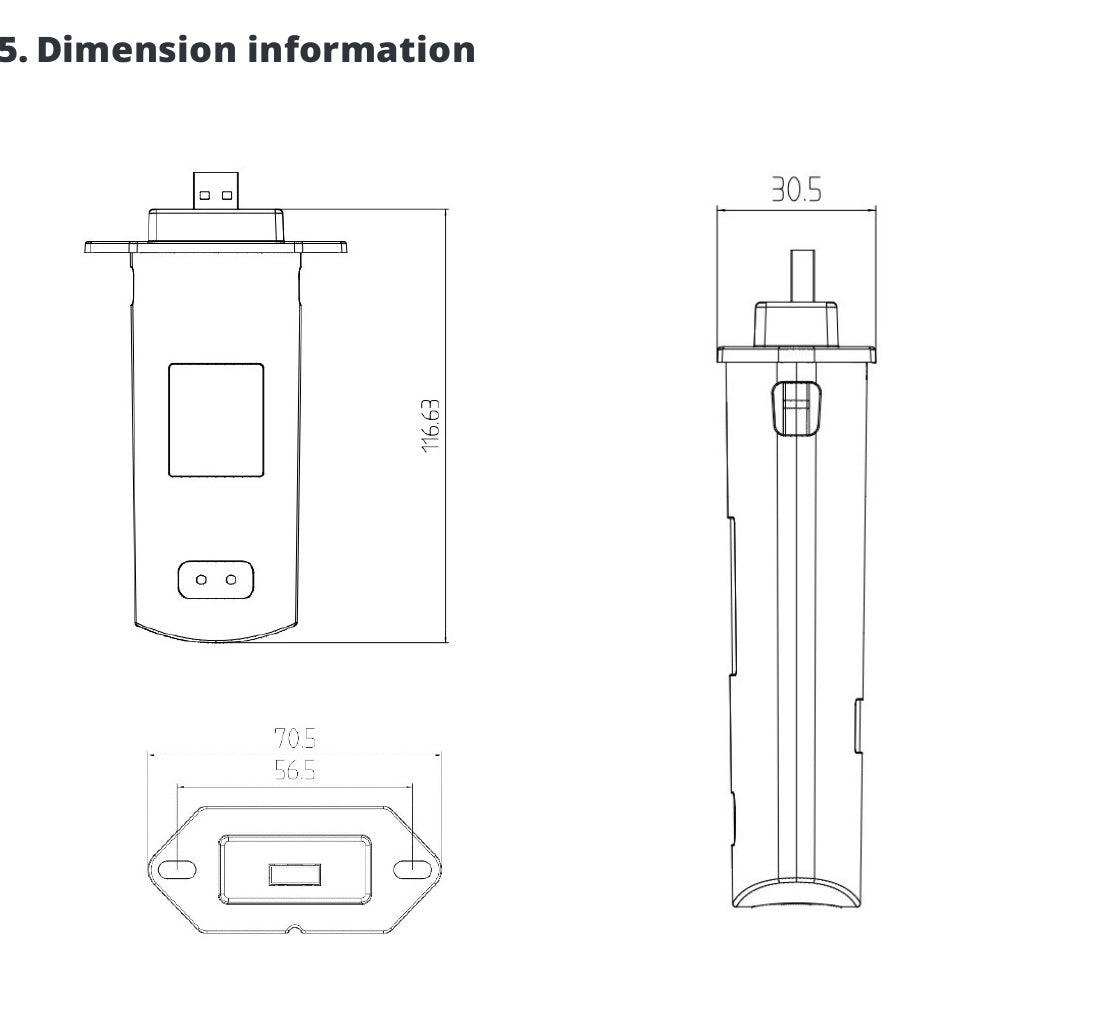

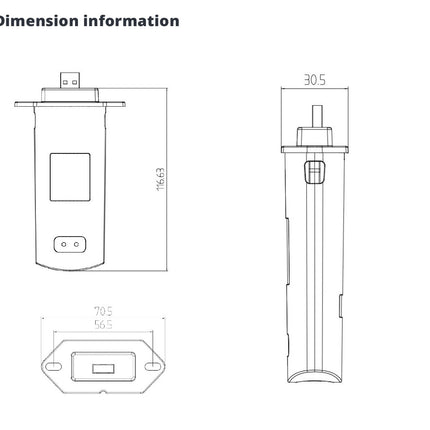

- Dimensions (W × D × H): 116.6 × 70.5 × 30.5 mm
- Serial communication speed: Default 9600 bps
- Data collection interval: Default 1 minute, configurable from 1-30 minutes
- Other functions: Real-time control, remote server configuration and data backfilling
