Description

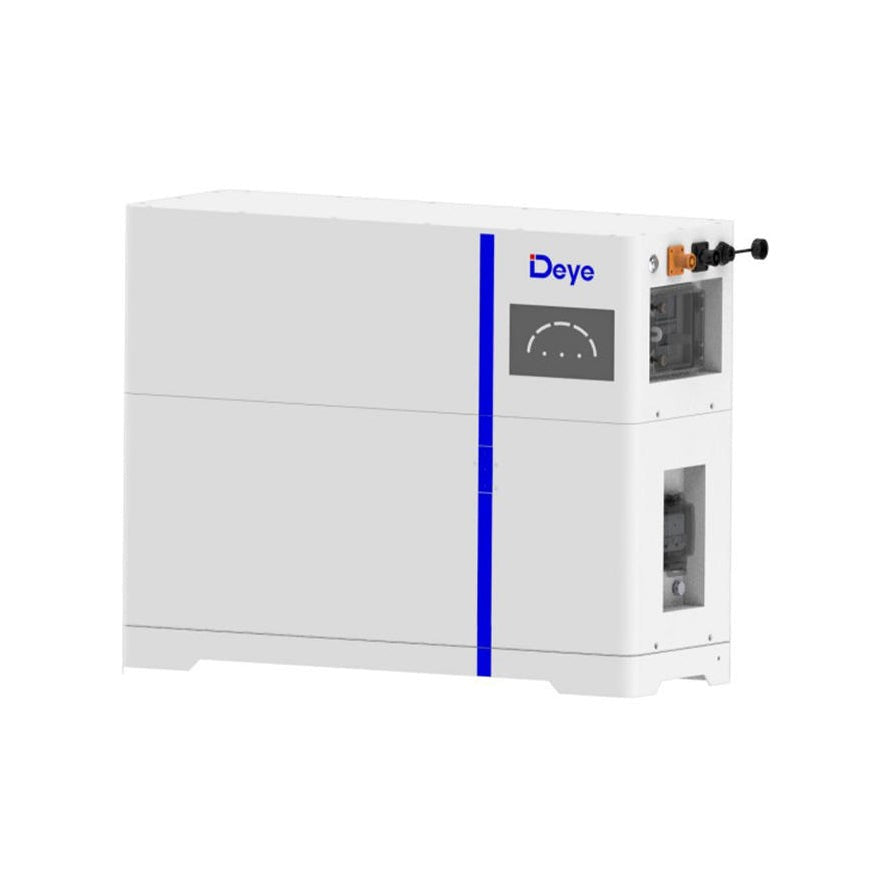

The Deye AI-W5.1-B Lithium Iron Phosphate Battery is a reliable, safe, and flexible energy storage solution that caters to your specific needs. With its modular design, quick installation, and remote monitoring capabilities, this battery system is the ideal choice for optimizing your energy consumption and reducing your carbon footprint.

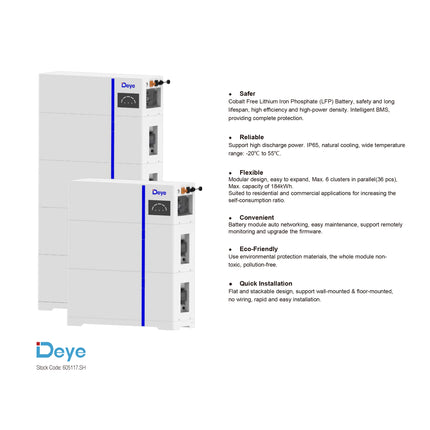

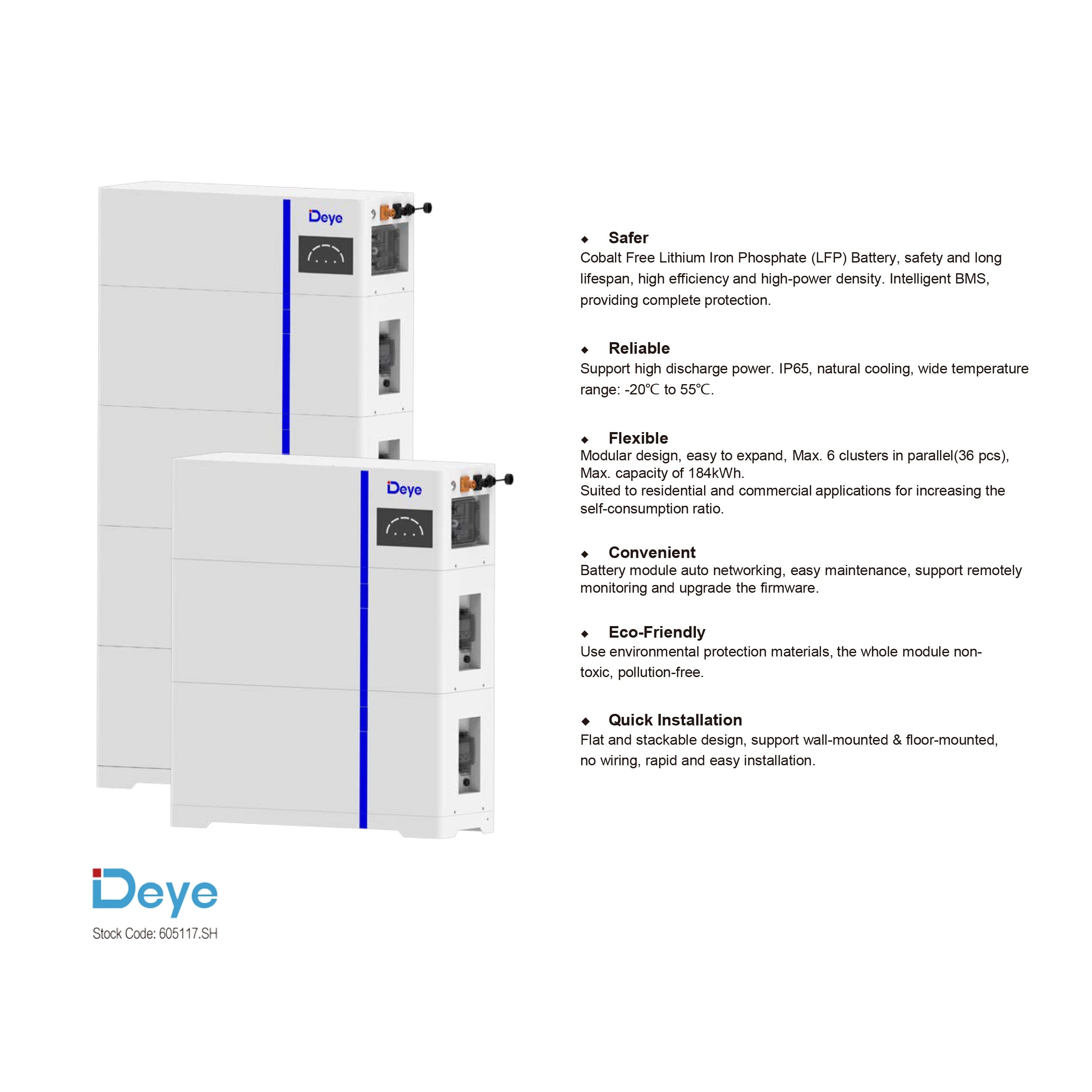

Key Features:
Safe & Durable – Cobalt-free Lithium Iron Phosphate (LFP) chemistry with an intelligent Battery Management System (BMS) for maximum protection and long lifespan.
Reliable Performance – Supports high discharge power, operates in -20°C to 55°C, and features an IP65 rating with natural cooling.
Scalable & Flexible – Expandable up to 184 kWh with 36 units in parallel, suitable for various energy needs.
Easy Installation – Flat, stackable design with wall-mounted or floor-mounted options; no wiring required.
Smart Monitoring – Auto-networking for seamless maintenance, plus remote monitoring and firmware upgrades.
Eco-Friendly – Made from non-toxic, pollution-free materials.

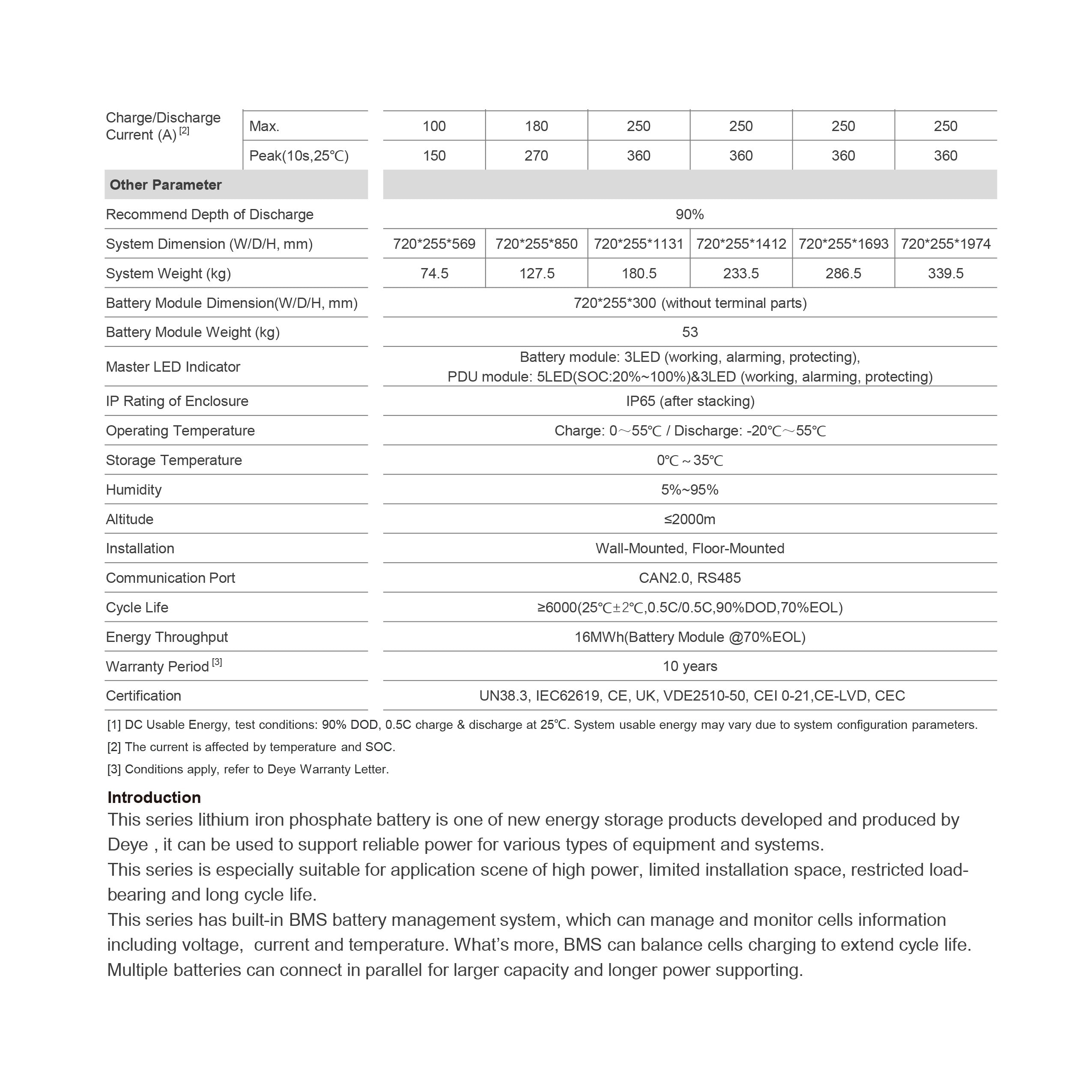

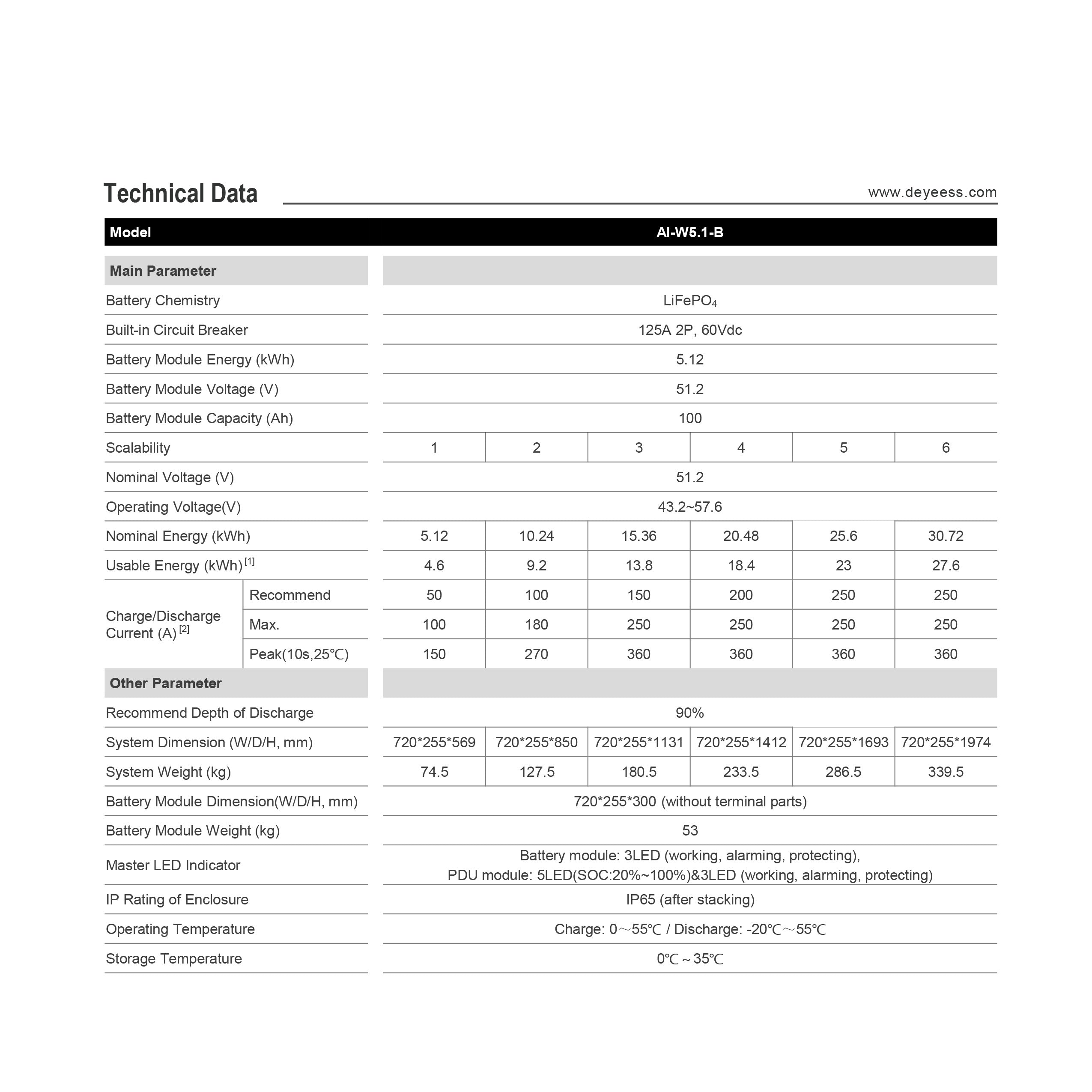

Model: AI-W5.1-B
Battery Chemistry: LiFePO4
Built-in Circuit Breaker: 125A 2P, 60Vdc
Battery Module Energy (kWh): 5.12
Battery Module Voltage (V): 51.2
Battery Module Capacity (Ah): 100
Nominal Voltage (V): 51.2
Operating Voltage(V): 43.2 - 57.6
IP Rating of Enclosure: IP65 (after stacking)
Dimension (W/D/H, mm): 720 x 255 x 569
Weight (kg): 74.5

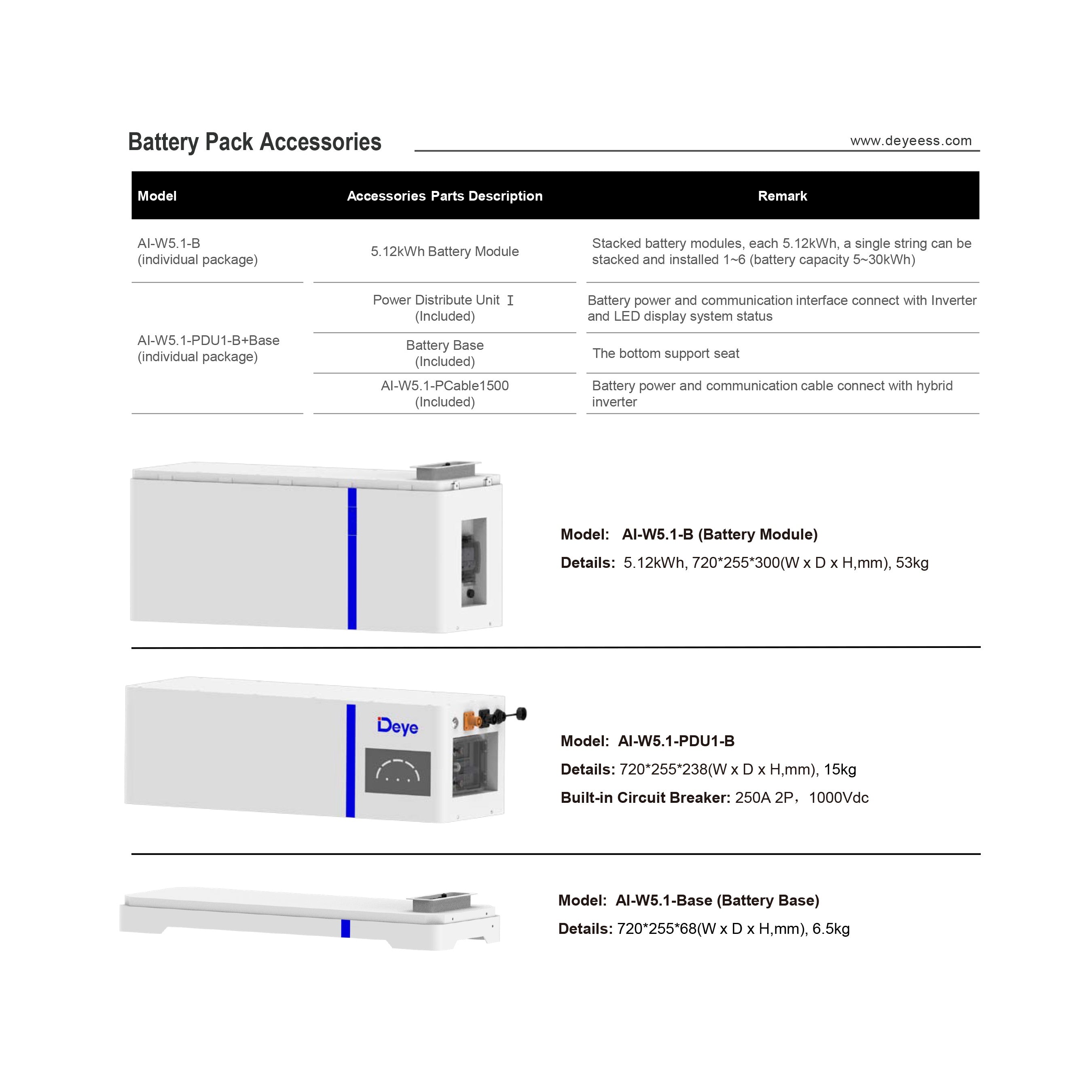

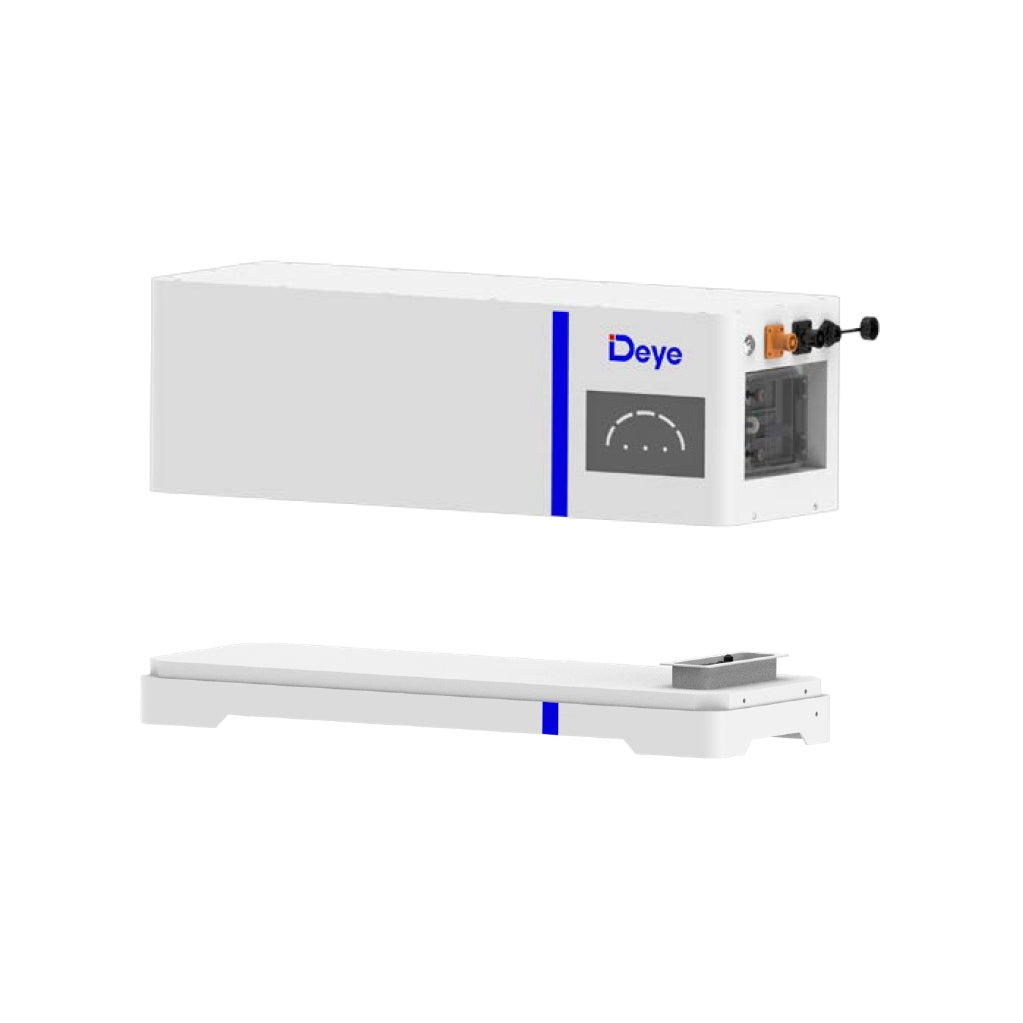

Package includes:

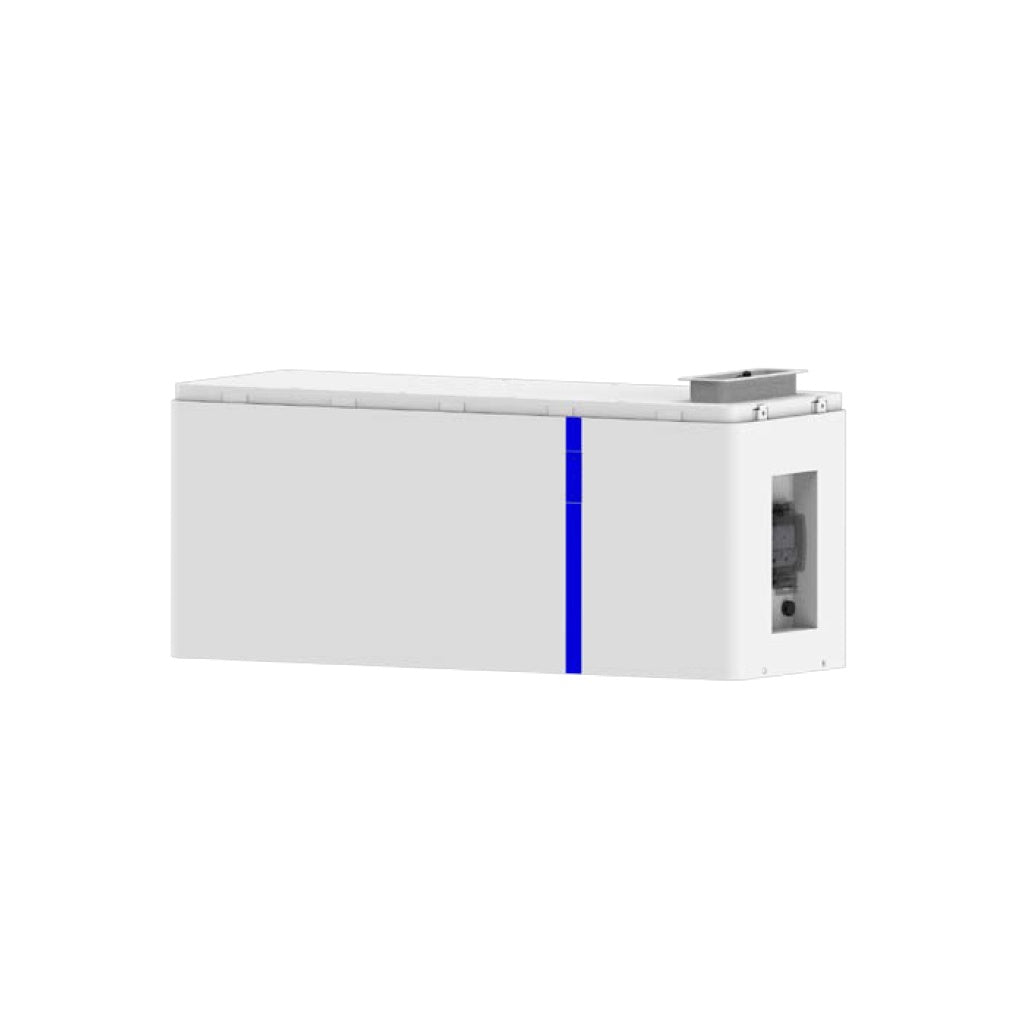

1x Deye ESS AI-W5.1-B 5.12kWh Low Voltage Storage Battery Module
1x Deye ESS AI-W5.1-PDU1-B Low Voltage Storage Battery Controller with Base
**10 Years Warranty**
