Description
The Deye BOS-G series is an advanced LiFePO4 battery system designed for reliable and efficient energy storage in homes and businesses. It offers various configurations and capacities to meet different energy needs.
Key Features:
High-quality LiFePO4 cells for safety and durability
Modular design with capacities from 15.36 kWh to 61.44 kWh
Flexible system voltage from 153.6V to 614.4V
Intelligent Battery Management System (BMS) for optimal performance
Compact and easy to install
10-year warranty for peace of mind
The BOS-G series uses LiFePO4 technology known for its safety, thermal stability, and long cycle life. Each battery module has 100Ah capacity and 5.12 kWh energy, allowing scalable storage solutions.
It offers a recommended depth of discharge (DOD) of 90% and a cycle life of over 6000 cycles at 25°C. With a wide operating temperature range of -20°C to 55°C, the system is suitable for diverse environments.

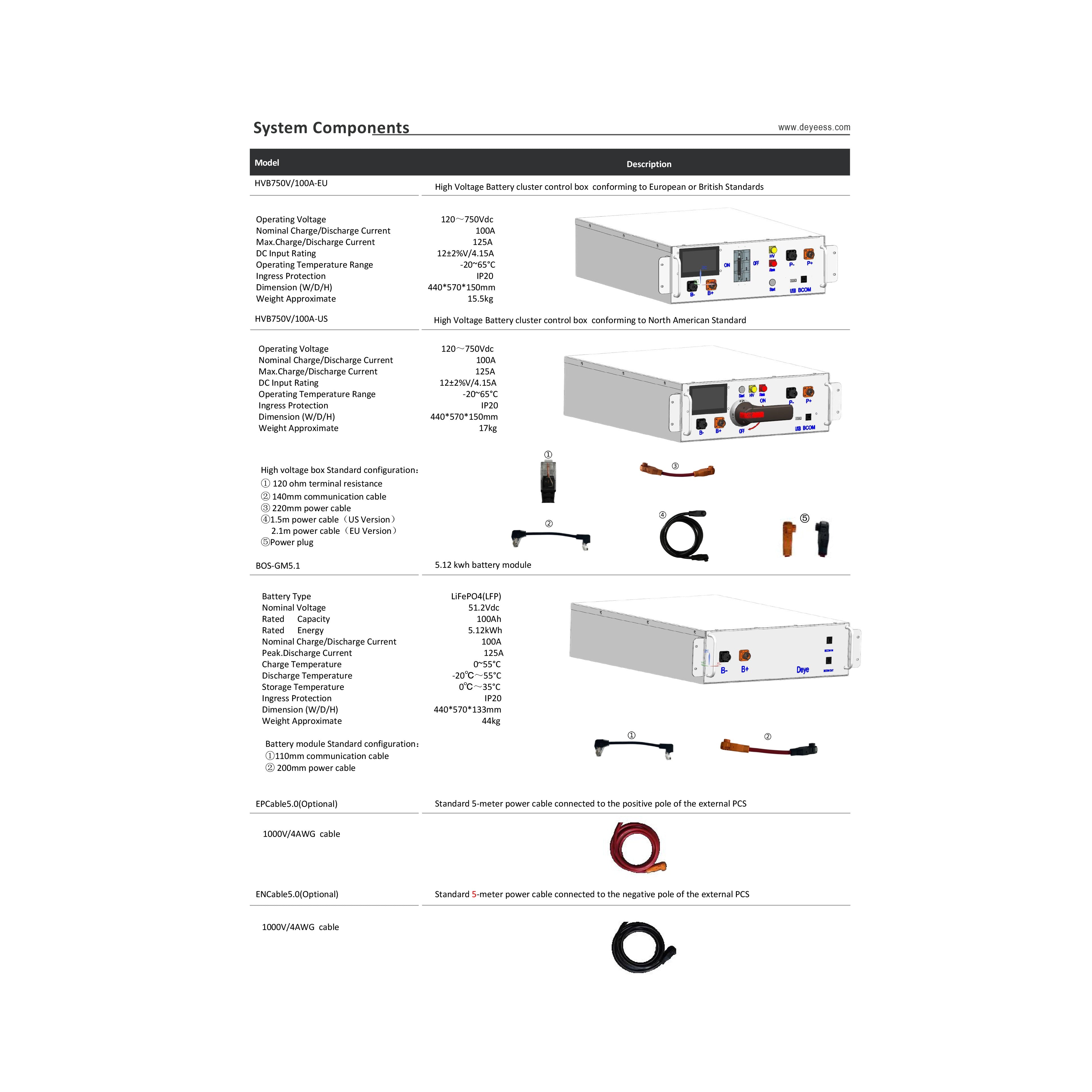

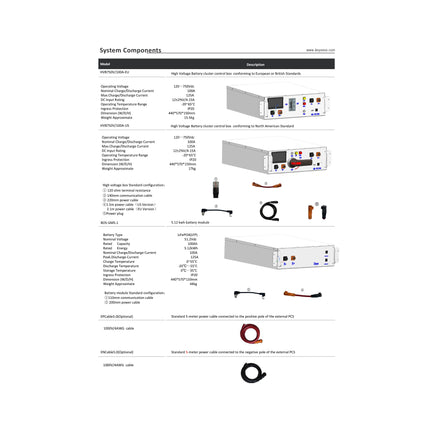

The system includes a high-voltage box (HVB750V/100A) that supports a voltage range of 120-750 Vdc and a maximum current of 125A, ensuring efficient integration with existing power systems and compatibility with various inverters and chargers.
Safety is prioritized with features like over-voltage, under-voltage, over-current, short-circuit, and temperature protection. The system’s IP20-rated enclosure ensures protection from dust, and built-in status indicators provide clear updates on system performance.

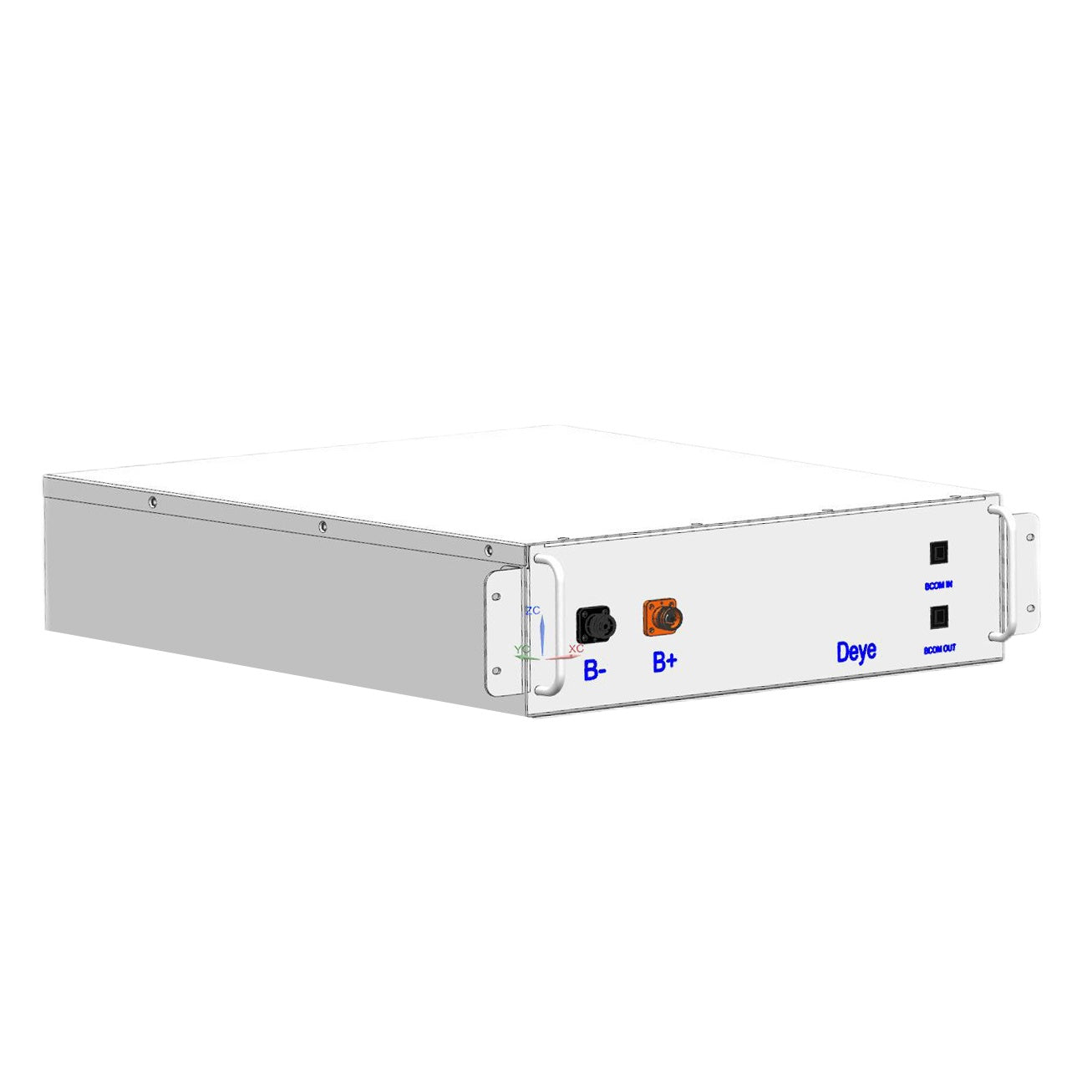

Model: BOS-GM5.1
5.12 kWh battery module
Battery Type: LiFePO4(LFP)
Nominal Voltage: 51.2Vdc
Rated Capacity: 100Ah
Rated Energy: 5.12kWh
Nominal Charge/Discharge Current: 100A
Peak.Discharge Current: 125A
Charge Temperature: 0 - 55°C
Discharge Temperature: -20°C - 55°C
Storage Temperature: 0°C - 35°C
Ingress Protection: IP20
Dimension (W/D/H): 440x570x133mm
Weight: 44kg
**This listing is for 1 battery model only.**
With a 10-year warranty, the Deye BOS-G series offers a reliable, long-lasting energy storage solution for any user.
