Description

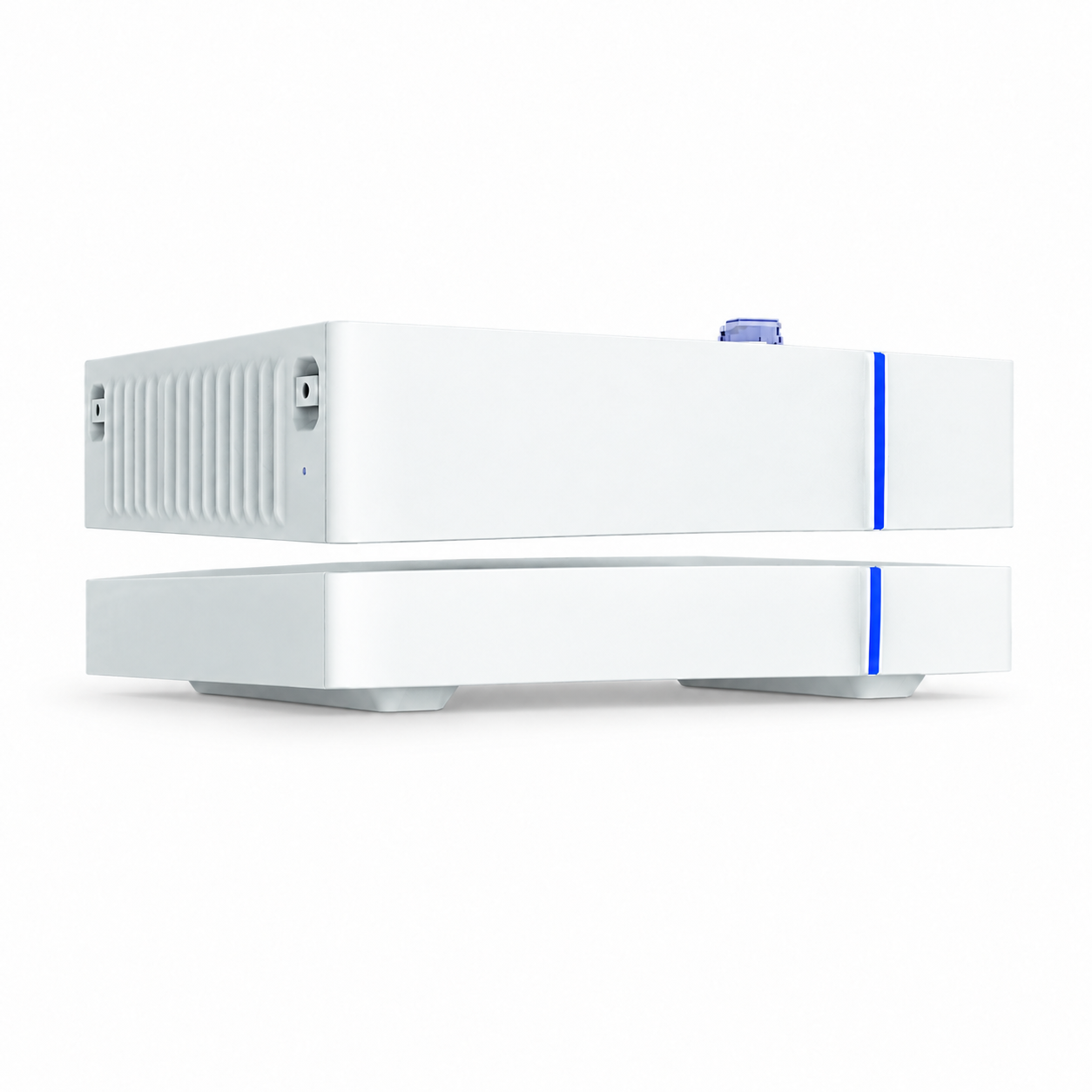

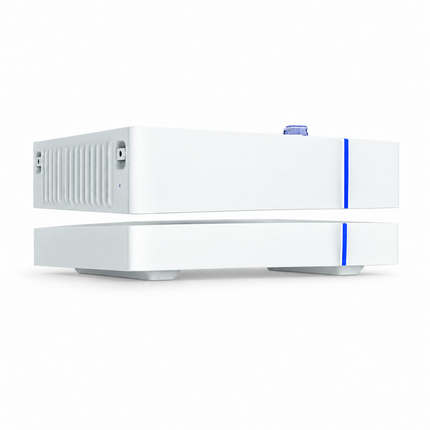

The Deye GB-LB-Pro high-voltage battery cluster control box and GB-L Base form the control and floor-mounting set for compatible Deye GB-SL Pro residential energy storage systems. The matched components provide the high-voltage battery interface and stable mechanical foundation required for a modular GB-L-Pro stack.
Key Features
- Matched control box and floor base for Deye GB-SL Pro high-voltage battery systems
- 120-750V DC operating range
- 40A nominal and 50A maximum charge/discharge current
- IP65-rated control box for durable residential energy-storage installations
- Wide -20 to 65 C control-box operating temperature range
- Cable-free modular stacking with compatible GB-L-Pro-Pack4.1-2 battery modules

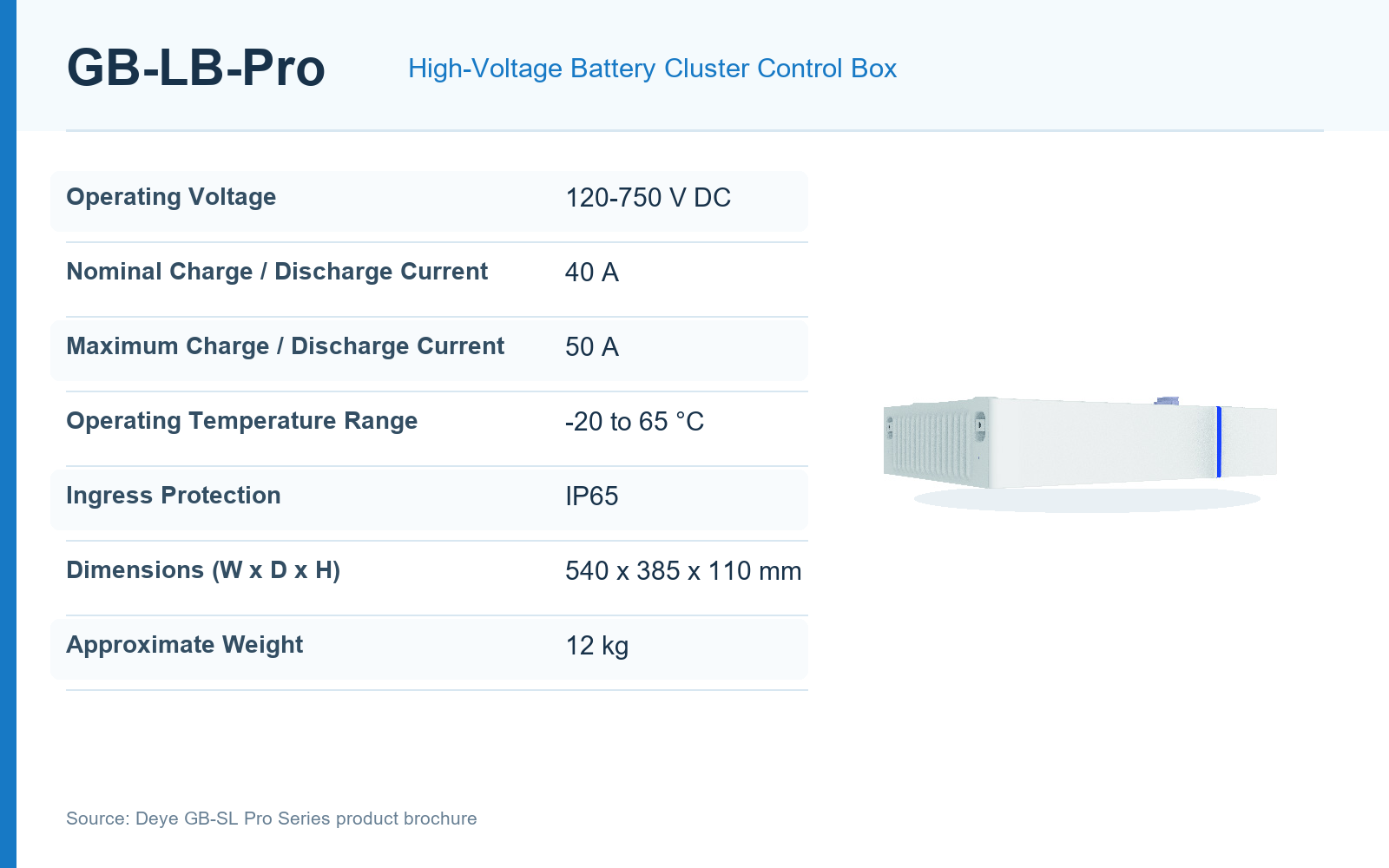

GB-LB-Pro Control Box Specifications
- Model: GB-LB-Pro
- Operating voltage: 120-750V DC
- Nominal charge/discharge current: 40A
- Maximum charge/discharge current: 50A
- Operating temperature: -20 to 65 C
- Ingress protection: IP65
- Dimensions (W x D x H): 540 x 385 x 110 mm
- Actual weight: approximately 12 kg

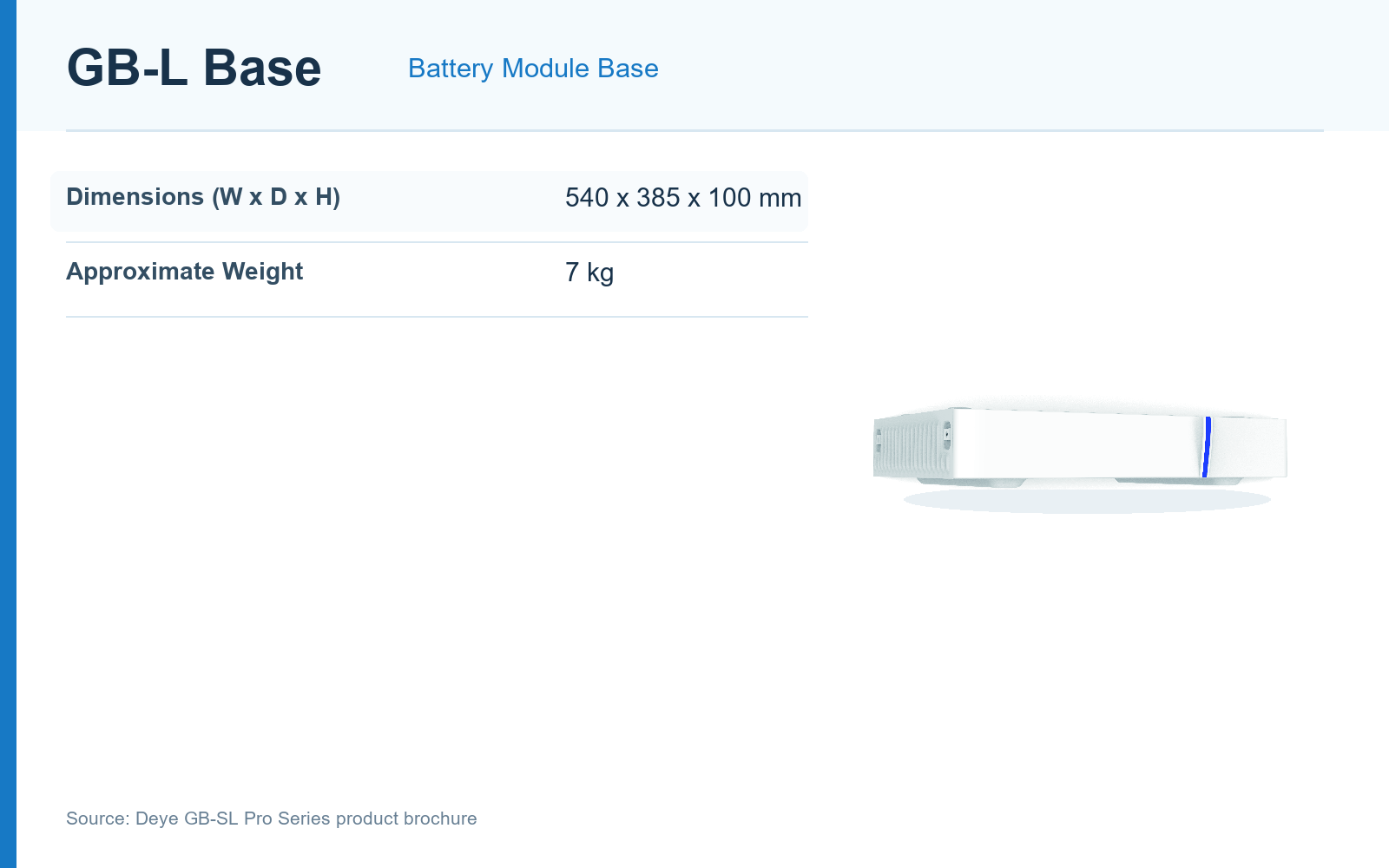

GB-L Base Specifications
- Model: GB-L Base
- Dimensions (W x D x H): 540 x 385 x 100 mm
- Actual weight: approximately 7 kg

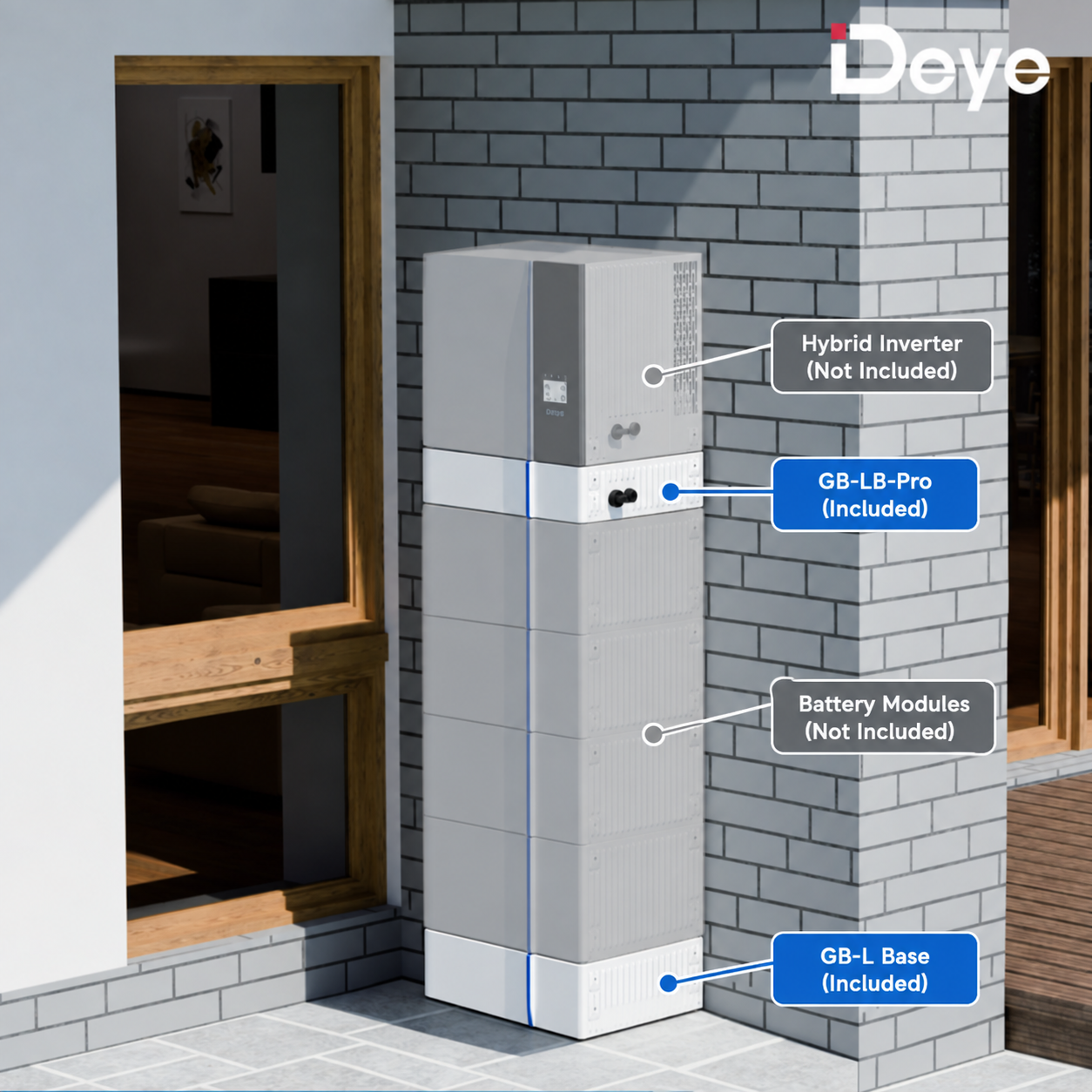

*This listing includes one GB-LB-Pro control box and one GB-L Base only. The hybrid inverter and GB-L-Pro-Pack4.1-2 battery modules are not included.
Warranty
The supplied Deye brochure lists a 10-year warranty for the configured GB-L-Pro battery system, subject to the applicable Deye warranty policy and the brochure condition that coverage ends when either the warranty period or life-cycle power limit is reached first.
Downloads
Download Deye GB-SL Pro Series Datasheet (PDF)
