Description

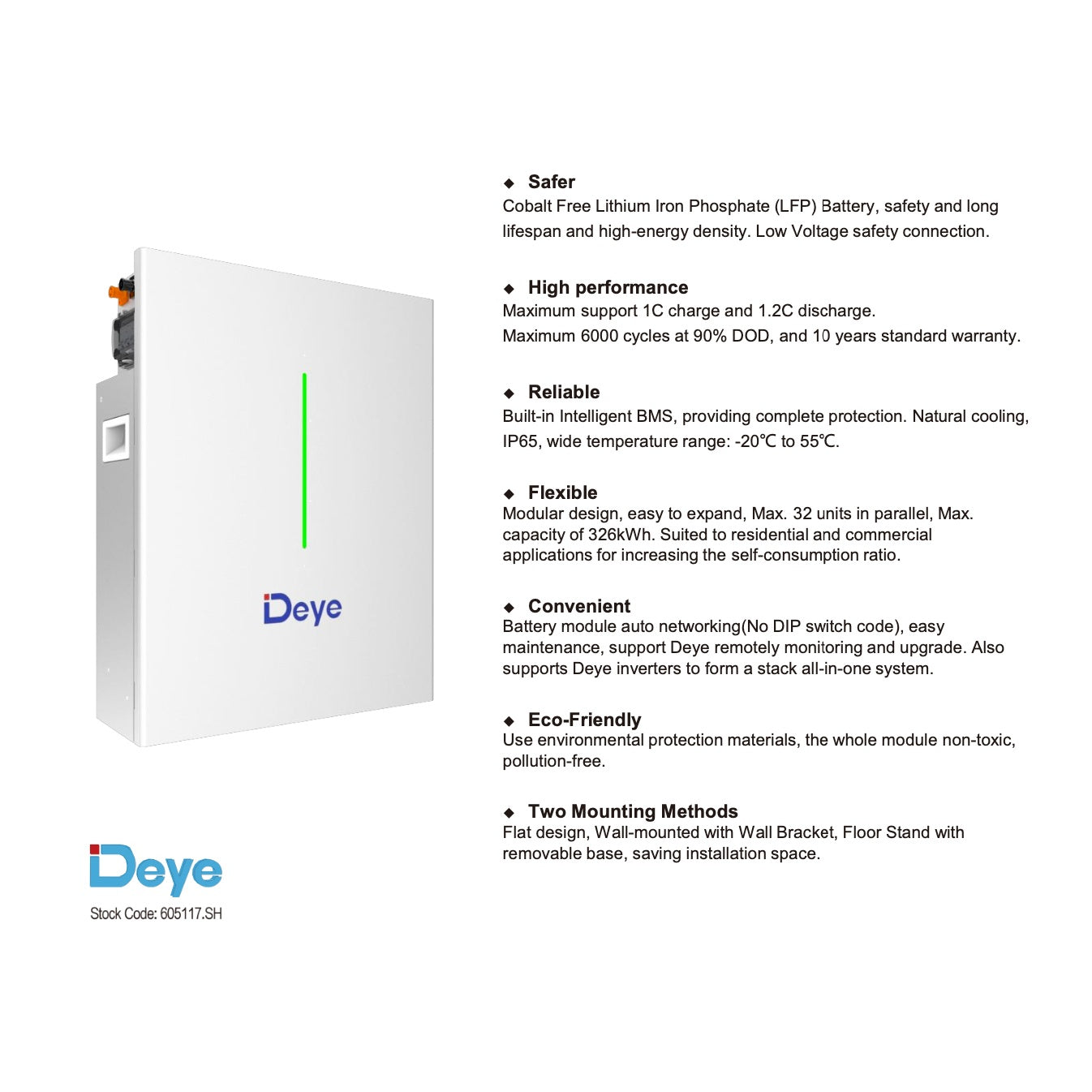

Key Features
Safer
Cobalt-free Lithium Iron Phosphate (LFP) battery ensures safety and long lifespan with high energy density.
Low-voltage safety connection for added protection.
High Performance
Supports maximum 1C charge and 1.2C discharge rates.
Offers up to 6,000 cycles at 90% Depth of Discharge (DOD).
Backed by a standard 10-year warranty.
Reliable
Built-in intelligent Battery Management System (BMS) provides comprehensive protection.
Features natural cooling and an IP65 rating, operating reliably across a wide temperature range (-20°C to 55°C).
Flexible

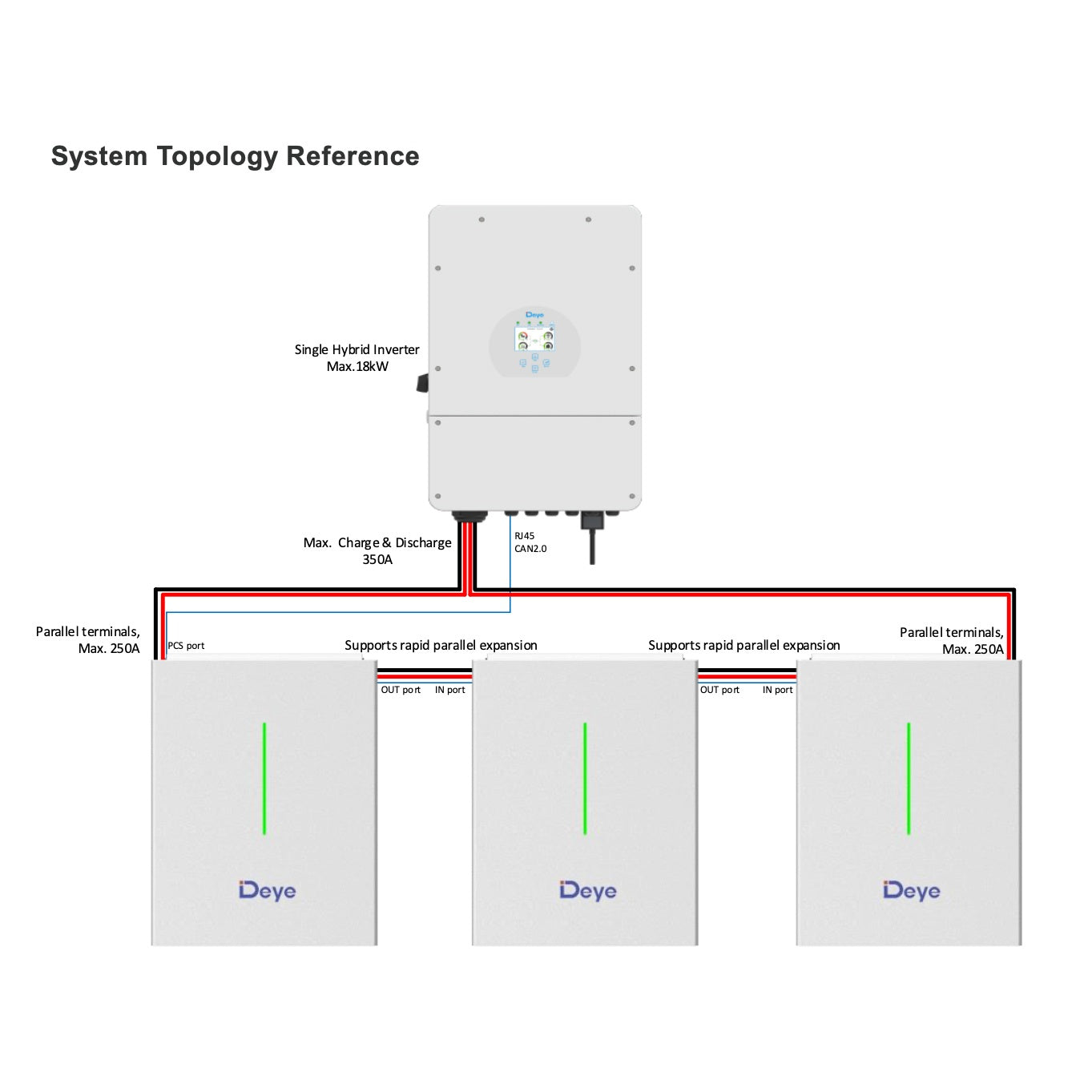

Modular design allows easy expansion, supporting up to 32 units in parallel with a maximum capacity of 326 kWh.
Ideal for both residential and commercial applications, enhancing self-consumption ratios.
Convenient
Auto-networking battery module eliminates the need for DIP switch coding, simplifying setup and maintenance.

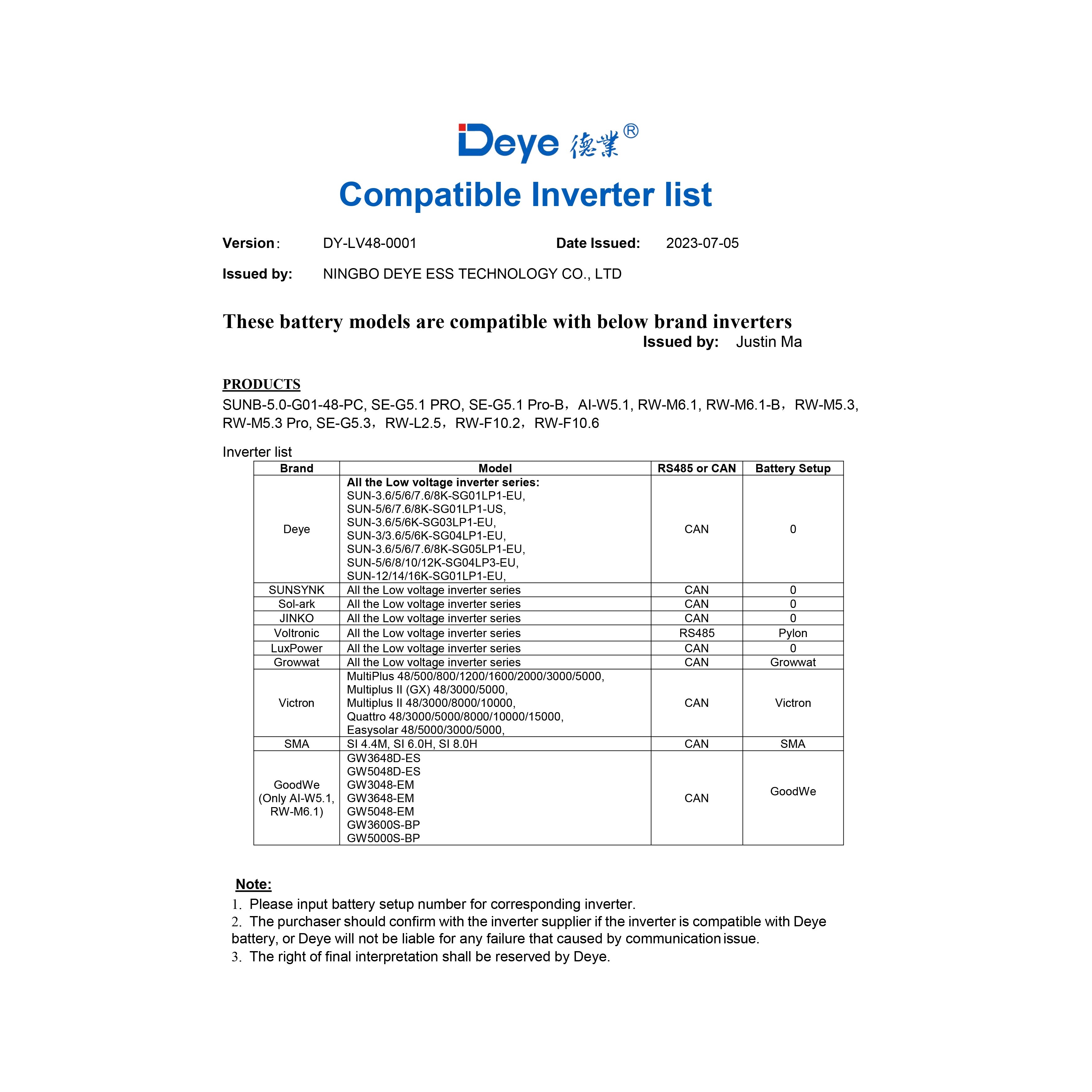

Compatible with Deye inverters to create an all-in-one stack system.
Supports remote monitoring and firmware upgrades via Deye’s platform.
Eco-Friendly
Manufactured with non-toxic and pollution-free materials, ensuring environmental sustainability.
Versatile Installation Options

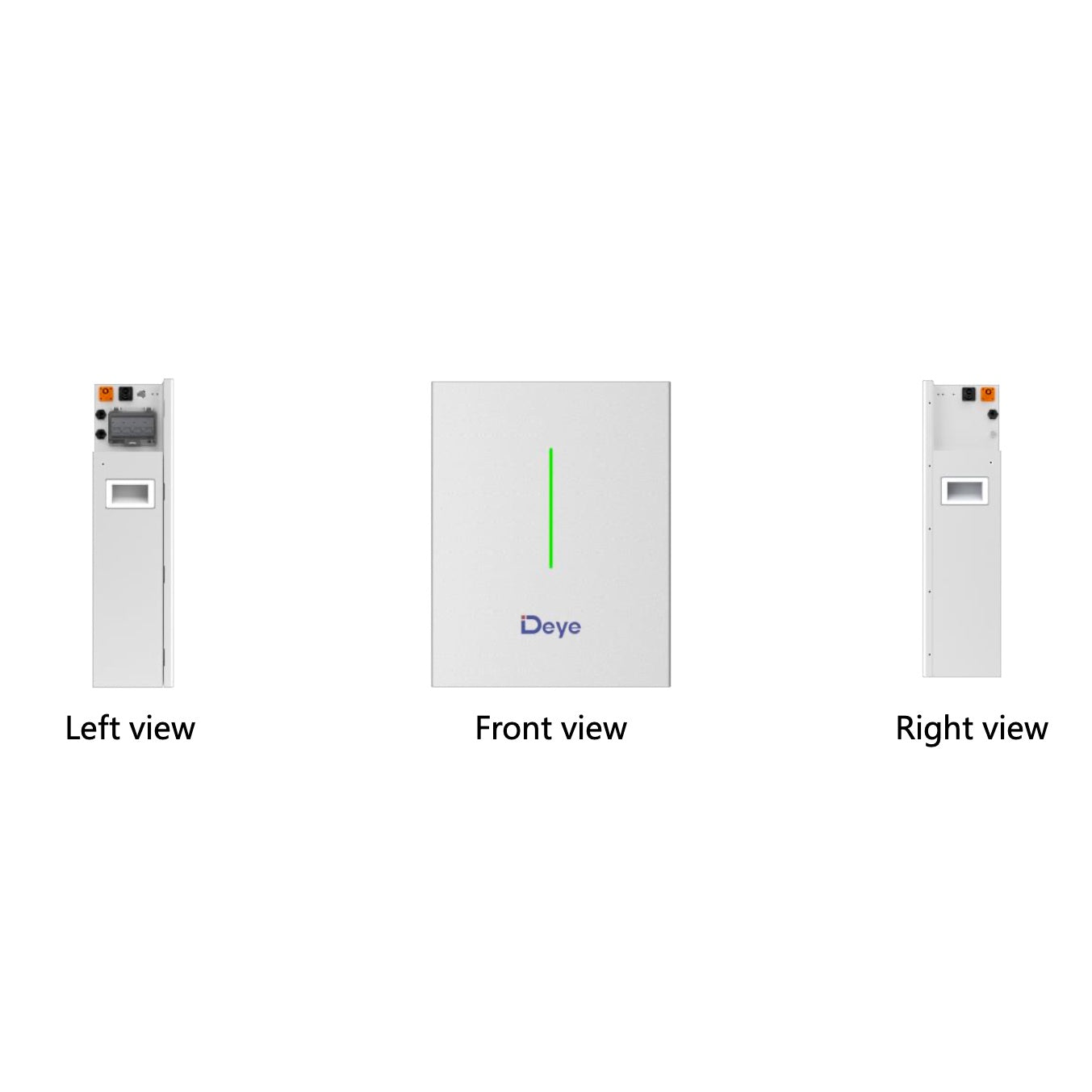

Flat design supports wall-mounted installation with a wall bracket or floor-standing setup using a removable base, optimizing space.

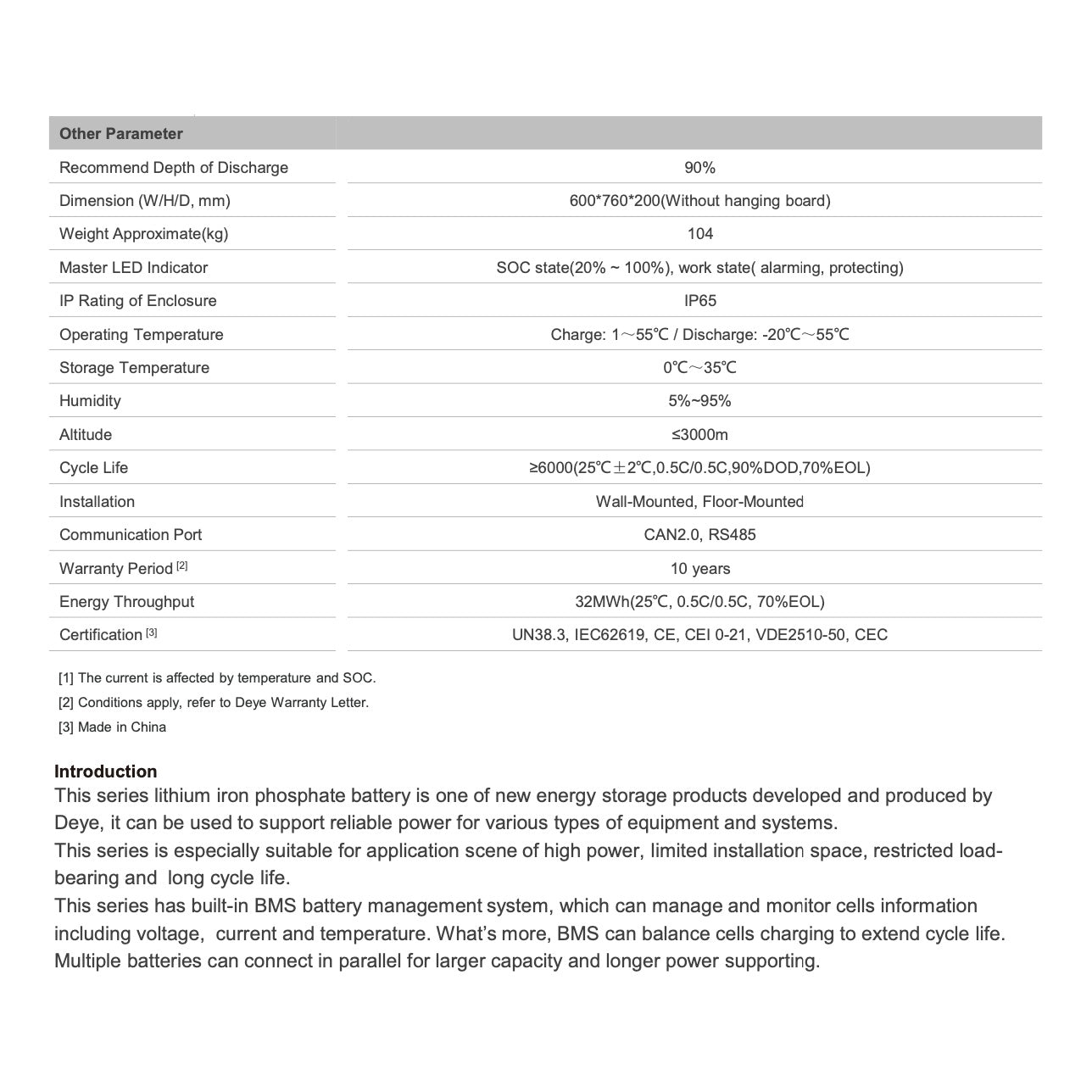

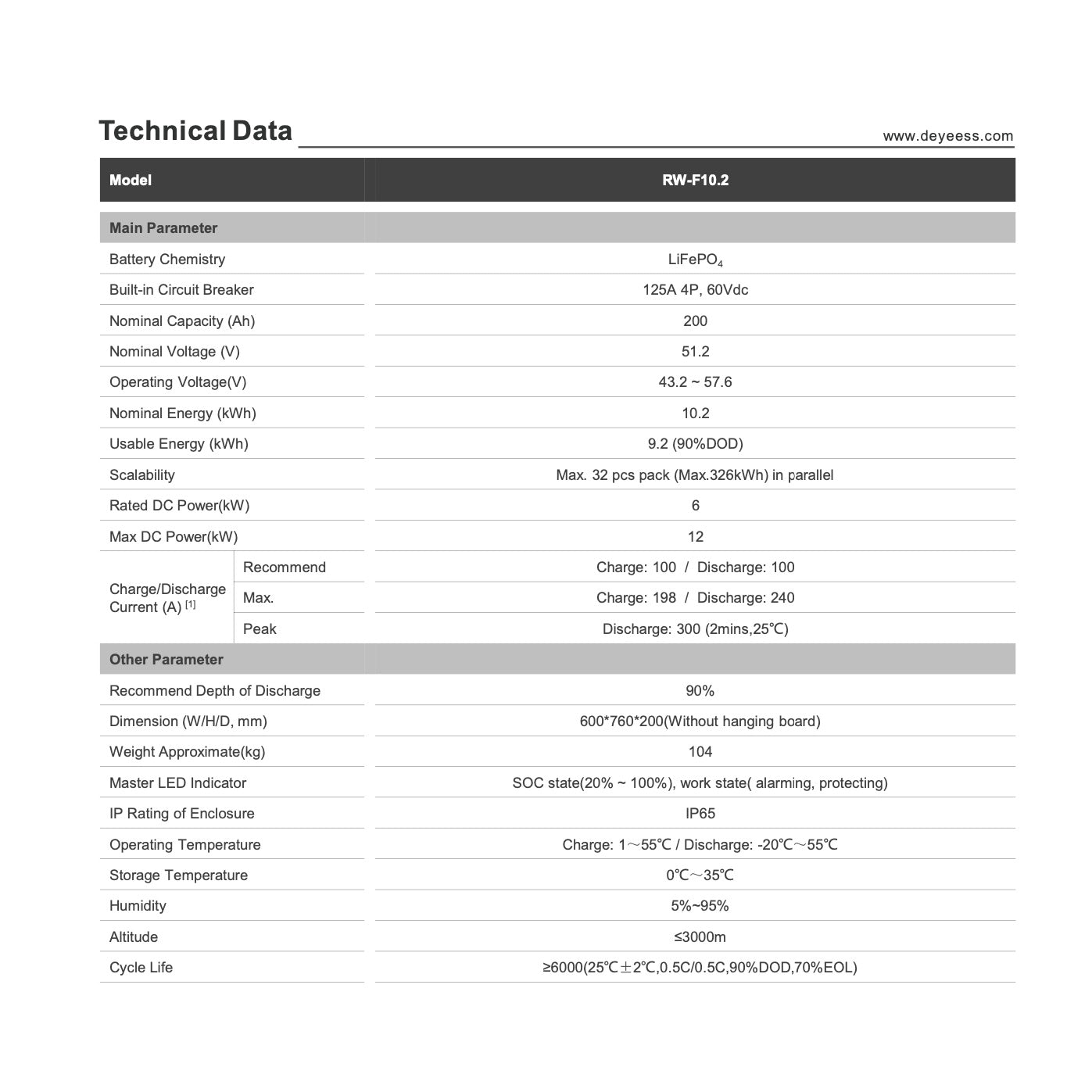

Specifications
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Energy: 10.2 kWh
Usable Energy: 9.2 kWh (90% DOD)
Scalability: Supports up to 32 units in parallel (326 kWh max.)
Rated DC Power: 6 kW
Maximum DC Power: 12 kW
Operating Voltage: 43.2V ~ 57.6V
Charge/Discharge Current: Recommended: 100A; Maximum: 198A (charge), 240A (discharge)
Peak Discharge: 300A for 2 minutes (at 25°C)
Cycle Life: ≥6,000 cycles at 90% DOD (70% End of Life capacity at 25°C)
Enclosure Rating: IP65
Operating Temperature: Charge: 1°C ~ 55°C; Discharge: -20°C ~ 55°C
Weight: Approx. 104 kg
Dimensions: 600 mm (W) x 760 mm (H) x 200 mm (D)
