Description

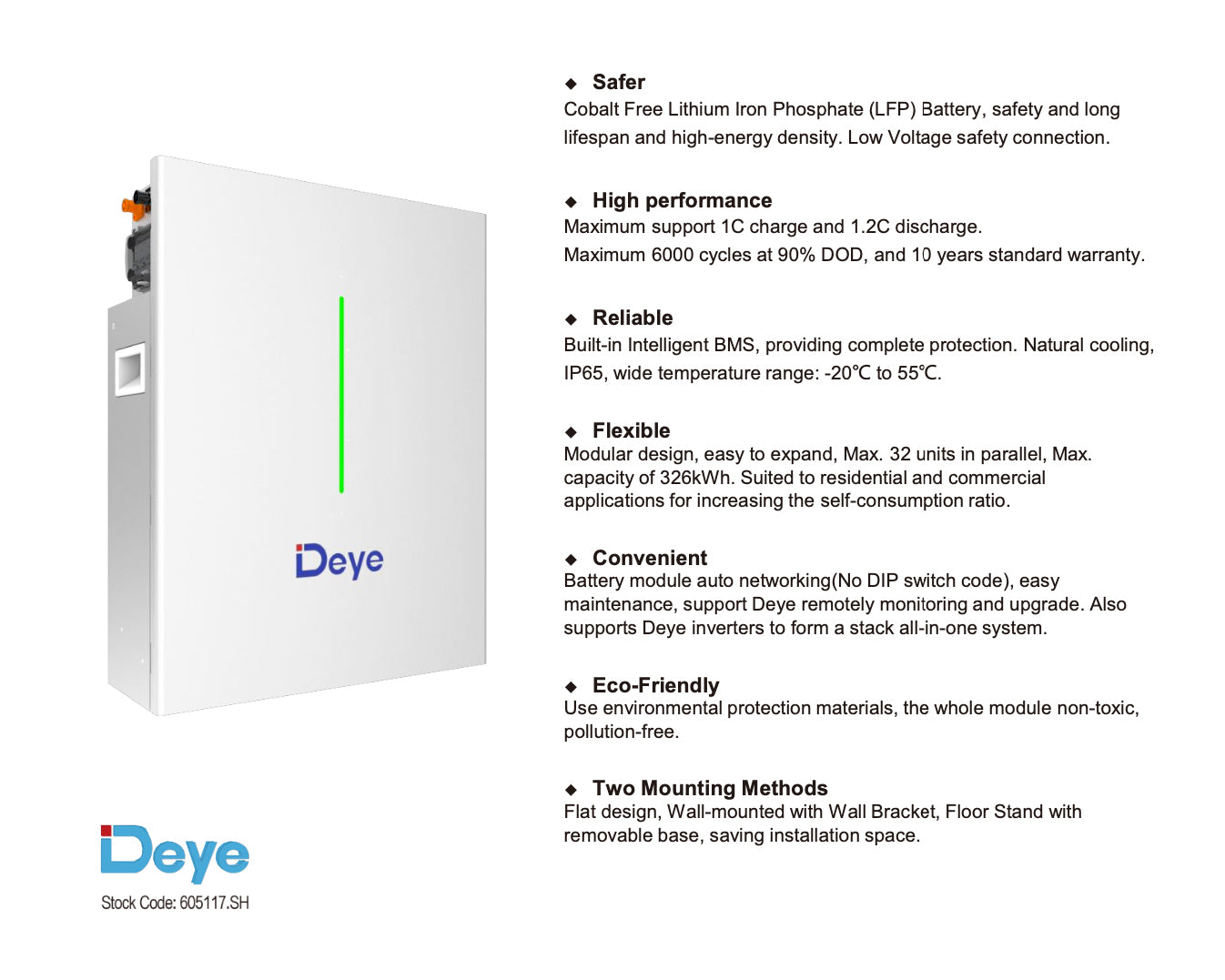

Key Features
High-Capacity LiFePO4 Energy Storage

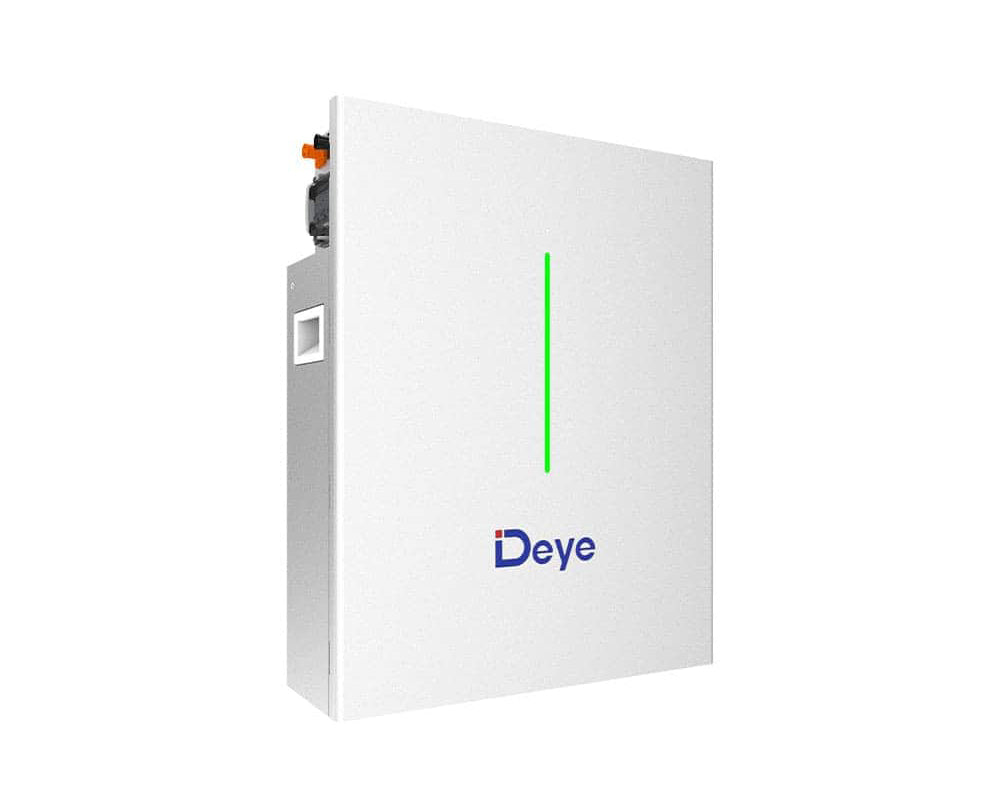

Deye RW-F16 uses safe Lithium Iron Phosphate (LiFePO4) chemistry with a nominal energy of 16kWh and 14.4kWh usable energy at 90% DOD.
Safe and Reliable Battery Design
Built-in 125A 2P 60Vdc circuit breaker and intelligent battery system design. Low-voltage 51.2V battery platform for residential energy storage applications.

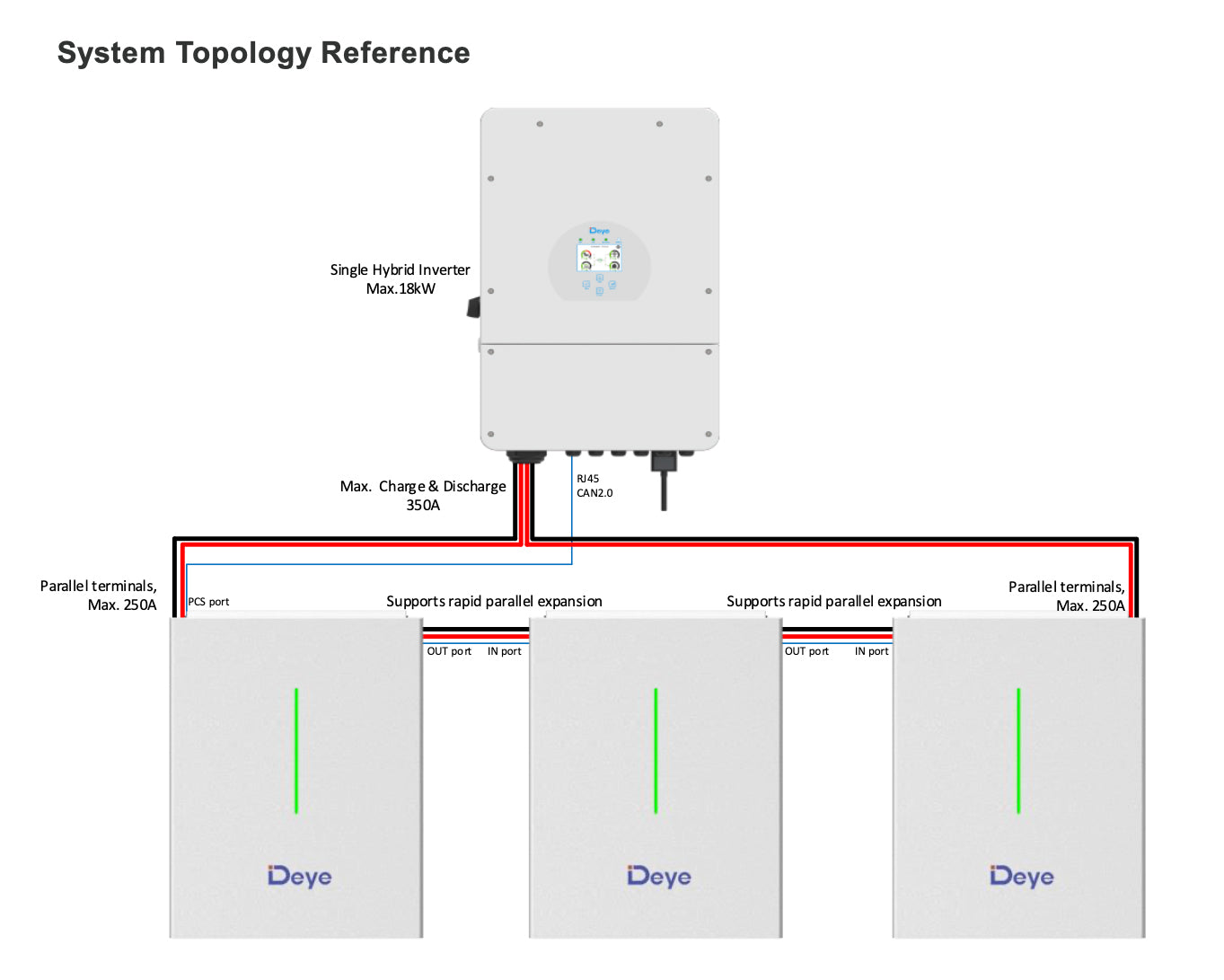

Flexible Expansion
Supports up to 32 battery packs in parallel, providing a maximum system capacity of up to 512kWh.
High Charge and Discharge Performance
Supports 160A continuous charge/discharge current and 300A peak charge/discharge current for 10 seconds.
Easy Installation and Monitoring
Wall-mounted or floor-mounted installation. LED indicator shows SOC and working status. Communication ports include CAN2.0 and RS485 for compatible inverter systems.
Specifications
- Model: RW-F16
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V ~ 57.6V
- Capacity: 314Ah
- Nominal Energy: 16kWh
- Usable Energy: 14.4kWh @ 90% DOD
- Scalability: Up to 32 packs in parallel, max. 512kWh
- Charge/Discharge Current: 160A continuous; 300A peak for 10 sec
- Recommended Depth of Discharge: 90%

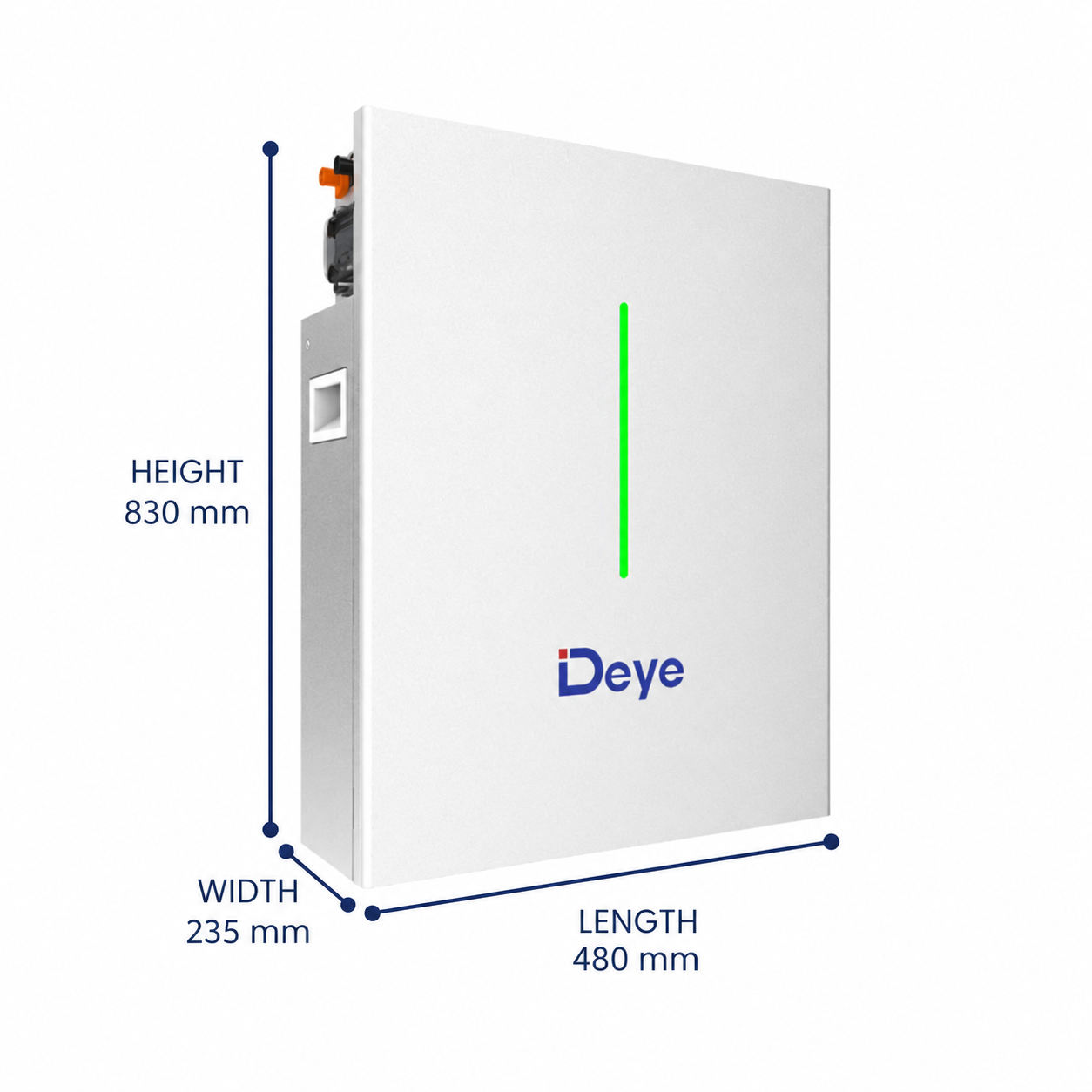

- Dimensions: 480mm (W) x 830mm (H) x 235mm (D), without hanging board and base
- Weight: Approx. 122kg
- IP Rating: IP20
- Operating Temperature: Charge 0°C ~ 55°C; Discharge -20°C ~ 55°C
- Recommended Operating Temperature: 15°C ~ 35°C
- Storage Temperature: 0°C ~ 35°C
- Relative Humidity: 95%
- Altitude: ≤2000m
- Cycle Life: ≥6000 cycles at 25°C±2°C, 0.5C/0.5C, 90% DOD, 70% EOL
- Installation: Wall-mounted or floor-mounted

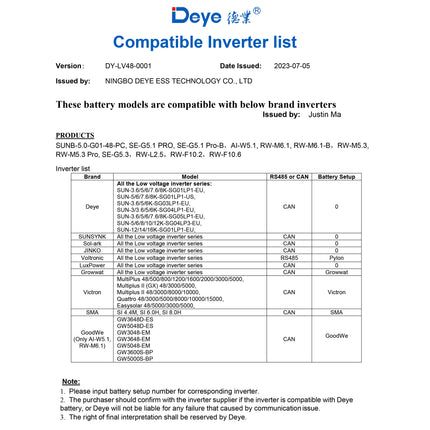

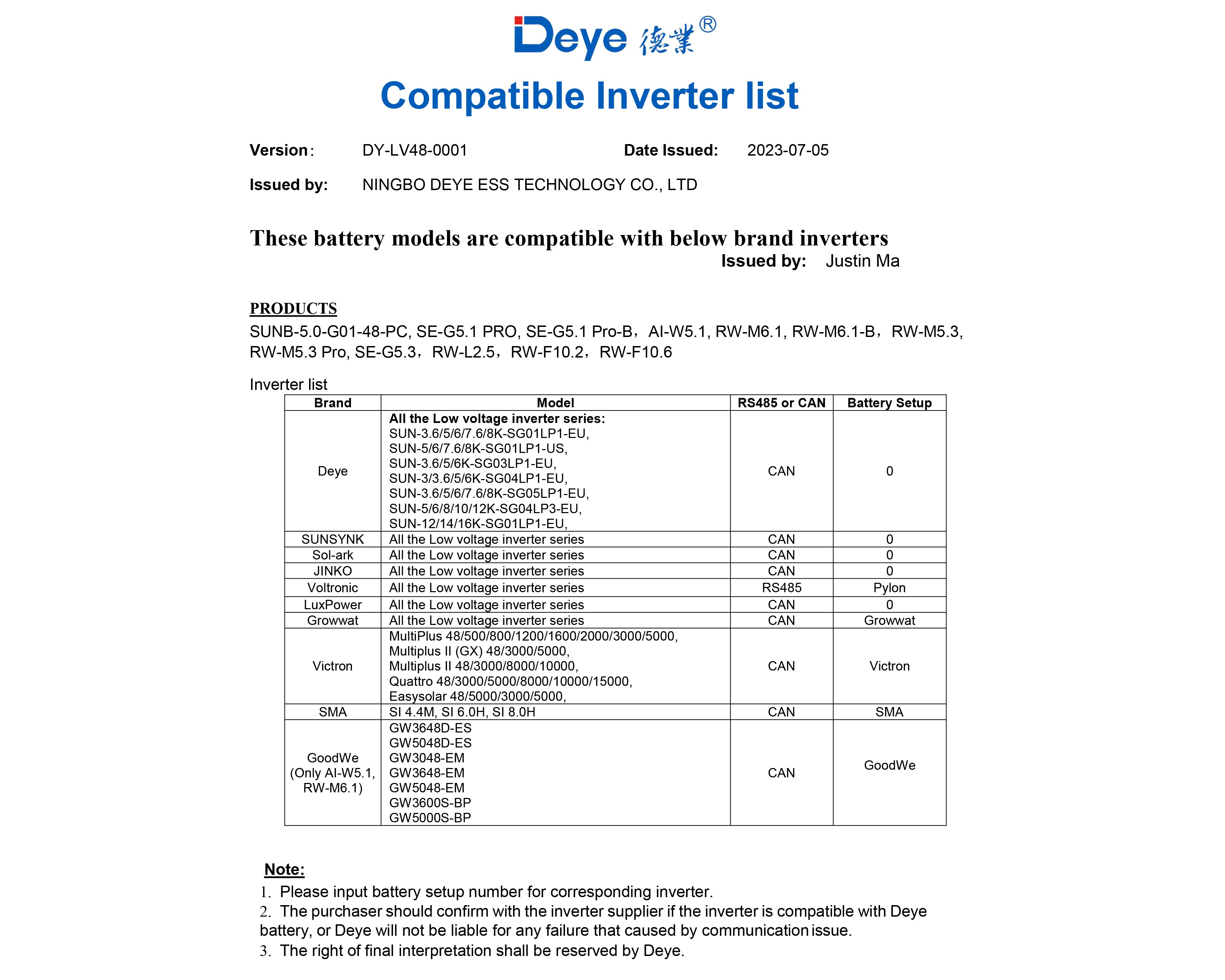

- Communication Port: CAN2.0, RS485
- Warranty Period: 5 / 10 years
- Energy Throughput: 26.25 / 52.5MWh
- Certification: UN38.3, MSDS
