Description

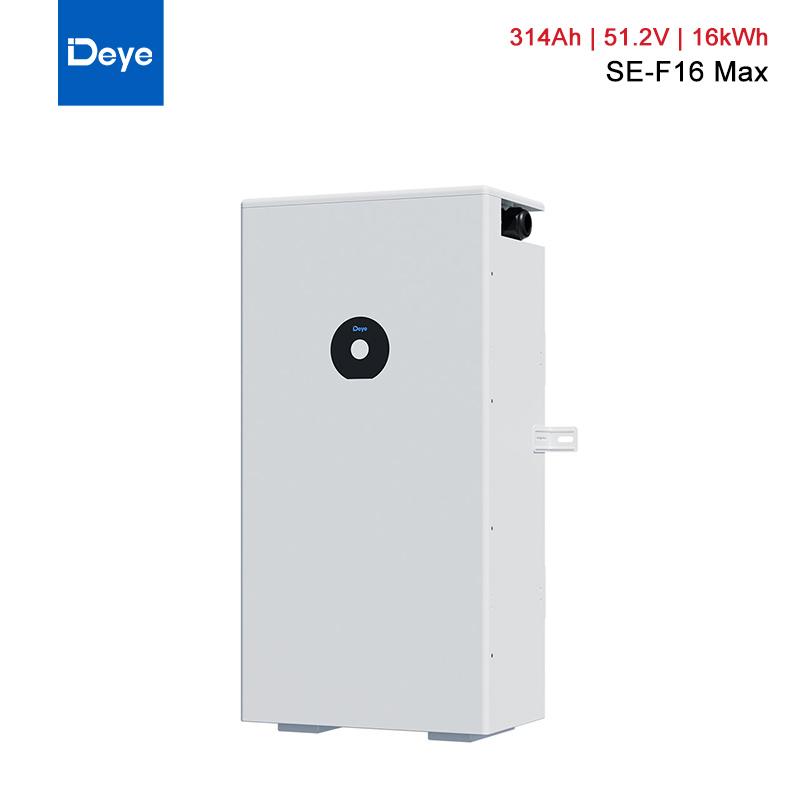

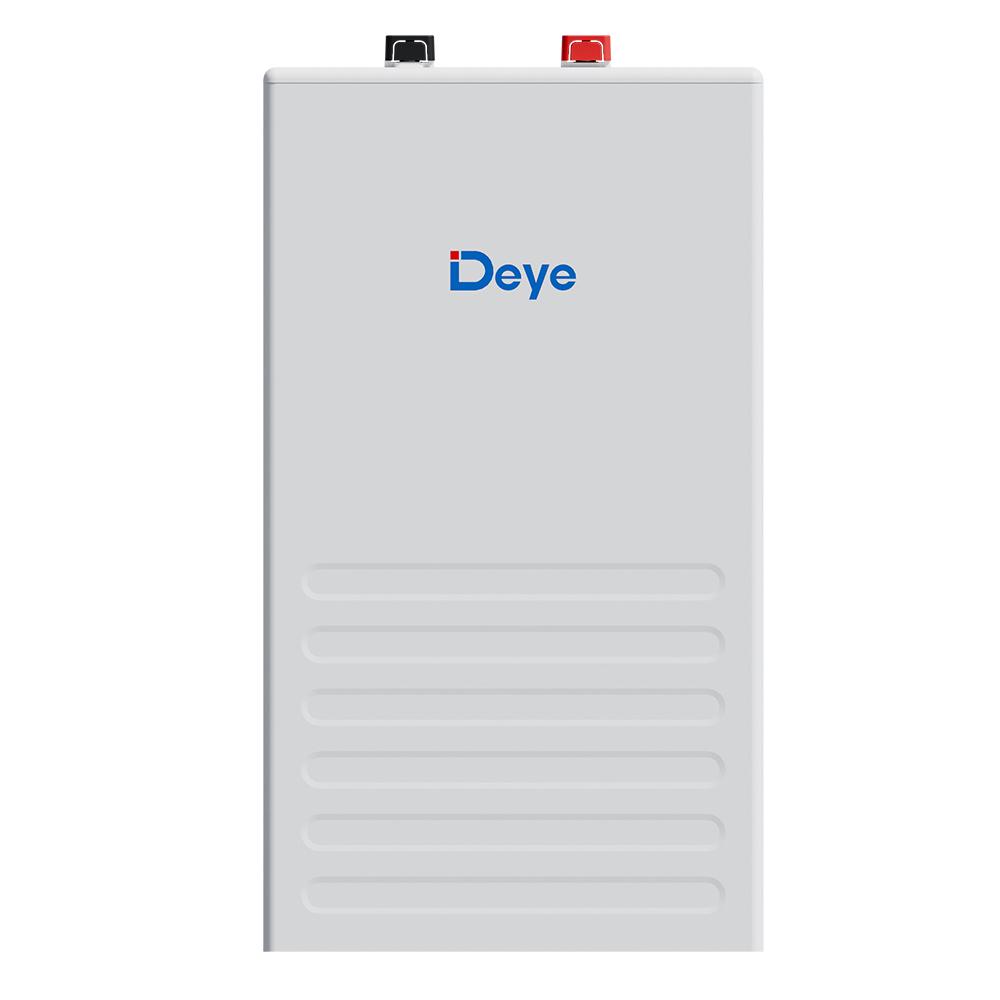

The Deye SE-F16 Max-6 is a high-capacity 51.2V lithium iron phosphate (LiFePO4) battery designed for residential and commercial solar energy storage. It provides 16kWh of nominal and usable energy in a compact IP65 enclosure with intelligent battery management, heating and cloud monitoring support.
Key Features
- 16kWh nominal and usable energy
- 51.2V, 314Ah LiFePO4 battery
- 100% recommended depth of discharge
- 10.2kW maximum output power
- At least 8,000 cycles under specified test conditions
- Maximum 32 units in parallel, or up to 64 units with a CAN-Bridge
- Built-in circuit breaker and intelligent battery management system
- Automatic network addressing without DIP-switch configuration
- Intelligent thermal management and low-temperature heating
- IP65 / NEMA 3R enclosure for wall or floor installation
- Deye Cloud monitoring through a compatible Deye inverter
- Local Bluetooth monitoring through the Deye Cloud app
Battery Specifications
- Model: SE-F16 Max-6
- Battery chemistry: LiFePO4
- Rated capacity: 314Ah
- Nominal voltage: 51.2V
- Operating voltage: 44.8-57.6V
- Nominal energy: 16kWh
- Usable energy: 16kWh
- Maximum output power: 10.2kW
- Energy throughput: 50MWh
Charge and Discharge Performance
- Recommended charge current: 157A
- Maximum continuous charge current: 160A
- Peak charge current: 280A for 10 seconds
- Recommended discharge current: 157A
- Maximum continuous discharge current: 200A
- Peak discharge current: 240A for 10 seconds
- Recommended depth of discharge: 100%
Installation and Physical Specifications
- Dimensions (W x H x D): 464 x 914 x 244.5mm
- Approximate weight: 120kg
- Installation: Wall-mounted or floor-mounted
- Enclosure rating: IP65 / NEMA 3R
- Display: LCD for state of charge and alarm information
- Built-in circuit breaker: Yes
Operating Environment
- Charging temperature: -20 to 55°C with heating activated
- Discharging temperature: -20 to 55°C
- Recommended storage temperature: 0 to 35°C
- Relative humidity: Up to 95%, non-condensing
- Maximum altitude: 3,000m
Communication and Monitoring
- Communication ports: CAN 2.0 and RS485
- Wireless communication: Bluetooth
- Remote monitoring: Deye Cloud through a compatible Deye inverter
- Local monitoring: Deye Cloud app via Bluetooth
Certifications and Warranty
- Certifications: UN38.3, UL1973, UL9540A, UL9540-DC and FCC
- Warranty: 10 years, subject to Deye warranty terms
Performance figures are based on the conditions stated in the manufacturer brochure. Maximum parallel capacity and charge/discharge current may depend on system configuration, temperature and state of charge.
Download Deye SE-F16 Max-6 brochure and technical specifications (PDF)
