Description

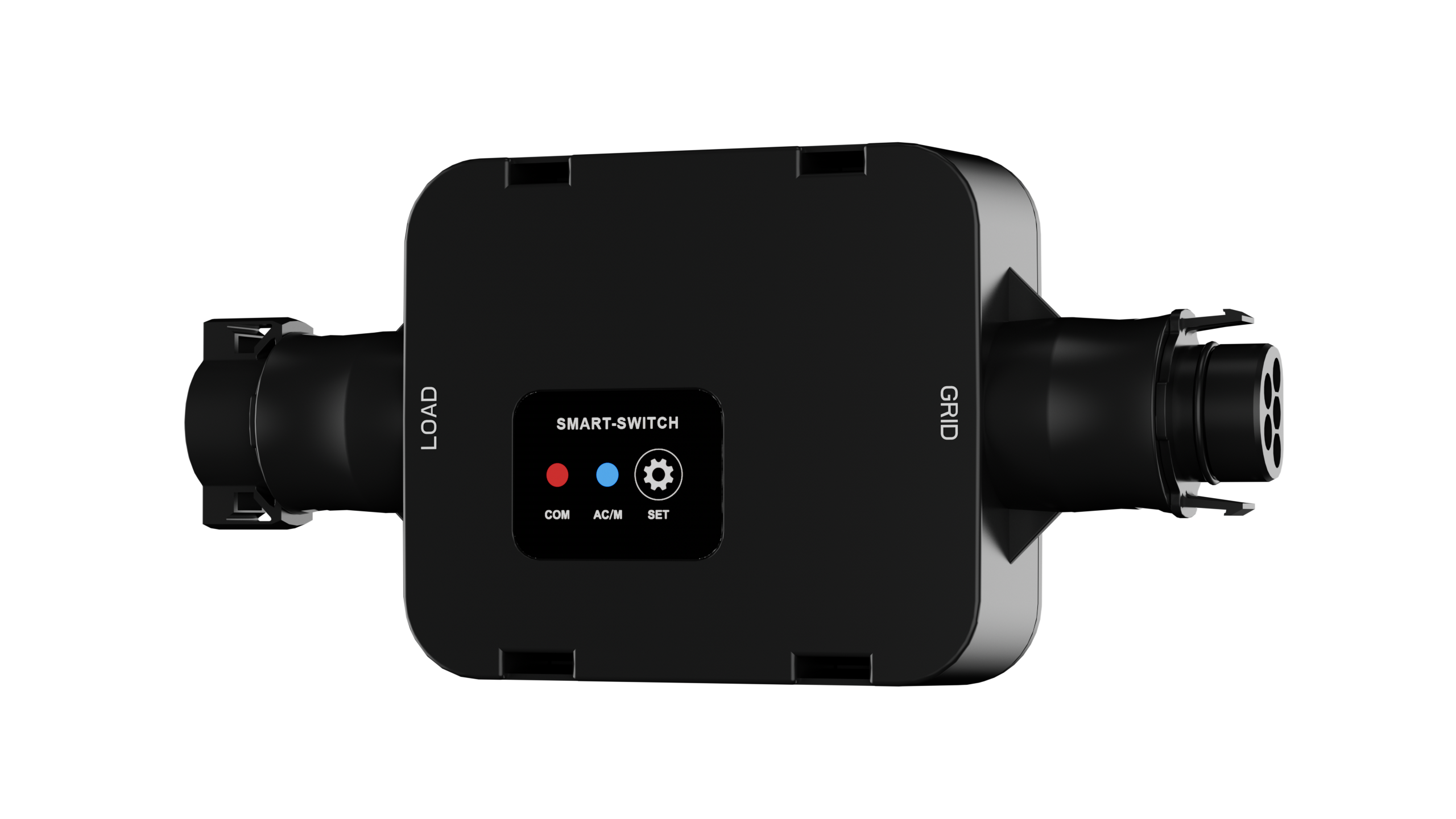

The Deye SUN-SMART-SWITCH01P3 is a LoRa-connected smart load controller for Deye solar and energy-storage systems. It automates high-power single-phase or three-phase loads according to manual commands, schedules, battery state of charge, grid status, or available solar generation.

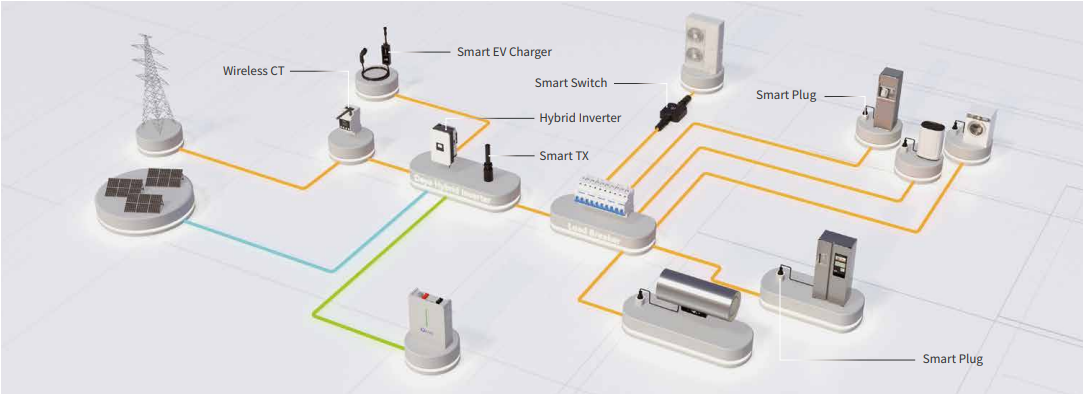

Important: LoRa wireless inverter integration requires the Deye SUN-SMART-TX01 Smart Transmitter, sold separately.
Key Features
- Supports both single-phase and three-phase grid connections
- Maximum phase current of 25A for demanding residential and light-commercial loads
- LoRa wireless communication up to approximately 200m in unobstructed conditions
- Local automation continues without Wi-Fi or internet access
- Time-based and battery-SOC-linked load automation

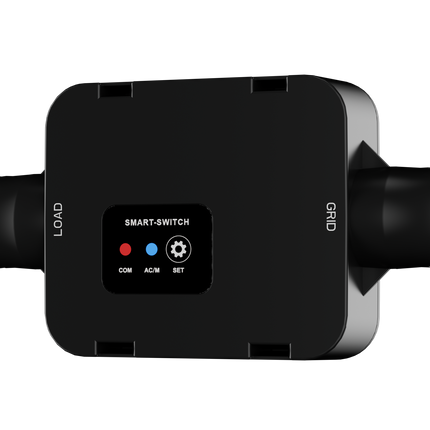

- Manual control from the physical button, compatible Deye inverter interface, Deye Cloud app, or web platform
- IP65 enclosure for indoor or outdoor installation
- Wide operating temperature range from -40 C to +45 C
Ideal For

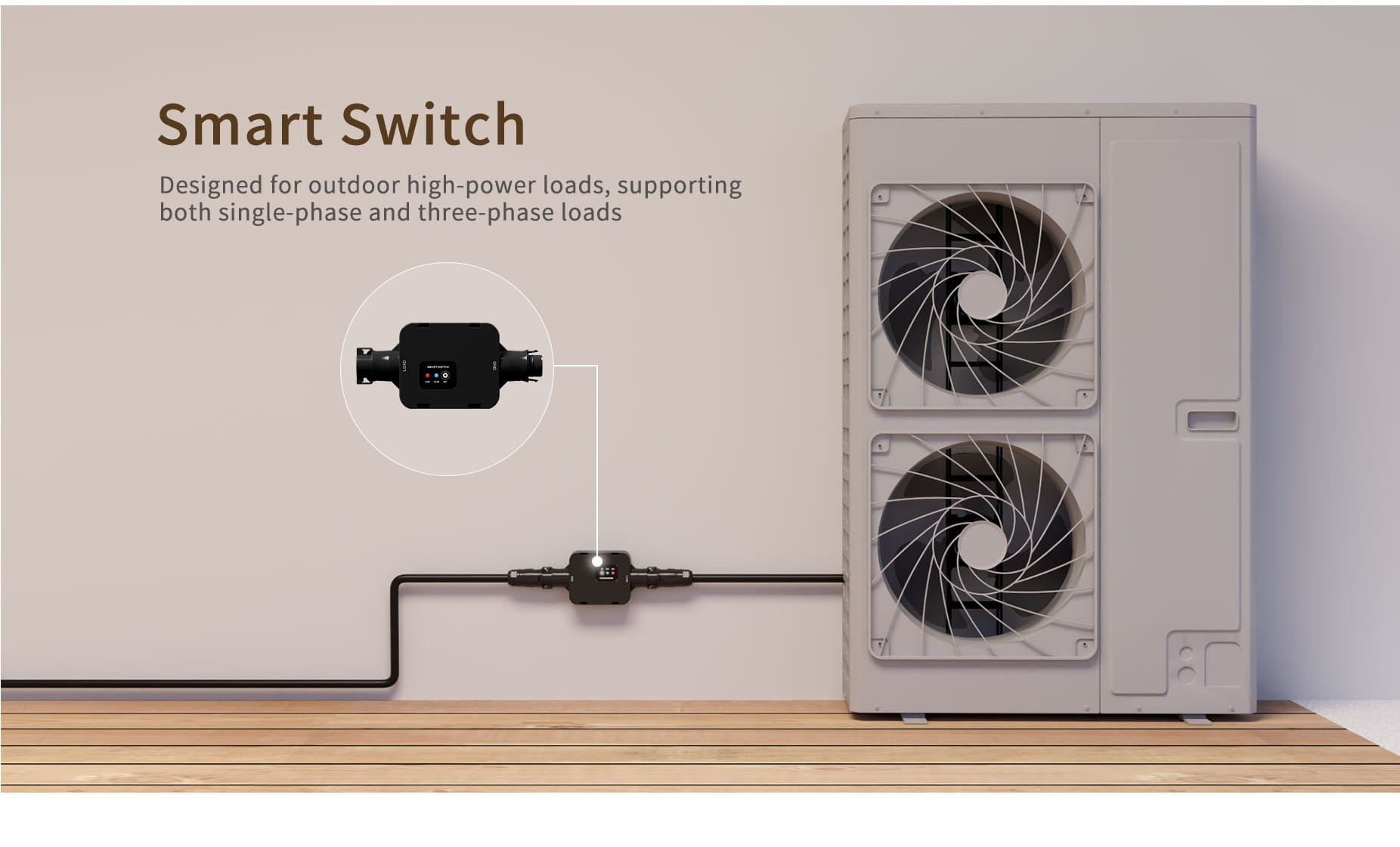

- Heat pumps and air conditioners
- Pool pumps and water heaters
- Irrigation equipment and outdoor lighting
- EV charging equipment and other high-power controllable loads
Control Modes
-
Manual Mode: Direct ON/OFF control from the switch, inverter, Deye Cloud app, or web platform
-
Time Mode: Programmable schedules for automatic load operation
-
SOC-Linked Mode: Automatic switching according to battery state of charge
Specifications
-
Model: SUN-SMART-SWITCH01P3
-
Phase support: Single phase and three phase
-
Voltage range: 94-238V AC phase voltage
-
Connection: L1/N or L1/L2/L3/N
-
Maximum current: 25A AC per phase
-
Frequency: 50Hz (45-55Hz) / 60Hz (55-65Hz)
-
Wireless protocol: LoRa
-
LoRa frequency: 863-870MHz
-
Wireless range: Approximately 200m line of sight
-
Ingress protection: IP65
-
Protection class: Class I
-
Operating temperature: -40 C to +45 C
-
Operating humidity: 0-100% RH
-
Allowable altitude: Up to 4000m
-
Dimensions (W x H x D): 96.7 x 204.7 x 37.7 mm
-
Actual weight: 0.4 kg
-
Standard: IEC/EN 61010-1
What's in the Box
- 1 x Deye Smart Switch SUN-SMART-SWITCH01P3
- 1 x Quick Start Guide
- 1 x Warranty Card
Installation must be completed by a suitably qualified electrician and must comply with local electrical requirements.
