Description

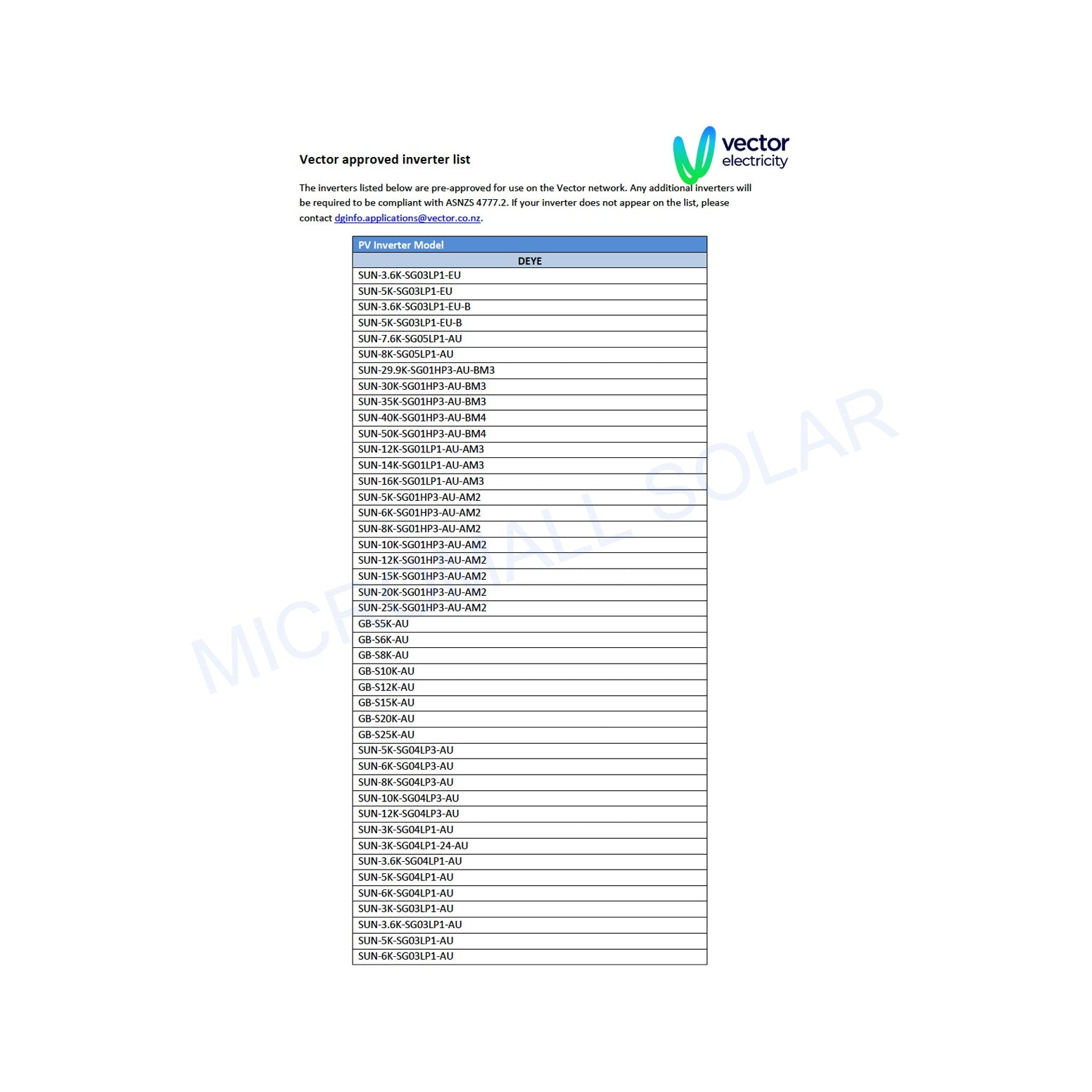

***Vector Approved Inverter***
***DEYE New Zealand Distributor - Micromall Solar***
Higher yields / Safe & Reliable / Smart / User-friendly
This series inverter is specially designed for three-phase PV systems, covering a wide power range of 4kW, 5kW, 6kW, 7kW, 8kW, 10kW, 12kW. With compactness design, it is easy to install and operate. It supports wide AC output voltage to ensure longer working hour.
**5 Years Manufacturer Warranty + 5 Years Local Warranty**
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
2 MPPT tracker, Max. efficiency up to 98.3%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Specifications:
Model: SUN-10K-G05
Max PV Input Power: 15 kW
Max PV Input Voltage: 550 V
Start-up DC Input Voltage: 80 V
MPPT Operating Range: 70V to 500V
Max PV Input Current: 13A + 13A
Max Short Circuit Current: 19.5A + 19.5A
MPPT/Strings per MPPT: 2/1
Rated Output Power: 10 kW
Max Active Power: 10 kW
Rated Grid Frequency: 45 / 55 Hz (Optional)
Rated AC Grid Output Current: 14.5 A
Max AC Output Current: 14.5 A
Efficiency: Max. 98.3%
Dimensions: 332W x 457H x 203D mm
Weight: 11 kg

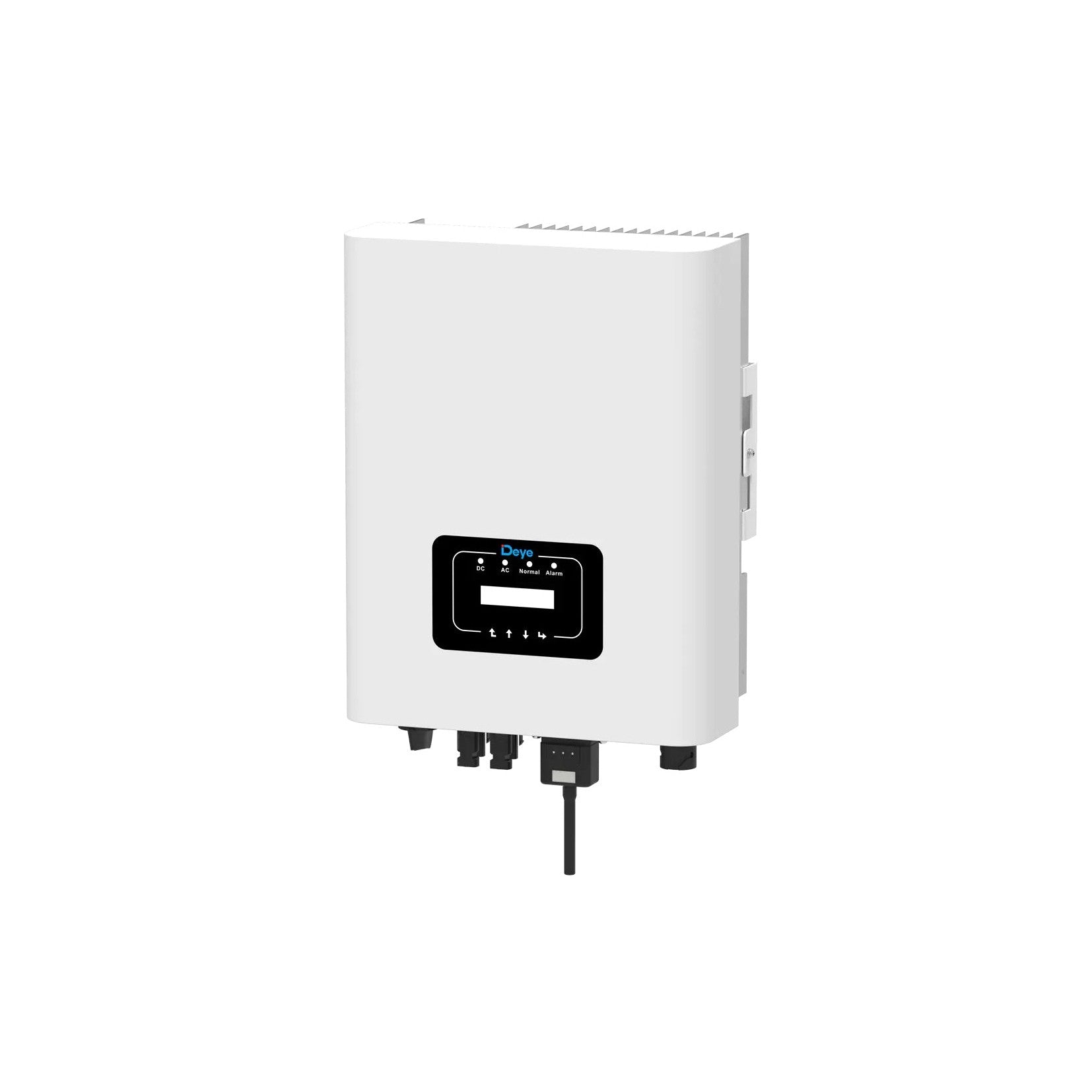

The Deye SUN-10K-G05 is specifically tailored for three-phase PV systems, offering a blend of high efficiency, smart functionality, and user-friendly design for an optimal solar energy experience.
