Description

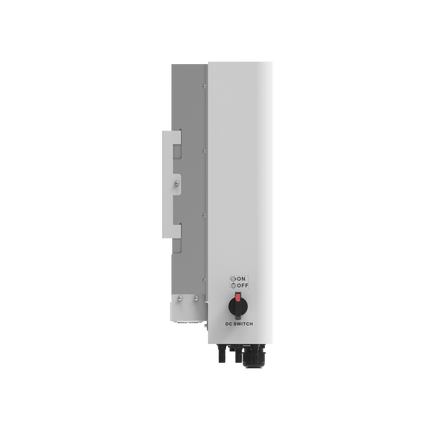

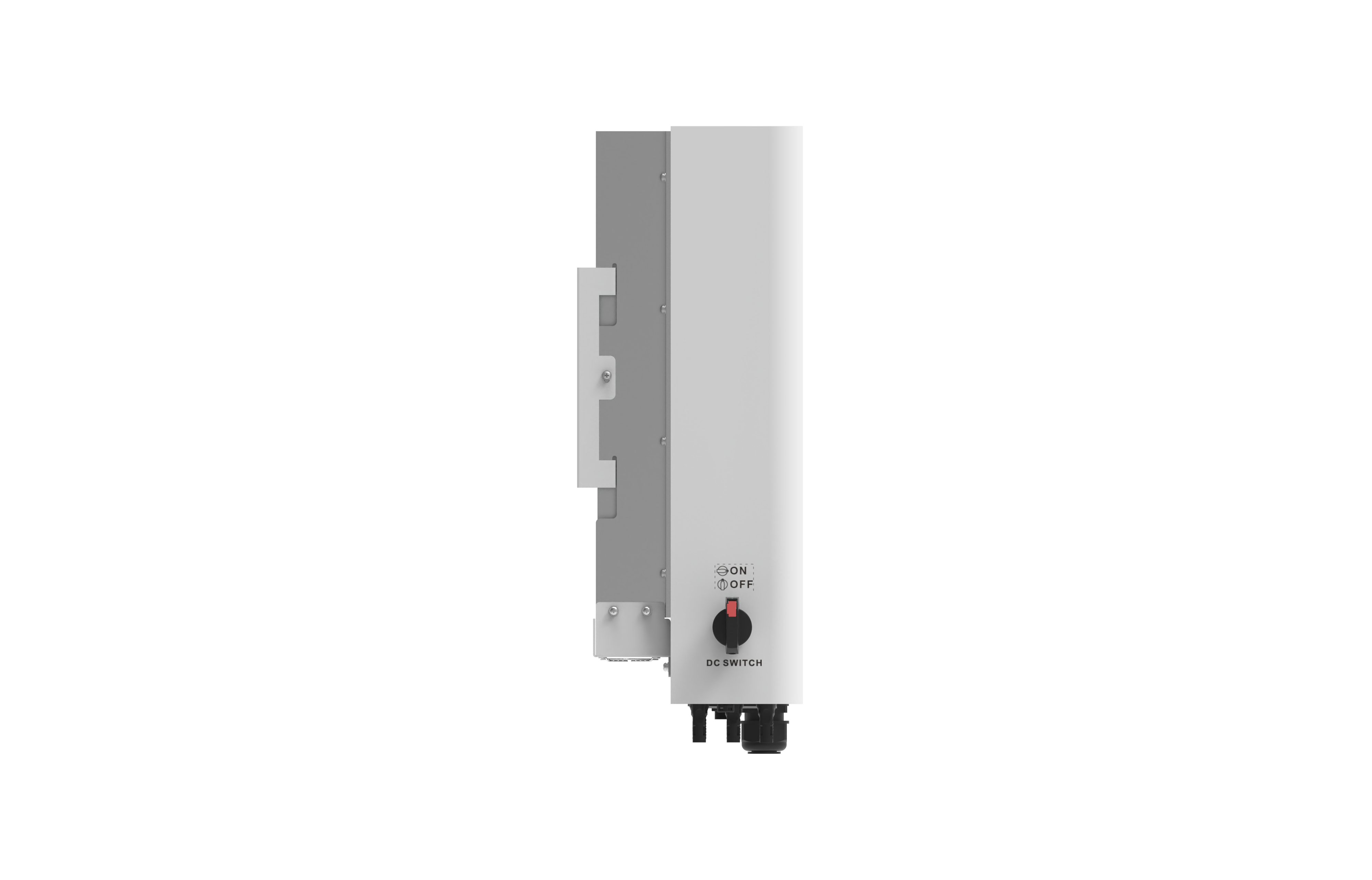

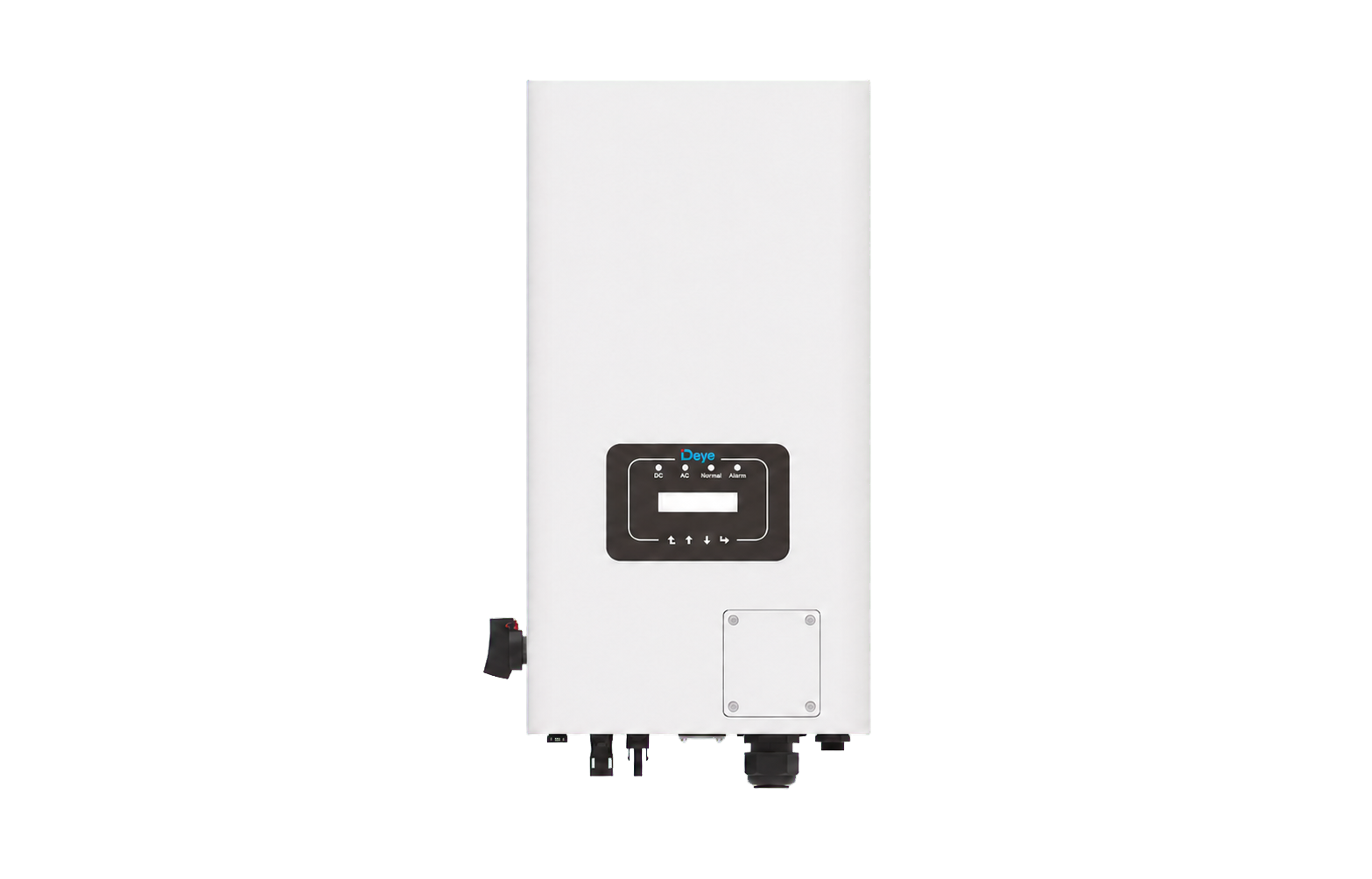

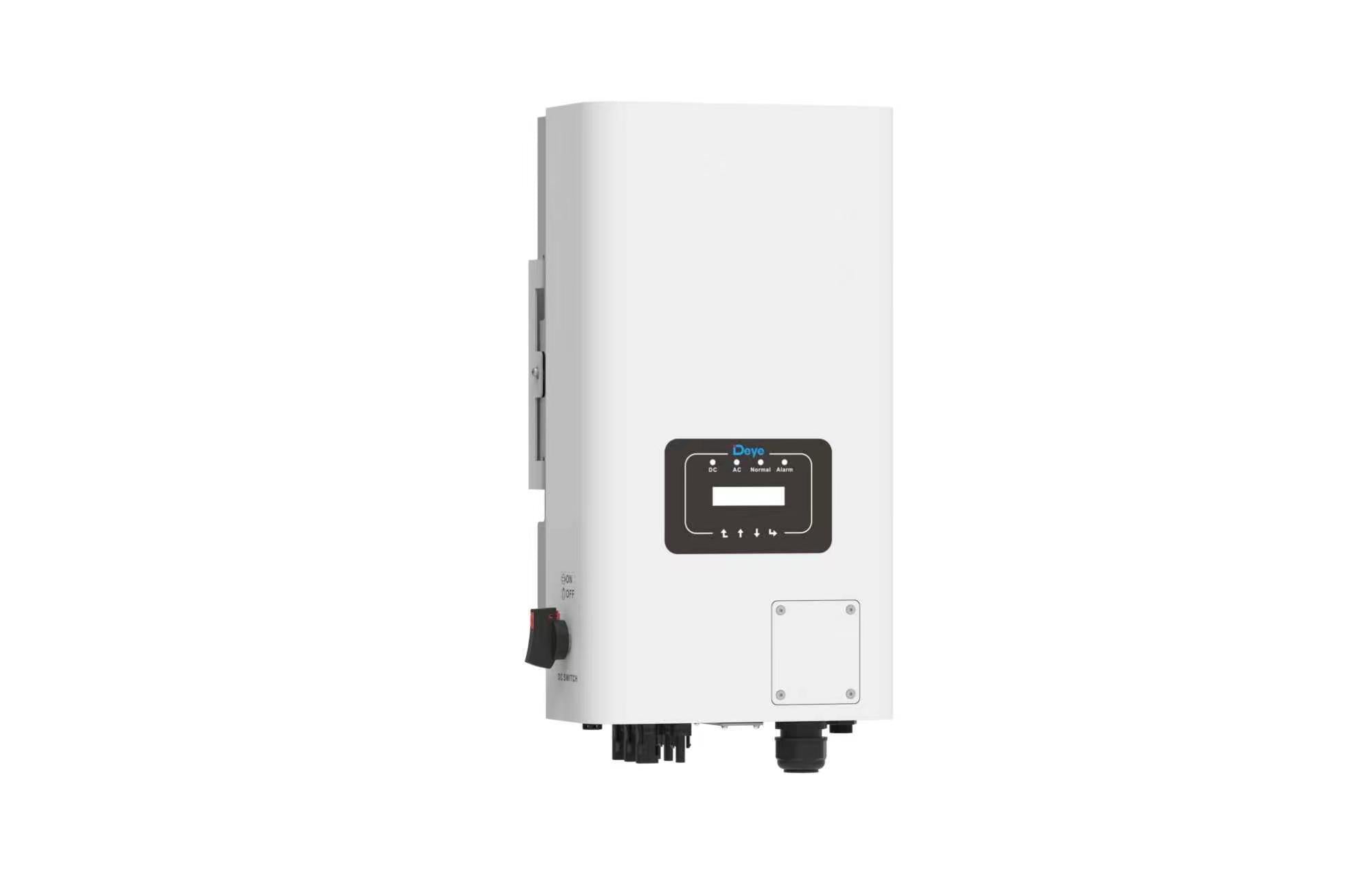

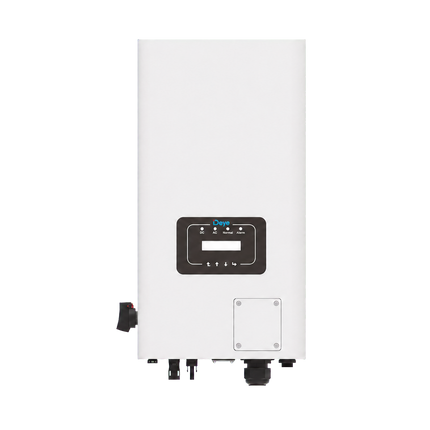

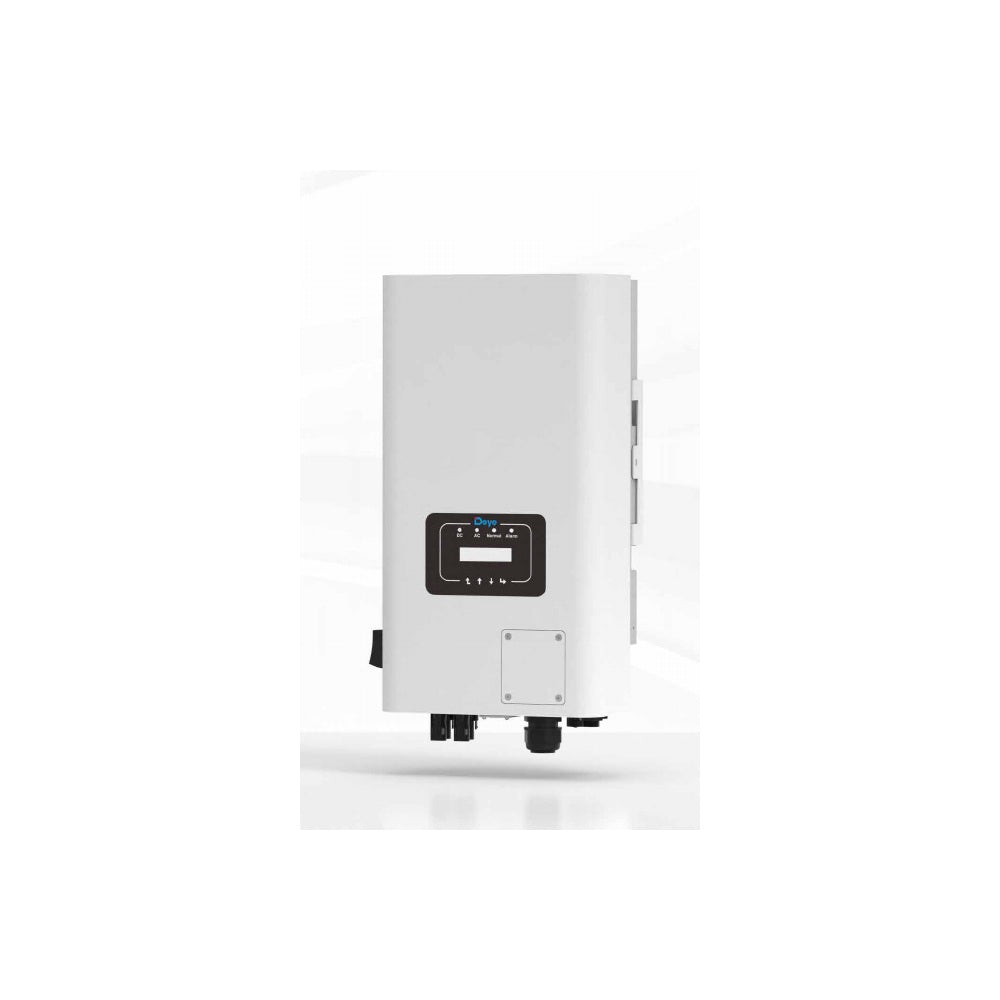

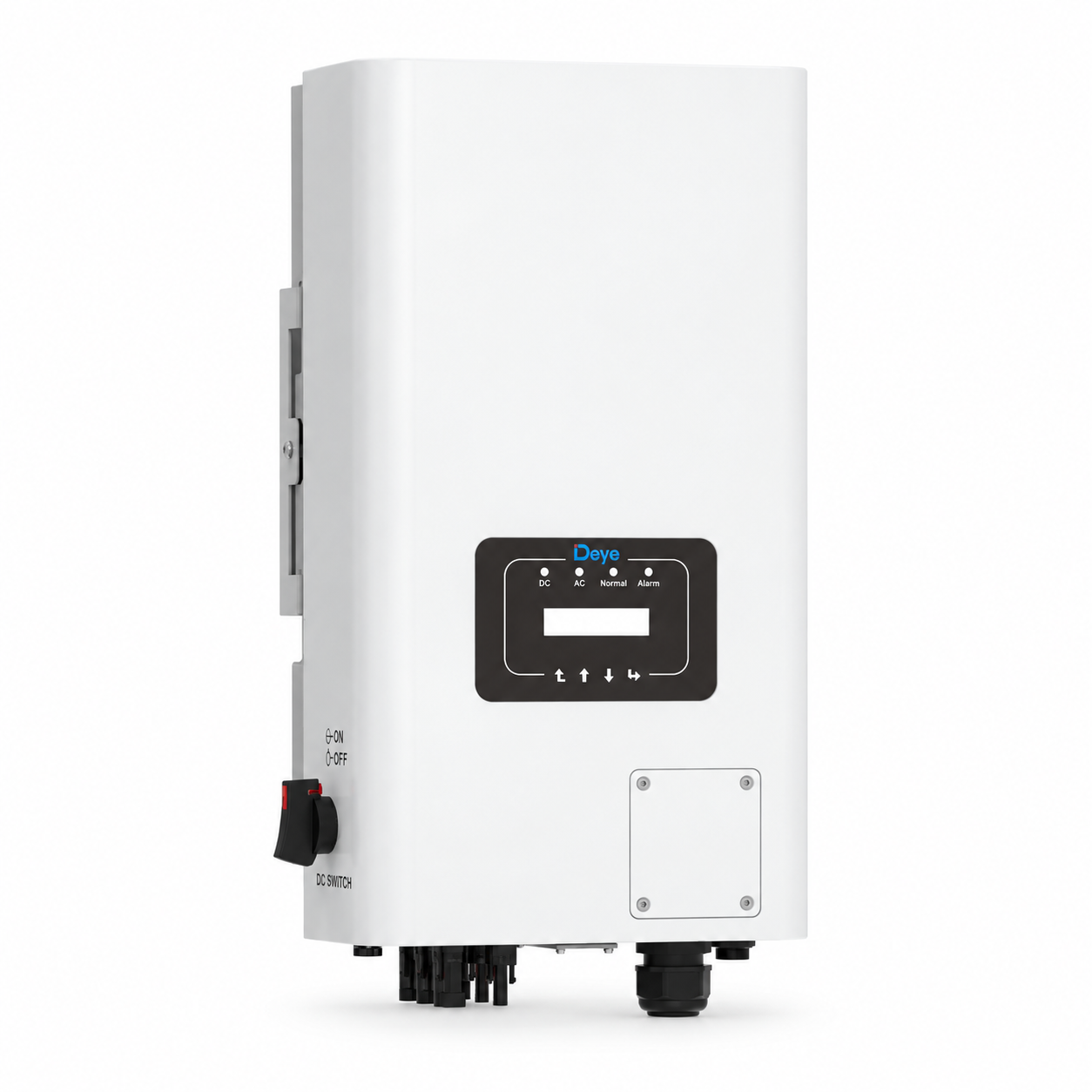

The Deye SUN-10K-G06P3-AU-BM2-P1 is a 10kW three-phase grid-tied string inverter designed for Australian and New Zealand solar systems. It offers two independent MPPT trackers, high conversion efficiency and support for zero-export, monitoring and VSG applications.
Key Features
- 10 kW three-phase grid-tied string inverter for Australian and New Zealand installations
- 2 independent MPPT trackers with string-level intelligent monitoring available as an option
- Maximum efficiency of 98.3% and MPPT efficiency above 99%
- Supports zero-export and VSG applications
- Wide 120-1000 V MPPT operating range with 1100 V maximum PV input
- IP65 enclosure, natural cooling and low operating noise below 45 dB
- Optional anti-PID and AFCI functions
- 10-year manufacturer warranty

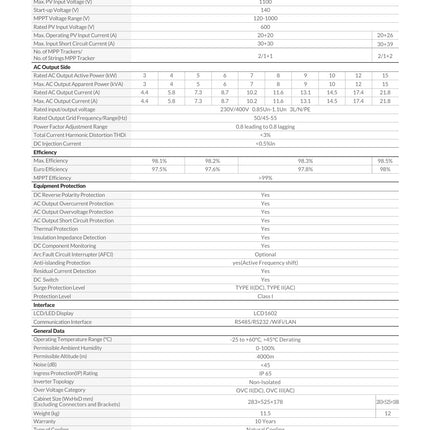

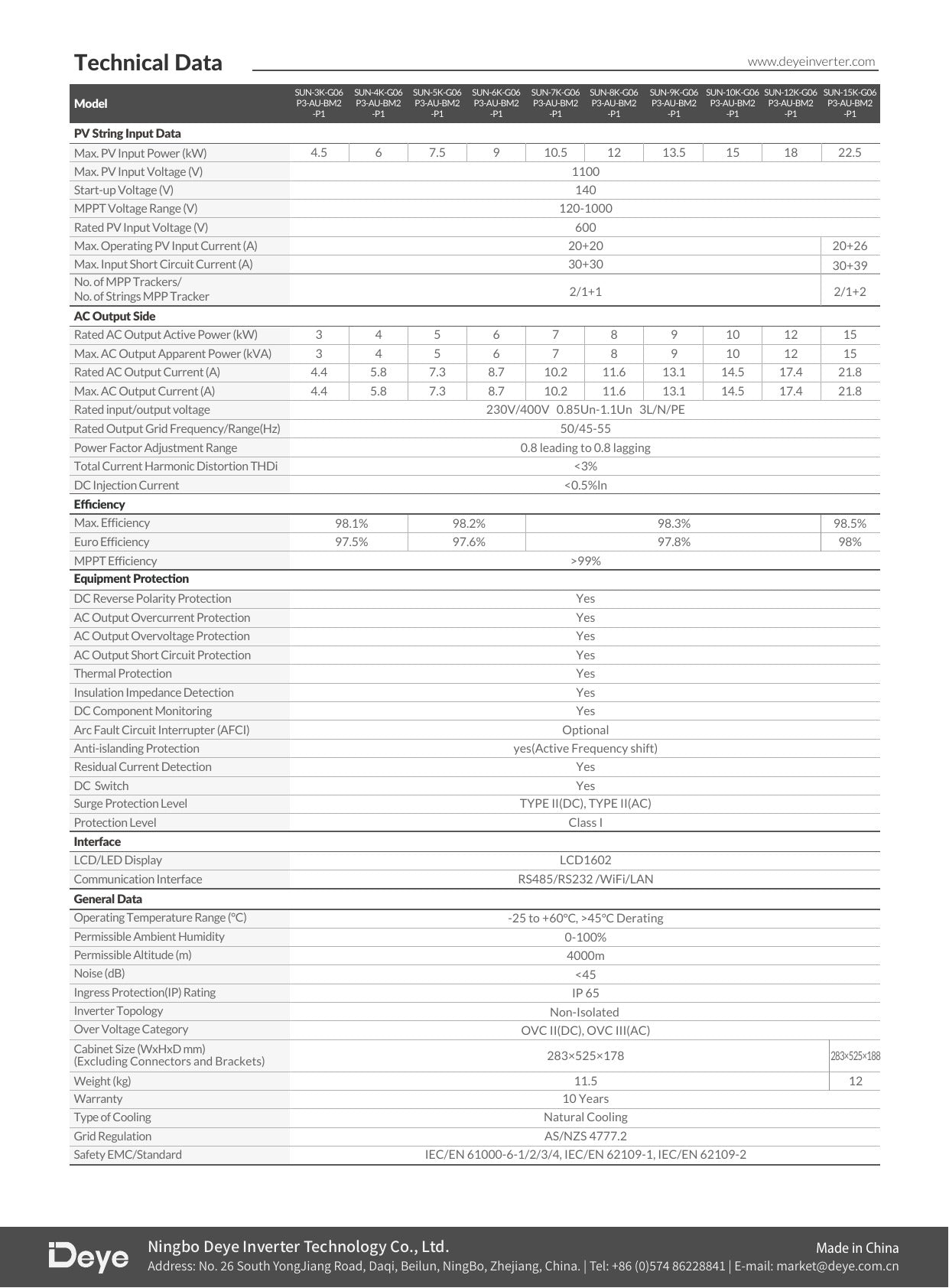

Specifications
- Model: SUN-10K-G06P3-AU-BM2-P1
- Rated AC output power: 10 kW
- Maximum AC apparent power: 10 kVA
- Rated / maximum AC output current: 14.5 A

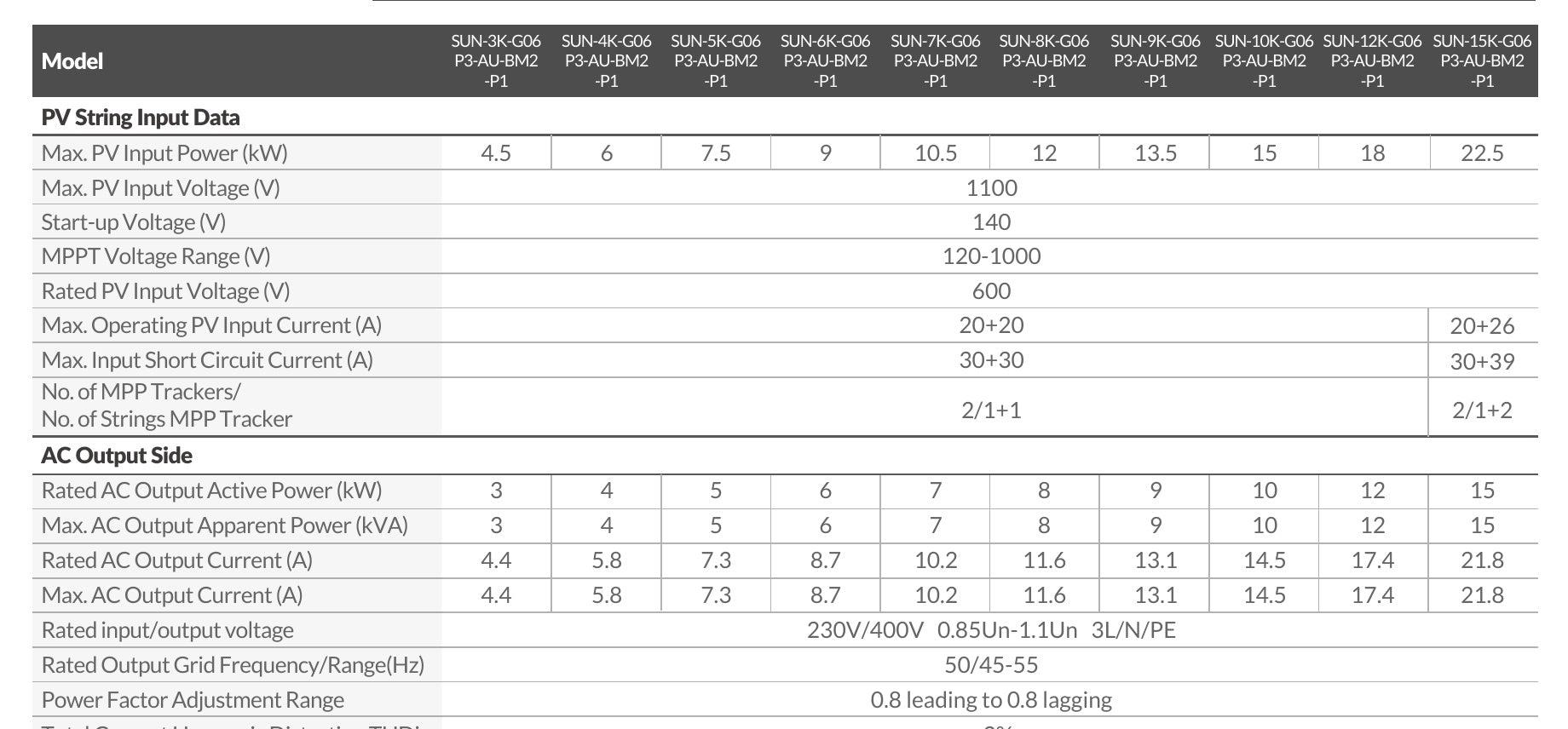

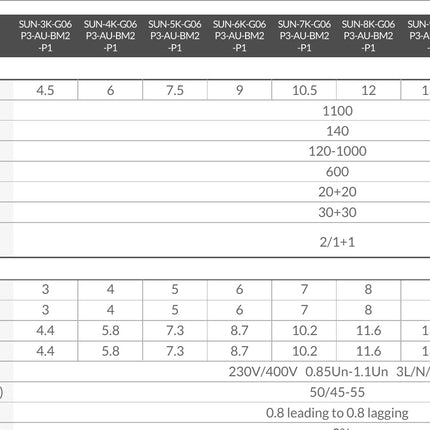

- Maximum PV input power: 15 kW
- Maximum PV input voltage: 1100 V
- Start-up voltage: 140 V
- MPPT voltage range: 120-1000 V
- Rated PV input voltage: 600 V
- Maximum operating PV input current: 20 + 20 A
- Maximum input short-circuit current: 30 + 30 A
- MPP trackers / strings per tracker: 2 / 1+1
- Rated grid voltage: 230/400 V, 3L/N/PE
- Grid frequency: 50 Hz (45-55 Hz range)

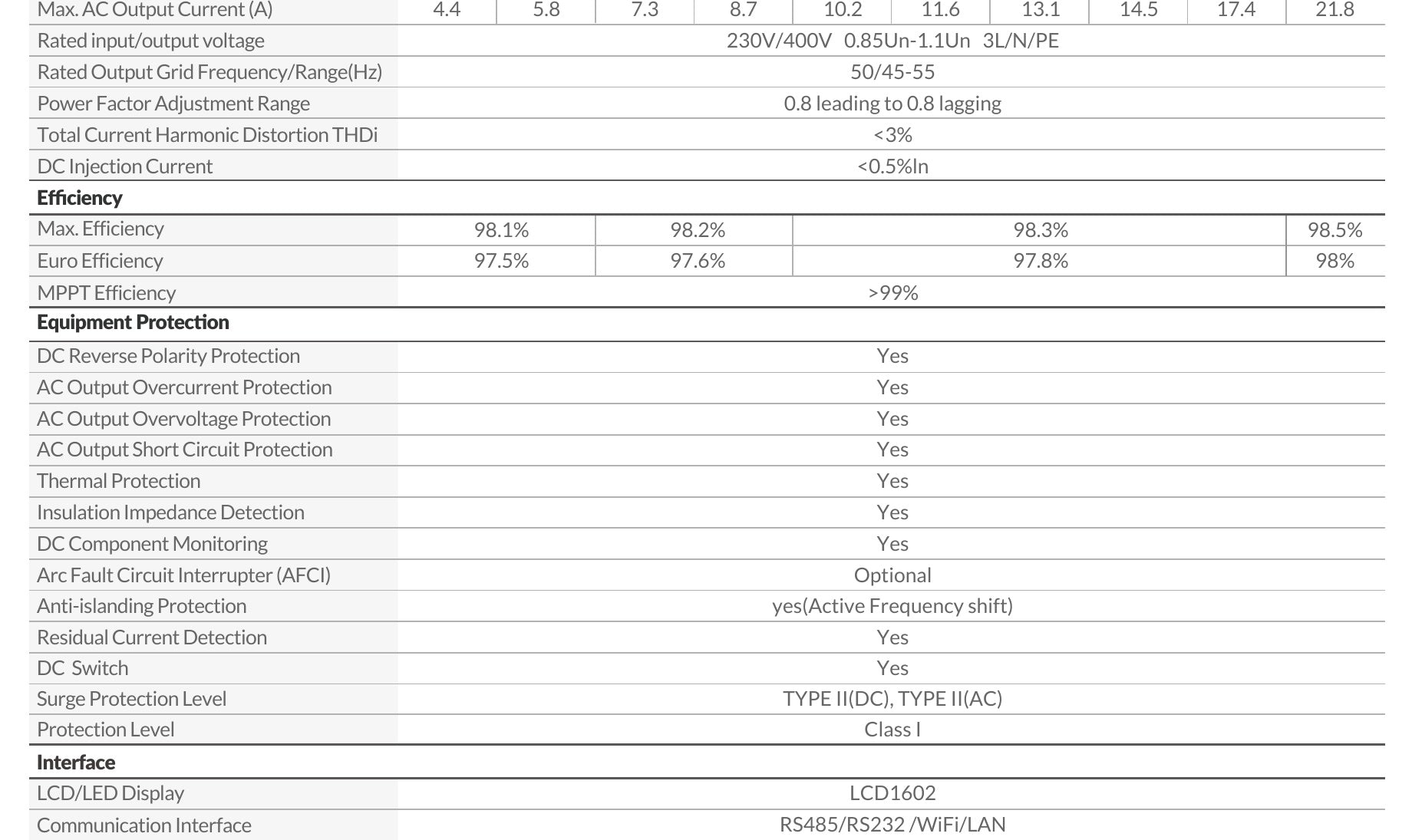

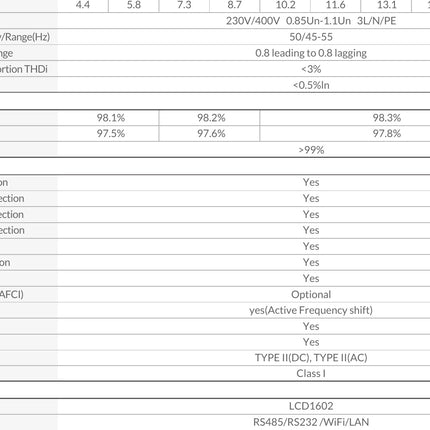

- Maximum / Euro efficiency: 98.3% / 97.8%
- Surge protection: Type II DC and Type II AC

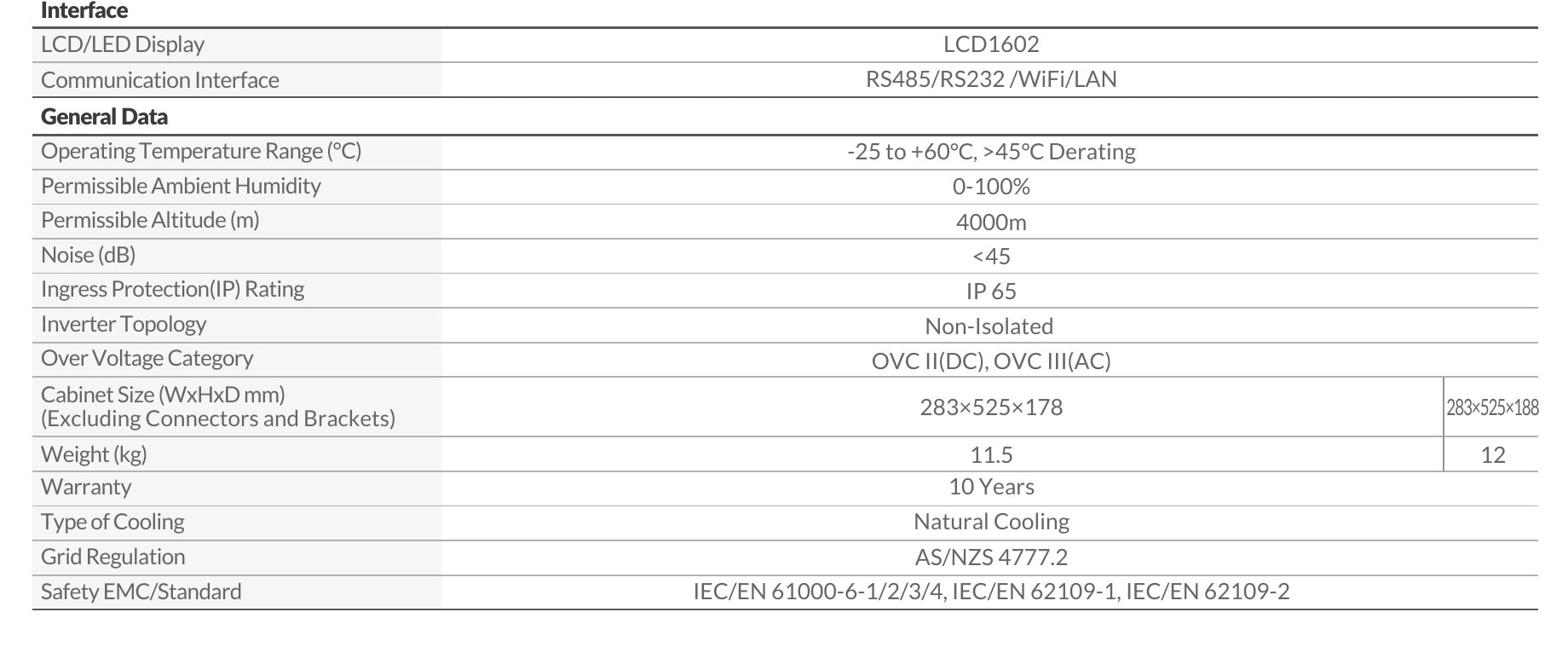

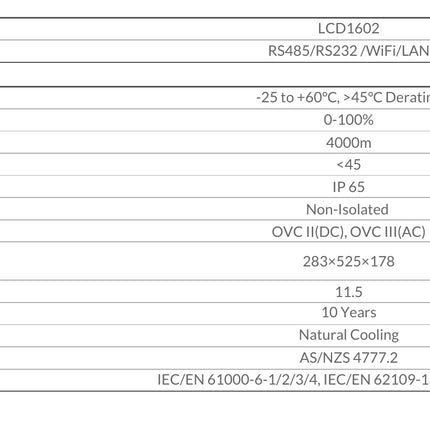

- Communication: RS485/RS232/Wi-Fi/LAN
- Operating temperature: -25°C to +60°C (derating above 45°C)
- Ingress protection: IP65
- Dimensions (W × H × D): 283 × 525 × 178 mm
- Datasheet weight: 11.5 kg
- Grid regulation: AS/NZS 4777.2
- Safety/EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
