**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

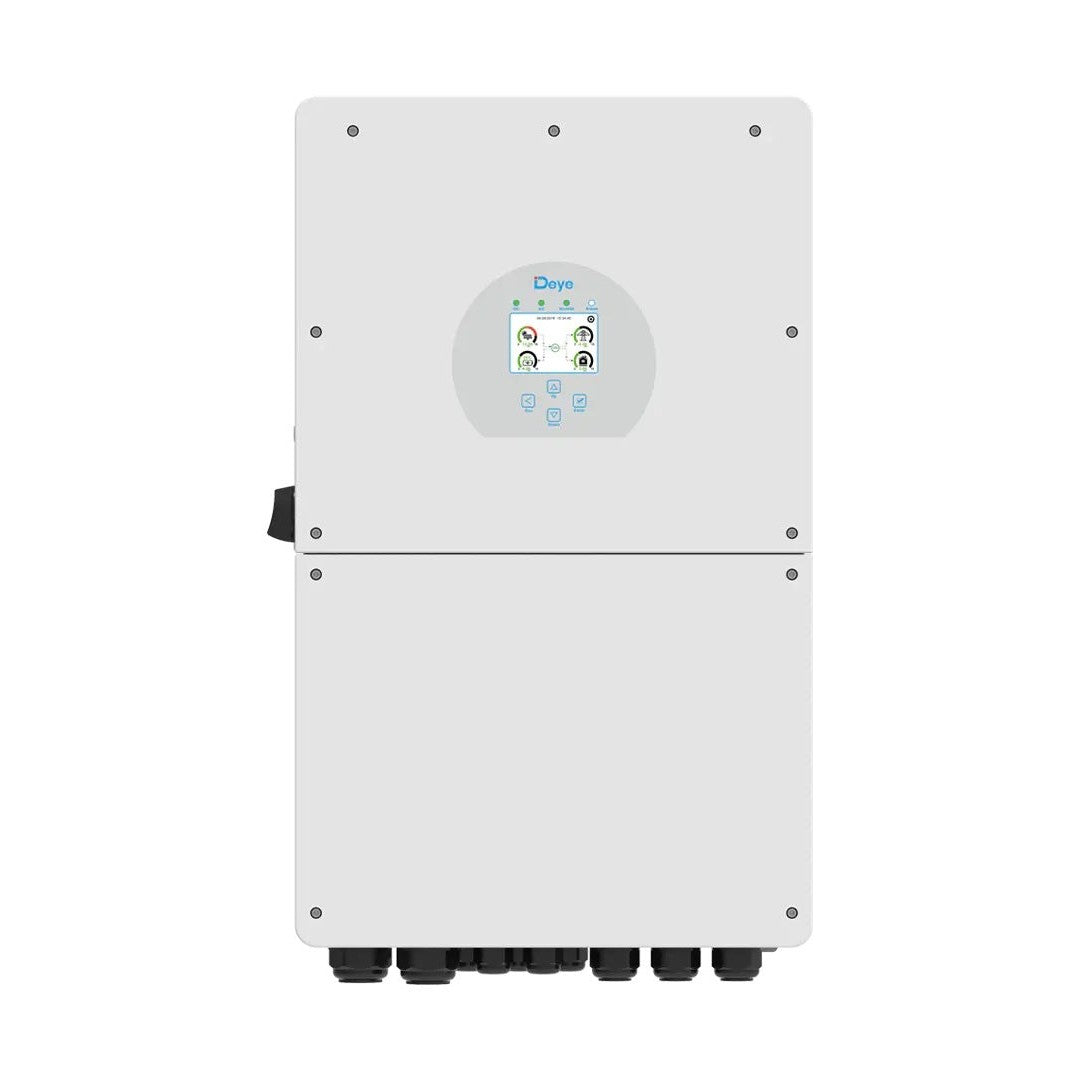

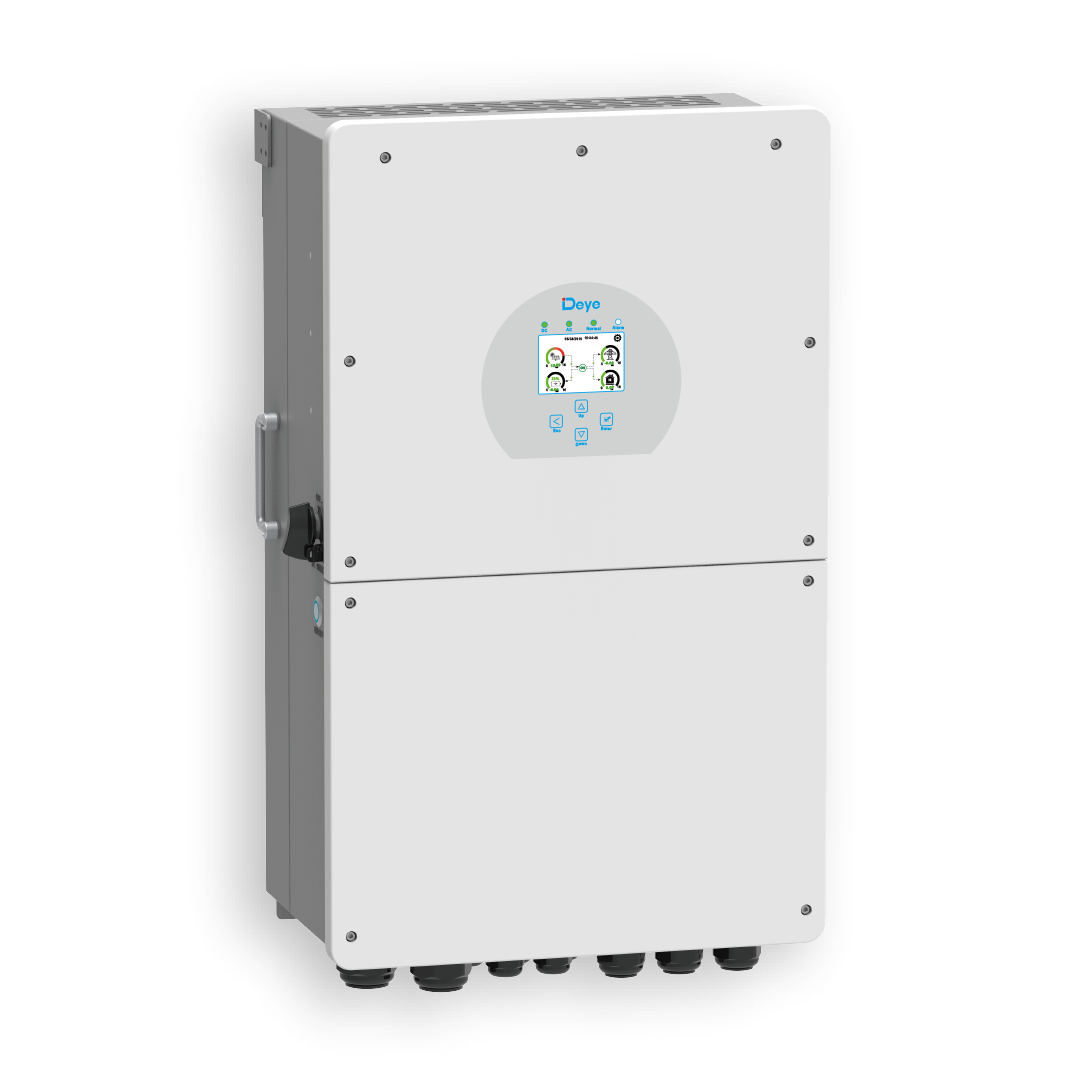

SUN-14K-SG01LP1-AU | 14kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree.
AC couple to retrofit existing solar system.
Max.16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
Max. charging/discharging current of 290A.
6 time periods for battery charging/discharging
Support storing energy from diesel generator

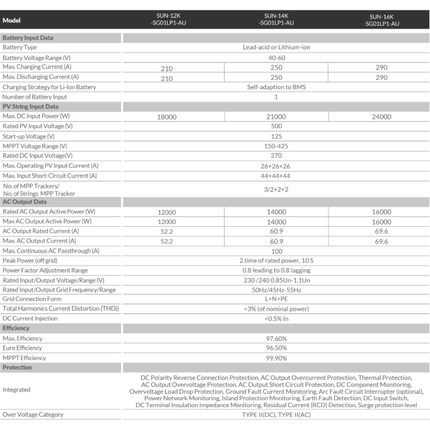

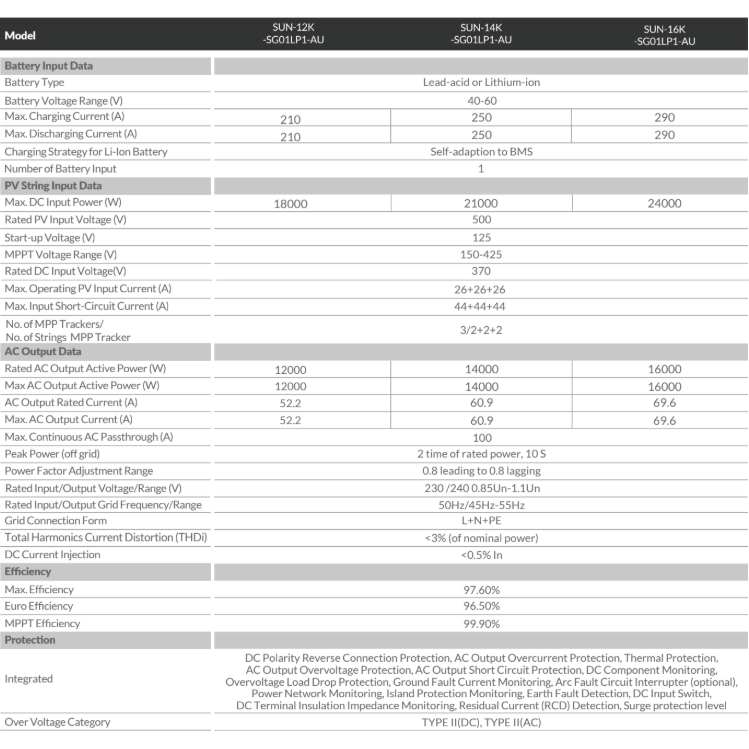

Model: SUN-14K-SG01LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 250
Max. Discharging Current (A): 250
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 21000
Rated PV Input Voltage (V):500
Start-up Voltage (V): 125
MPPT Voltage Range (V):150-425
Rated DC Input Voltage(V):370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 14000
Max AC Output Active Power (W): 14000
AC Output Rated Current (A): 60.9
Max. AC Output Current (A): 60.9
Max. Continuous AC Passthrough (A):100
Peak Power (off grid): 2 time of rated power, 10 S
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Efficiency:
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg):48
Cabinet size (mm): 464W x 763H x282D(Excluding connectors and brackets)
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
