Description
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

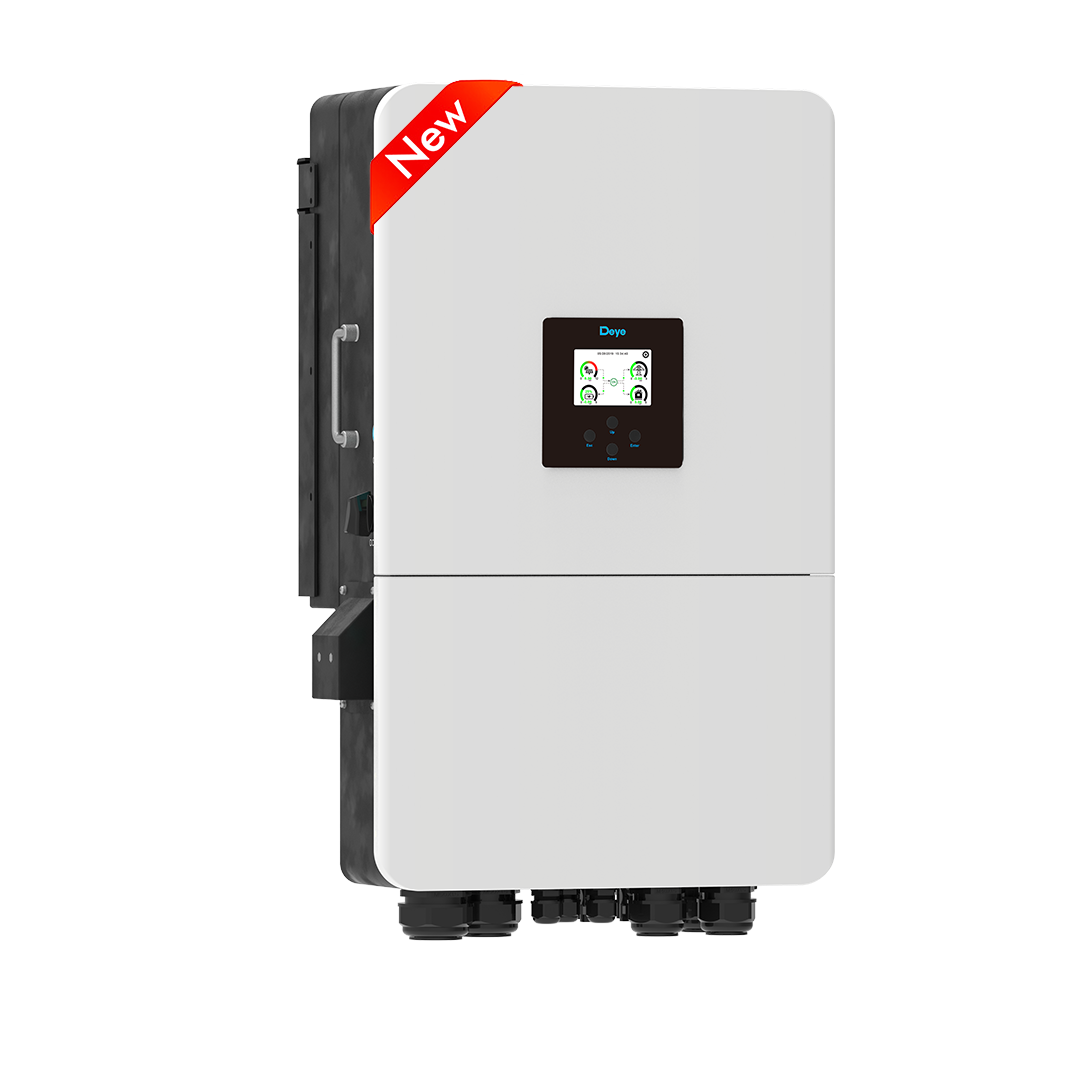

SUN-15K-SG05LP3-AU-SM2 | 15kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging

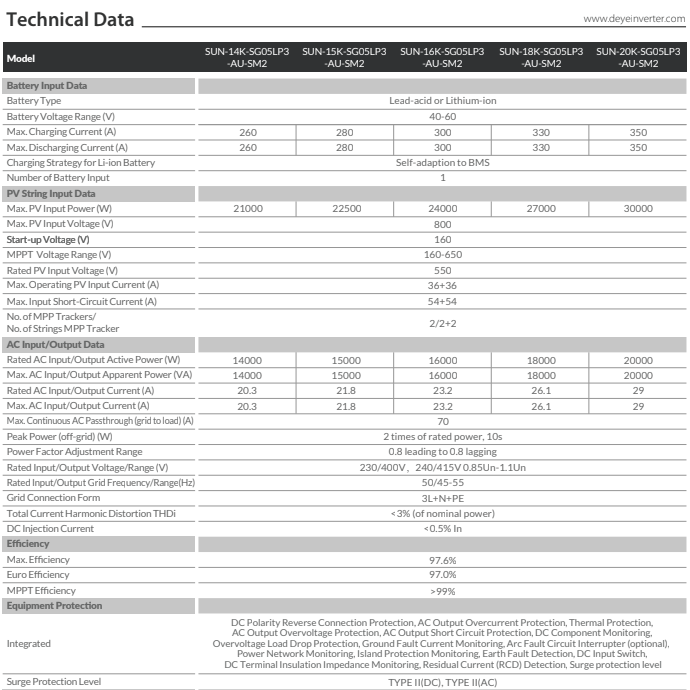

Model: SUN-15K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 280
Max. Discharging Current (A): 280
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 22500
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 15000
Rated Apparent Output Power (VA): 15000
AC Output Rated Current (A): 21.8
Max. AC Output Current (A): 21.8
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
