Description
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

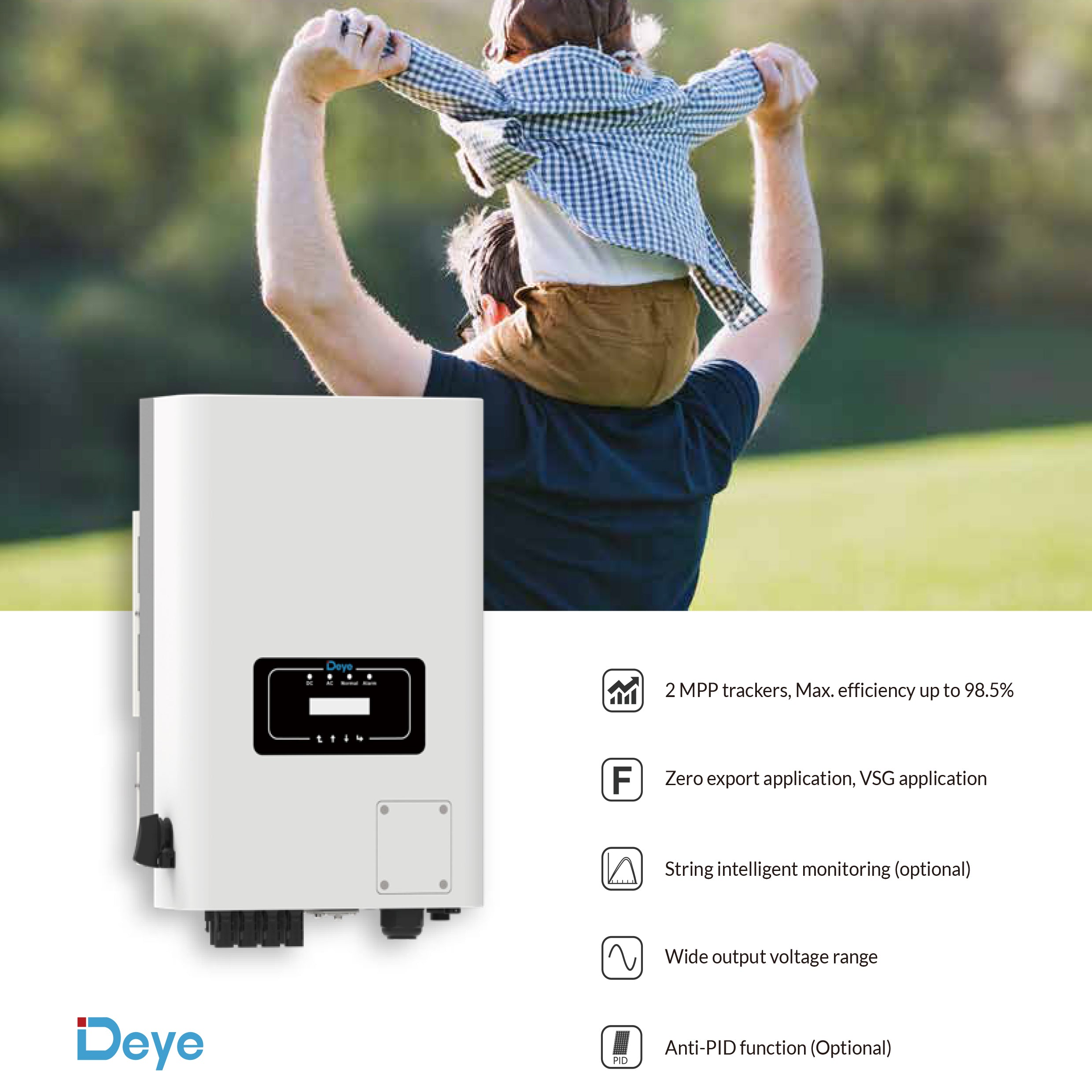

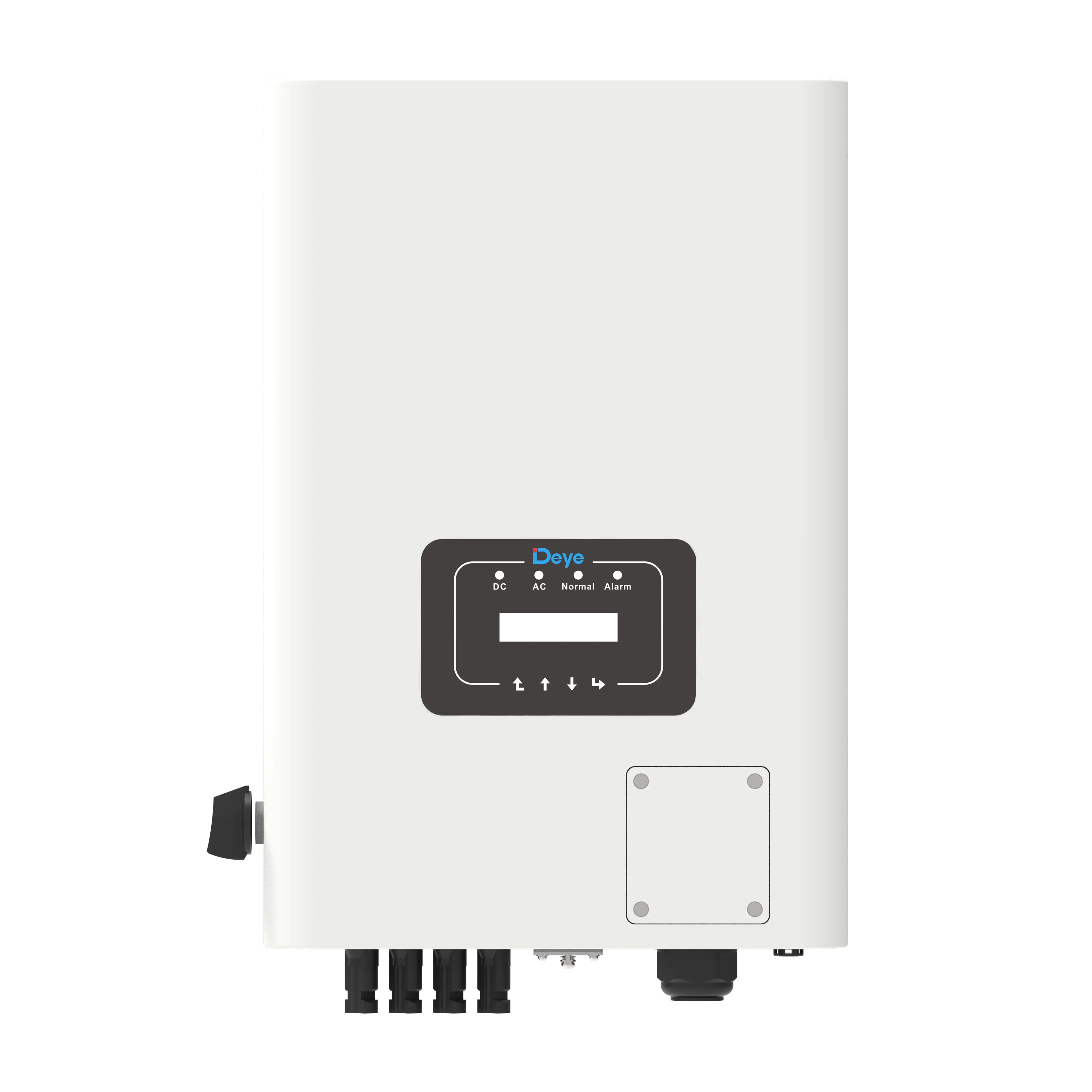

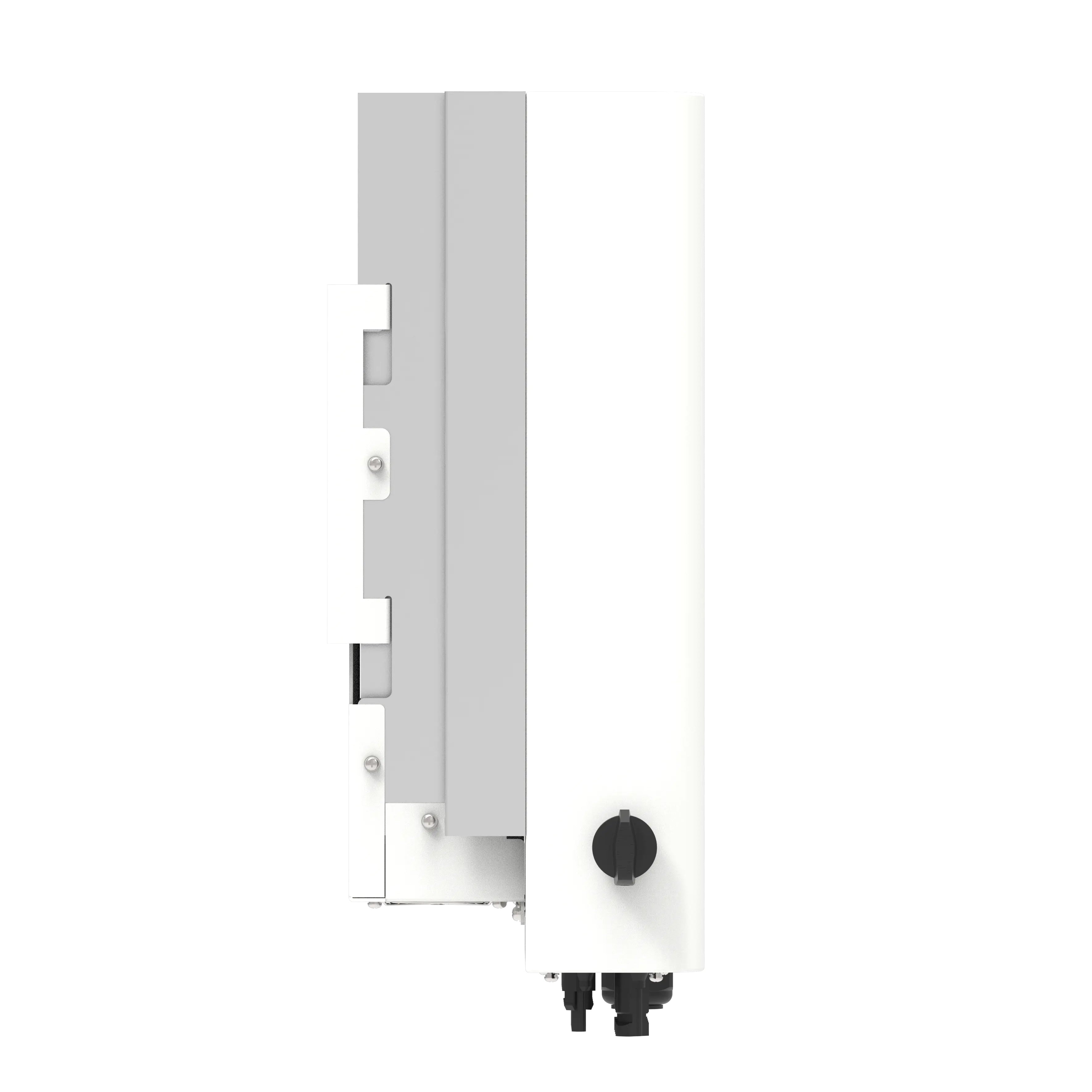

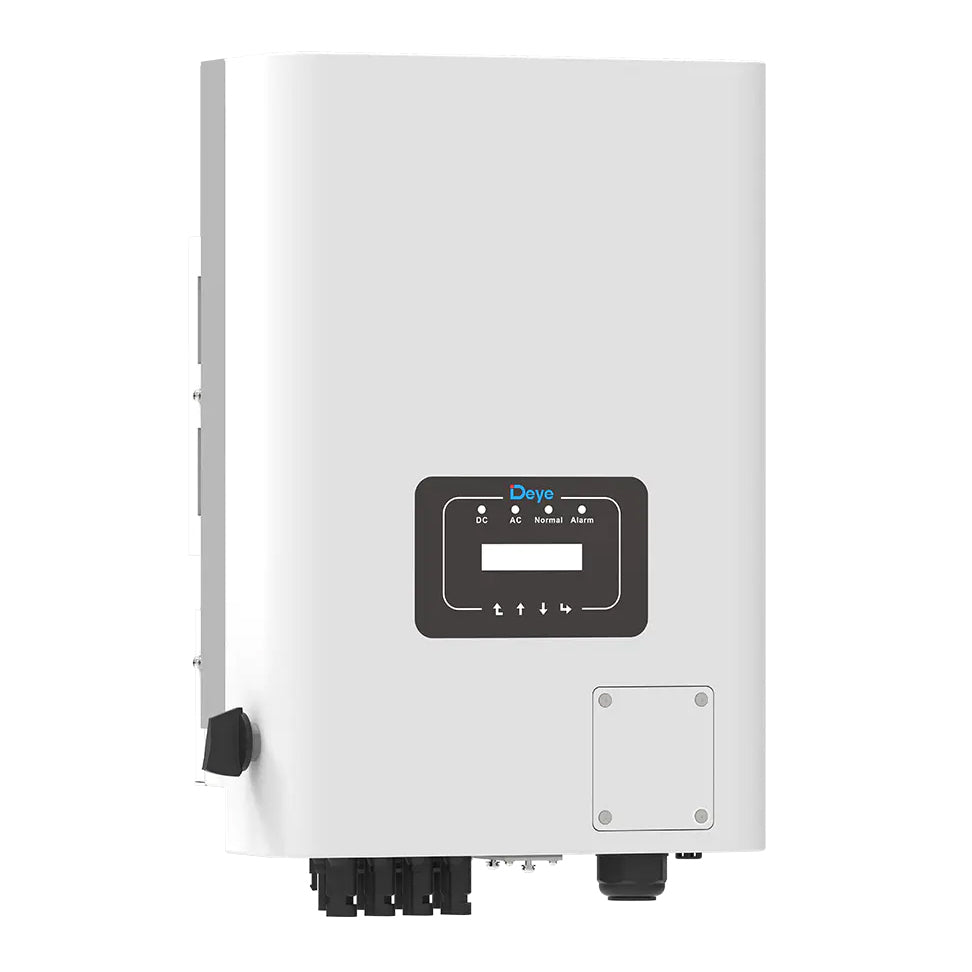

SUN-25K-G05-AU | 25kW | Three Phase | 2 MPPT
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
2 MPP tracker, Max. efficiency up to 98.6%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

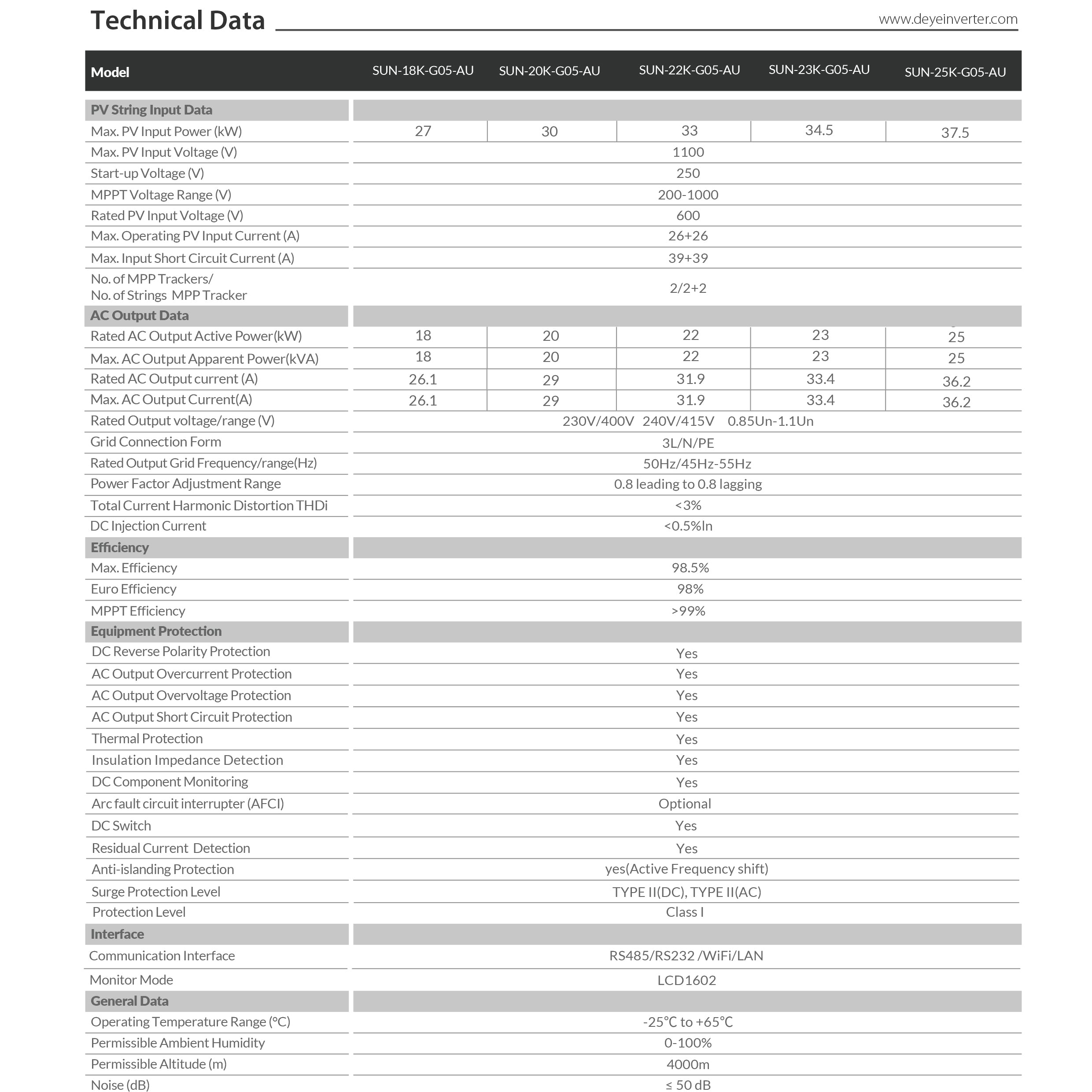

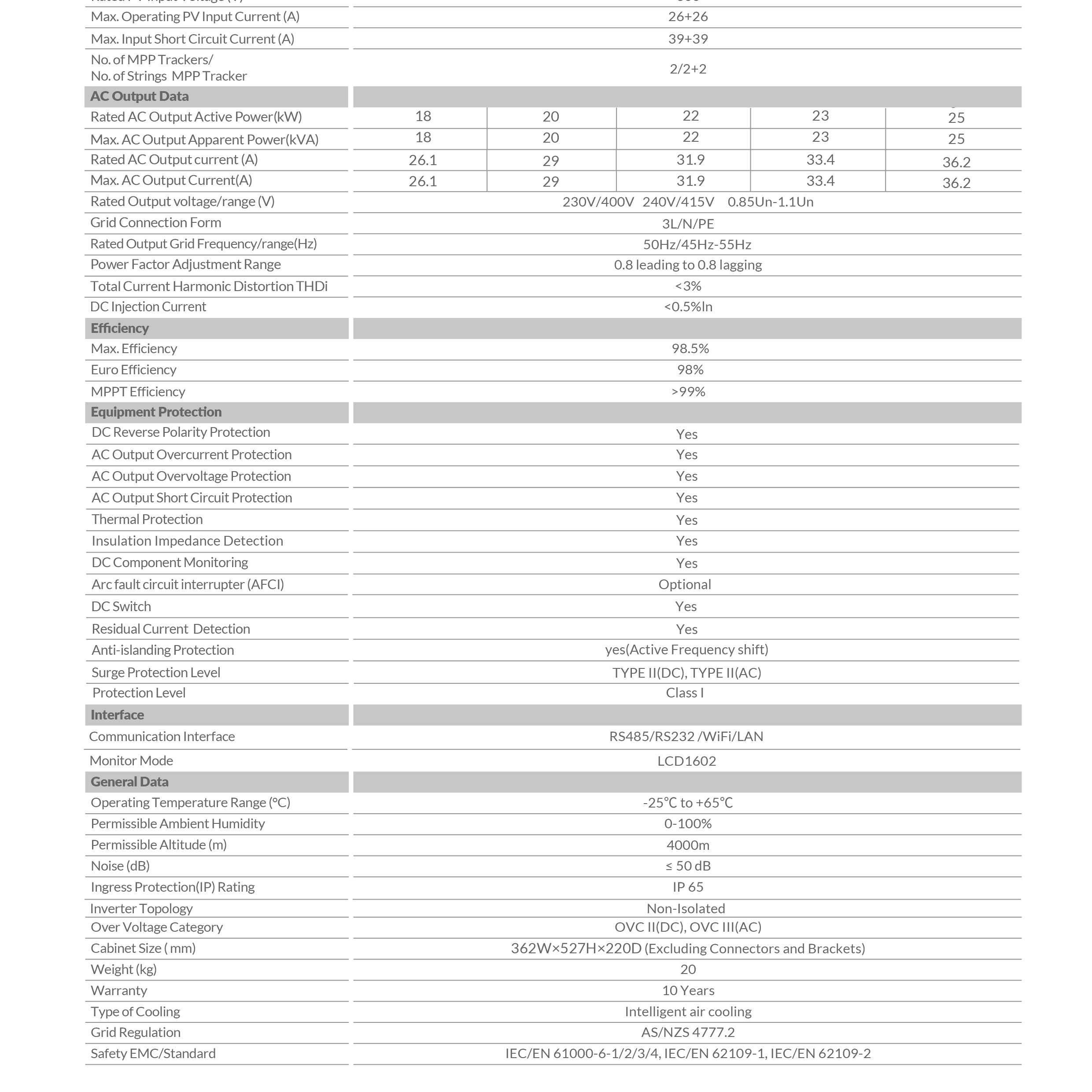

Model: SUN-25K-G05-AU
PV String Input Data
Max. PV Input Power (kW): 37.5
Max. PV Input Voltage (V): 1100
Start-up Voltage (V): 250
MPPT Voltage Range (V): 200-1000
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power(kW): 25
Max. AC Output Apparent Power(kVA): 25
Rated AC Output current (A): 36.2
Max. AC Output Current(A): 36.2
Efficiency
Max. Efficiency: 98.5%
Euro Efficiency: 98%
MPPT Efficiency: >99%
General Date
Cabinet Size ( mm): 362W×527H×220D (Excluding Connectors and Brackets)
Weight (kg): 20
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
