Description
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

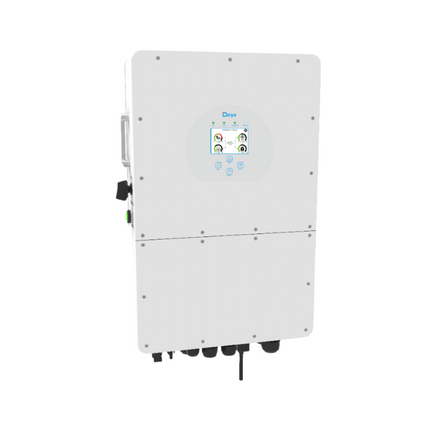

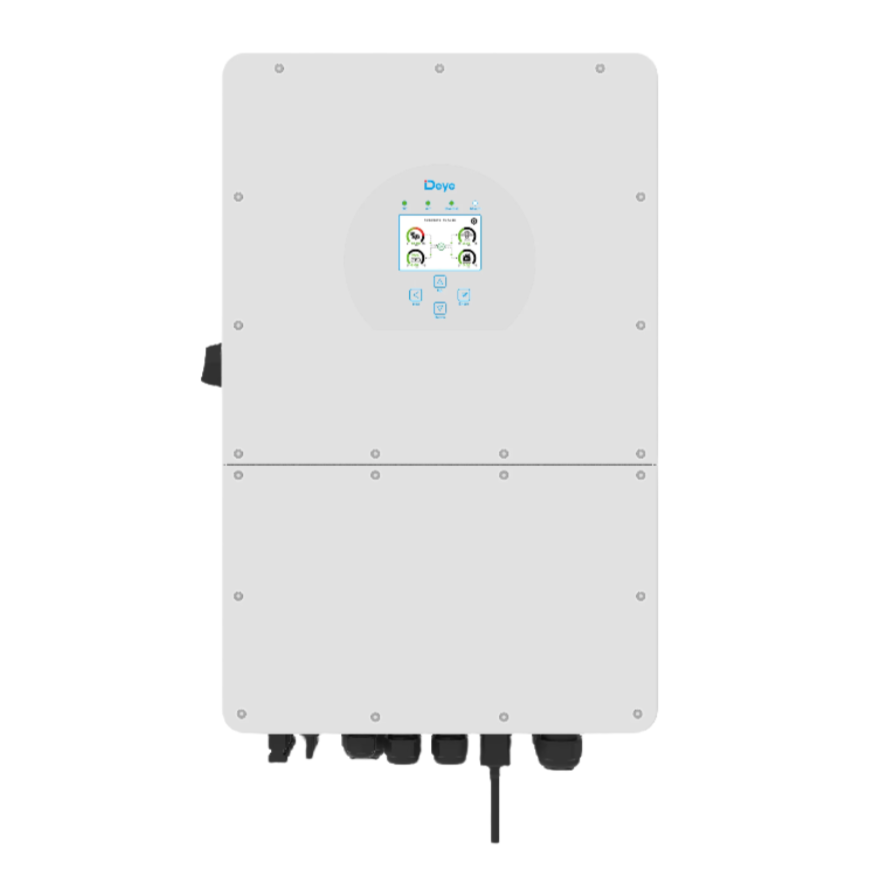

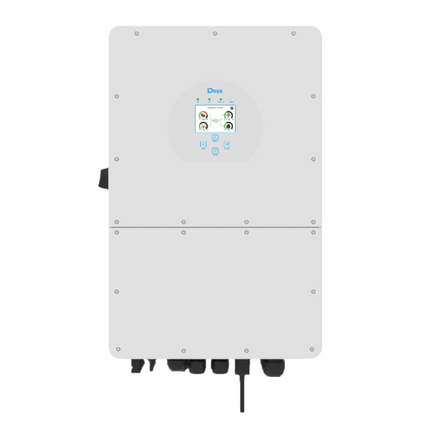

SUN-25K-SG01HP3-AU-AM2 | 25kW | Three Phase | 2 MPPT
Hybrid Inverter | High-Voltage Battery Supported
Smart Monitoring Platform
Through Deye’s smart monitoring platform, the inverter supports remote monitoring, parameter configuration, firmware updates and remote shutdown when required, making system operation and maintenance easier and more efficient.

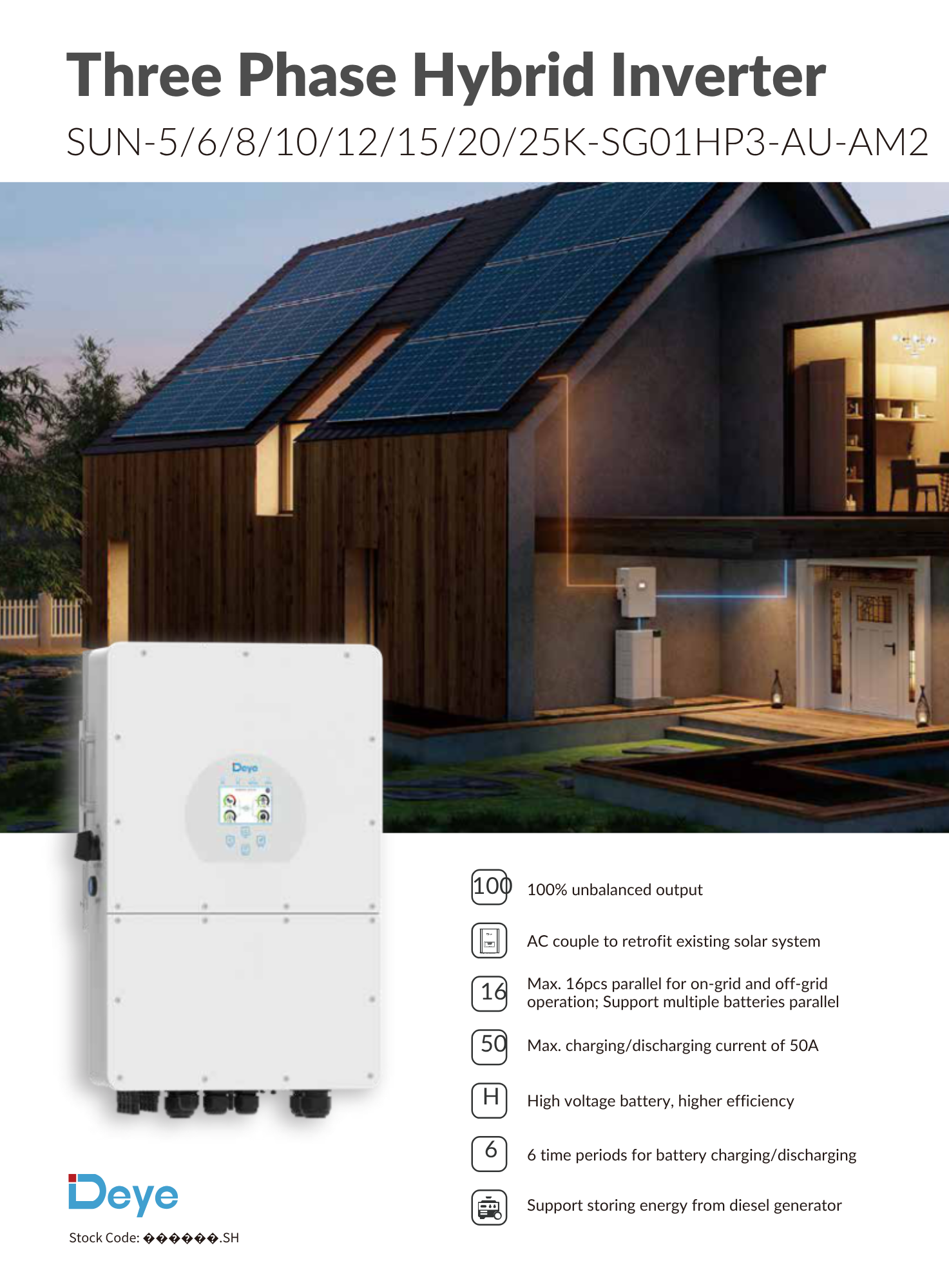

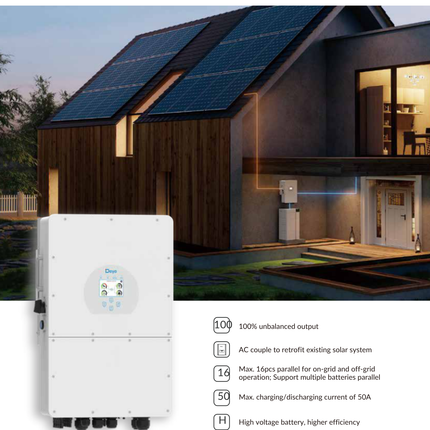

100% unbalanced three-phase output
AC coupling for retrofitting existing solar systems
Maximum 16 units in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Maximum charging and discharging current of 50A
High-voltage battery support for improved system efficiency
Six programmable battery charging and discharging periods
Supports energy storage from a diesel generator

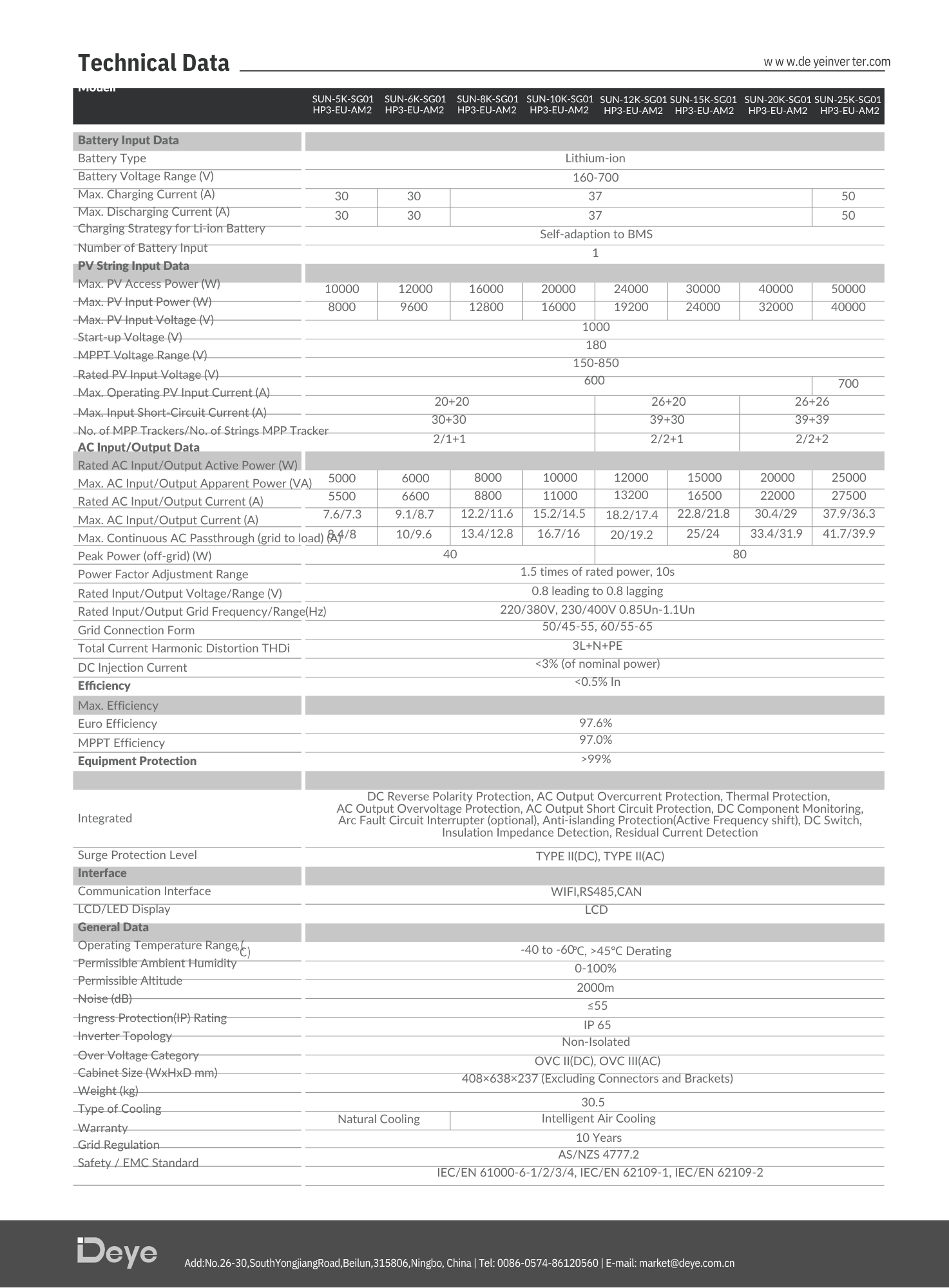

Model: SUN-25K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160–700
Max. Charging Current (A): 50
Max. Discharging Current (A): 50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Inputs: 1
PV String Input Data
Max. PV Access Power (kW): 50
Max. PV Input Power (kW): 40
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150–850
Rated PV Input Voltage (V): 700
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings per MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (kW): 25
Max. AC Input/Output Apparent Power (kVA): 27.5
Rated AC Input/Output Current (A): 37.9/36.3
Max. AC Input/Output Current (A): 41.7/39.9
Max. Continuous AC Passthrough – Grid to Load (A): 80
Peak Off-Grid Power: 1.5 Times Rated Power for 10 Seconds
Grid Connection: 3L+N+PE
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Operating Temperature Range: -40°C to +60°C, Derating Above 45°C
Ingress Protection Rating: IP65
Noise Level: ≤55dB
Cooling: Intelligent Air Cooling
Communication Interface: Wi-Fi, RS485 and CAN
Cabinet Size (mm): 408W × 638H × 237D
(Excluding Connectors and Brackets)
Weight (kg): 30.5
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety/EMC Standards: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2
