Description
✓ AS/NZS 4777.2 Compliant
✓ Official Deye Gold Distributor in New Zealand – Micromall Solar
✓ 10-Year Warranty

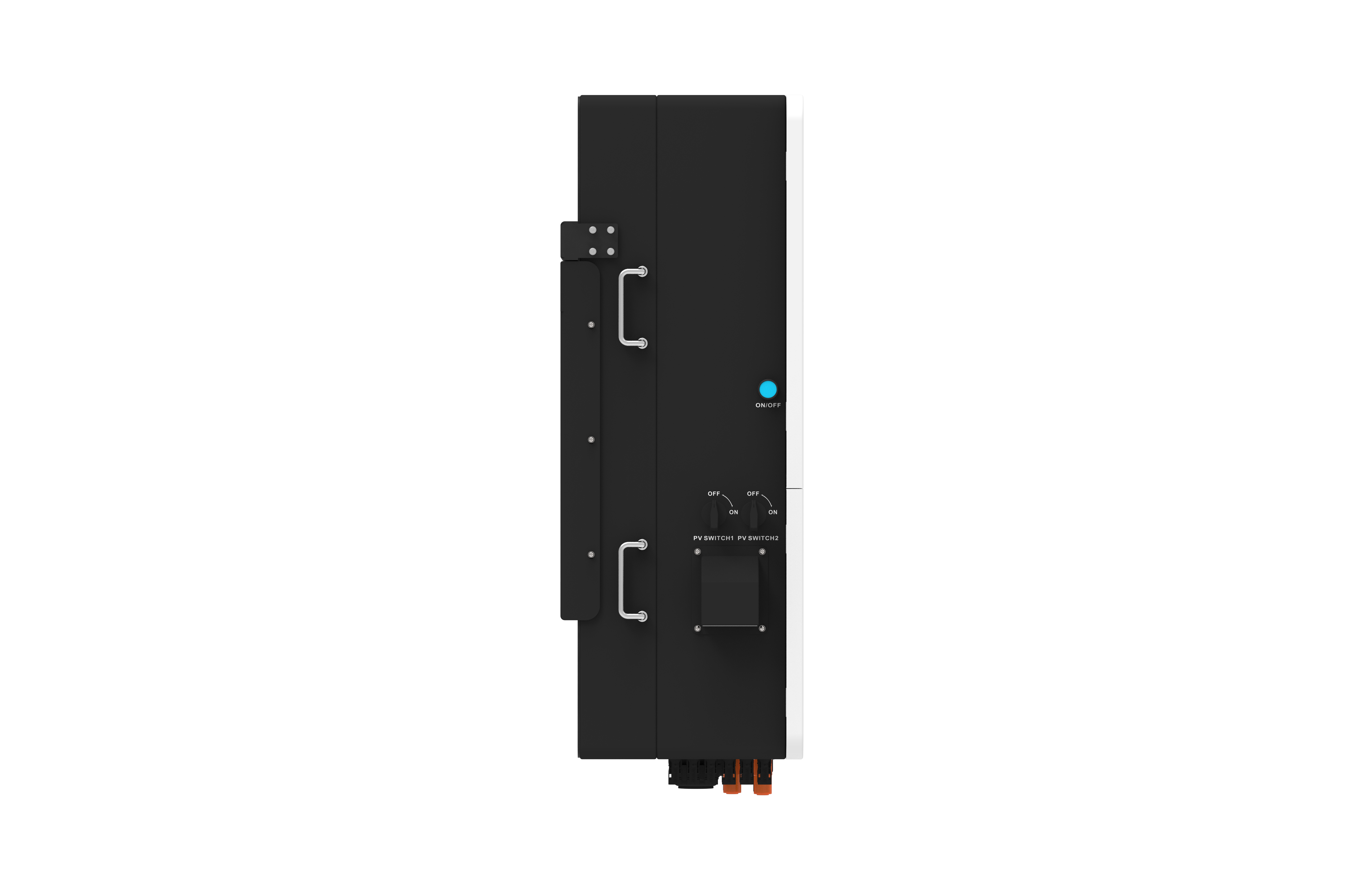

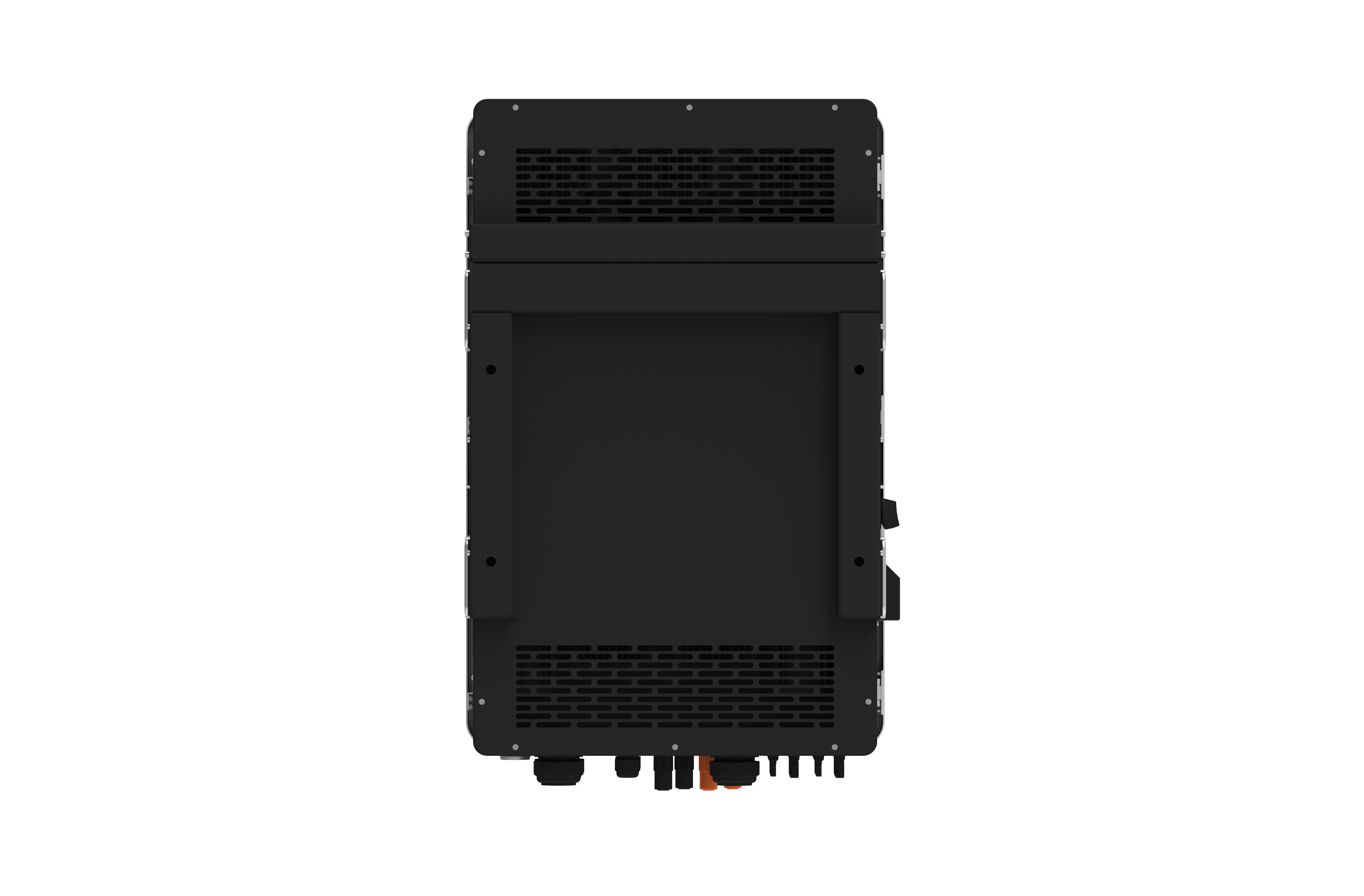

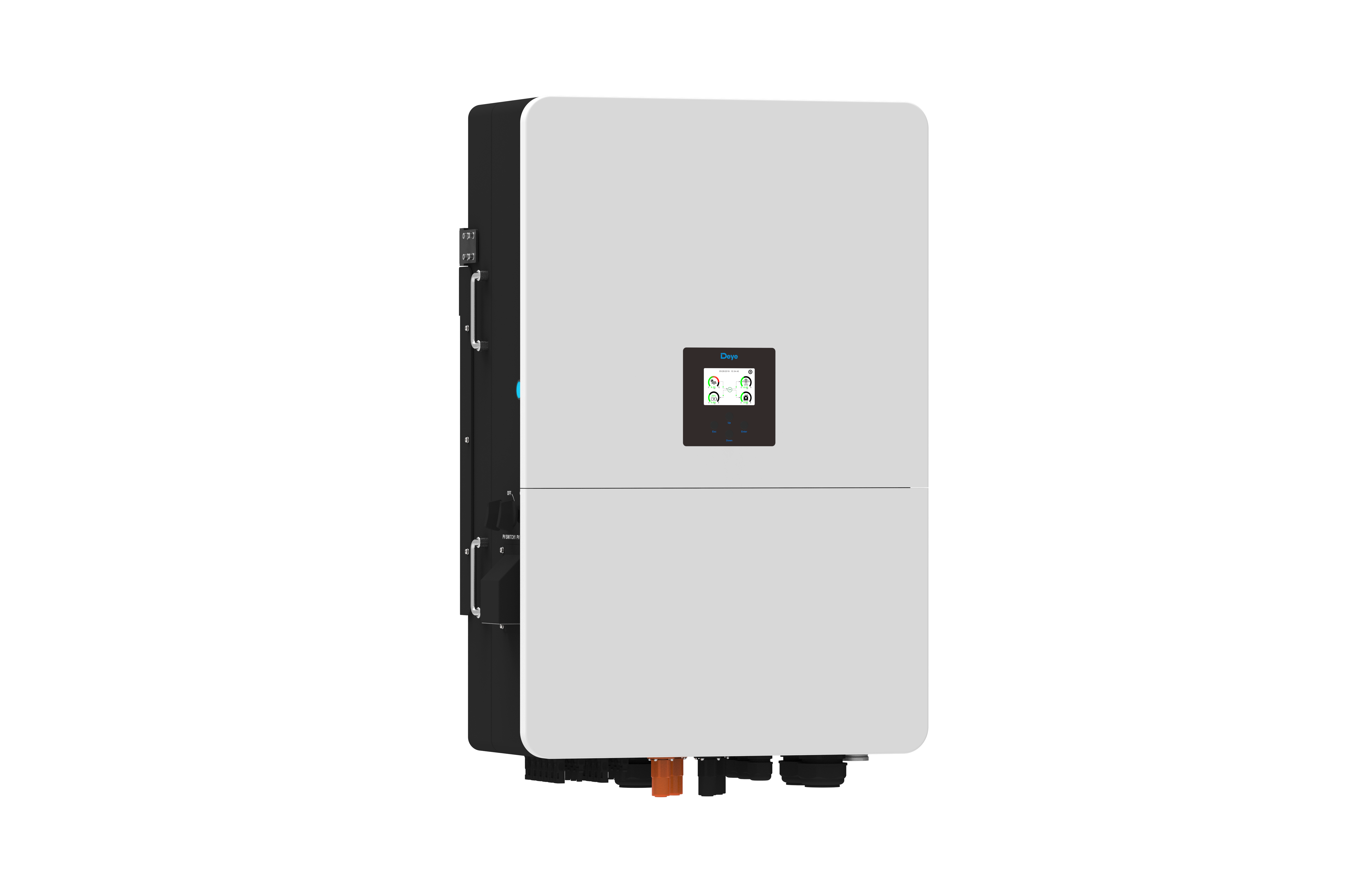

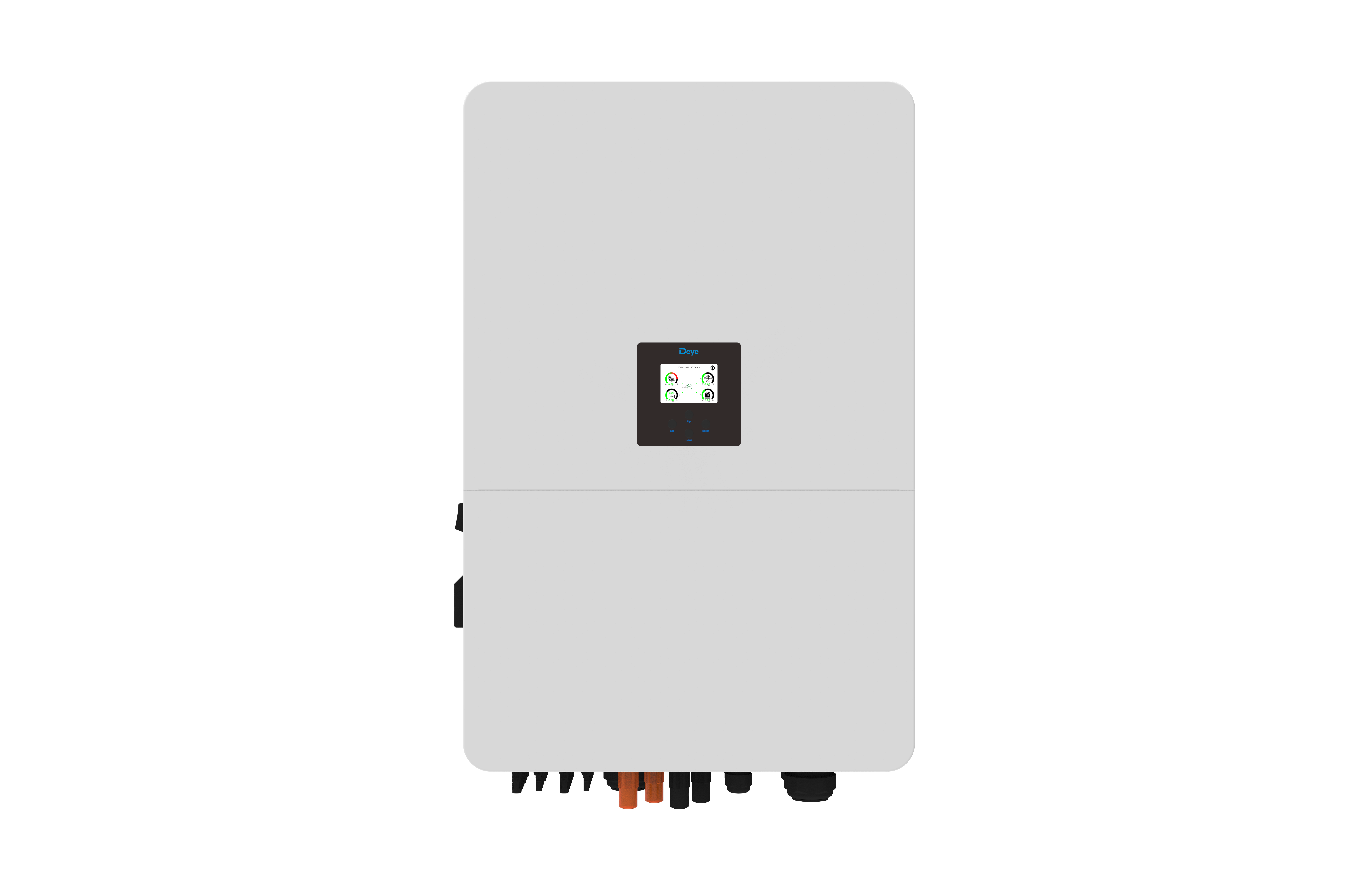

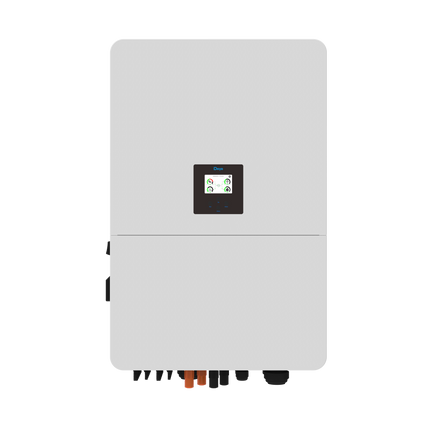

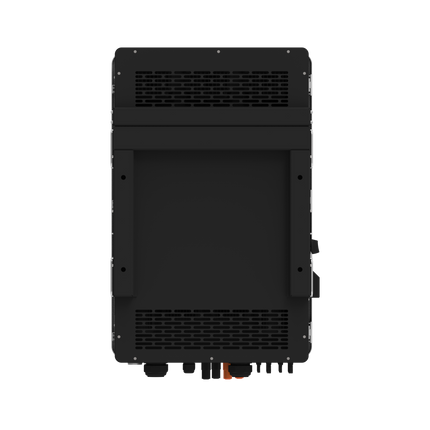

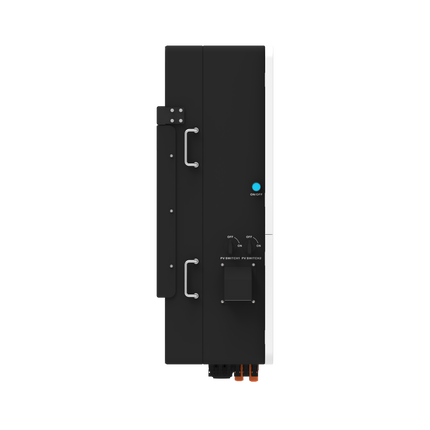

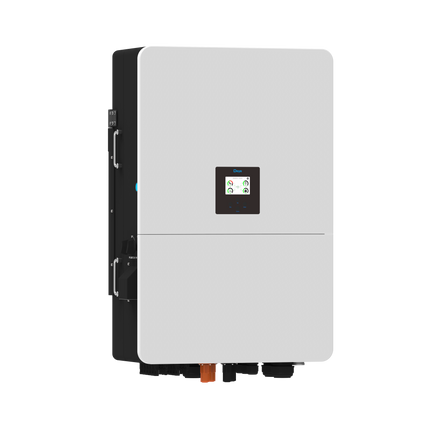

SUN-80K-SG02HP3-AU-EM6 | 80kW | Three Phase | 6 MPPT
Hybrid Inverter | High-Voltage Battery Supported
Higher Yields / Safe & Reliable / Smart / User-Friendly
Smart Monitoring Platform
Supports remote monitoring, parameter settings, firmware updates and emergency shutdown for easier system operation and maintenance.
100% unbalanced three-phase output
AC coupling for retrofitting existing solar systems
Maximum 10 units in parallel for on-grid/off-grid operation
Maximum combined charging/discharging current: 160A
Six programmable charging/discharging periods
Supports energy storage from a diesel generator

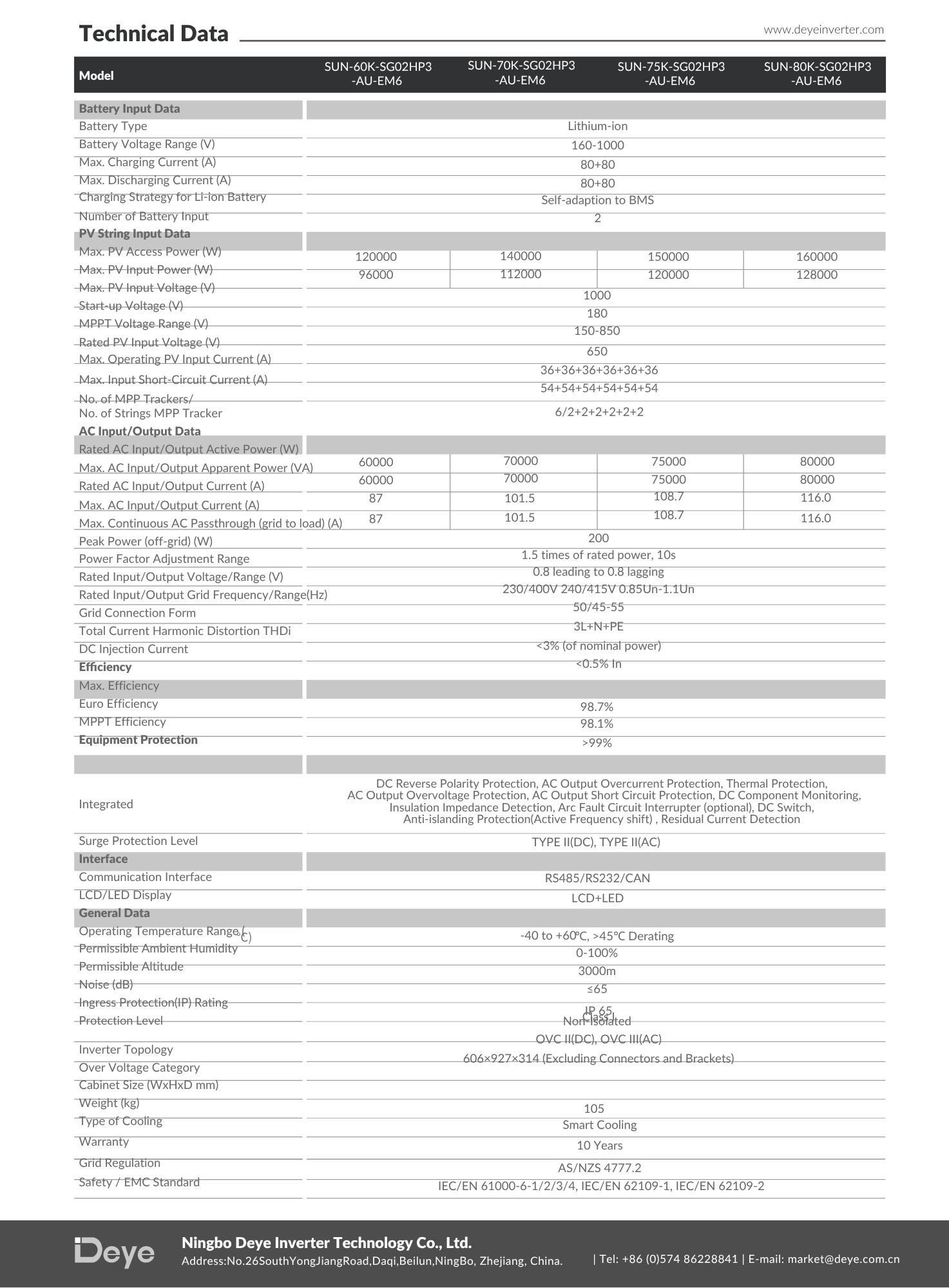

Model: SUN-80K-SG02HP3-AU-EM6
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range: 160–1000V
Max. Charging Current: 80+80A
Max. Discharging Current: 80+80A

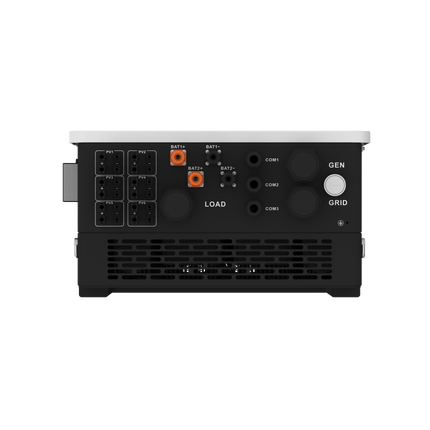

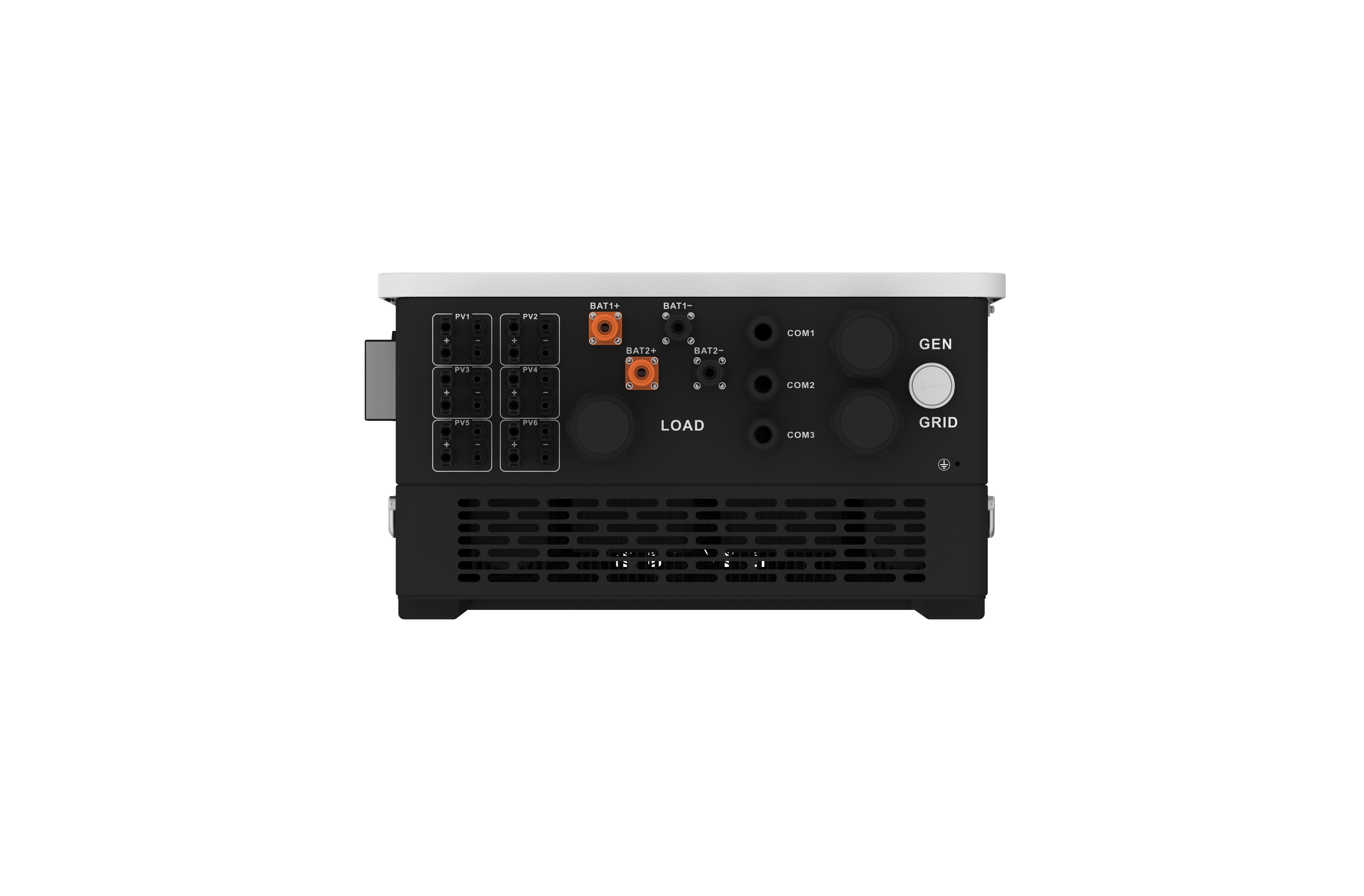

Battery Inputs: 2
PV String Input Data
Max. PV Access Power: 160kW
Max. PV Input Power: 128kW
Max. PV Input Voltage: 1000V
MPPT Voltage Range: 150–850V
Max. Operating Input Current: 36+36+36+36+36+36A
Max. Short-Circuit Current: 54+54+54+54+54+54A
MPP Trackers/Strings per Tracker: 6/2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Power: 80kW
Max. Apparent Power: 80kVA
Max. AC Input/Output Current: 116A
Max. Continuous Grid-to-Load Passthrough: 200A
Peak Off-Grid Power: 1.5× rated power for 10 seconds
Grid Connection: 3L+N+PE
Efficiency
Max. Efficiency: 98.7%
Euro Efficiency: 98.1%
MPPT Efficiency: >99%
General Data
Operating Temperature: -40°C to +60°C, derating above 45°C
Protection Rating: IP65
Noise Level: ≤65dB
Communication: RS232, RS485 and CAN
Dimensions: 606W × 927H × 314D mm
(Excluding connectors and brackets)
Weight: 105kg
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety/EMC: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2
