Description
DEYE New Zealand Distributor - Micromall Solar
10-Year Warranty

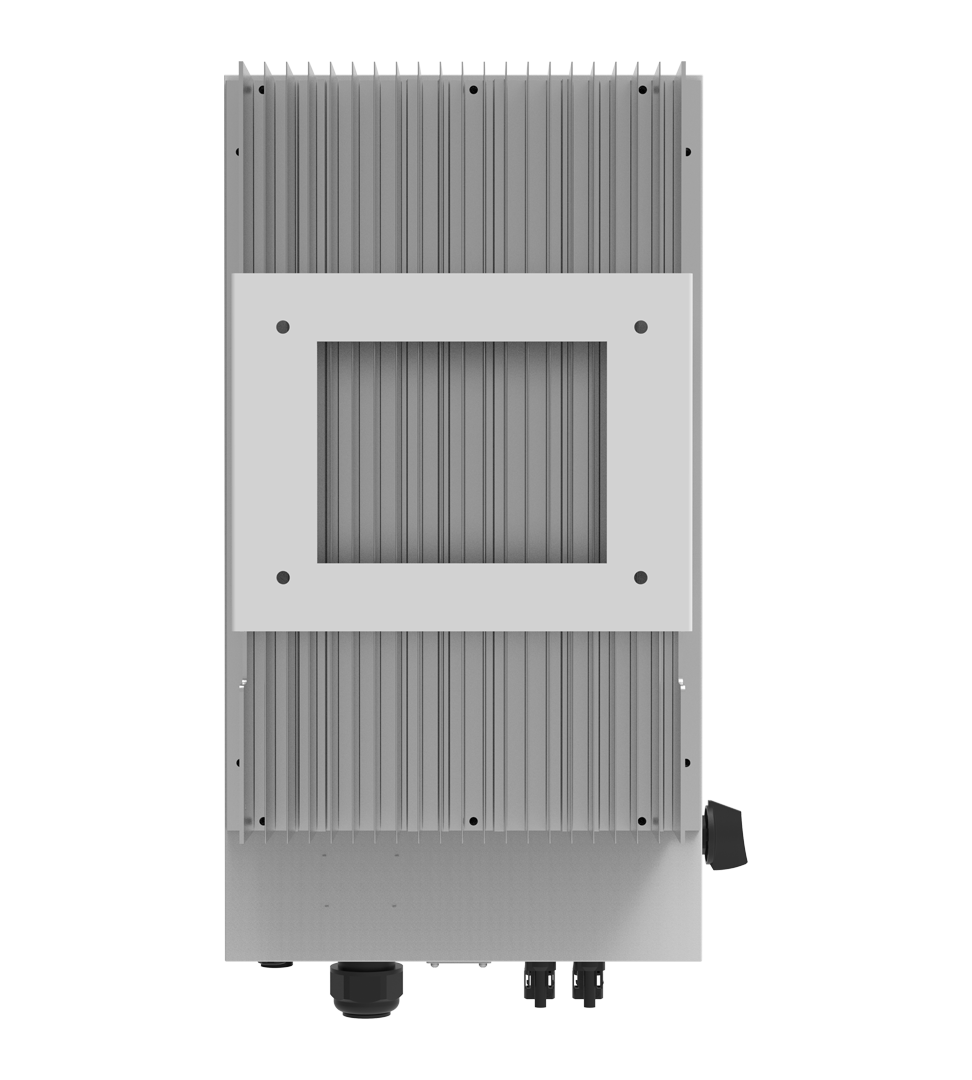

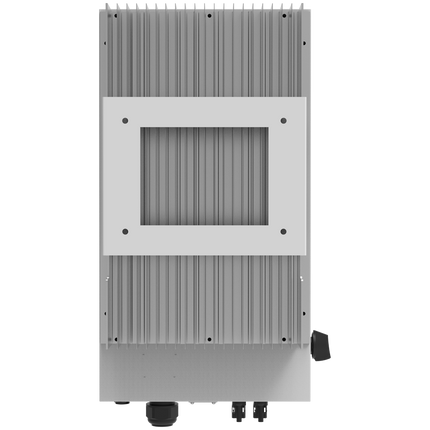

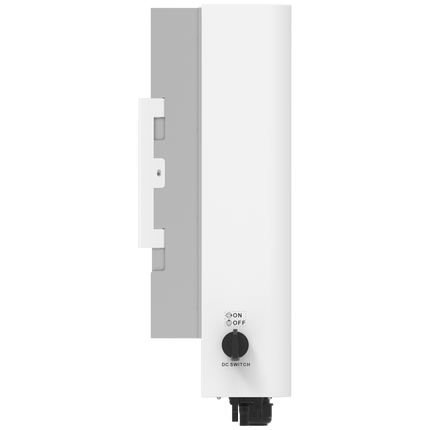

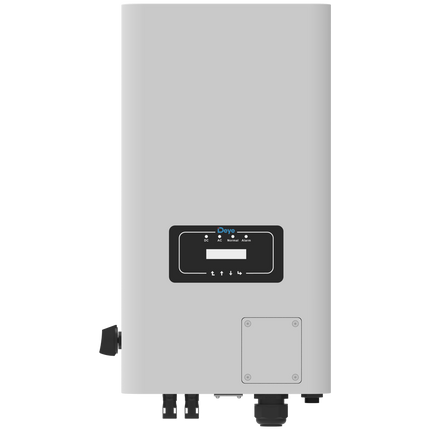

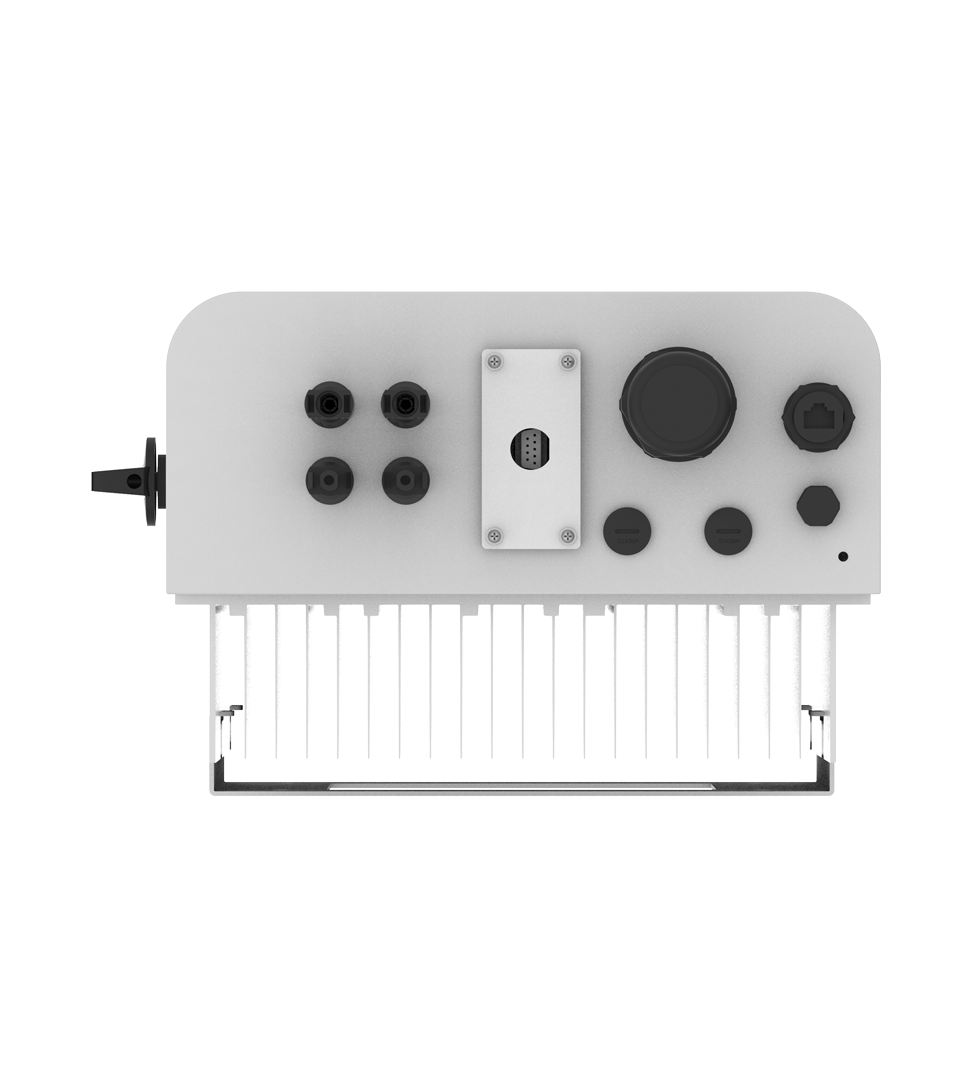

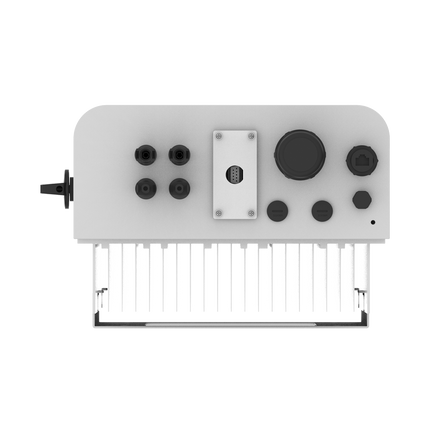

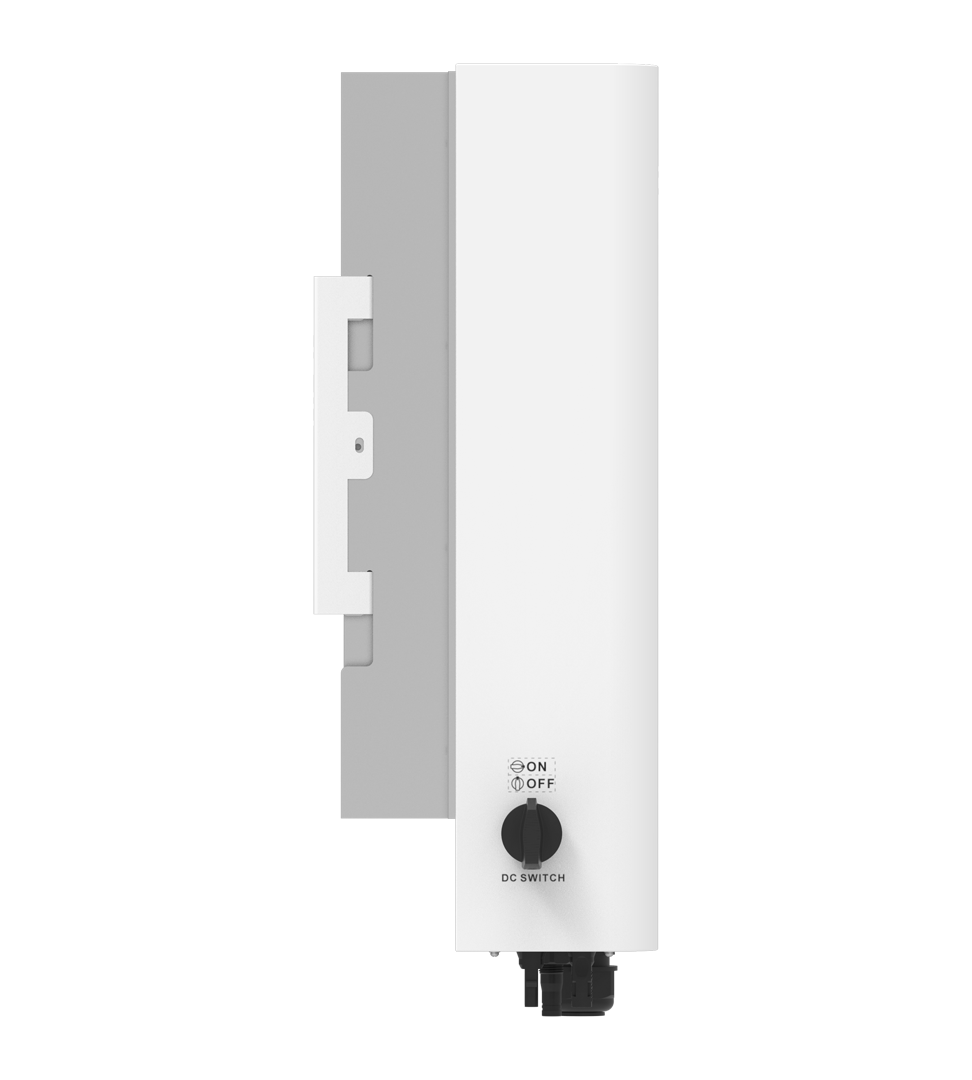

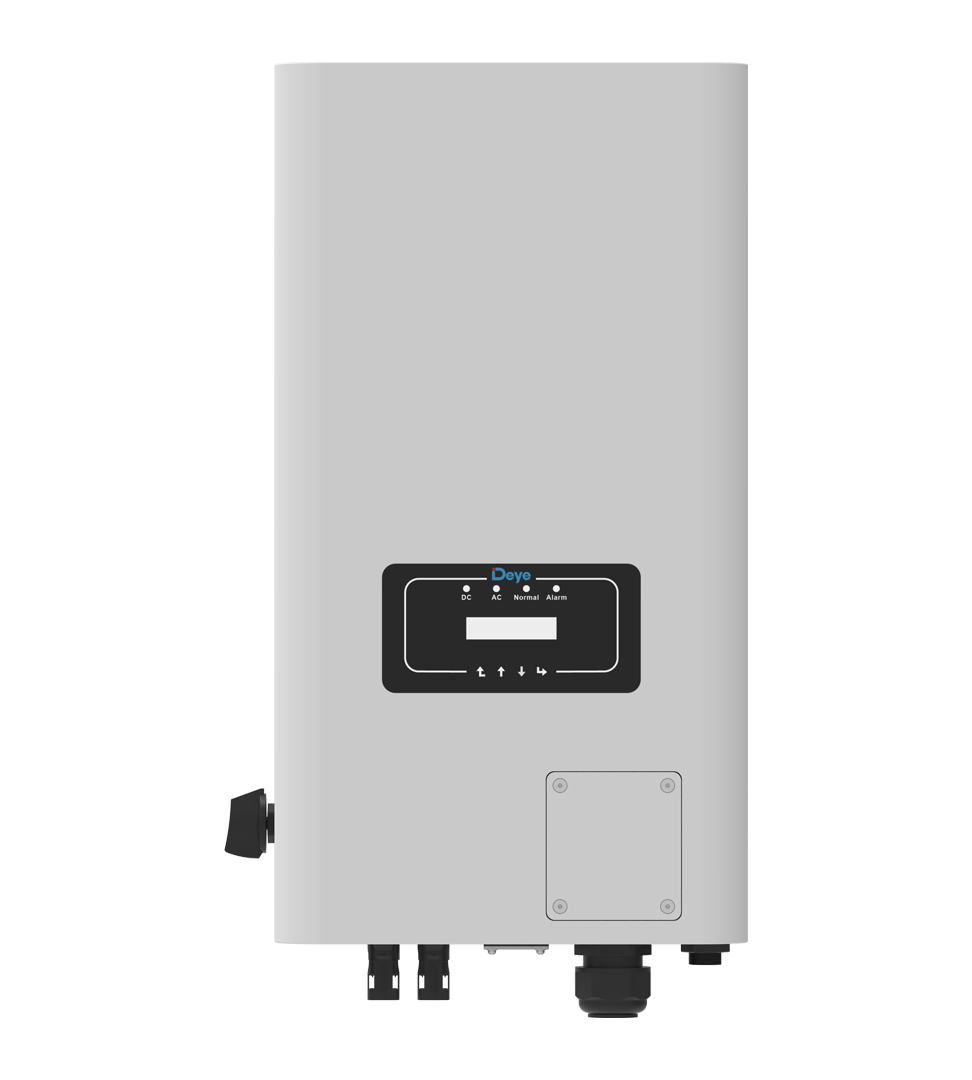

SUN-8K-G06P3-AU-BM2-P1 | 8kW | Three Phase | 2 MPPT
String Inverter | Grid-Tied
Higher Yields / Safe & Reliable / Smart / User-Friendly
Smart Monitoring Platform
Deye’s smart monitoring platform supports remote monitoring, parameter configuration, firmware updates and remote shutdown, simplifying system operation and maintenance.
2 MPP trackers with maximum efficiency up to 98.3%
Zero-export and VSG applications
Optional intelligent string monitoring
Wide operating voltage range
Optional Anti-PID function
Optional AFCI protection
Model: SUN-8K-G06P3-AU-BM2-P1
PV String Input Data
Max. PV Input Power (kW): 12
Max. PV Input Voltage (V): 1100
Start-up Voltage (V): 140
MPPT Voltage Range (V): 120–1000
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 20+20
Max. Input Short-Circuit Current (A): 30+30
No. of MPP Trackers/
No. of Strings per MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (kW): 8
Max. AC Output Apparent Power (kVA): 8.8
Rated AC Output Current (A): 12.2/11.6
Max. AC Output Current (A): 13.4/12.8
Rated Output Voltage (V): 220/380, 230/400
Grid Connection: 3L/N/PE
Power Factor Adjustment Range: 0.8 Leading to 0.8 Lagging
Total Harmonic Current Distortion: <3%
Efficiency
Max. Efficiency: 98.3%
Euro Efficiency: 97.8%
MPPT Efficiency: >99%
General Data
Operating Temperature Range: -25°C to +60°C, Derating Above 45°C
Ingress Protection Rating: IP65
Noise Level: ≤45dB
Communication Interface: RS485 and RS232
Monitoring: Wi-Fi, GPRS, Bluetooth, 4G or LAN Optional
Cabinet Size (mm): 283W × 525H × 178D
(Excluding Connectors and Brackets)
Weight (kg): 11.5
Cooling: Natural Cooling
Warranty: 10 Years
Safety/EMC Standards: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2
